Support for Ethernet Interface OEM CNC CNC

Free STL file Support for Ethernet Interface OEM CNC CNC, ramses3D

Did you 3D print this model?

3D model description

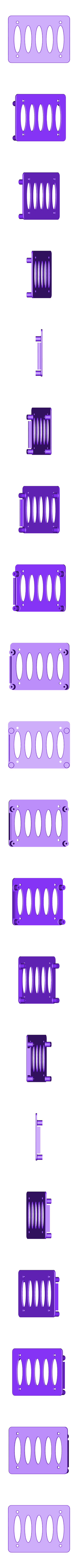

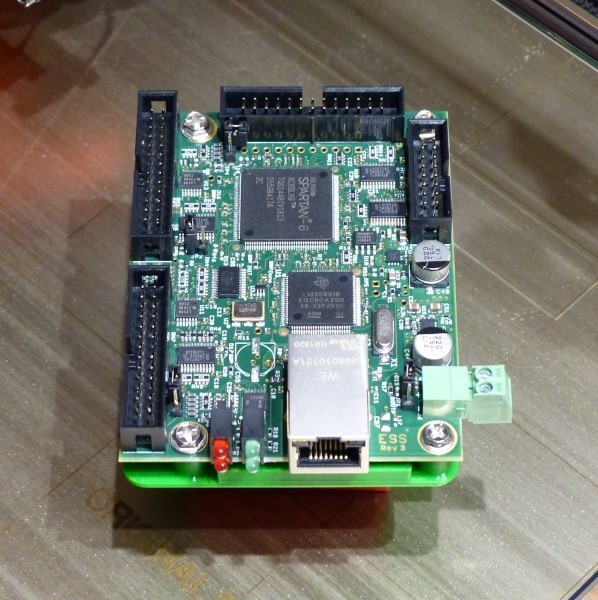

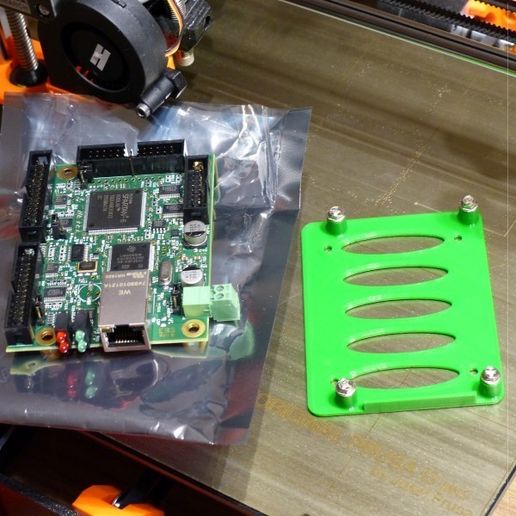

Simple support for the Ethernet OEM interface card for CNC.

Support dimensioned so that once fixed against the panel of the box, the RJ45 plug and the 4Leds touch the sheet metal cut to size to allow Leds and plug to pass through.

Large clearance between the bottom of the bracket and the board to allow sufficient ventilation.

The 4 pillars supporting the card are designed for M3 threading.

3D printing settings

-Printing made in PETG (150µm) on a Prusa MK3

-Recommended printing in 150µm or 200µm

2-ply walls

  • 3D model format: STL

Tags

Creator

License

CC BY NC ND
