Holder for filament bobbin dispenser with filament bobbin axis and bobbin axis

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.3k views
  • 5 likes
  • 81 downloads

3D model description

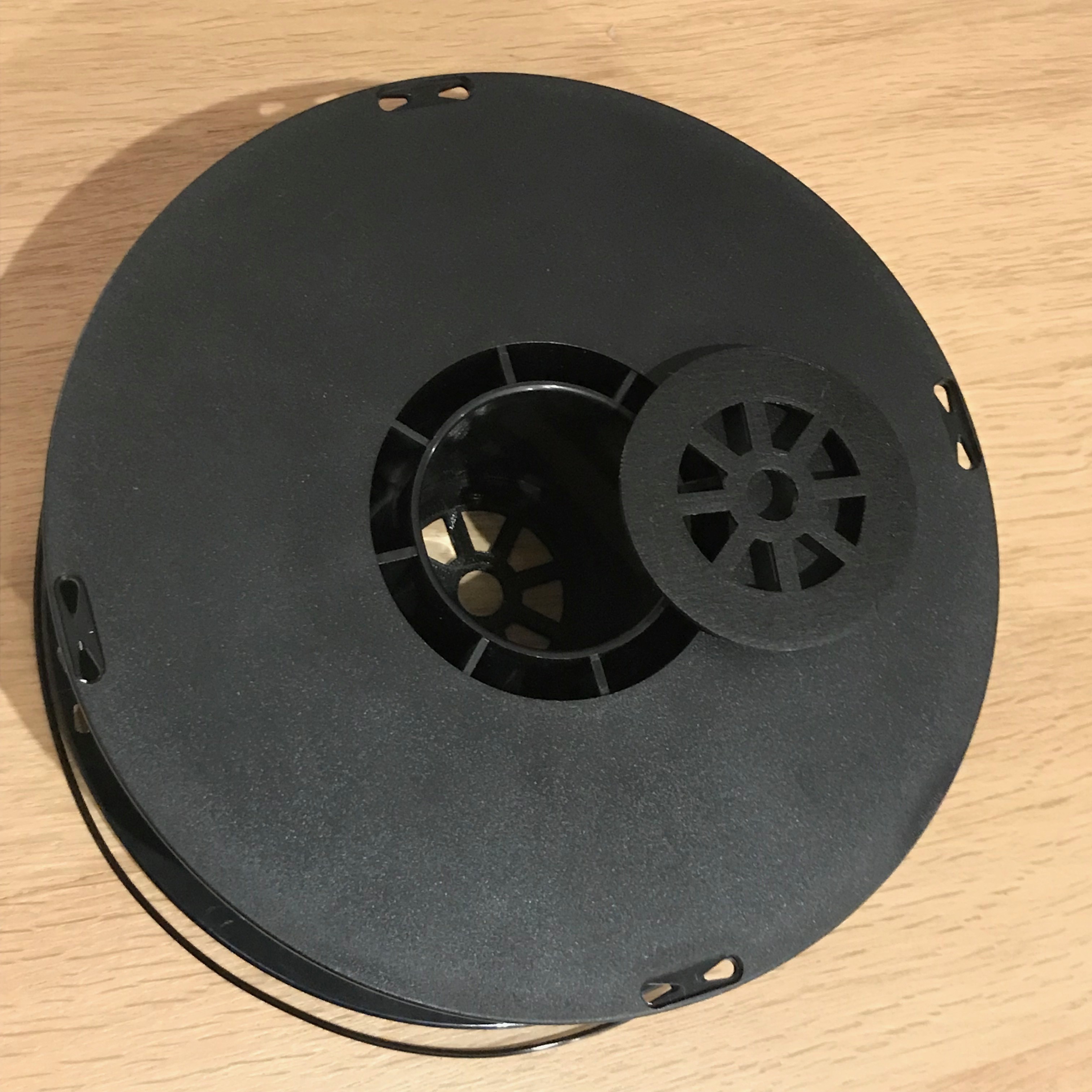

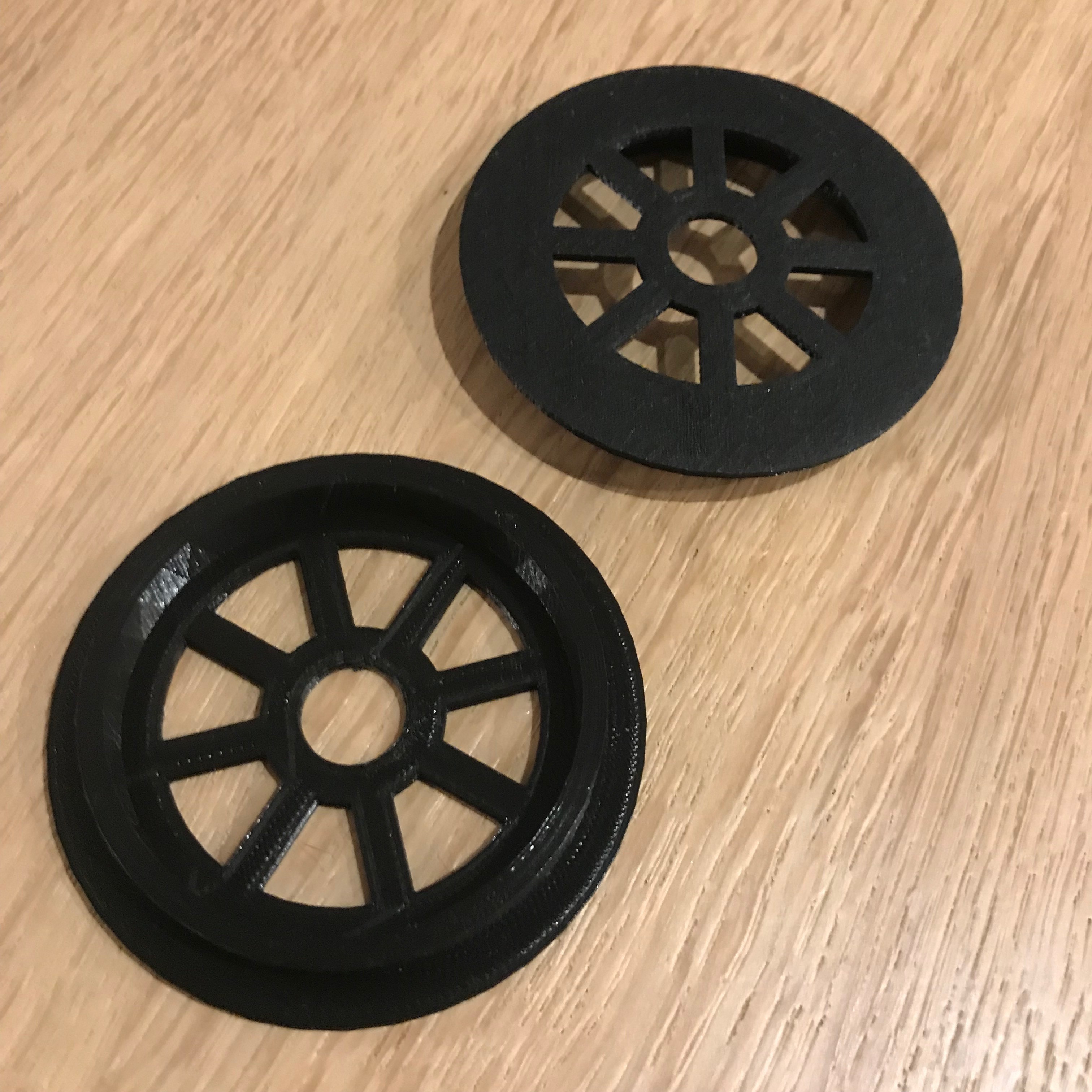

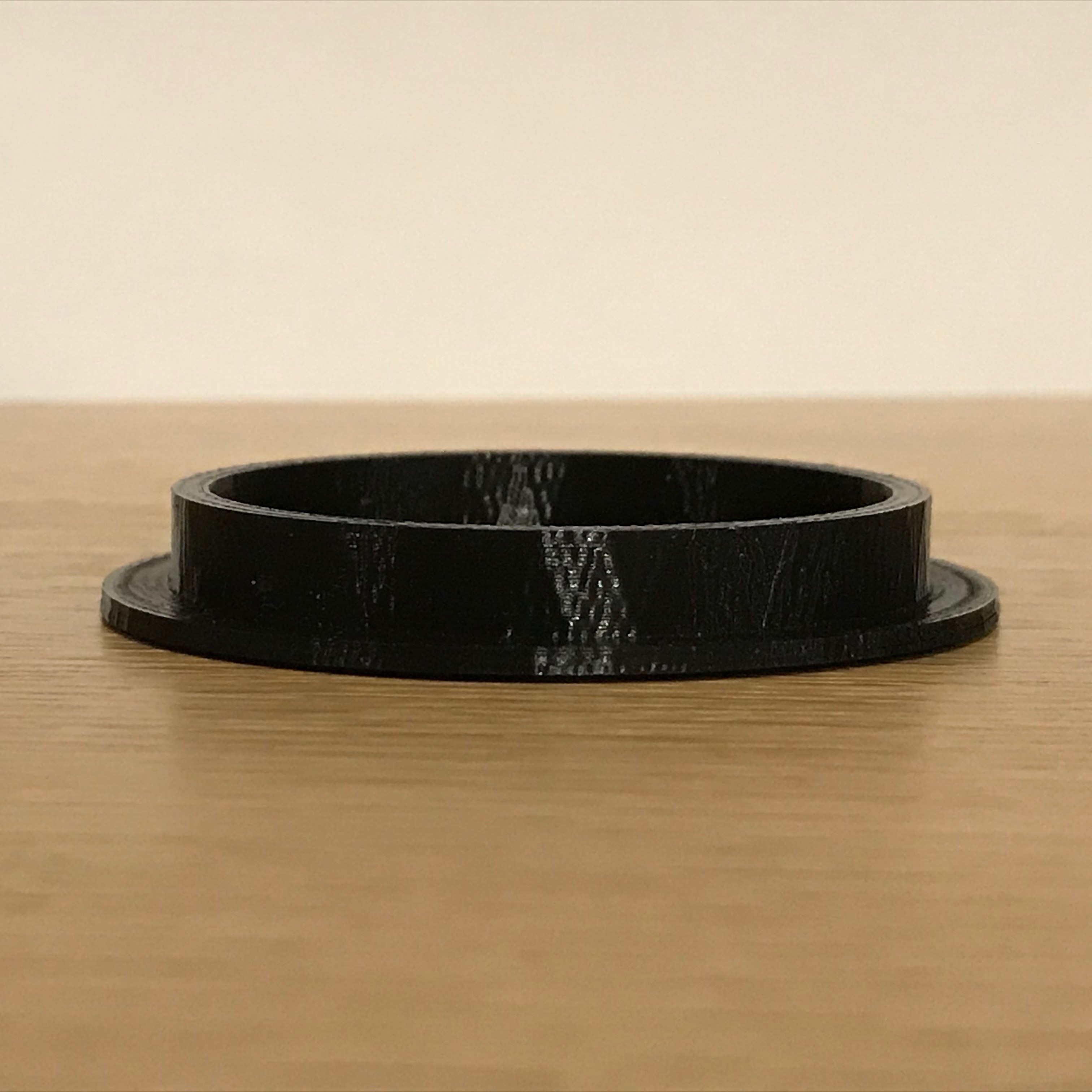

-Cabochon to be inserted on the side of the filament reel (3 files available 51 mm, 53 mm, 55 mm) for an axis of 10 mm (for my part buy expensive Beaverama in one meter tube for a little less than 7€).

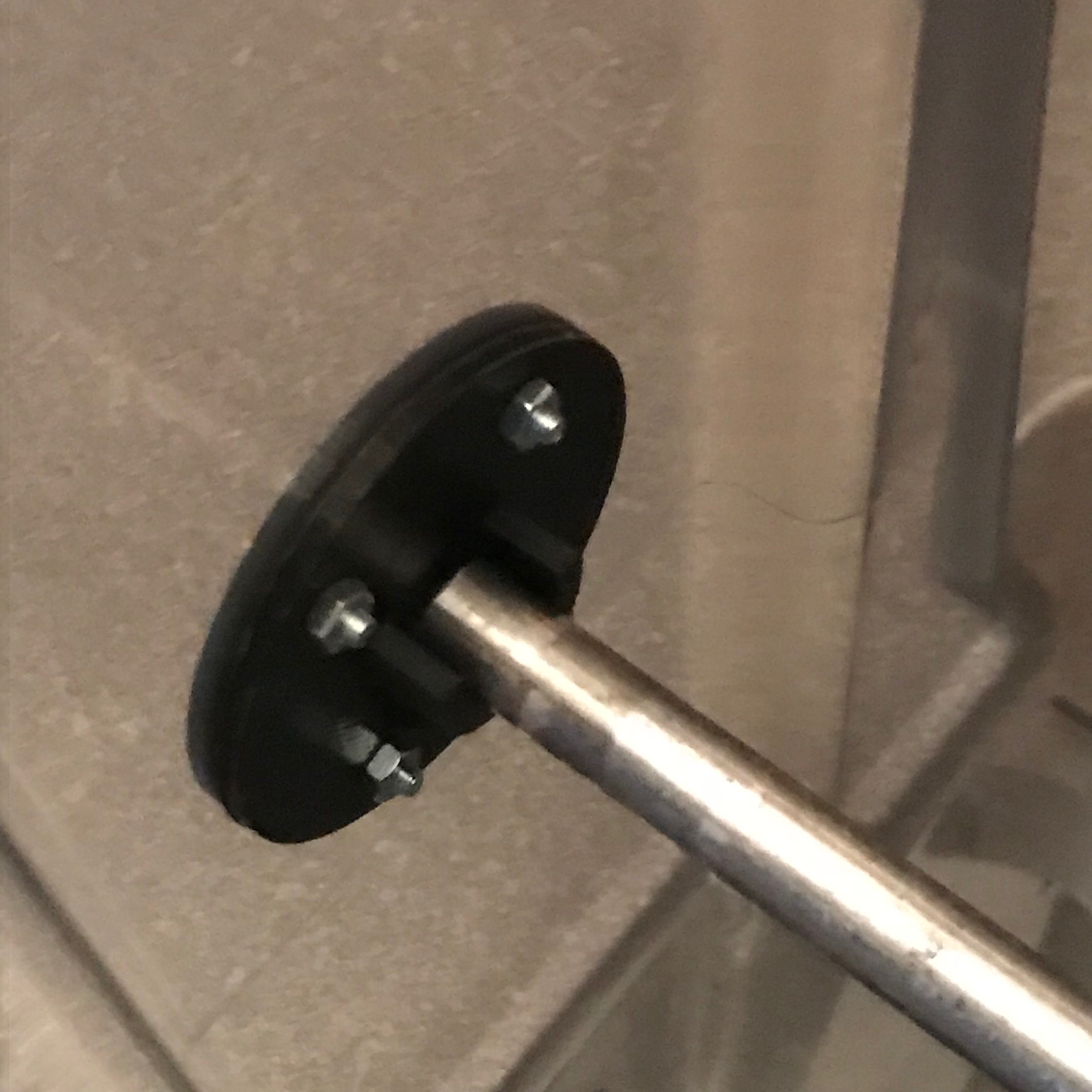

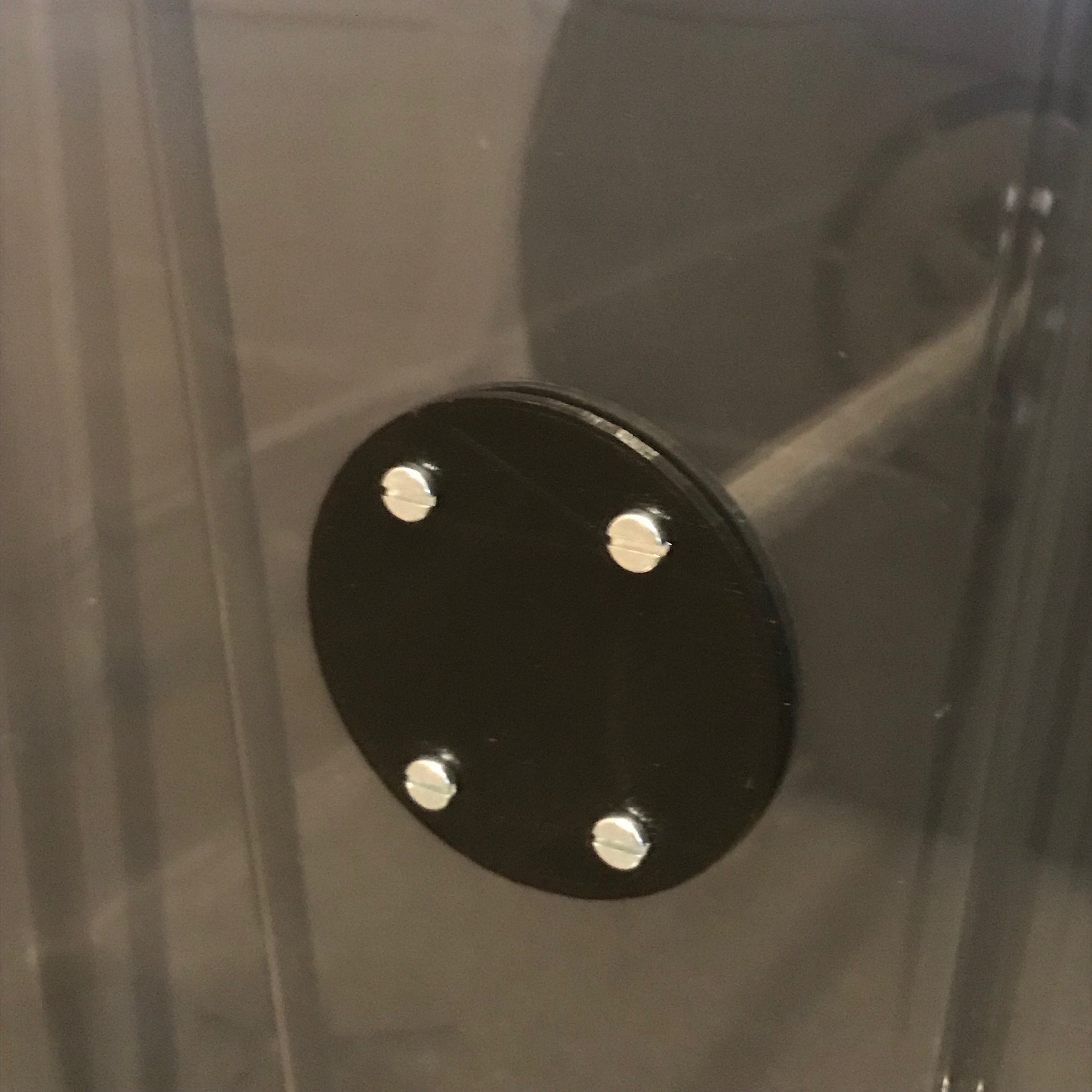

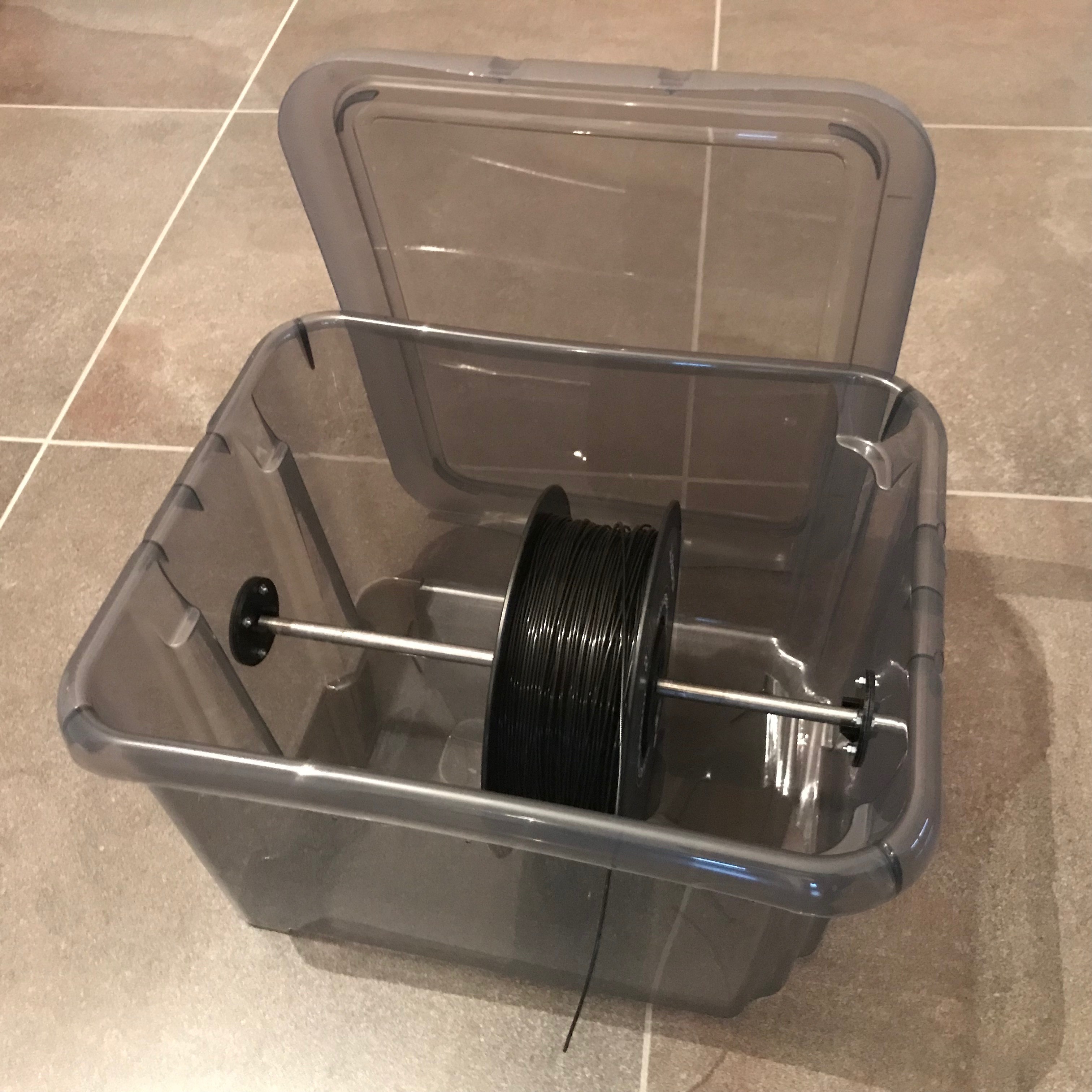

-Coil axis support for a box (10 mm axis)

Fits on any storage box.

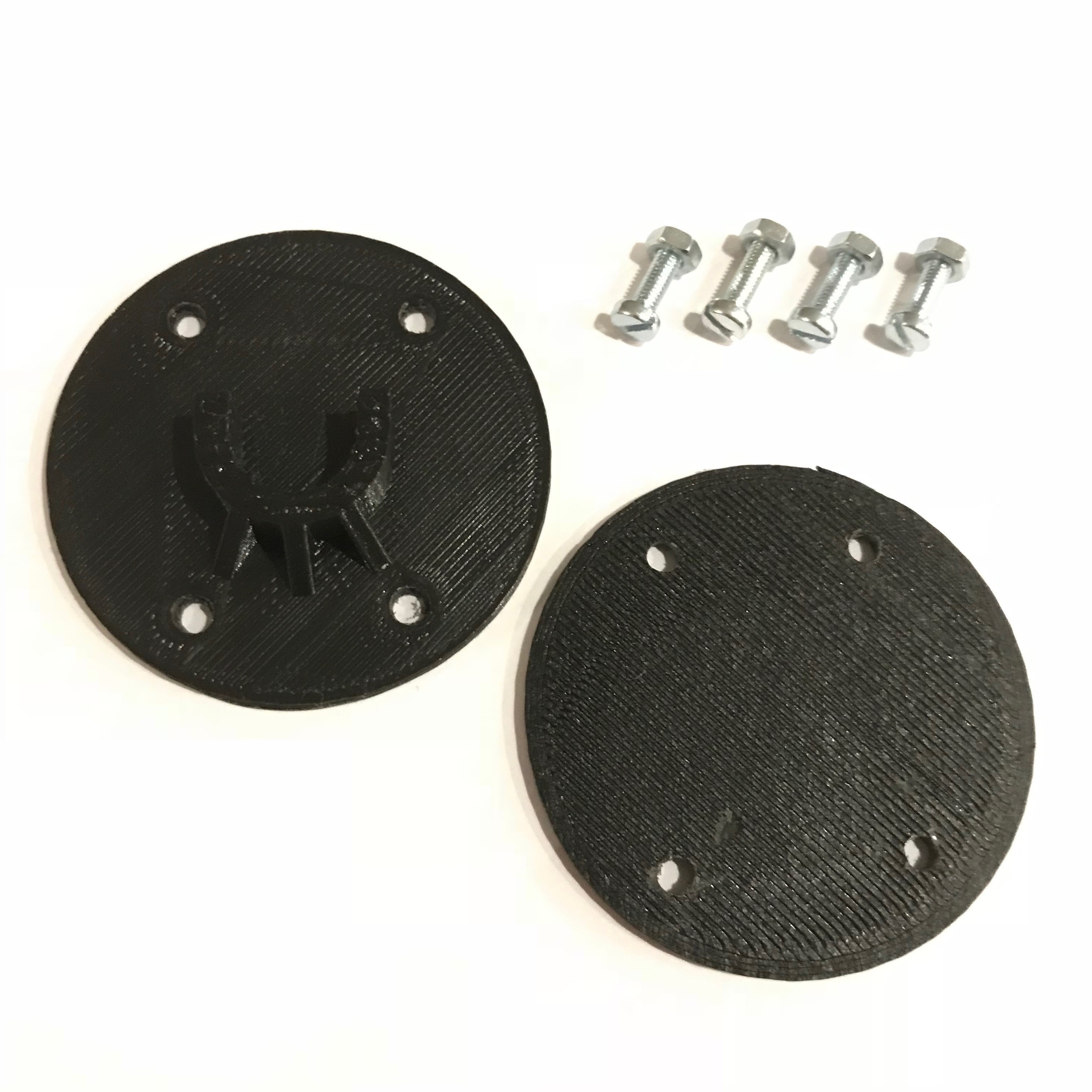

It is composed of 2 parts: an external and an internal part.

To assemble it you need: - 1 screw (diam. 3 mm and length 10 mm) and 8 nuts

                                   - 1 tube for the axis with a diameter of 10 mm

The fixing holes are plugged to a very small depth, otherwise it is very difficult to print well if they are completely empty.

It is therefore sufficient to drill them afterwards.

For any problem or modification please send me an e-mail to hb57@laposte.net


3D printing settings

Coil axis: 30% filling

Easily printed in PLA

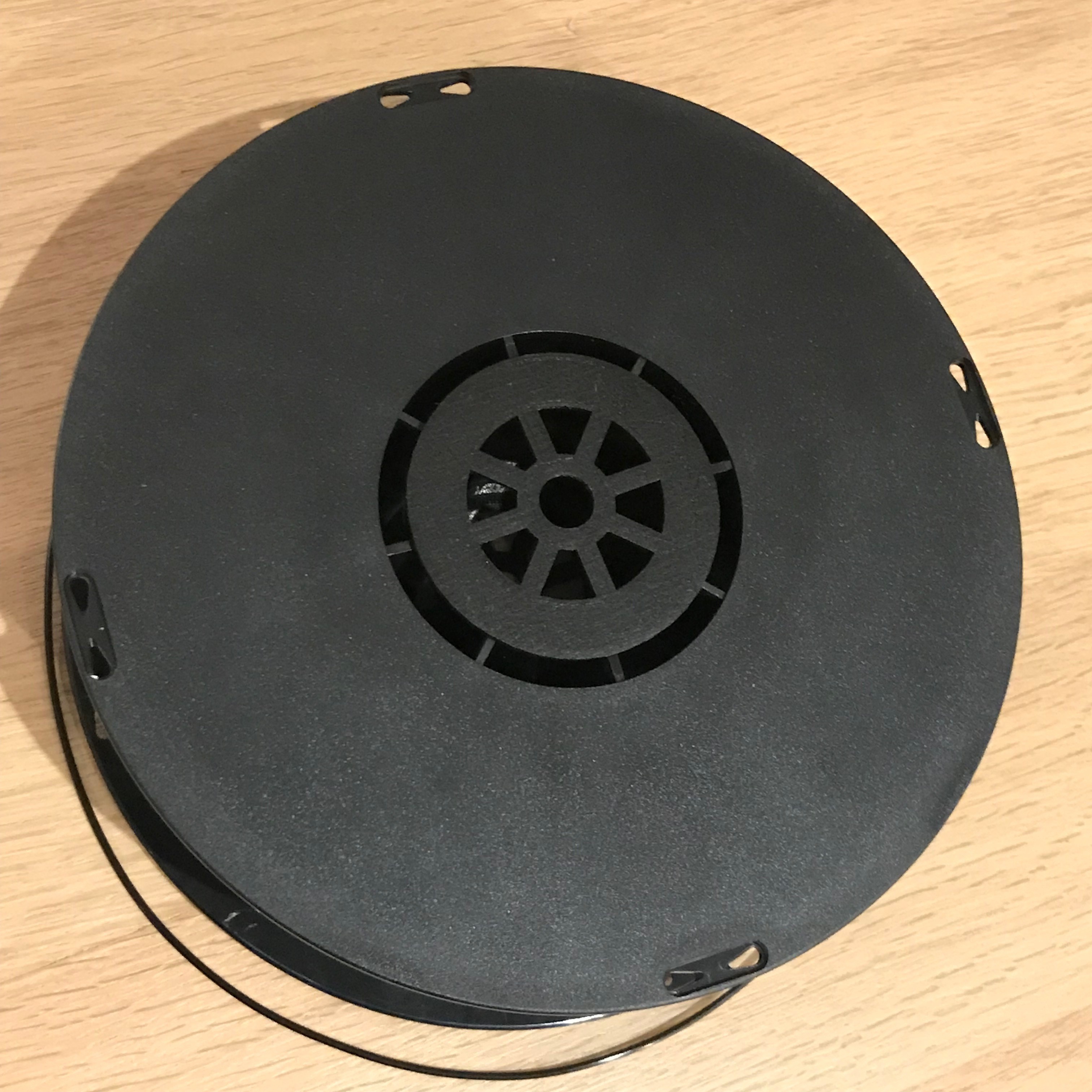

Example in black PLA

Coil axis support: 100% filling and about 1h30 printing

3D printer file information

  • 3D design format: STL Folder details Close
    • axe bobine filament 51mm.stl
    • axe bobine filament 53mm.stl
    • axe bobine filament 55mm.stl
    • support axe bobines ext.stl
    • support axe bobines int.stl

    Learn more about the formats

  • Last update: 2019/01/25 at 18:59
  • Publication date: 2017/12/25 at 14:51
