3D model description

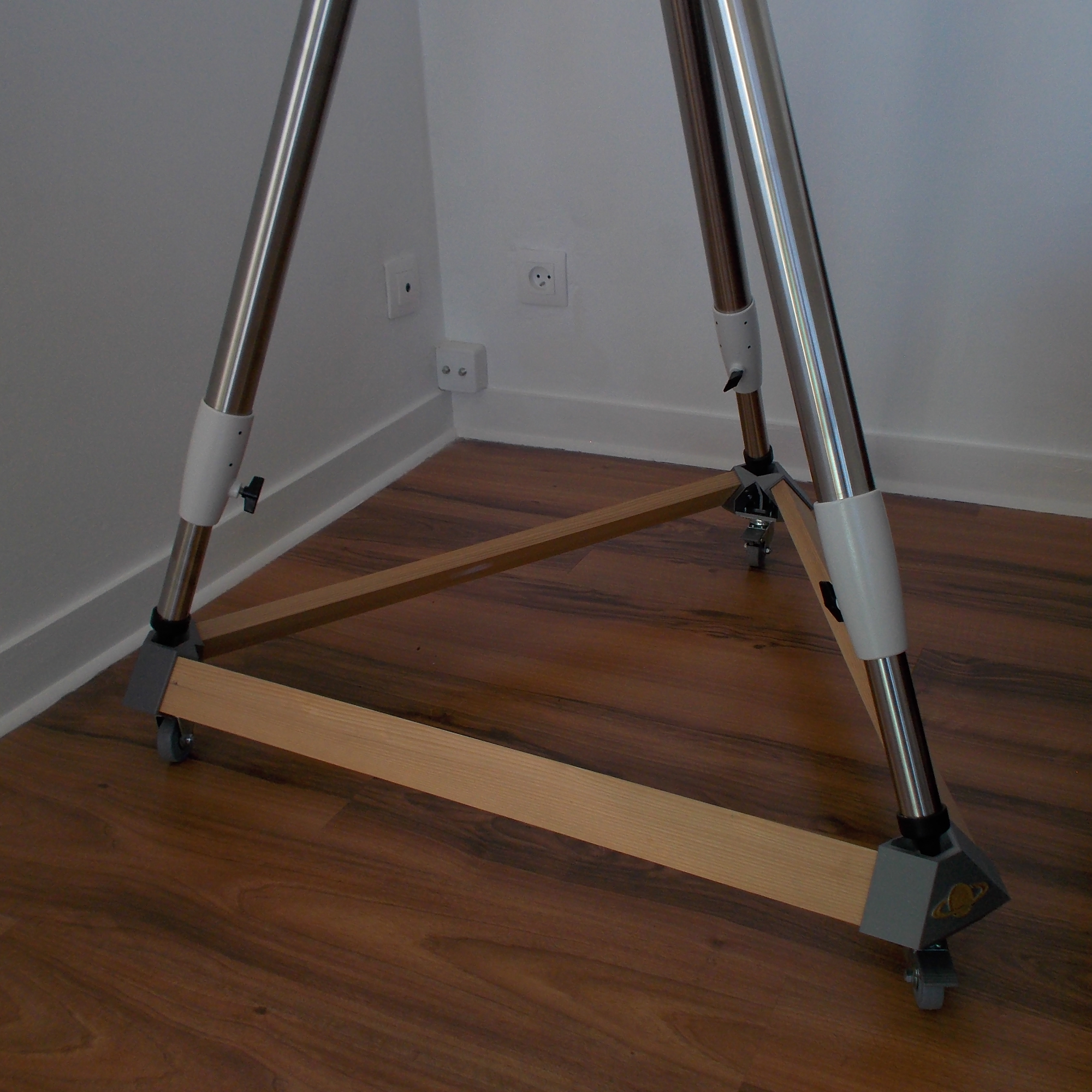

Here is a stand with wheels for tripod (at home it supports a heavy enough telescope).

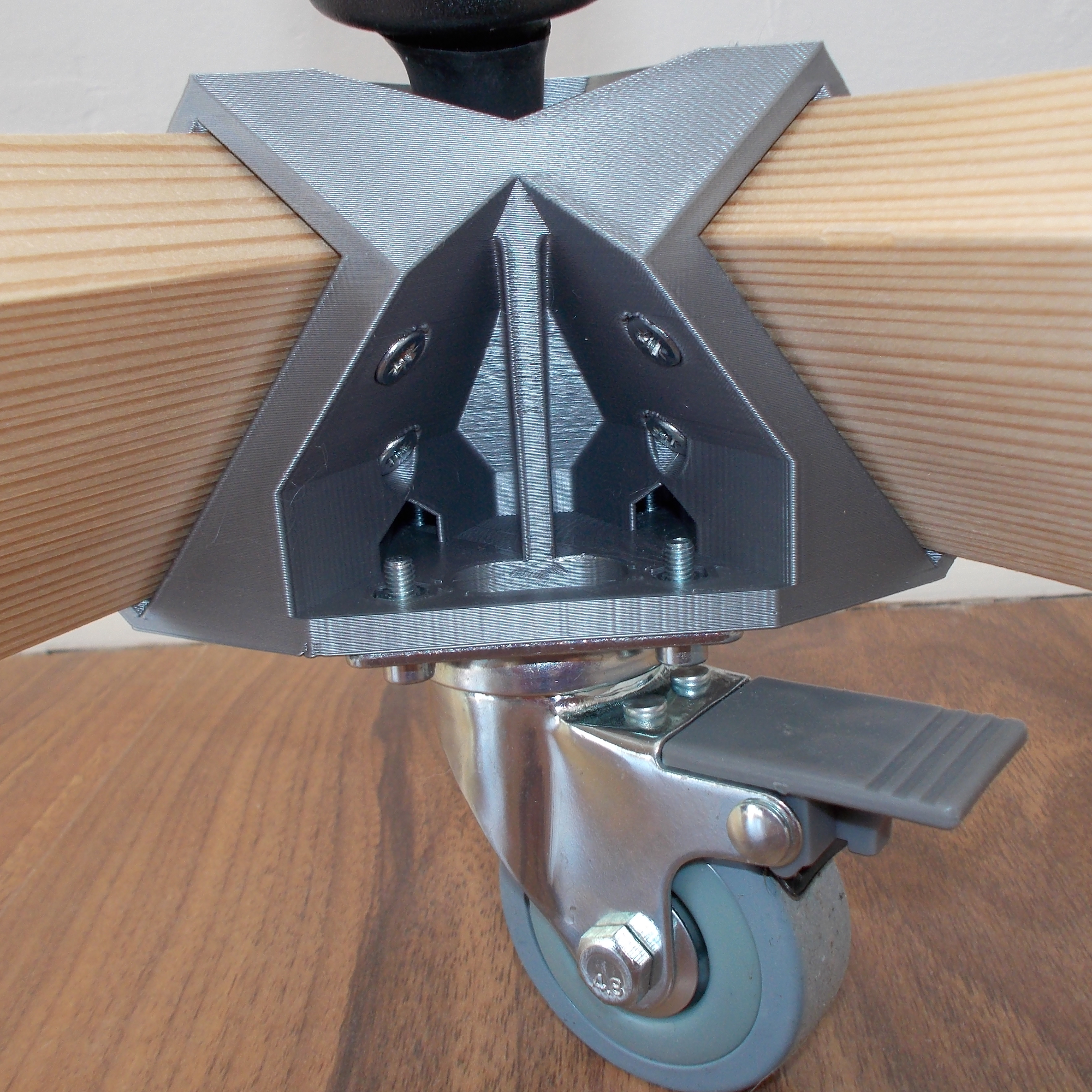

In addition to the 3 printed pieces you will need to get

12 nuts M4

12 medium M4 washers

12 CHC M4 screws, between 10 and 16 mm long

18 countersunk wood screws diameter 4 mm length 20 mm

3 castors, 2 of which have brakes, with 4 fixing holes compatible with a 35.75 mm centre distance

3 cleats of section 21 x 57 mm, of identical length, their lengths must be adapted to the size of the support which one wishes to obtain, on my support they make 800 mm

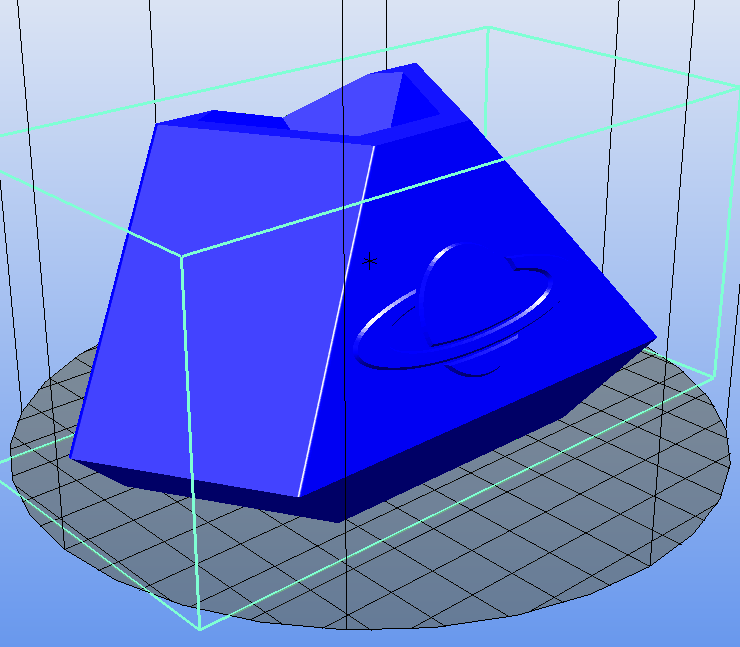

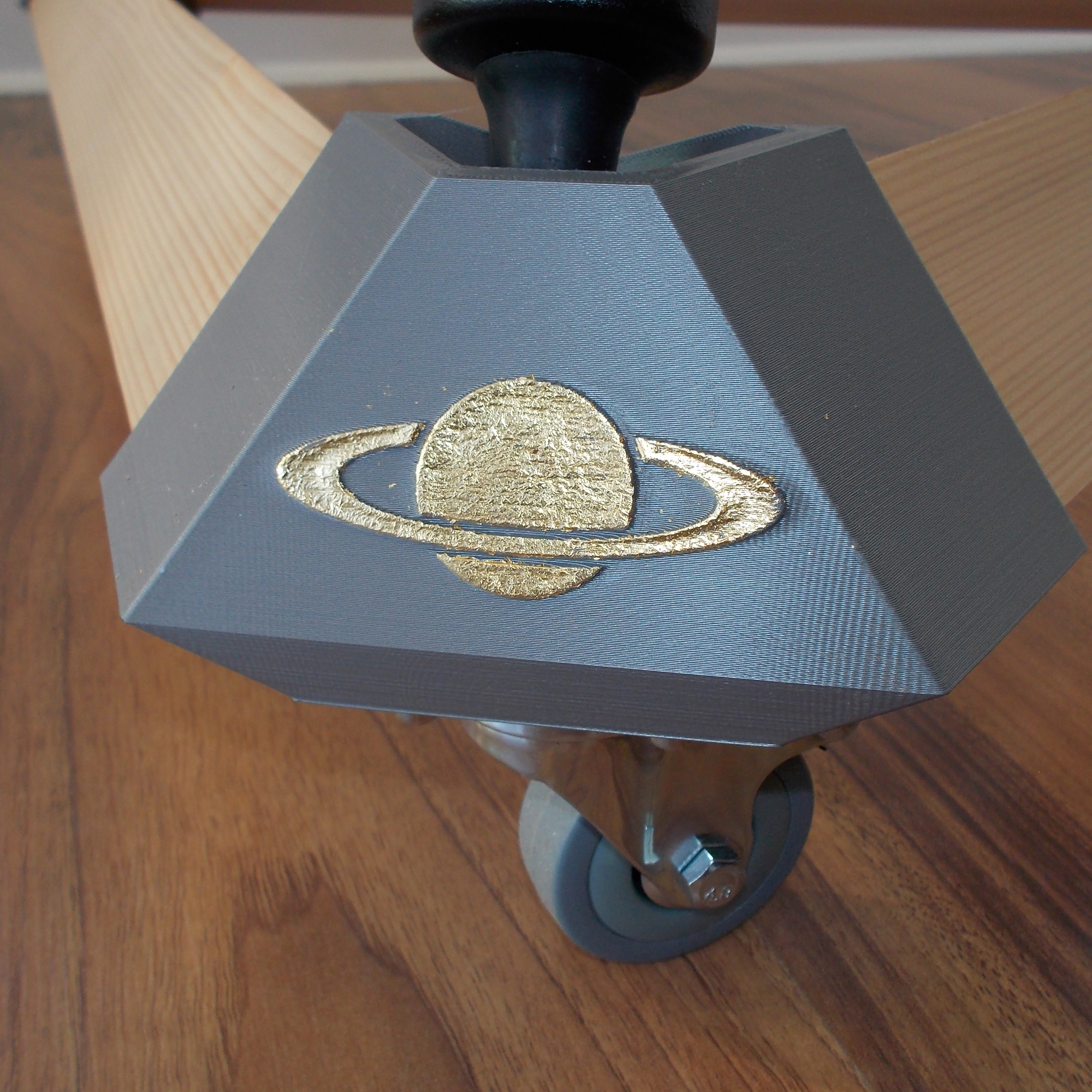

I decorated the printed pieces by gluing a small gold leaf on the relief drawing.

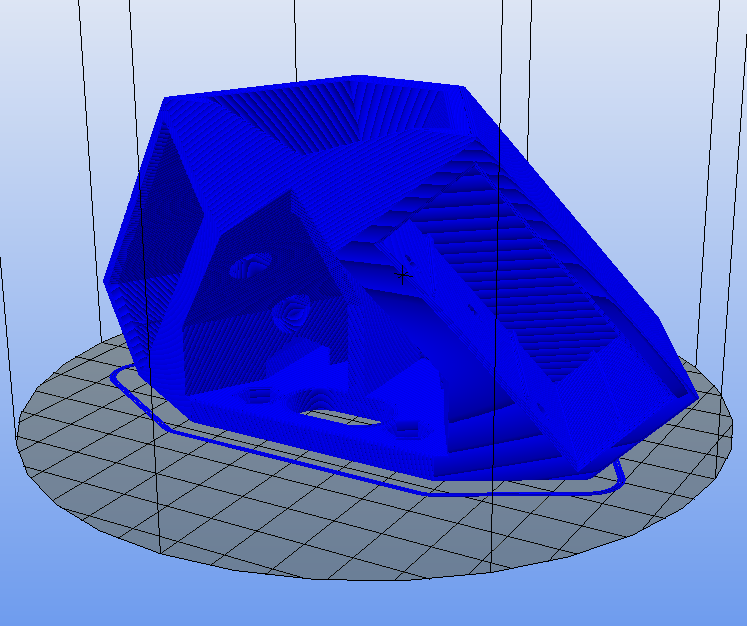

3D printing settings

Printing without media

3 wall thicknesses for 0.4 nozzle, 10% or more filling

3D printer file information

  • 3D design format: STL Folder details Close
    • suptele lune.STL
    • suptele_saturne.STL

    Learn more about the formats

  • Publication date: 2018/07/17 at 23:02

License

CC BY NC
