Supermarine Spitire Mk IX 600mm

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.2k views
  • 8 likes
  • 23 downloads

3D model description

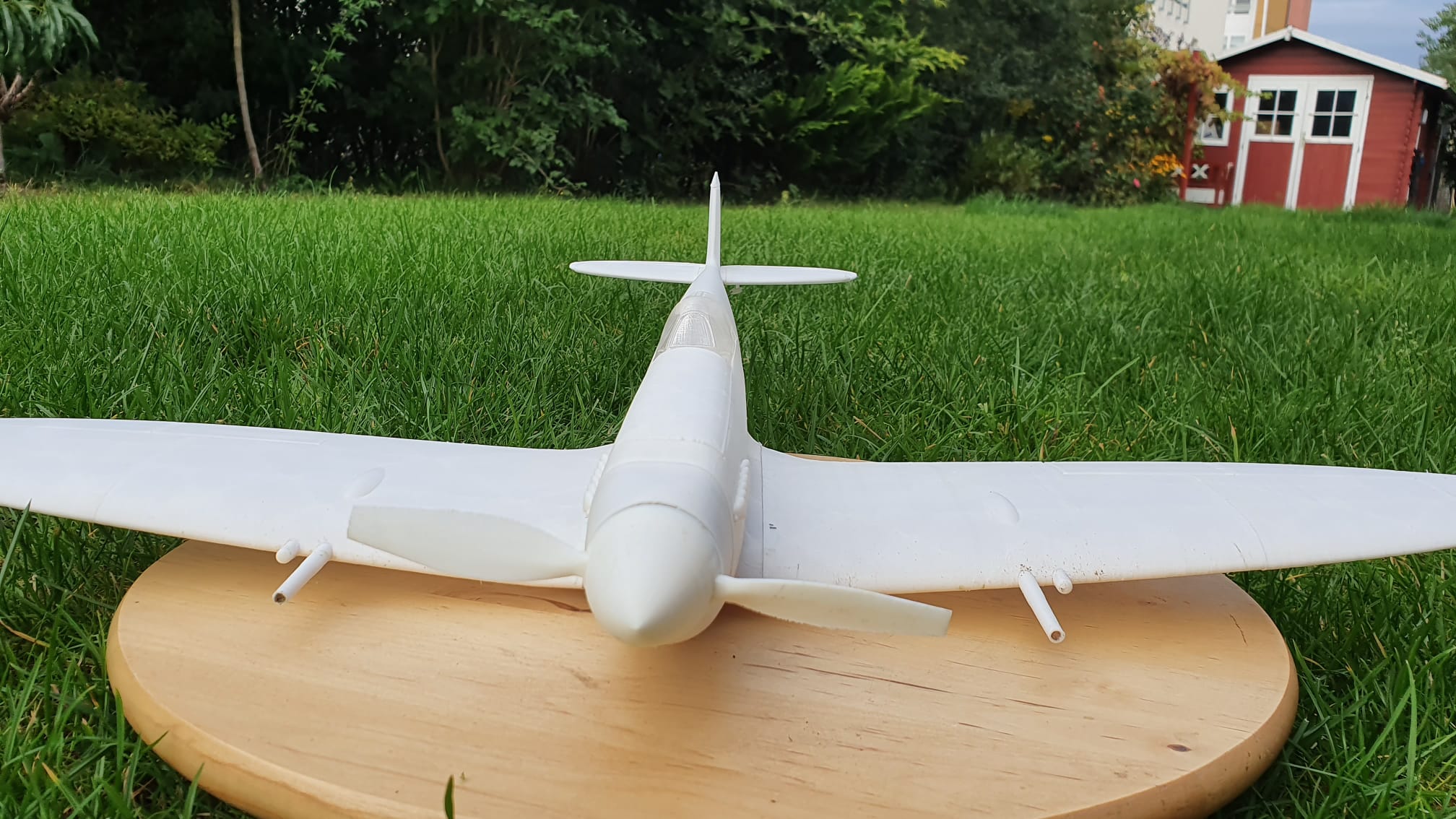

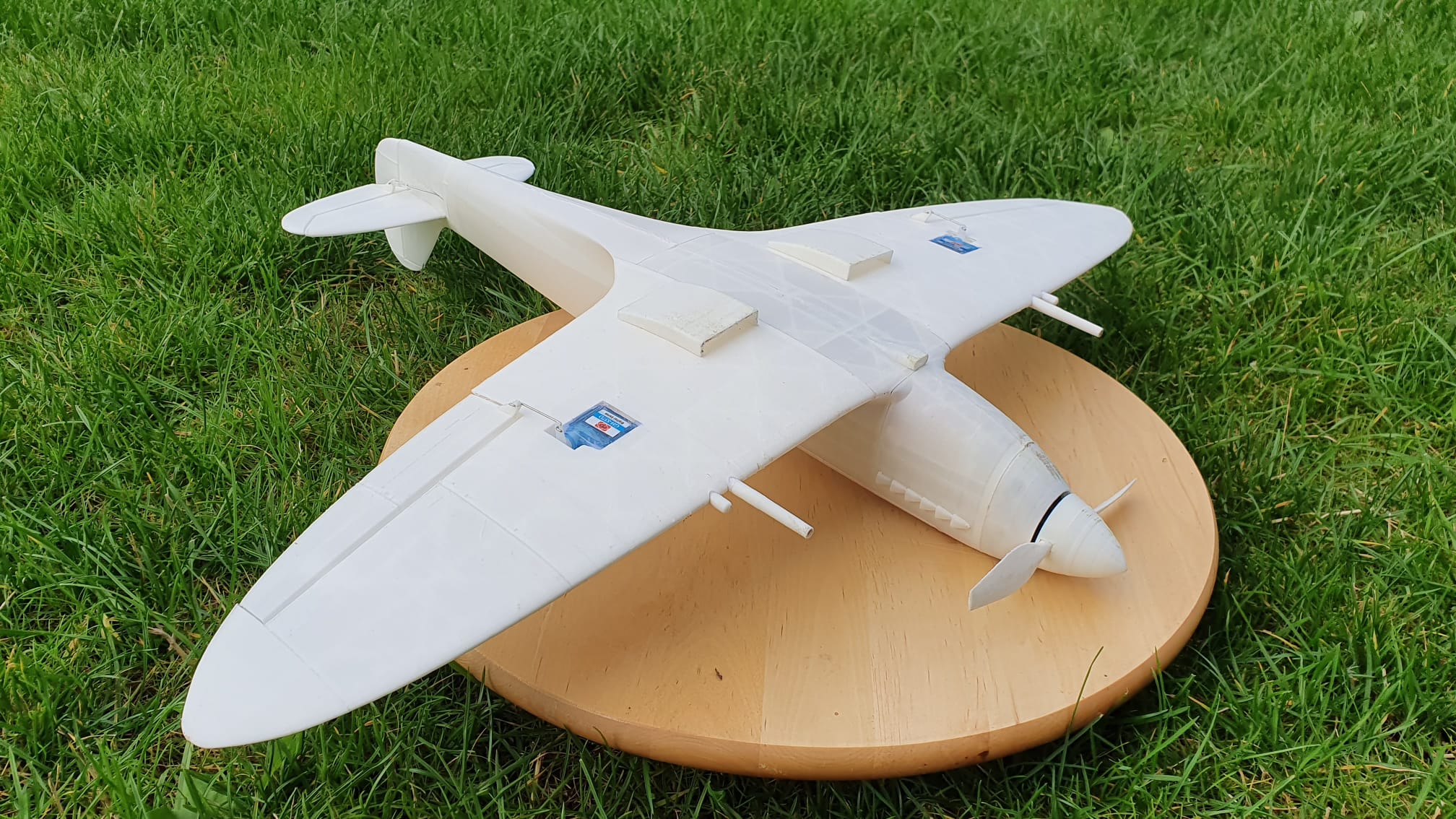

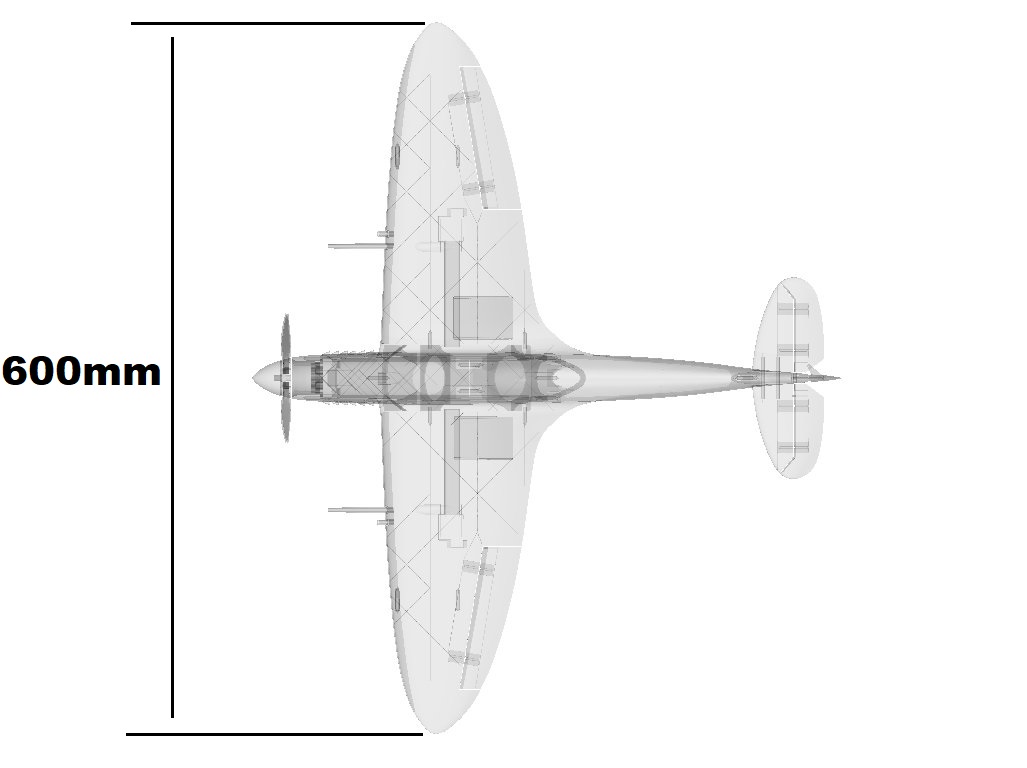

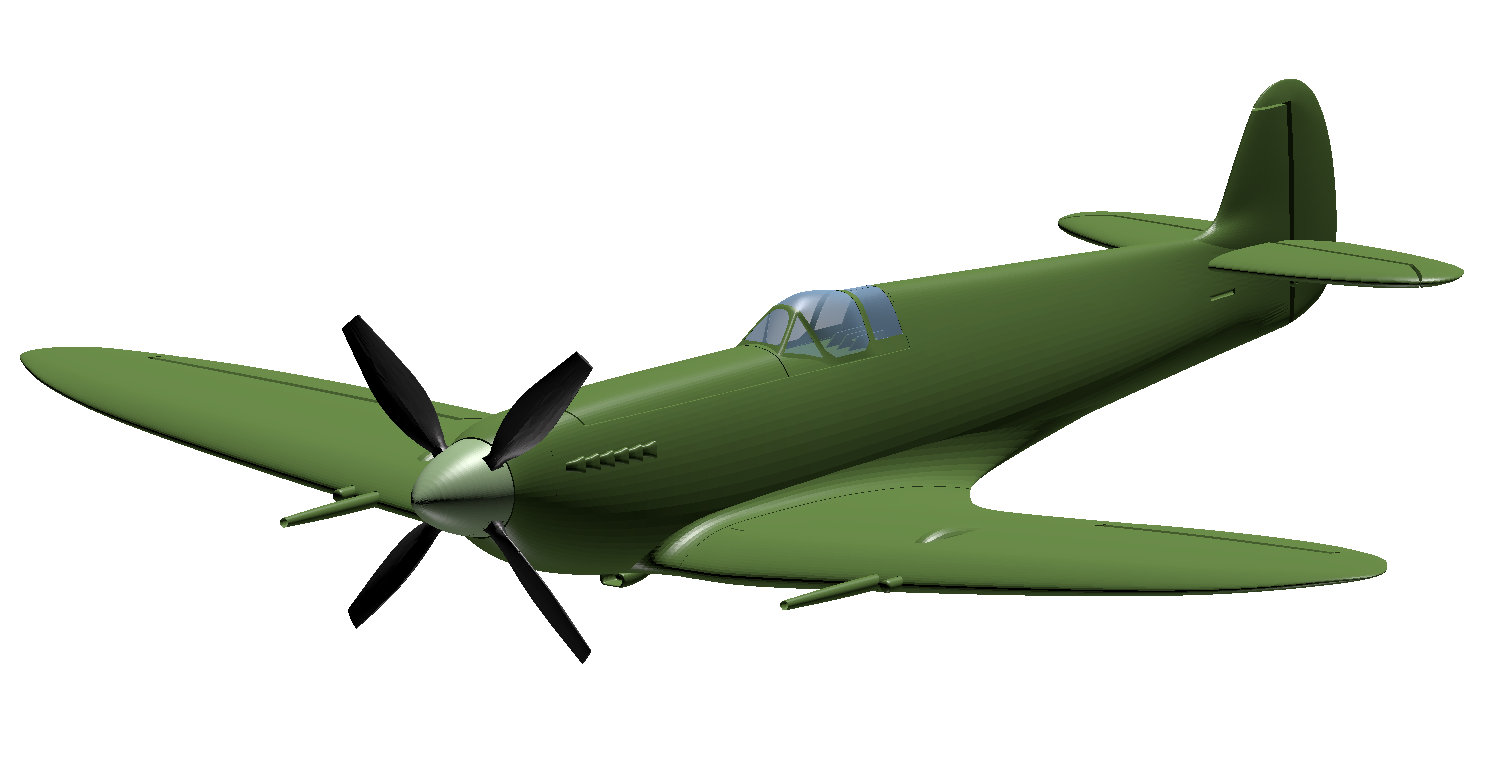

A custom replica of the Supermarine Spitire Mk IX ww2 fighter, this 600mm wingspan version is powered by a 1806 2300kv electric out-runner. Designed to be printed in LW-PLA this model floats through the air with ease.

Included with this file:

Factory files for Simplify 3d
STL files for all components

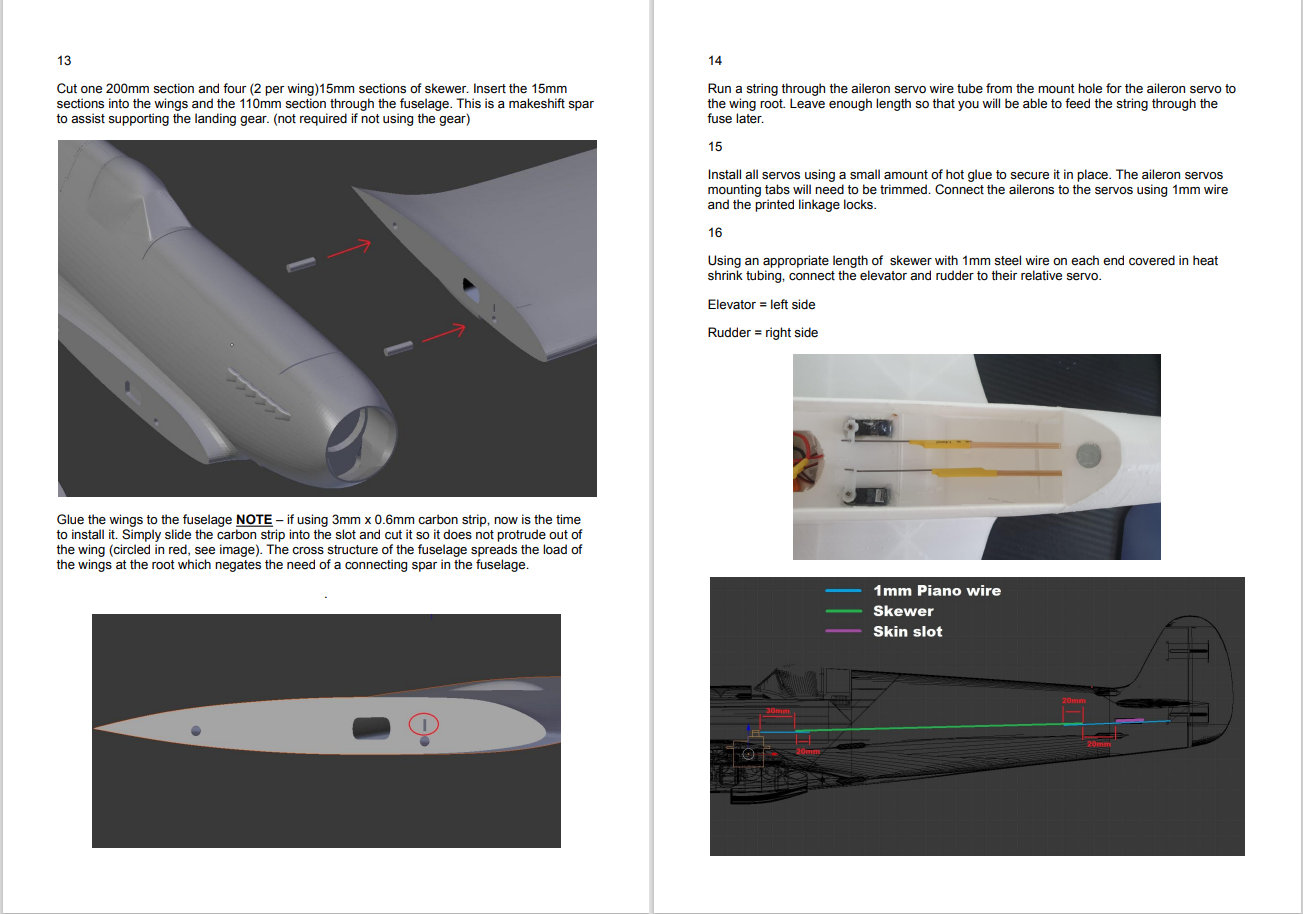

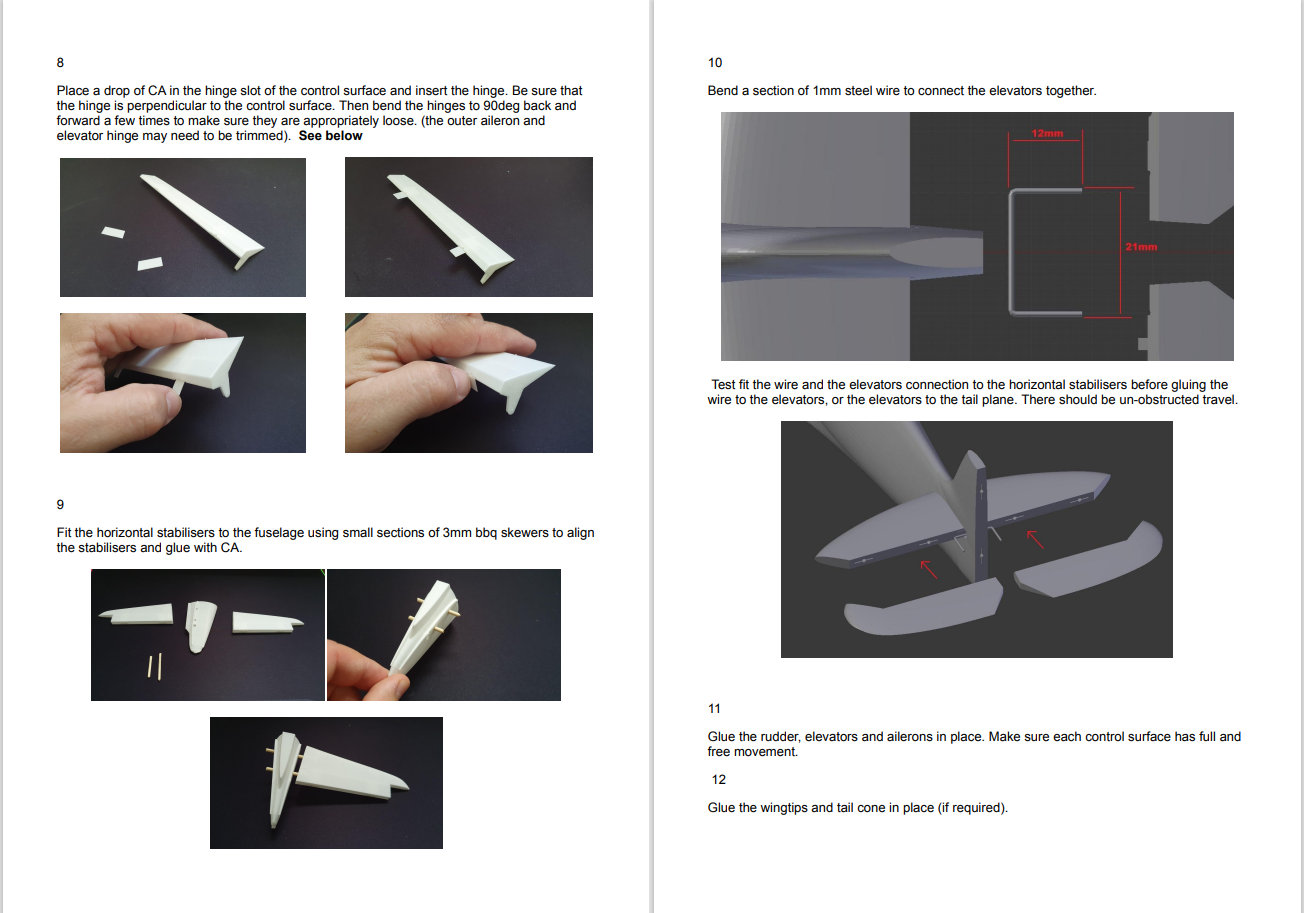

Assembly manual and user guide

FLIGHT VIDEO: https://www.youtube.com/watch?v=-M1-Qiq9MHg

Print time: 42hrs

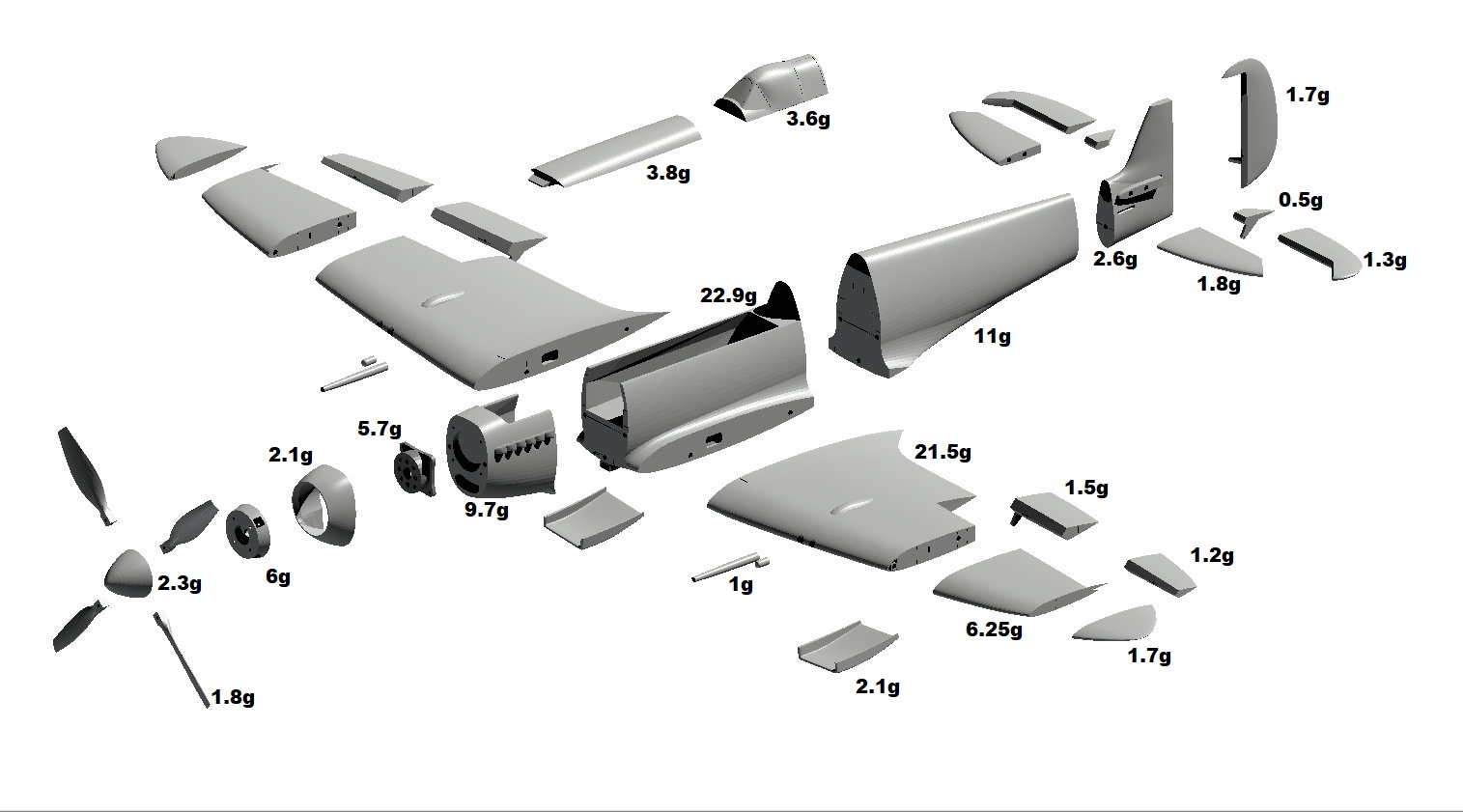

Print weight: 115g
RTF AUW: 230g with gear listed below installed

REQUIRED COMPONENTS:
X1 1806 2300KV MOTOR (or similar)
X1 10AMP ESC
X1 950MAH 2S LIPO OR SIMILAR
X4 3.7G MICRO SERVO
X2 BAMBOO SKEWERS
HEAT SHRINK TUBE 3mm
X2 10mm X10mm X 2mm MAGNET (ROUND)
X10 MICRO HINGES
VELCRO
X2 x 200mm carbon strip 3mm x 0.6mm (optional)
M2 x10mm screws

PARTS LINKS:

X1 1806 2300KV MOTOR
https://au.banggood.com/DYS-BE1806-2300KV-Brushless-Motor-Black-Edition-for-Multicopters-p-946416.html?rmmds=search&cur_warehouse=CN

X1 10AMP ESC
https://www.aliexpress.com/item/32908414252.html?spm=a2g0o.productlist.0.0.336e60f8y3JM5O&algo_pvid=f371514a-a8c2-476a-9a32-5117b1f125e9&algo_expid=f371514a-a8c2-476a-9a32-5117b1f125e9-15&btsid=0bb0623715991457638961240e87fc&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

X1 950MAH 2S LIPO OR SIMILAR
https://www.aliexpress.com/item/32907577121.html?spm=a2g0s.9042311.0.0.30714c4dJd4dZG

X4 3.7G MICRO SERVO
https://www.aliexpress.com/item/32965734270.html?spm=a2g0o.productlist.0.0.57d95e97aWNNAJ&algo_pvid=4824ea1c-06ed-43e8-b6c7-9737d1226dbe&algo_expid=4824ea1c-06ed-43e8-b6c7-9737d1226dbe-0&btsid=0bb0623415991458444523660eb7bd&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

X2 BAMBOO FOOD SKEWERS (3mm diameter)

HEAT SHRINK TUBE 3mm
https://hobbyking.com/en_us/turnigy-3mm-heat-shrink-tube-black-1mtr-1.html?queryID=c16c094bb26b18e39fabcb12a93a96cb&objectID=46911&indexName=hbk_live_magento_en_us_products

X4 10mm X10mm X 2mm MAGNET (SQUARE)
https://hobbyking.com/en_us/strong-rare-earth-magnets-10pcs-set.html?queryID=d581e5b2ddbd7810090ca7ff2ec7c850&objectID=30326&indexName=hbk_live_magento_en_us_products

X10 MICRO HINGES
https://hobbyking.com/en_us/super-light-pivot-round-hinges-d2xw8xl24mm-12pcs.html

VELCRO – (local hardware store)

X2 x 200mm carbon strip 3mm x 0.6mm (optional)
https://www.aliexpress.com/item/32576381076.html?spm=a2g0o.productlist.0.0.4e922cc3nR6757&algo_pvid=500714e5-ce74-4e52-a1b0-e349cac3f595&algo_expid=500714e5-ce74-4e52-a1b0-e349cac3f595-7&btsid=0bb0623e15991463277515177efc08&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

m2 x10mm screws
https://www.ebay.com.au/itm/400PCS-M2-M2-6-Pan-Head-Self-TappingScrews-Assorted-Kit-Stainless-SteelBlack/254399626404?hash=item3b3b663ca4:g:CLEAAOSwQLZdsqkd&frcect upt=true

UPDATES- links to updates can be found below as they come out and will be free to download.

PRINT VOLUME:
200x200x200
320x320x400

For any questions and assistance please email us at:

aeroworks3d@outlook.com

NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.

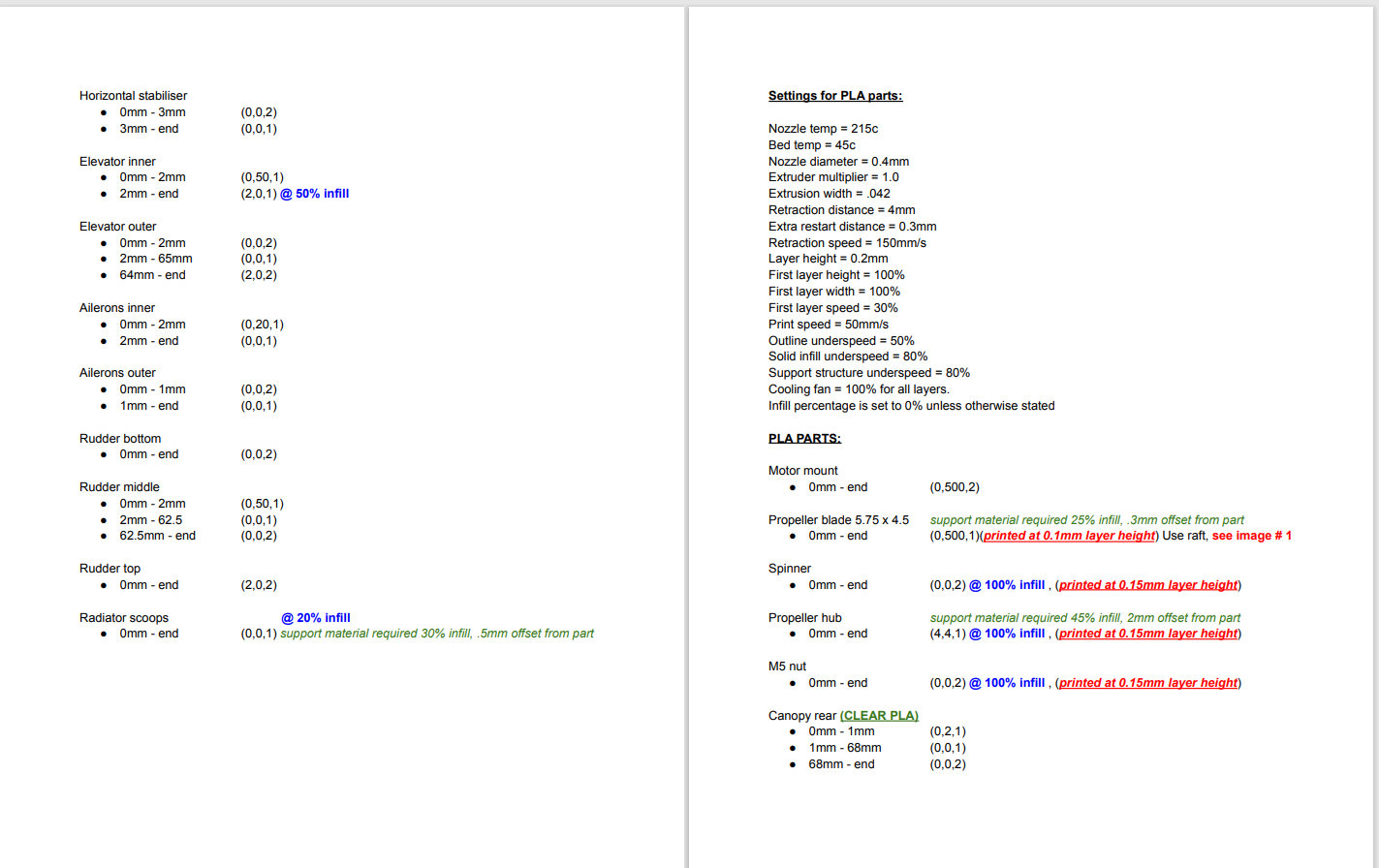

3D printing settings

printing with LW-PLA;

print head = 250 deg c
print bed = 60 deg c

cooling fan to be run for each layer at 100%

  • 3D file format: ZIP
  • Last update: 2020/10/29 at 09:49
  • Publication date: 2020/09/06 at 09:05
