Sub 250g FPV RC Plane

Download free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEterDownload free STL file Sub 250g FPV RC Plane • 3D printer model, FurEter

Did you 3D print this model?

3D model description

youtube:
Build Log:
https://youtu.be/kkuA8uDjndA

Maiden:
https://youtu.be/AnjCwGj4yyE

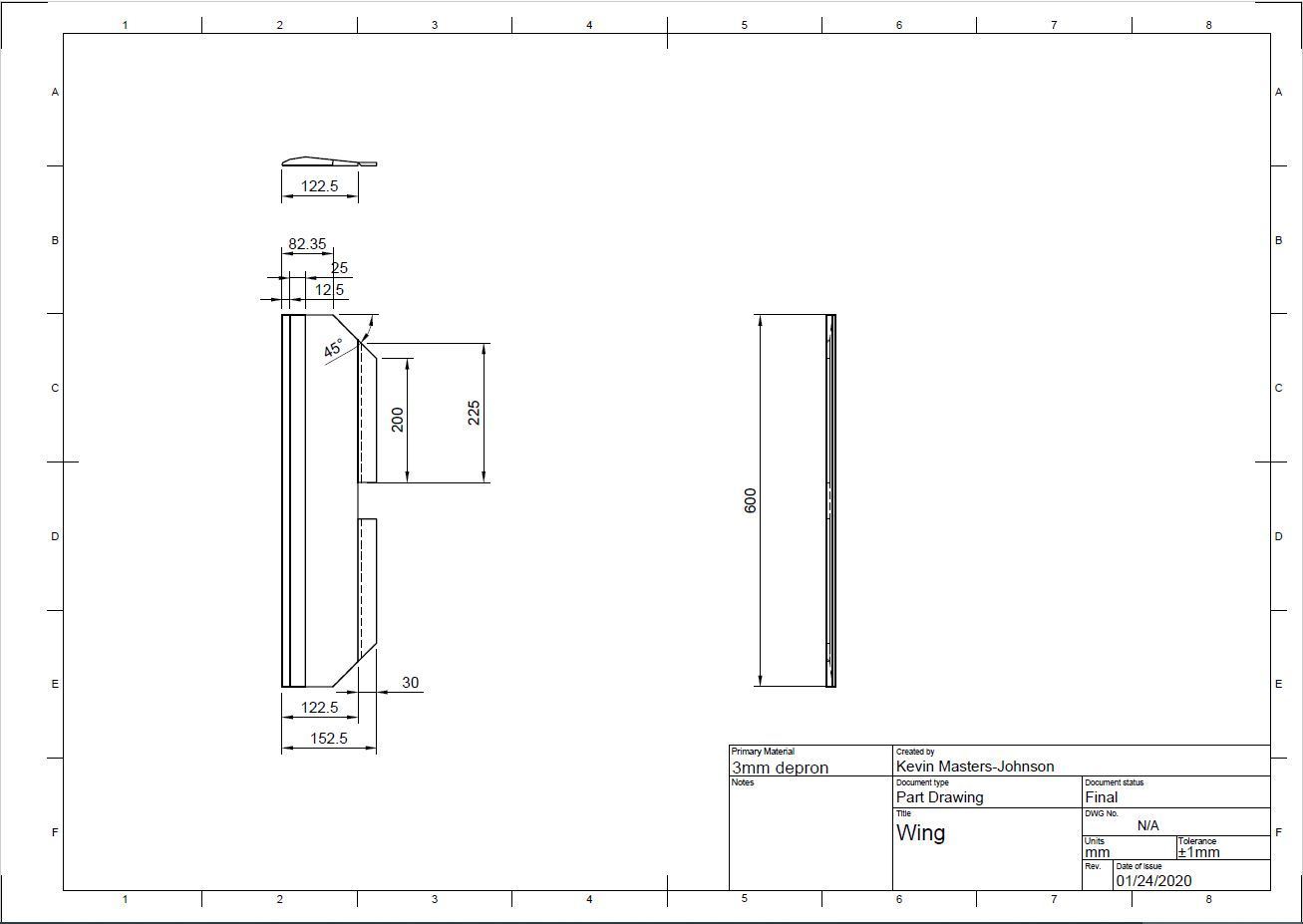

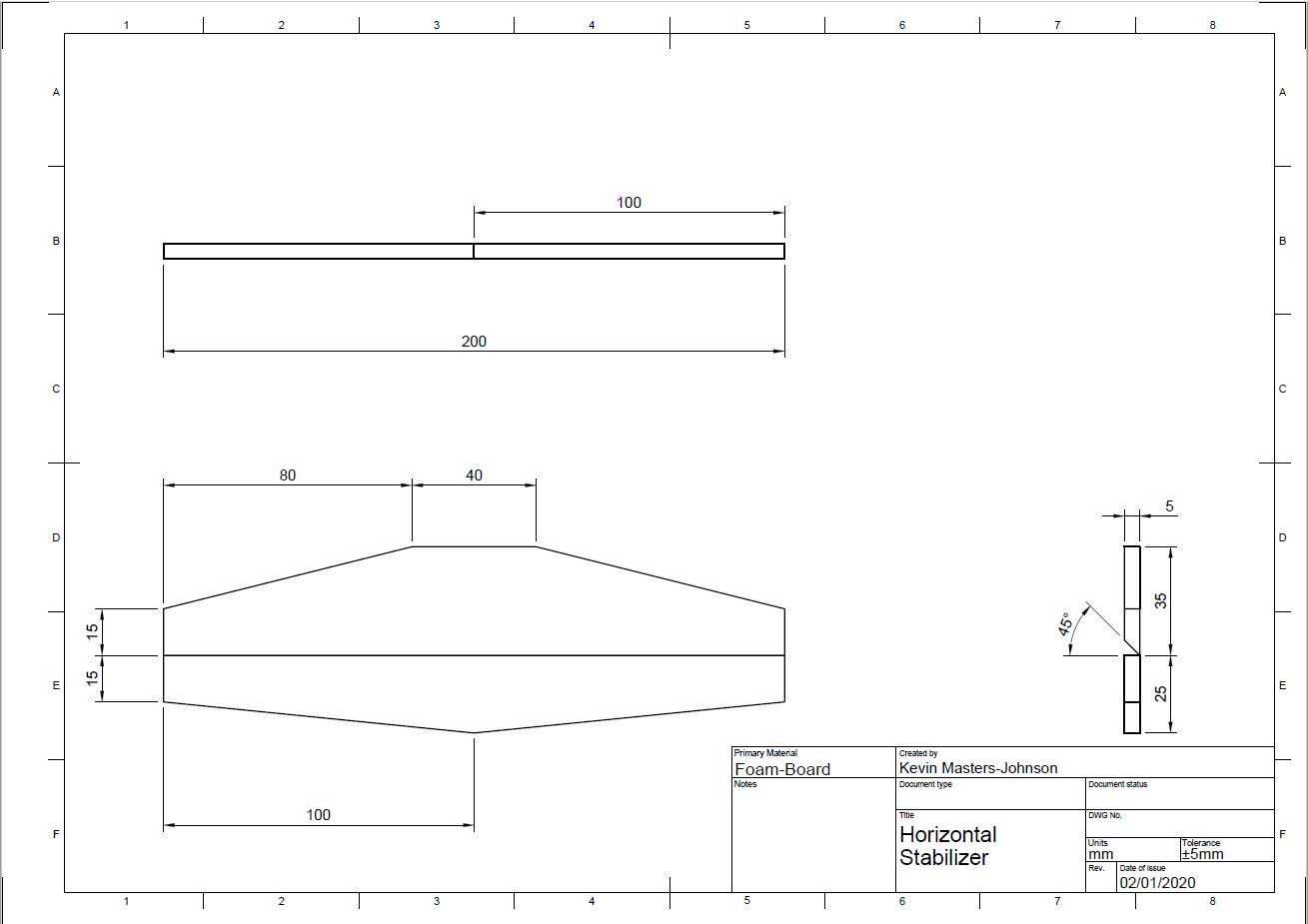

See drawings and Build log video posted above for how to build

Material:
•PLA or PETG for 3d Printed parts
•3mm foam for wing
•5mm foam for fuselage/ tail and control surfaces, and wing spar
•clear tape for reinforcement and hinges
•hot glue for attaching pieces
•Pushrods
•Straw or other tubing to use as pushrod guides

Electronics:
• AX-2204C 1450kv Turnigy brushless motor
•10A ESC (I'm using E-flite, but any equivalent will work if weight is similar)
•3x Turnigy™ TGY-1440A Analog Servo
•Micro receiver (V8R4-II is what I'm using) shoot for something < 3.5g 4 channel
•[Optional] FPVKing Mini CC3D [Flight Controller]
•Battery (I'm using tattu 2s 800mAh li-pos)

Specs:
span: 60cm
MAC: 13cm
area: 780cm²
AR: 4.6
Airfoil: Armin
battery: Tattu 2s 800mAh
motor: Turnigy AX-2204C 1450KV
prop: Turnigy 7x3.4 & APC-E 7x6 or equivalent for the motor
mass: 244g
wing loading: 3.12kg/m²
Fuselage len: 51cm
Tail length: 33cm

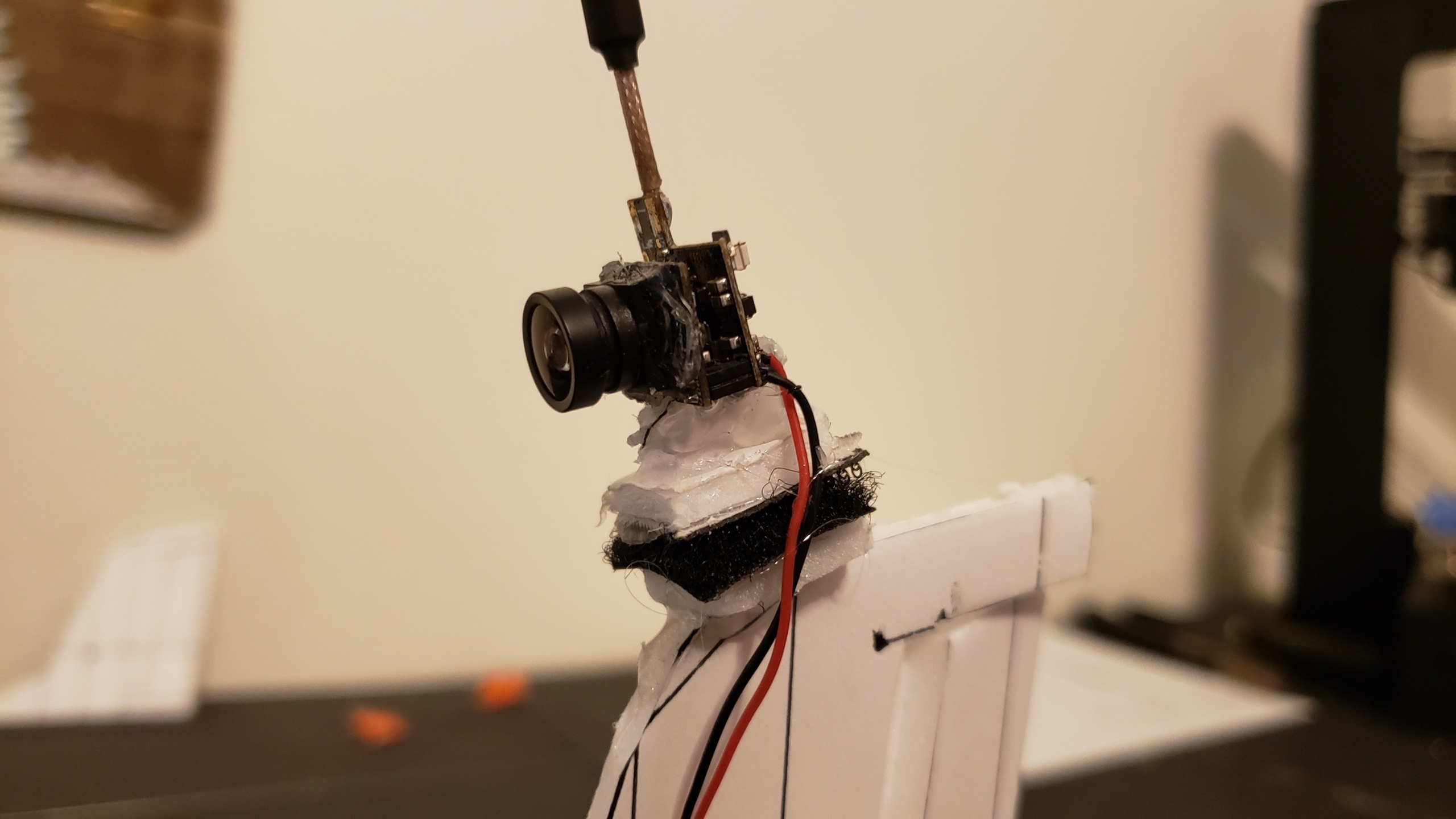

FPV Camera: Caddx Beetle V1
FPV Battery: Tattu 1s 280mAh
FPV Headset: Fatshark Recon V3

3D printing settings

Follow the prefered settings for your printer and material. Parts should be 100% infill

  • 3D file format: STL
