STINGRAY 800MM PUSHER

Download 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_AeroworksDownload 3D model STINGRAY 800MM PUSHER , 3D_Aeroworks

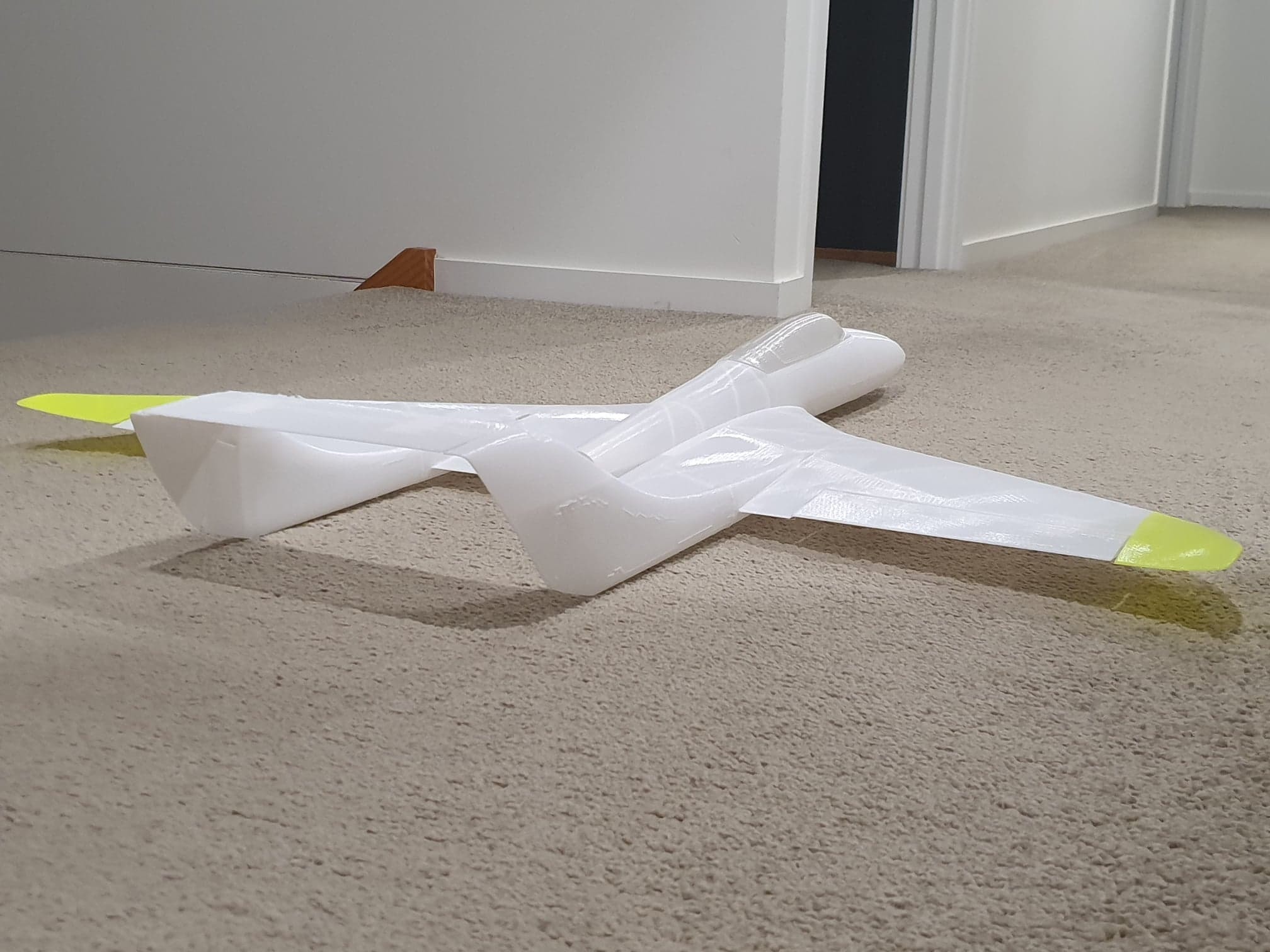

Did you 3D print this model?

3D model description

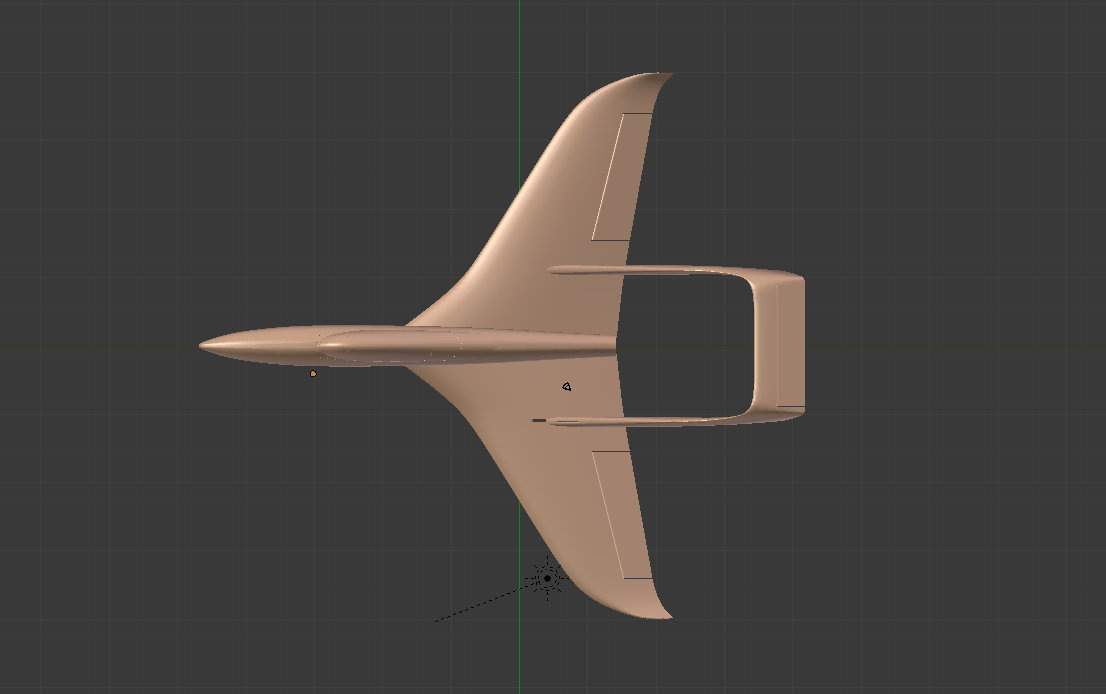

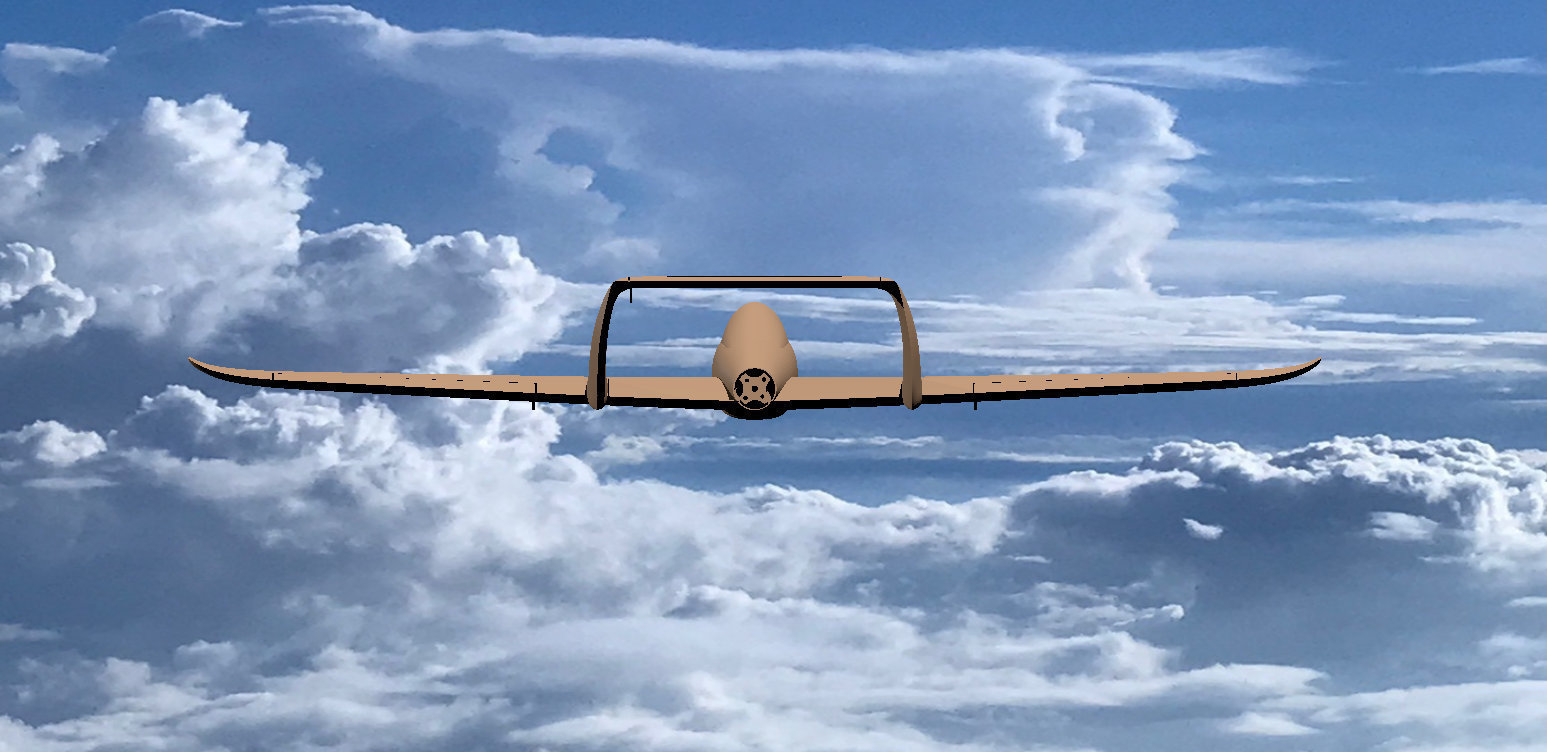

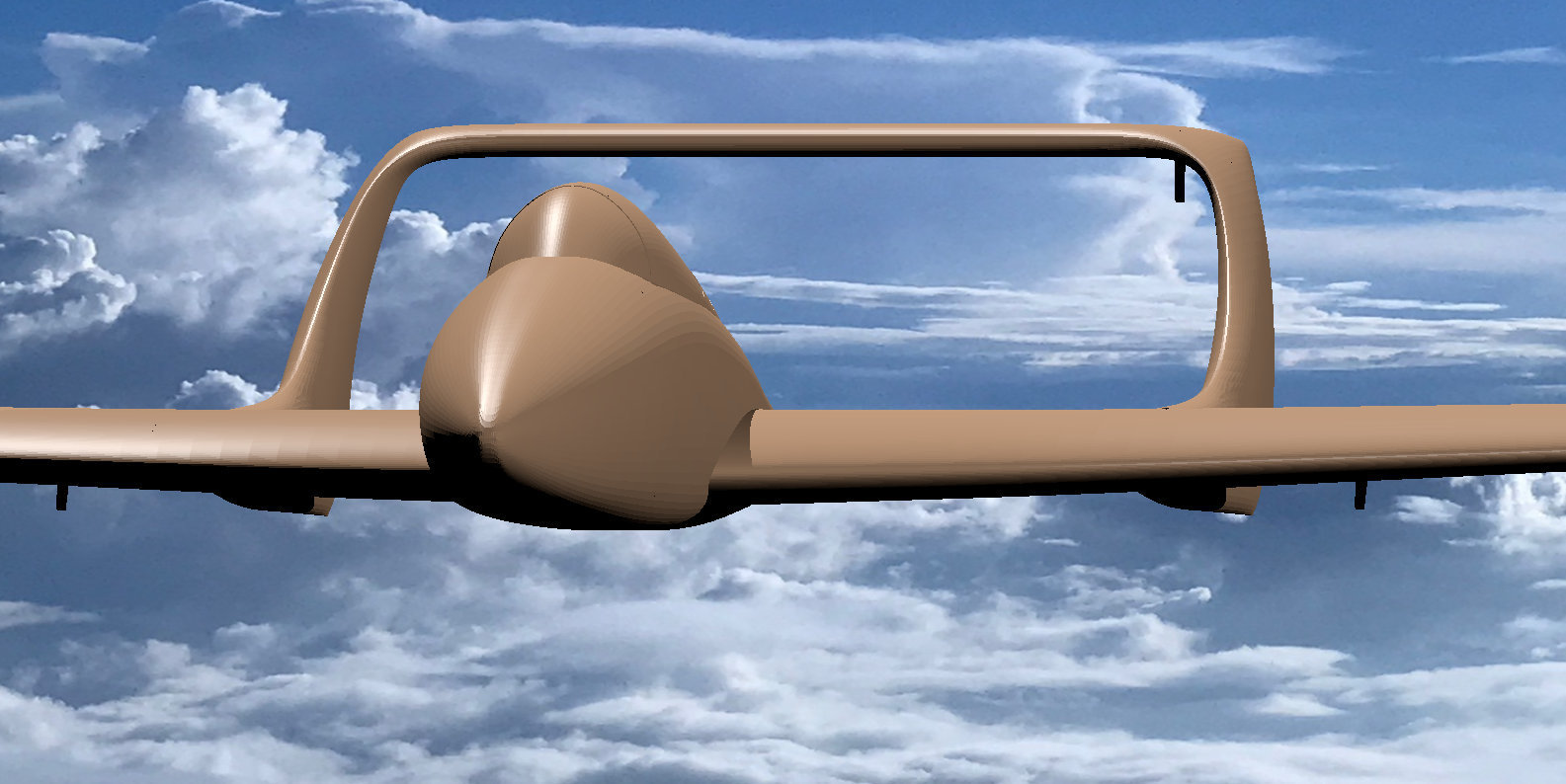

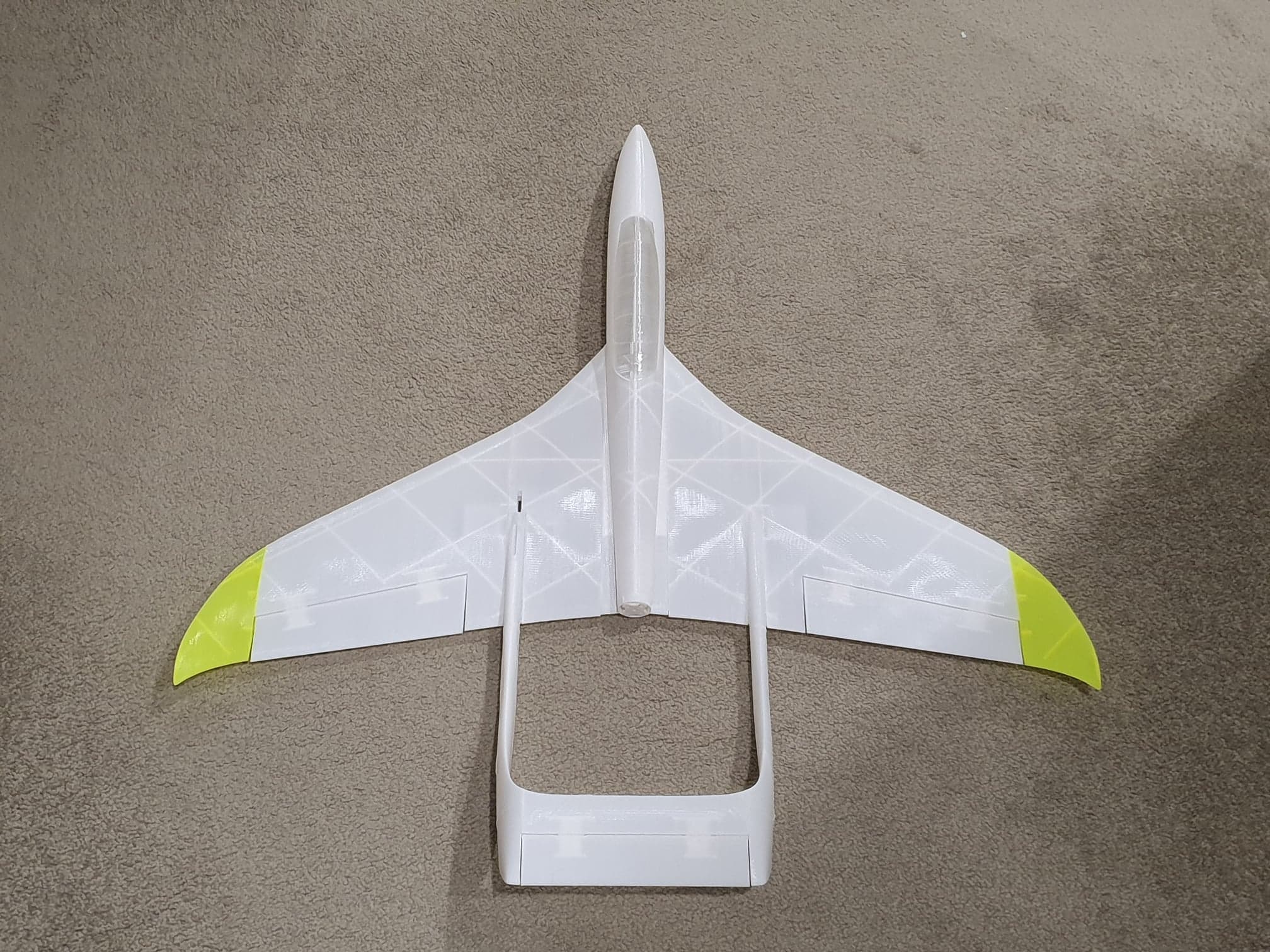

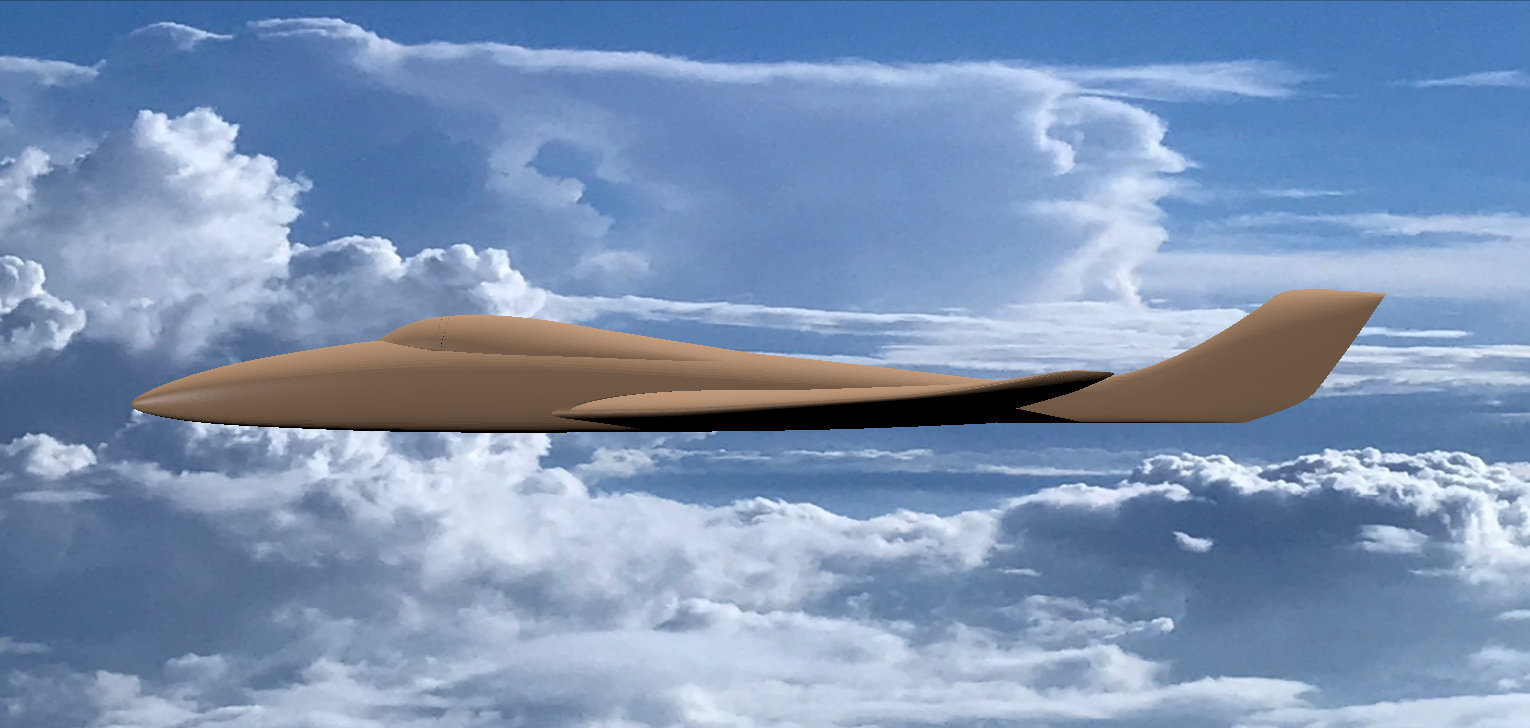

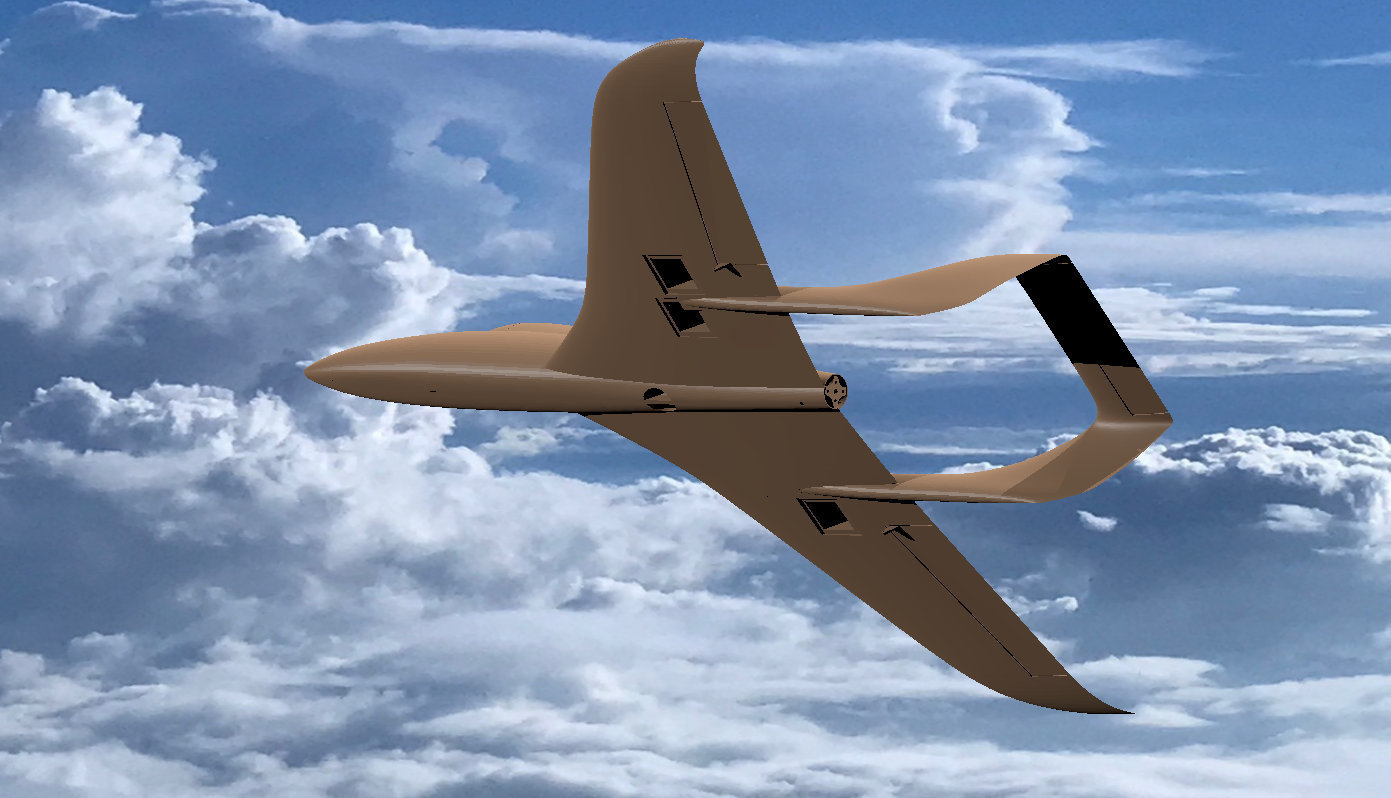

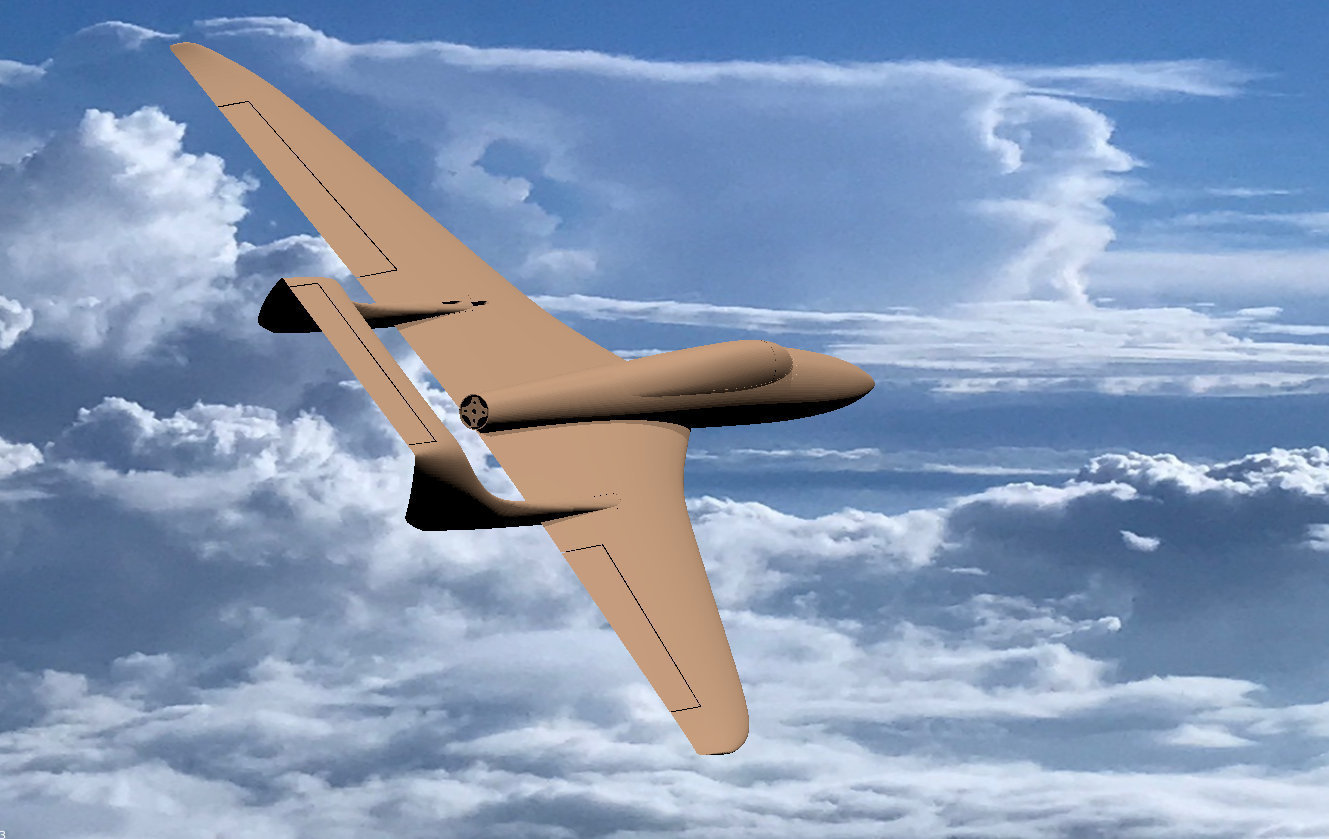

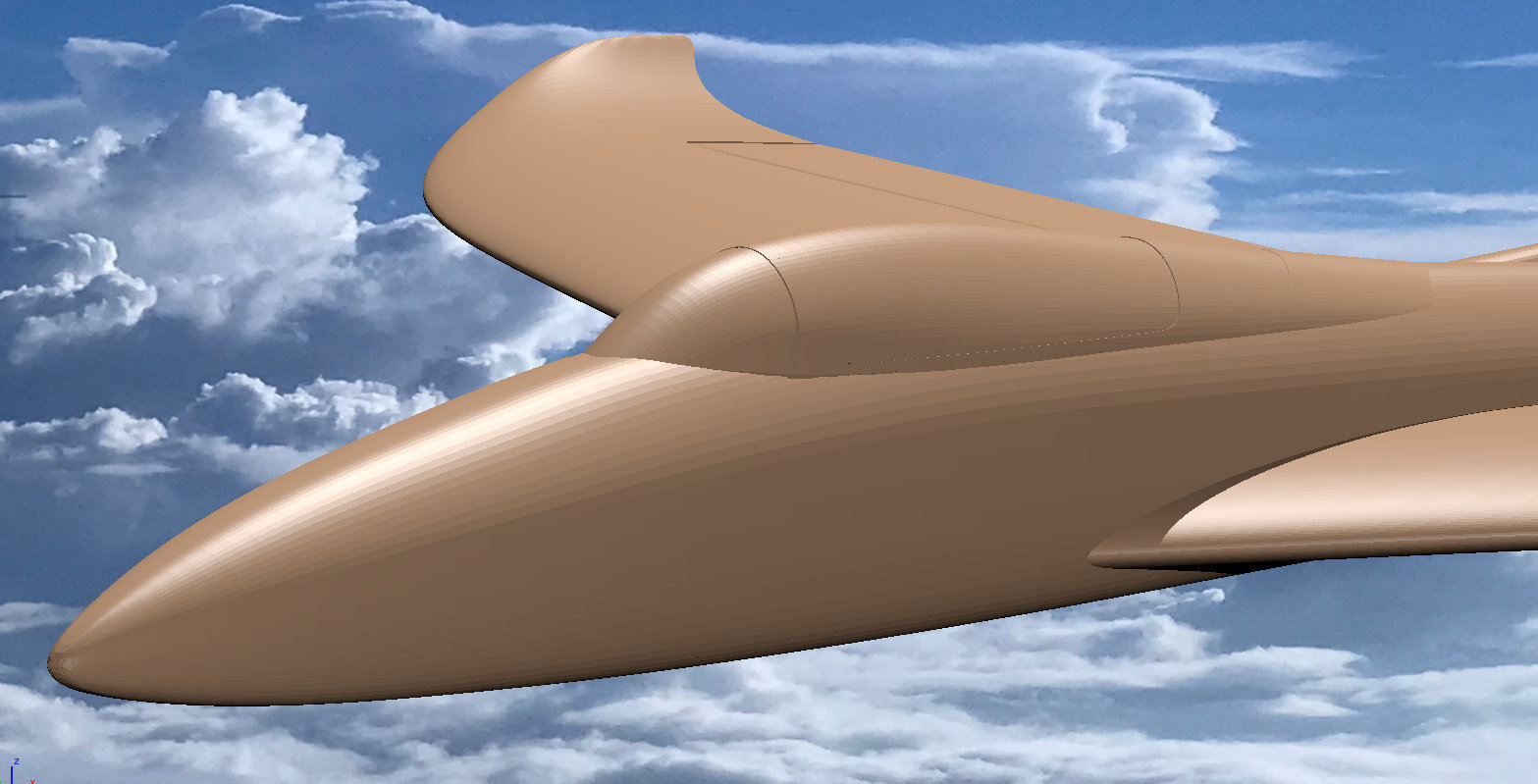

A custom variant on the pushy cat, this 800mm wingspan version is powered by your choice of pusher style electric out-runner (suggeest 28 size)

FLIGHT VIDEO: https://www.youtube.com/watch?v=JfUJ2-VzAoI

Print cost: $13 AUD
Print time: 40.5hrs
Print weight: 350g
RTF AUW: 760g with gear listed below installed

To complete this model you will need the following:

x6 Nylon pinned hinges https://www.ebay.com.au/itm/20x-Nylo...72.m2749.l2649

x2 10mm x2mm round magnet

https://www.ebay.com.au/itm/Rare-Earth-Strong-Magnets-Round-Disc-Cylinder-Neodymium-Magnet-N50-10mm-x-2mm/113974879023?_trkparms=ispr%3D1&hash=item1a896ea32f:g:kGIAAOSwwMxd0lh4&amdata=enc%3AAQAFAAACcBaobrjLl8XobRIiIML1V4Imu%252Fn%252BzU5L90Z278x5ickkAgU0umhwUTmgTFbE5cu7zfZVdY0TgswLnVZFULdN2%252B3DggnqjoAcj2BBGnA6pohXkH0o7%252BHM8a%252B488jS2rLq9zV%252BmTvvW7KkL8aZQMPPSxOiU3Ei6P28900Am5fashvuHDuoOF355VnPJLSboP5gxK12H4JaXEbX2SwQbzx0lk6K5nmaKCYvGGG9XjuntT5j6w6JFrm193KZNHTfdF7WeLj0J19BRuivwe8i6RvcjGHkNQFRVkk8FsIddKsoMUNhOSnRCO84TZ6fMDqnMnkxeguDnrAM4l8fnLJzVFxW9un2F037xE4GebRUJCukJ0YyRXJ6h2Wd9oYIUBl%252BJI3rp8k25rsX5m6a7YF80tlSDhnrIkUmJ7SIUnOD7Q46qaVdJycxBD2uaZZwj%252FLE08k19OnJIRAG6c74Fjlz565J1fY8svHq60Ki0RNyUZioB2IpDZcMvhXXw2xsfzTr8M6GxGiF8vz3UqHG%252FoCVDOkHDjxBsa44XHHRjPm8WNwTl3jek4Q28H%252BM%252FPjj5Ll0bYQDM7DcjkxRX30dkrhDqGEnN9r1ieshCqQB6erLx8h%252B%252Fo6NRTwyhlYZ0UZEI9U%252B5nTTJlKx%252BvFITBPpQznDRQE1Uv6GGa0inmtb%252FtWnLEBrL4w2T7cv3ZYGQqDHoSnMjR%252BUKUvi9xWhlnvxq2627ja8d1ScbticB106%252BnM8m3JZRwRlsSFYZALHKrNMCKe9aZStAh3%252FuW3M6souovavkAmEk1U8gZUiPfxw4sed4stQxPfznoYfb6M8E85uF%252BuYK%252BurdA%253D%253D%7Ccksum%3A11397487902344450b0f3b4e425c877c65b34c72f77d%7Campid%3APL_CLK%7Cclp%3A2334524

x3 9g servo

x1 1.2mm x 500mm steel wire (elevator rod) https://www.aliexpress.com/item/32654012150.html?spm=a2g0s.9042311.0.0.27424c4dZ6qo2e


x1 10mm x500mm carbon round tube

https://www.aliexpress.com/item/32822916583.html?spm=a2g0o.productlist.0.0.13f47b19oe9m3R&algo_pvid=778062f8-8344-48b8-ab9a-116fd0ea508e&algo_expid=778062f8-8344-48b8-ab9a-116fd0ea508e-0&btsid=0ab6f83a15962713673955513e5c3a&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

2826 series outrunner or similar

https://www.aliexpress.com/item/4000640722101.html?spm=a2g0o.productlist.0.0.6ef21f48RzYBQQ&algo_pvid=a105efd2-e10c-4de7-bec4-837a108798af&algo_expid=a105efd2-e10c-4de7-bec4-837a108798af-1&btsid=0ab6f82115890990692778729e074d&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

Intended use on 3s (2200mah or similar)

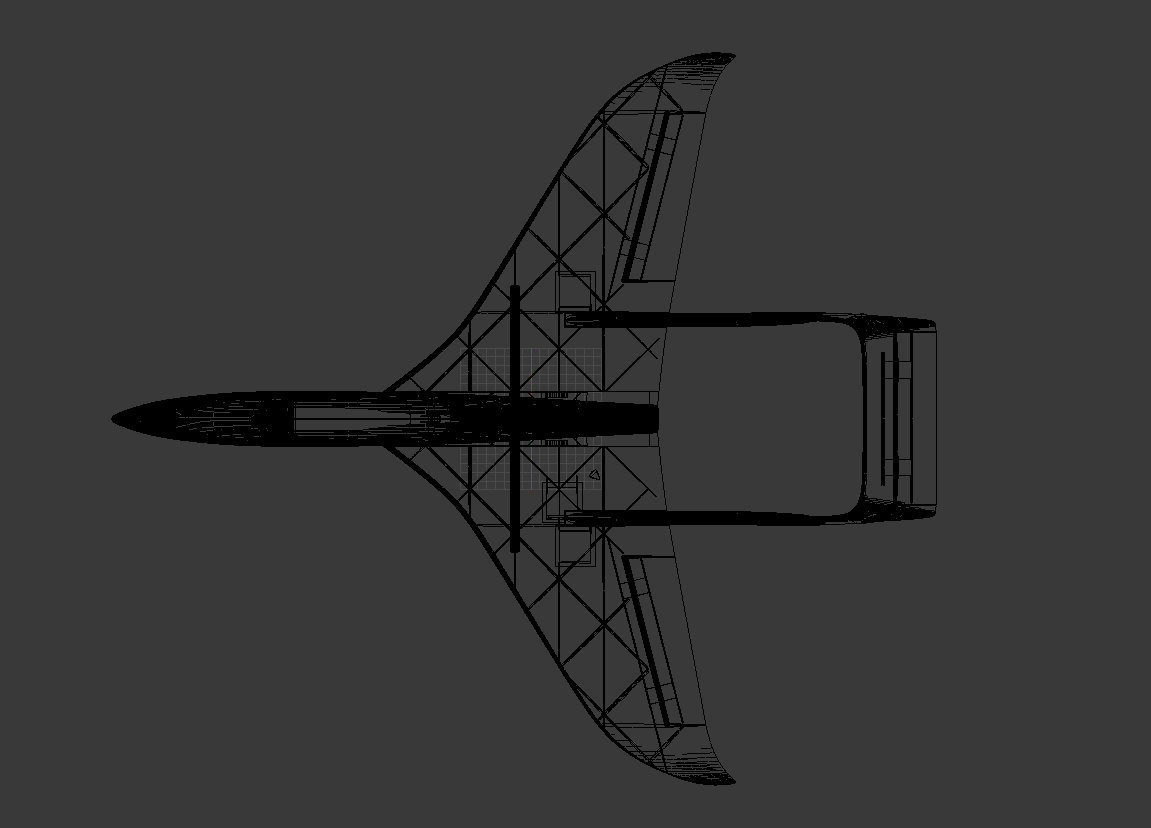

CG is located on the center of the spar rib

UPDATES- links to updates can be found below as they come out and will be free to download.

PRINT VOLUME: - new volumes updated
-250x210x200

For any questions and assistance please email us at:

aeroworks3d@outlook.com

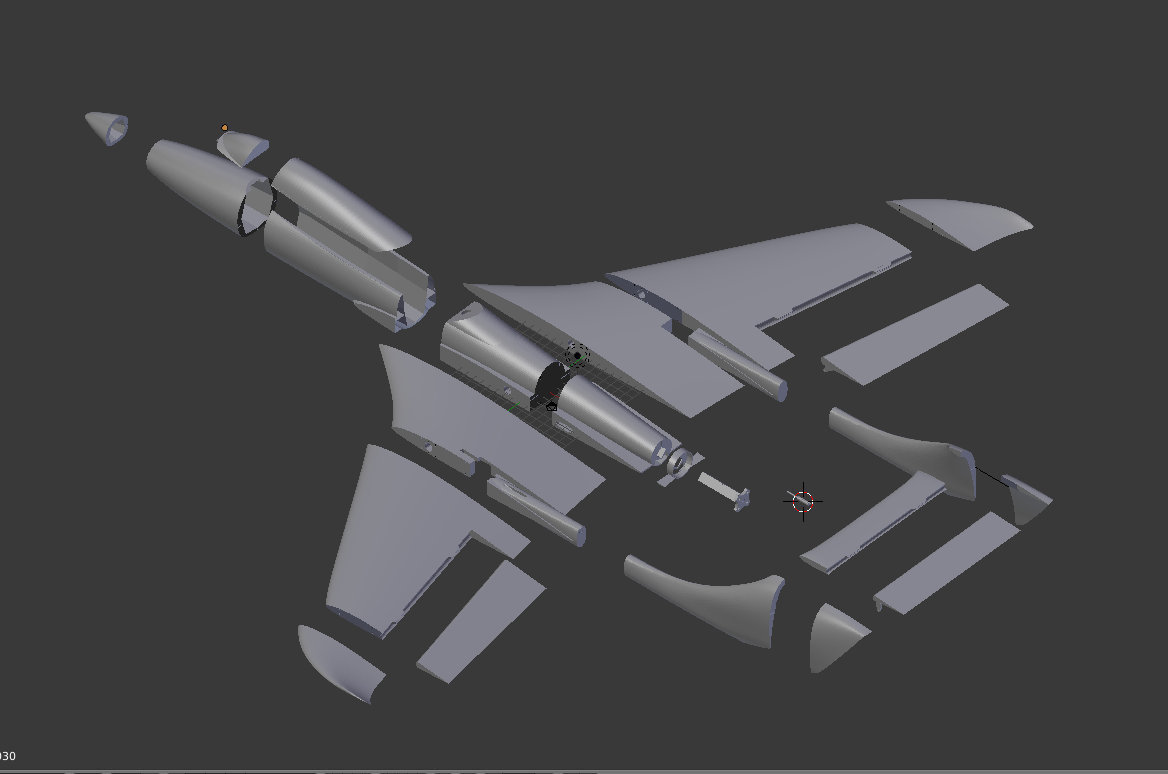

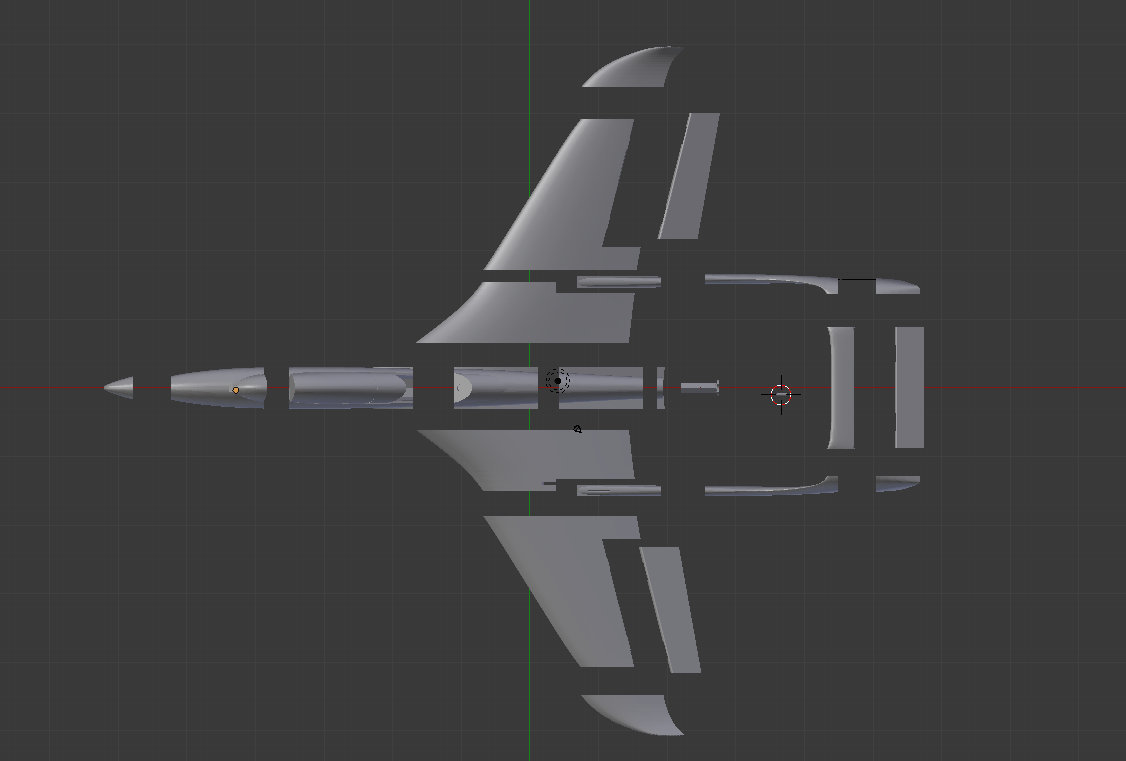

This model has been sliced to accommodate the following print volumes:

250x210x200

NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.

3D printing settings

Print all layers with cooling fan at 100%

  • 3D file format: ZIP
