Spider Web Wheel

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 113 views

3D model description

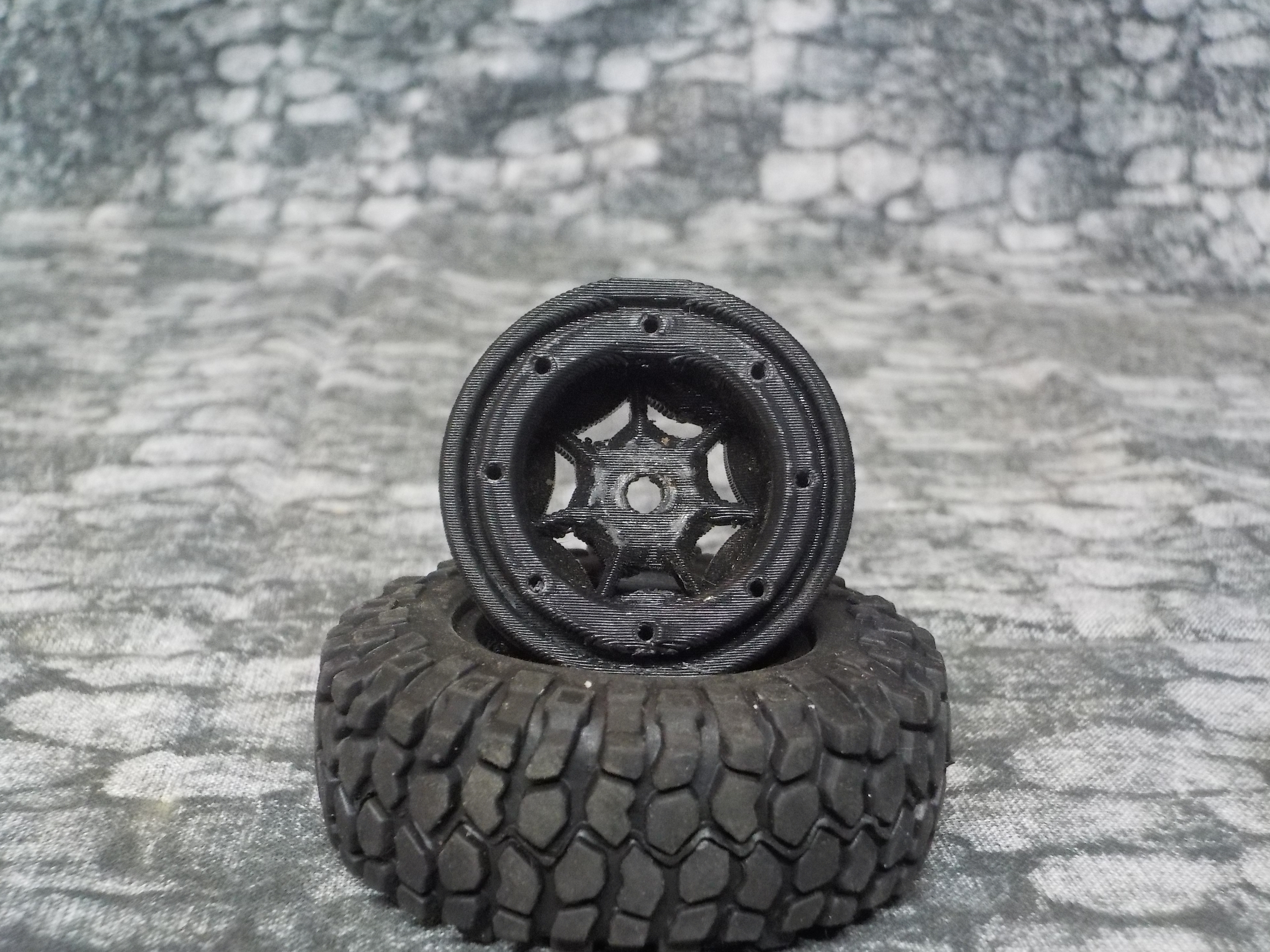

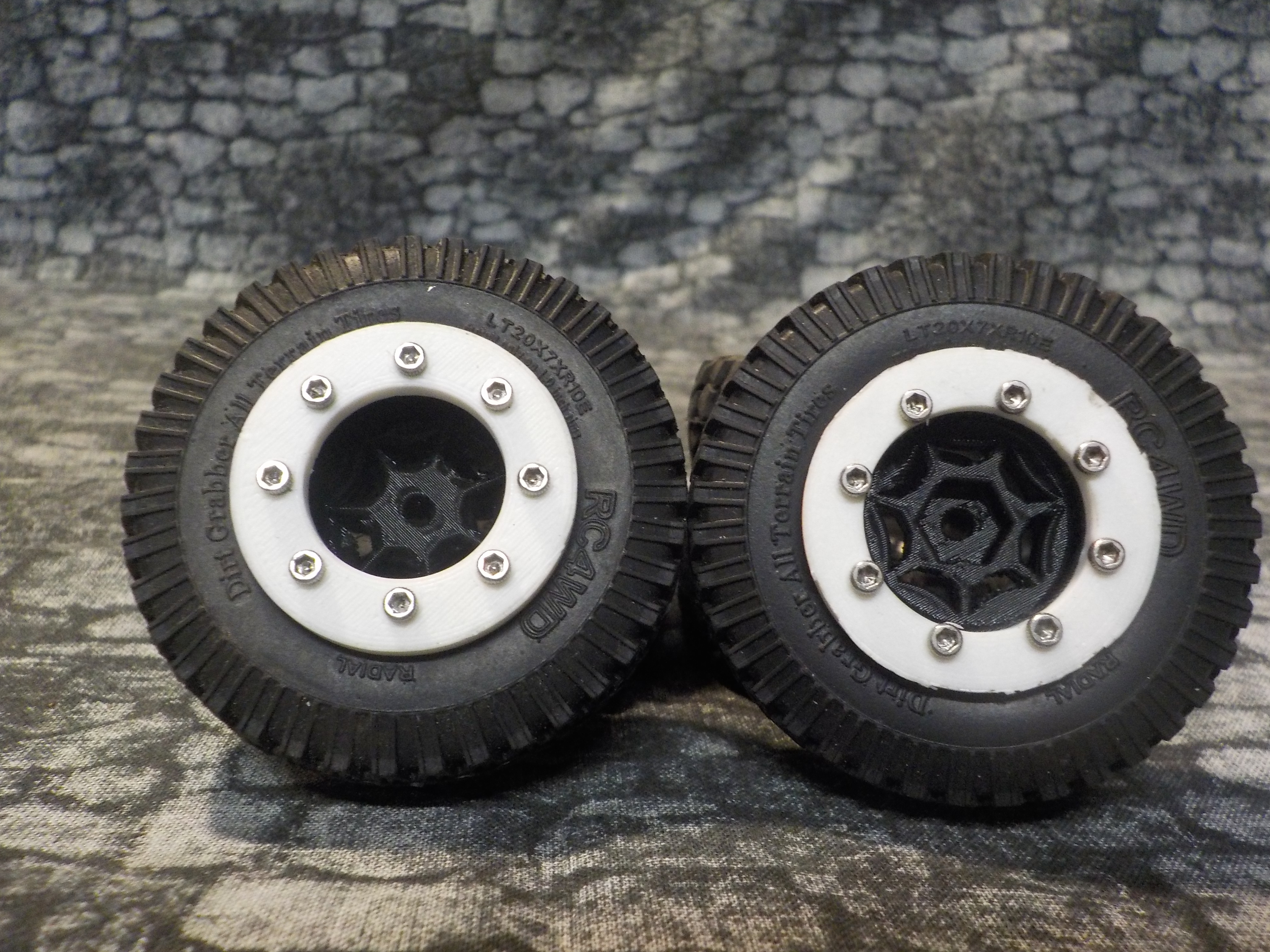

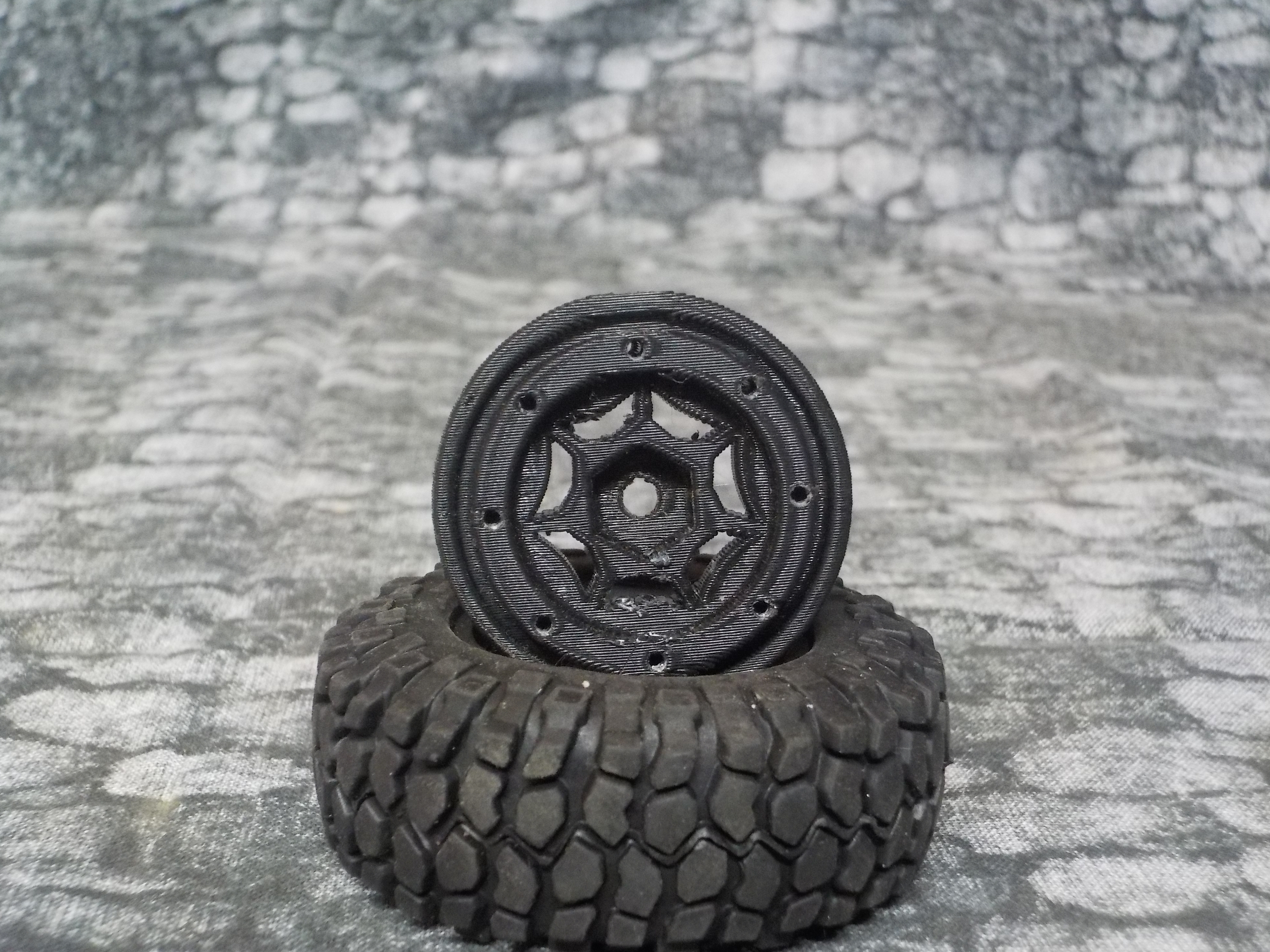

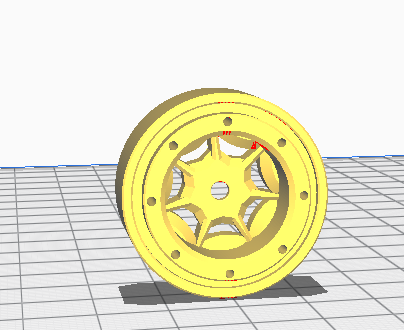

Beadlock wheel for the Axial SCX24 and the Element Enduro 1/24th scale vehicles. Includes wheel and front and rear lock rings. Note front and rear rings are different inside diameter. Front ring is 17.5 mm inside dia. Rear ring is 19.5 mm inside dia. The larger rear diameter is so that these will clear most after market brass upgrades. For assembly I suggest drilling the beadlock ring holes out with a 1.7mm drill bit. This makes assembly easier, and can prevent the ring from cracking.

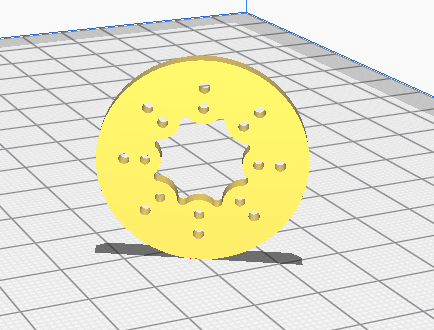

Exclusive For Cults File Only: Also includes Web Beadlock ring.

Required hardware to assemble : 1.6mm x 8 mm socket head cap screws. Quantity 64 for a complete set of Wheels.

Important : Fitment details

Axial SCX24 : This will not fit the stock set up. This wheel will require the use of +4 mm axles or longer.

Element Enduro 24 : This wheel will fit with no changes. May have to raise body or trim body if running larger tires.

3D printing settings

My Printer : Creality Ender 5

Print settings:

Nozzle : 215 -218 C

Bed temp. : 70 - 72 C

Infill : Wheels 30% - 50% / Beadlock rings 75% - 100%

Infill pattern : Gyroid

Supports : Wheel tree suports Beadlock Rings None

Adhesion : None

Note : print the beadlock rings with the flat face down

  • 3D file format: ZIP
  • Last update: 2021/01/14 at 05:39
  • Publication date: 2021/01/06 at 06:35
