Space Invaders Fleet Generator

1d126907628b584cea8812a859681db4_preview_featured-1.jpg Space Invaders Fleet Generator
9442bbf95f6028f0f99576c5ad2c8bd2_preview_featured.jpg Space Invaders Fleet Generator
sample_base.stl Space Invaders Fleet Generator
sample_both.stl Space Invaders Fleet Generator
sample_invaders.stl Space Invaders Fleet Generator
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
Licence CC BY
Publication date 2018-07-18 at 08:21
Design number 28736
3D design format
STL and ZIP Folder details Close
  • sample_base.stl
  • sample_both.stl
  • sample_invaders.stl
  • spaceinvadersfleet.scad.zip

Learn more about the formats
ferjerez3d

ferjerez3d

3D printer file info

3D model description

Hi!

This one is something classic.A 8 bits invaders generator.

With Customizer you can create a full fleet ready for print in one file.

As a random generator, it depends of a numeric seed (up to 19 digits). Every seed creates different invaders.
Try different seeds until you get a nice one!

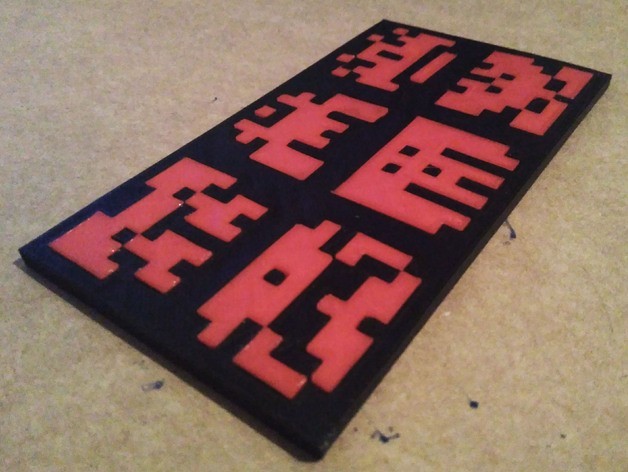

Each generation produces three files: The 'invaders', a base or support that fits, and a third file with invaders and base together.

Some examples and info about customization in images below.

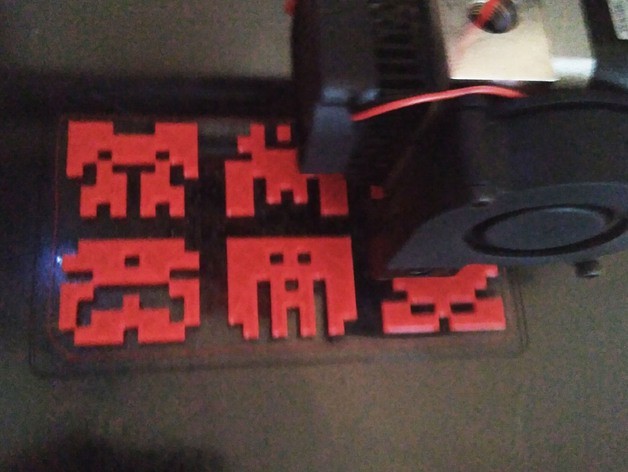

Also added the 3 STL's used in printing tests (seed=123).

Have fun!!

3D printing settings

Printer:

BQ Prusa i3 Hephestos

Rafts:

Doesn't Matter

Resolution:

0.2

Infill:

10%-20%

Notes:
Tested with PLA.

NO SUPPORTS !!!

Infill acts as inner supports avoiding holes in top of figure. Recomended a 10% or 15%

The size of every 'pixel' is 5mm. Height of base is 5mms and has a flat bottom of 1 mm Due to 1mm bottom, invaders are 4mm height

Inserting invaders into support
If Invaders are bigger than holes in base and they don't fit try:
Software tools

Adjust the flow oy your printer. Try Flow Calibrator (http://www.thingiverse.com/thing:1662342)

If your slicer software have an option to control the size of polygons (Cura has the 'Horizontal Expansion' parameter) you can use it to make a better fit.

Hardware tools

Pliers are your friends.

Murphy says: if don't fit try with a hammer. (it works. tested!)

You can also apply hot water and push carefully
