Soldering fume extractor

?
Creation's quality: 4.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 889 views
  • 5 likes
  • 17 downloads

3D model description

Update 06.08.2018:
I have added lid with smaller clips, as in previous model they was too big and
easy to be broken.
There are 0.5(not tested) and 0.2 file(worked for me).

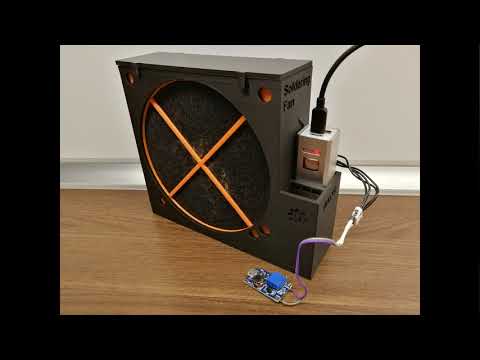

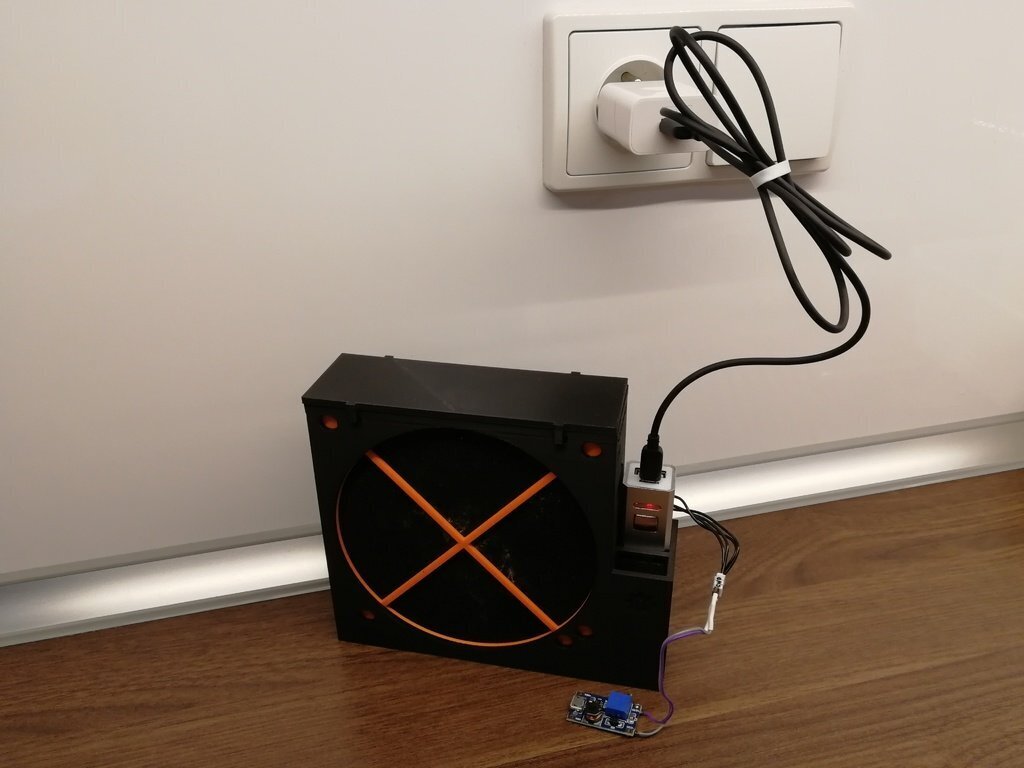

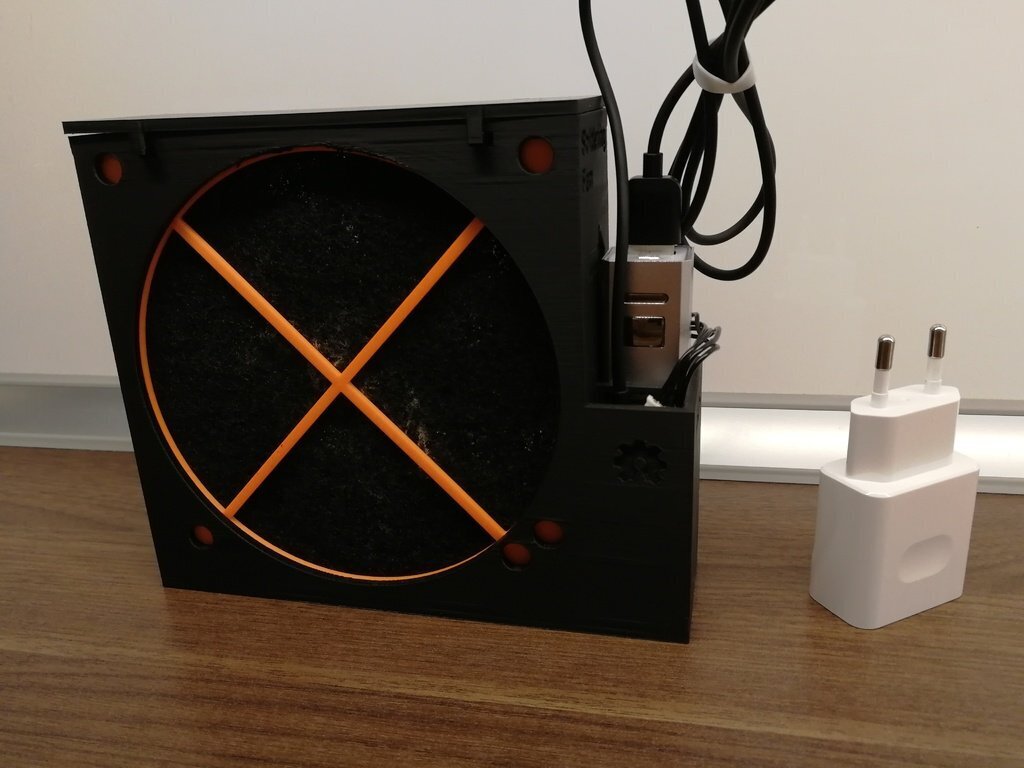

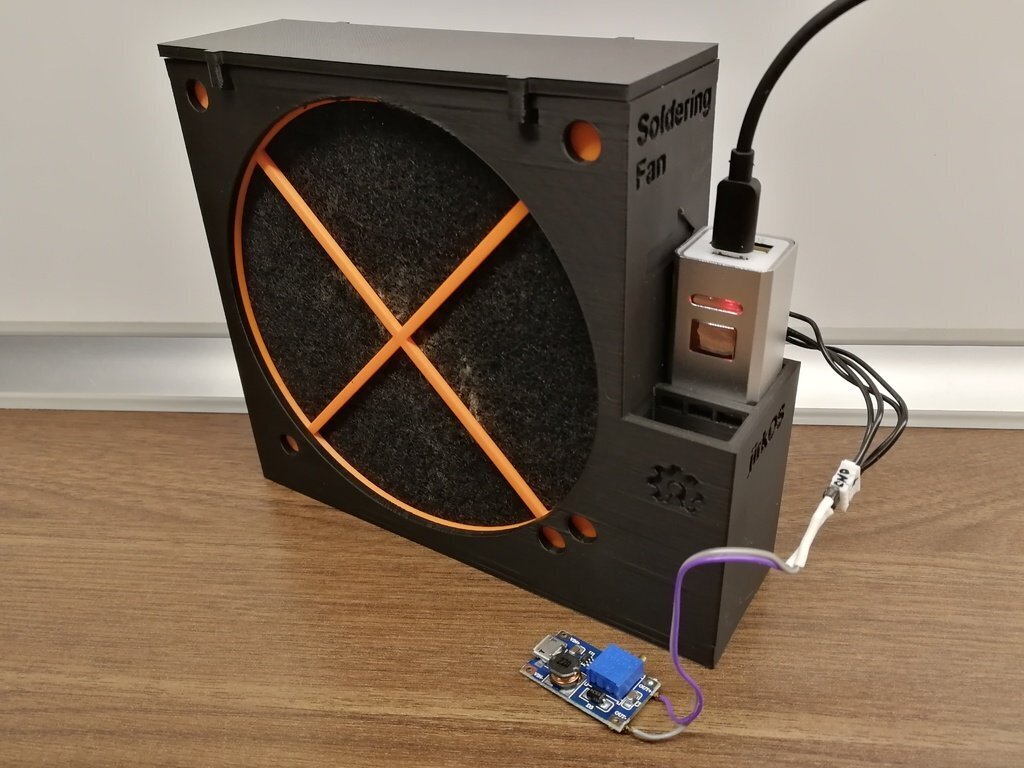

Soldering fume extractor

Breathing fume from soldering is annoying, use this extractor and breath freely!

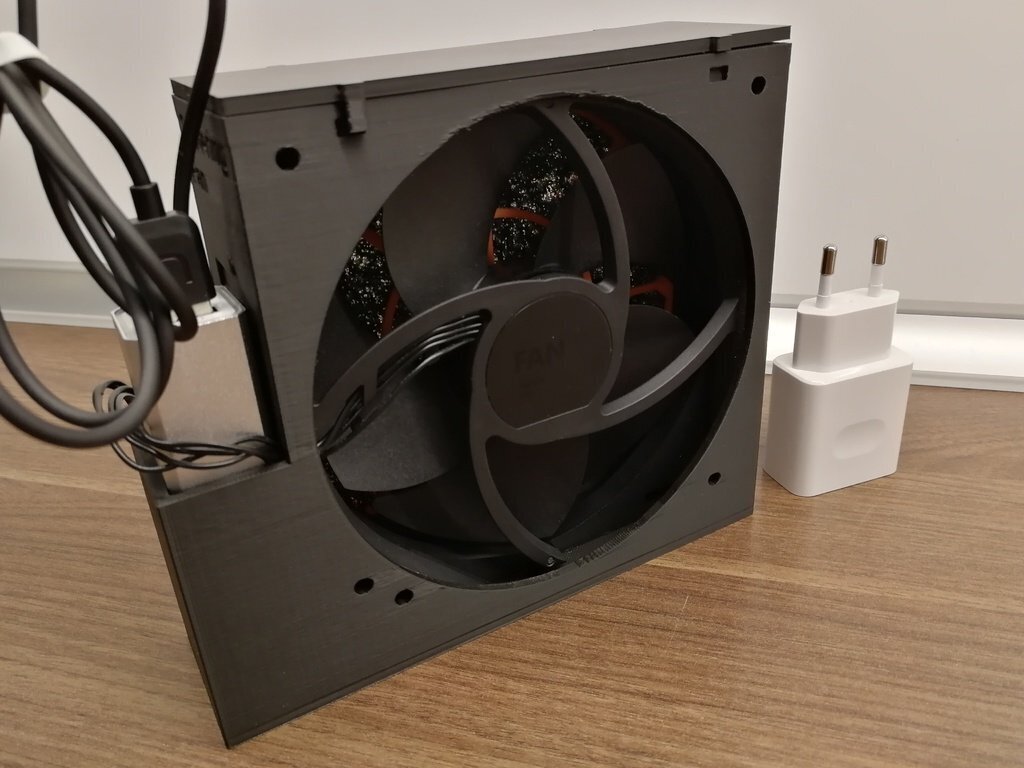

It is designed for 120mm fan from XBOX ONE(i have some extra around), but you can edit it to fit your fan.
Fusion360 files included.

Printed on Prusa i3 MK3 without support and with just 5 infill.

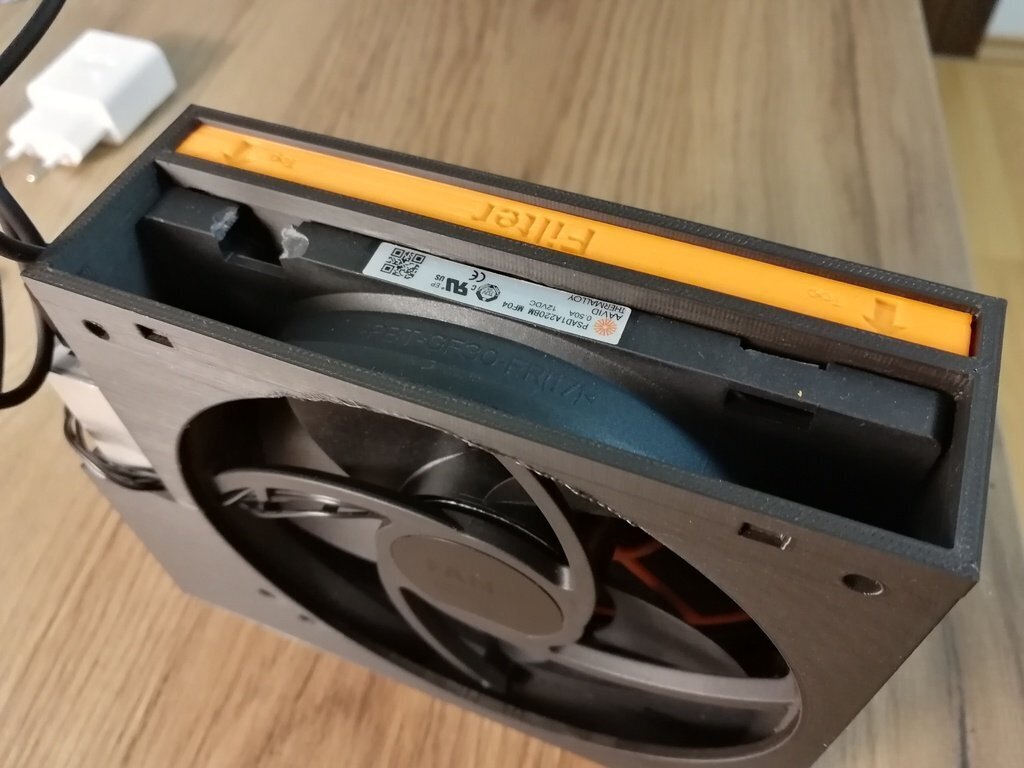

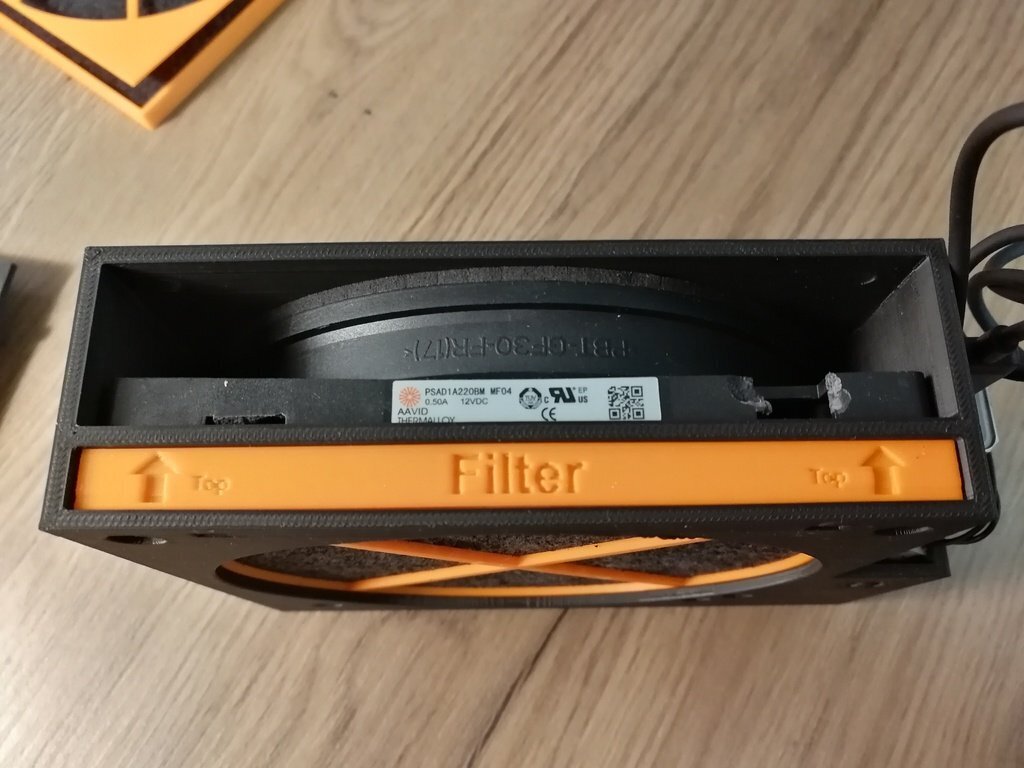

It is using carbon filter for absorbing unpleasant fumes.

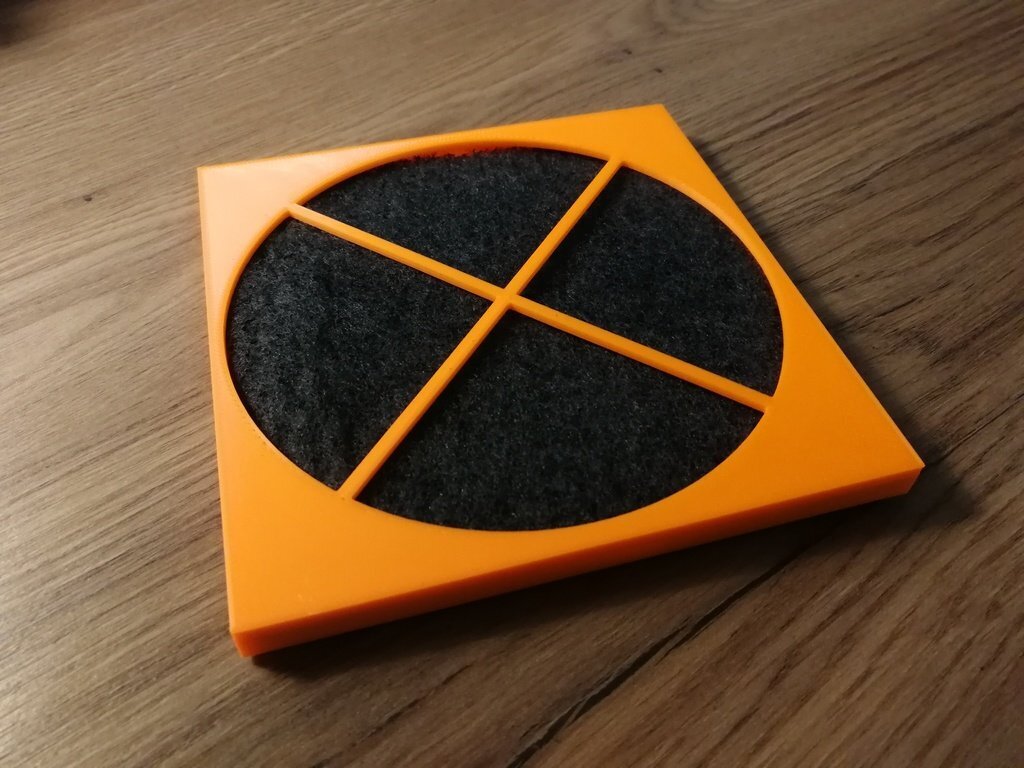

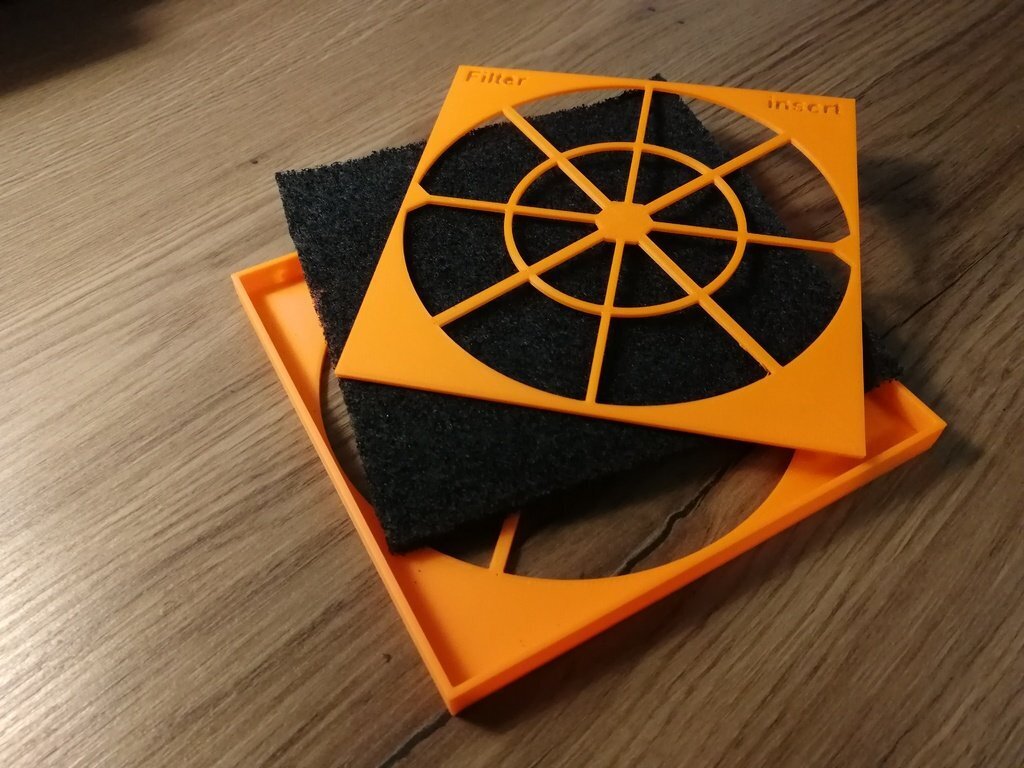

I have used some filter for cooker hood and cut it to the right dimension.

You can check video here, how i make it:
https://www.youtube.com/watch?v=-3S6OTiC-Qo

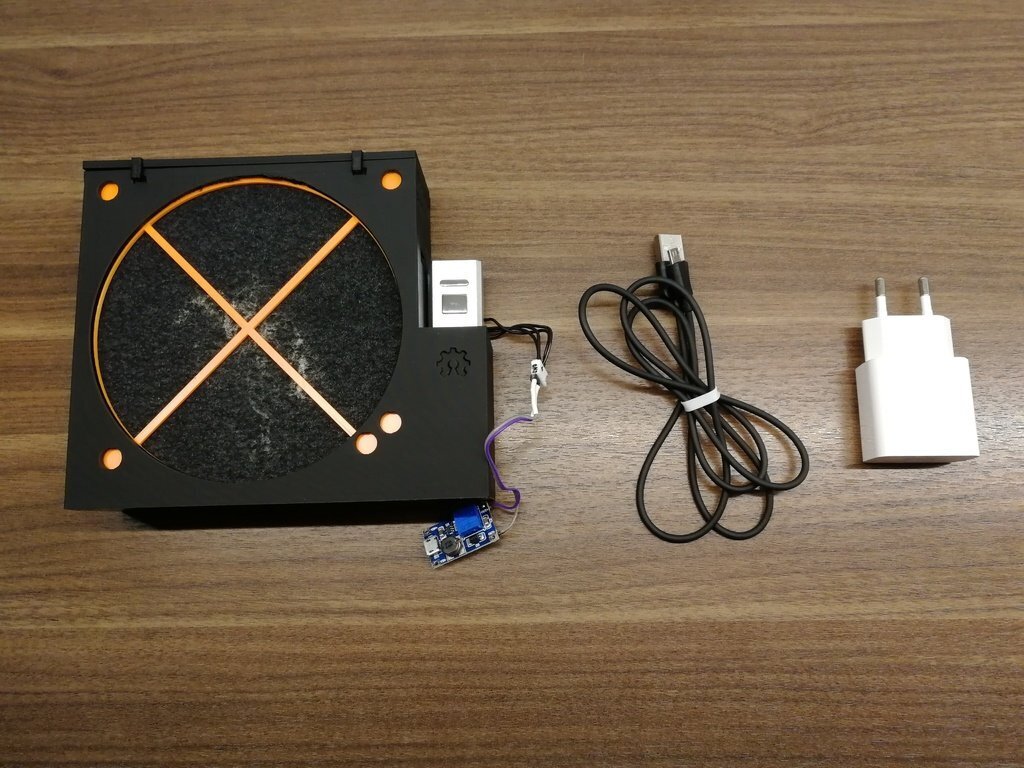

Step Up module:
https://www.aliexpress.com/item/DC-DC-Adjustable-Boost-Module-2A-Boost-Plate-2A-Step-Up-Module-with-MICRO-USB-2V/32807762237.html?ws_ab_test=searchweb0_0,searchweb201602_10_10065_10068_319_10059_10884_317_10887_10696_321_322_10084_453_10083_454_10103_10618_10304_10307_10820_10821_537_10302_536,searchweb201603_6,ppcSwitch_0&algo_expid=445cf425-073e-4505-901c-36990a65927e-2&algo_pvid=445cf425-073e-4505-901c-36990a65927e&transAbTest=ae803_4

Happy soldering!
