Simple Pantograph
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/12931016/illustration-file/cd487fab-d095-4ac8-ac33-869bc9aea9b9/ea0d355e938c3b5e021cad89735a6942_display_large.JPG)
/https://files.cults3d.com/uploaders/12931016/illustration-file/cd487fab-d095-4ac8-ac33-869bc9aea9b9/ea0d355e938c3b5e021cad89735a6942_display_large.JPG)
/https://files.cults3d.com/uploaders/12931016/illustration-file/516846a0-025e-4a59-af2a-b589b38d0a85/de18962d79b711441ffcce59ca0356b6_display_large.JPG)
/https://files.cults3d.com/uploaders/12931016/illustration-file/cab8823f-0127-4ac5-8c3d-25d5799a0568/c978599fc58a475cc492e863fa41a1f3_display_large.JPG)
/https://files.cults3d.com/uploaders/12931016/illustration-file/06b98466-d4fc-48fe-b6e8-78d7743bc3e6/549bba5ba27c4b43dc9279b57103a5f4_display_large.JPG)
?
Creation's quality:
4.5/5
(3 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 10.8k views
- 61 likes
- 456 downloads
3D model description

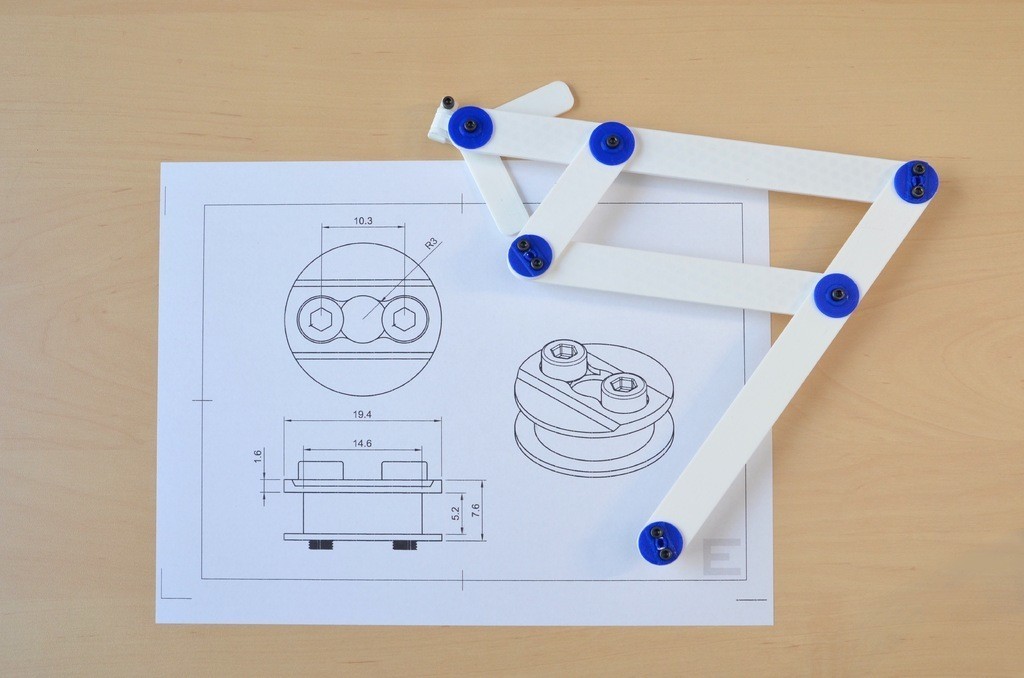

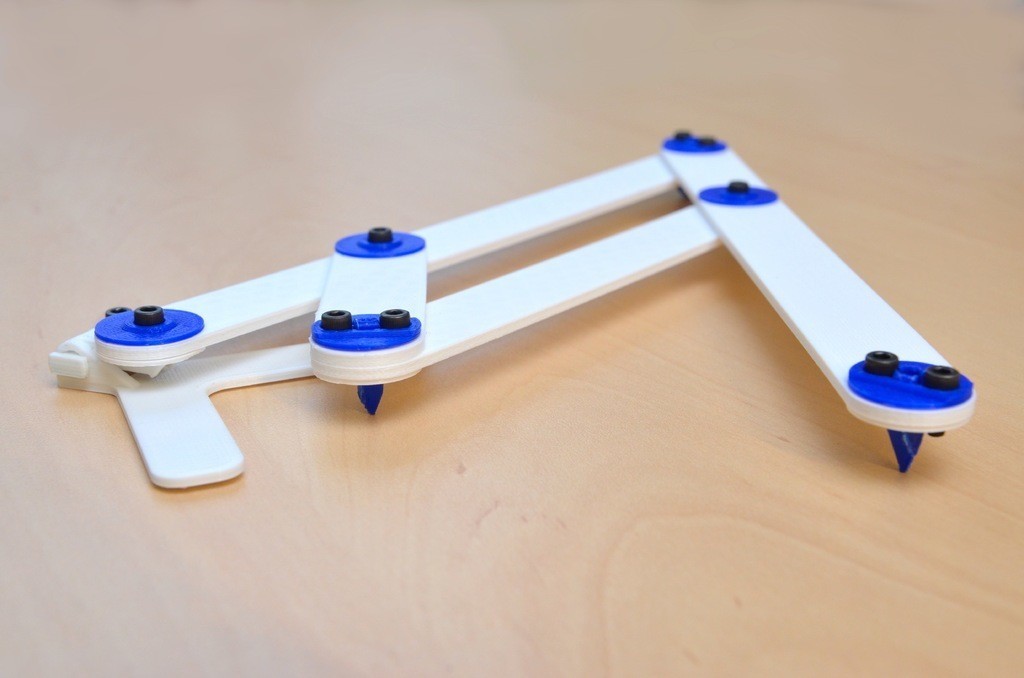

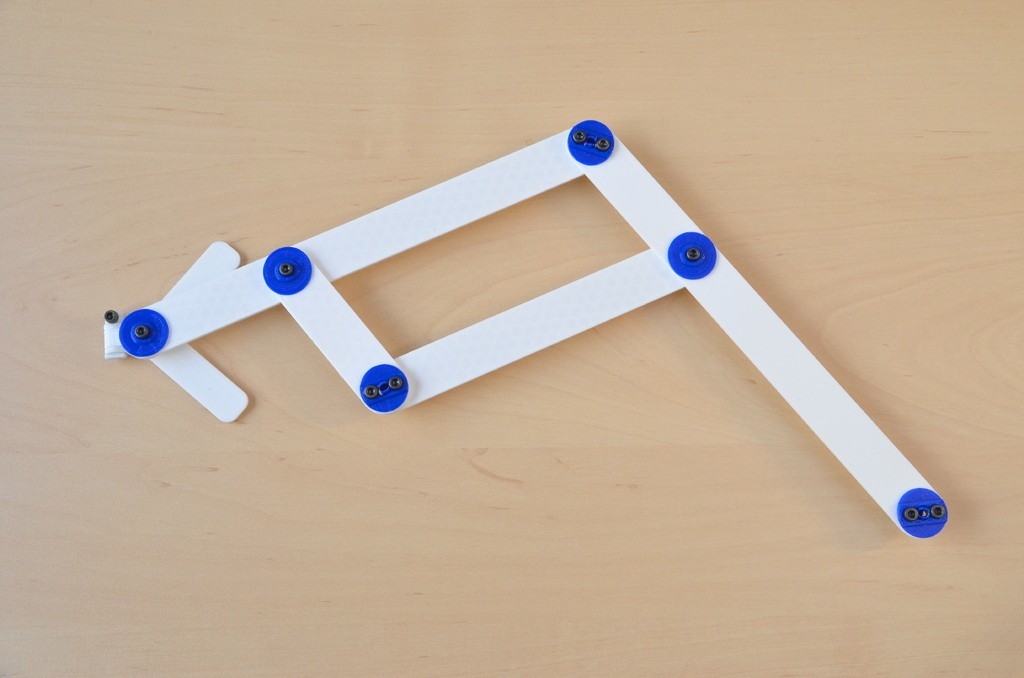

A pantograph is a four bar linkage based on a parallelogram that scales the movement of a point by a set factor.
For the sake of simplicity, the design is non adjustable but I have included linkage files for scale factors (SF) of 2, 3, 4, and Pi.
After putting the design through some tests, I found the margin of error to be consistently under 1%.
Hardware
10x M3 8mm

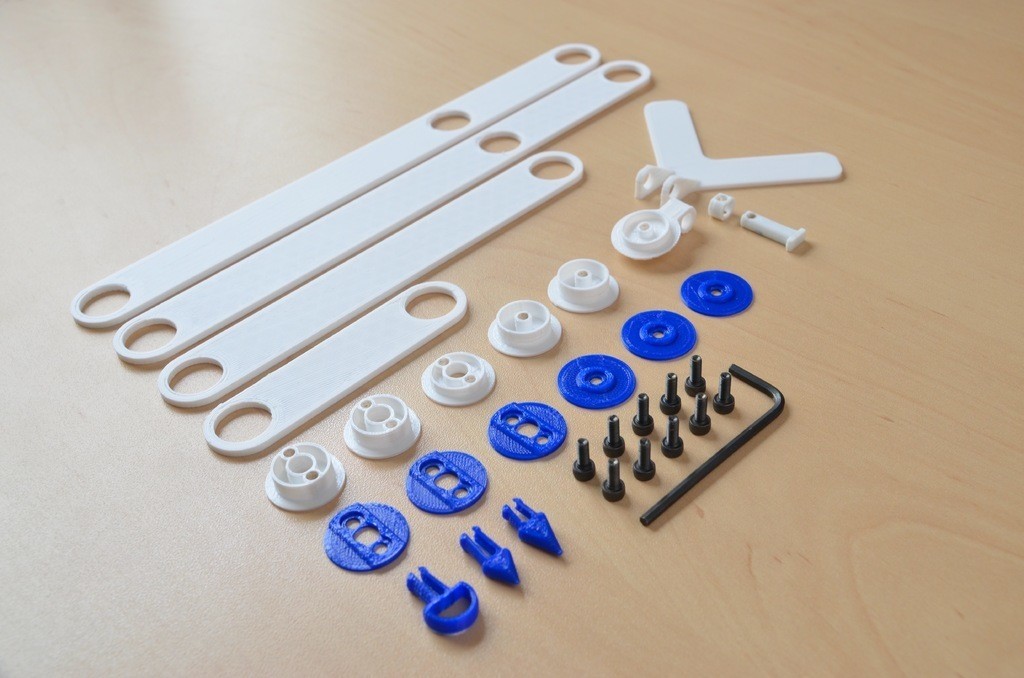

What to print
2x Link_1
1x Link_2 (2x for SF of 2)
1x Link_3 (0x for SF of 2)
1x Base
1x Base_Pin
1x Base_Pin_Cap
1x Pin_1_Base
2x Pin_1
2x Pin_2
1x Pin_2_Short
3x Pin_1_Cap
3x Pin_2_Cap
1x Support
1x Pointer_1 (for joint closest to base)
1x Pointer_2
3D printer file information
-
3D design format: STL Folder details Close

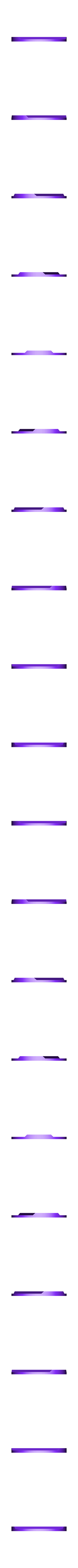

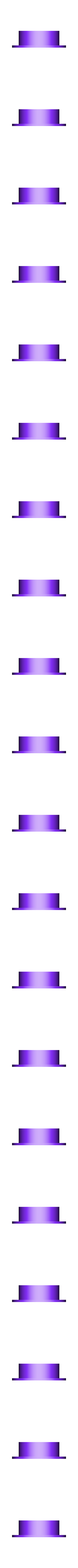

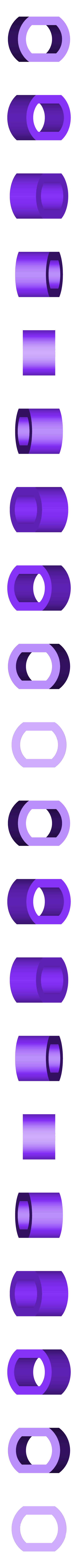

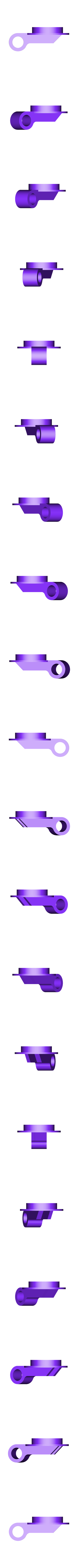

- Base.stl
- Base_Pin.stl
- Base_Pin_Cap.stl

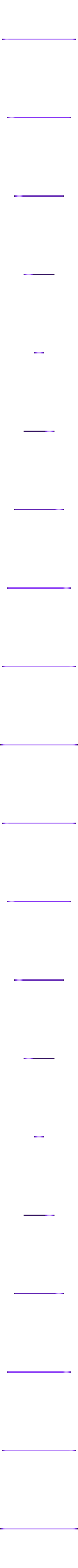

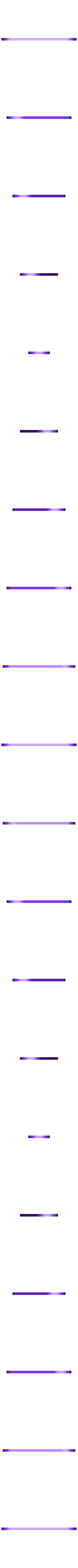

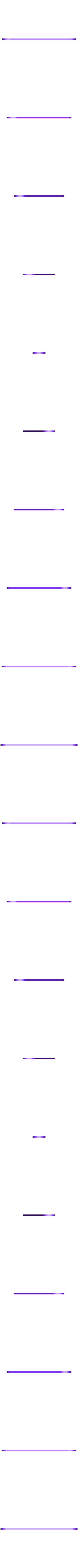

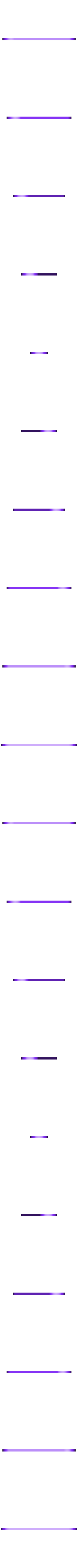

- Link_1_SF-2.stl
- Link_1_SF-3.stl
- Link_1_SF-4.stl
- Link_1_SF-PI.stl
- Link_2_SF-2.stl
- Link_2_SF-3.stl
- Link_2_SF-4.stl
- Link_2_SF-PI.stl
- Link_3_SF-3.stl
- Link_3_SF-4.stl
- Link_3_SF-PI.stl
- Pin_1.stl
- Pin_1_Base.stl
- Pin_1_Cap.stl
- Pin_2.stl
- Pin_2_Cap.stl
- Pin_2_Short.stl
- Pointer_1.stl
- Pointer_2.stl
- Support.stl
- Publication date: 2018/09/11 at 11:01
