Servo wheel for mobile robots

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 951 views
  • 10 downloads

3D model description

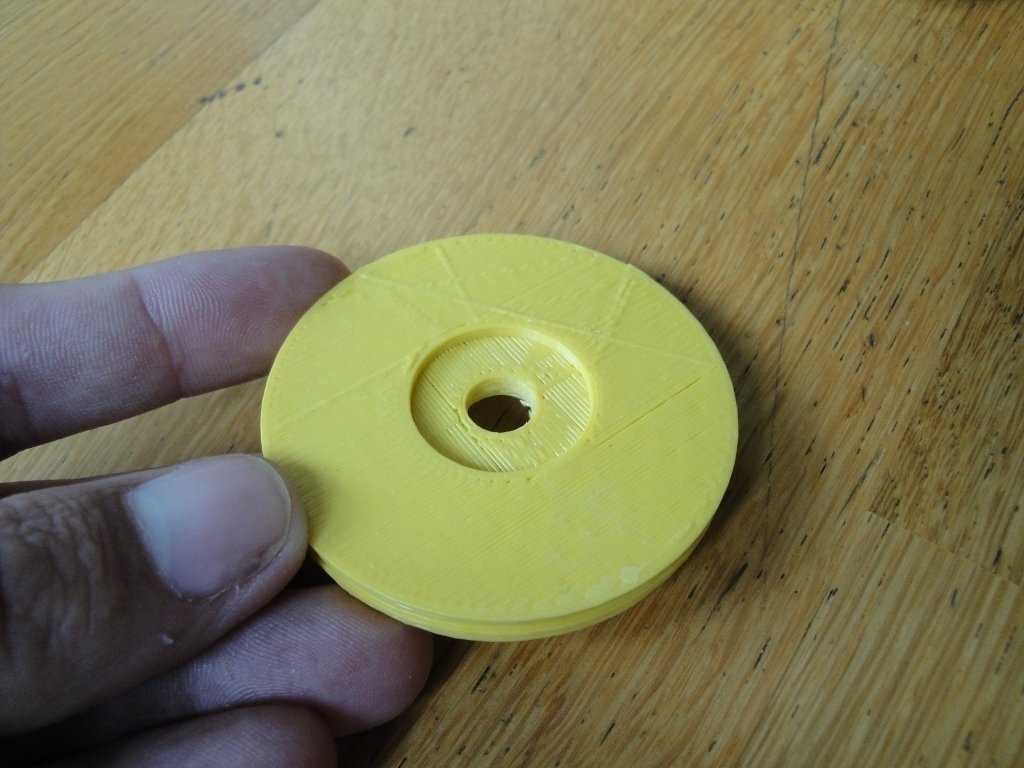

A wheel for building mobile robots. This wheel has been designed for the Futaba 3003 or compatible servo, but it can be change to other servos easily. It has been created with openscad.

For building mobile robots, the servos should be tricked so that they can turn freely.

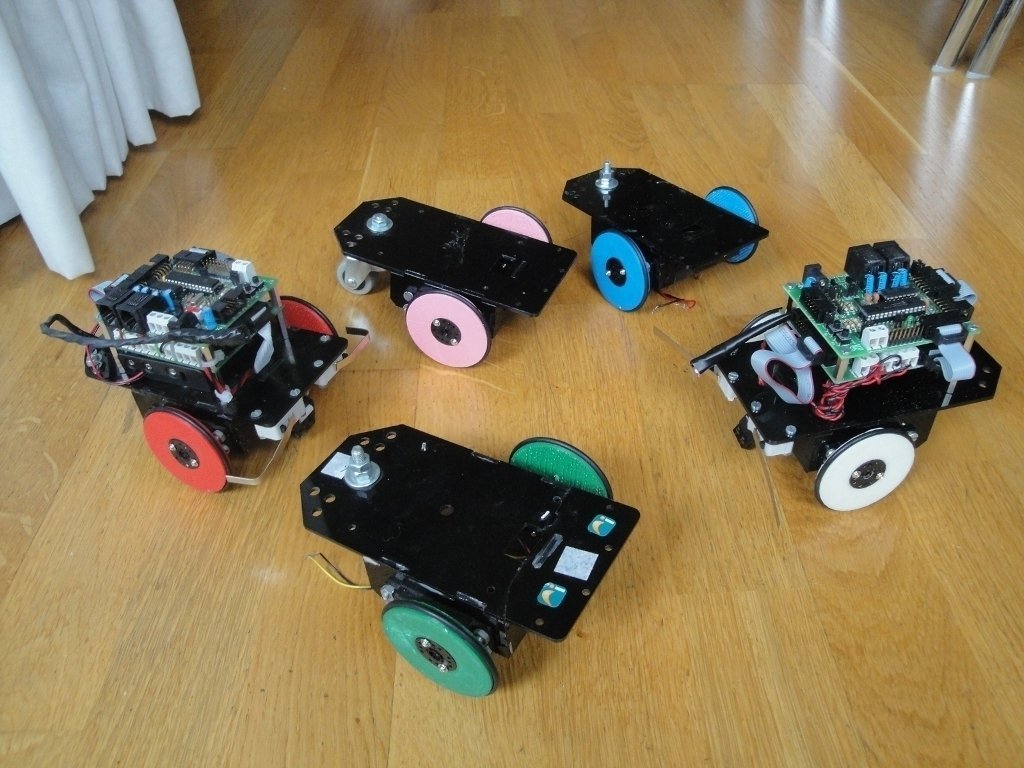

We are using these wheels for our educational open-source Robot: Skybot
* http://www.iearobotics.com/wiki/index.php?title=Skybot

More information on the wheels:
* http://www.iearobotics.com/wiki/index.php?title=Ruedas_G3_para_el_Skybot

A Youtube Video showing the Skybot robot with the new wheels
http://www.youtube.com/watch?v=hUrEytTOa2g

I am sorry, the above links are in Spanish by now. The translation into English is in my TODO :-(

3D printing settings

  • Print the wheel
  • Insert the Rounded Futaba horn
  • Put two screws
  • Trim the excess screw

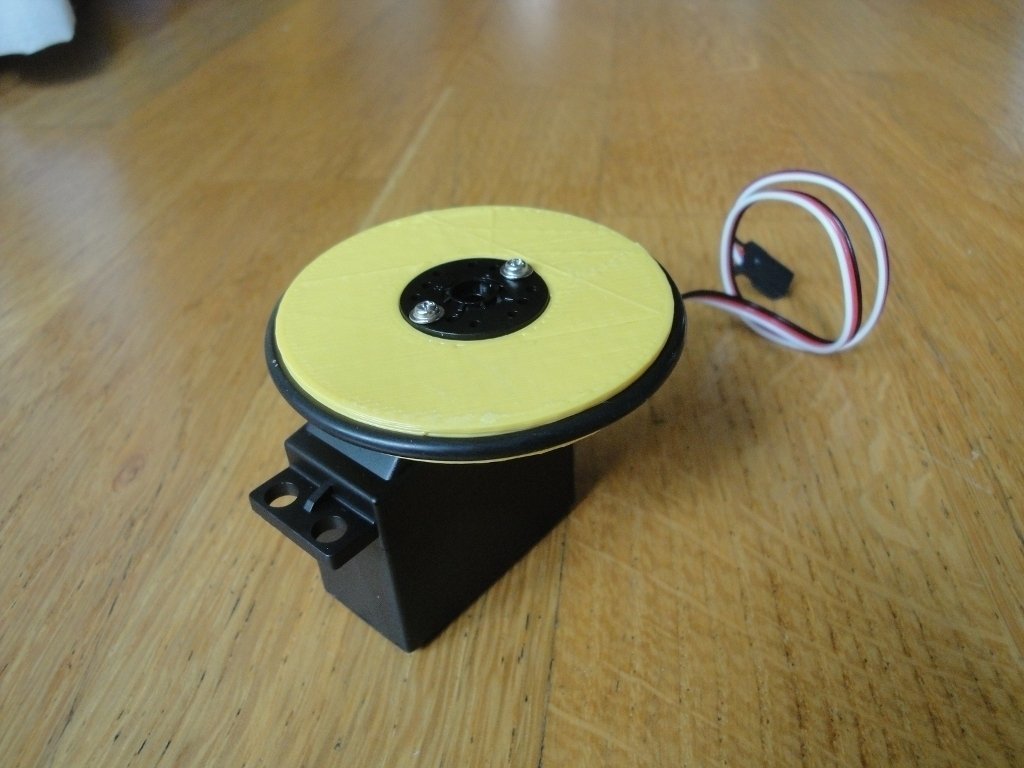

  • Fit the 55 mm rubber O-ring

Detailed pictures can be found here:

http://www.iearobotics.com/wiki/index.php?title=Montaje:Ruedas_G3_para_el_Skybot
