Ruler adjustable marking guide - CAD files included!

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

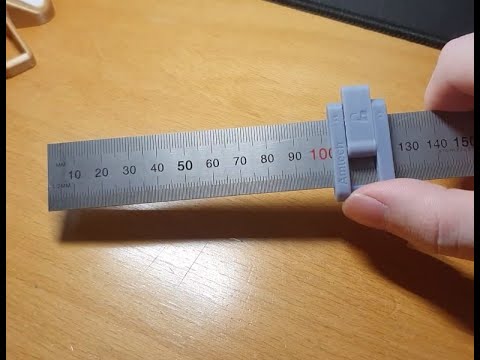

I made these blocks to use my metal ruler as caliper / scriber tool when drawing dimensions and cut lines etc. while example woodworking or building CNC frames

You can adjust any length and then easily lock block to that position, also easily to copy dimension to another place without measuring it.

..and there is fusion files for you so you can adjust models dimensions to suit better for your own ruler!

Printed with FDM and DLP printers, V1 threaded one doesn't need supports but V2 block needs.

STL are made for ruler which dimensions are 25 x 1 mm !!

https://youtu.be/Z8RUjpSkysY


3D printing settings

-

3D printer file information

  • 3D design format: F3D, STEP, and STL Folder details Close
    • Ruler_Block_2.stl
    • Ruler_Blocks_v4.f3d
    • Ruler_Blocks_v4.step
    • Ruler_Lever_2.stl

    Learn more about the formats

  • Publication date: 2022-06-06 at 11:15
    ?
    Published to Thingiverse on: 2021-02-09 at 17:29
