Quick and easy adjustment/leveling of 3D printer tray

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

SIMPLE & FAST ! (less than 5min)

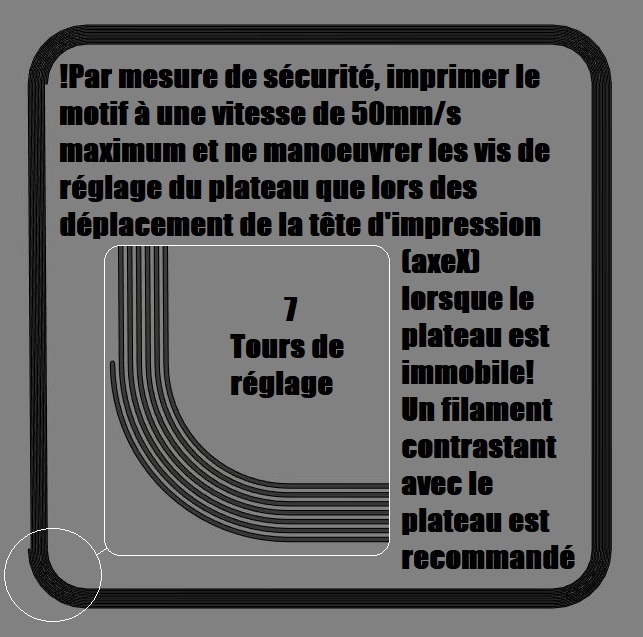

ATTENTION: For safety reasons, print at a speed of 50mm/s maximum and only move the adjustment screws of the plate when the print head (X axis) is not moving ;-) Now you can read the rest... it works too well!

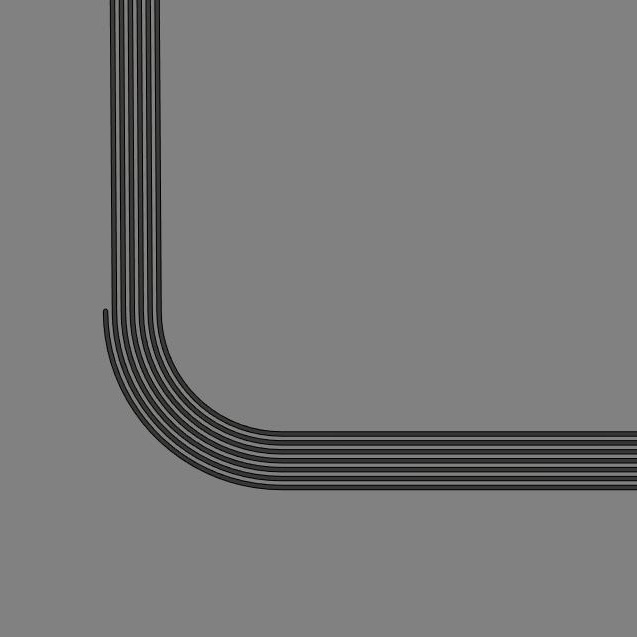

A printable pattern with a square shape of 200x200x0.3mm with the rounded corners going several times around the tray (x7). The dimensions can be adapted to other types of trays by scaling in the slicer.

Can be used for all square trays with 4 adjustment screws.

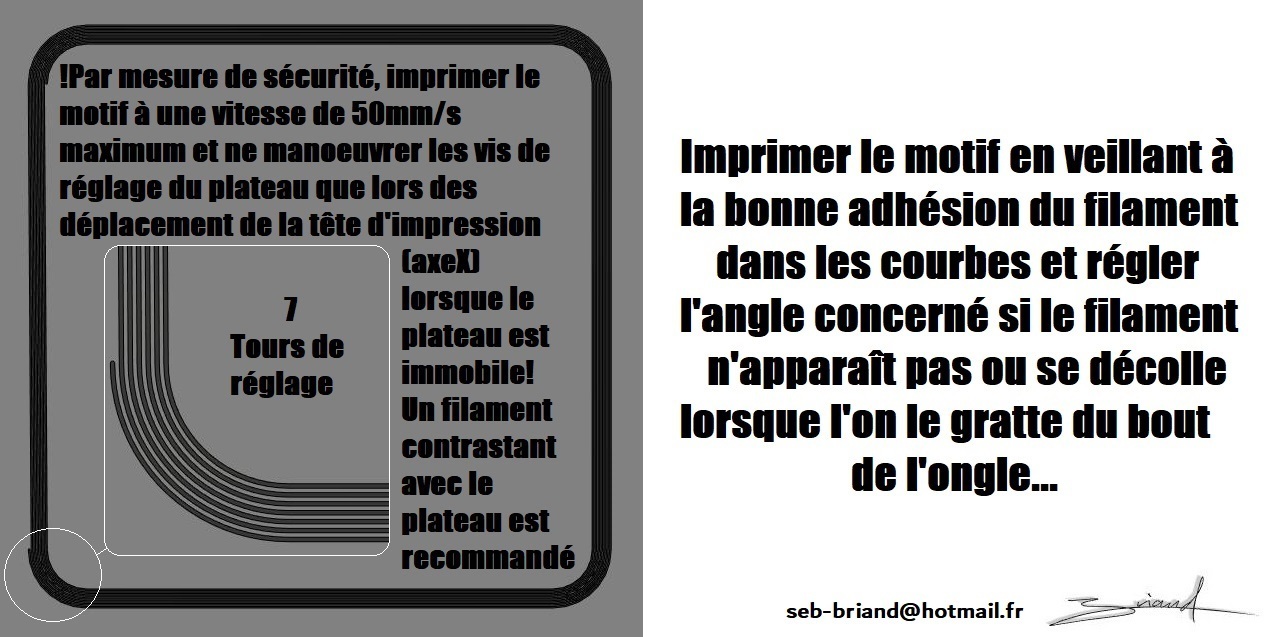

Just make sure the filament adheres well in the curves by scraping it with the tip of your fingernail and raise or lower the angle of the relevant tray then refine the setting as you turn the tray.


3D printing settings

Default:

-Square pattern of 20x20cm (readjustable with the slicer),

-0.4mm diameter nozzle,

-Layer height up to 0.3mm (readjustable with the slicer),

-100% filling,

-Speed of 50mm/s

3D printer file information

  • 3D design format: STL Folder details Close
    • Motif de réglage du plateau.stl

    Learn more about the formats

  • 3D model size: X 200 × Y 200 × Z 0.3 mm
  • Last update: 2020-11-17 at 23:41
  • Publication date: 2020-09-03 at 22:10
