RC car scale pickup bodies.

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

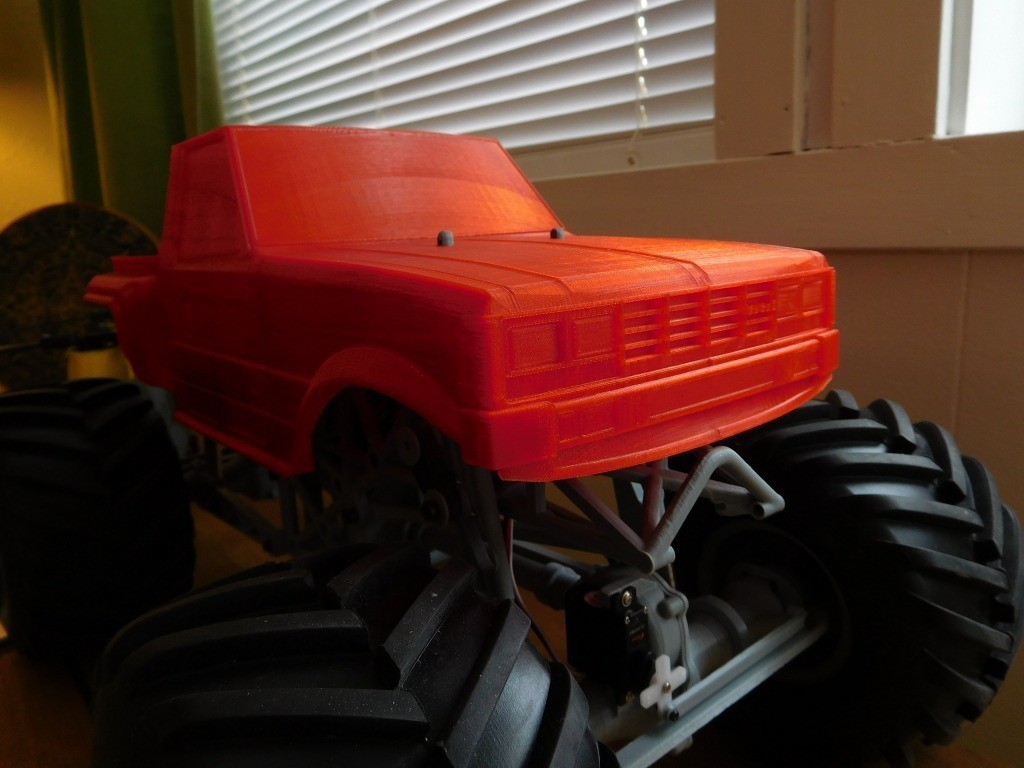

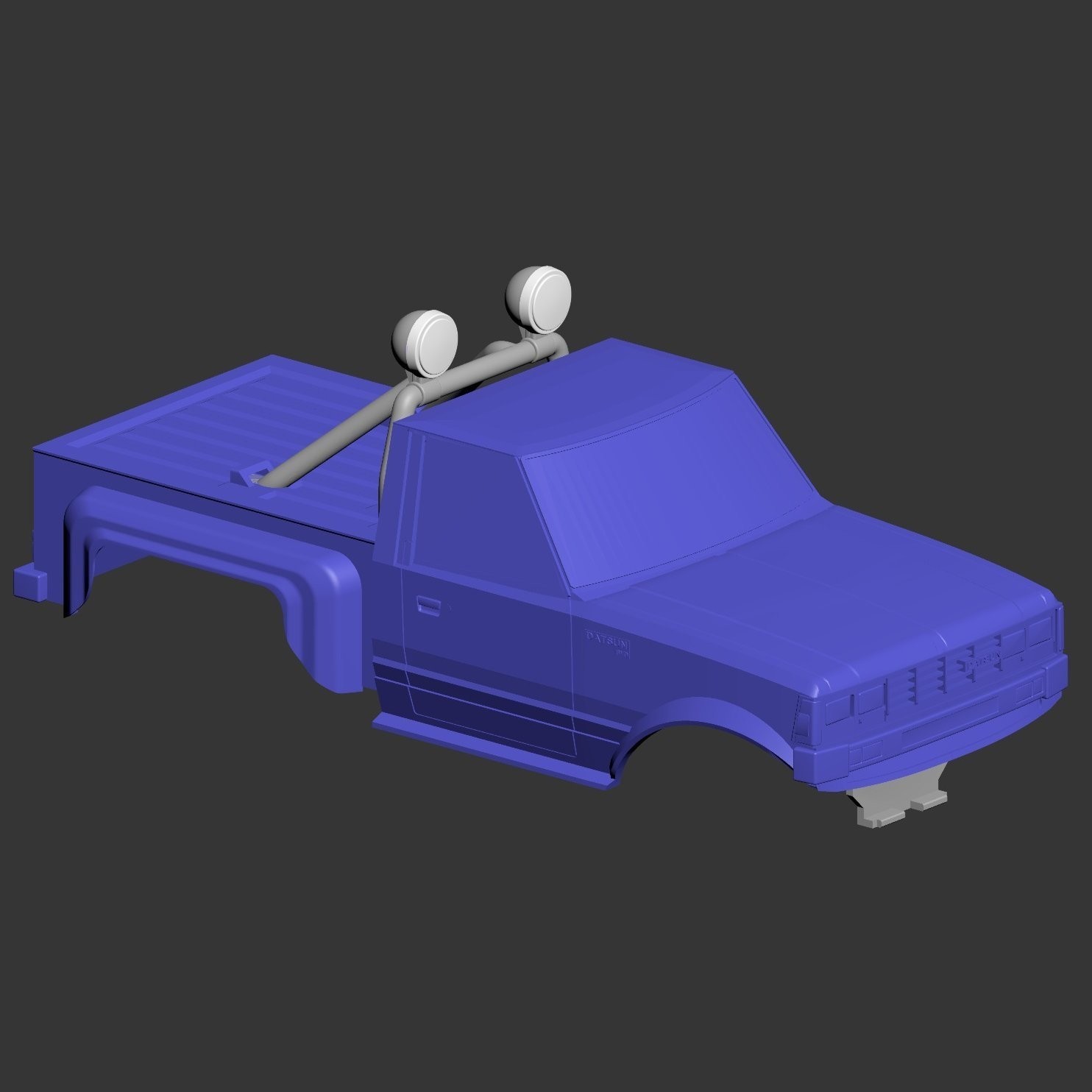

The bodies are based on an old Tokyo Marui 1:12 Big Bear Datsun body.

Width at front wheels: 148 mm
Width at rear wheels: 159 mm

The two different bodies have different lengths:
ShortWB length: 367,3 mm
ShortWB wheelbase: 232 mm
LongWB length: 390 mm
LongWB wheelbase: 263 mm

The window version has window cut outs which can be filled with lexan sheet from the inside. The non-window version is easy to print.

The bed from the two body versions can be mixed to create intermediate wheelbases, respectively 240mm and 252 mm.

3D printer file information

  • 3D design format: STL Folder details Close
    • Big Bear Roll Bar.STL
    • Big Bear lykt.STL
    • LongWB01.stl
    • LongWB02-windows.stl
    • LongWB02.stl
    • LongWB03.STL
    • ShortWB01.stl
    • ShortWB02-windows.stl
    • ShortWB02.stl
    • ShortWB03.STL

    Learn more about the formats

  • Publication date: 2017-05-08 at 16:25

License

CC BY

Tags

Creator

Norwegian inventor/designer/cat owner.

Please don't ask for original design files or parametric files.

If you ask a question about a design, ask under the design so that I can answer there.
