(Update 2/24/2019: improved alignment of clips on pad, 3 files changed to version 1a)

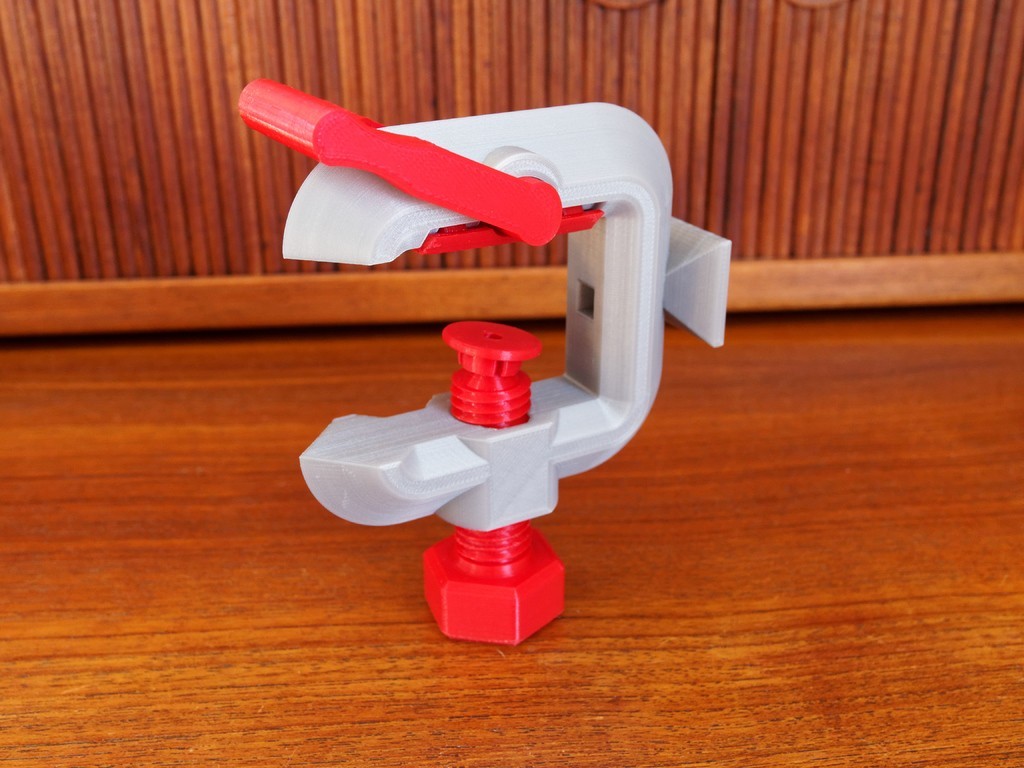

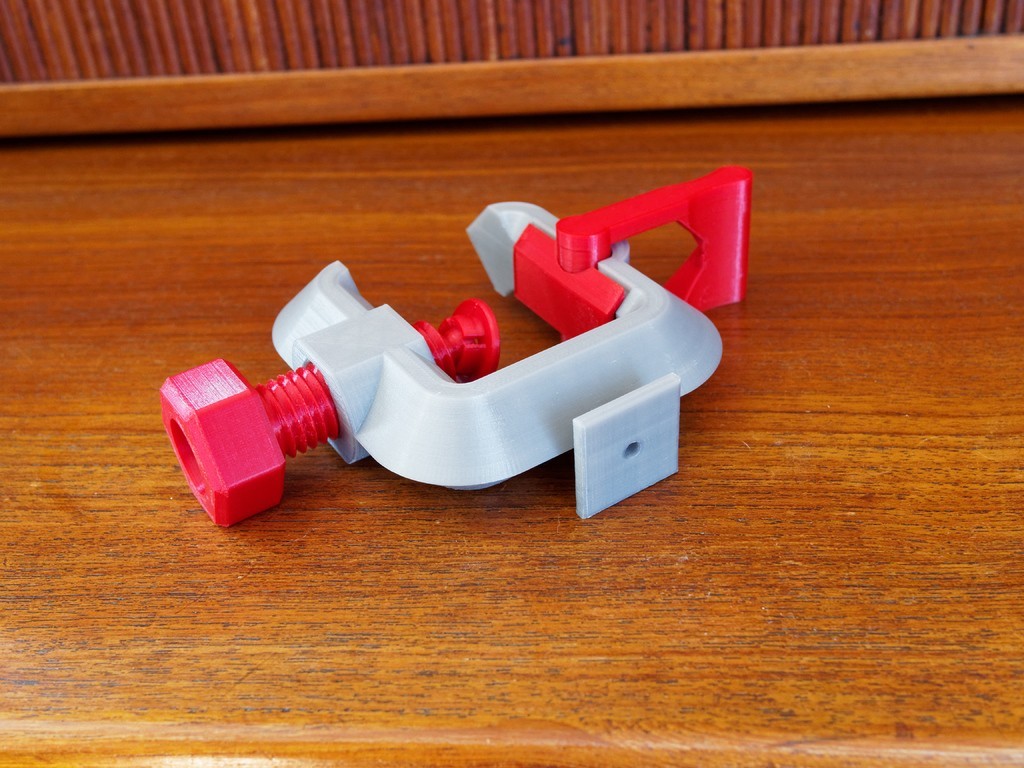

This is a g-clamp with the addition of a locking lever, which allows quick adjustment of position. There is an integrated dovetail mount so you can use this to mount things to bookshelves and tables, such as my Pac-Man themed headphone stand:
https://www.thingiverse.com/thing:3450967

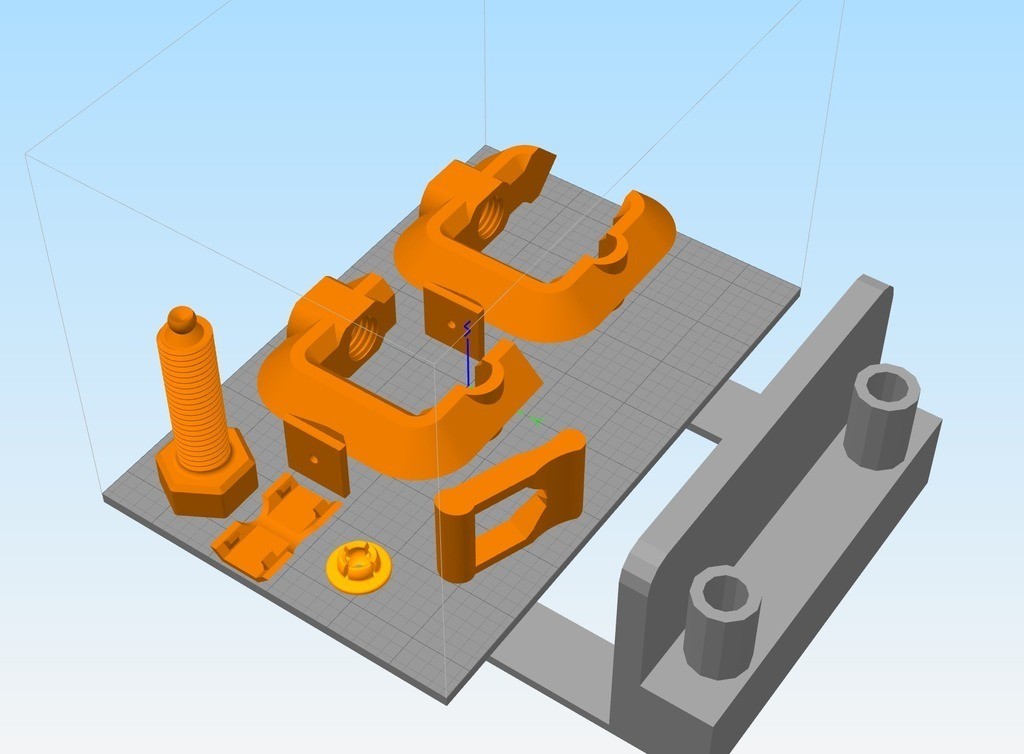

The clamp prints without supports and snaps together. There are 45 degree overhangs and some bridging involved. If your printer doesn't handle bridging so well, you might want to use supports on the "lever" part.
I suggest printing with at least 3 perimeters and a fair amount of infill, to ensure it is suitably stiff.
It will be possible to scale this design up and down in size over quite a wide range.
There is a short version of the clamp which doesn't extend as far onto the surface you are attaching it too.

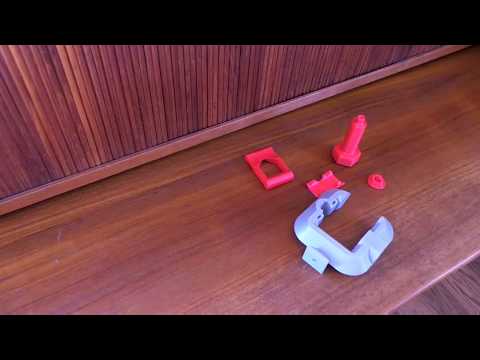

Follow the video guide for assembly:
https://youtu.be/DiqC5PKDQAA
There is a hole through the middle of the dovetail mount, to give the option of using a long M3 screw to hold things in place.
I have also included a model of the dovetail mount, and the corresponding socket, so you can graft it on to other models. The socket should print in multiple orientations without supports, so long as you can handle a bit of bridging and overhangs.
I've never charged anything for any of my models and I don't expect tips, but please post your makes, it makes it worthwhile for me.
3D printer file information
-
3D design format: STL Folder details Close
- Dovetail_Mount.stl
- Dovetail_Socket.stl
- New.stl
- Screw.stl
- button.stl
- c_clamp_1a.stl
- c_clamp_short_1a.stl
- pad1a.stl
- Last update: 2019-03-04 at 10:56
-
Publication date:
2019-02-25 at 11:04
?
Published to Thingiverse on: 2019-02-25 at 02:01
