Queen of Hearts

3D model description

The Queen of Hearts is a character from the 1865 book Alice's Adventures in Wonderland by Lewis Carroll.

She is a foul-tempered monarch whom Carroll himself describes as "a blind fury", and who is quick to give death sentences at the slightest offense. One of her most famous lines is the oft-repeated "Off with his/her head!"

No supports are required. If you have the proper filament colors, no painting is needed.

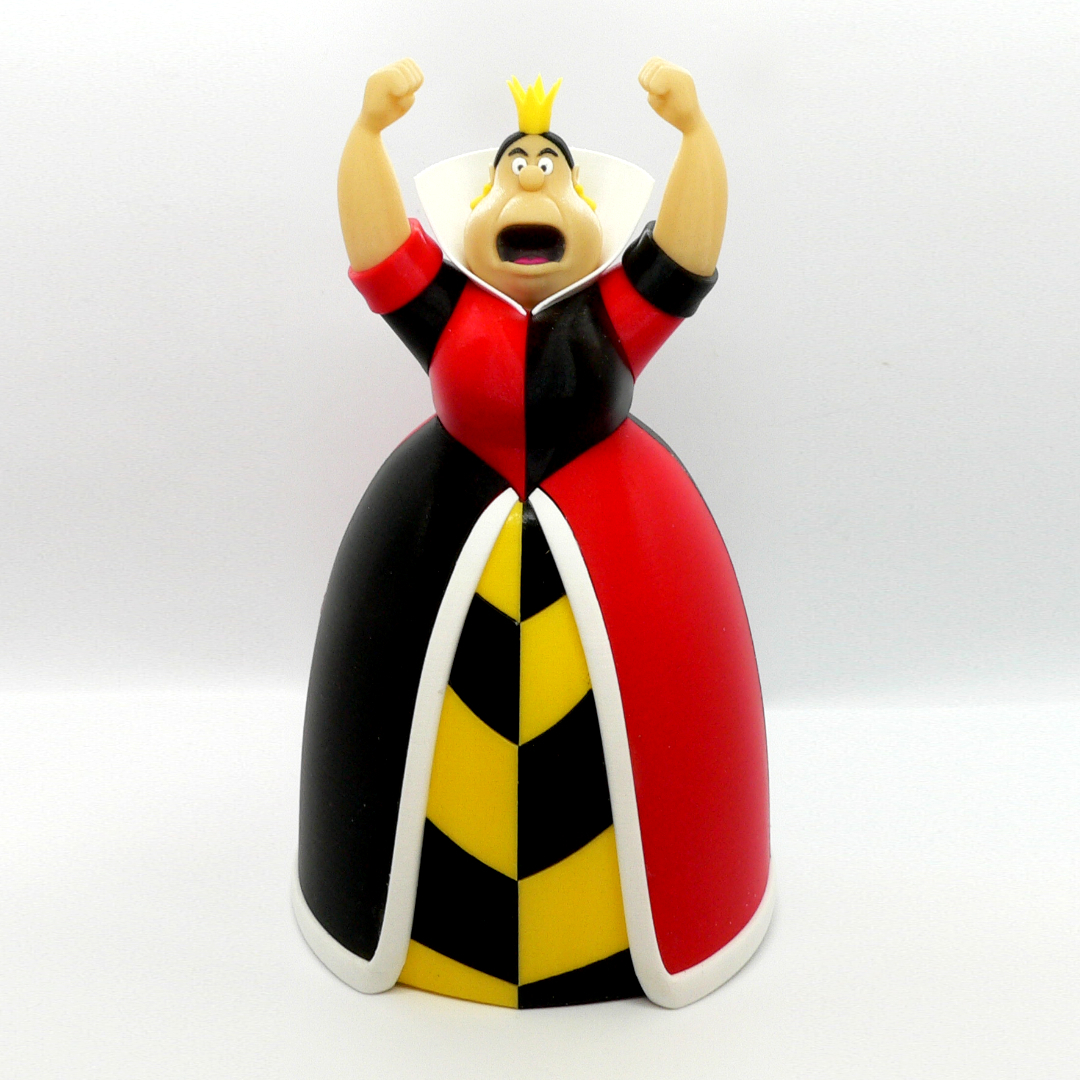

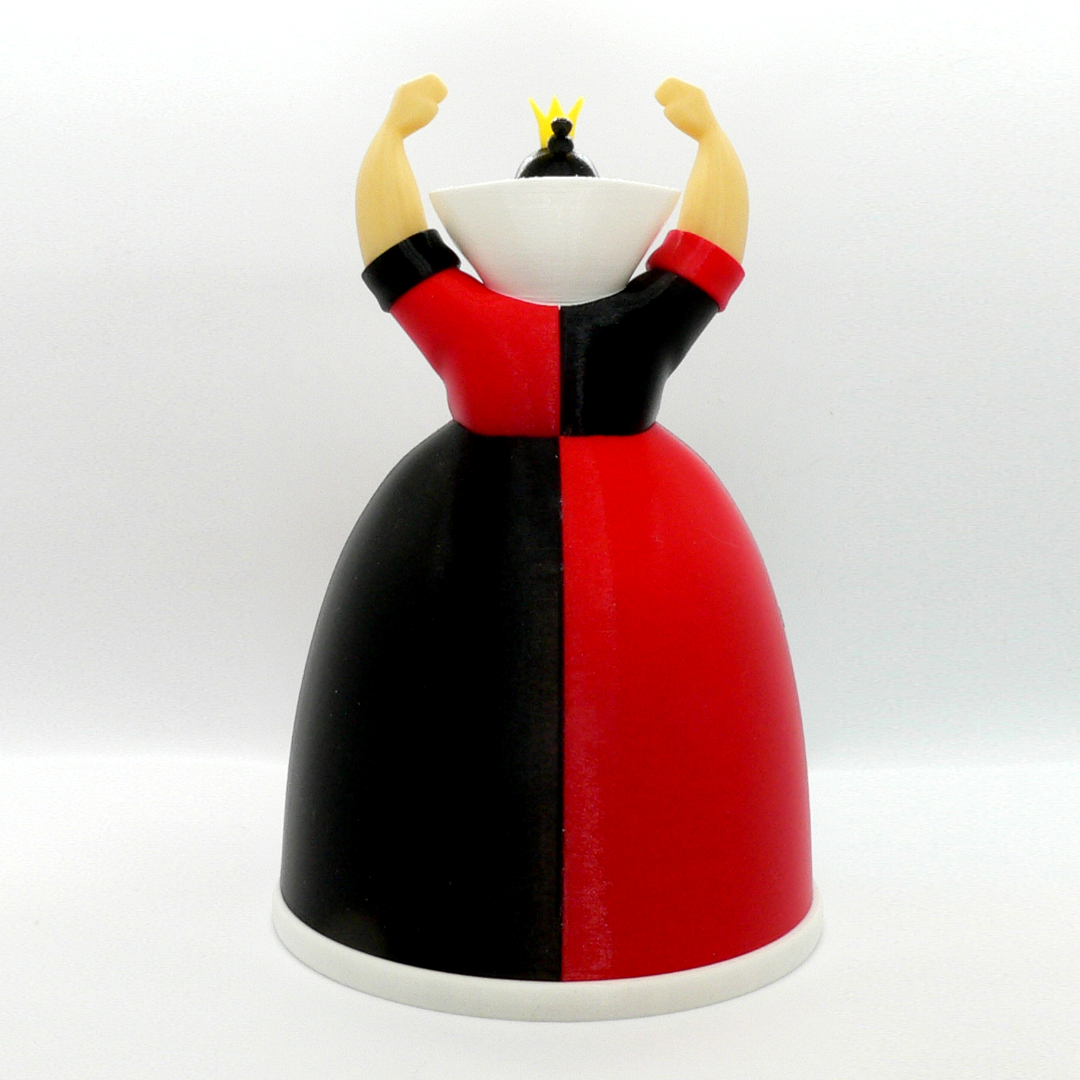

The assembled model is 280mm tall and is in proportion to most of my other Wonderland models. Picture with Alice is shown for comparison.

Enjoy, and keep your head on!

...................................................................................................
Print Instructions
Supports: No
Resolution: .2mm
Infill: 10%

Notes:**

Refer to the notes below for helpful printing and assembly instructions.

......................................................................................................
Building the model
Colors (there are no multiple printed pieces)

Skin: (Paramount3D PLA - Universal Beige)
arm_right
arm_left
head
..
Yellow: (Paramount3D PLA - Simpson Yellow)
dress_yellow_left (contains two separate pieces)
dress_yellow_right (contains three separate pieces)
crown
earring _left
earring_right
..
Red: (Hatchbox PLA - True Red)
cuff_red
dress_top_red_right
dress_top_red_left
dress-bottom_red_right
dress_bottom_red_left
..
Black: (Paramount3D PLA - Black)
cuff_black
dress_top_black_right
dress_top_black_left
dress-bottom_black_right
dress_bottom_black_left
eyebrow_left
eyebrow_right
eye_blacks (contains two pieces)
hair
dress_black_left (contains three separate pieces)
dress_black_right (contains two separate pieces)
..
Grey: (Paramount3D PLA - Graphite Grey)
mouth
..
White: (Paramount3D PLA - White)
eye_white_right
eye_white_left
cowl
dress_bottom_white
..
Pink: (Paramount3D - Harajuku Pink)
tongue
..

......................................................................................................

Printing and assembly tips

Printing tips
1-No supports are required

2-Use your judgement for brims or rafts. Personally, I used a raft for the eyebrows and eye_blacks. These are small pieces and not only do they print easier with a raft, they are far easier to handle and don't get lost if you leave them on the raft until you need them.

3-The dress bottom pieces are large and print time is longer than most of my models. I decided to hollow out part of the dress to reduce print time considerably, but it is still a long print.

4-The parts should fit nicely when printed cleanly or with a slight first layer squish. For this model, in particular, be sure to clean off any first layer squish. Most first layers are hidden inside the model when assembled, so even if the cleanup is 'ugly' it should be hidden.

..
Assembly tips:

1-I used E6000 sticky craft glue glue to put this model together. The sticky glue allows more time to position the parts than a fast drying superglue.

2-The model fits together quite well, but care should be taken with gluing the dress bottom. The 'point' of the waist should have the large red and black pieces flush to the front with the white edges. The bottom of the large red and black pieces will be recessed. I needed some tape to keep it all in place while adjusting and drying.

3-The black/yellow parts in the front of the dress are all individual. If you mix them up, it could turn into a small puzzle while fitting them. To help position those pieces, remember that the flat side that was on the bed always aligns to the seam straight down the middle.

4-Refer to the assembly diagram in the pictures section as well as the uploaded pictures for putting the model together. The model is meant to be glued.

Do not hesitate to ask questions, feedback is essential to making better models.

  • 3D file format: STL

Tags

Creator

Designs 64
Downloads 20119
Followers

Retired software engineer, learning CAD design and 3D printing. When creating models, I strive for support free designs and fun creations.

License

CC BY NC SA
