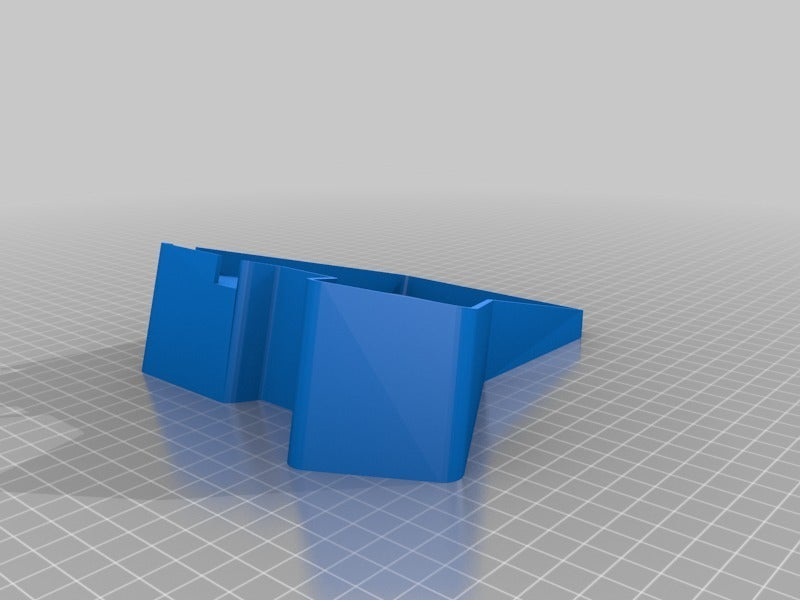

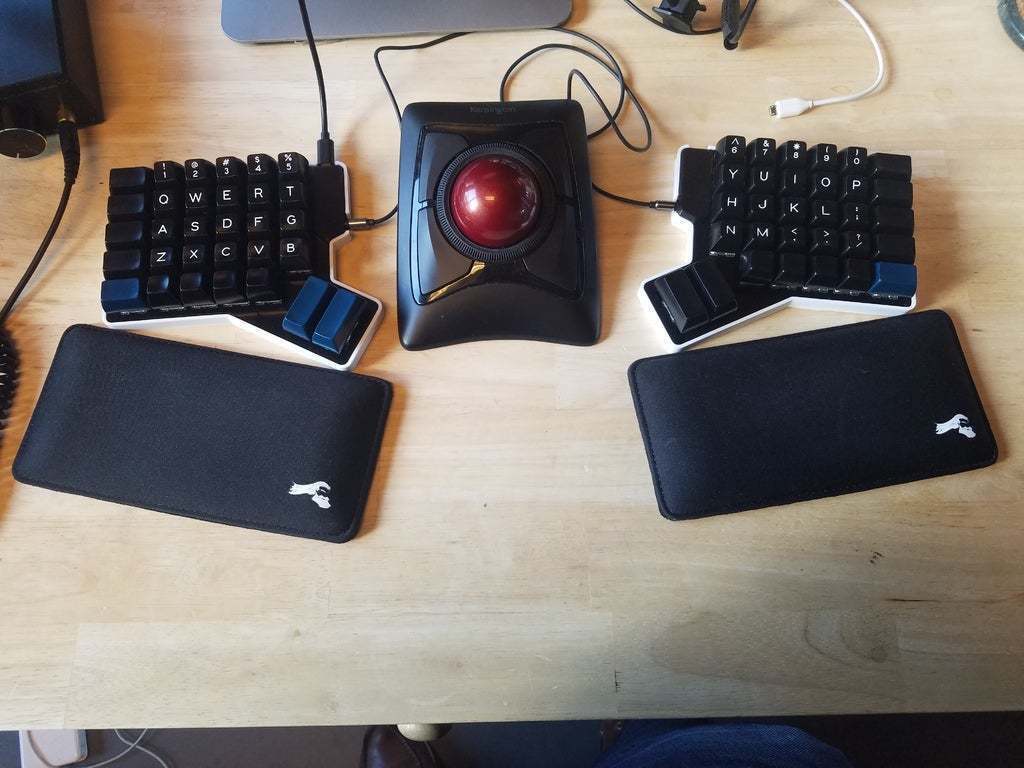

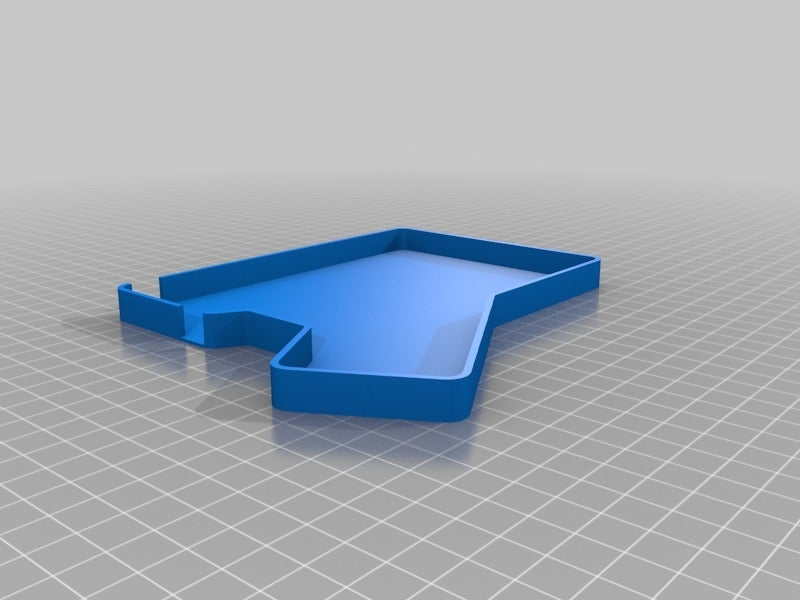

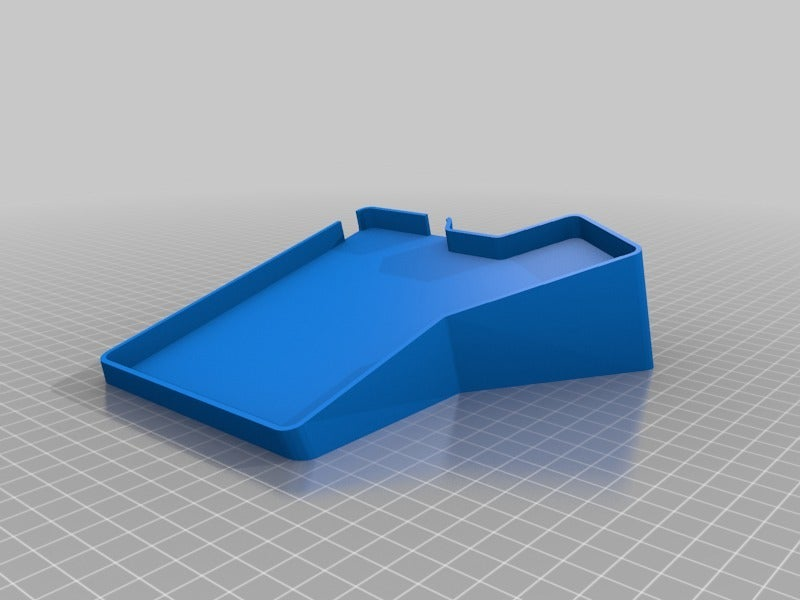

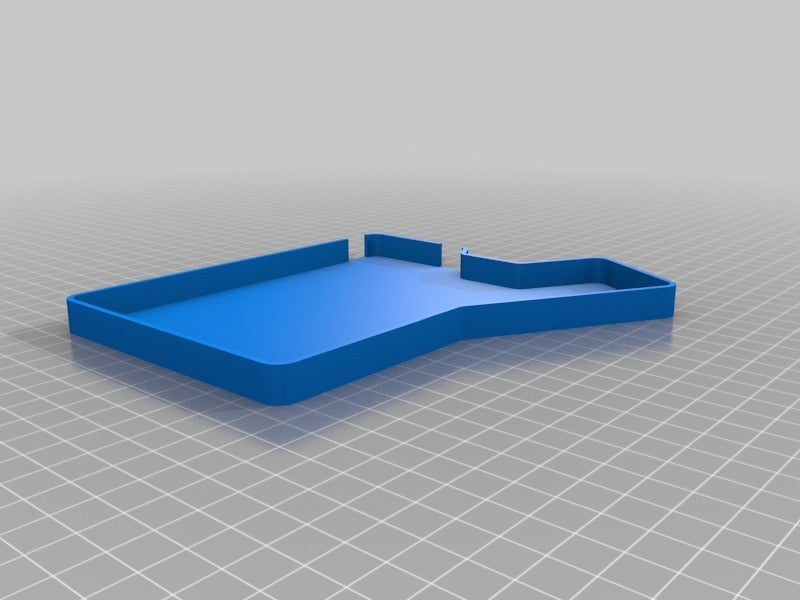

There are no 3d printable cases for the Project Zen yet! I'm here to change that. Project Zen is an Ergodox-like sandwich case keyboard with a low profile. This case was designed to fit over the bottom plate, but will also probably accommodate builds with the bottom case as well.

This case was generated programmatically by using the bottom plate DXF as a guide. It's designed to be as thin as possible and press-fit, so sizing is crucial; I had to increase the scaling by 0.75% (yes, percent) to get everything to fit right. This increase is built into the models provided.

The default settings are a 10mm inner height, 1mm bottom thickness, and 2mm sides, but if those values don't work for you, you can get the BASEPLATEDXF here and mess with the parameters in the .scad file to your liking. Legonut doesn't have a license on the files so I don't want to rehost it here.

If you have any problems, give me a shout!

  • 3D file format: SCAD and STL

Tags

Creator

License

CC BY SA
