Polisher_170mm_Complete_Remix

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 5 likes
  • 59 downloads

3D model description

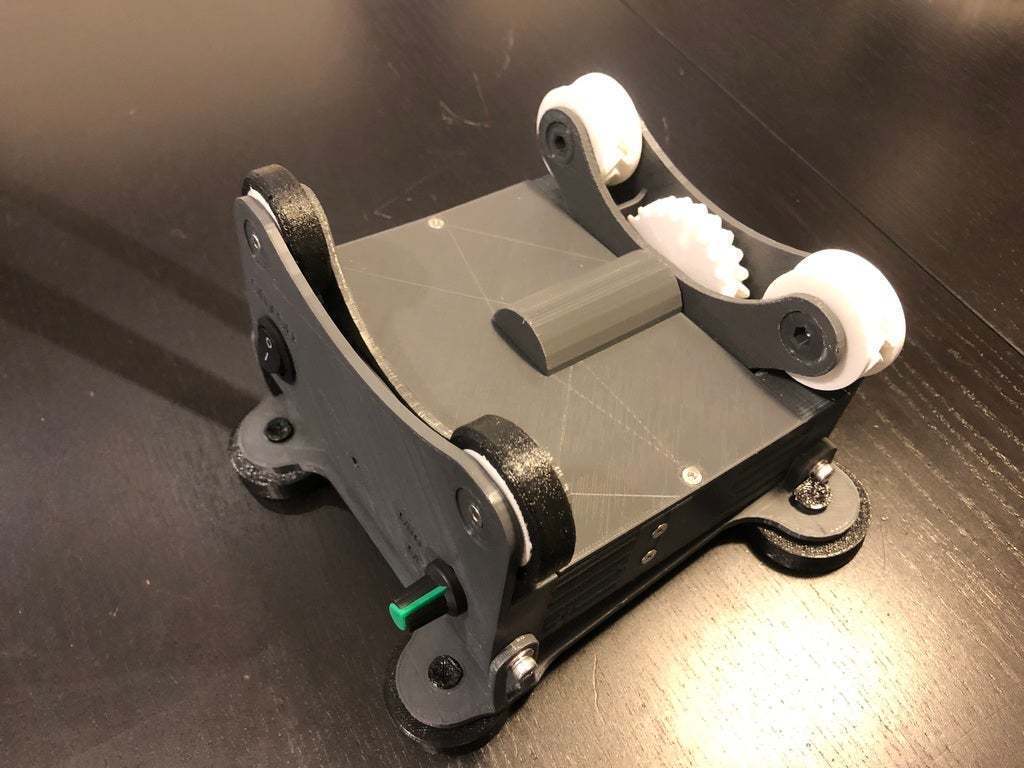

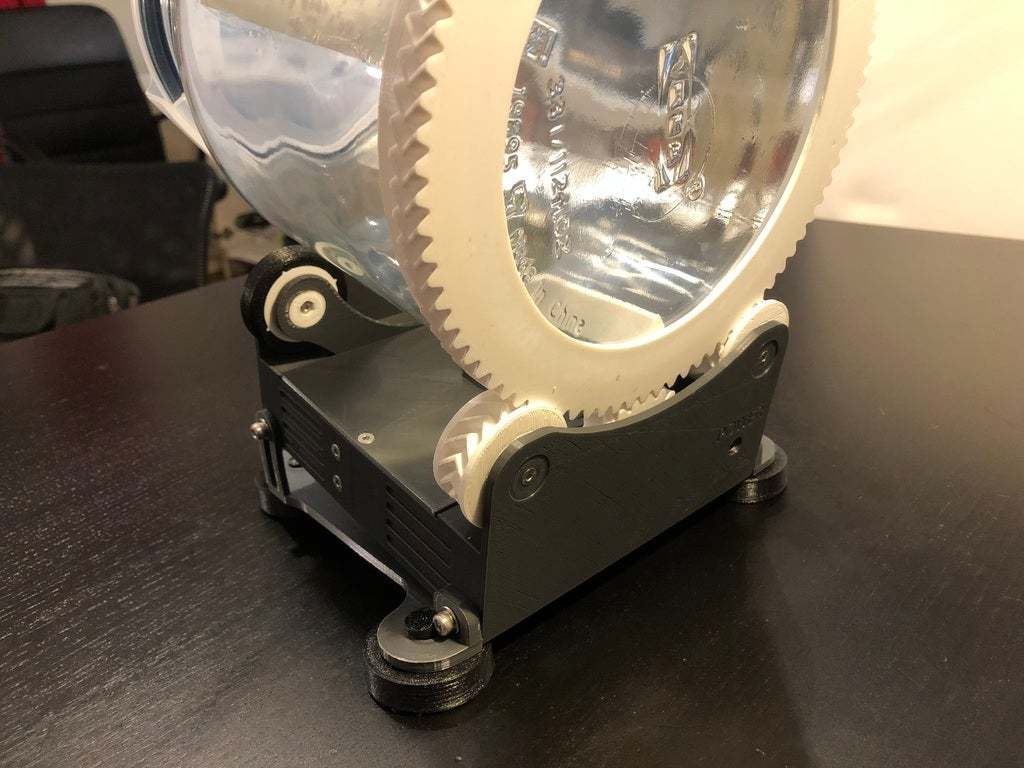

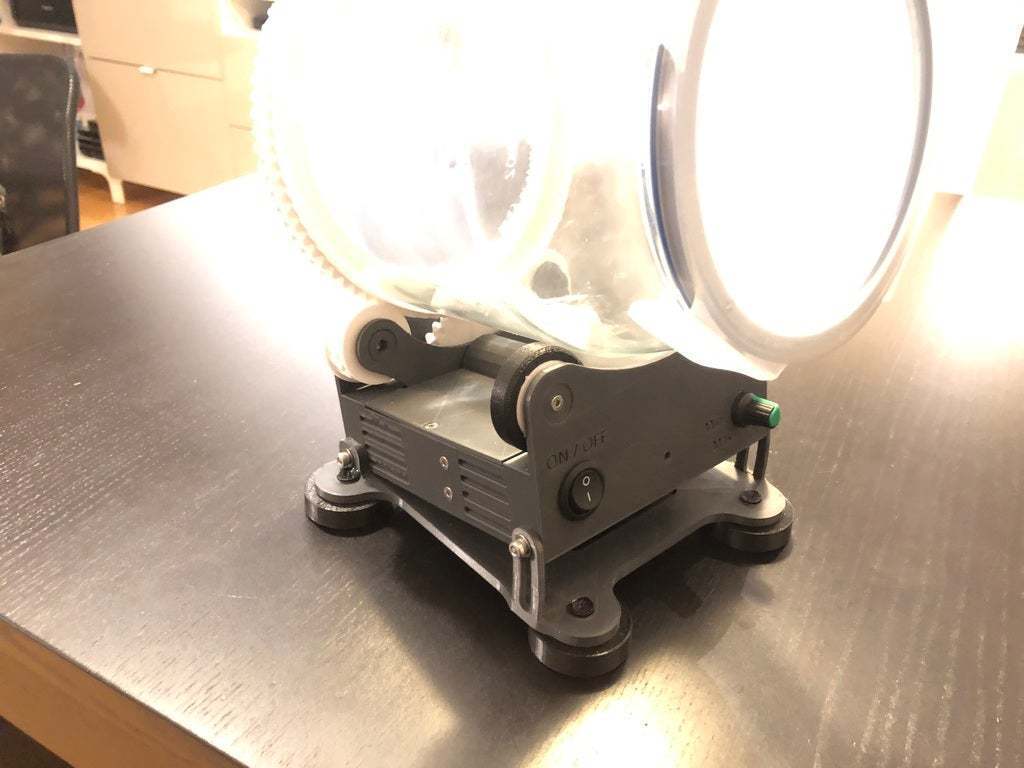

Here is my revision of the reittec polisher, based on the following models:

The original model of reitter m: https://www.thingiverse.com/thing:3666116/

The revision in 170mm: https://www.thingiverse.com/thing:4076827

Leviathan3D bearings: https://www.thingiverse.com/thing:4100518

credit to the authors :-)

So for my version I made the following changes:

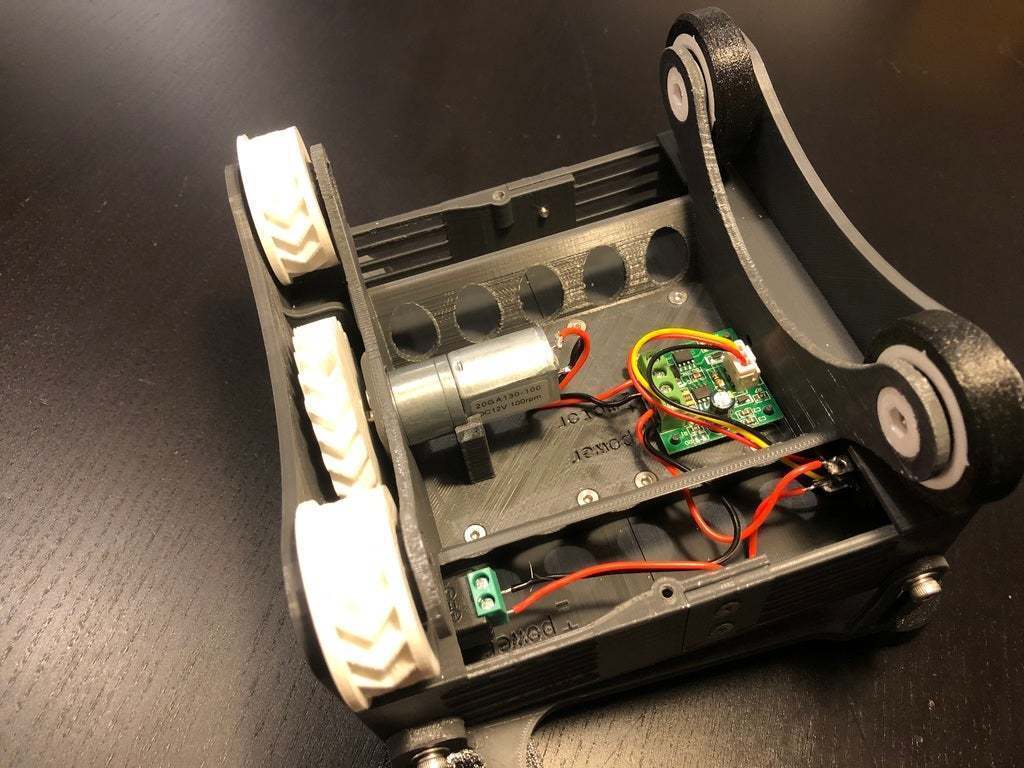

  • electrical equipment integrations, see the material used below.

  • replacement of screws by countersunk screws

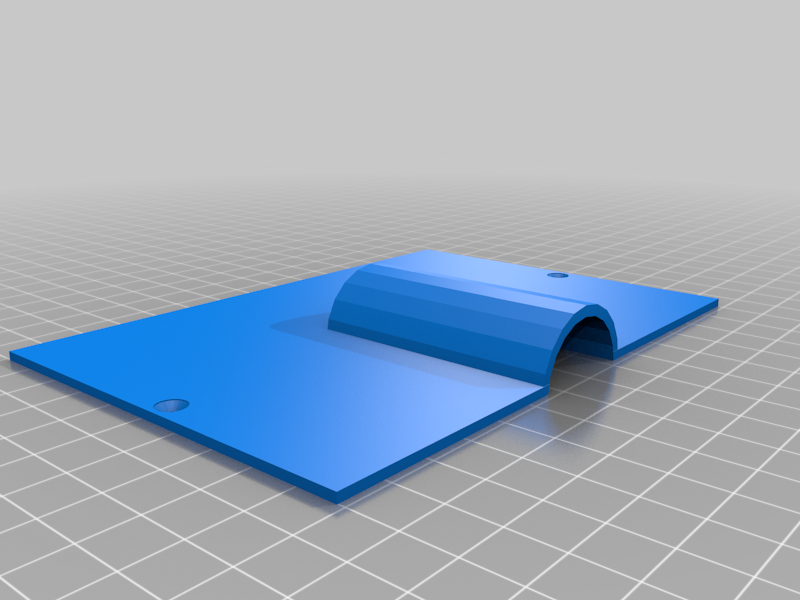

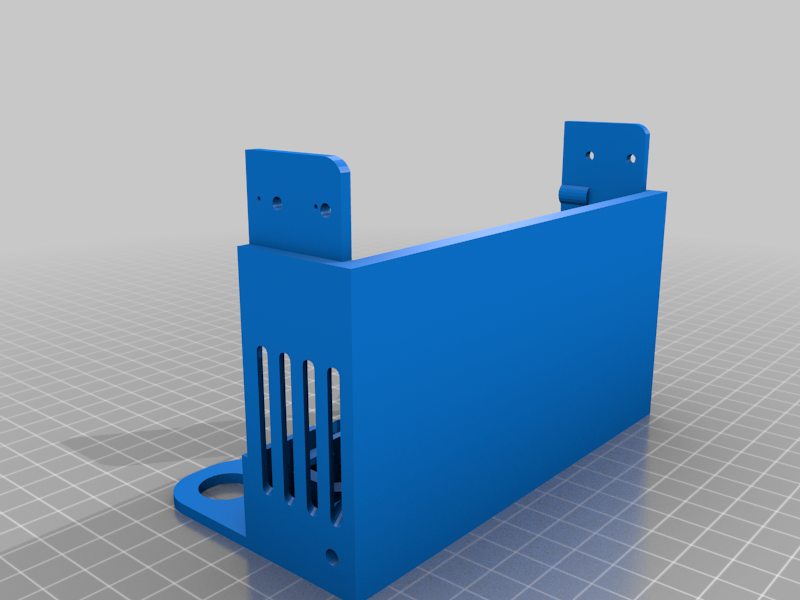

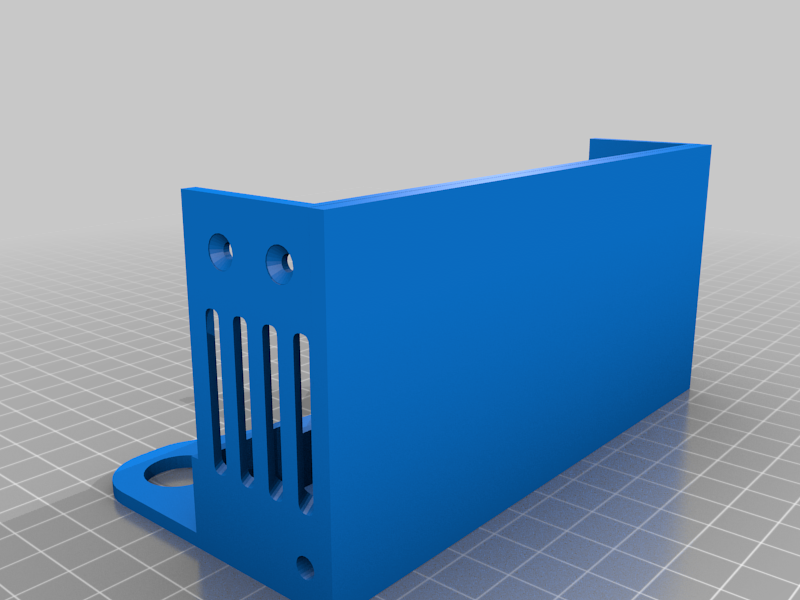

  • addition of a cover and vents.

for those who can print in FLEX -> V1:

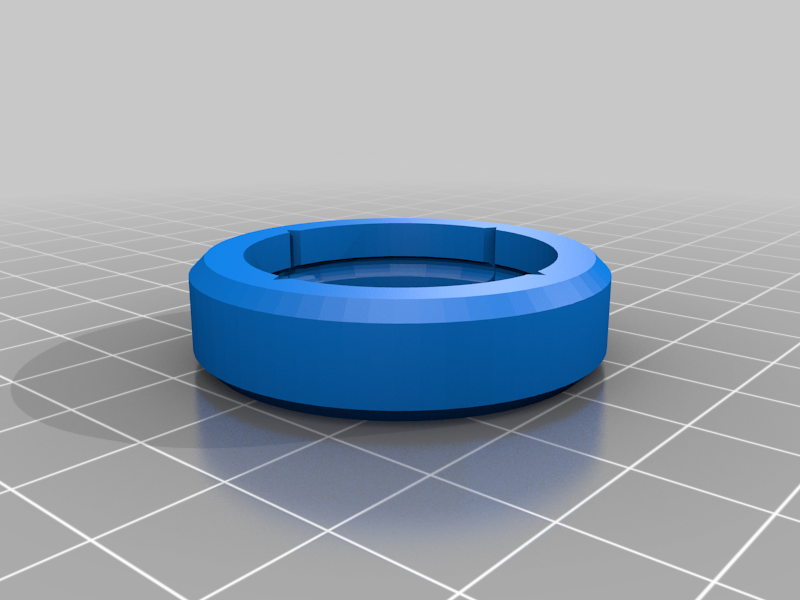

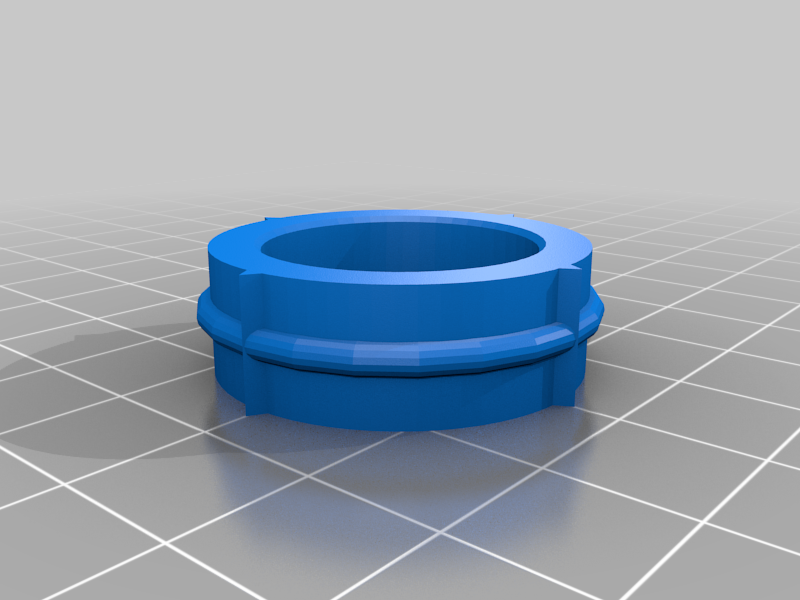

  • modification of bearings to incorporate a FLEX ring for noise reduction

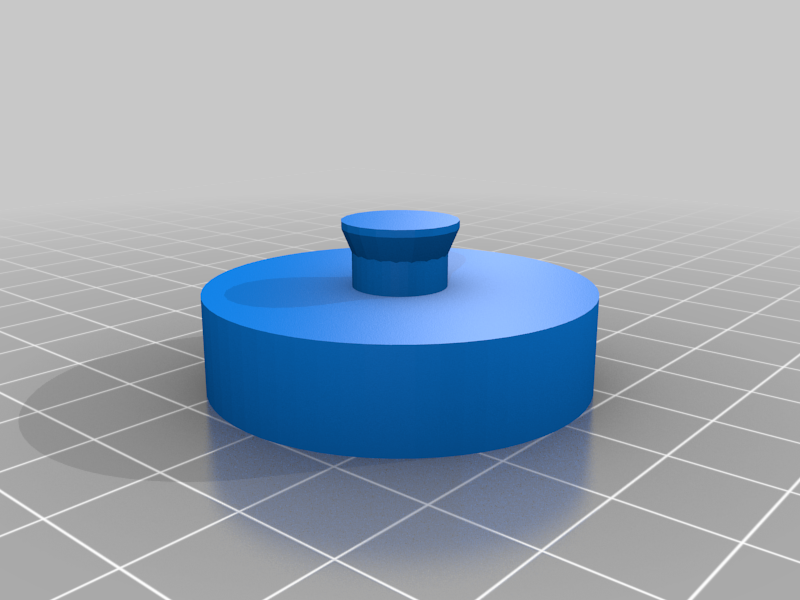

  • replacement of the feet by FLEX to reduce vibrations.

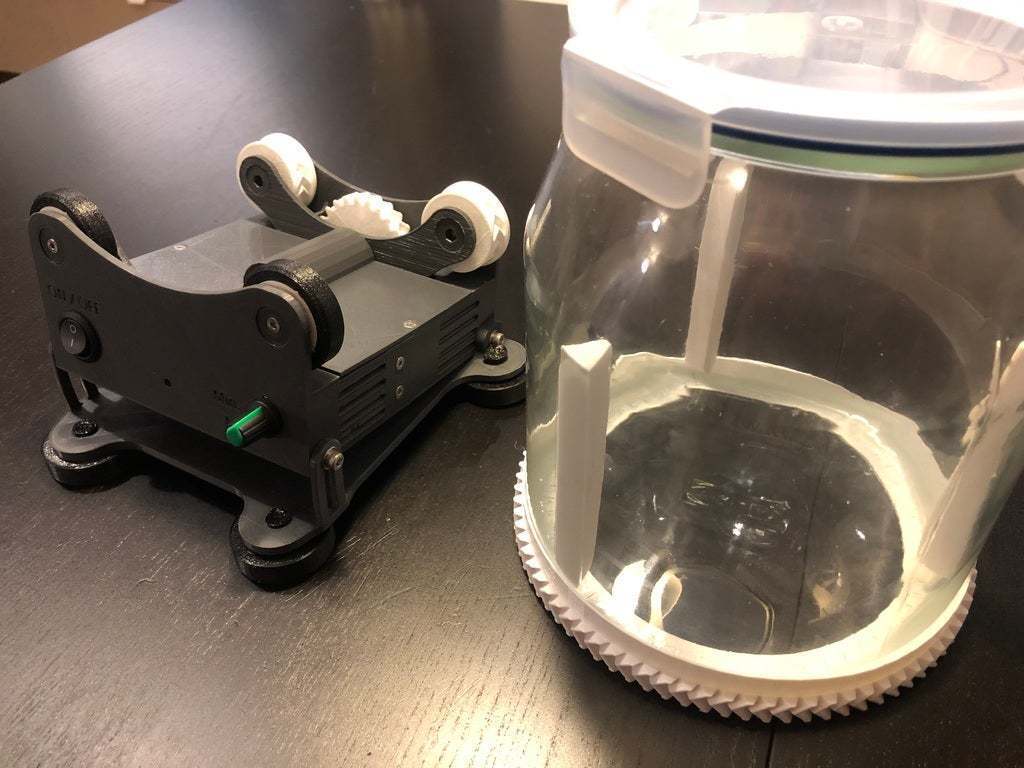

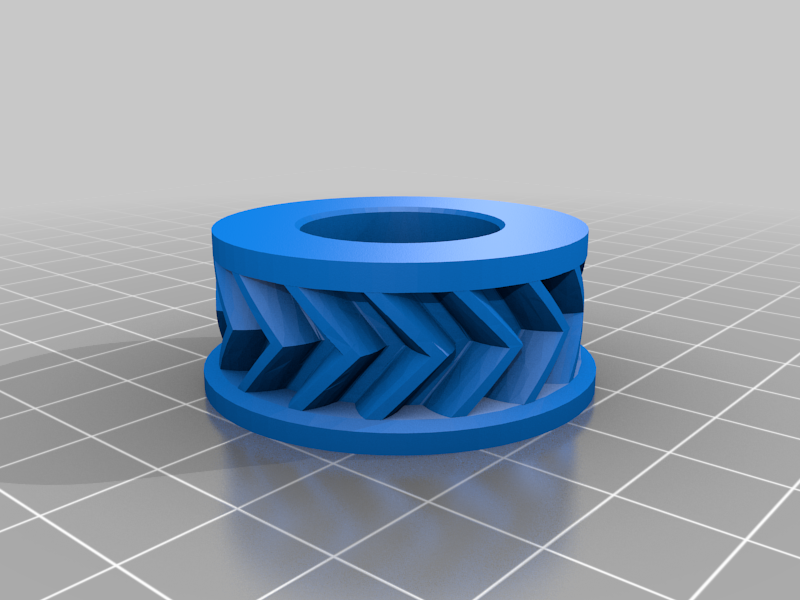

  • modification of the jar's toothed wheel to facilitate gluing

and then the addition of ball bearings -> V2:

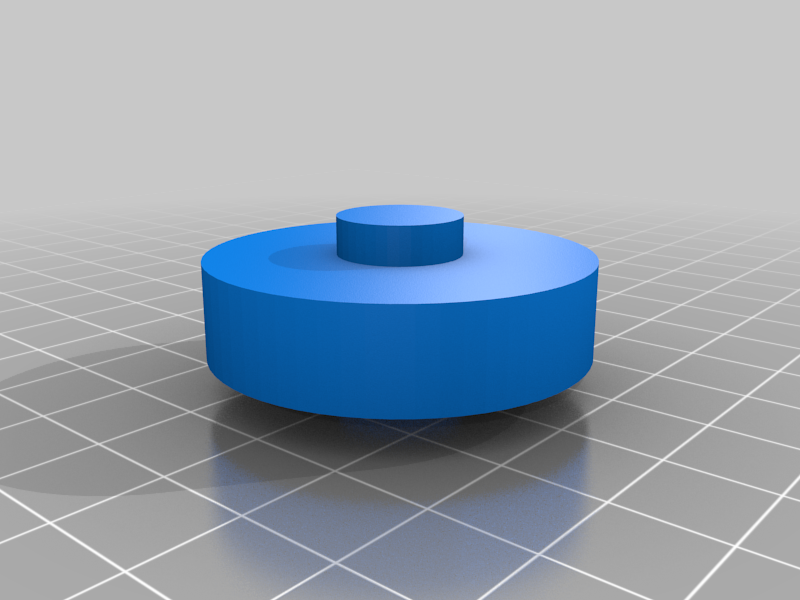

  • replacement of parts by ball bearings integrated directly on the structure.

Here is my review of the reittec polisher, based on the following models:

The original model of reitter m: https://www.thingiverse.com/thing:3666116/

The 170mm revision: https://www.thingiverse.com/thing:4076827

Leviathan3D bearings: https://www.thingiverse.com/thing:4100518

credit to authors :-)

So for my version I made the following modifications:

  • integration of electrical equipment, see the equipment used below.

  • replacement of screws with countersunk head screws

  • addition of a cover and vents.

for those who can print in FLEX -> V1:

  • modification of the bearings to integrate a FLEX ring to reduce noise

  • foot replacements with FLEX to reduce vibrations.

  • modification of the notched wheel of the jar to facilitate bonding

and then adding ball bearings -> V2:

  • replacement of parts by ball bearings integrated directly on the structure.

For the material used / Pour le matériel utilisé:

  • 3D file format: STL
  • Publication date: 2020/03/20 at 09:29
