INLET PIPE AM6 V2.0

Download 3D model INLET PIPE AM6 V2.0, MAX3DDownload 3D model INLET PIPE AM6 V2.0, MAX3DDownload 3D model INLET PIPE AM6 V2.0, MAX3D
Download 3D model INLET PIPE AM6 V2.0, MAX3D

Did you 3D print this model?

3D model description

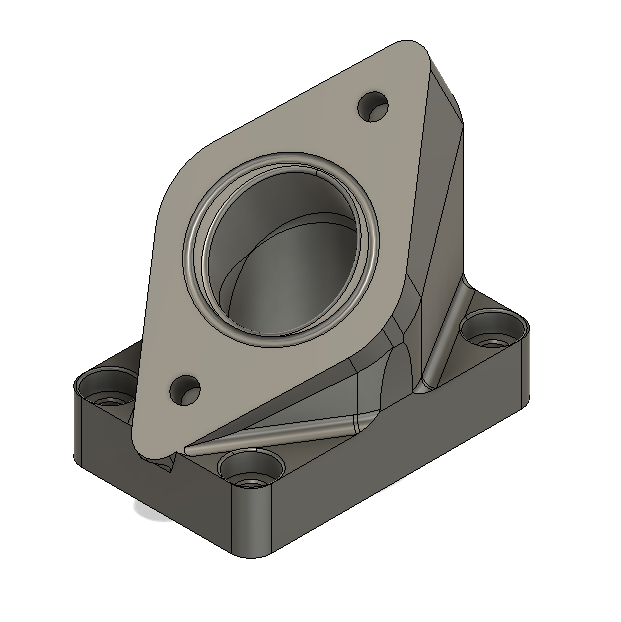

new intake pipe for AM6 engine

I created it because I couldn't pass a big carburetor (like pwk) because of the shock absorber. It is necessary to install using 2 screws M6*10 a rubber sleeve type most sold by scootfast (for my part I used this one but you could use another one) the distance between the screws of this one is 60mm. Put joint paste between the sleeve and the pipe and between the pipe and the valves.

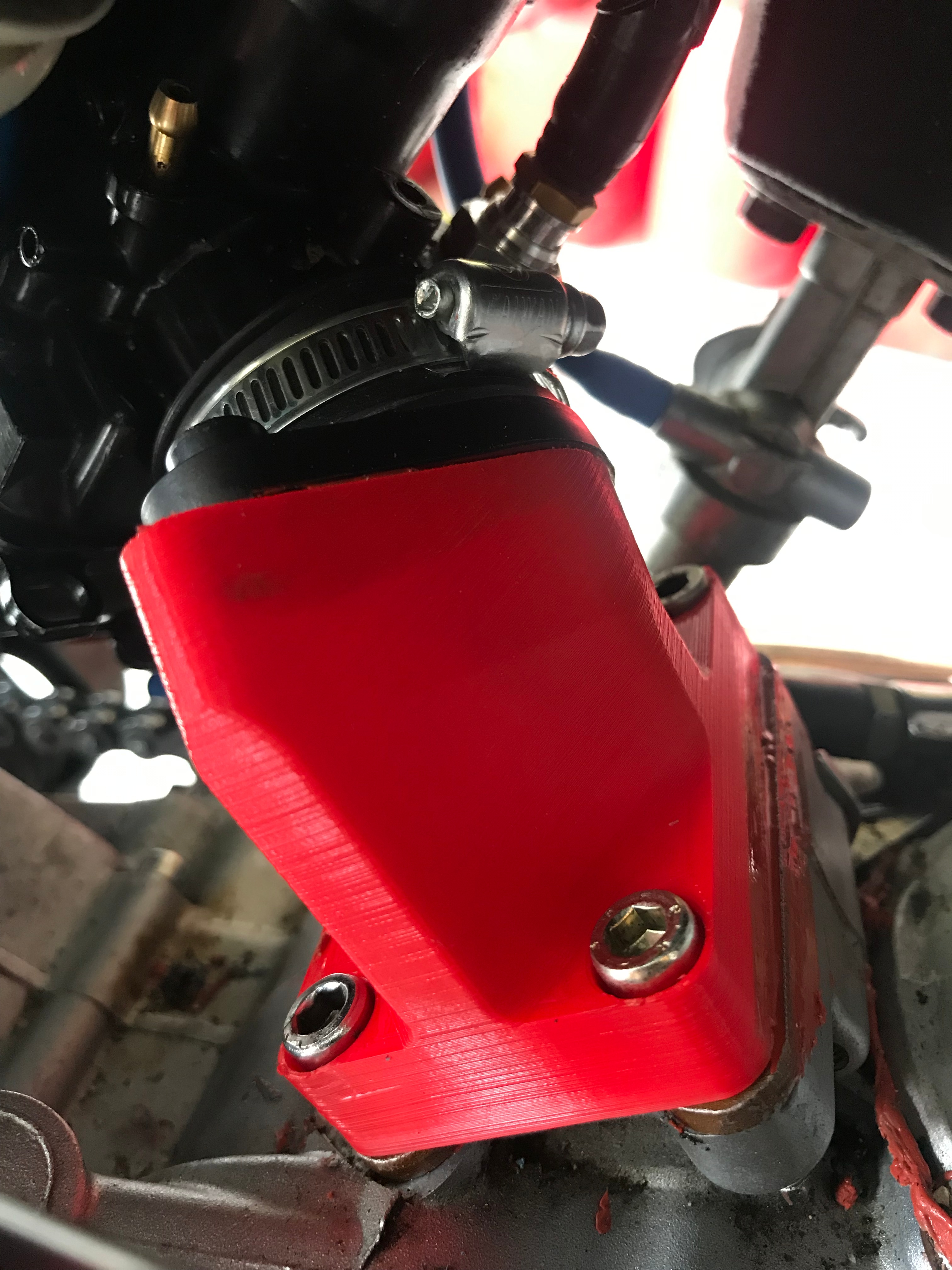

I have been using it personally for more than two months now at the time I put it online (27.07.2019) and I have had no problems with deformation or breakage.

You will also need 4 M6*25 screws to fix the assembly after following the valves you have taken the correct screw lengths at the risk of damaging the housing threads.

3D printing settings

0.2 mm

20% filling rate

2mm hull line or 5 lines with a 0.4 mm nozzle

no support

no help for membership on buildtak

Dagoma of 200 modify

  • 3D model format: STL
