Intake pipe AM6 39.6° 39.6°

Download 3D printing models Intake pipe AM6 39.6° 39.6°, MAX3DDownload 3D printing models Intake pipe AM6 39.6° 39.6°, MAX3D

Did you 3D print this model?

3D model description

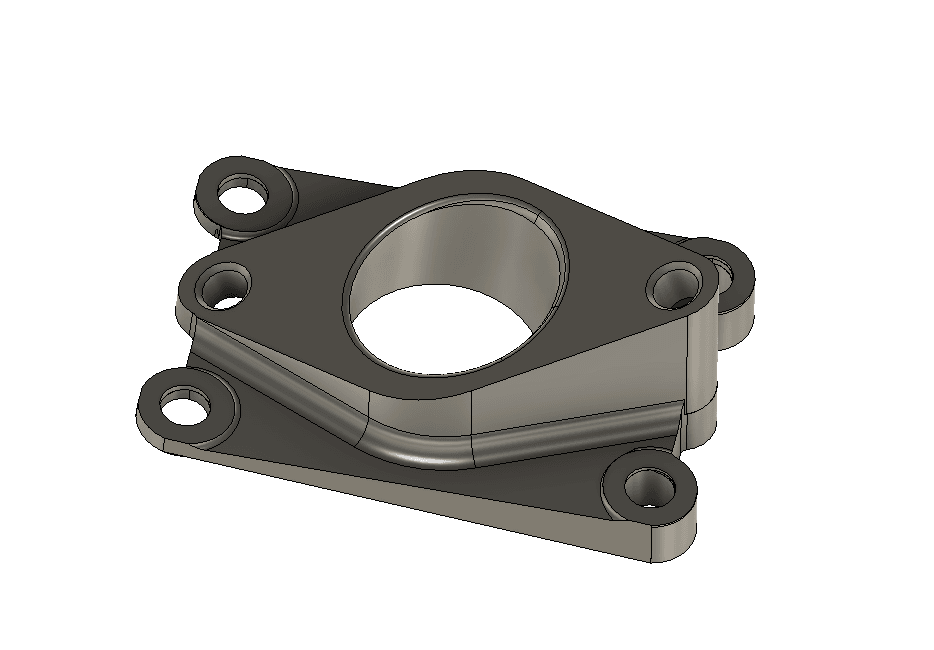

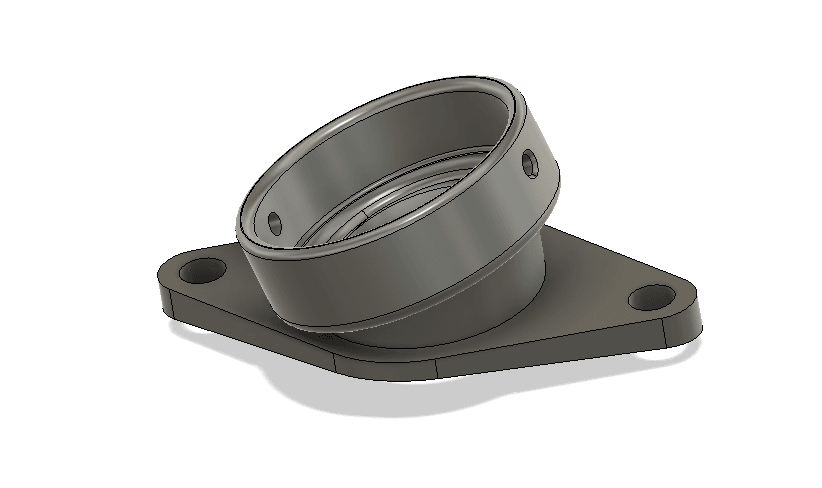

Intake pipe for AM6 engine, it is inclined 39.6° on the horizontal axis (to the left) and 12° towards the front. It allows the large PWK carburettors to pass through the shock absorber and in particular on the KSR, GENERIC motorcycle at the bottom of the sleeve it will be necessary to position an O-ring with a diameter of 28mm in section of 3.5 mm the inside diameter of the sleeve is 35 mm and the pressing of the pipe in diameter 23 mm. It will be necessary to use 2 screws of 6x10mm and keep the screws of the original intake pipe.

For my part these parts were printed in PLA but the sleeve can be printed in TPU (flexible) and for that it will be necessary to provide a collar of diameter 30-40 mm

3D printing settings

0.2 mm

33%

55 mm/s

support for the sleeve only every 1mm

  • 3D model format: STL
