Pickles - comic strip scene
- 4.4k views
- 40 likes
- 370 downloads
3D model description
A scene from the 'Pickles' comic strip.
If you are unfamiliar with the Pickles comic strip, by Brian Crane, I strongly suggest checking it out on the web. The characters are just that, they are 'characters' and my wife and I love the strip.
The husband's name is Earl and the wife's name is Opal.
The picture that I used for modeling is from the 25th anniversary of the strip and is included below.

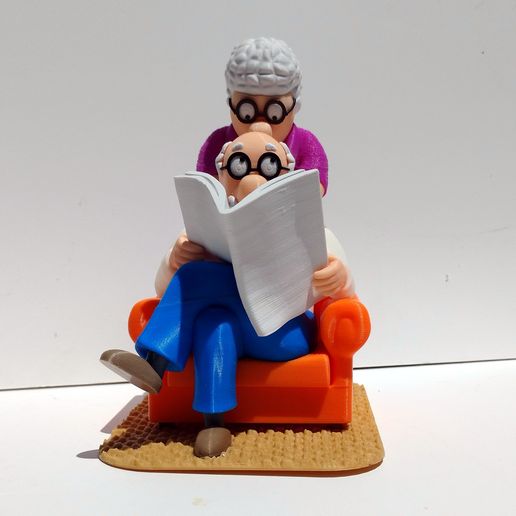

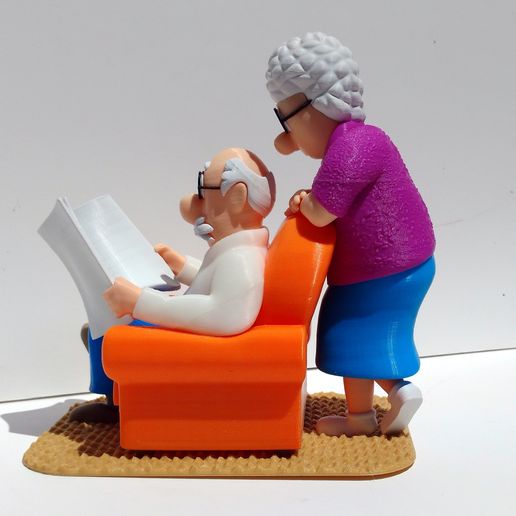

The completed model after assembly is 128mm x 189mm x 203mm high and none of the parts require supports!
3D printing settings
Printer: FlashForge Creator X
A few of the smaller pieces may need a brim/raft. See below for specific printing suggestions (just suggestions as each user has personal preferences for small parts).
How I Designed This:

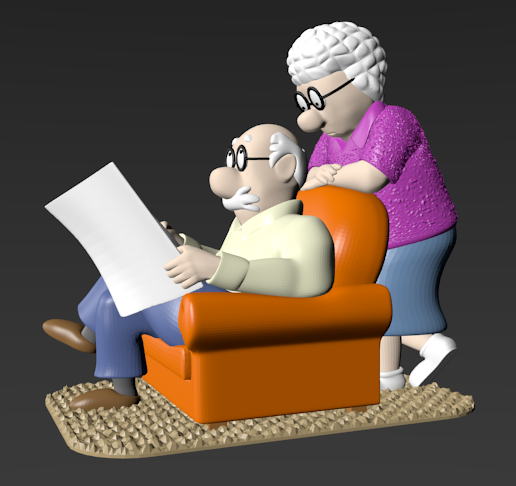

I used the one picture (picture section, original artists Pickles 25th anniversary scene) as my model guide. With a lot of input from my wife, I translated the picture to a 3D design using Blender. A final render from Blender of my model prior to slicing for 3D printing is included.
I use a rule for myself to create models with no angles greater than 60 degrees to ensure that supports will not be required. I also try to conform to the original picture as closely as possible while considering the 60 degree limit.
Even with my reasonable catalog of ABS colors, I had trouble matching the original colors. I bought two new colors but still took liberty with the colors overall.
Colors and multiple printed pieces:
Following are the colors that I used and notes if pieces are to be printed multiple times. Consider this simply as a guide as to which pieces need to have the same color.
Any color (hidden piece):
bump (8 copies)
eyeblack (four copies)
chair_leg (four copies)
Printing and assembly tips:
-Take particular care with left and right pieces. Many of them look very similar but are not the same.
-When printing the eyeblacks I left the extra brim on instead of cleaning up the pieces. This resulted in a clean fit into the eyewhites and result in a solid eyeblack showing.
-For small pieces I personally print them at 50% infill and two shells. This ensures plenty of time for clean prints on my printer.

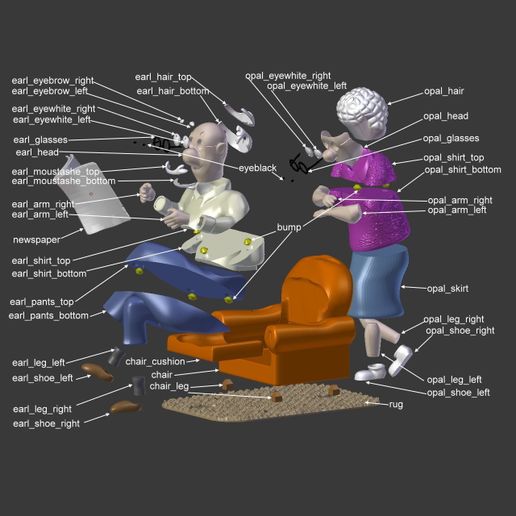

-The diagram below will help in assembling the model. A larger copy is included in the downloads section
-The model is meant to be glued together. Be careful when gluing to ensure that you do not 'glue yourself into a corner'. The hands/arms/legs need to be glued in at the same time that the connecting pieces are glued, so that you have room to position them.
-Both eyeglasses are placed on the faces with the bridge down, just over the nose. This might not be obvious from the diagram.
Assembly diagram ( is in the pictures section)
3D printer file information
3D design format: STL Folder details Close
- Last update: 2016/09/21 at 14:43
- Publication date: 2016/07/06 at 21:10
Retired software engineer, learning CAD design and 3D printing. When creating models, I strive for support free designs and fun creations.
