Parametric Z base printed clamp/spacer

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 571 views
  • 1 like
  • 12 downloads

3D model description

Prusa's rod clamps are all well and fine, but I don't actually want to adjust the spacing from Z smooth rod to frame.

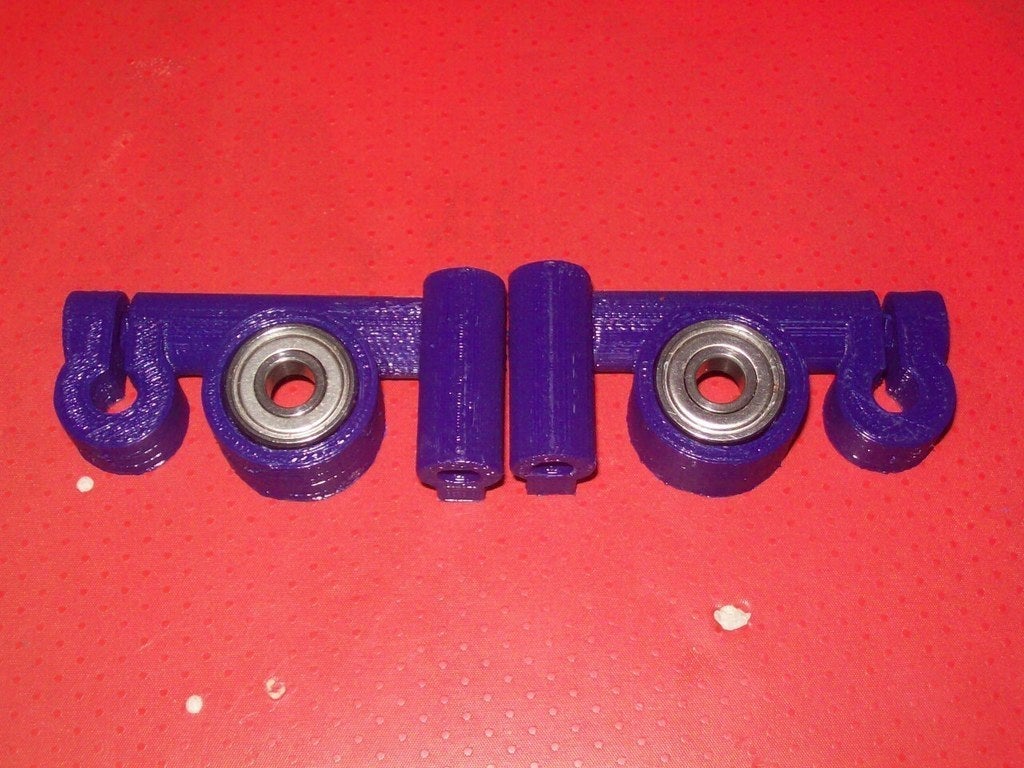

Here's a one-piece connector with optional bearing holder.

Fully parametric, including rod spacing. Match with blddk's derivative of my Integrated Z motor mount+frame vertex+rod clamp - http://www.thingiverse.com/thing:12215

Overall size of the part comes mostly from washer_diameter and the spacing distances.

horiz_distance is the distance between the center of the smooth rod clamp and the threaded rod that goes under the middle of your printer. This can be made smaller (minimum smooth_rod_diameter/2+threaded_rod_diameter/2) if you omit the bearing mount.

UPDATED 9 November
uploaded new files with proper distances, preset to the standard, and M8 holes

3D printing settings

1) print
2) disassemble half your printer to install

  • 3D file format: STL
  • Publication date: 2019/06/06 at 14:22

Tags

Creator

Designs 68
Downloads 4.2k
Followers 39

License

CC BY SA
