3D model description

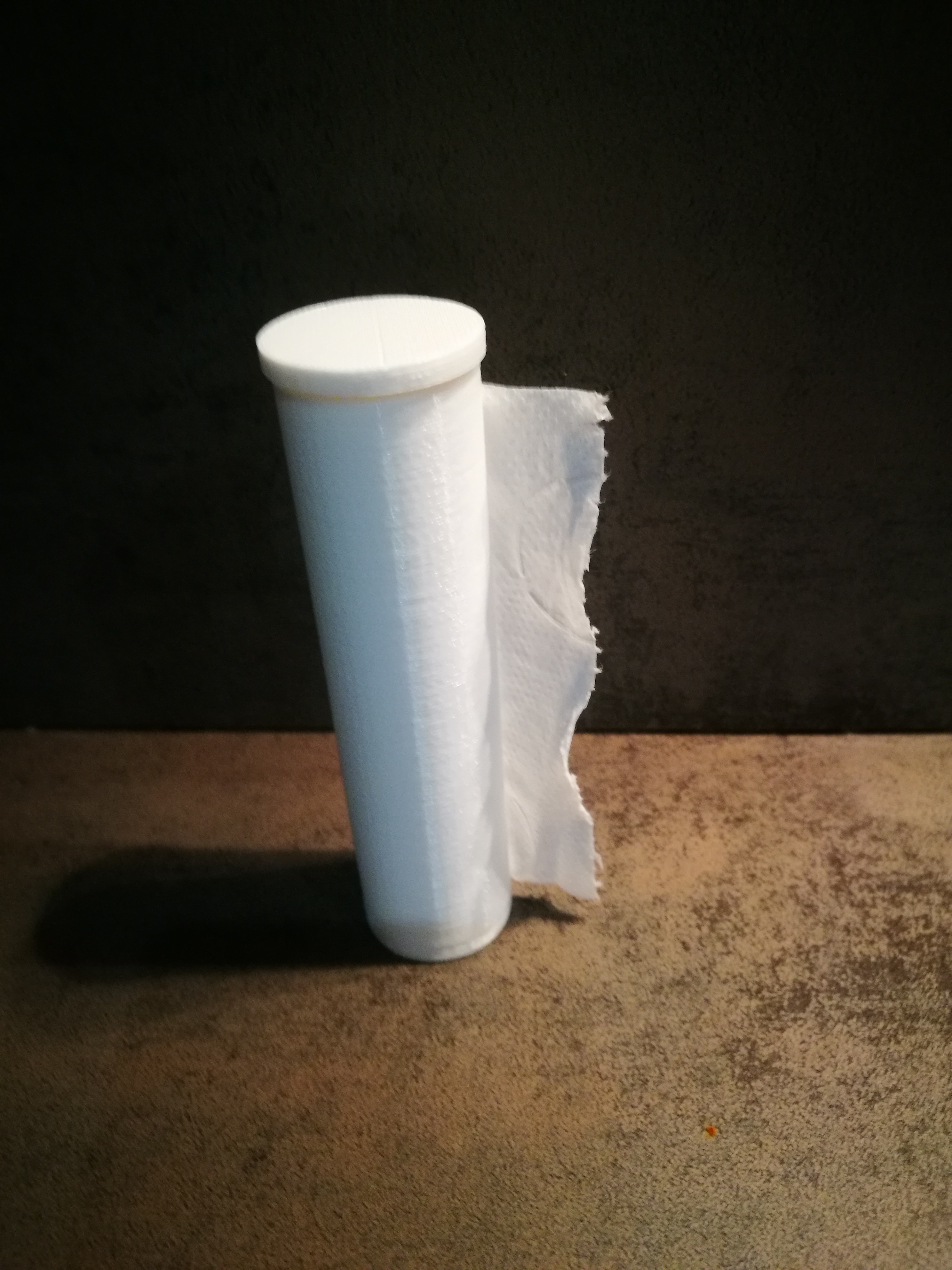

You're tired of having to wipe with leaves while hiking in the forest or to find yourself in a public restroom where there is no more toilet paper.

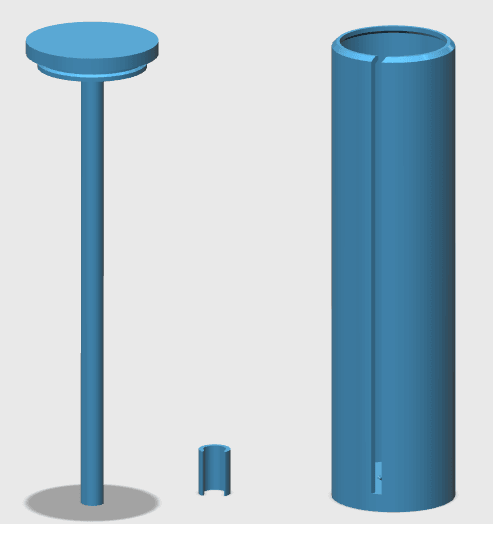

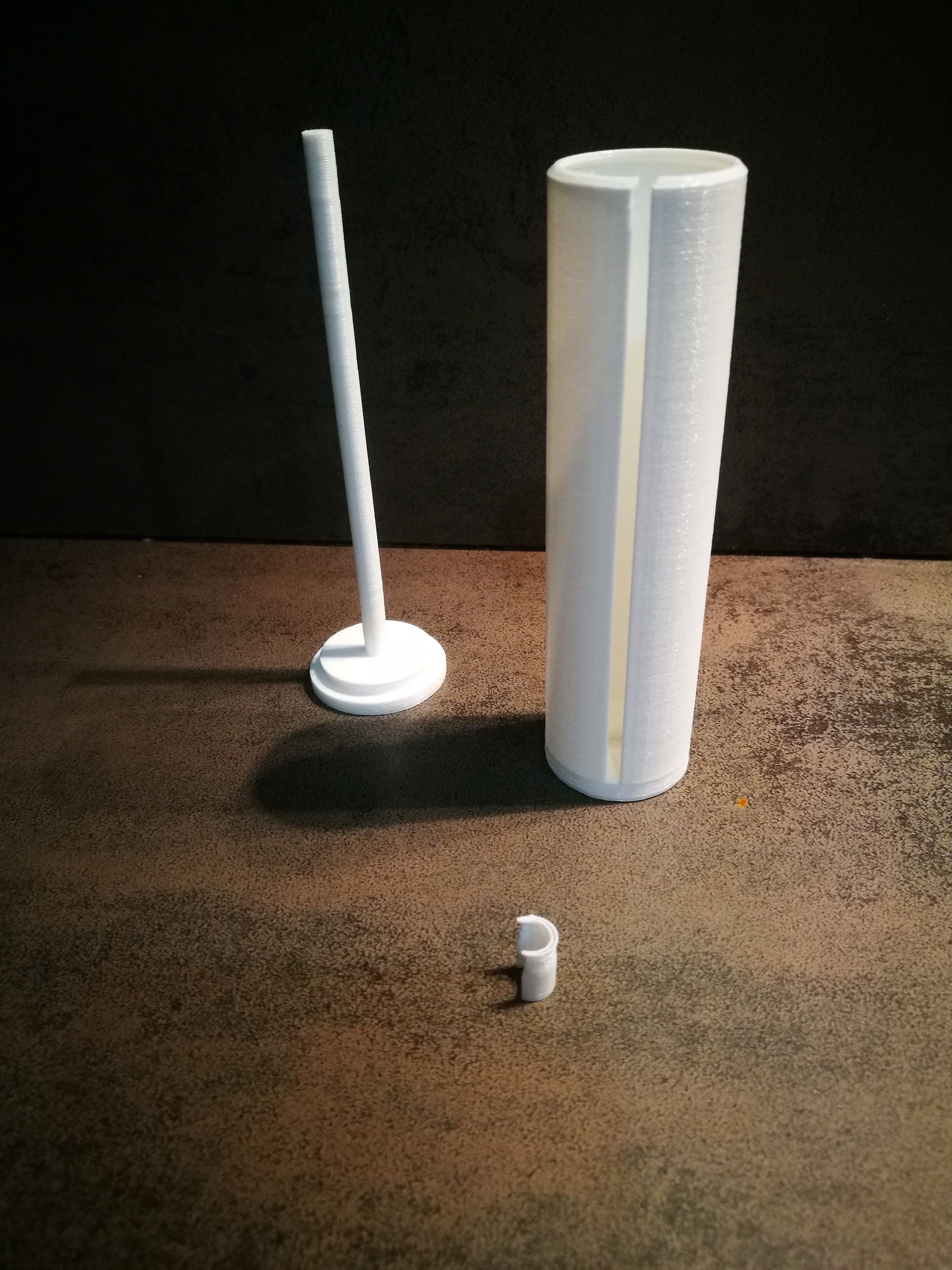

This survival tool is printable in three parts:

1- Clamp ring

2- Axis

3- Body

dimension: Ø27mm per length 107mm

Operation:

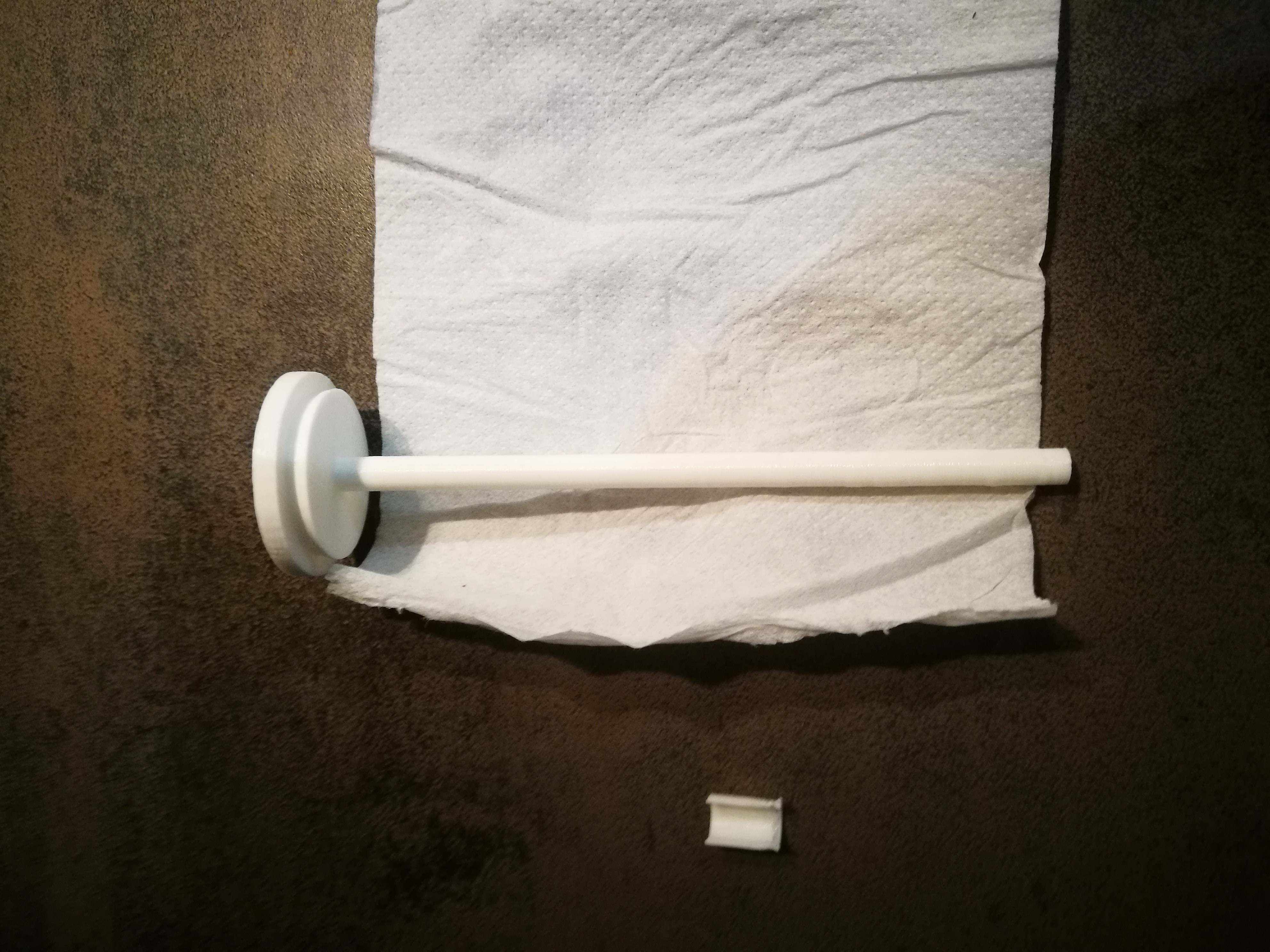

1- Roll up the toilet paper about 2 turns.

2- put the clamping ring on the paper

(Possibility of 2 rings)

3 - Insert axis in the body (the axis is clips)

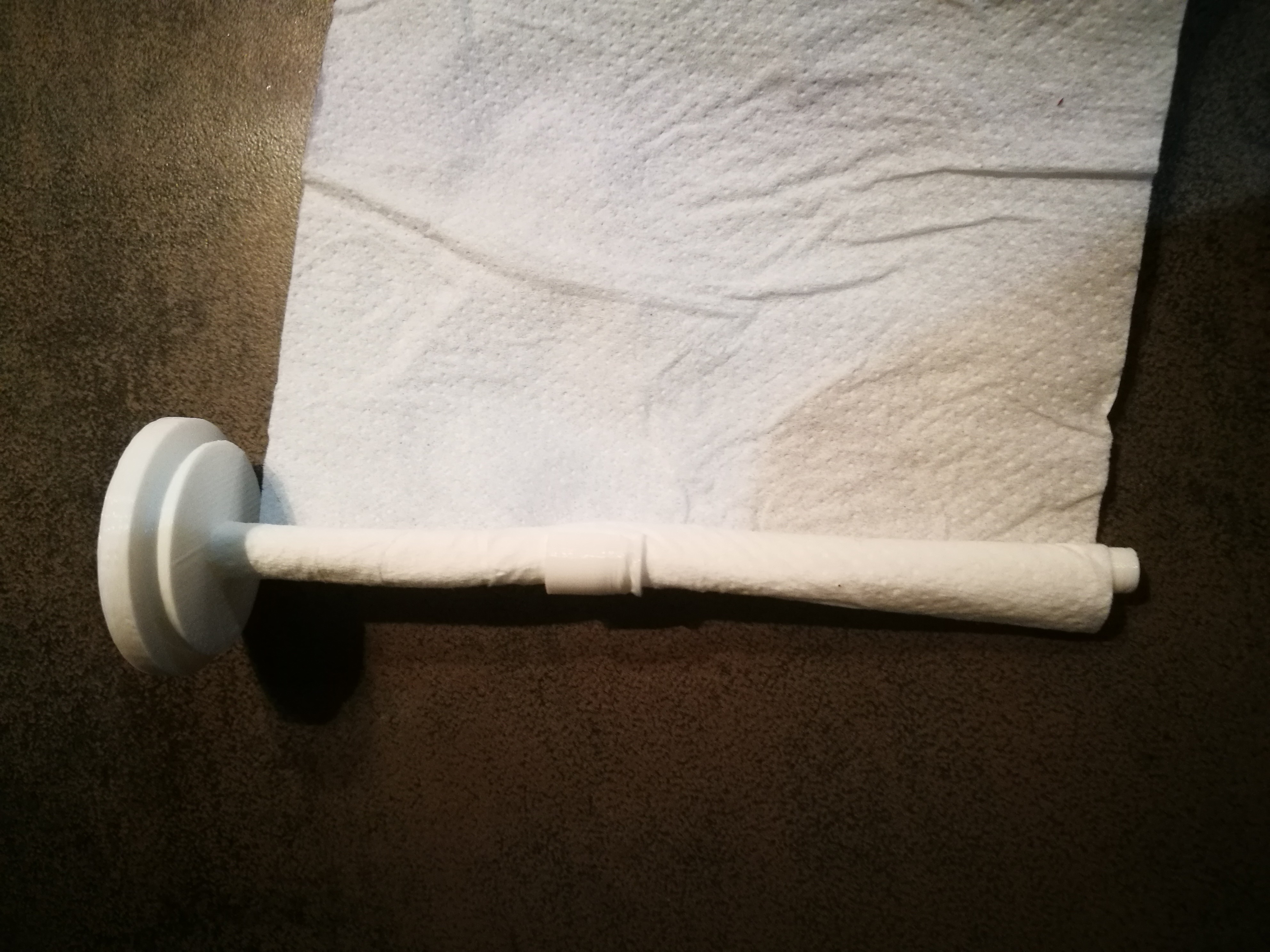

4 - Wrap the paper by rotating the axis



 # LIFEHACK3D


3D printing settings

Printed with an A8 anet

Nozzle Ø0.4

PLA filament

I put the same print settings for all three pieces:

Layer height> 0.2mm

Wall> 0.8mm

Print speed> 75mm / s

Density of filling> 30%

Print time:

Ring> 2min

Axis> 28mim

Body> 50min

The quality is average with these parameters. Free to modify them

3D printer file information

  • 3D design format: STL Folder details Close
    • Axe.stl
    • bague serrage.stl
    • corps.stl

    Learn more about the formats

  • Publication date: 2018/03/14 at 22:29

License

CC BY
