Theo Jansen flexible joint mechanism

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 729 views
  • 16 downloads

3D model description

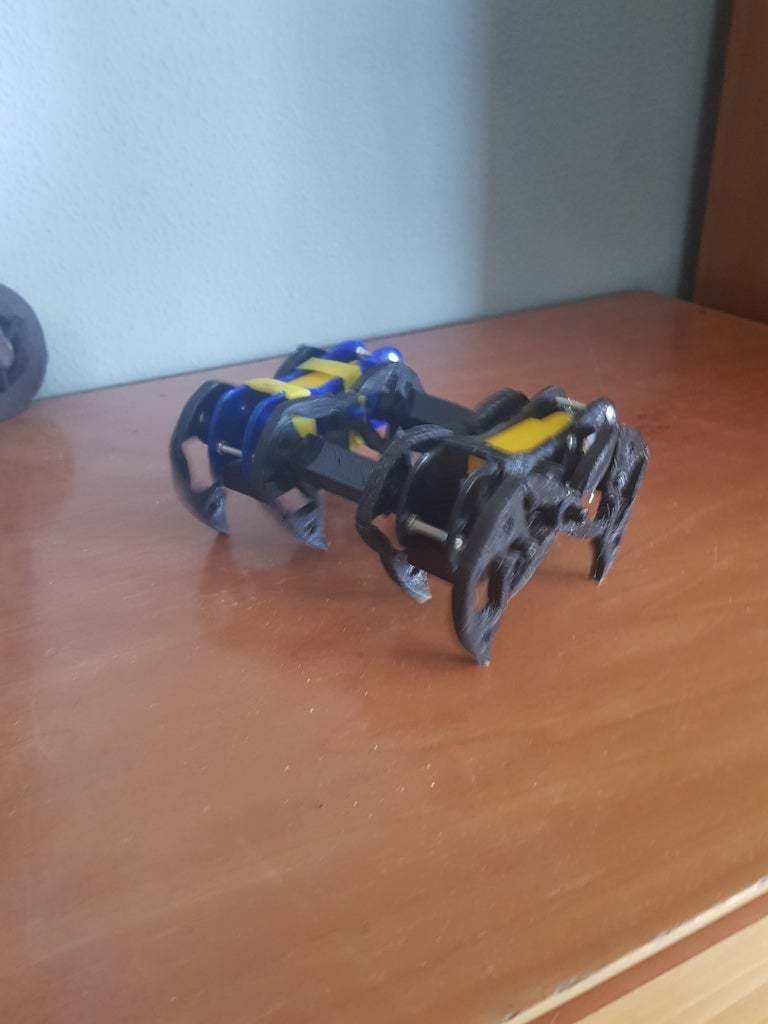

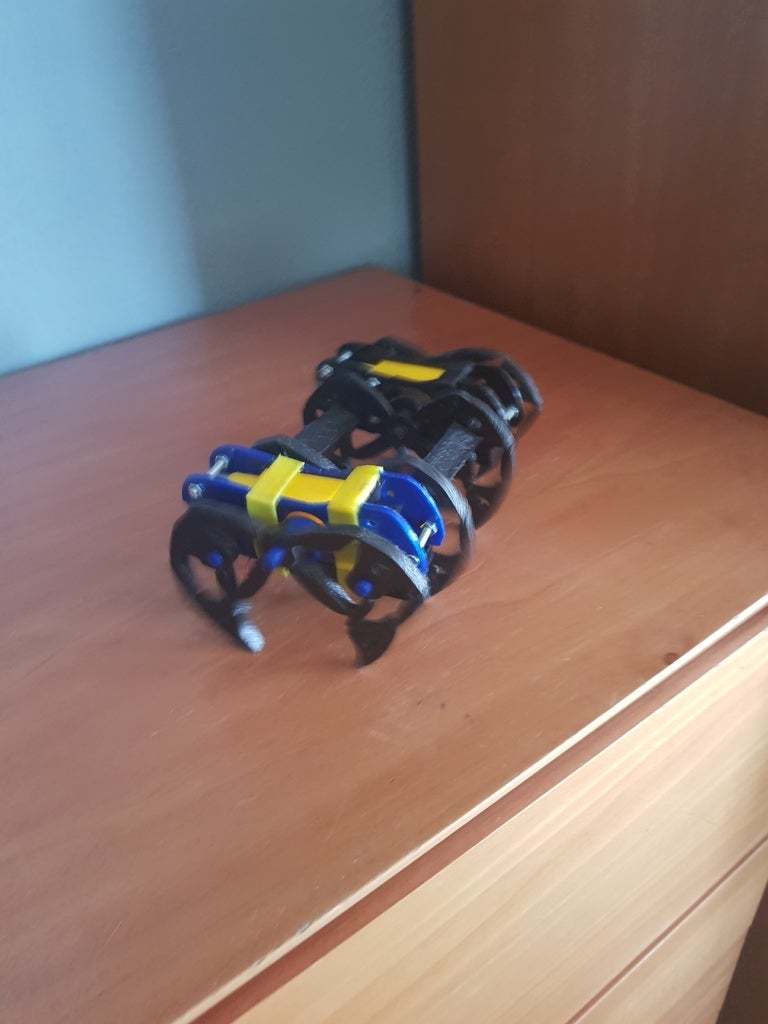

Mechanism created by theo Jansen and adapted for 3d printer with flexible material (TPU)

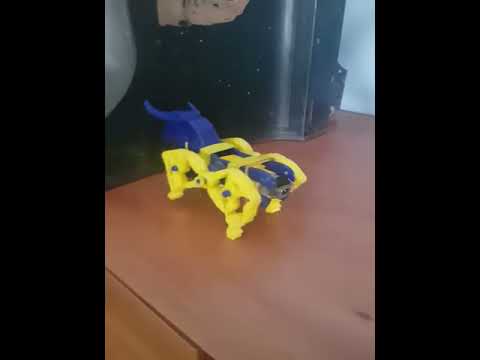

link to videos of operation

https://youtu.be/_gRxIvfDdXI

https://youtu.be/z4i6skMMar0

https://youtu.be/slRBtYfGwoU

https://youtu.be/NnrPlZ35wAQ

test of strength

https://youtu.be/R8chLU2kAnk

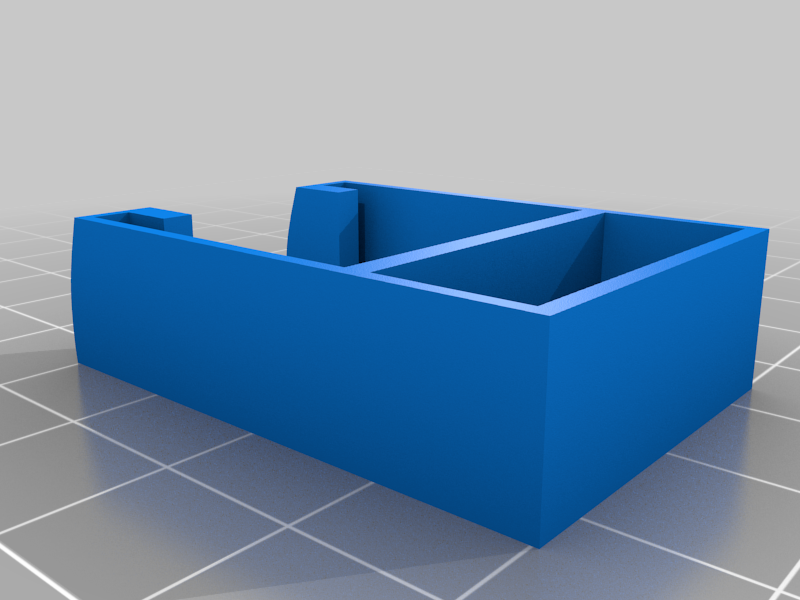

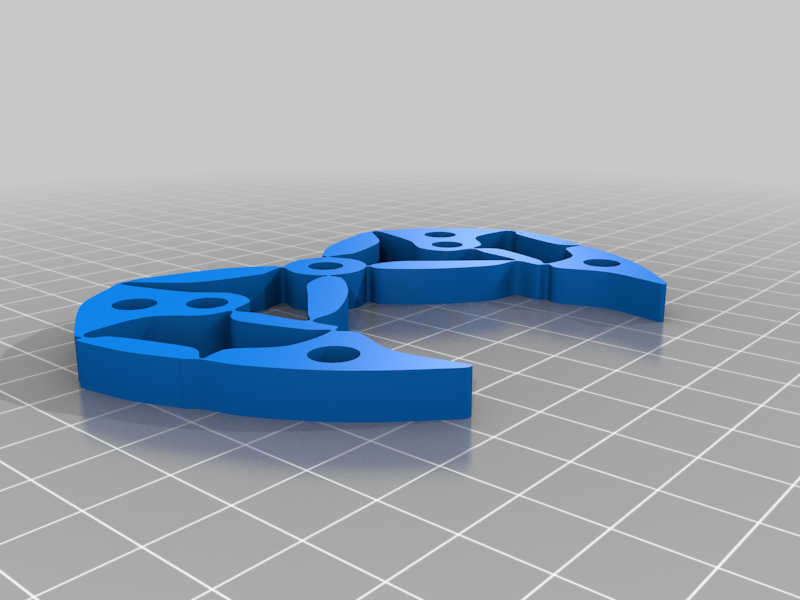

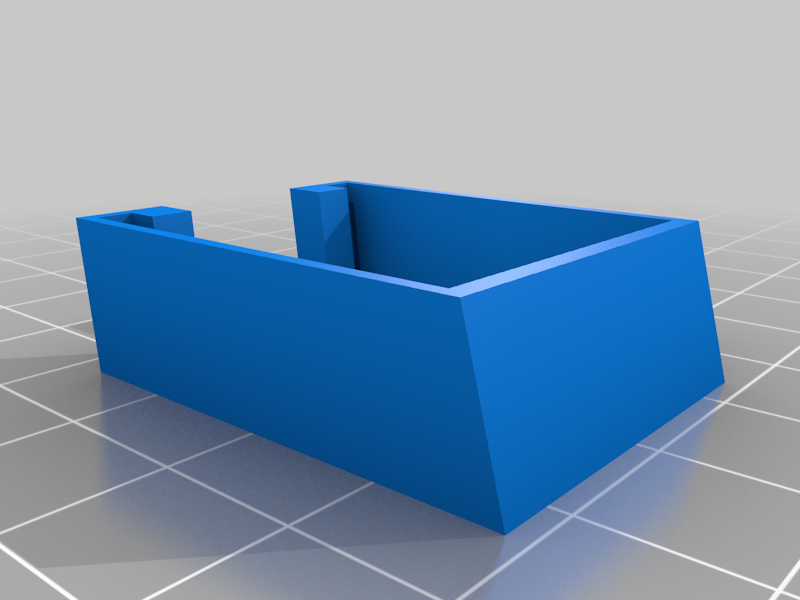

Print legs, rubber and joint in tpu. layer 0.2 speed 30 mm / s

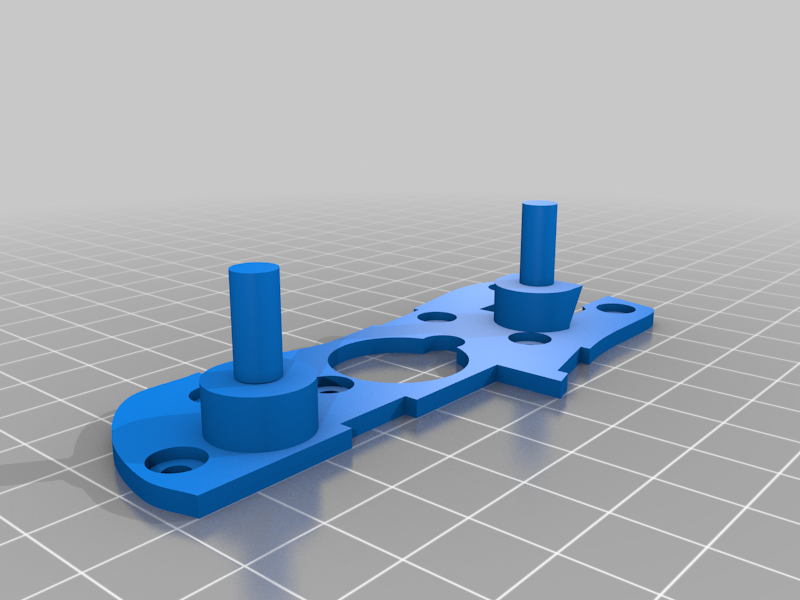

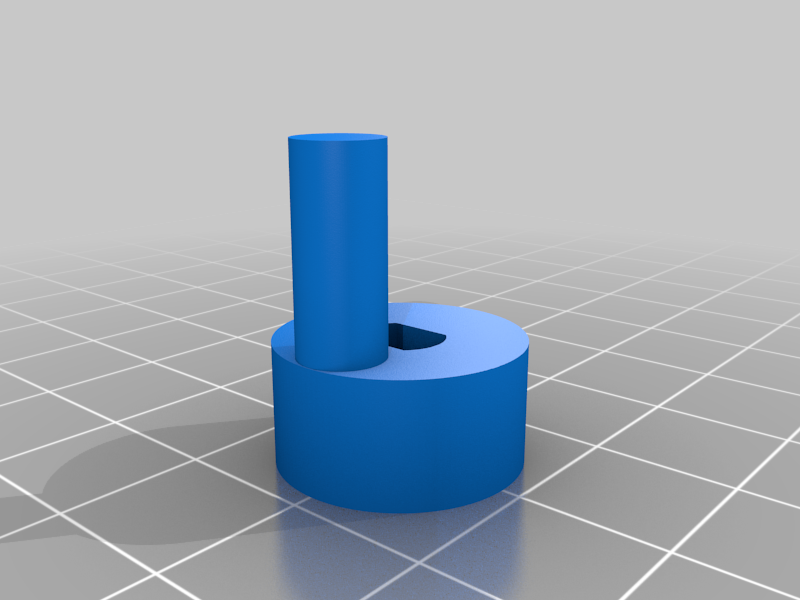

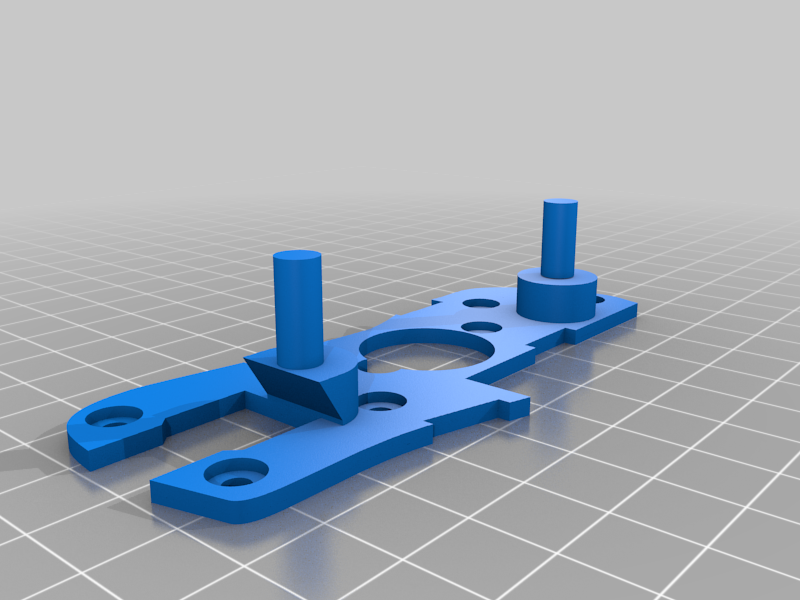

The rest in pla

It works very well with only 6 pieces.

very easy to assemble.

He used 3 mm by 25 long screws.

motor of this type standard https://www.amazon.es/TOOGOO-Inteligente-Lanzamiento-Engranaje-Arduino/dp/B07L8TJSDC/ref=sr_1_29?dchild=1&keywords=Motores+electricos&qid=1593865497&s=toys&sr=1-29

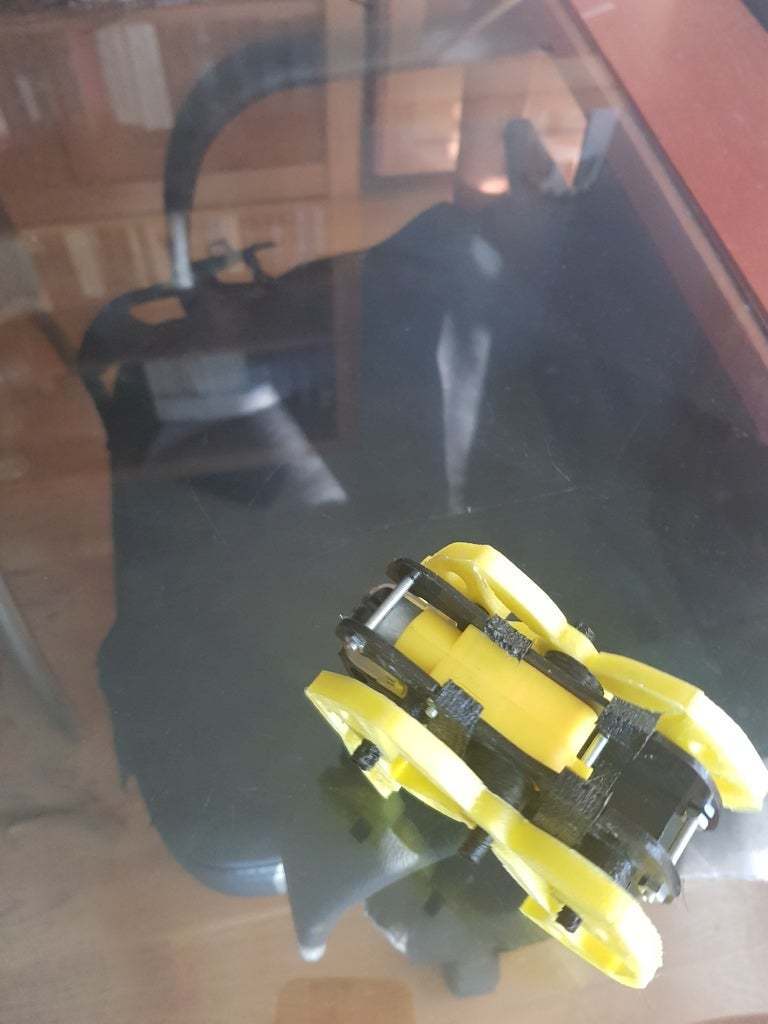

They also work well separately. See video bull.

Thank you for your visit.

If you do, I'd like to see some pictures.

  • 3D file format: STL
  • Publication date: 2020/08/03 at 18:19

License

CC BY NC SA
