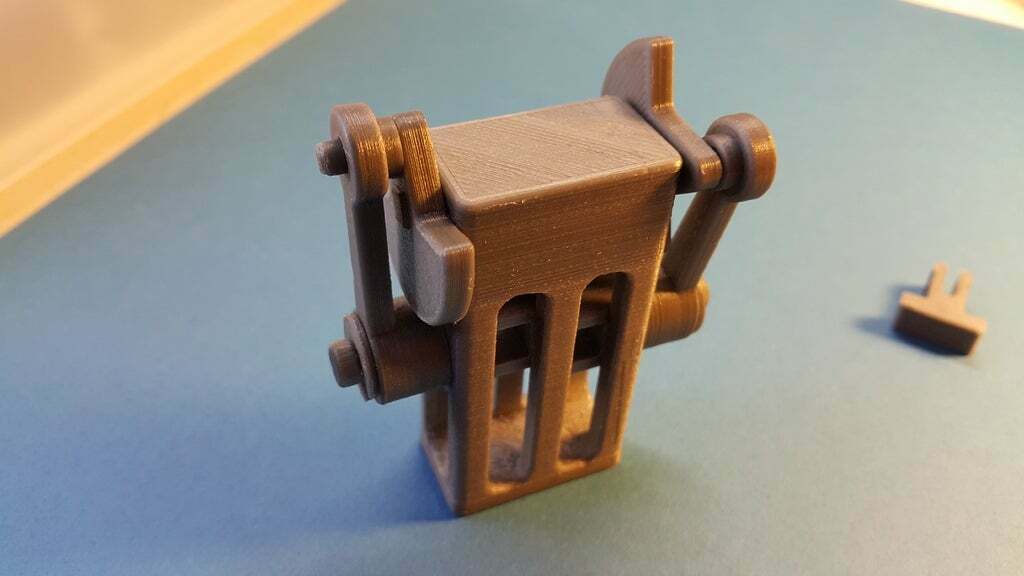

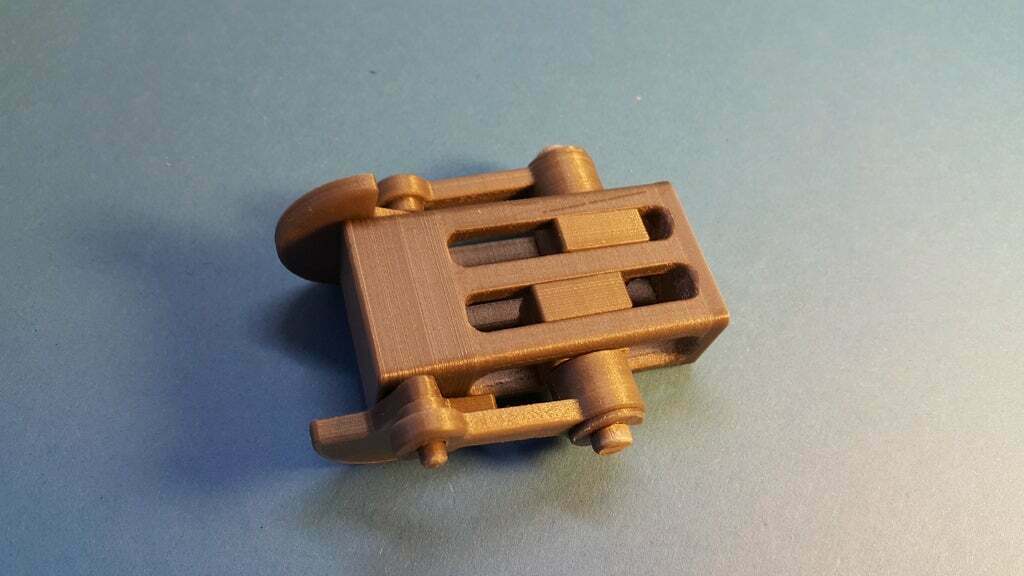

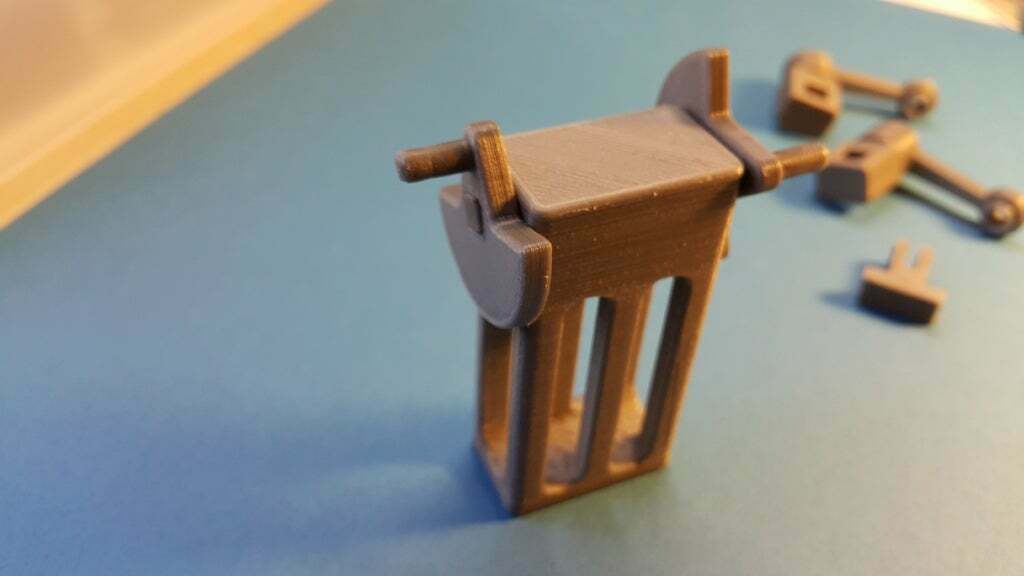

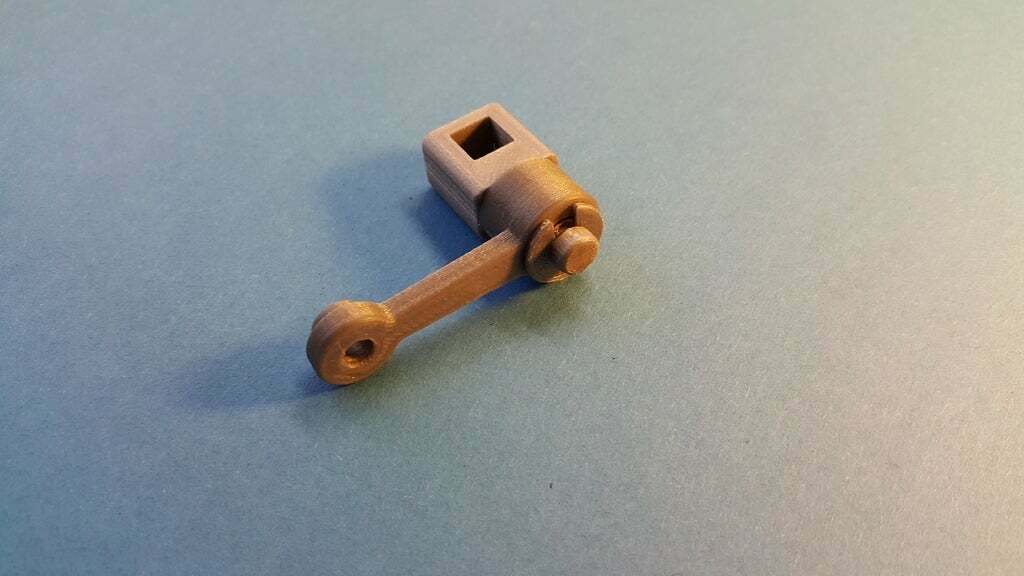

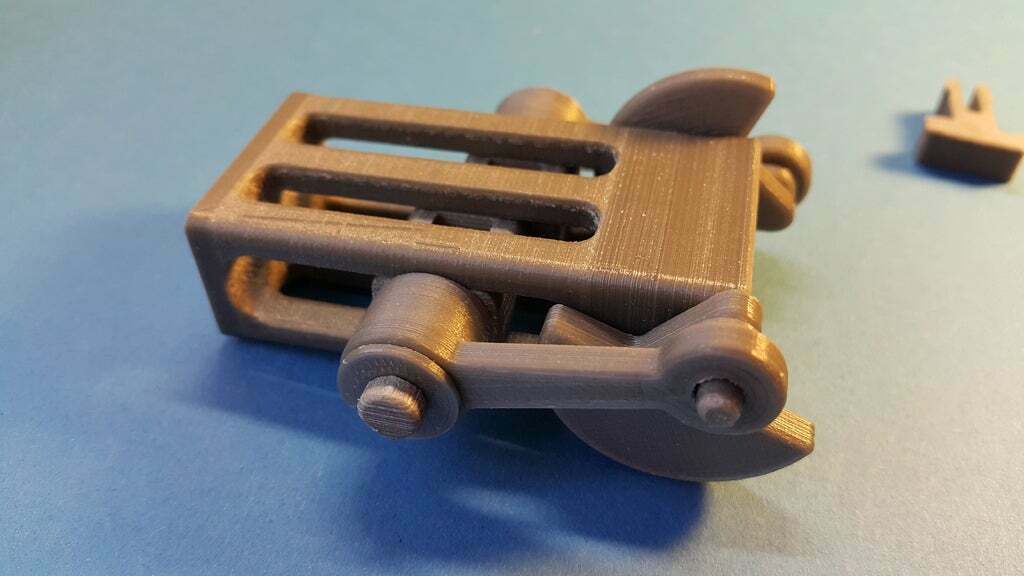

Small crank rod system.

Learn while having fun.

Allows to see the limits of the mechanical system crank rod, yet one of the most used.

Easy to print, it is necessary to check the good adjustment of the parts.

The system is solid.

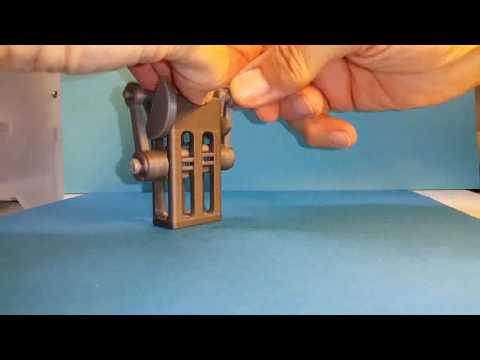

https://www.youtube.com/watch?v=XWqhV2jRimc&feature=youtu.be

We need to print :

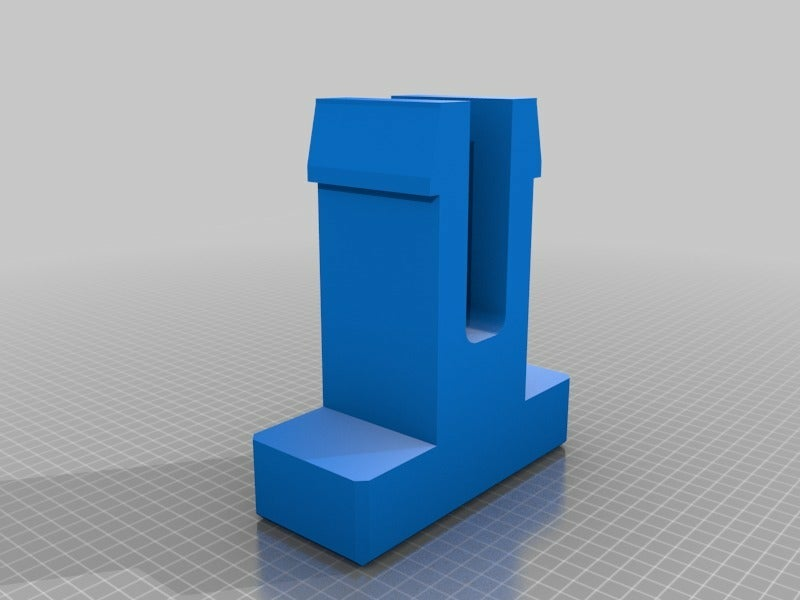

1 body

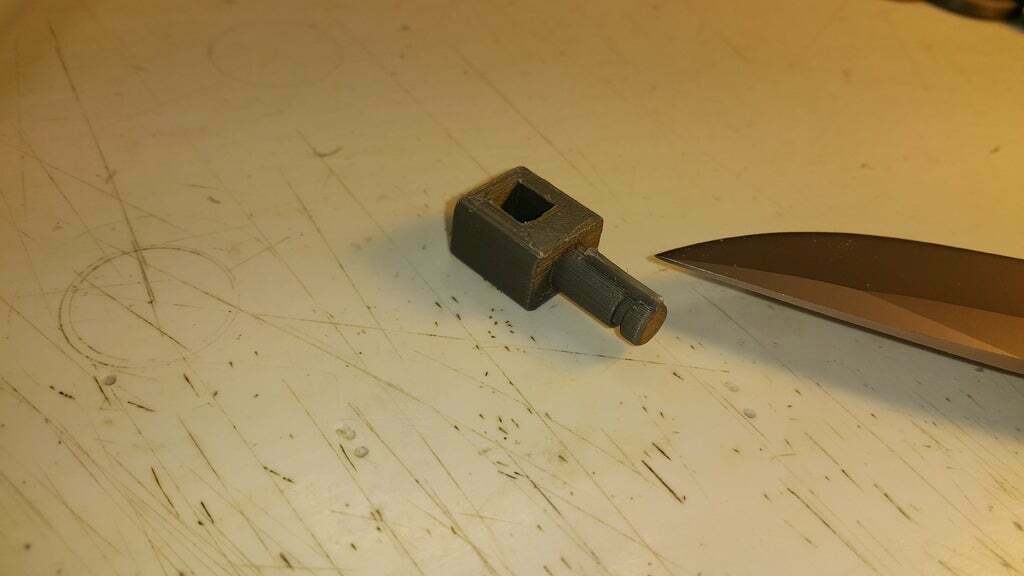

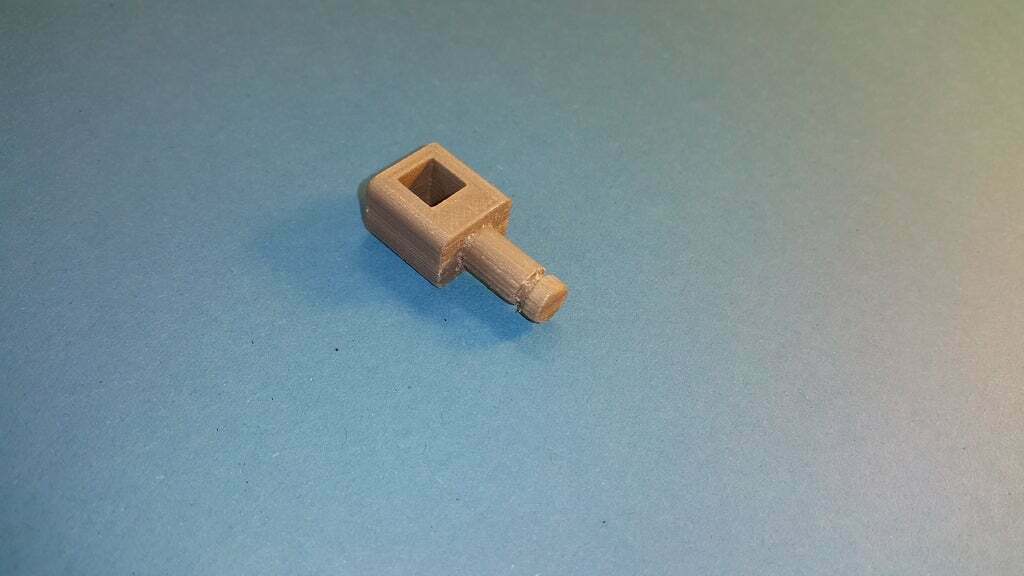

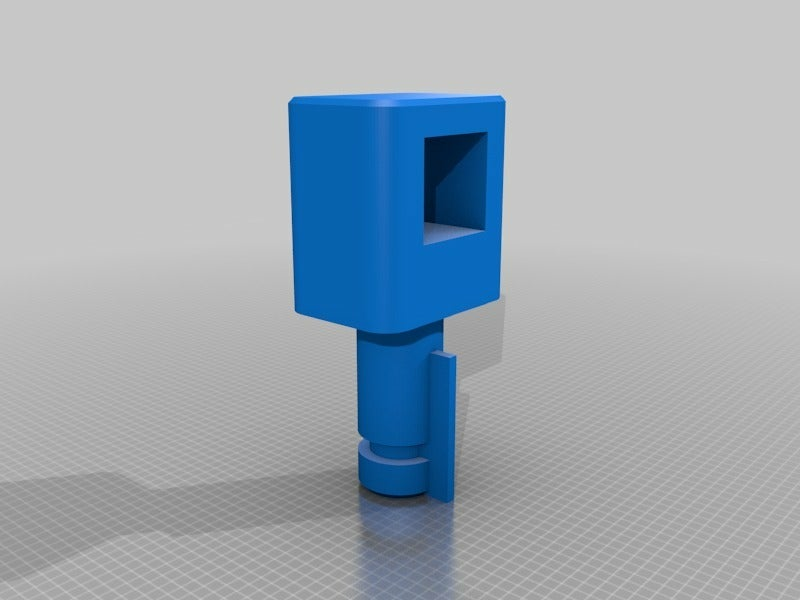

2 crankshafts

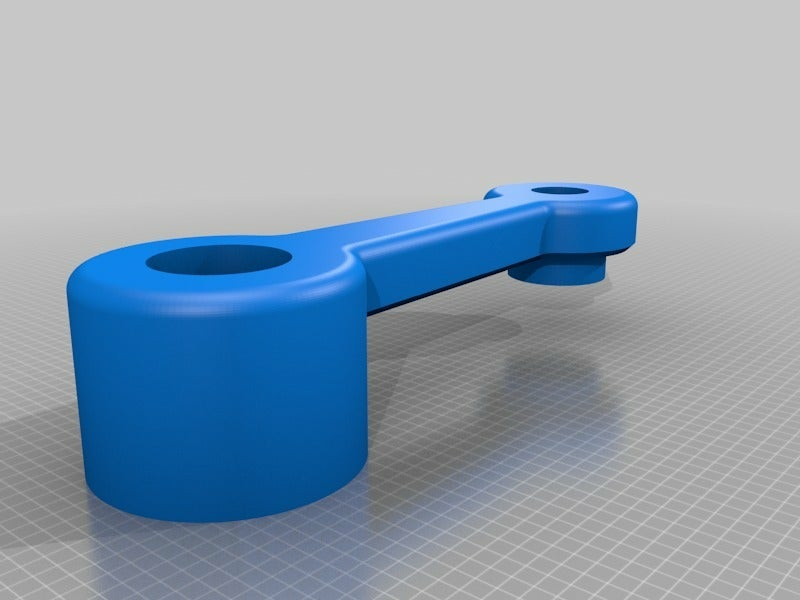

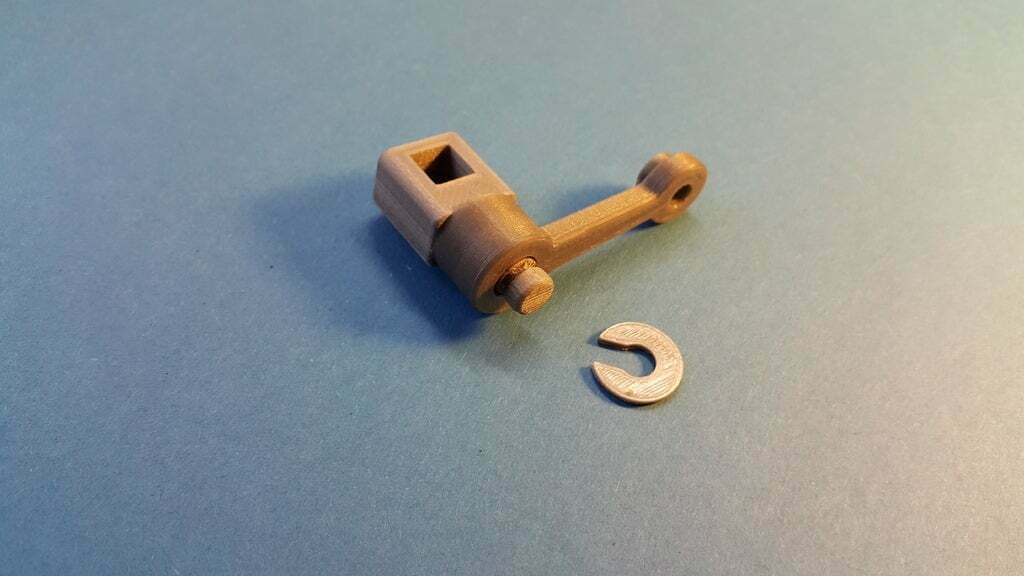

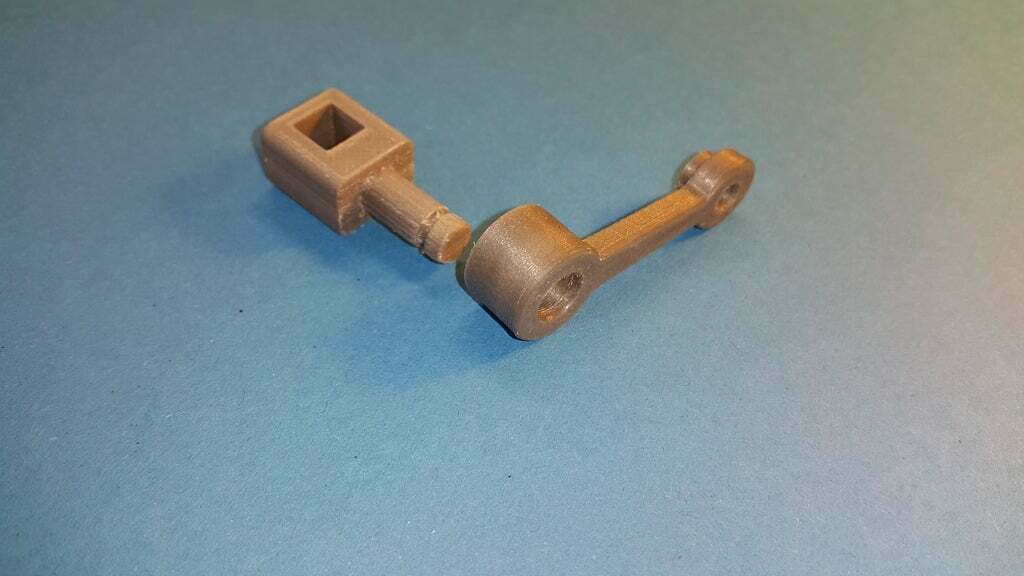

2 connecting rods

1 crankshaft

2 nuts

2 nut pins

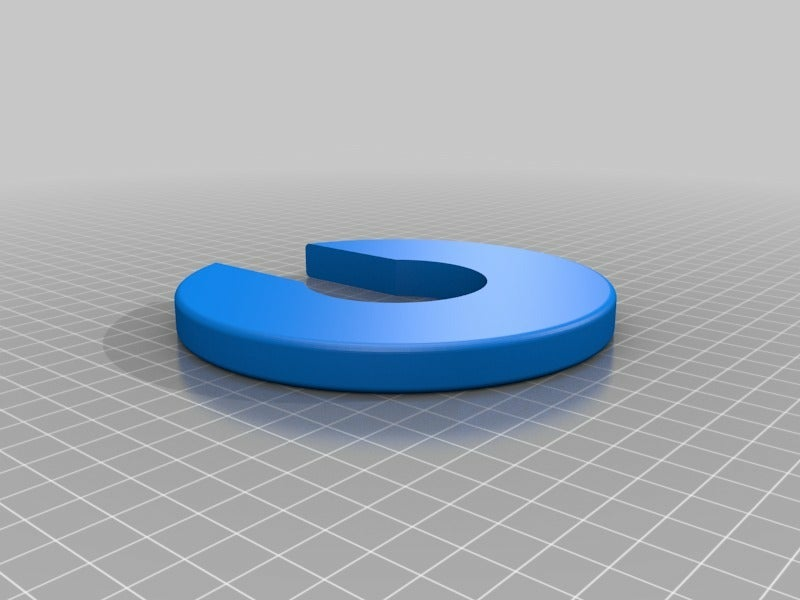

2 clips

take directly gcode or stl files with 1/10th scale.

Do not hesitate to put a small drop of oil on the parts in friction.

A+

NOP21
