New Scale Turbofan Engine GENX Fan

3D model description

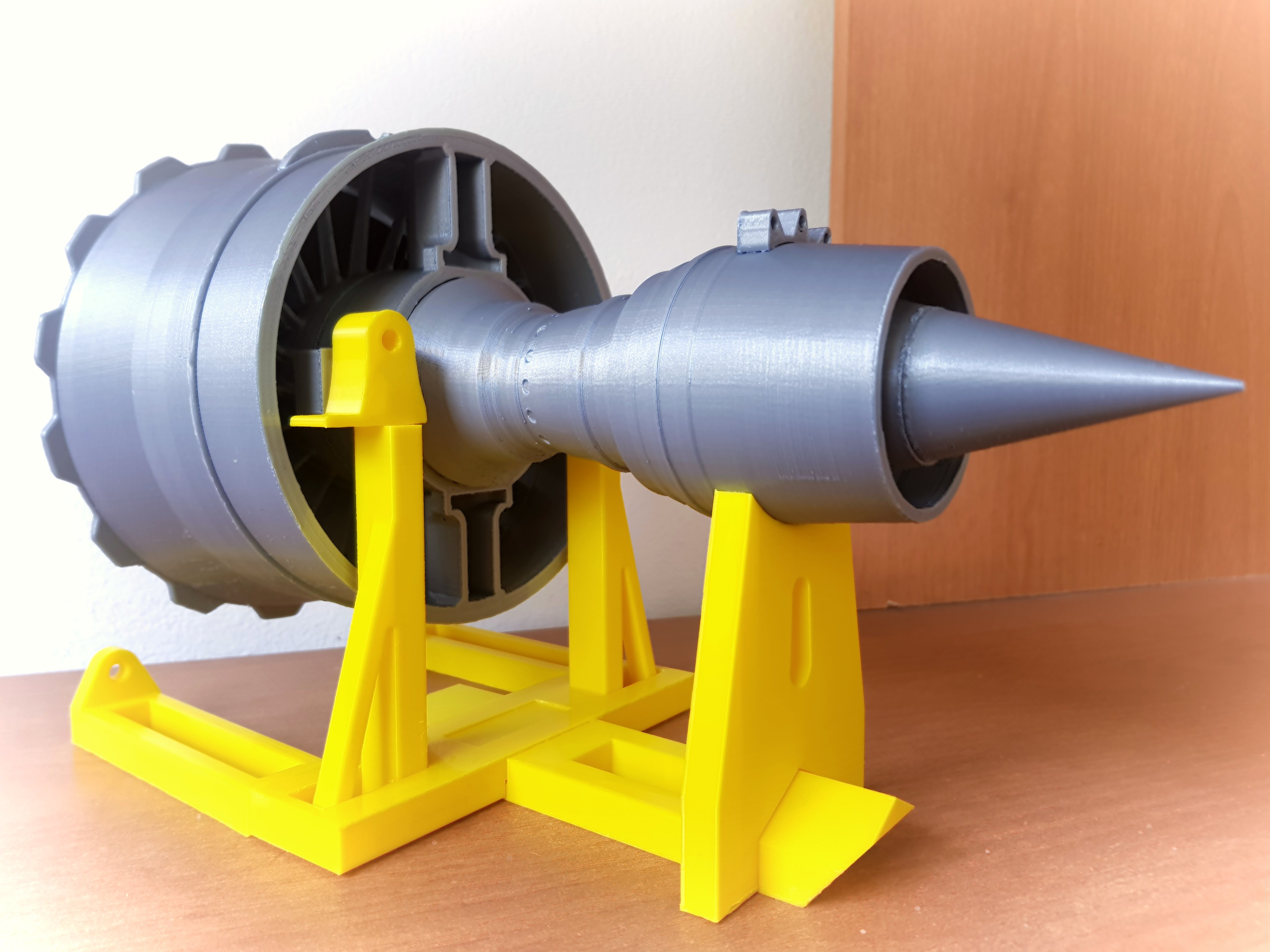

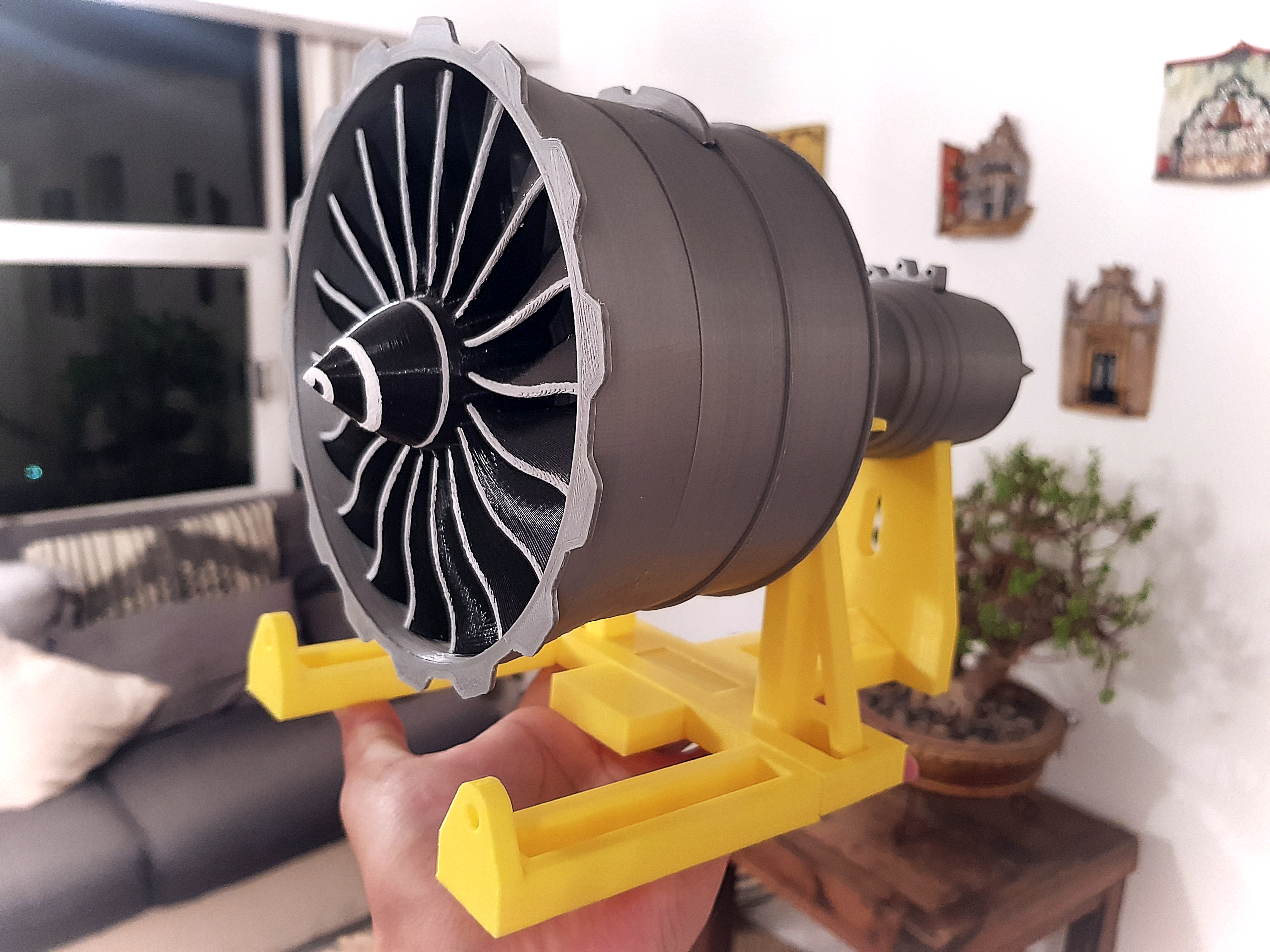

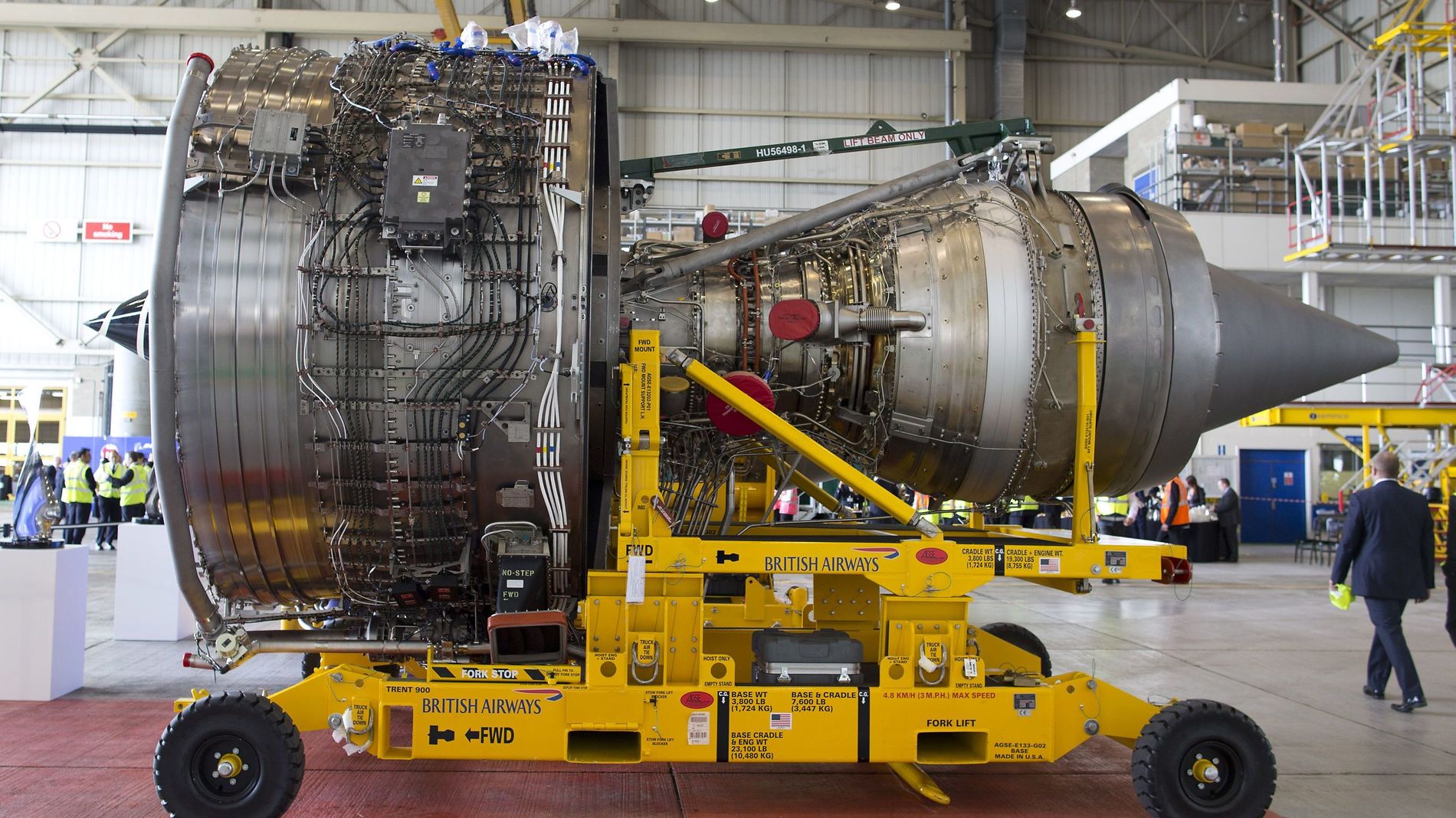

Complete, easy to assemble, scale turbofan engine. Based on public blueprints of real 3 spool turbofan GENX that power the Boeing 787 and 747-8.

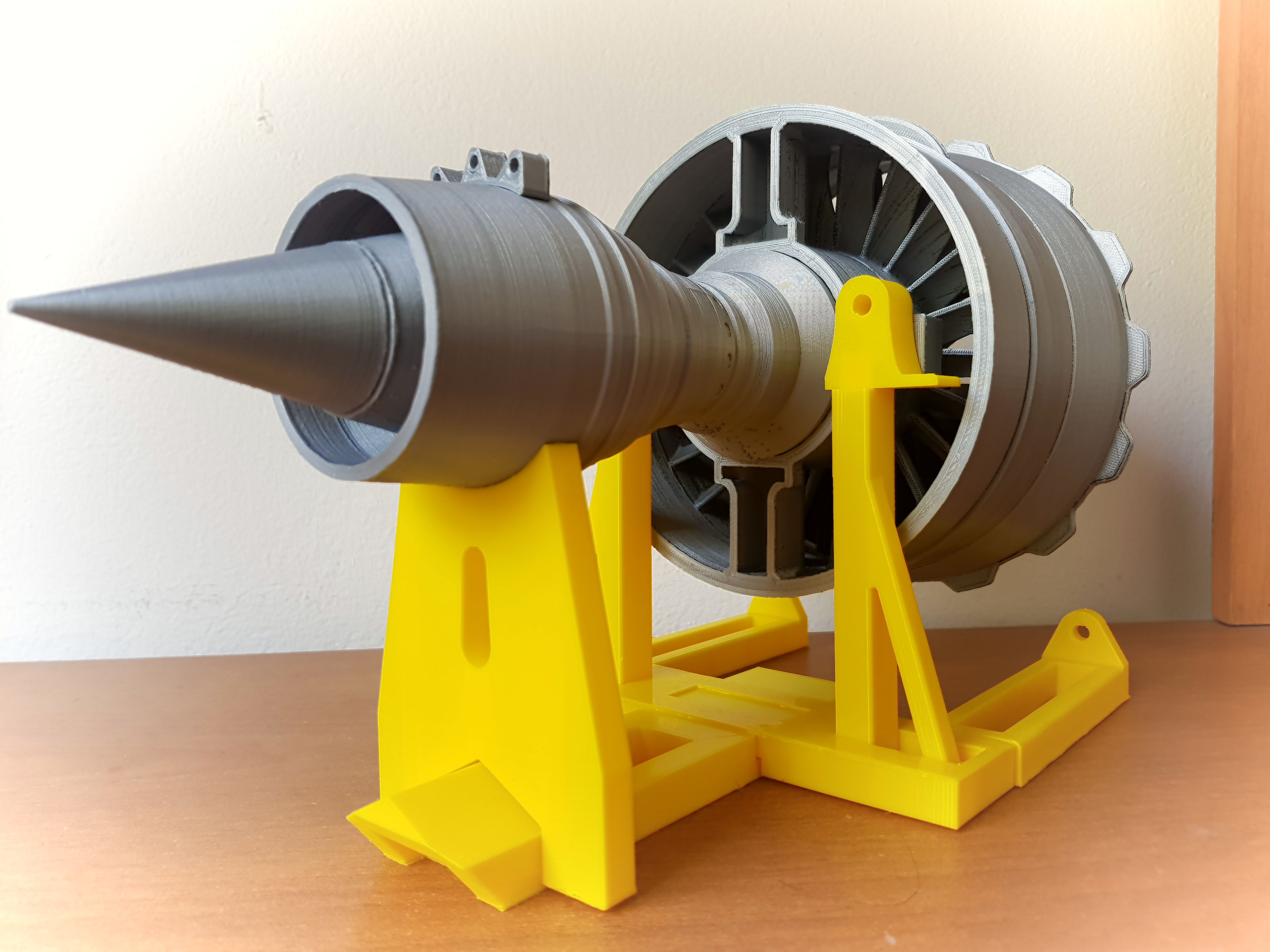

This model includes a stand to display proudly on your desk.

Hope you enjoy it while its up!

3D printing settings

Designed so that none of the parts need extra support for printing. Everything is built to snap-on exept the Front fan casing which needs to be glued on to the stator casing.

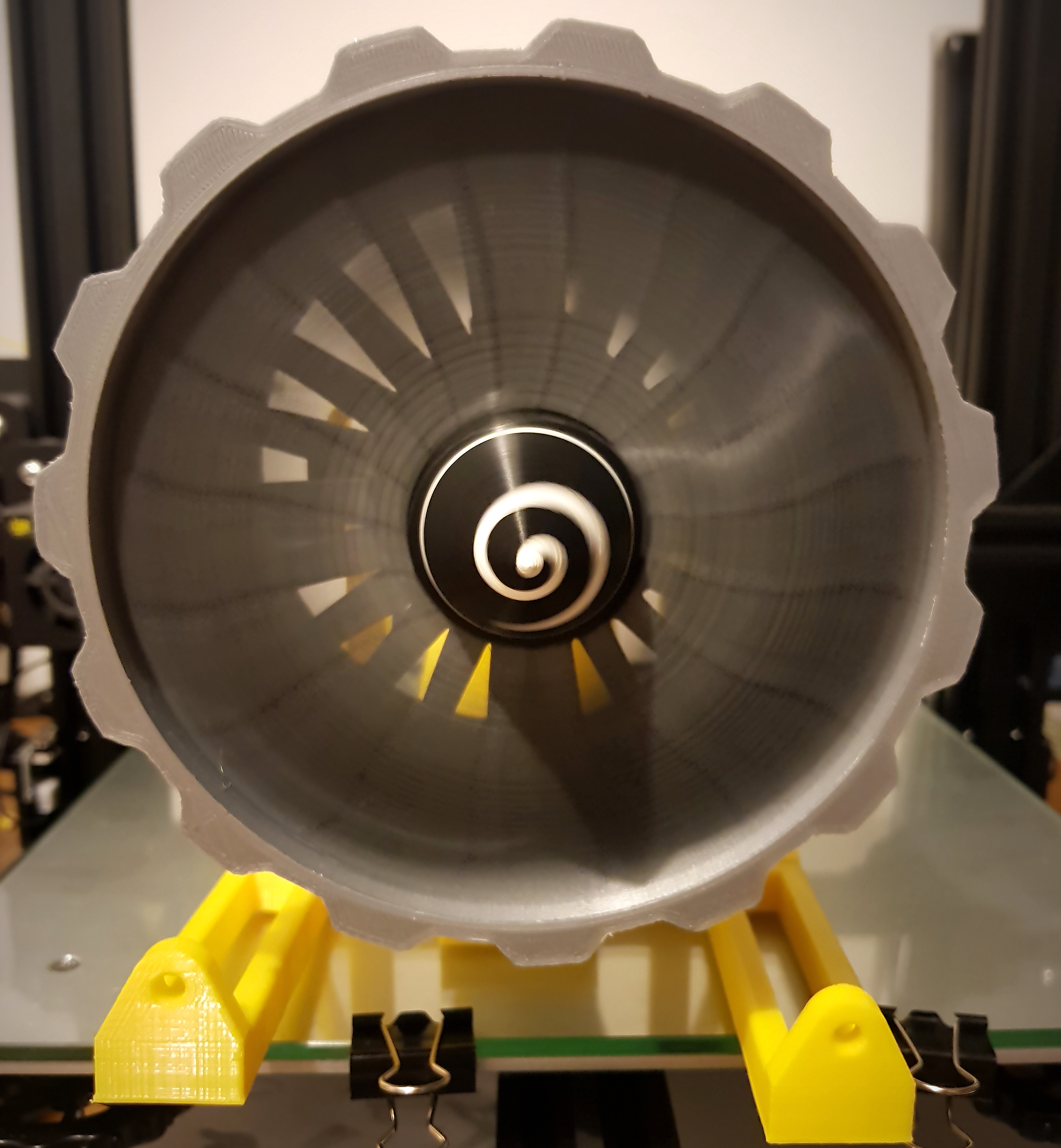

You will need one generic skateboard bearing (8mm, 22mm, and 7mm width) to make it spin easily. It fits snuggly in the hole inside the stator casing. Insert the 4 shaft pegs inside the shaft and attach the fan, afterwords install into the bearing.

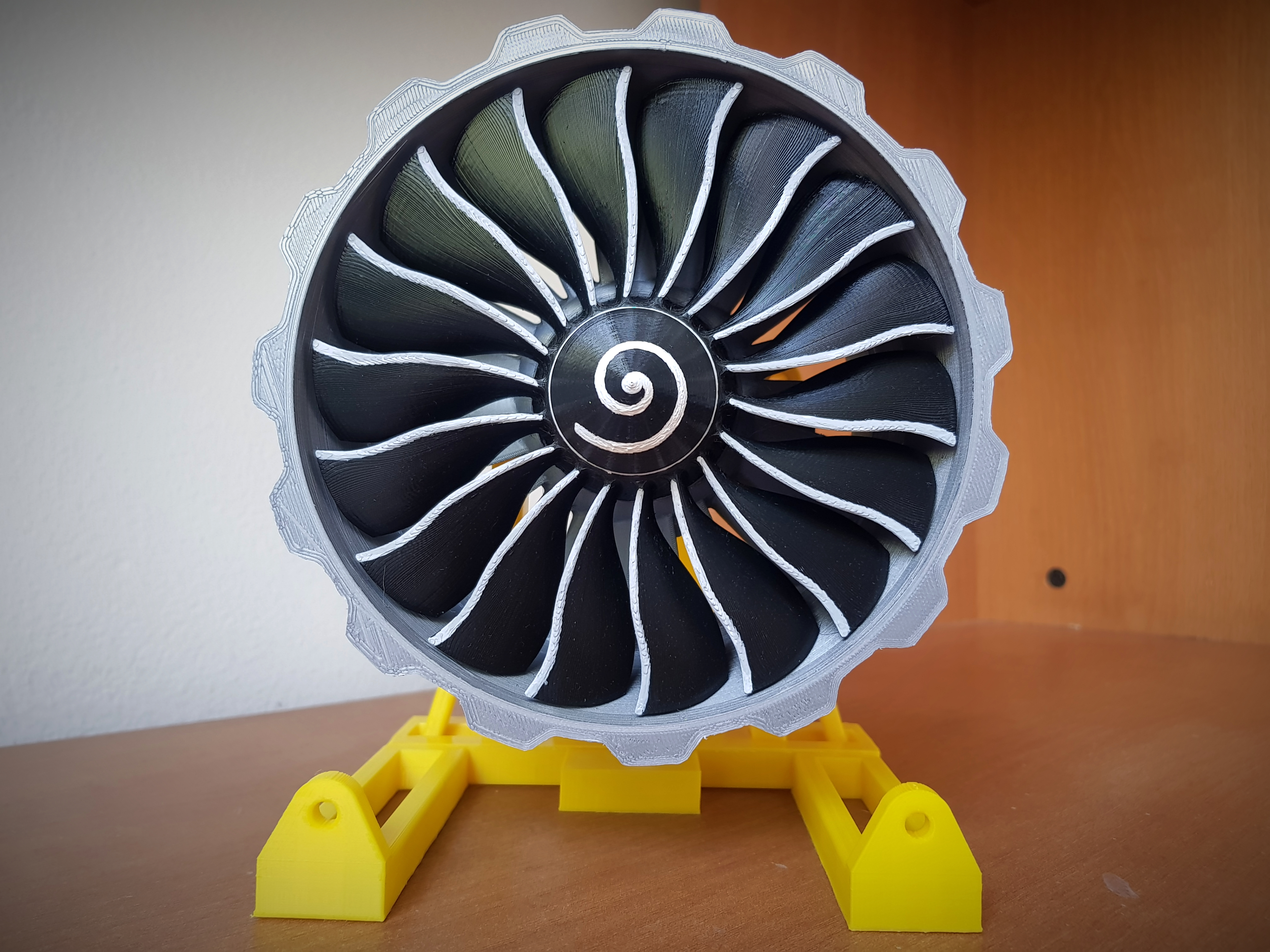

The leading edges and the spinner stripe where painted by hand.

  • 3D model format: STL
