N10 3D printer

3D model description

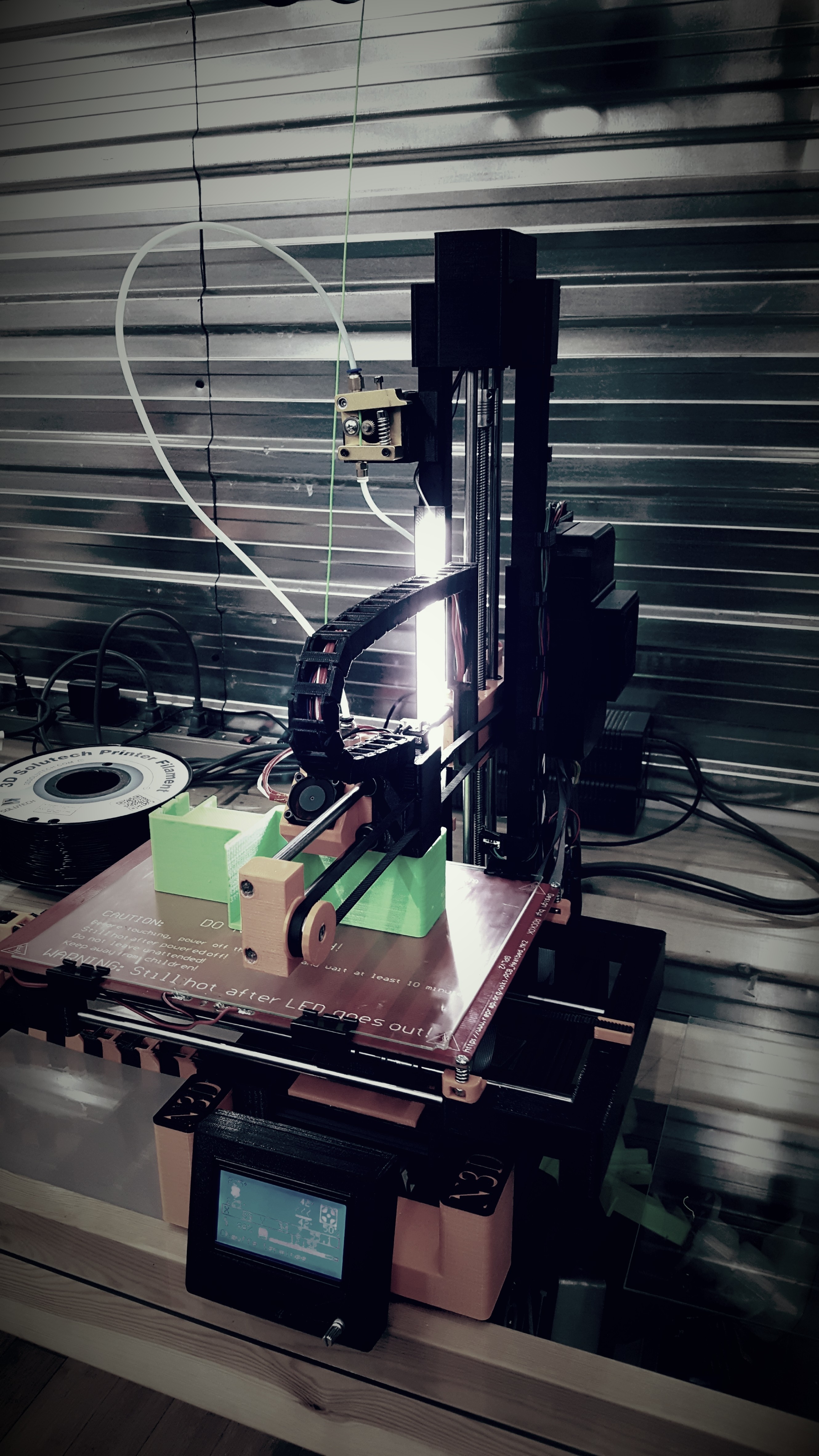

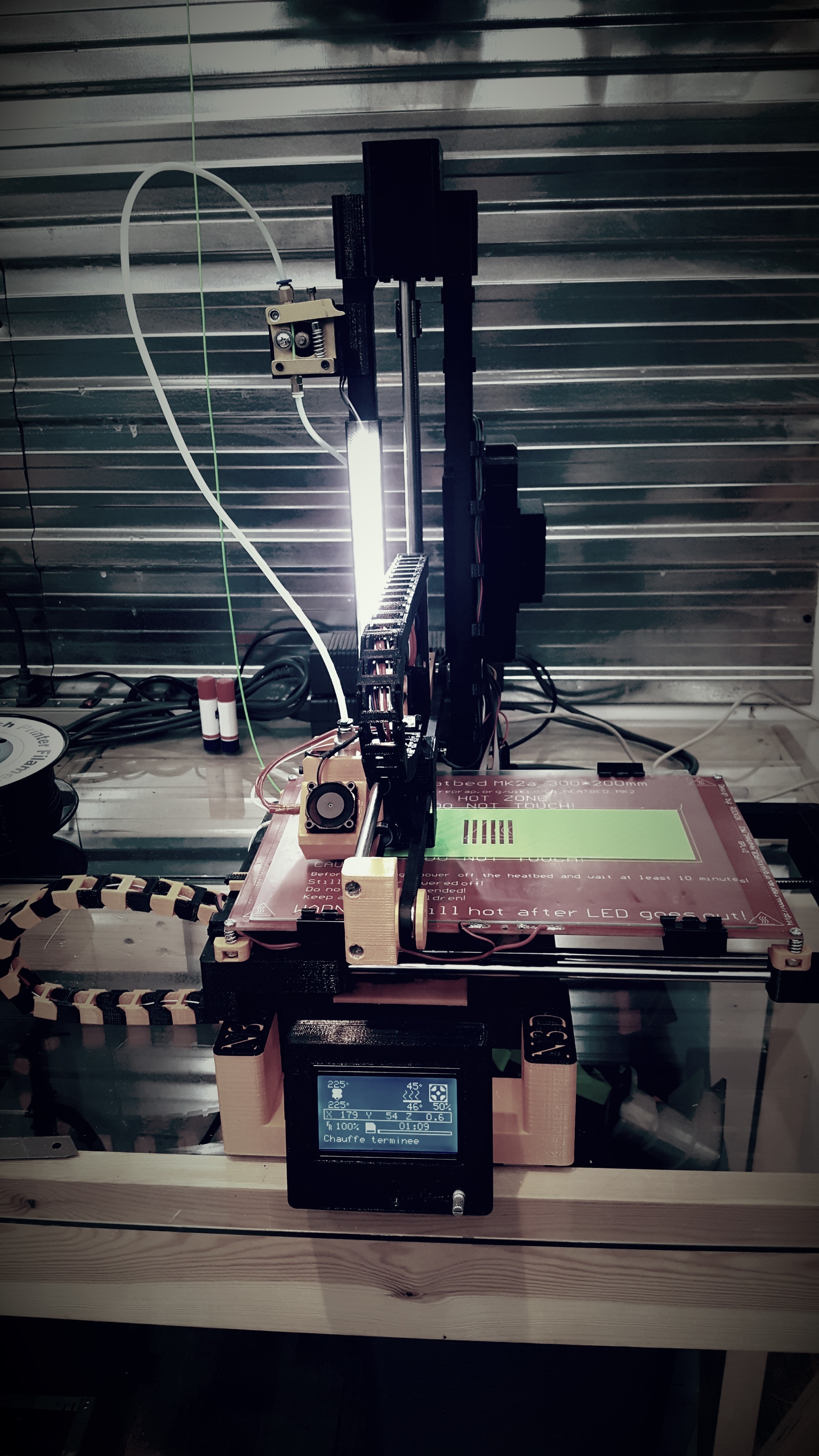

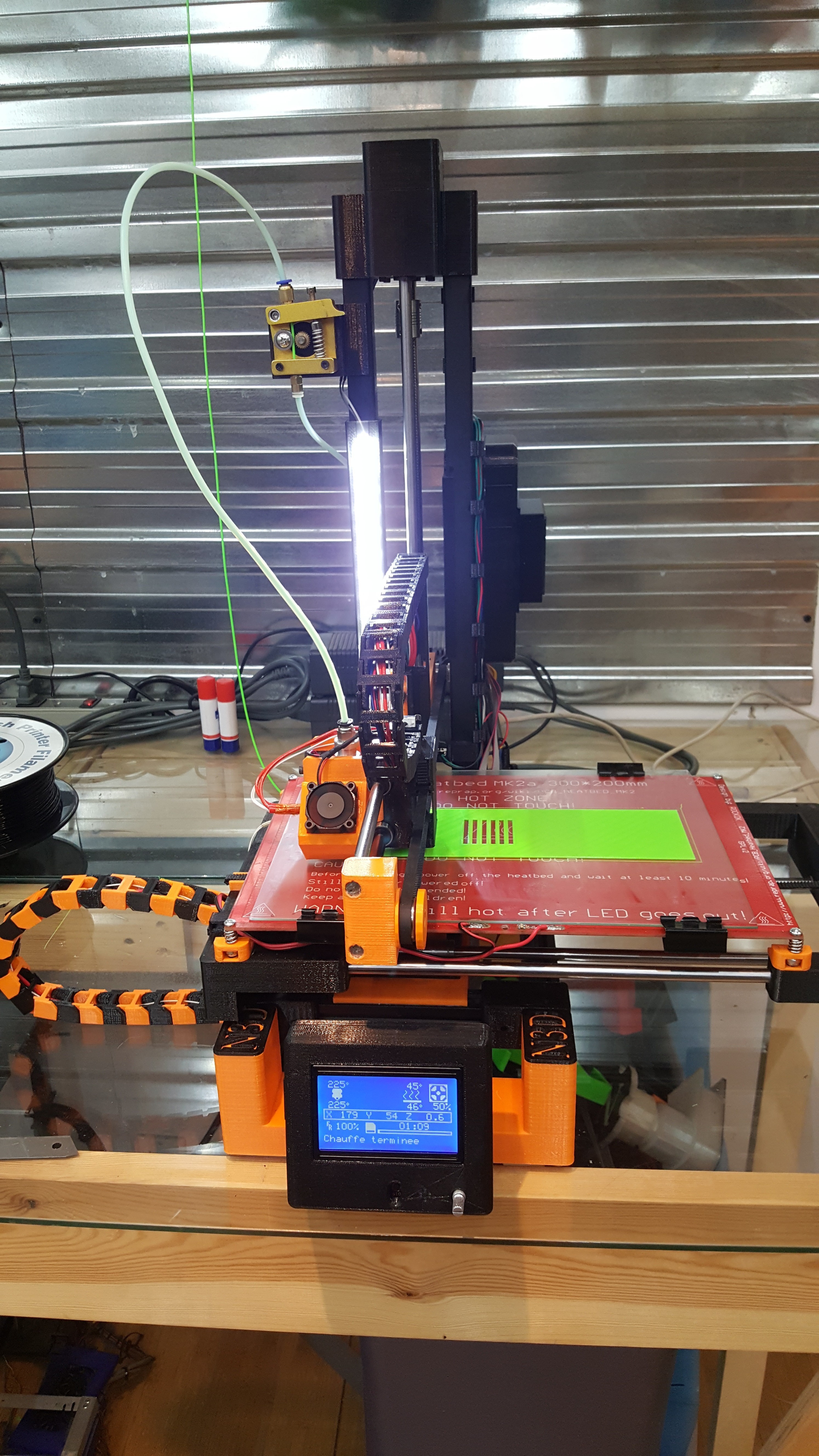

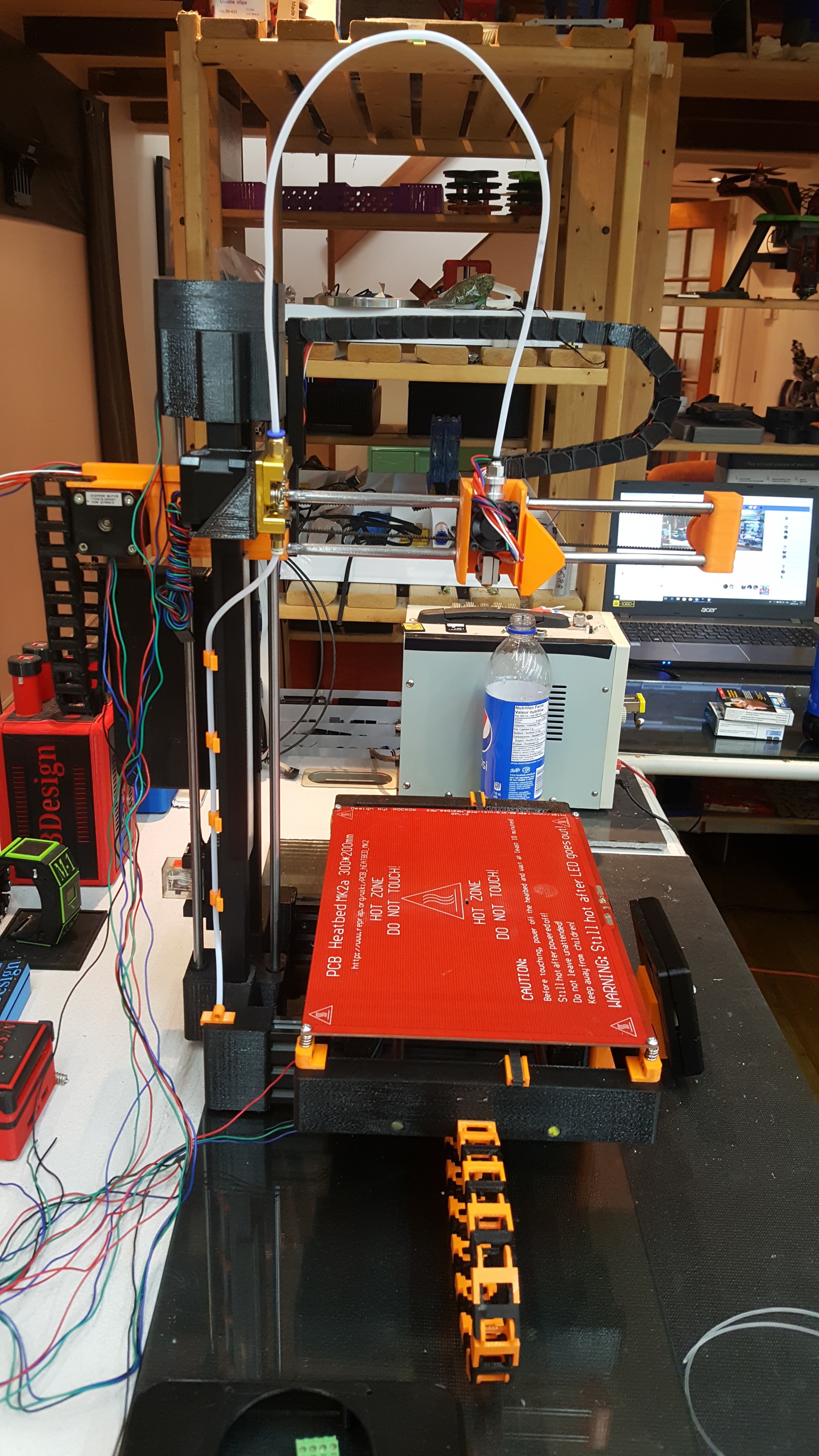

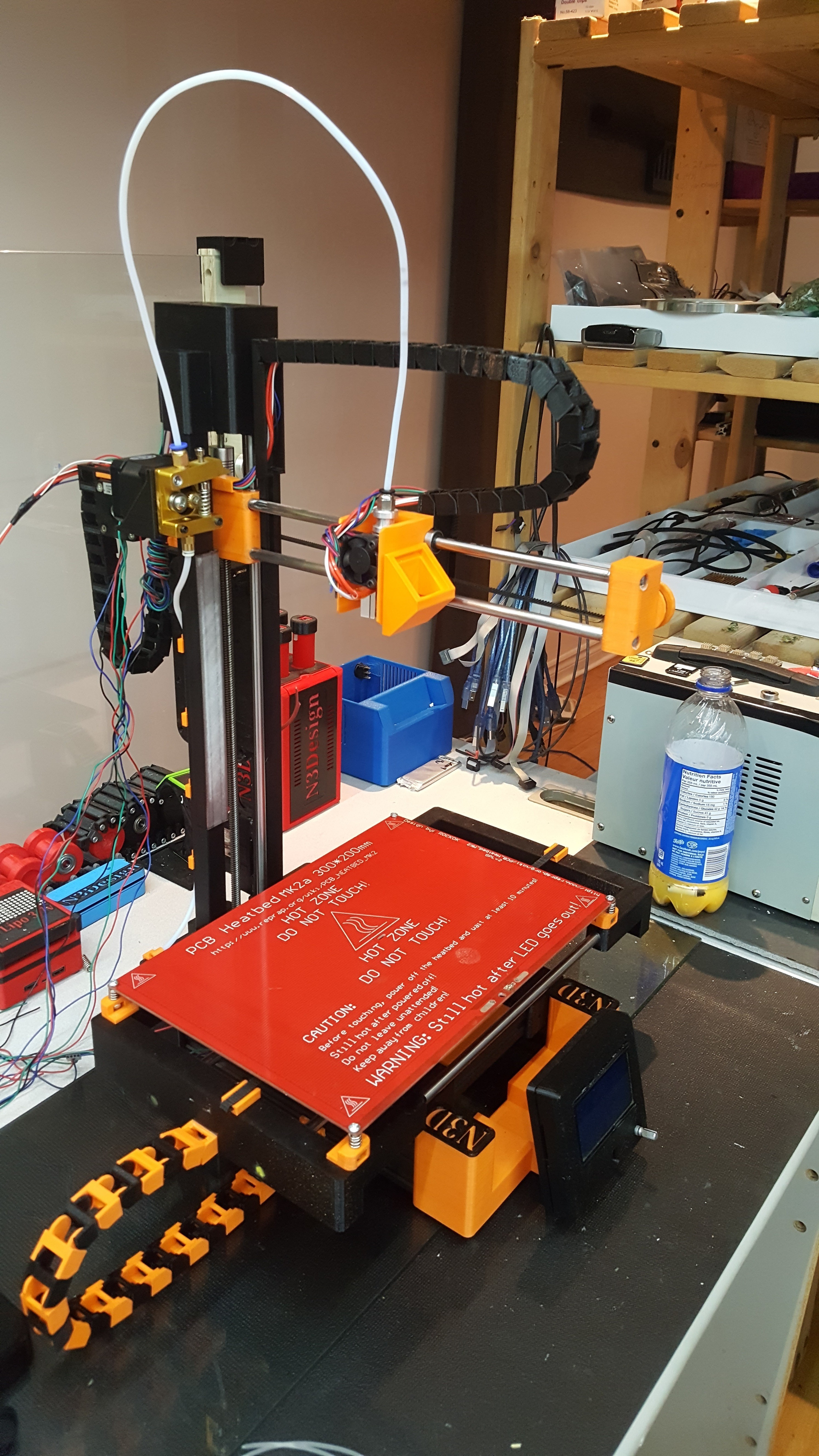

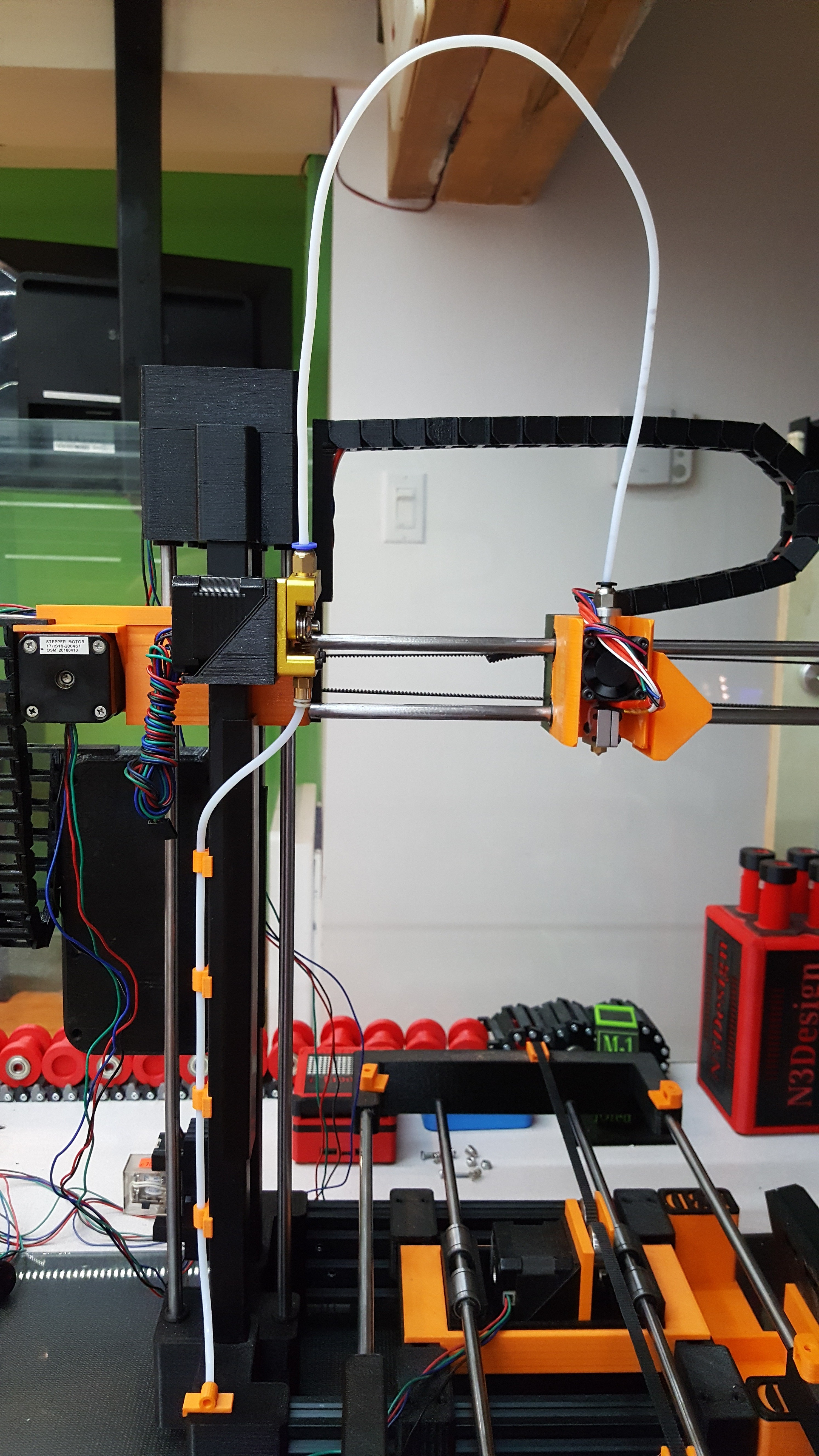

Here is the N10 from n3designs a 3d printer with a robust and very durable chassis.

stl file to print your n10 and scalable sais it can take a plate of 200*200 or 200*300 or 300*300 everything depends on the linear rod length and profile them so sais custom

for a 200*300 here are the measurements

Material lengths:

AXE-X:

If printing with a surface area greater than 220x220:

Linear rod 8mm:

2X395mm

2X270mm

profiled allu:

t-slot 2X13cm 2020

If printing with a surface area less than 220x220:

Linear rod 8mm:

2x395mm

2x270mm

2x80mm

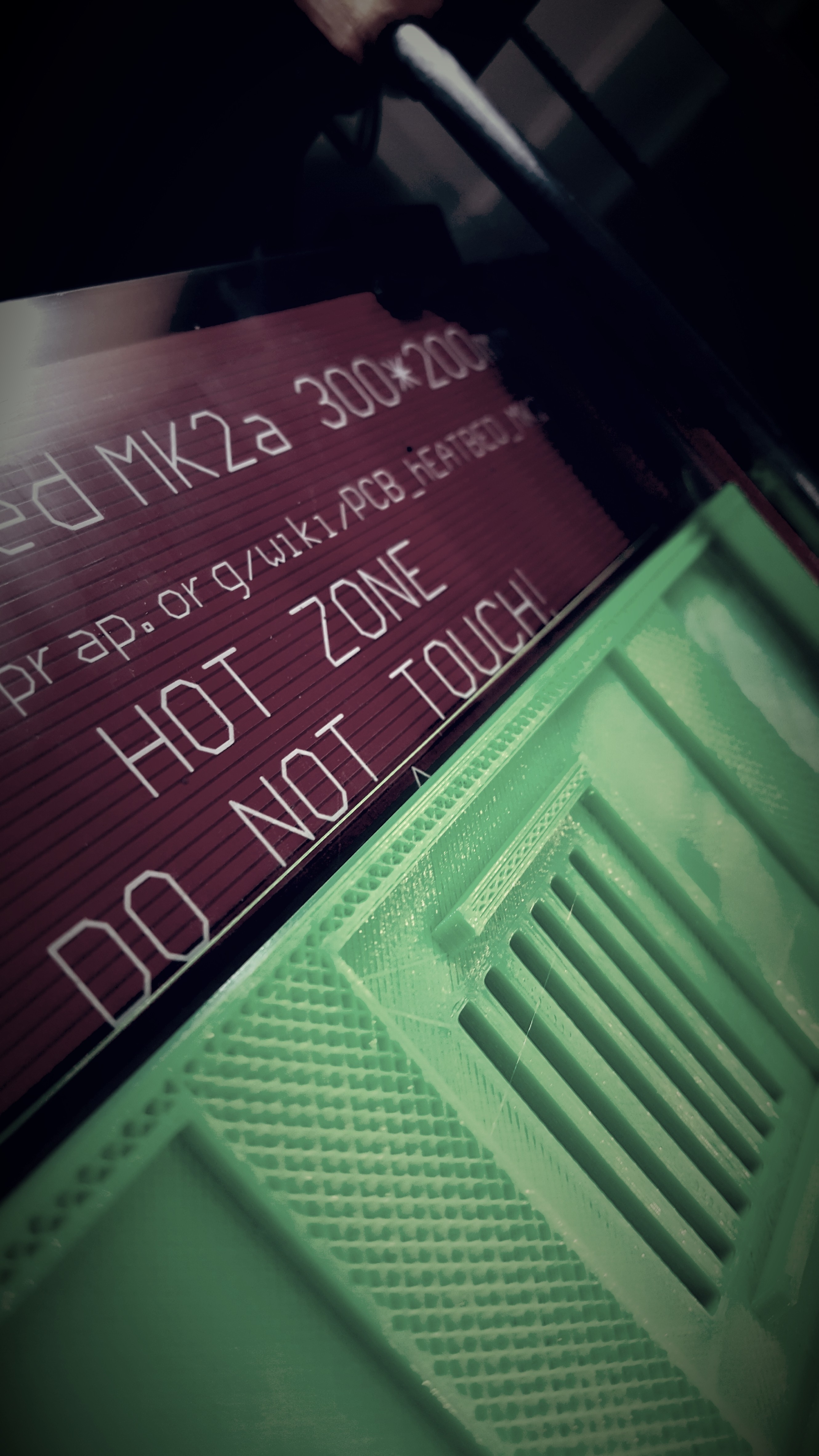

1X RepRap PCB Heatbed 200x300mm. Dual power 12/24V

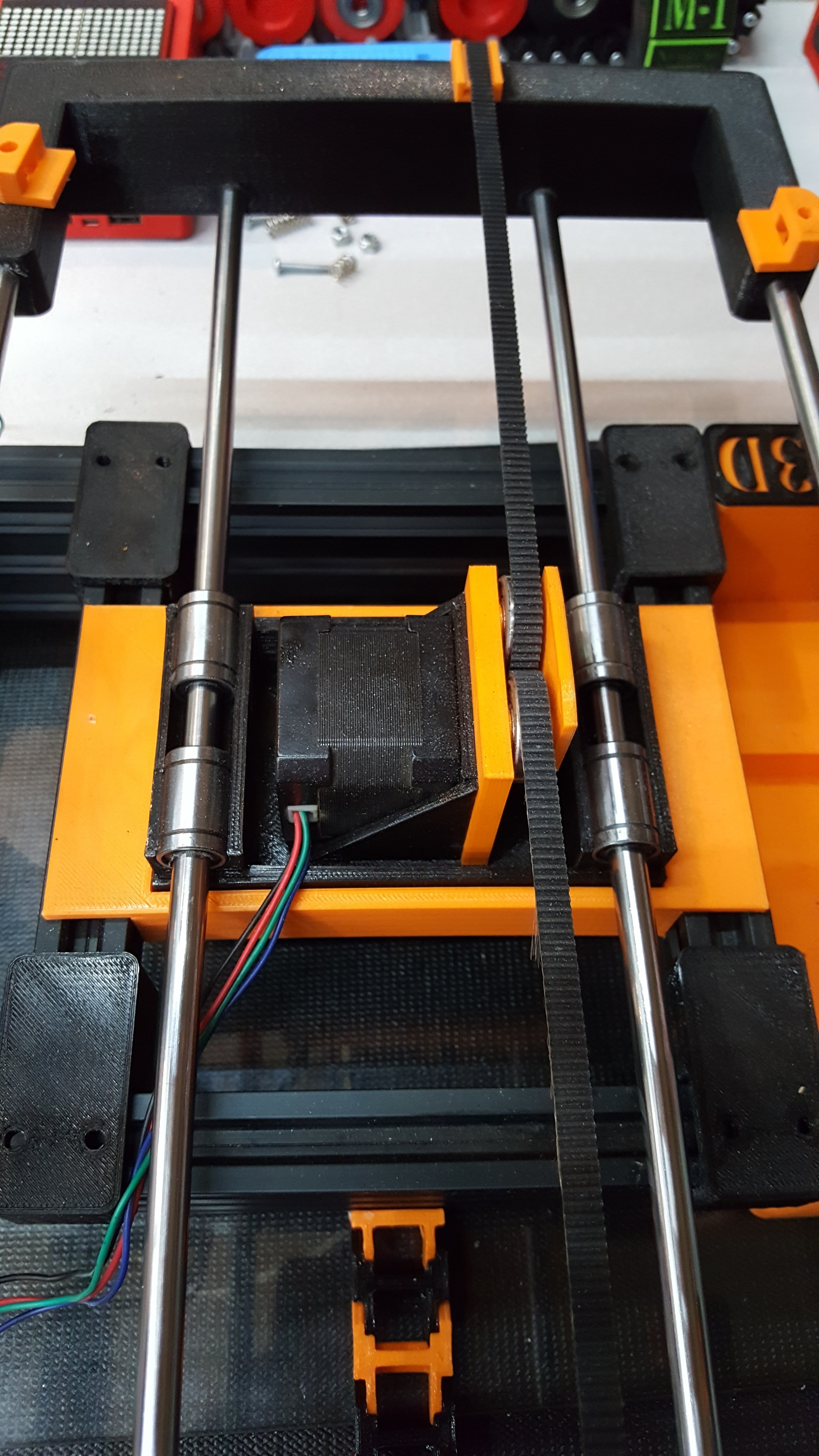

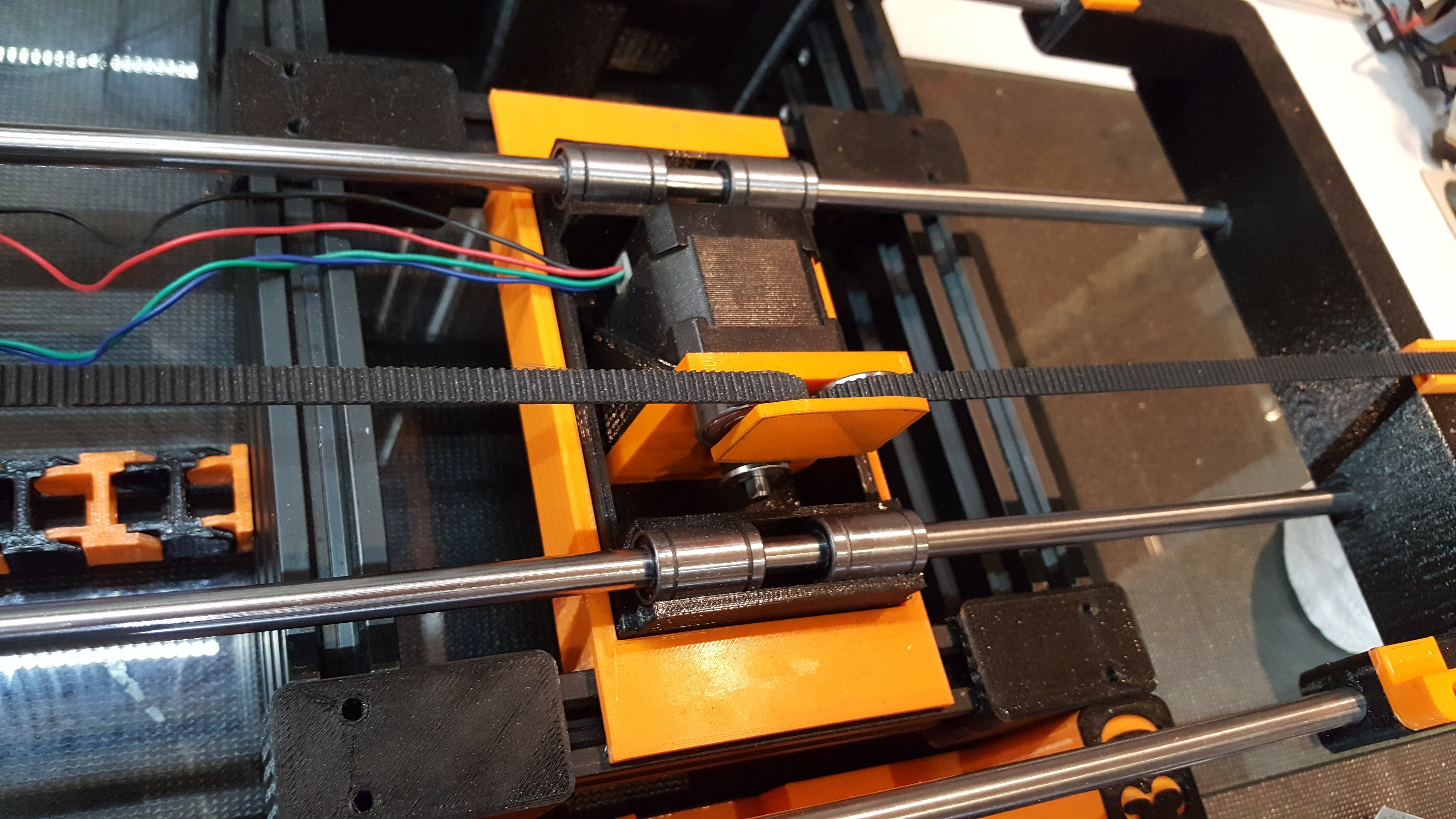

AXIS-Y:

Linear rod 8mm:

2X380mm

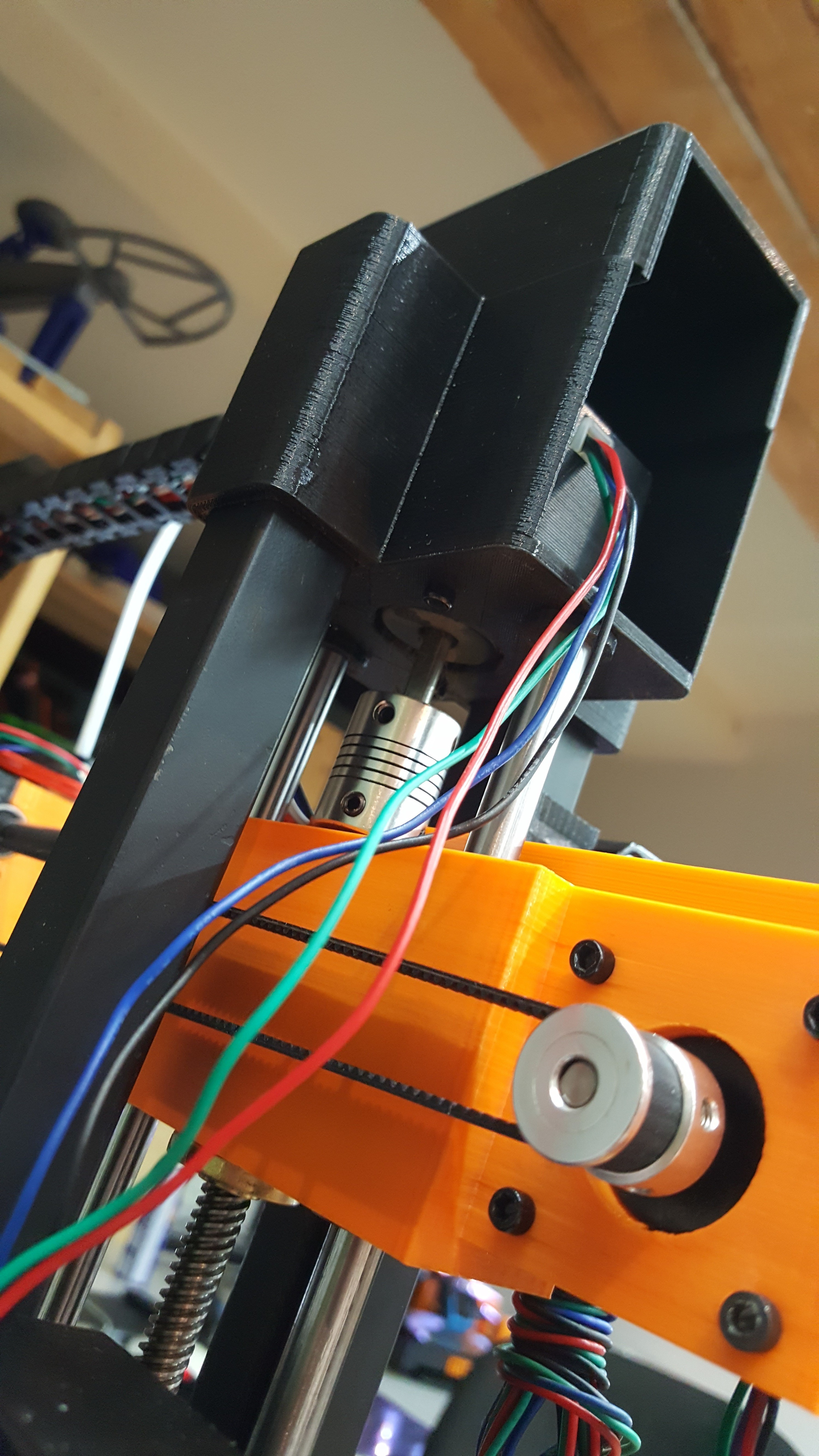

AXIS-Z:

linear rod 8mm

2X450mm

t-slot 20×20 L. 2X480mm

t8 threaded rod and coupler for nema17 1X400mm

CHASSIS:

t-slot 20×60 L. 2X295mm

2Xpower supply supply 12/24v 120240v

List of components in the attached file.

Use glue (super glue) for small parts.

https://www.youtube.com/channel/UCmBS-ipbPBRNPtk52MTMagQ/videos

3D printing settings

pla 225

bed 45

top down 0.8mm

1.0mm shell

speed 40mm/s

  • 3D model format: ZIP
