Mouse to move with your lips

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.3k views
  • 5 likes
  • 32 downloads

3D model description

This project is based on the work of T. Wirtl published at https://www.thingiverse.com/thing:1090461 on 24 October 2015.

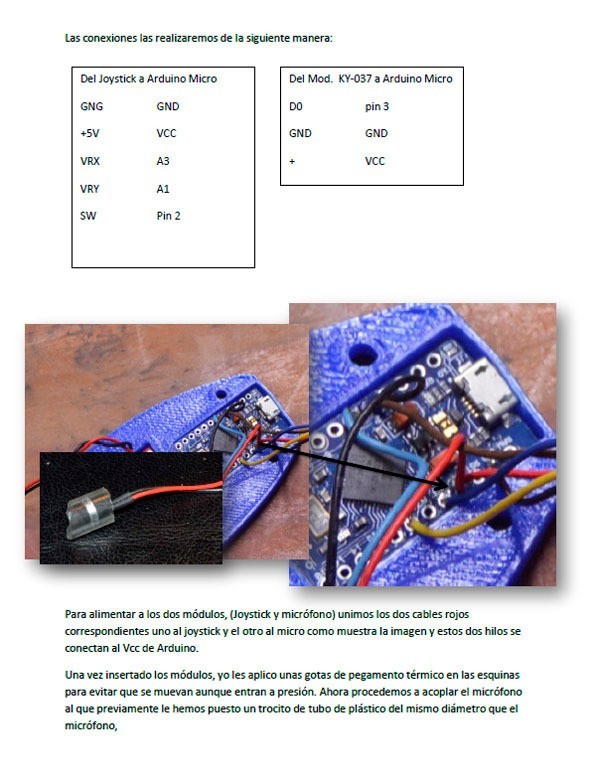

Our project consists of replacing the sensor that it carries (from an electronic cigarette) that are no longer on the market and adapting a KY-037 module that is basically a microphone with the possibility of adjusting the sensitivity. Letting us click the left button with a blow or an inspiration.

Functionality

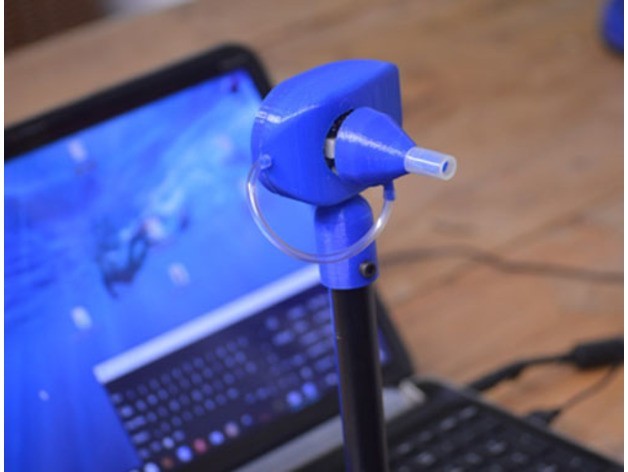

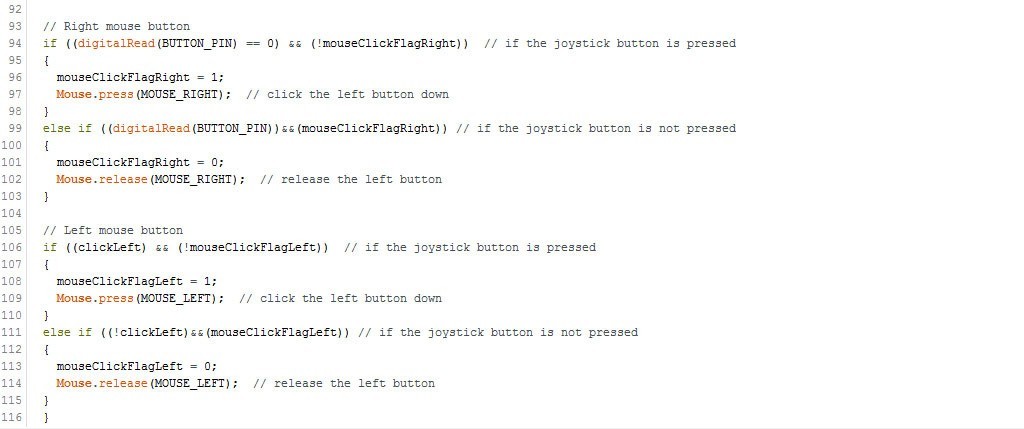

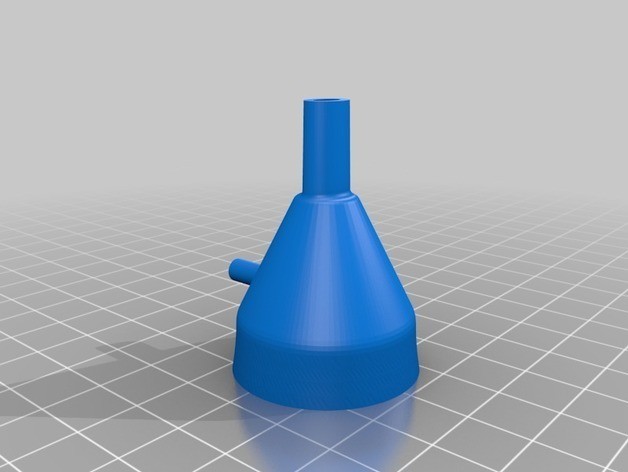

The user moves the cursor using a nozzle that basically works like a joystick. The right mouse button is operated by pushing the nozzle towards the box. The left mouse button is emulated by a sensor that recognizes if the user sucks air through it.

Software Hardware

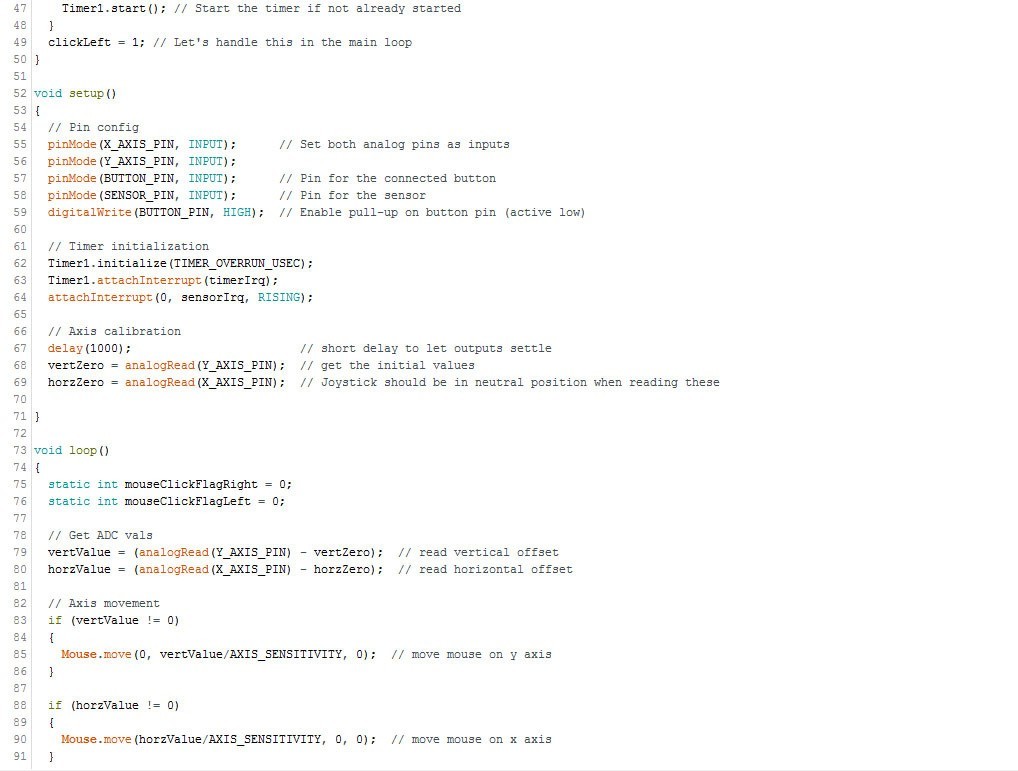

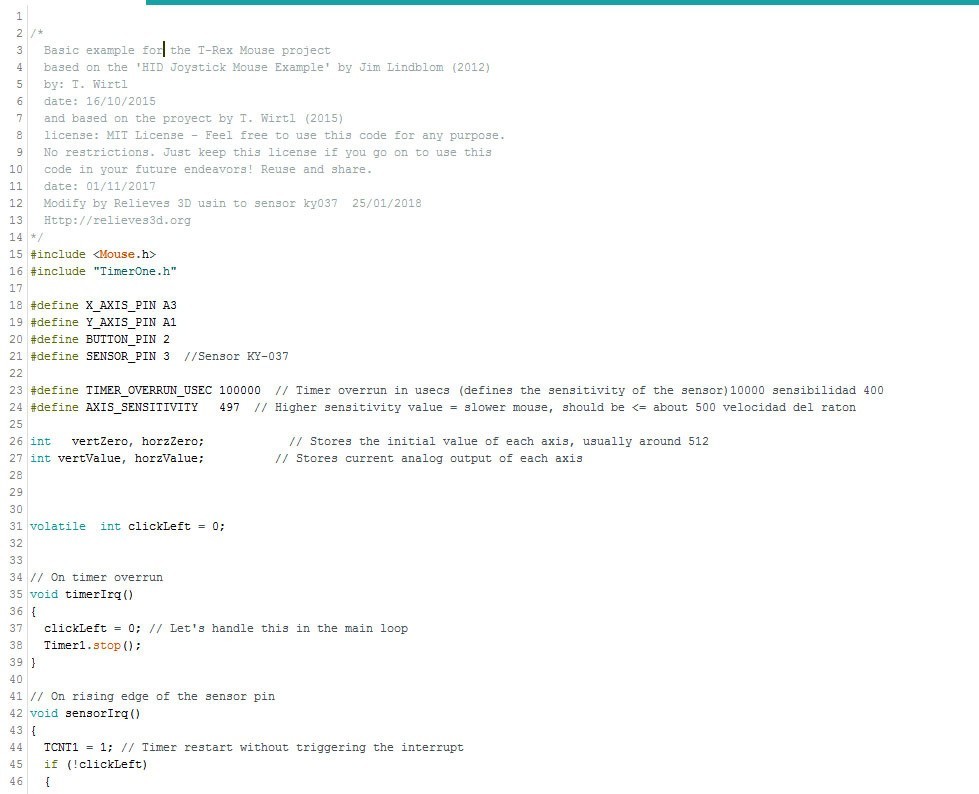

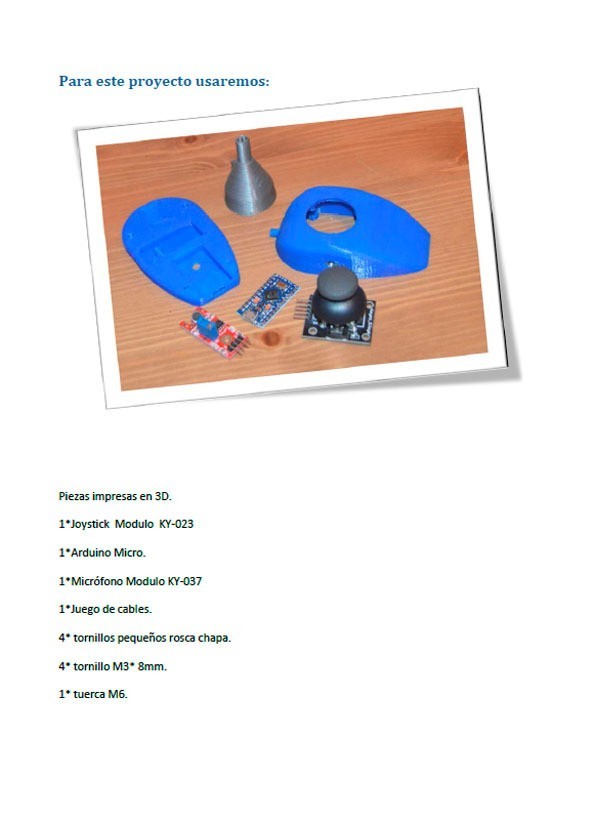

Use open source hardware and software if possible. The system is controlled by an Arduino Pro Micro. The firmware was written as an Arduino sketch.

This project is based on the work of T. Wirtl published at https://www.thingiverse.com/thing:1090461 on October 24, 2015.

Our project consists of replacing the sensor that carries an electronic cigarette that is no longer in the market and costs a KY-037 module that is basically a microphone with the possibility of adjusting the sensitivity. Letting us click on the left button with a breath or an inspiration.

Functionality

The user moves the cursor using a mouthpiece that works like a joystick. The right mouse button is operated by pushing the nozzle towards the box. The left mouse button is emulated by a sensor that recognizes if the user sucks air through it.

Software Hardware

Use open source hardware and software if possible. The system is controlled by an Arduino Pro Micro. The Firmware was written as an Arduino sketch


3D printing settings

0.1 layer, 30% in-fill, yes suport, no rafting

To get the code send an email to relieves3d@relieves3d.org, as the page will not let me upload it.

3D printer file information

  • 3D design format: STL Folder details Close
    • boquilla.STL

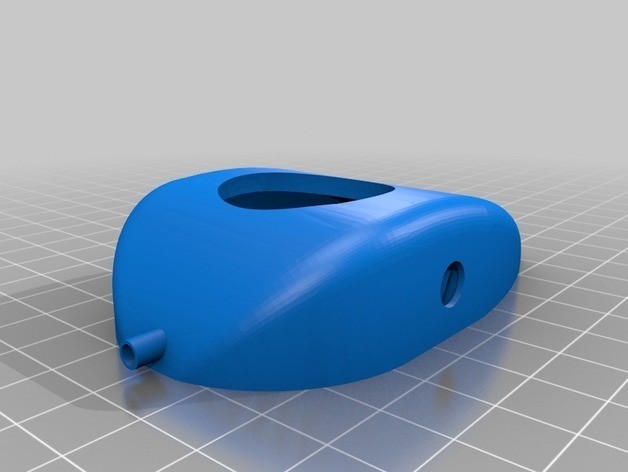

    • cuerpo_raton.STL
    • tapa_raton.STL

    Learn more about the formats

  • Last update: 2018/04/23 at 09:37
  • Publication date: 2018/04/20 at 11:56

License

CC BY

Tags

Creator

Creación de Impresoras 3D, Diseño 3D

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Collection associated with this 3D model


Best sellers of the category Various


Add a comment

One comment

Hello! i send u an email for the arduino code.
Iam thinking made this for a free distribute in my country Argentina!
Good job ! my mail is:
holucas AT hotmail . com
