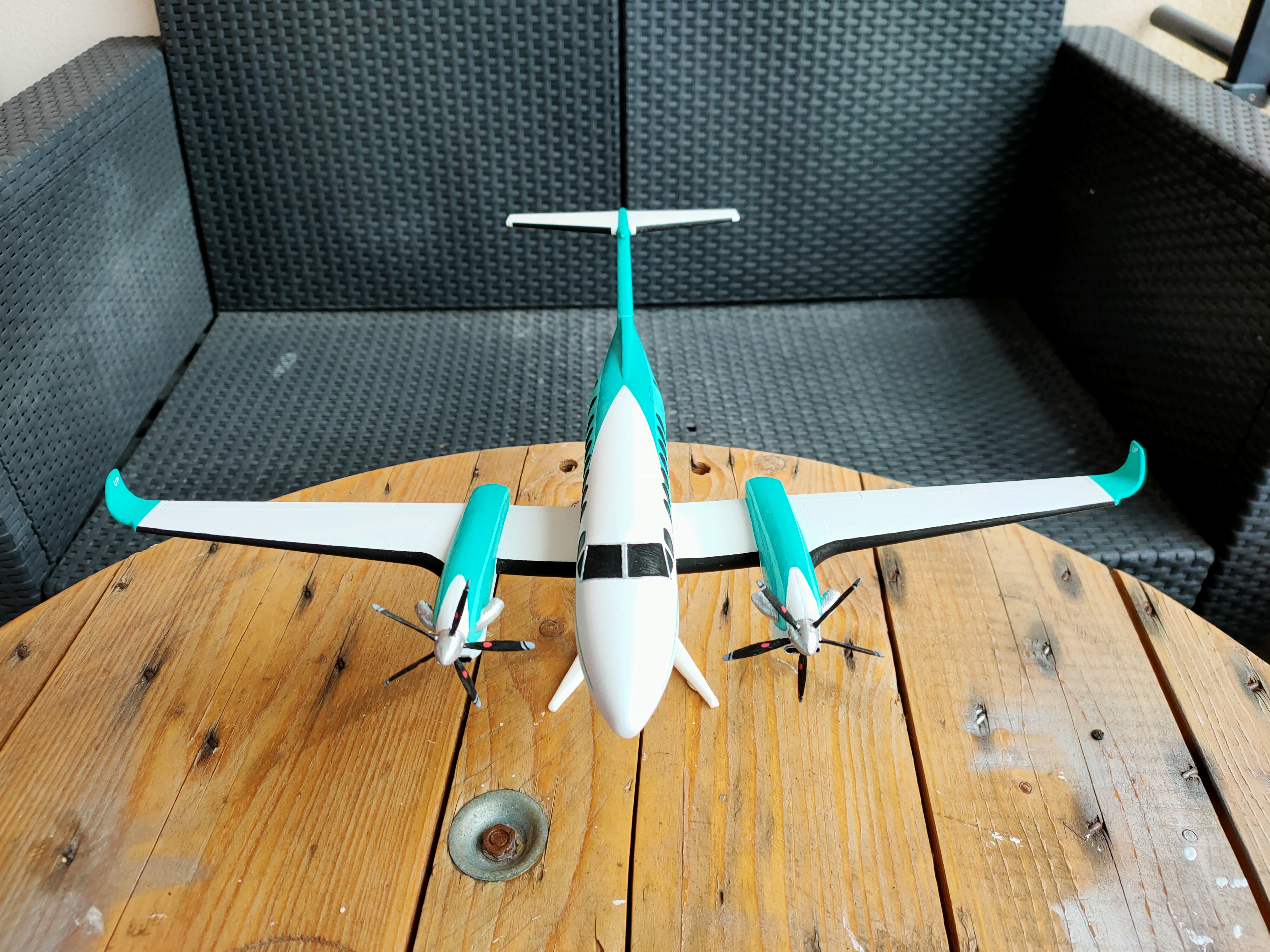

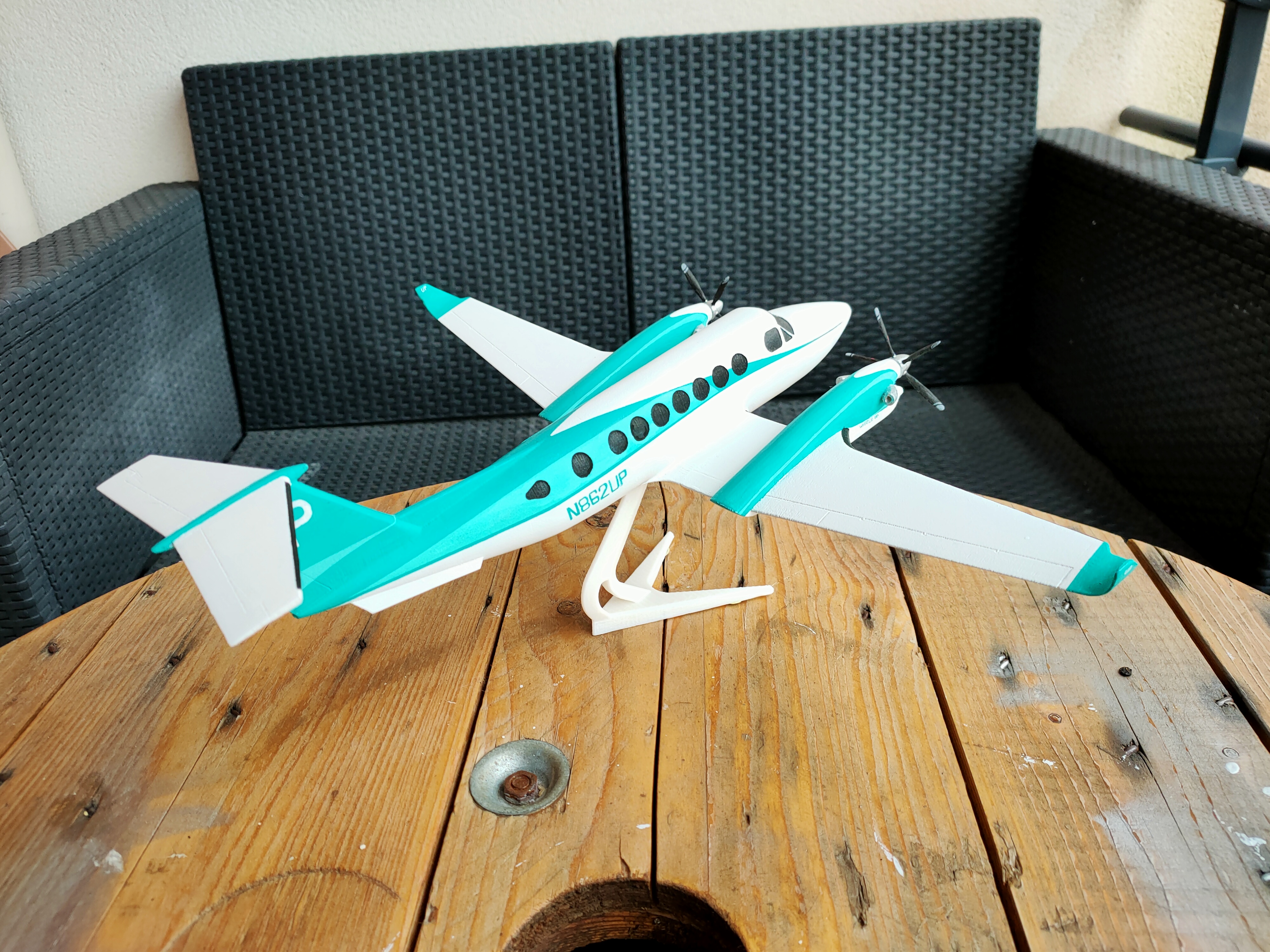

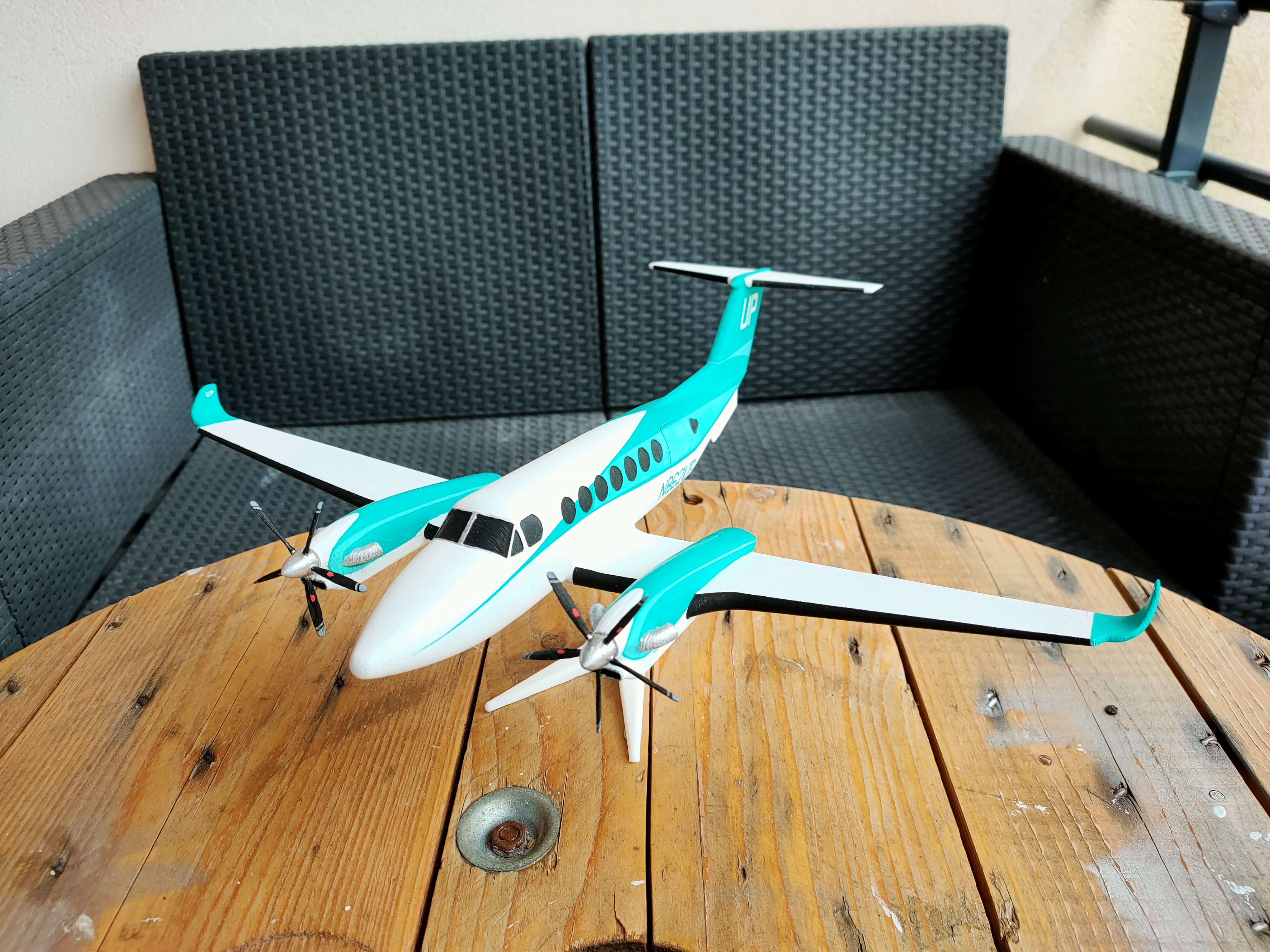

[MOTORISED] Beech King Air 350

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This model is designed on the same assembly principle then the other airplanes I made.

This one as the particularity of having motorisable propellers !

Here is the link of the components you will need :

Amazon:

Aliexpress:

For the battery, I used two CR2032 in series and for the switch, I used one that I already had but you can use this one for example : https://www.amazon.fr/dp/B07QL1LR16/ref=cm_sw_em_r_mt_dp_QNEF2SAGVE6EDGFX76S2?_encoding=UTF8&psc=1

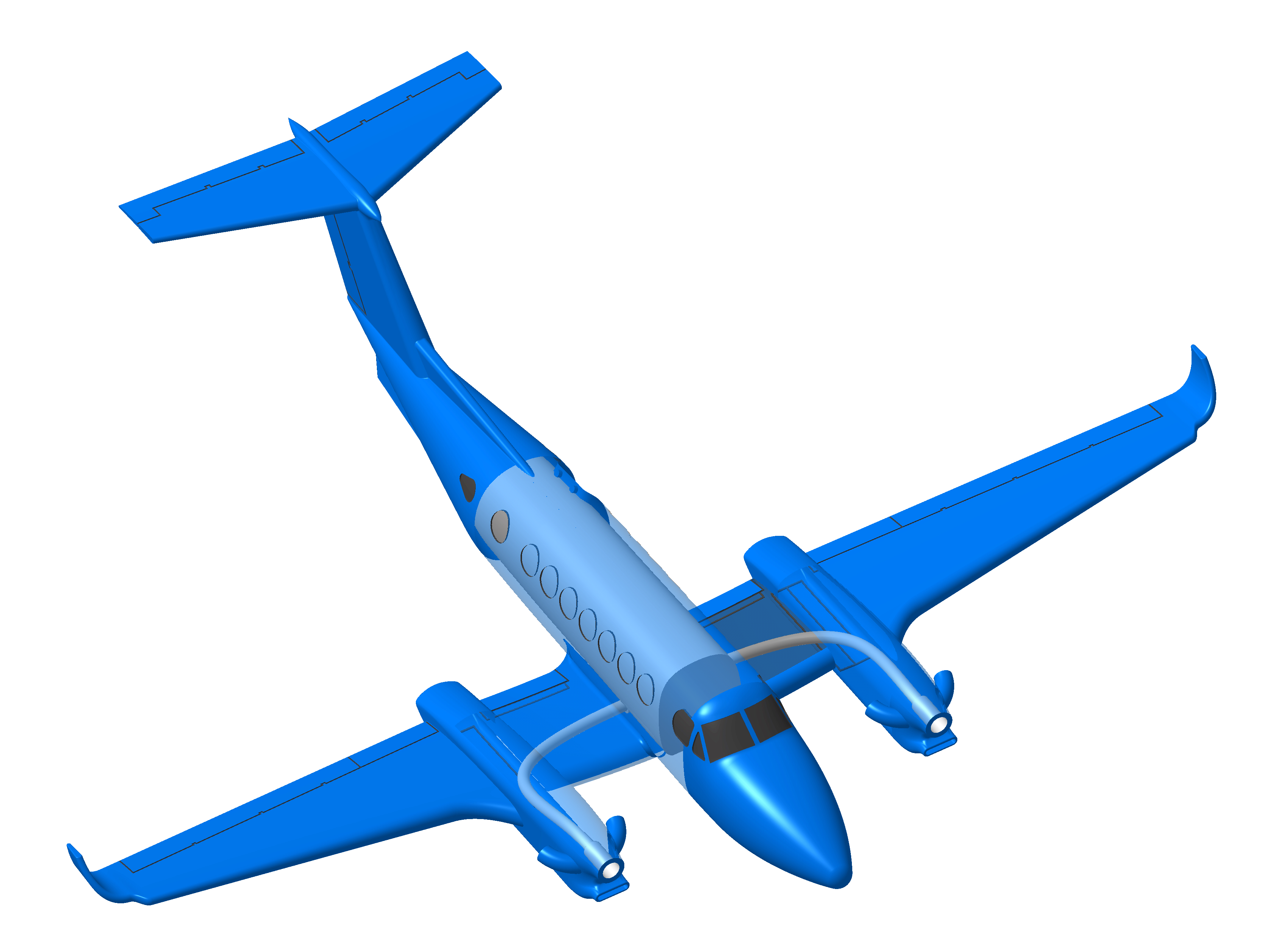

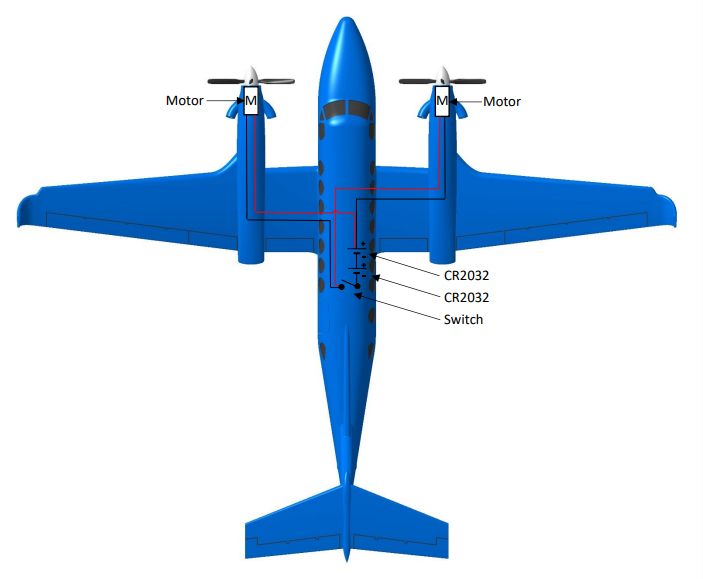

In the pictures, you will find an electrical diagram and the electrical cable routing picture.

If you decide to solder longer wires to the motors, take care of making the skinniest solderings to insure that the cables will pass into the holes. Make sure to solder the connectors AFTER putting the motors into their fittings, the connector dose not pass into the routing.

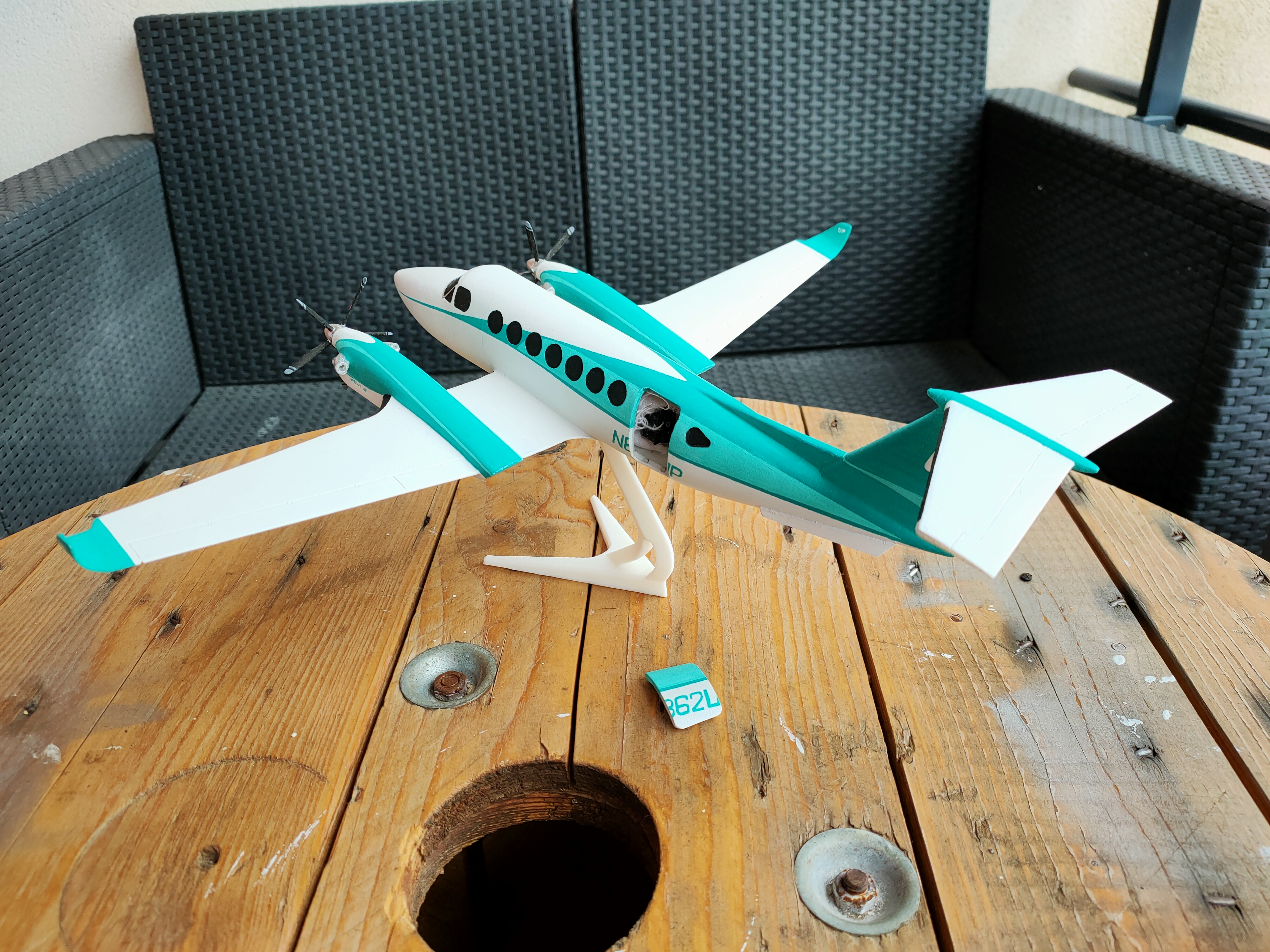

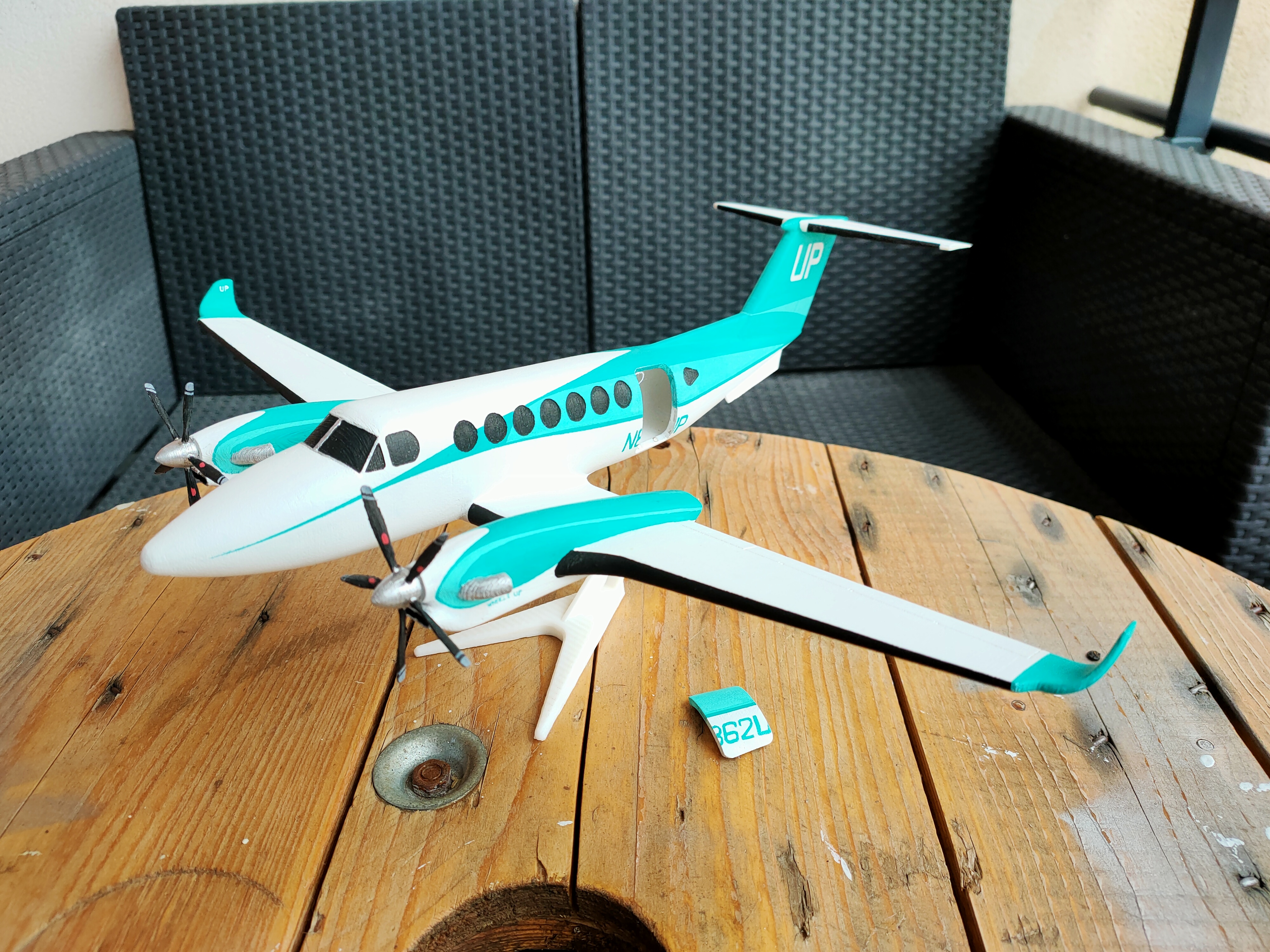

For the painting, I used sand paper, then white wall paint (Spectrum) applied with a sponge roll, then I used Poscas for the colours (better result with soft brush use) :

-Water green

-Emerald green

-Black

-Grey

-Red


3D printing settings

Layer height : 0,15 mm

Nozzle : 0.4 mm

Material : PLA (Wholesale 3D)

Needed supports parts :

-Tail

-Rear

-Left propeller (0.1 mm layer height)

-Right propeller (0.1 mm layer height)

-Left wing p2

-Right wing p2

3D printer file information

  • 3D design format: STL Folder details Close
    • Complete (without door).stl
    • Door.stl
    • Front.stl
    • Left propeller.stl
    • Left wing p1.stl
    • Left wing p2.stl
    • Middle.stl
    • Rear.stl
    • Right propeller.stl
    • Right wing p1.stl
    • Right wing p2.stl
    • Stand.stl
    • Tail.stl

    Learn more about the formats

  • Publication date: 2022-02-05 at 21:04
