Two-cylinder compressed air motor

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 7.9k views
  • 22 likes
  • 321 downloads

3D model description

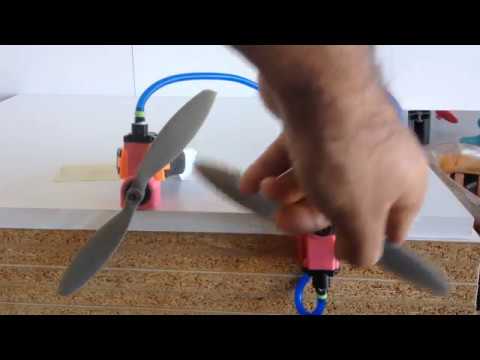

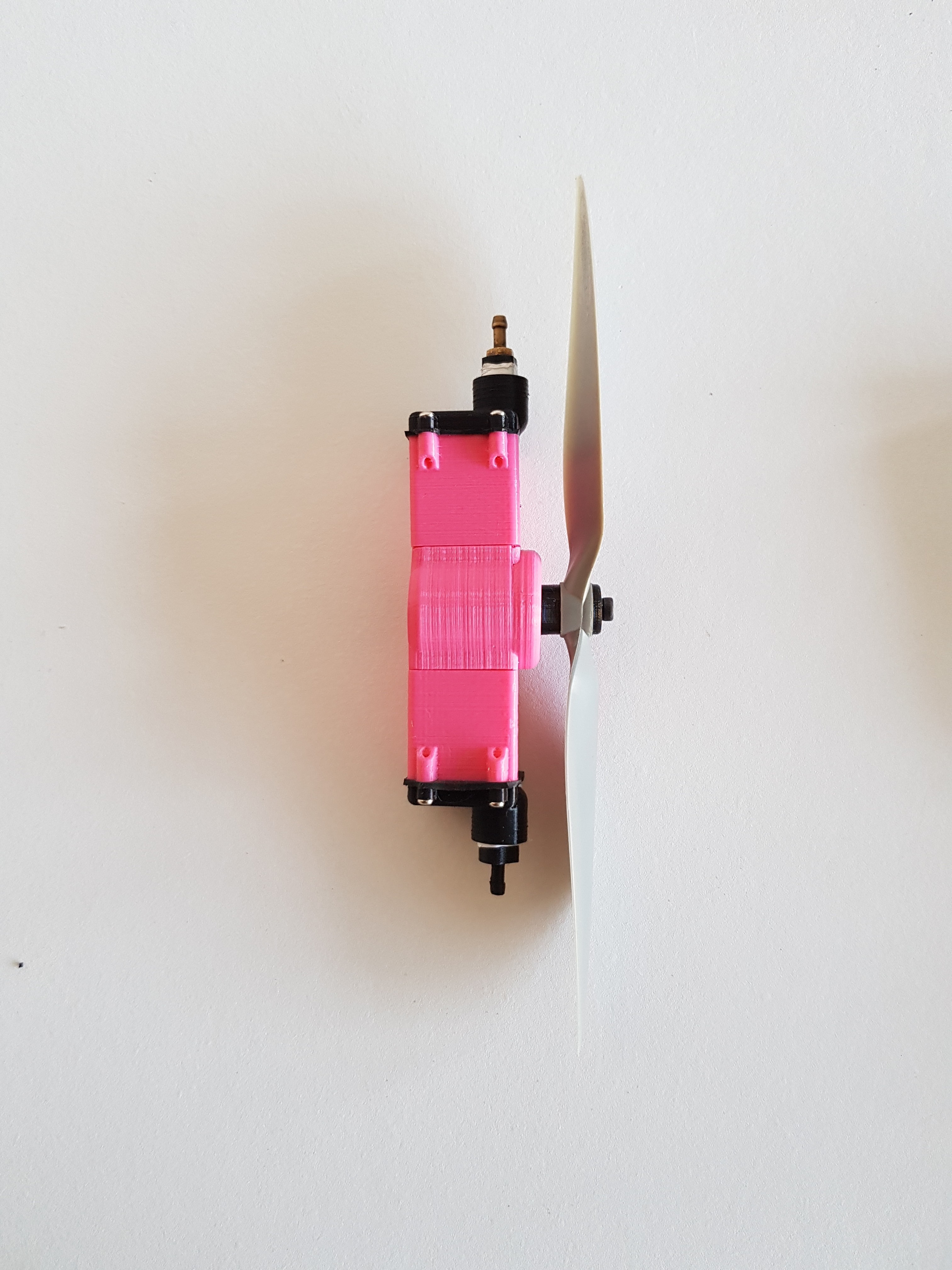

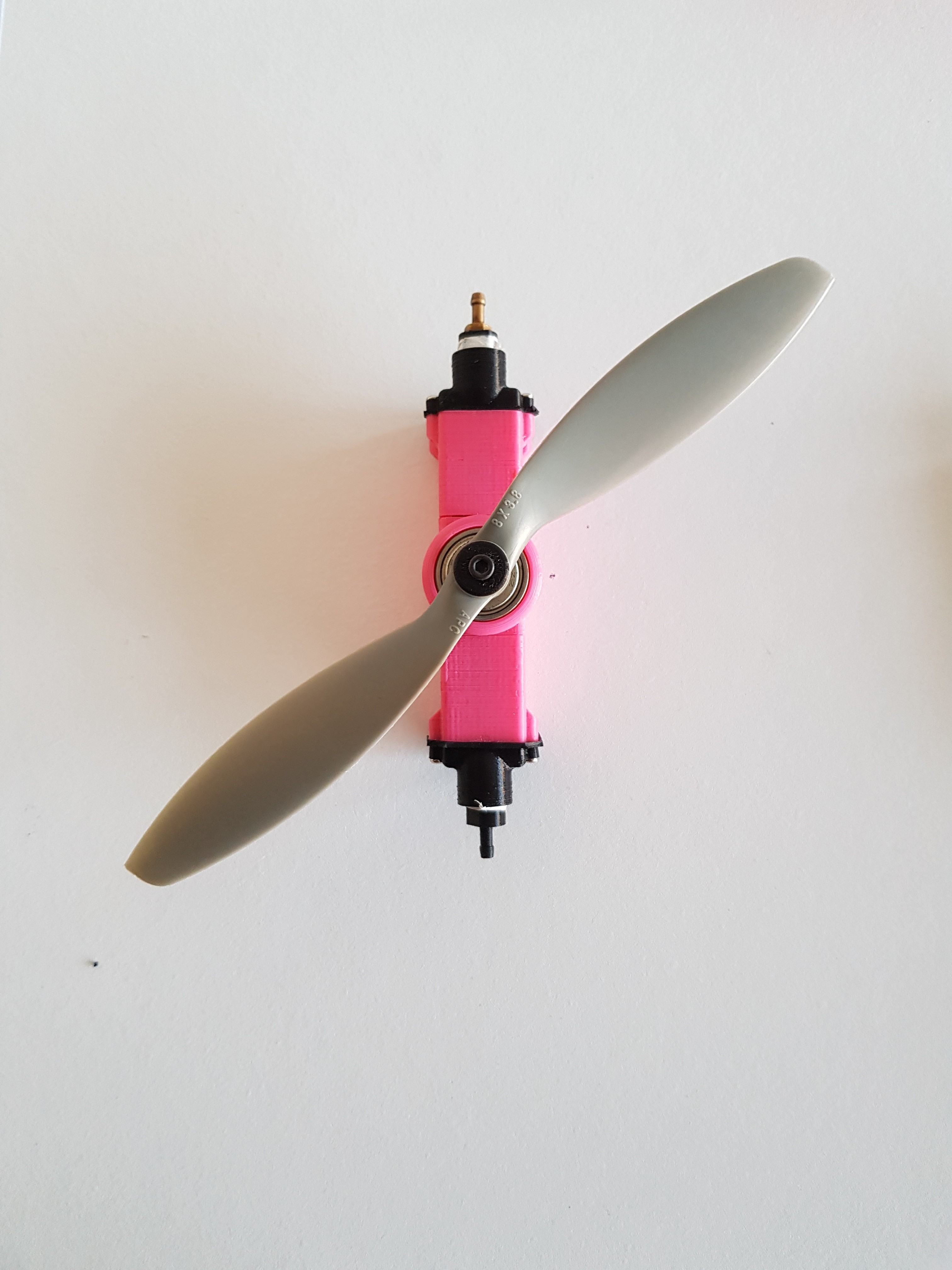

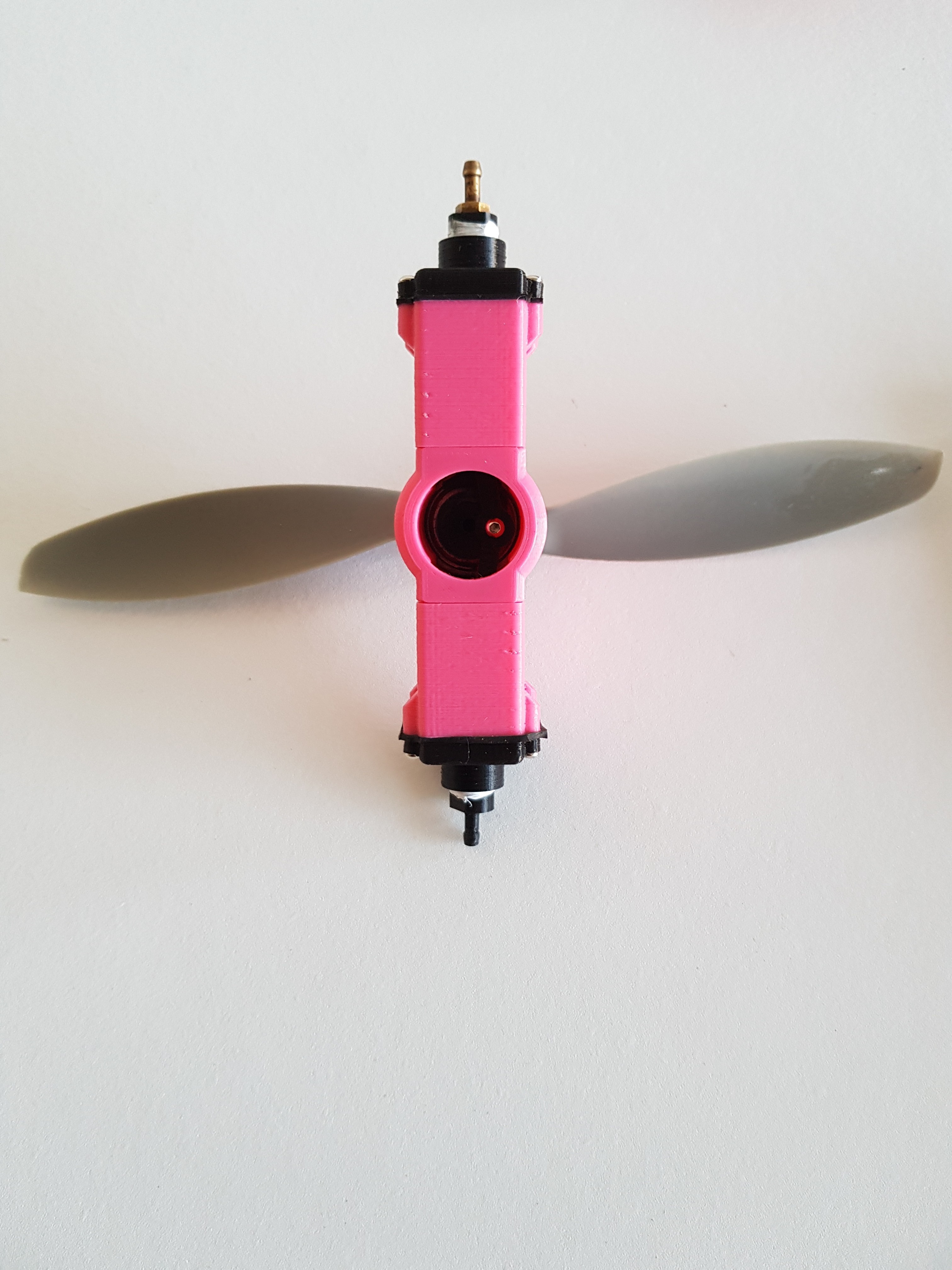

Two cylinder engine running on compressed air and printable 3D (with some additional elements like a ball bearing, screws, O-ring, plastic ball, inner tube seal...)

The single-cylinder version was created by Tom Stanton (https://www.youtube.com/watch?v=YLPY8CY5Fm4), I derived a twin-cylinder version and may offer you other multi-cylinder versions...

The engine can also be operated with a cylinder filled with compressed air using a pump or compressor.

Twin and Single Cylinder Engine: https://youtu.be/7KUvNOvpQBw


3D printing settings

filament used: PLA

print height: 0.15mm

printing time: 3h45

3D printer file information

  • 3D design format: STL Folder details Close

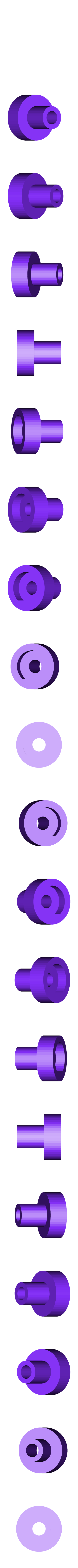

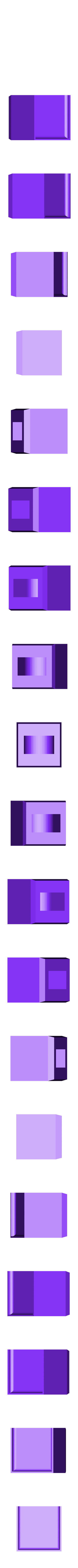

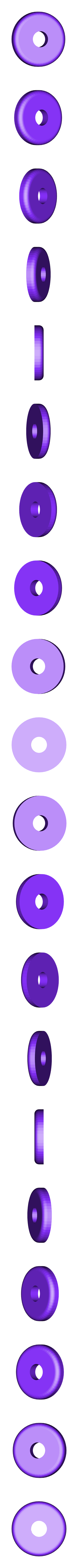

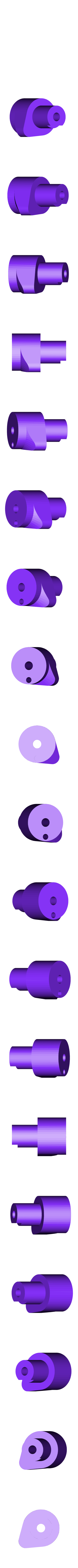

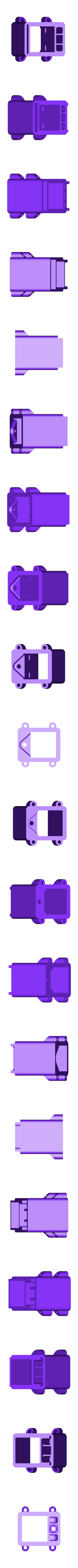

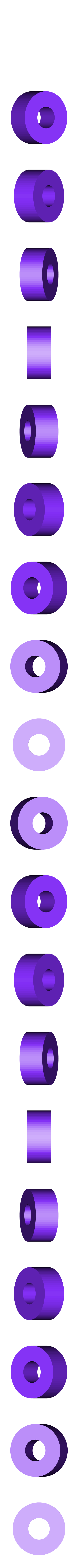

    • CrankPressTool.stl
    • Crankshaft.stl
    • Cylinder.stl
    • CylinderHead.stl
    • Piston.stl
    • PropAdaptor.stl
    • PropWasher.stl
    • Pushrod.stl
    • bielle.STL
    • crankase bi.STL
