Modular Electric Guitar Body

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

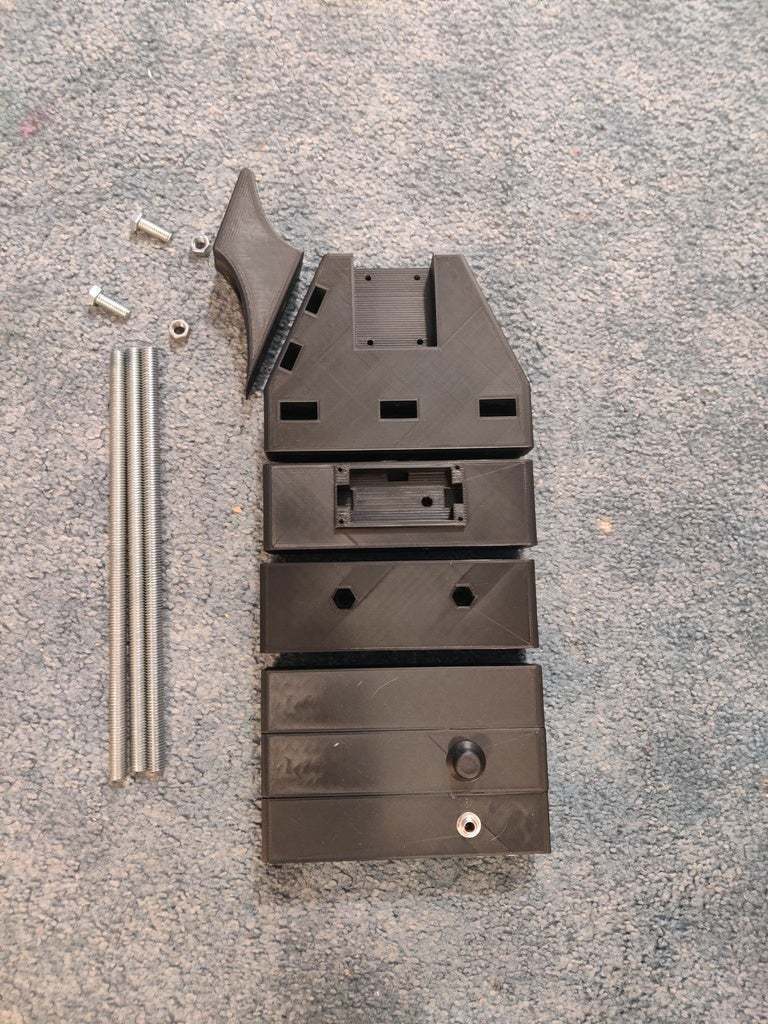

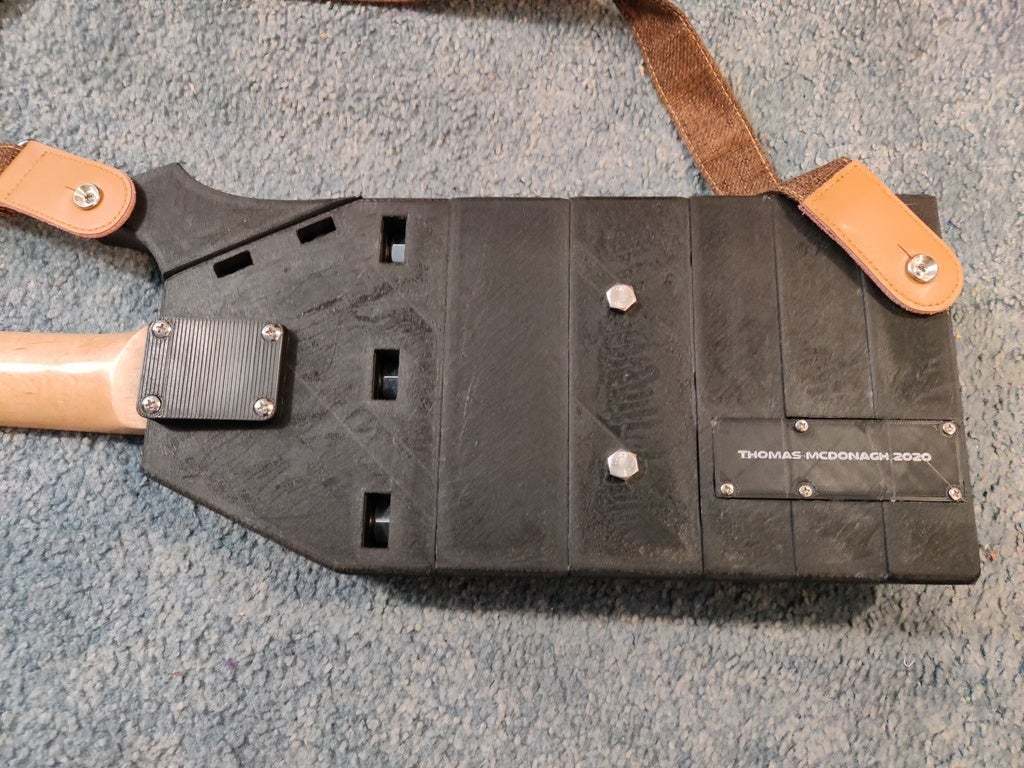

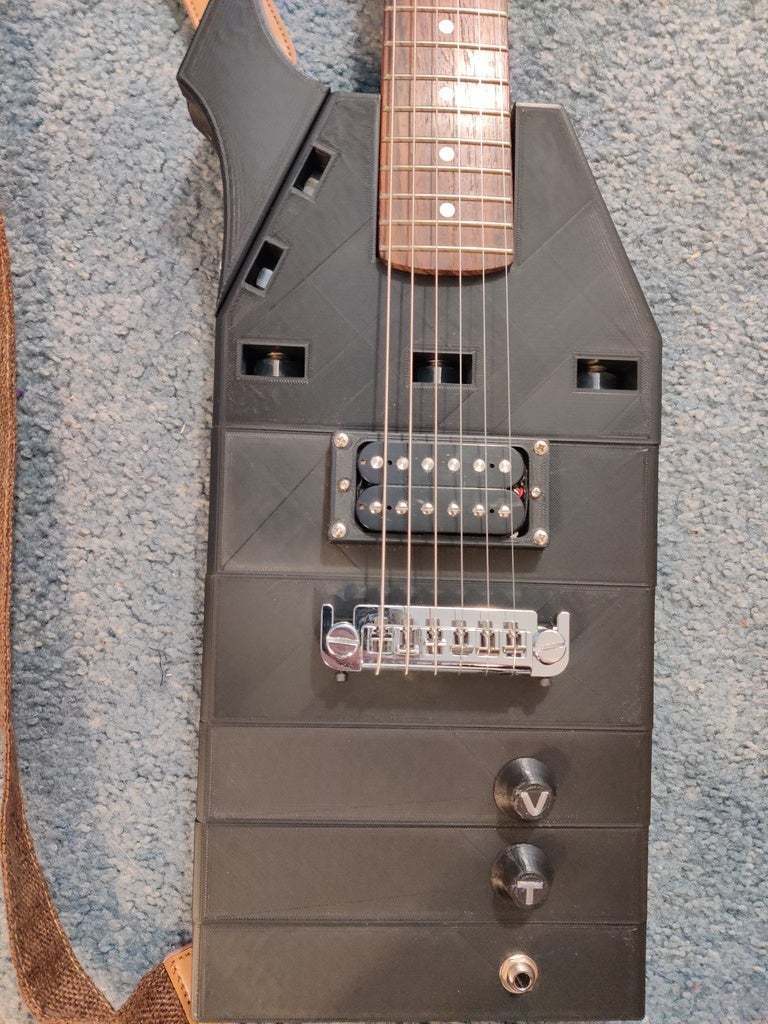

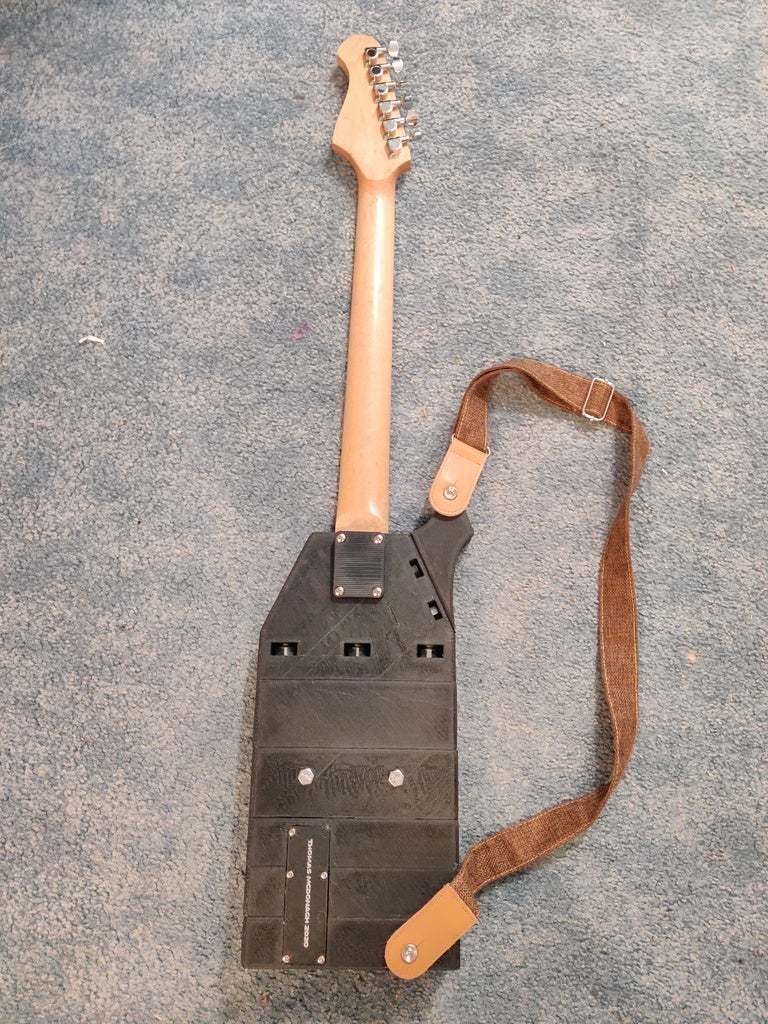

Modular guitar body with for use with bolt on guitar neck. Uses 3 1/2" x 12" threaded rods , 21 1/2" hex nuts, 2 3/8" x 1" bolts, 2 3/8" hex nuts, pick guard screws and strap nuts from this kit, a wraparound bridge, humbucker pickups, 2 m8 bolts, 2 m8 couplers, 1 output jack, and 1-2 volume potentiometers depending on if you want a tone knob or not. If you plan on using a tone knob you will also need 1 guitar capacitor.Wiring diagrams can be found for one tone and one volume or just one volume depending on what you want to put in.

3D printer file information

  • 3D design format: STL Folder details Close

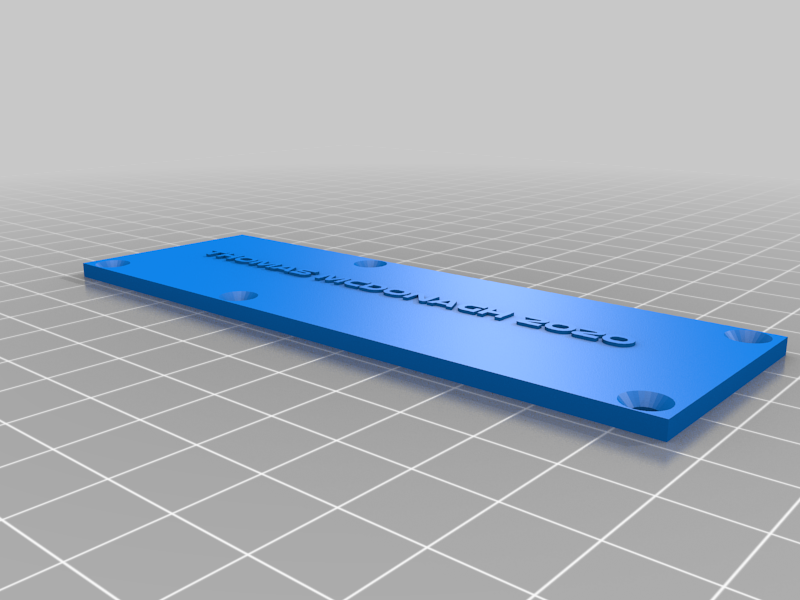

    • backCoverName.stl
    • backStrapBlock.stl

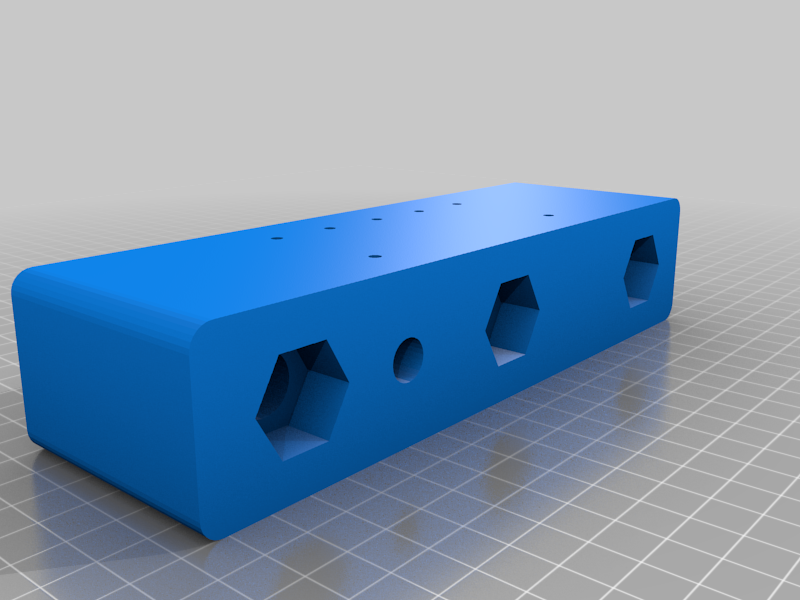

    • bassBridgeBlock.stl

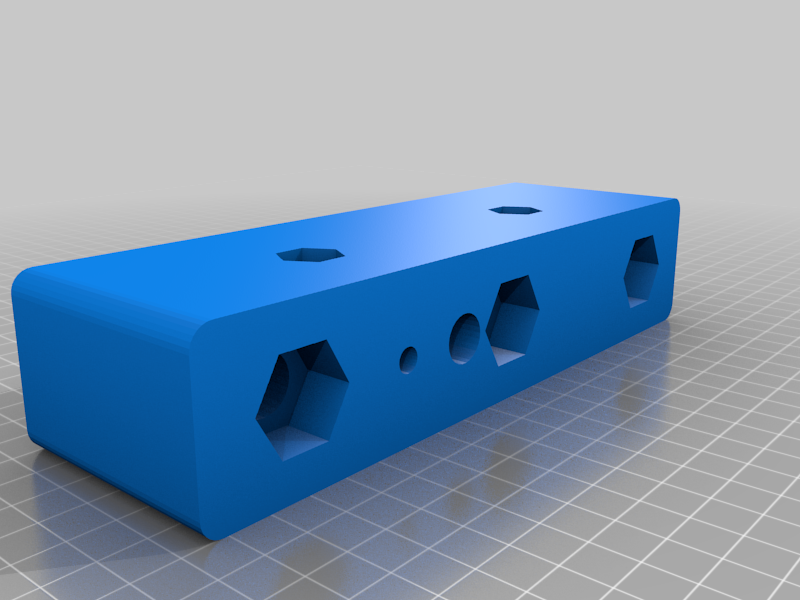

    • bridgeBlock.stl
    • bridgeTest.stl

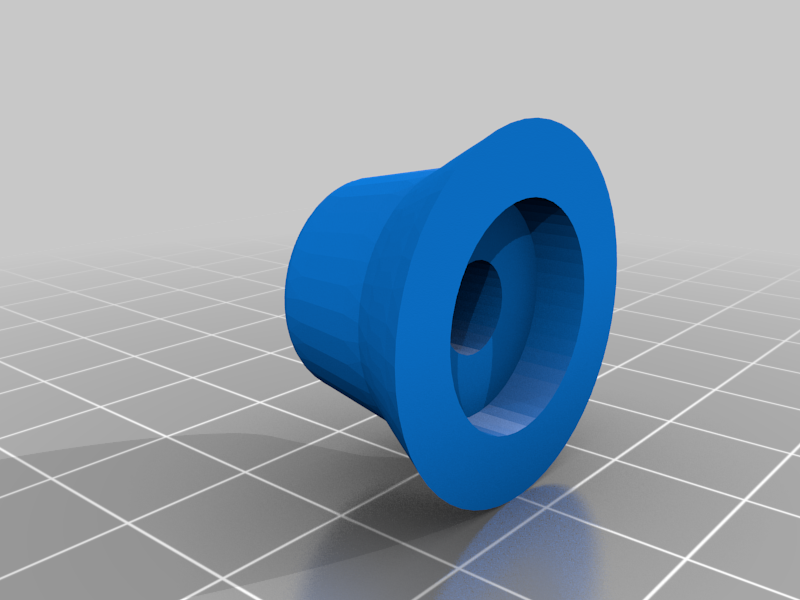

    • curvedKnob.stl
    • fillerBlock.stl

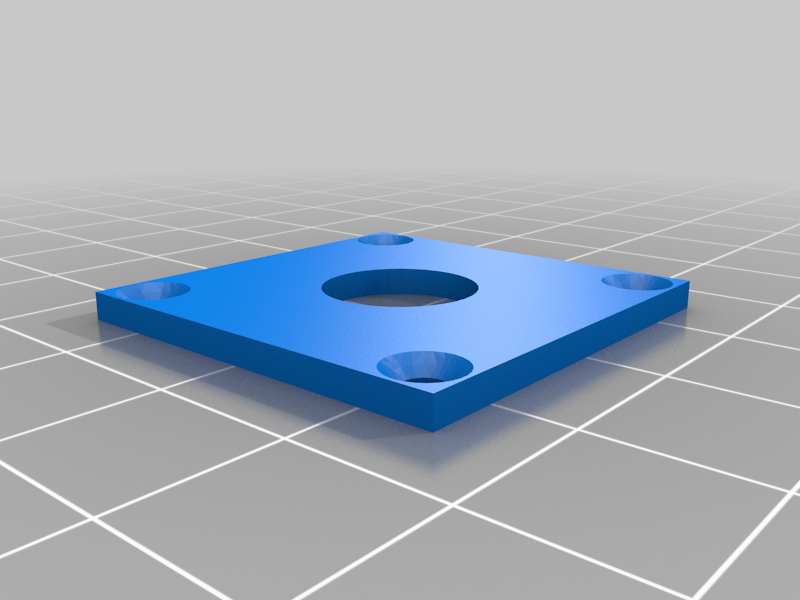

    • jackCover.stl

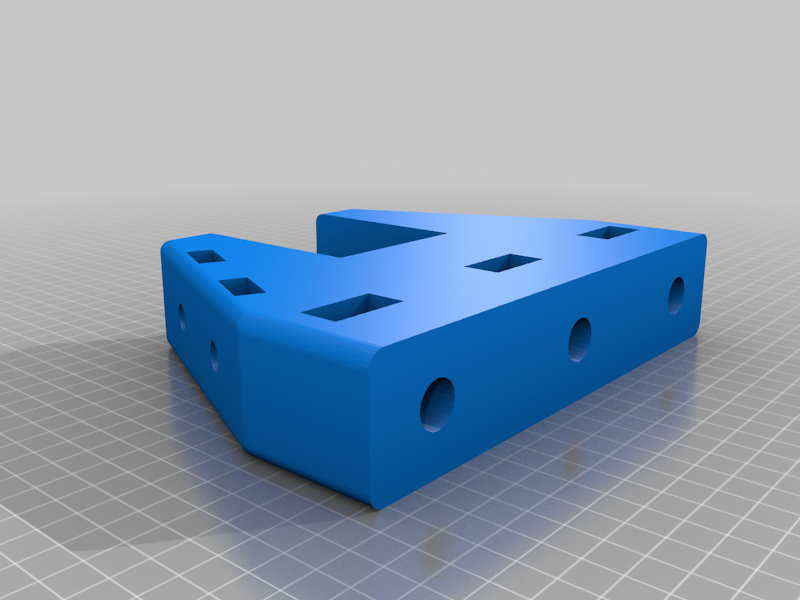

    • neckBlock.stl

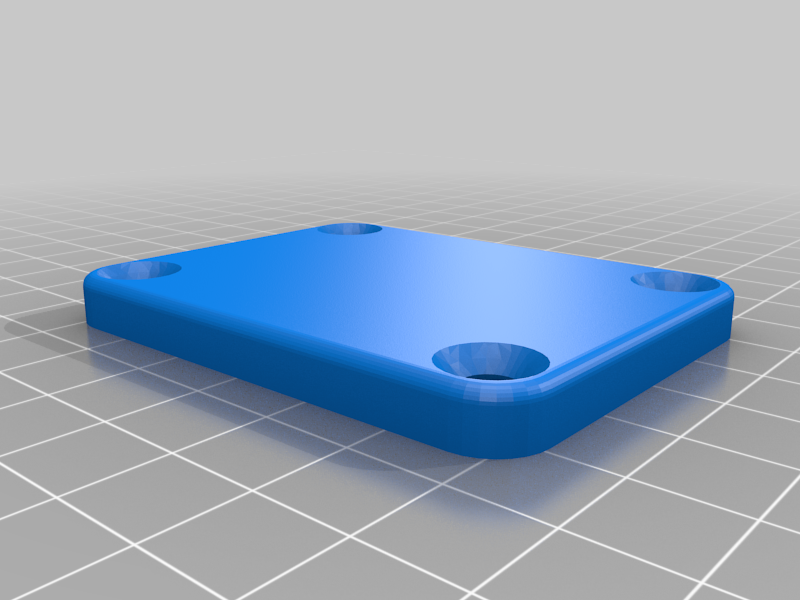

    • neckScrewCover.stl
    • neckScrewCoverAngled.stl

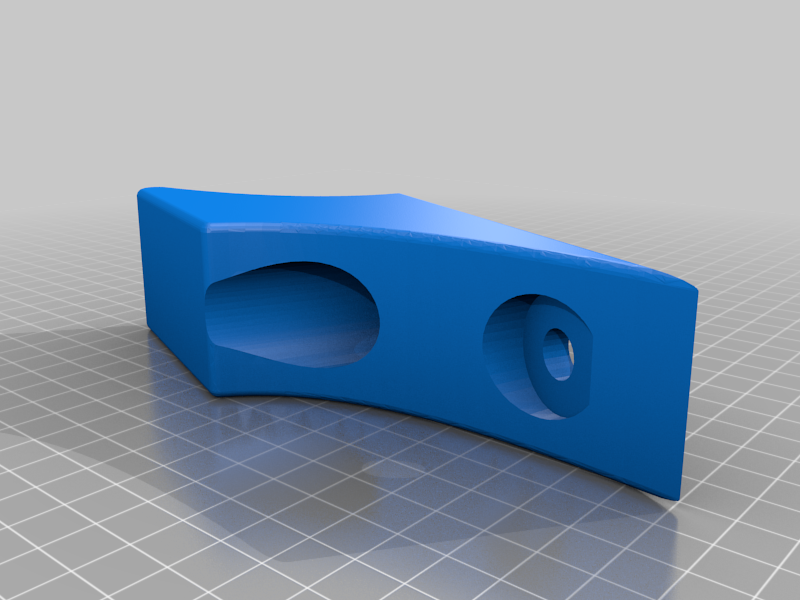

    • neckStrapPart.stl
    • pickupAngleTest.stl

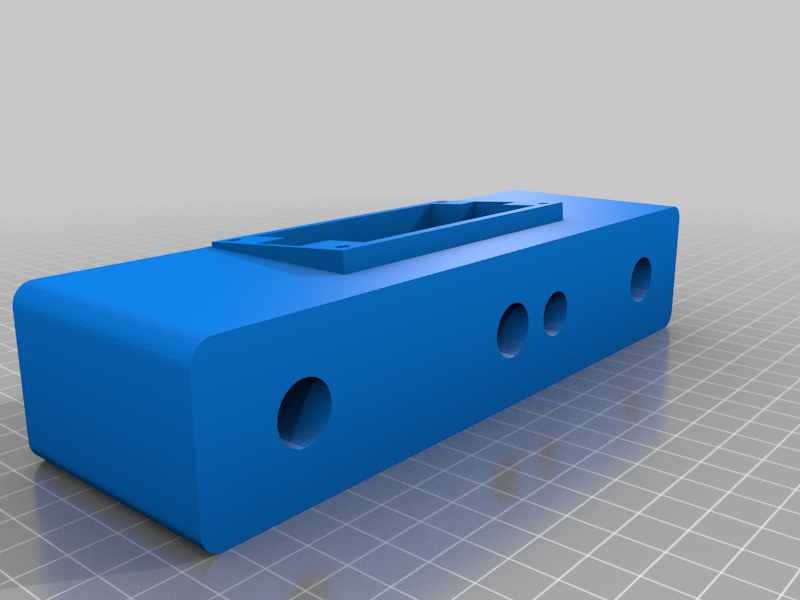

    • pickupBlock.stl

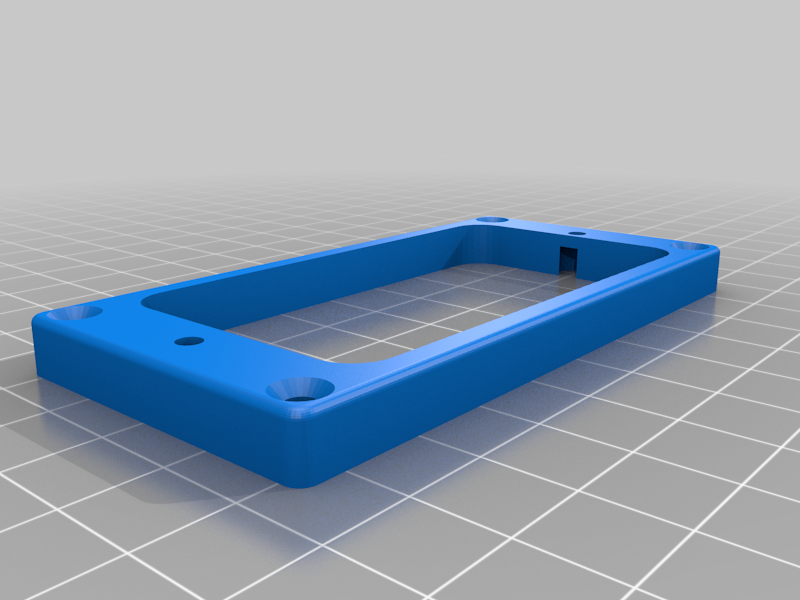

    • pickupCover.stl
    • threeEighthsHexKey.stl

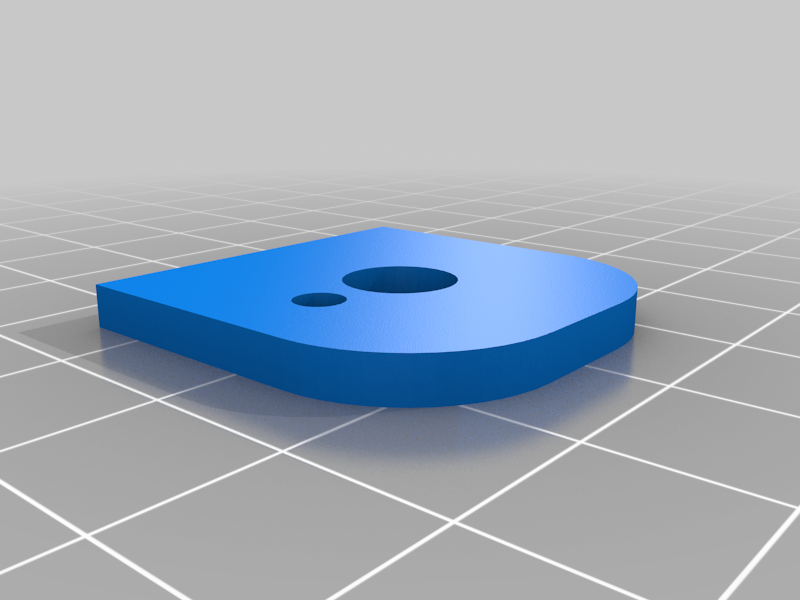

    • toneFiller.stl

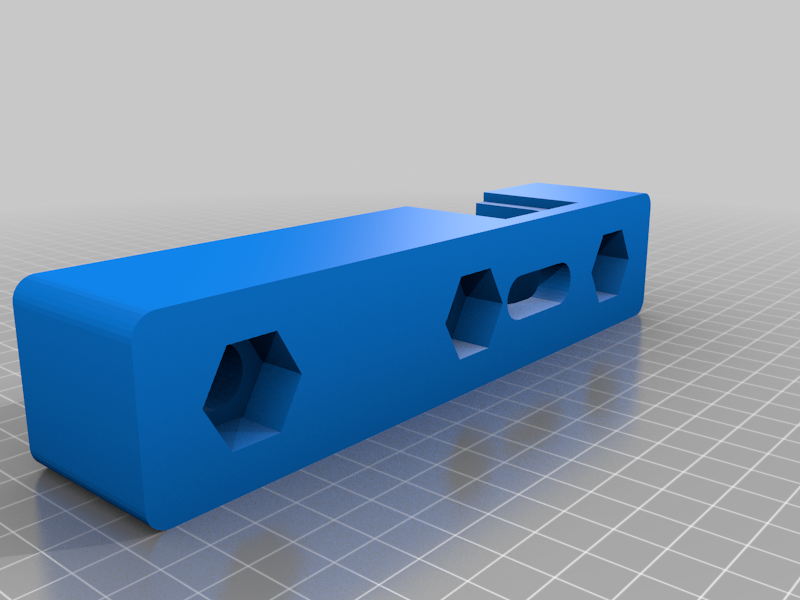

    • toneFillerBlock.stl

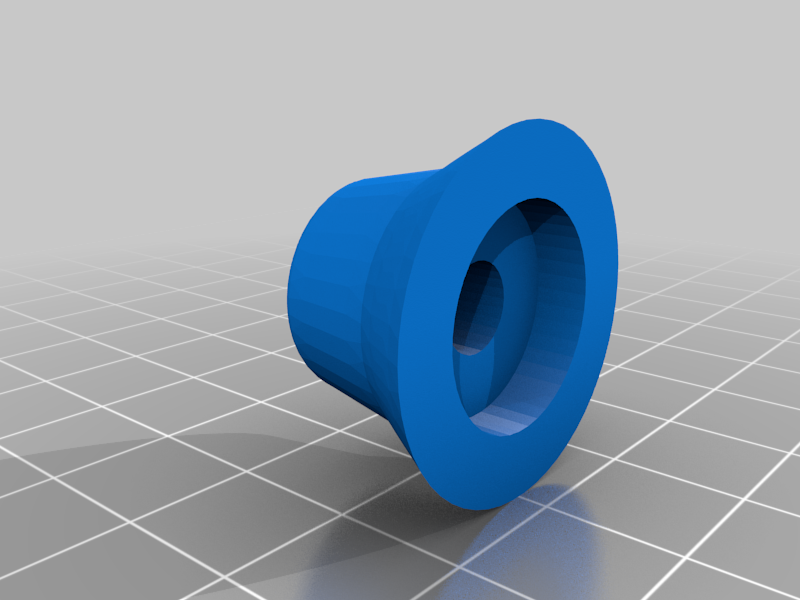

    • toneKnob.stl

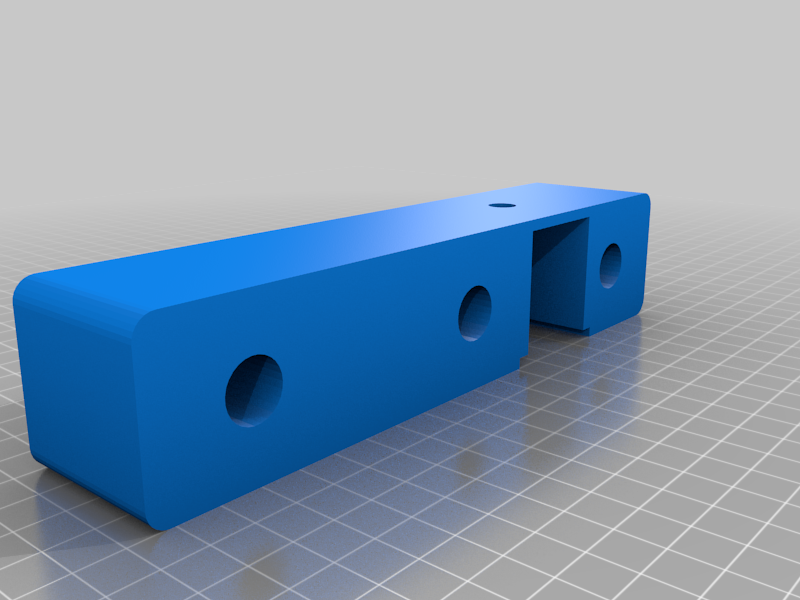

    • volumeBlock.stl
    • volumeFiller.stl
    • volumeKnob.stl

    Learn more about the formats

  • Publication date: 2020-05-13 at 10:43
    ?
    Published to Thingiverse on: 2020-05-12 at 21:23

License

CC BY NC
