Mini Spur Gears Metric Set 3D print model

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Mini set of metric spur gears with proper involute tooth profile for 3d printing and laser cutting.

All the gears have the same module to ensure proper meshing 'M1' the inner bore is a 3mm diameter. All the dimensions are shown in the pictures please refer to them.

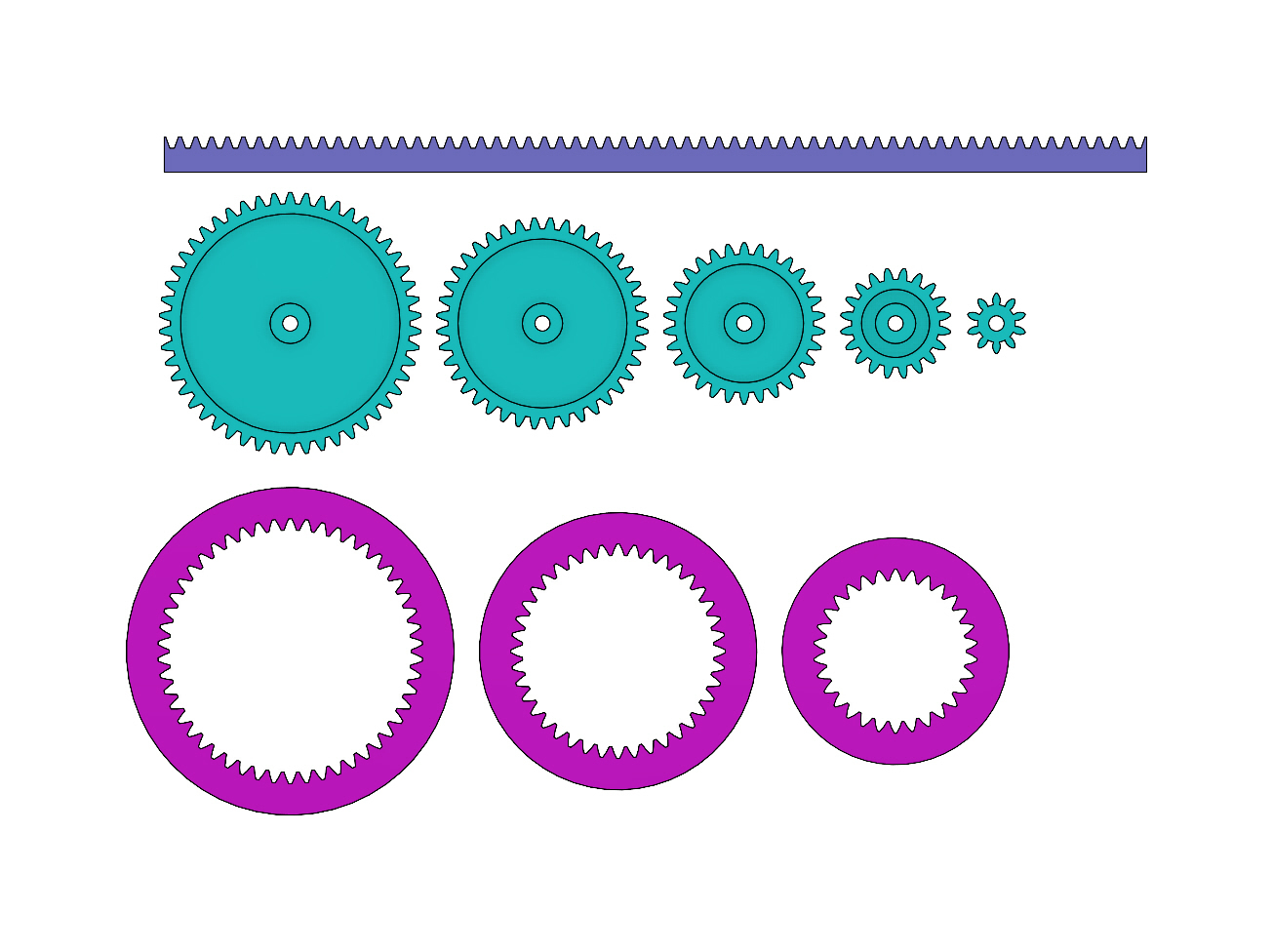

Included in the set:

A 50,40,30,20 and 10 teeth/diameter spur gear with the 3mm bore

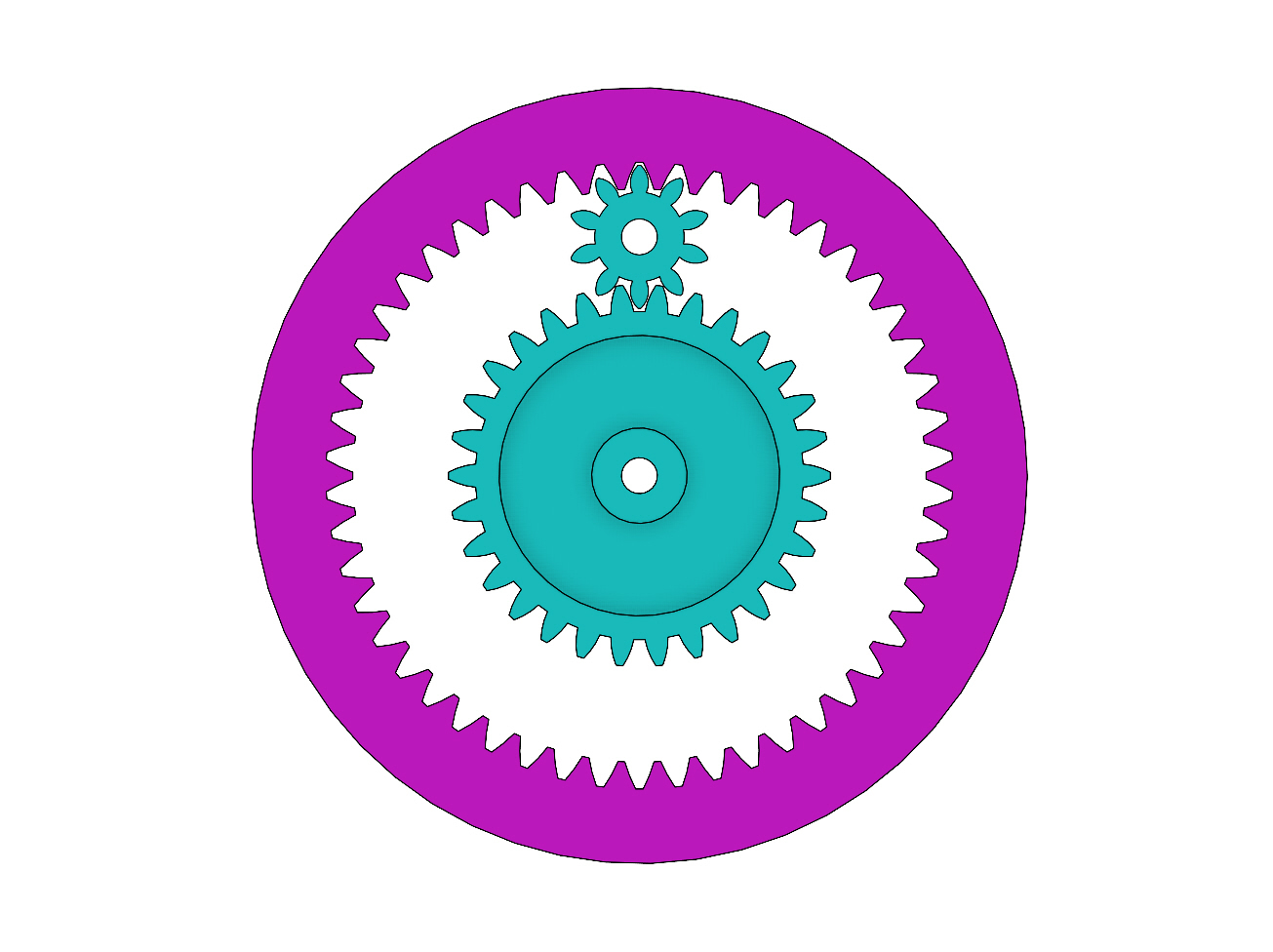

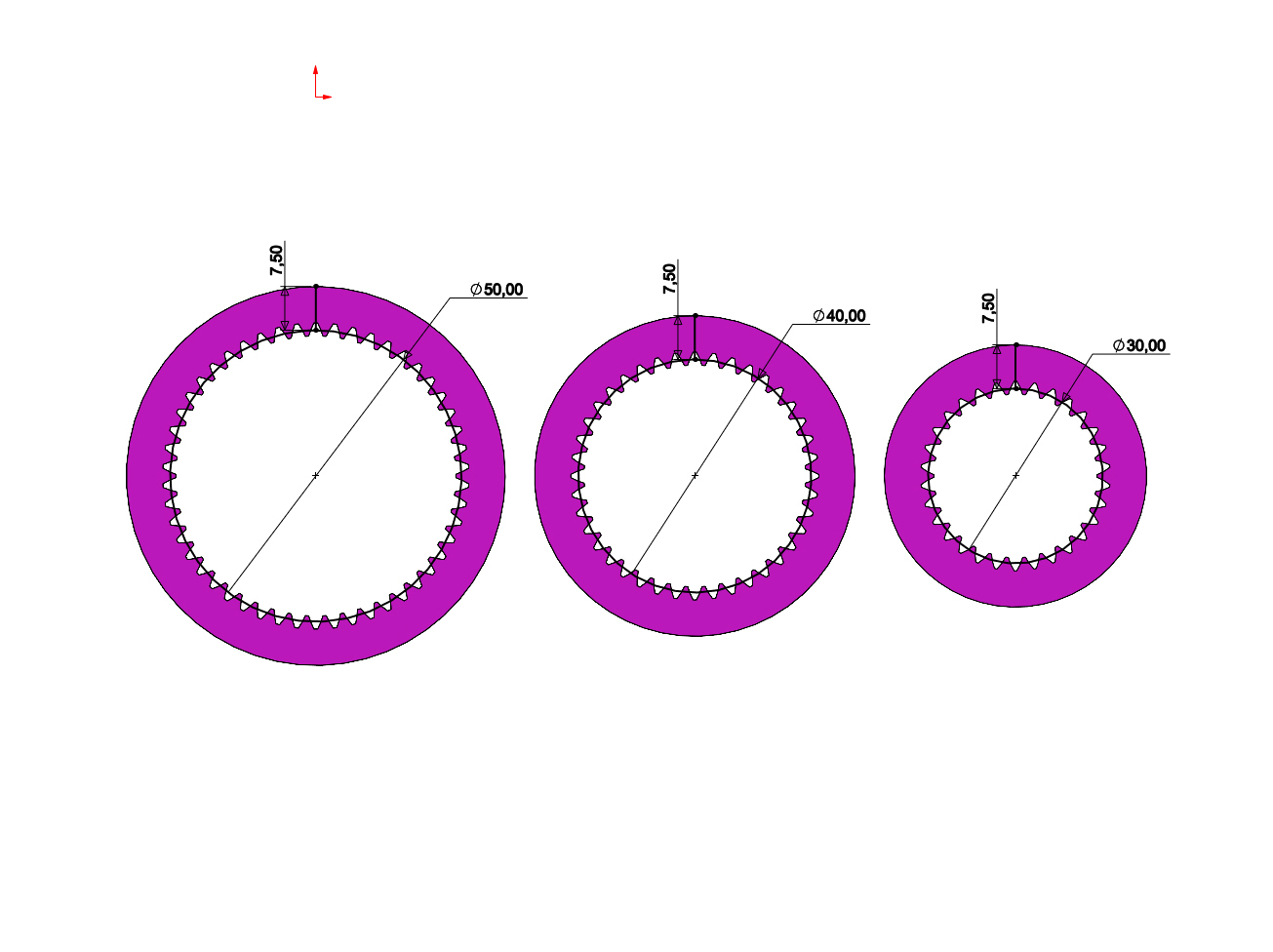

A 50,40 and 30 teeth/diameter spur gear with inner teeth

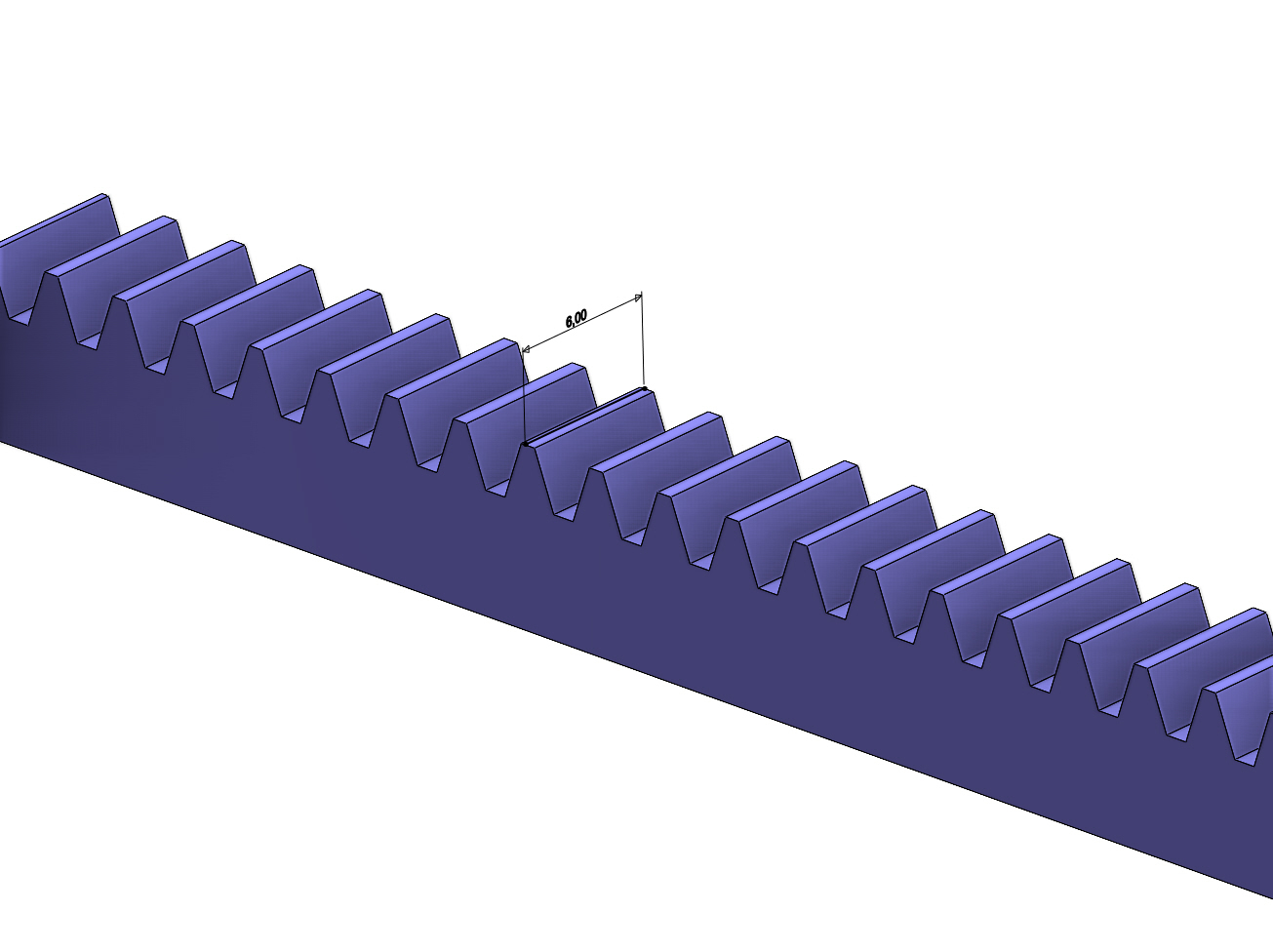

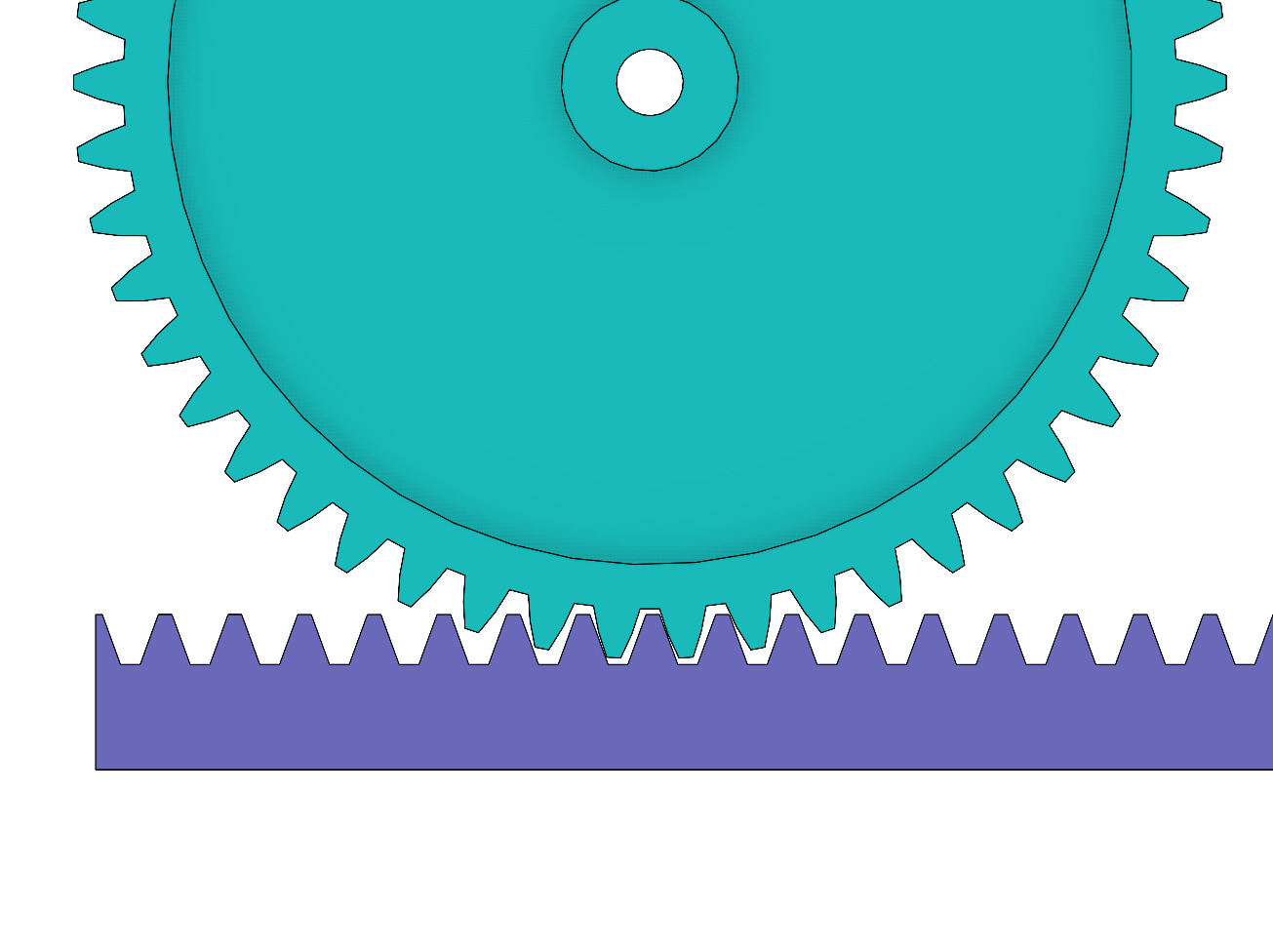

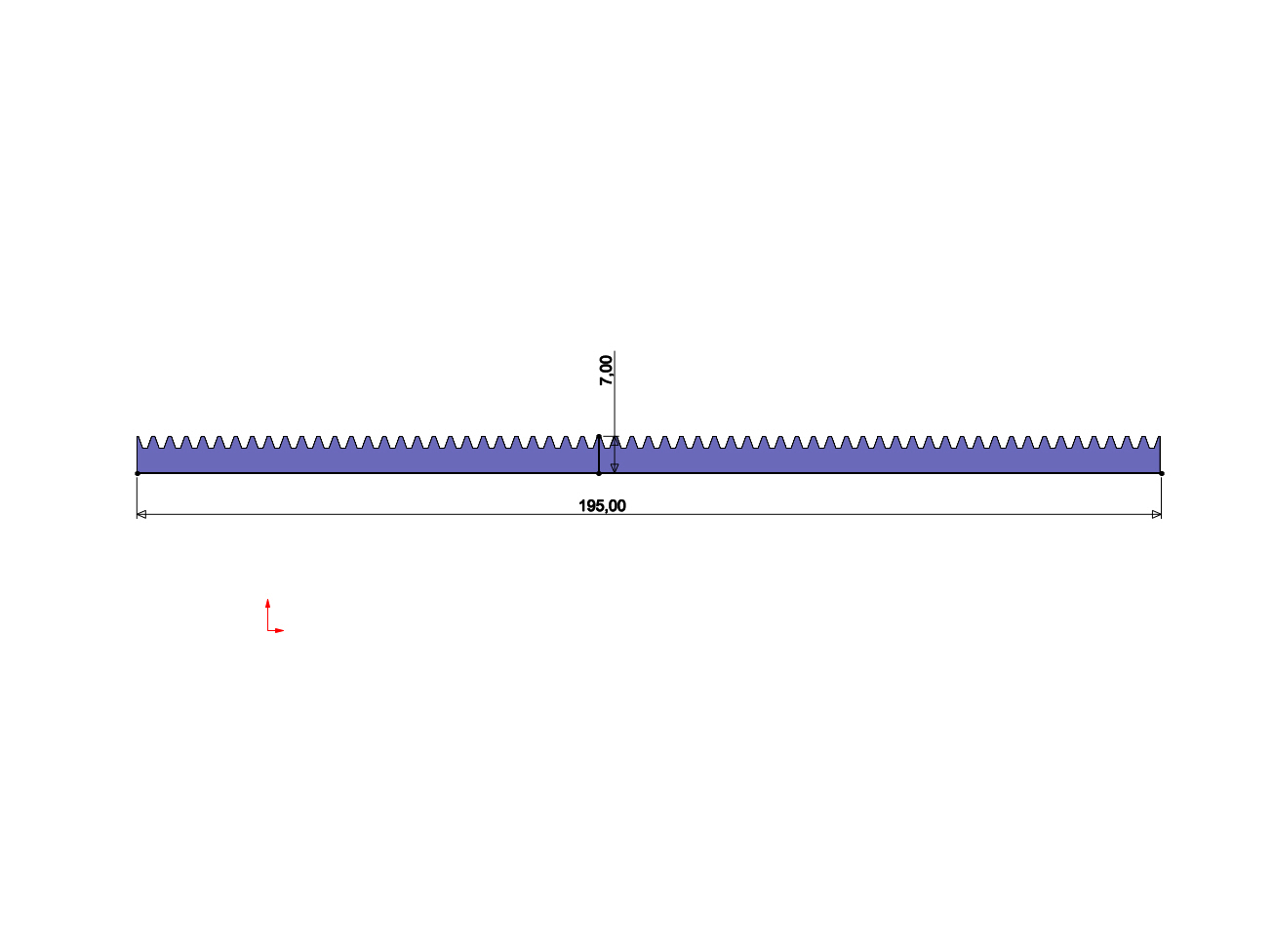

A 196x7 rack with the same module as the other gears M1

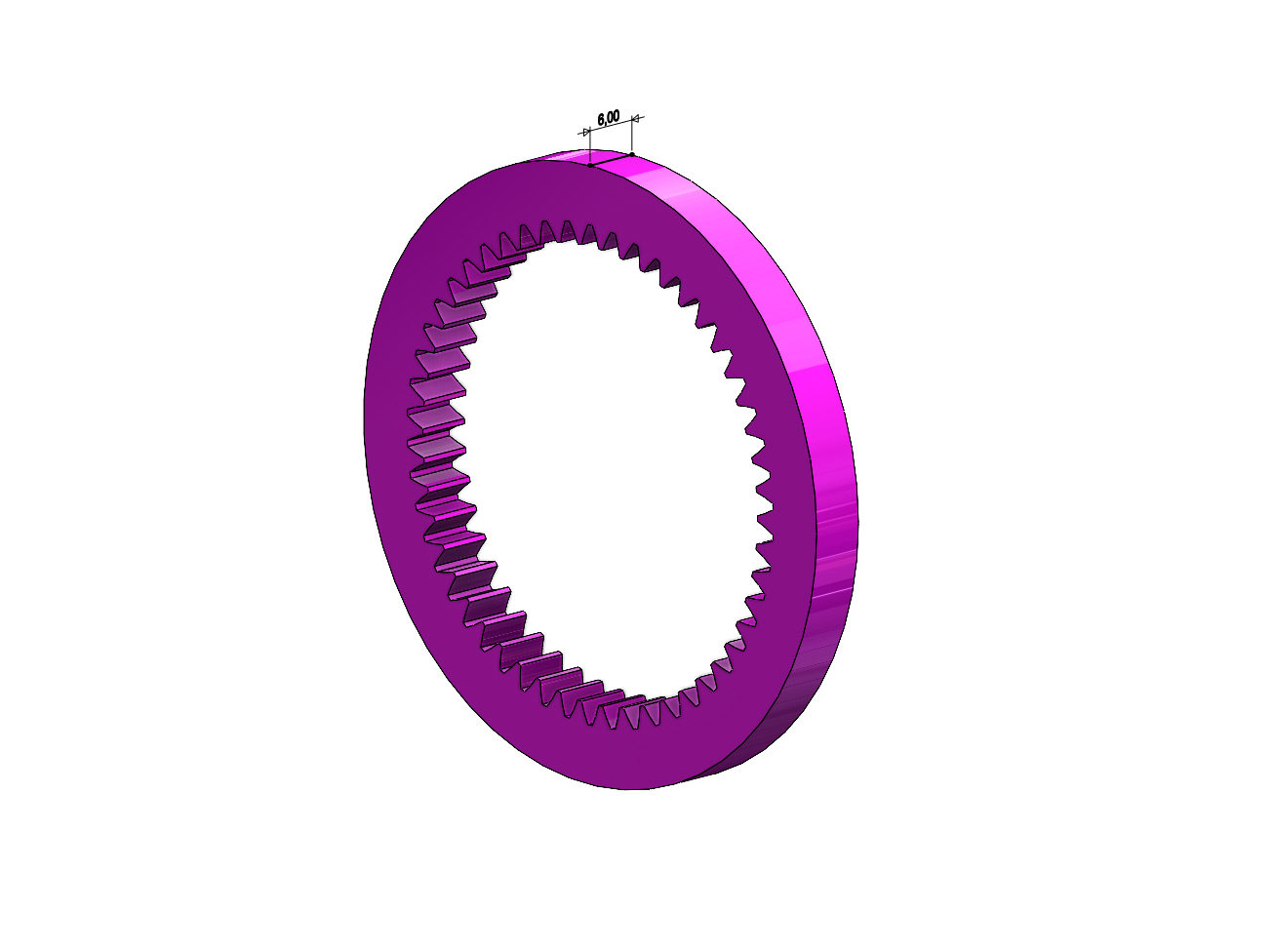

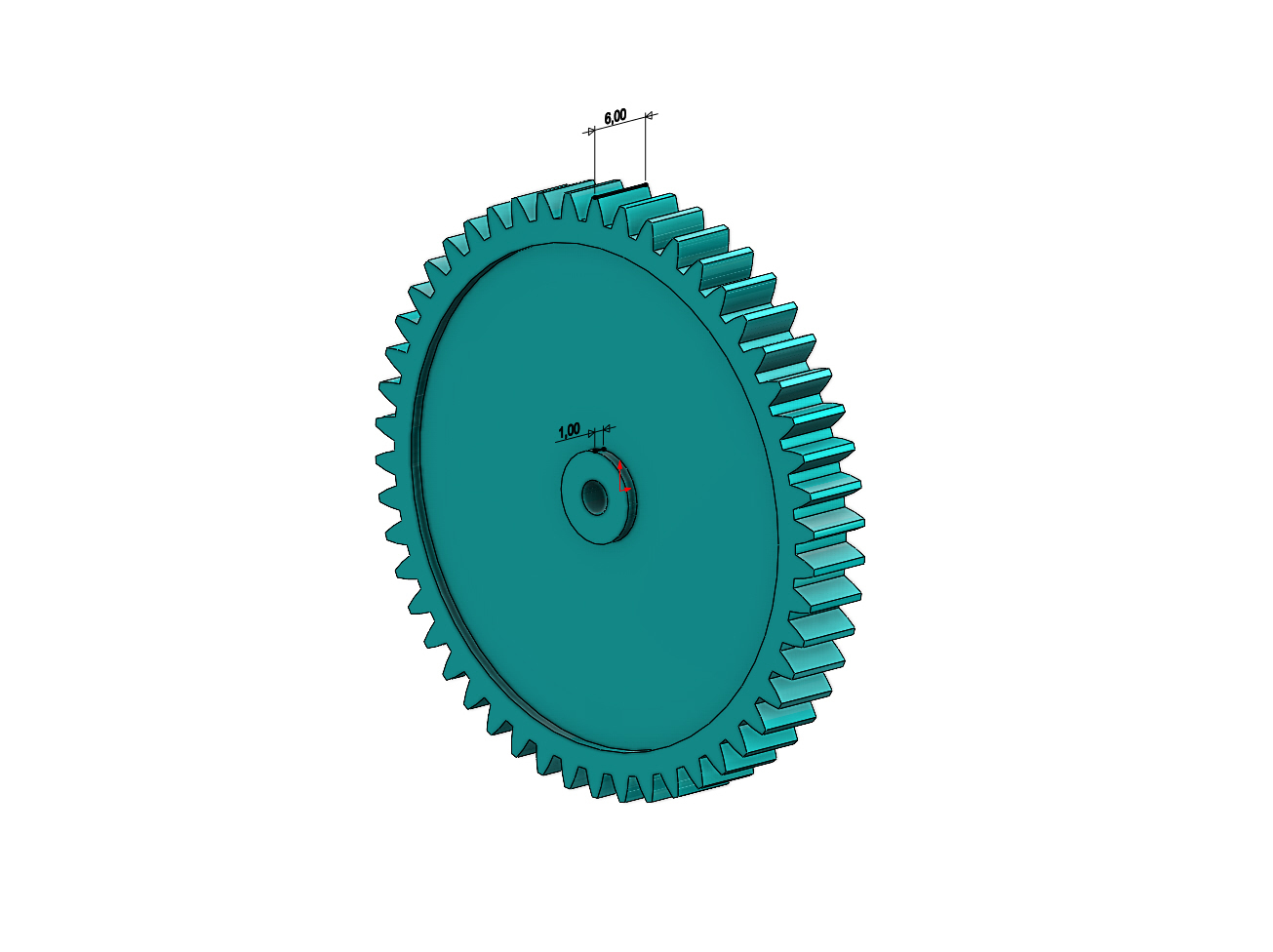

All the parts are 6mm wide.

To be used in RC models , 3d prinitng applications , robotic, model making and as spare parts for broken ones.

3D printing settings

Perfect for FDM, DLP, SLA printing and laser cutting.

Provided in the formats STEP, STL, 3MF and DXF.

3D printer file information

  • 3D design format: 3MF, DXF, STEP, and STL Folder details Close
    • M1-GEAR-SET.3mf

    Learn more about the formats

  • Publication date: 2020-09-14 at 15:25





Designs 1.6k
Downloads 1k
Sales US$4,407.45
Followers 124

Hello, I'm a SOLIDWORKS certified EXPERT
I'm active in the following areas : basic 3d modeling, jewllery, plastics, tooling design and general industrial design applications.
I also offer manufacturing consultations in CNC, traditional machining, plastics transformation and 3d printing.
