MINI RETRO TOYS - Big Wheel Bike

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

NOTE: PA1© - FOR FULL ACCESS TO ALL MY MODELS, + EXCLUSIVE STLs AND A COMMERCIAL LICENSE FOR SELLING YOUR PRINTS, YOU CAN JOIN MY PATREON HERE:

https://www.patreon.com/PA1_MAKER

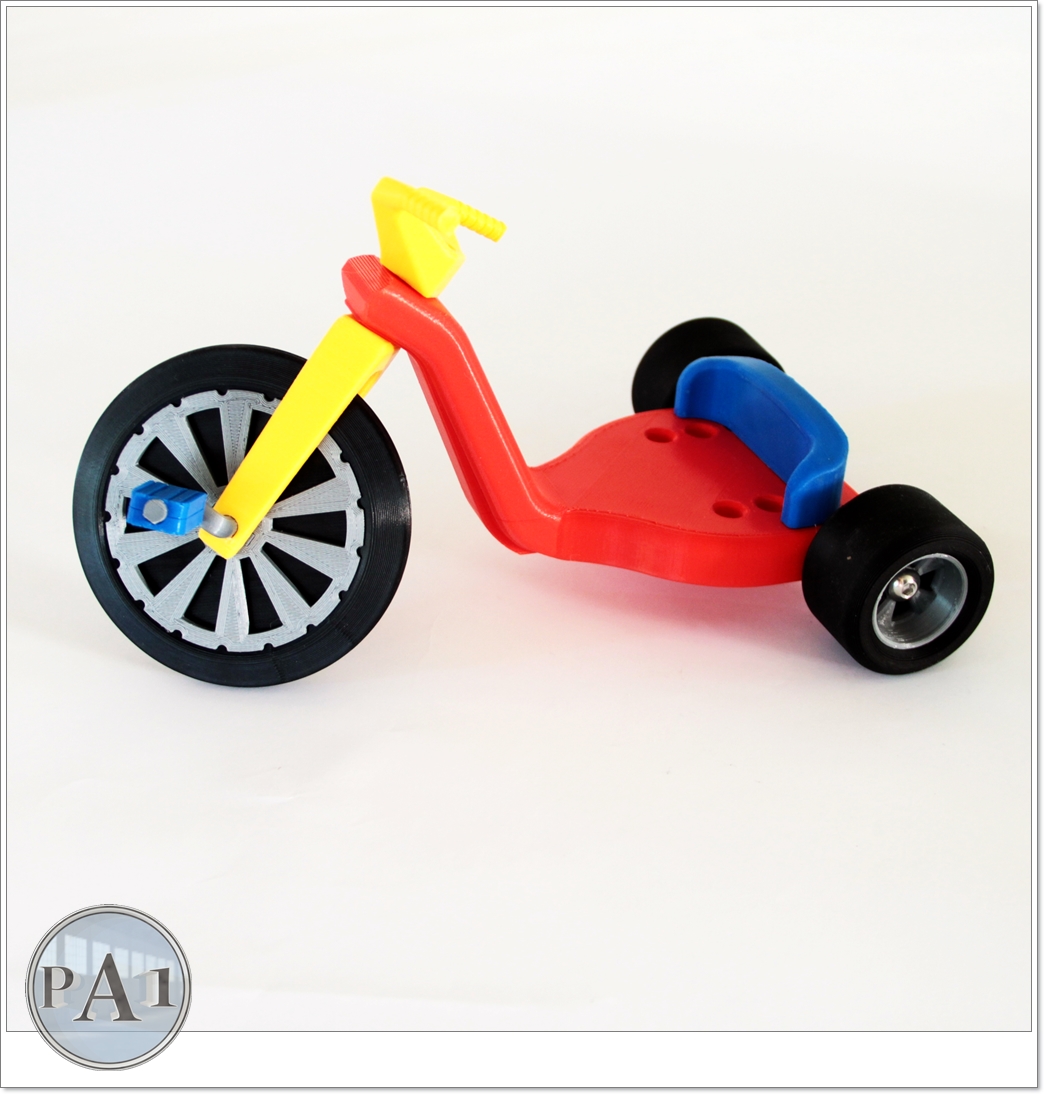

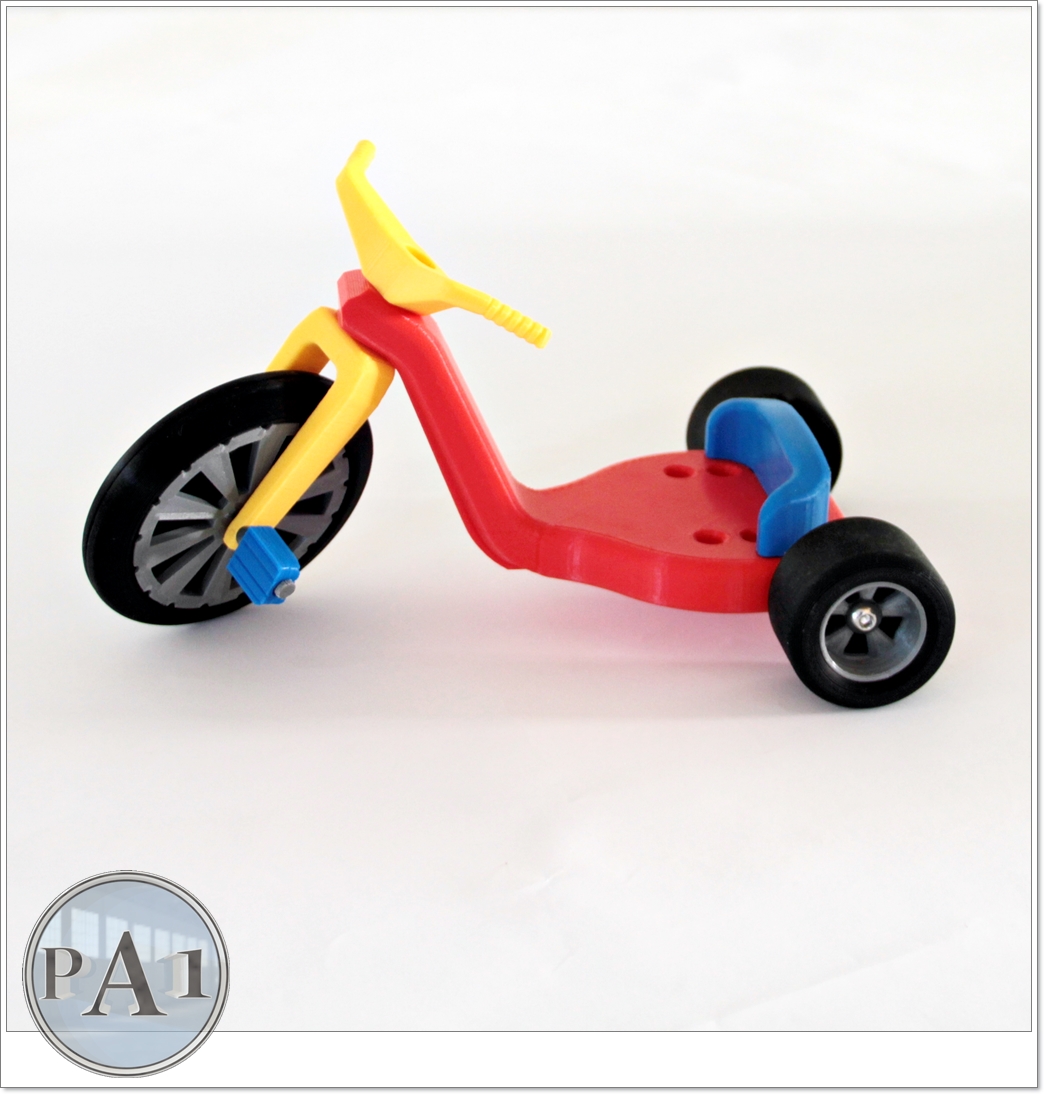

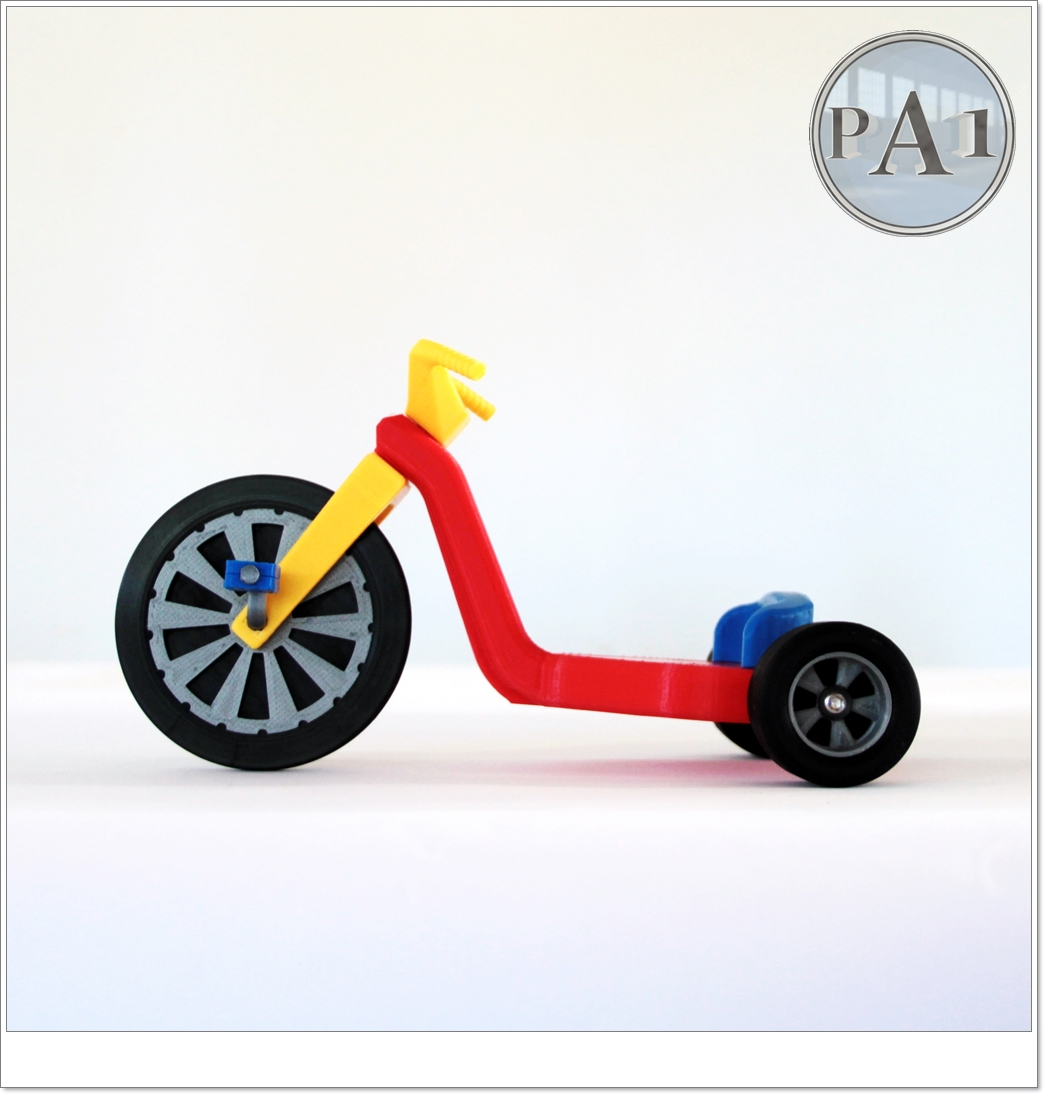

The one and only!!
The iconic tricycle that millions of children had during their youth !!!
Easy to print, simple to assemble!!

Approx 220mm (9 in) in length fully assembled.

Some supports, but very few. (handlebars and backrest only)

You will need some m5 screws:(3x) m5 x 25mm

Some glue.

That's it!!

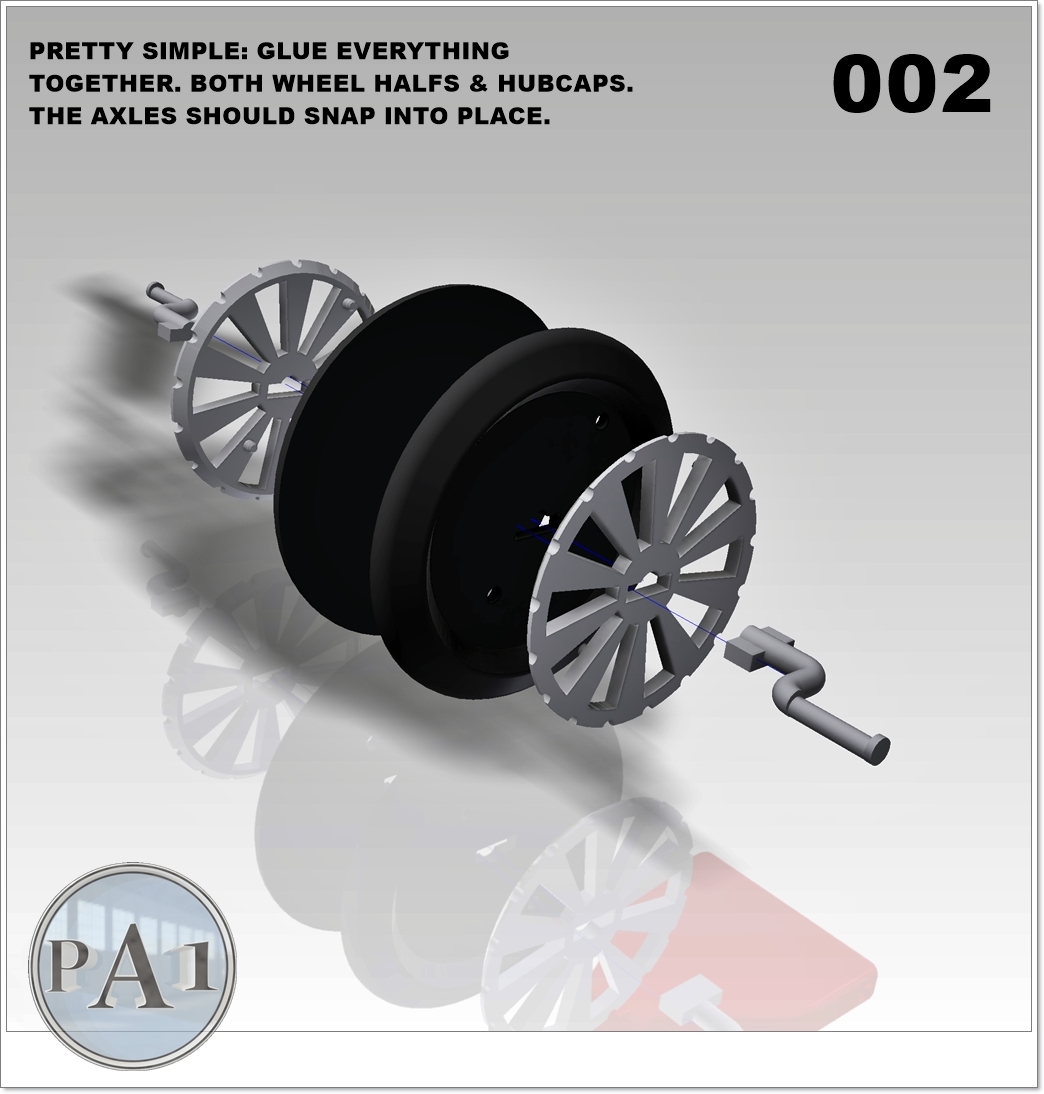

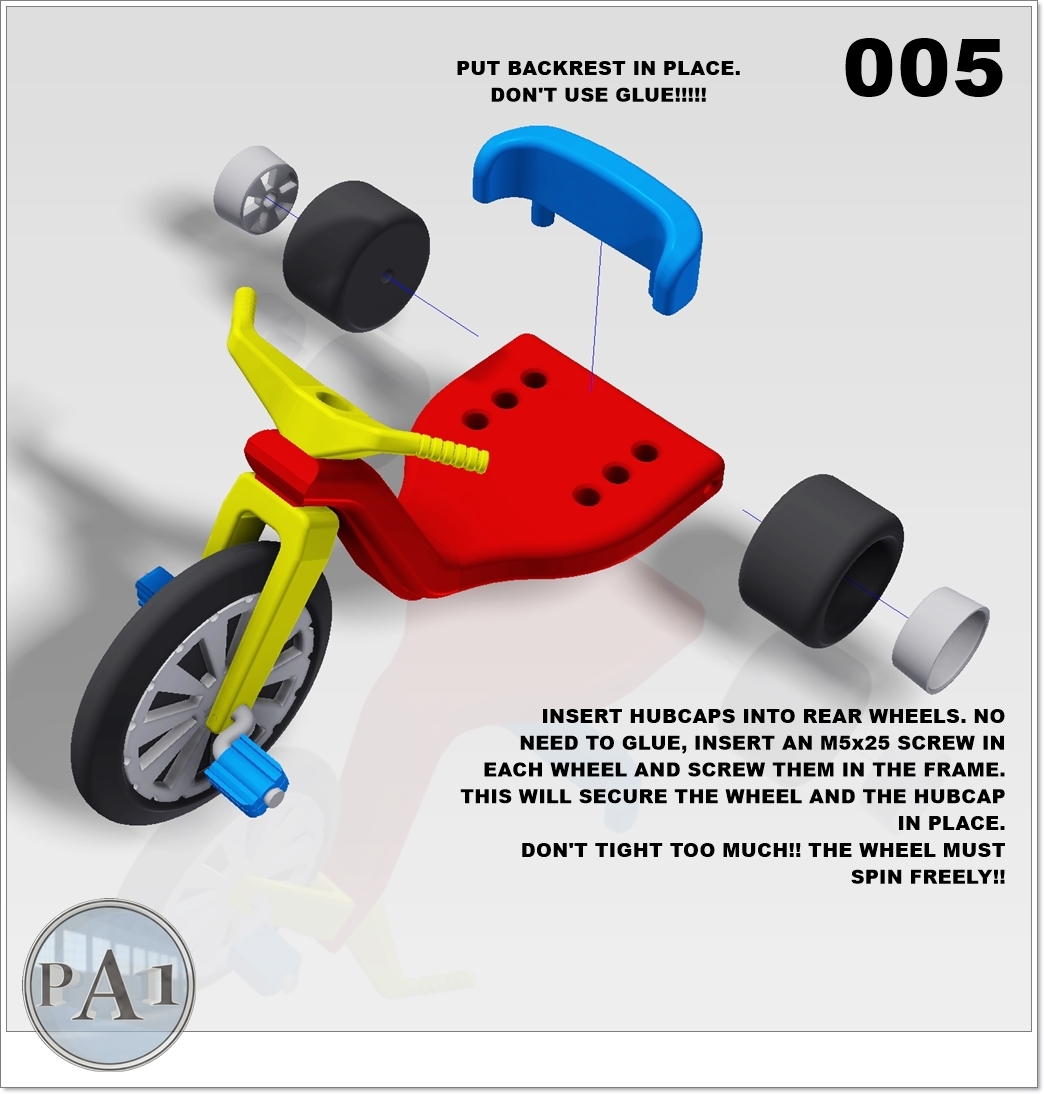

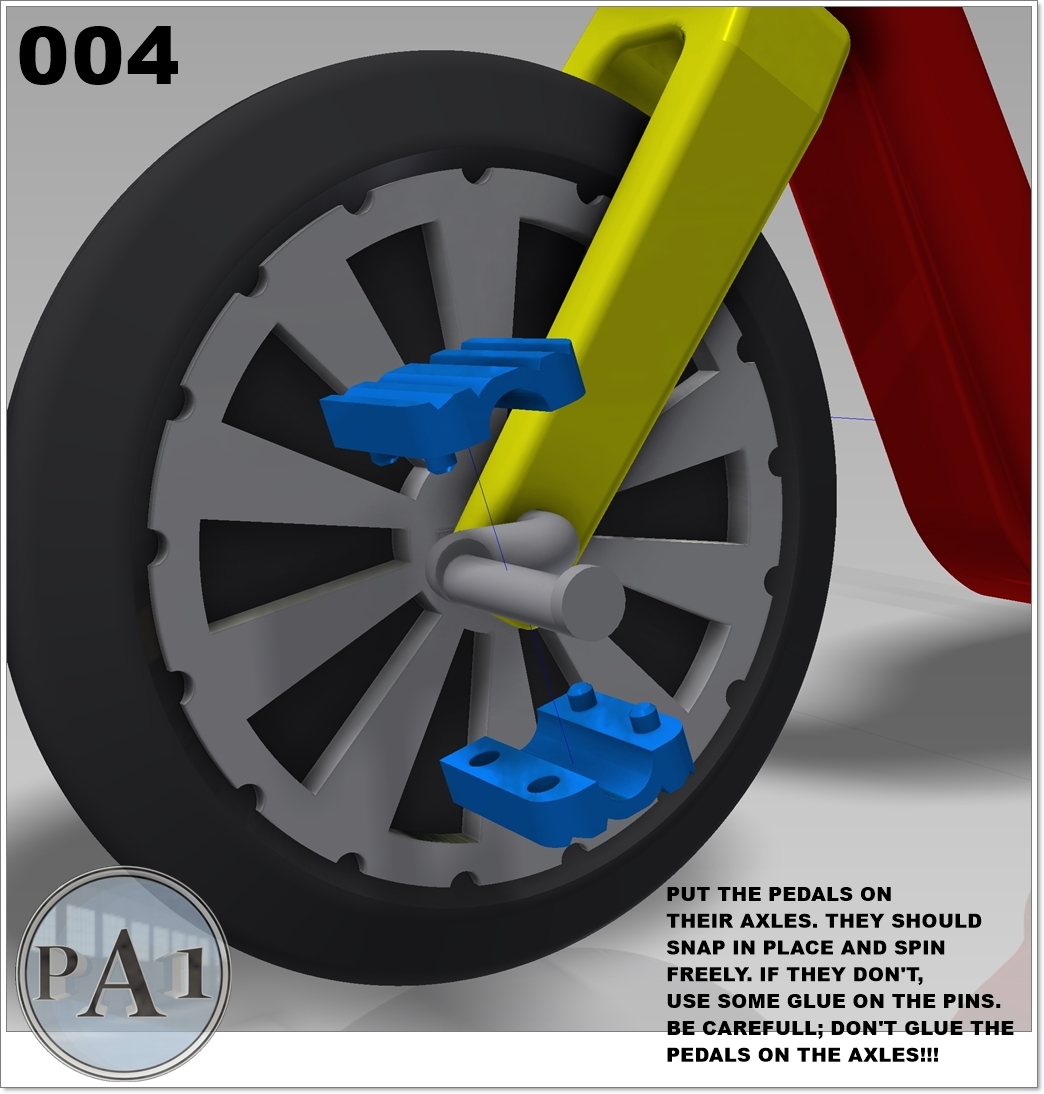

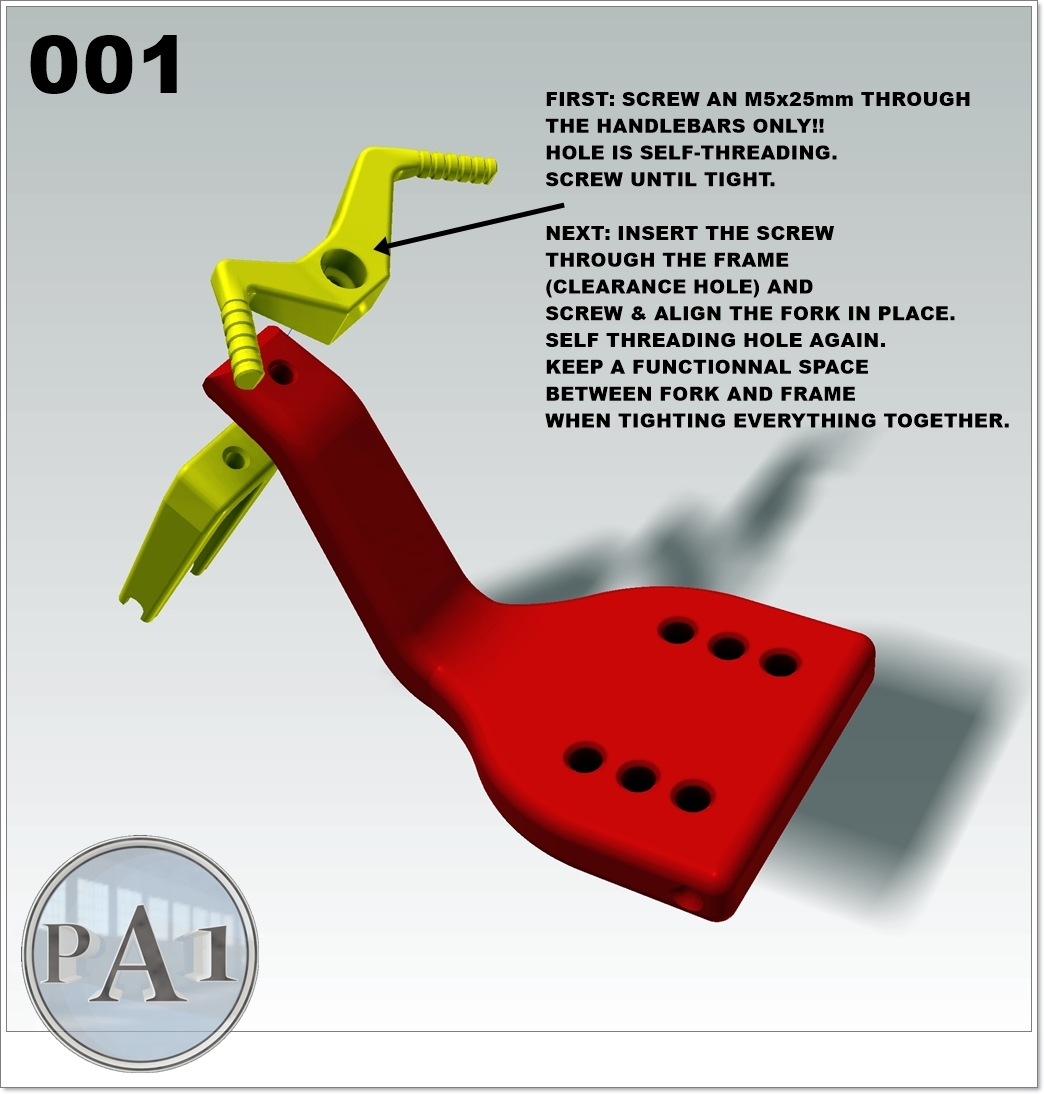

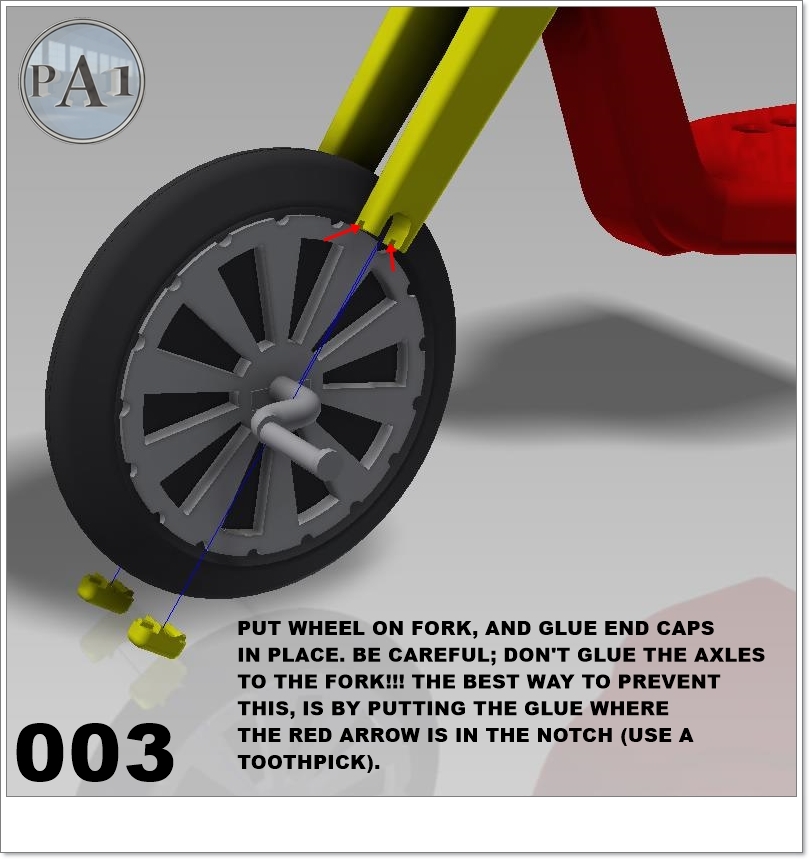

Assembly instructions included in five easy steps.

All parts are already placed in the right orientation for printing.

Have fun printing and enjoy this baby!!!

No commercial use allowed


3D printing settings

Parts needing supports:

-Backrest, only for the two posts

-Handlebars. This part was supposed to be support free BUT!!:
Put supports on the "handle section" only, each side, to prevent the small section from breaking while printing.
The surface area of the tip of the handle is very small, and until it reaches the center part at the top, its pretty easy to break while printing. A brim won't do it, i've tried and it failed 3 times.

3D printer file information

  • 3D design format: ZIP Folder details Close
    • RETRO TOYS - BIG WHEEL UPDATED.zip
      • BACKREST.stl
      • FRONT FORK.stl
      • HALF PEDAL.stl
      • HANDLE BARS.stl
      • LEFT FORK END CAP.stl
      • LEFT FRONT HUB CAP.stl
      • LEFT FRONT WHEEL HALF.stl
      • PEDAL AXLE.stl
      • REAR HUB CAP.stl
      • REAR WHEEL.stl
      • RIGHT FORK END CAP.stl
      • RIGHT FRONT HUB CAP.stl
      • RIGHT FRONT WHEEL HALF.stl
      • INSTRUCTIONS/Originals/Thumbs.db
      • INSTRUCTIONS/photothumb.db
      • INSTRUCTIONS/Thumbs.db
      • FRAME.stl

    Learn more about the formats

  • Last update: 2022-06-11 at 18:31
  • Publication date: 2021-09-20 at 18:05

Copyright

©

Tags

Creator

Having a lot of fun, designing a lot of stuff!!!! :)

NOTE: COPYRIGHT PA1© - SUBSCRIBE TO MY PATREON TO GET ALL (YES ALL!!) MY FILES FOR FREE, EXCLUSIVE MODELS AND A COMMERCIAL LICENSE TO SELL YOUR PRINTS:

https://www.patreon.com/PA1_MAKER
