Messerschmitt BF-109 G10

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 10 likes
  • 17 downloads

3D model description

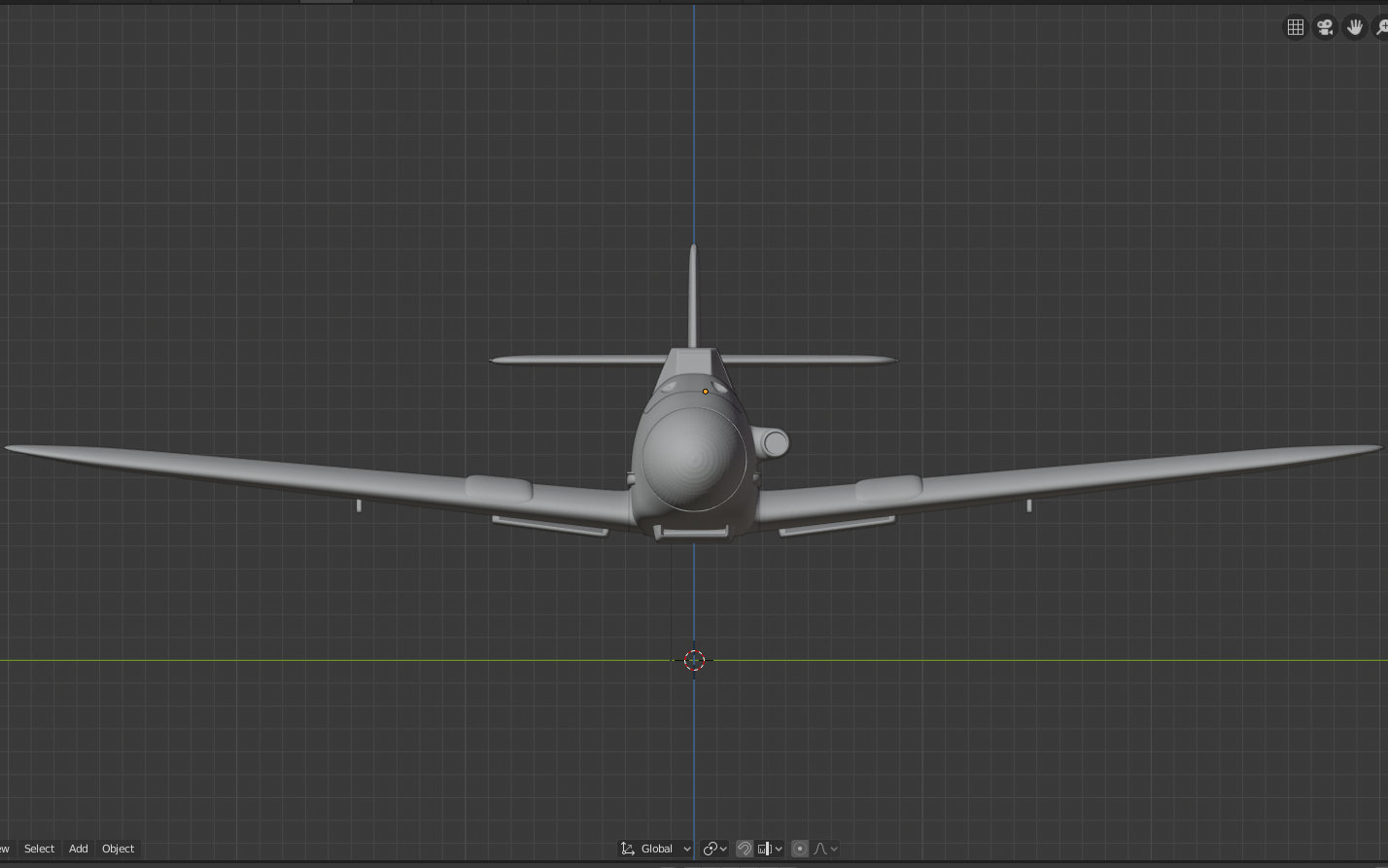

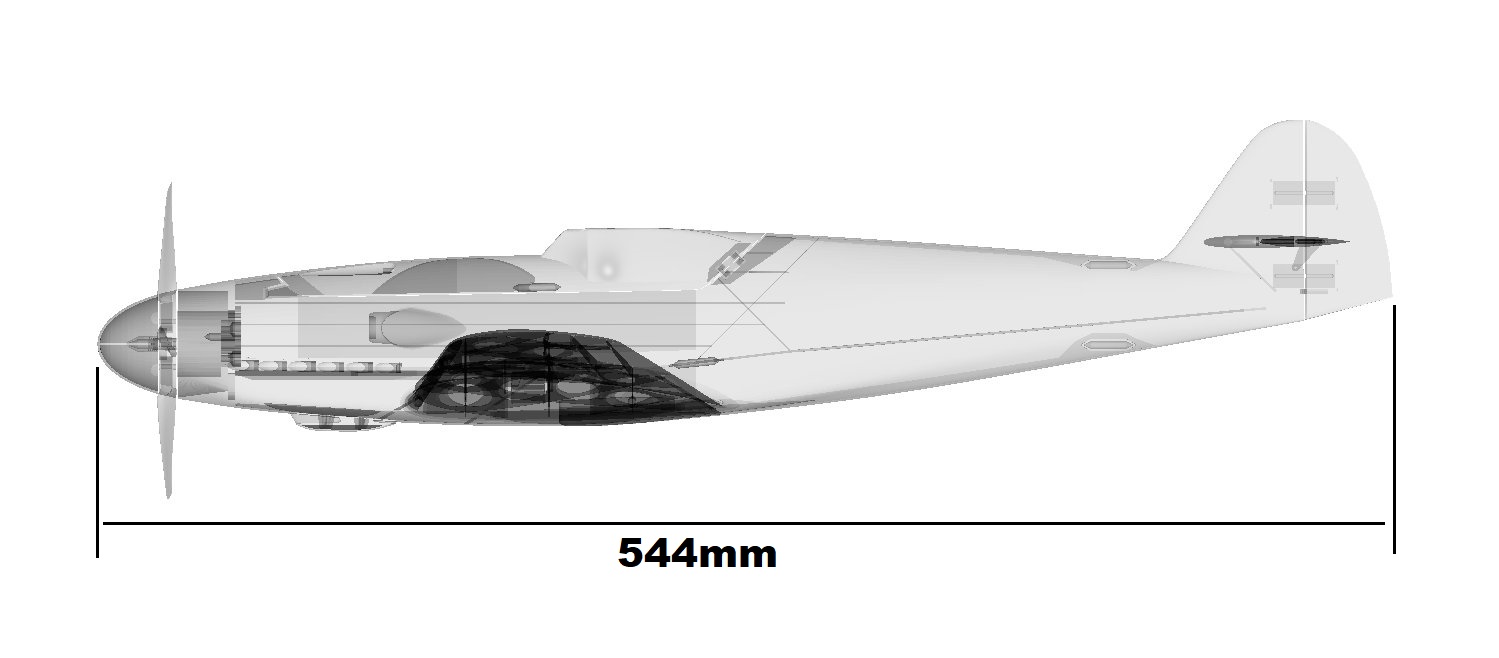

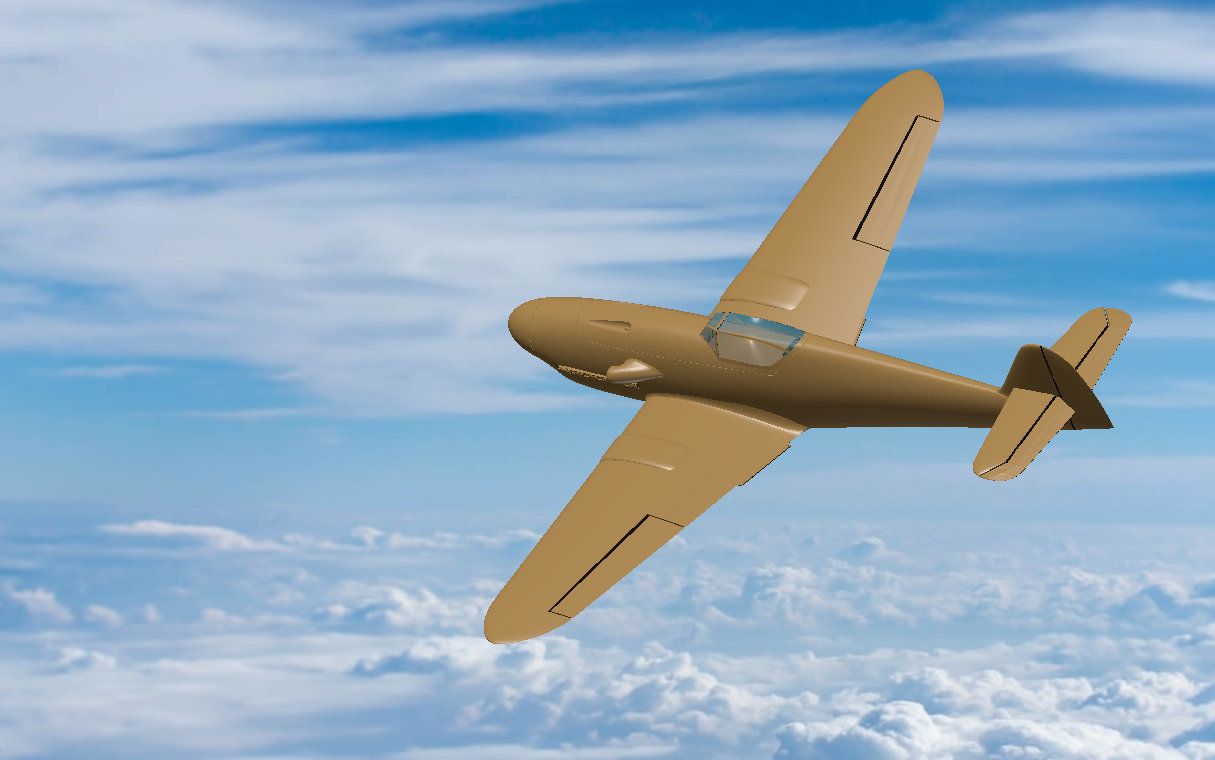

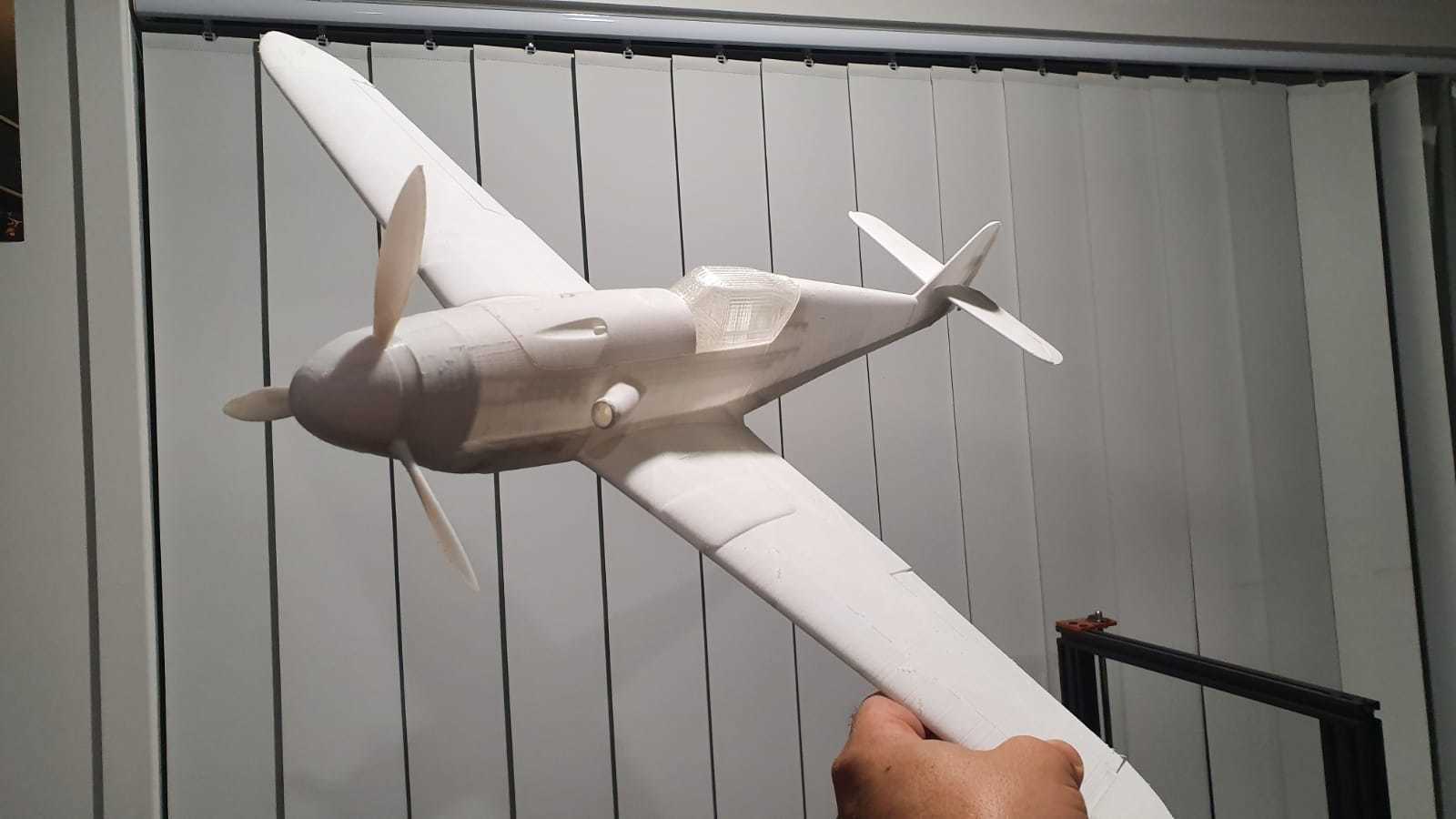

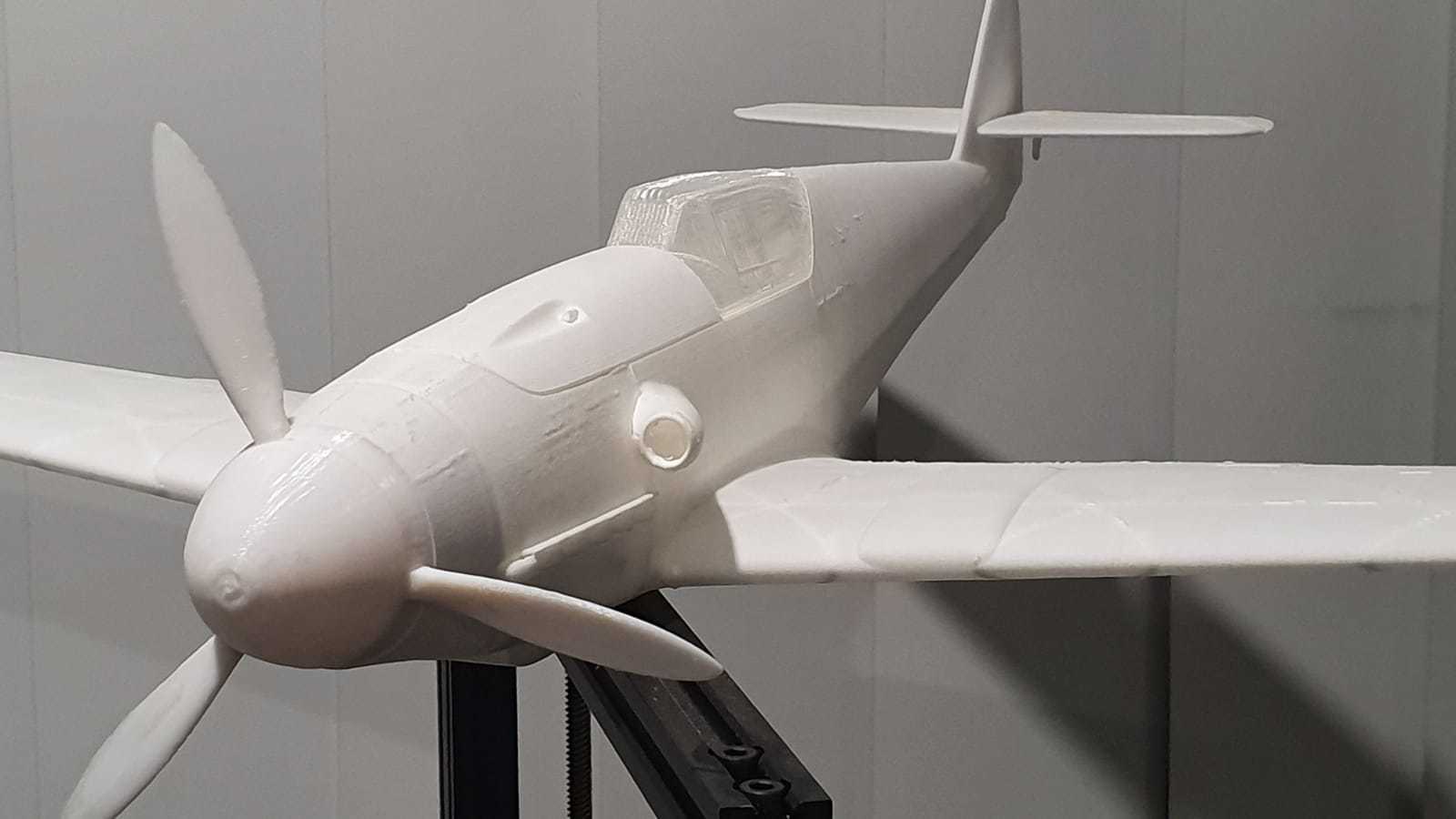

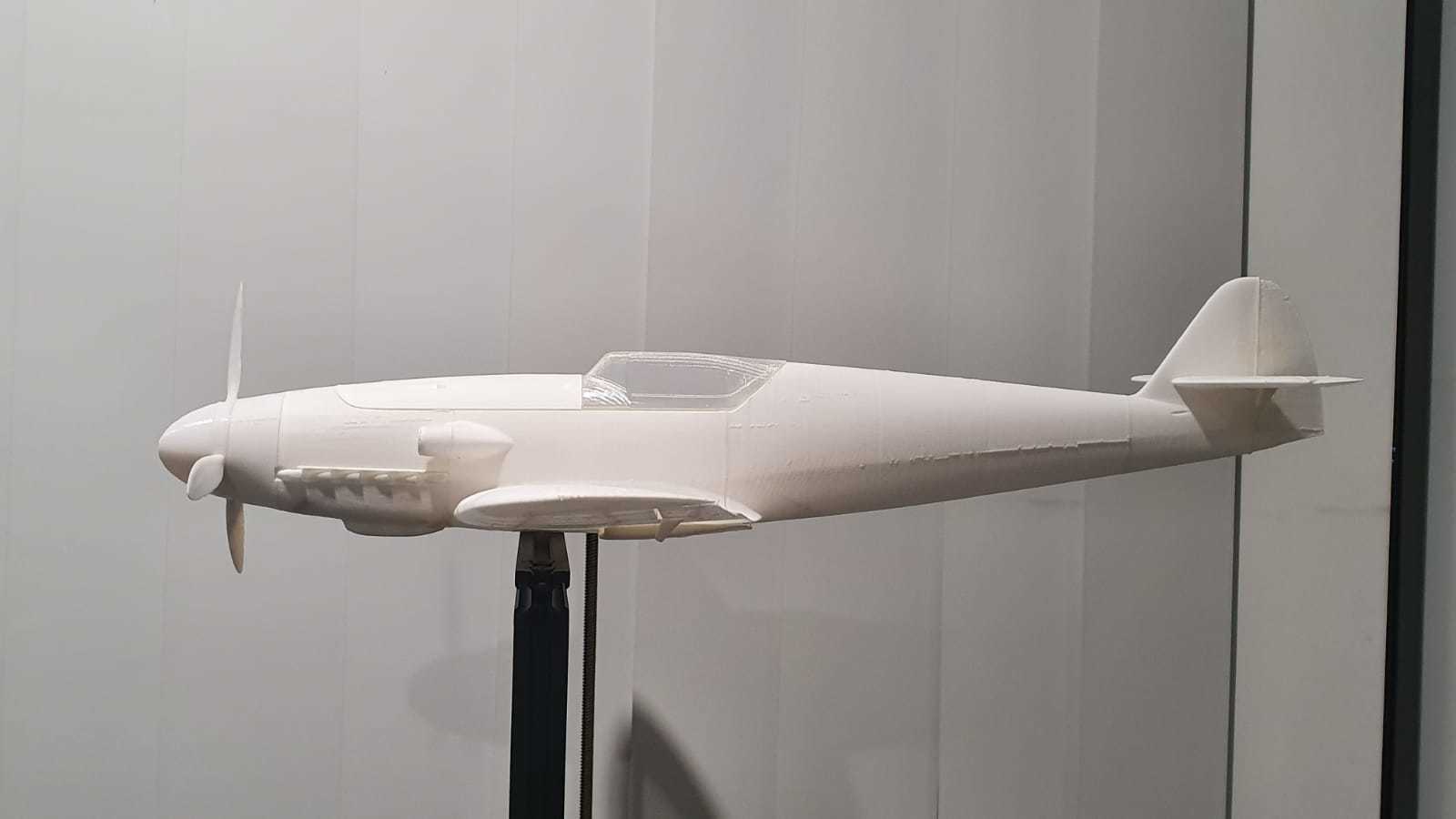

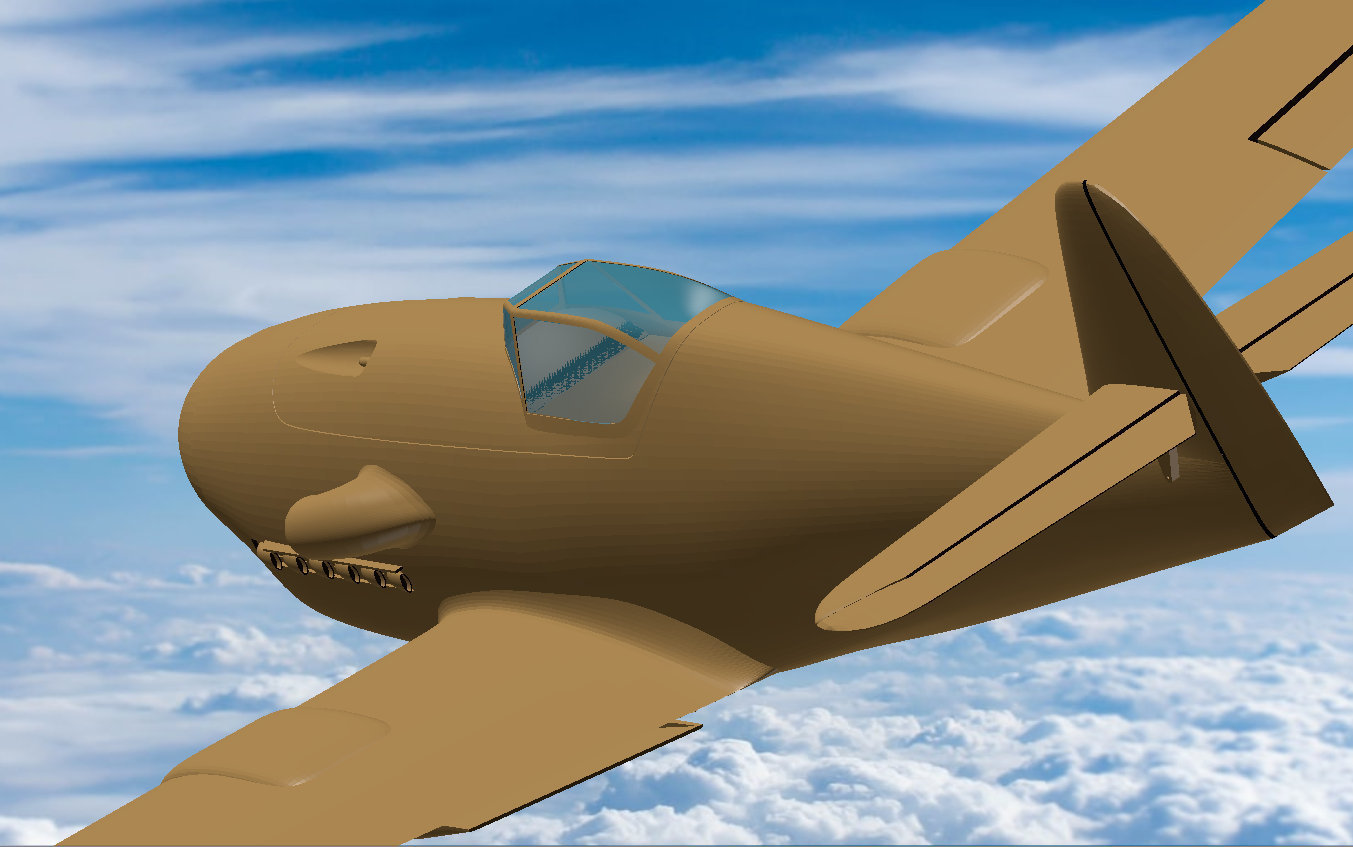

A custom replica of the Messerschmitt BF-109 G10 , this 600mm wingspan version is powered by a 1806 2300kv electric out-runner. Designed to be printed in LW-PLA this model looks as fantastic in air as it does on the ground. filled with scale details such as;
- gun ports
- exhausts
-air intake
-radiator scoops
- scale 3 blade prop

This model is recommended for the intermediate to advanced rc pilot.

Included with this file:

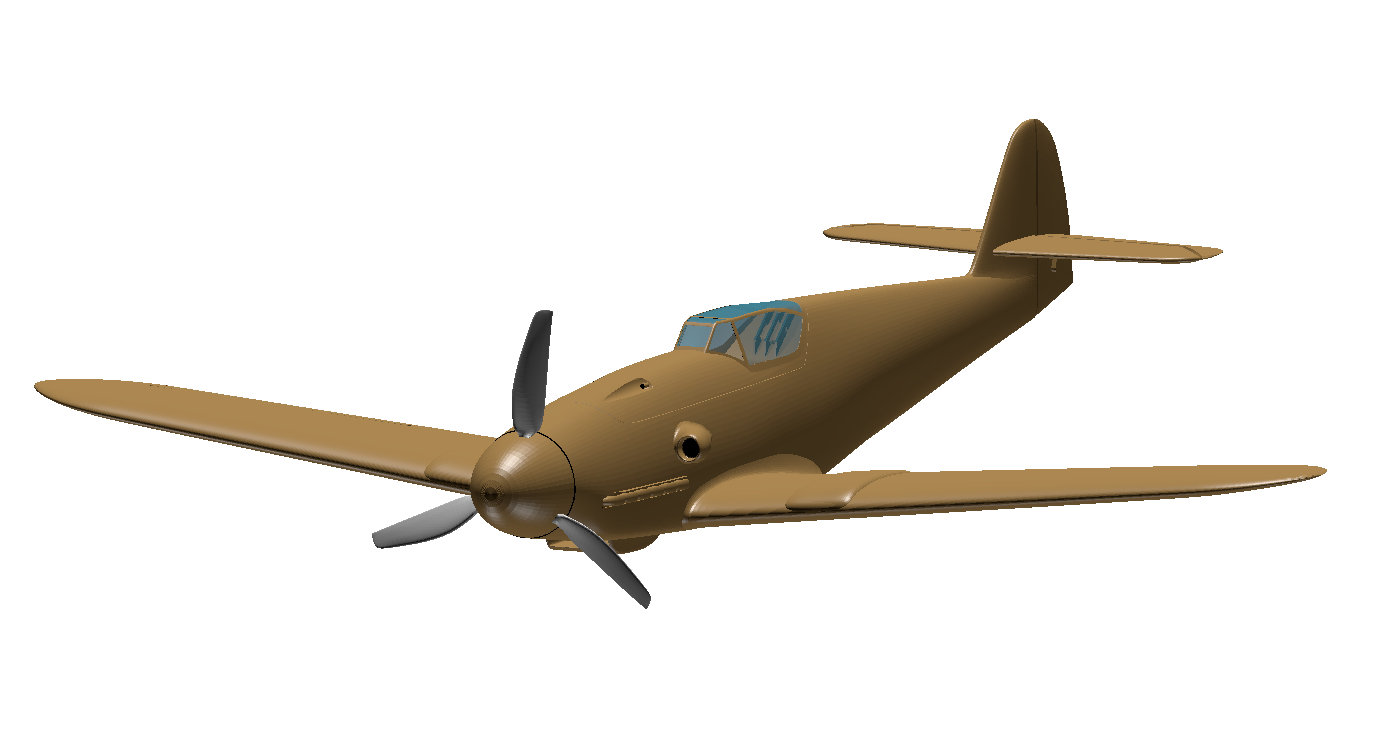

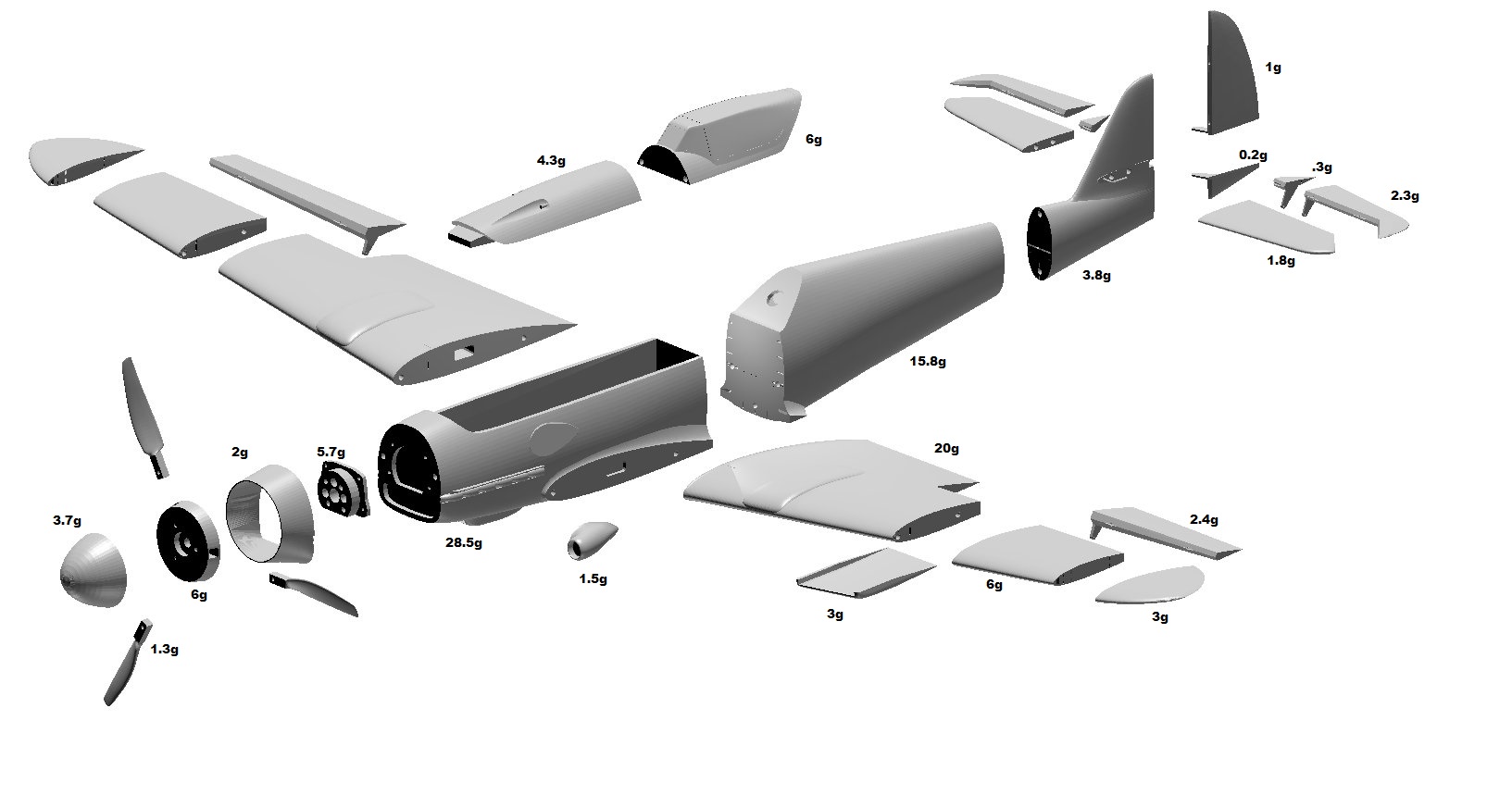

Factory files for Simplify 3d
STL files for all components

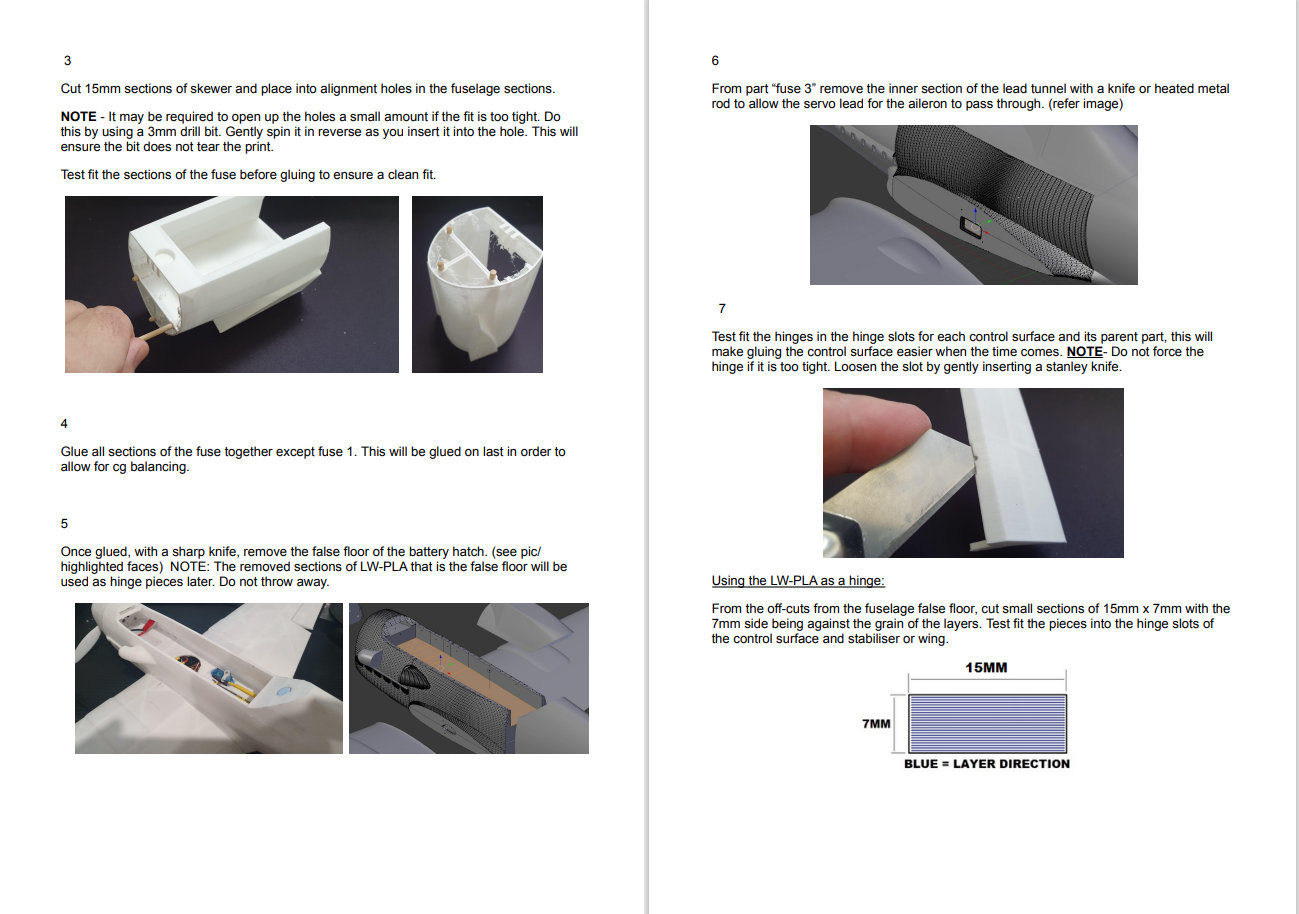

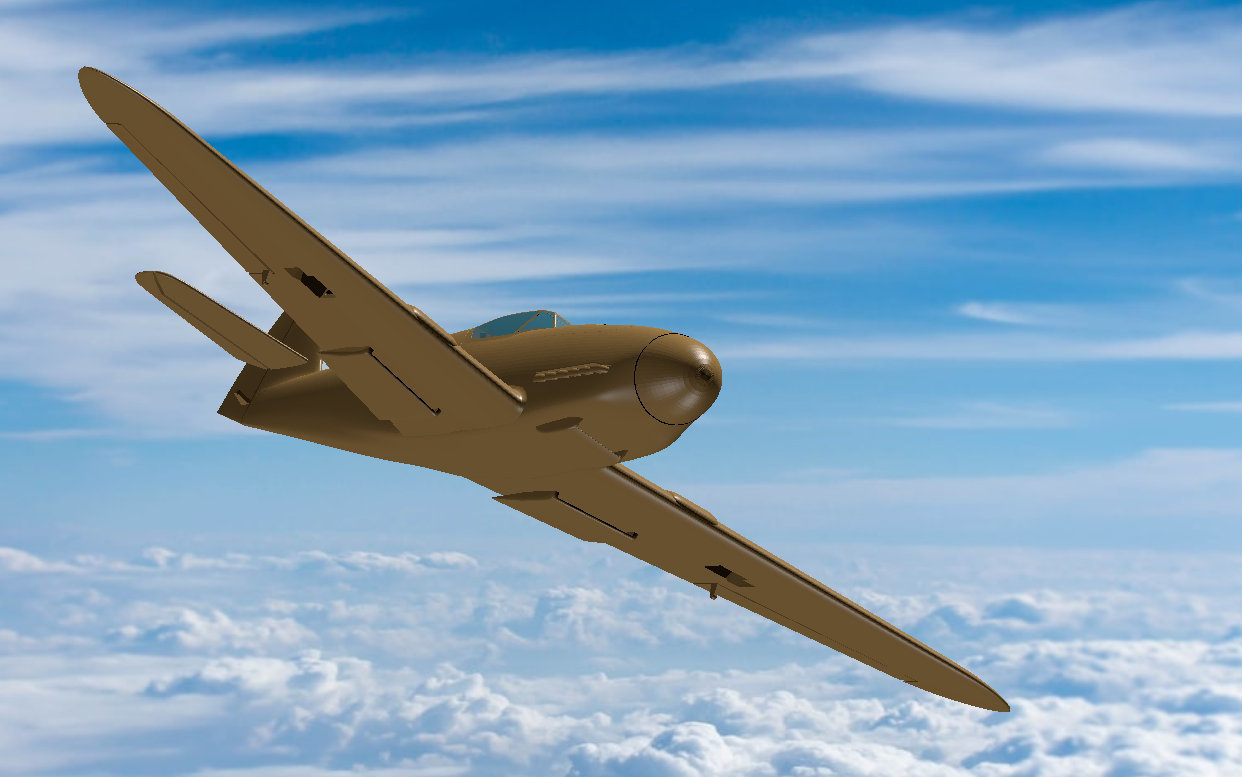

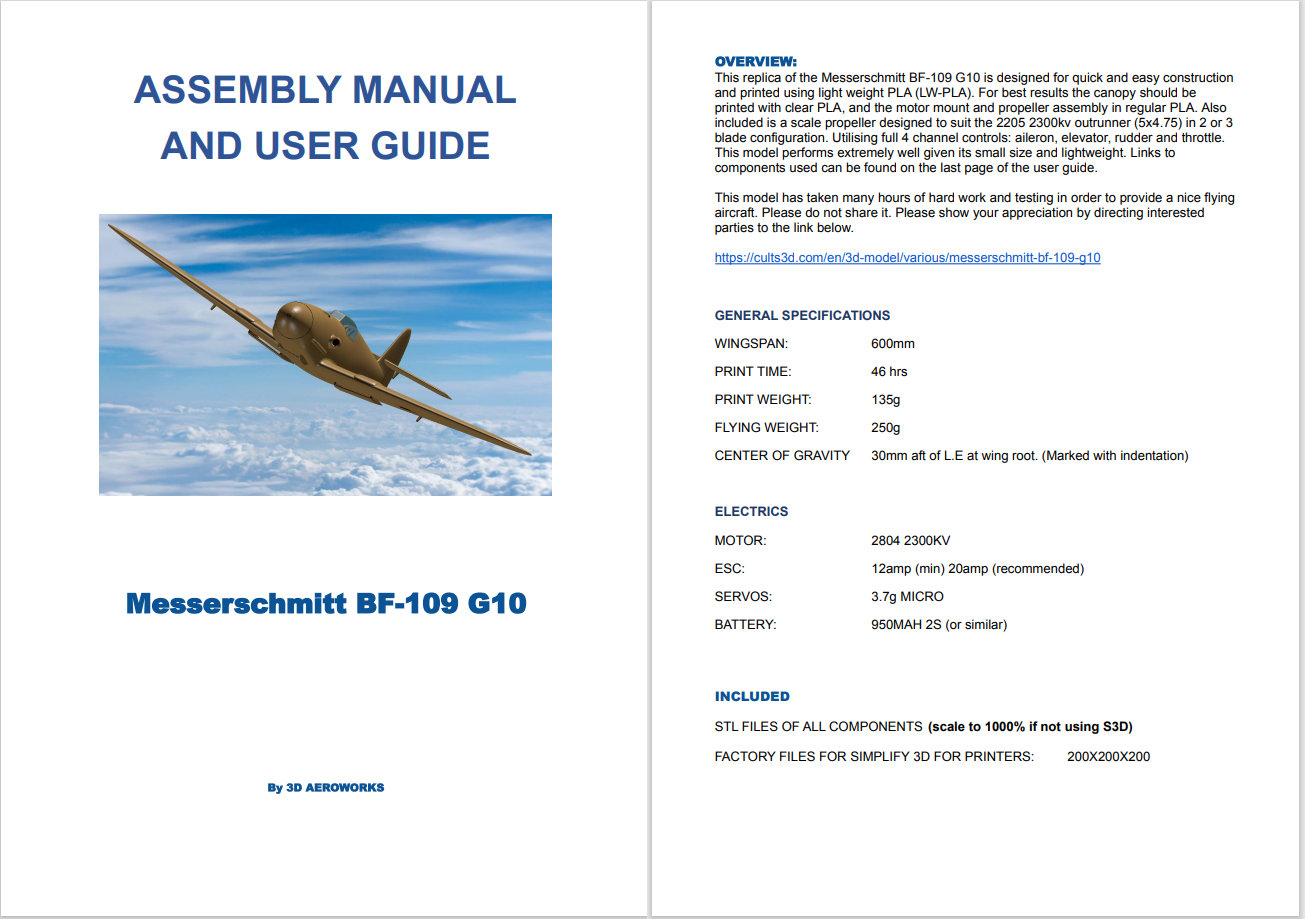

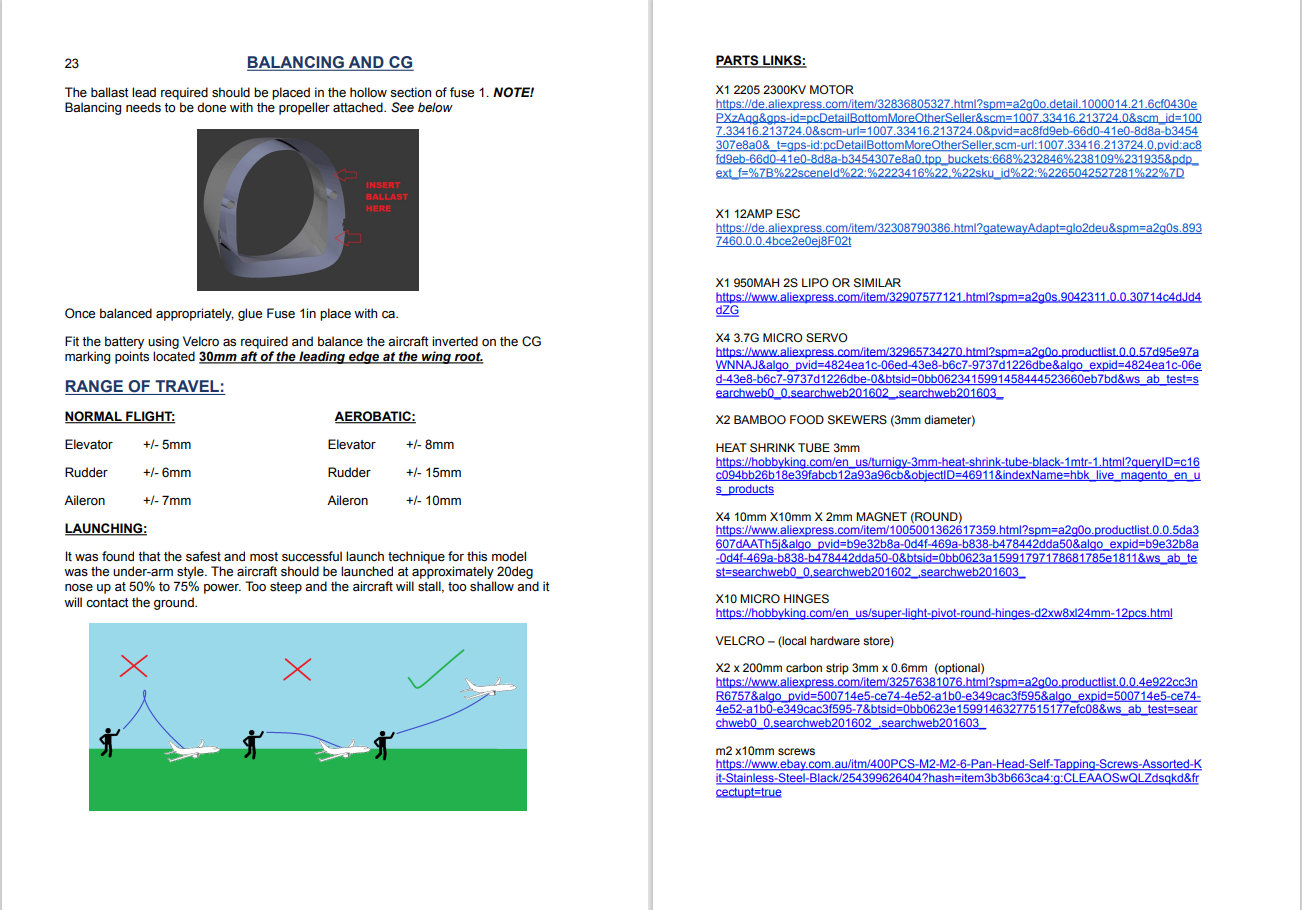

Assembly manual and user guide

FLIGHT VIDEO: coming soon

Print time: 40hrs
Print weight: 135g
RTF AUW: 253g with gear listed below installed

REQUIRED COMPONENTS:
X1 1806 2300KV MOTOR (or similar)
X1 10AMP ESC
X1 950MAH 2S LIPO OR SIMILAR
X4 3.7G MICRO SERVO
X2 BAMBOO SKEWERS
HEAT SHRINK TUBE 3mm
X2 10mm X10mm X 2mm MAGNET (ROUND)
X10 MICRO HINGES
VELCRO
X2 x 200mm carbon strip 3mm x 0.6mm (optional)
M2 x10mm screws

UPDATES- links to updates can be found below as they come out and will be free to download.

PRINT VOLUME:
200x200x200
320x320x400

For any questions and assistance please email us at:

aeroworks3d@outlook.com

NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.

UPDATE:

7/12/2020; update to wings, slightly larger slots to better fit 3.7g servo, also fix to inner wing sections near cg point. (no other changes)
https://cults3d.com/en/3d-model/various/bf109-g10-updated-wings

29/12/2020 propeller update, high flow hub option, 2 and 3 blade option, m5 threaded spinner;
https://cults3d.com/en/3d-model/various/bf109-prop-blade-improved-efficiency

PARTS LINKS:

X1 1806 2300KV MOTOR
https://au.banggood.com/DYS-BE1806-2300KV-Brushless-Motor-Black-Edition-for-Multicopters-p-946416.html?rmmds=search&cur_warehouse=CN

X1 10AMP ESC
https://www.aliexpress.com/item/32908414252.html?spm=a2g0o.productlist.0.0.336e60f8y3JM5O&algo_pvid=f371514a-a8c2-476a-9a32-5117b1f125e9&algo_expid=f371514a-a8c2-476a-9a32-5117b1f125e9-15&btsid=0bb0623715991457638961240e87fc&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

X1 950MAH 2S LIPO OR SIMILAR
https://www.aliexpress.com/item/32907577121.html?spm=a2g0s.9042311.0.0.30714c4dJd4dZG

X4 3.7G MICRO SERVO
https://www.aliexpress.com/item/32965734270.html?spm=a2g0o.productlist.0.0.57d95e97aWNNAJ&algo_pvid=4824ea1c-06ed-43e8-b6c7-9737d1226dbe&algo_expid=4824ea1c-06ed-43e8-b6c7-9737d1226dbe-0&btsid=0bb0623415991458444523660eb7bd&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

X2 BAMBOO FOOD SKEWERS (3mm diameter)

HEAT SHRINK TUBE 3mm
https://hobbyking.com/en_us/turnigy-3mm-heat-shrink-tube-black-1mtr-1.html?queryID=c16c094bb26b18e39fabcb12a93a96cb&objectID=46911&indexName=hbk_live_magento_en_us_products

X4 10mm X10mm X 2mm MAGNET (ROUND)
https://www.aliexpress.com/item/1005001362617359.html?spm=a2g0o.productlist.0.0.5da3607dAATh5j&algo_pvid=b9e32b8a-0d4f-469a-b838-b478442dda50&algo_expid=b9e32b8a-0d4f-469a-b838-b478442dda50-0&btsid=0bb0623a15991797178681785e1811&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

X10 MICRO HINGES
https://hobbyking.com/en_us/super-light-pivot-round-hinges-d2xw8xl24mm-12pcs.html

VELCRO – (local hardware store)

X2 x 200mm carbon strip 3mm x 0.6mm (optional)
https://www.aliexpress.com/item/32576381076.html?spm=a2g0o.productlist.0.0.4e922cc3nR6757&algo_pvid=500714e5-ce74-4e52-a1b0-e349cac3f595&algo_expid=500714e5-ce74-4e52-a1b0-e349cac3f595-7&btsid=0bb0623e15991463277515177efc08&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

m2 x10mm screws
https://www.ebay.com.au/itm/400PCS-M2-M2-6-Pan-Head-Self-Tapping-Screws-Assorted-Kit-Stainless-Steel-Black/254399626404?hash=item3b3b663ca4:g:CLEAAOSwQLZdsqkd&frcectupt=true

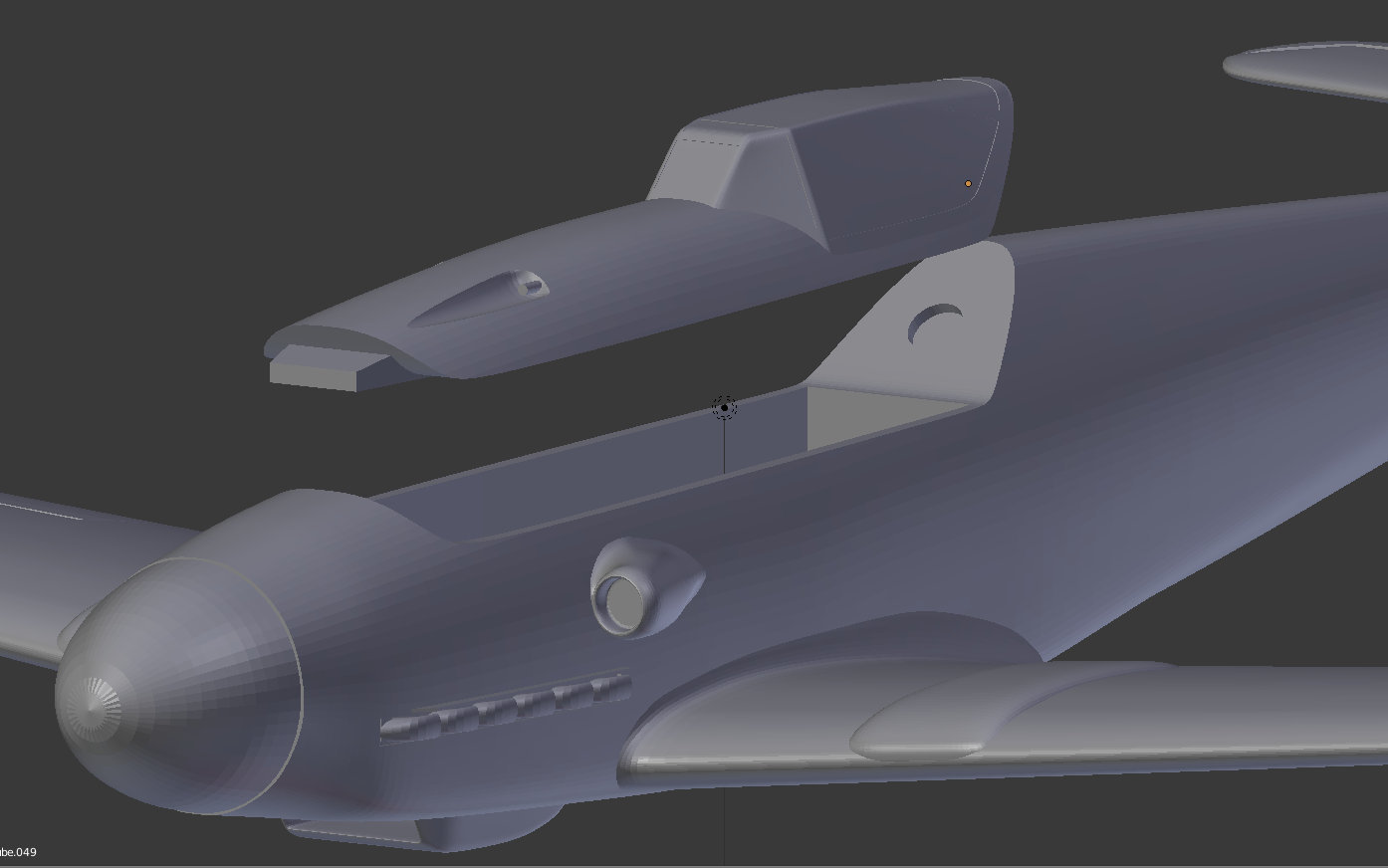

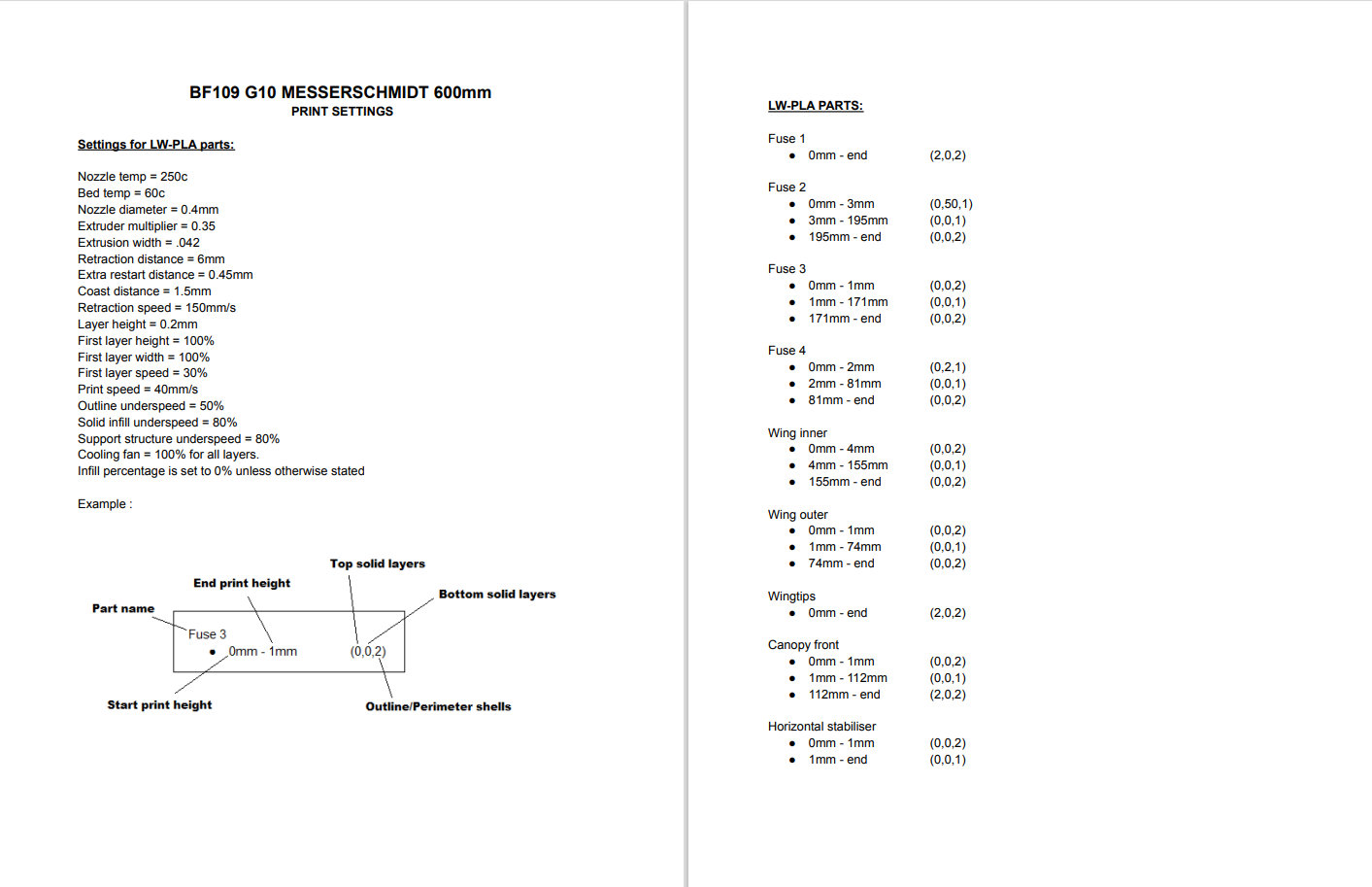

3D printing settings

print head temp 250c
print bed temp 60c
filament cooling fan 100%

  • 3D file format: ZIP
  • Last update: 2020/12/30 at 04:57
  • Publication date: 2020/11/12 at 14:37
