mercury atlas MA6 friendship 7 john glenn

update august 2020

added STL files for SLA resin printer

updated July 19, 2020

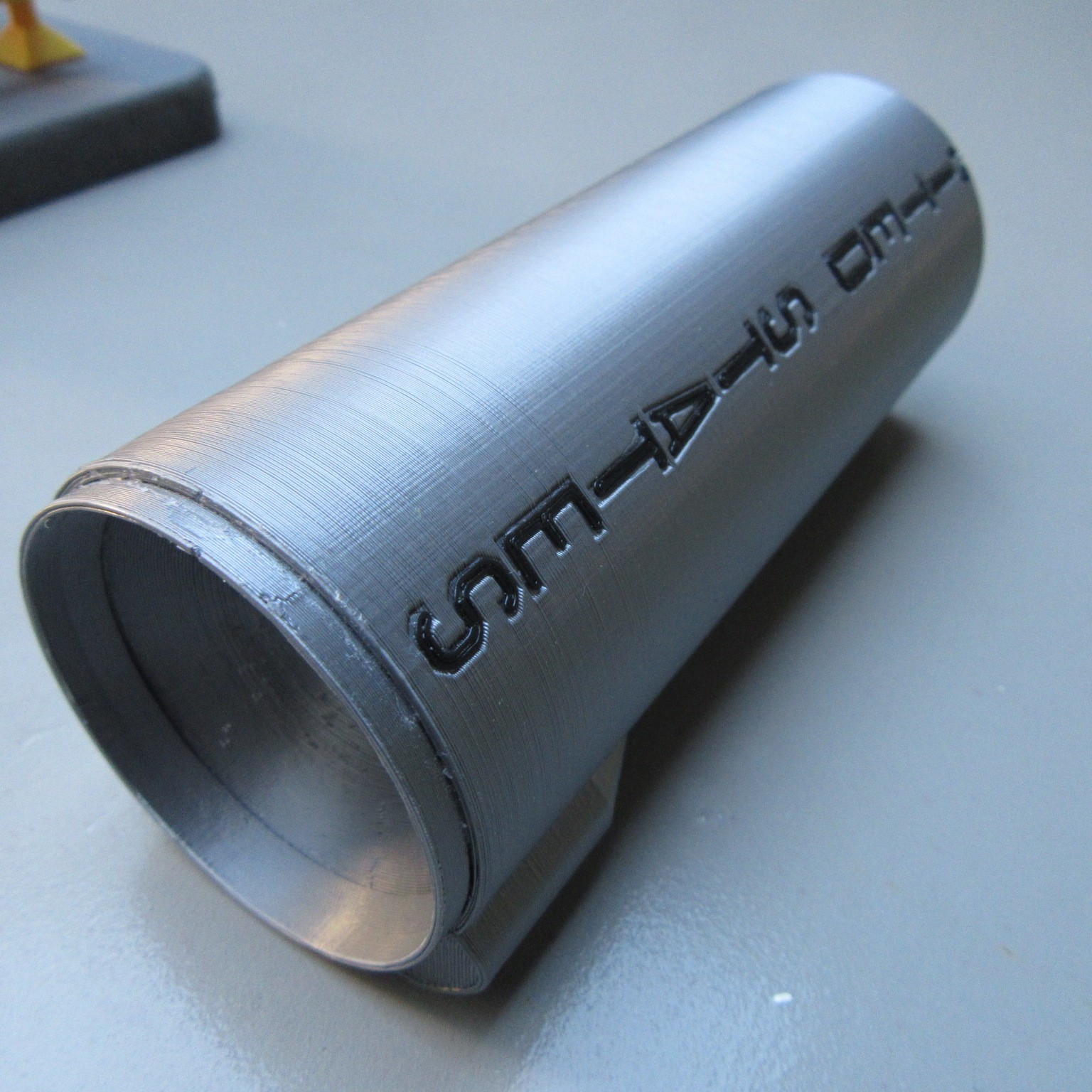

added files 32 bis silver and 34 bis silver to have the embossed writings to paint.

added files 32 ter silver and 34 ter silver without inscriptions.

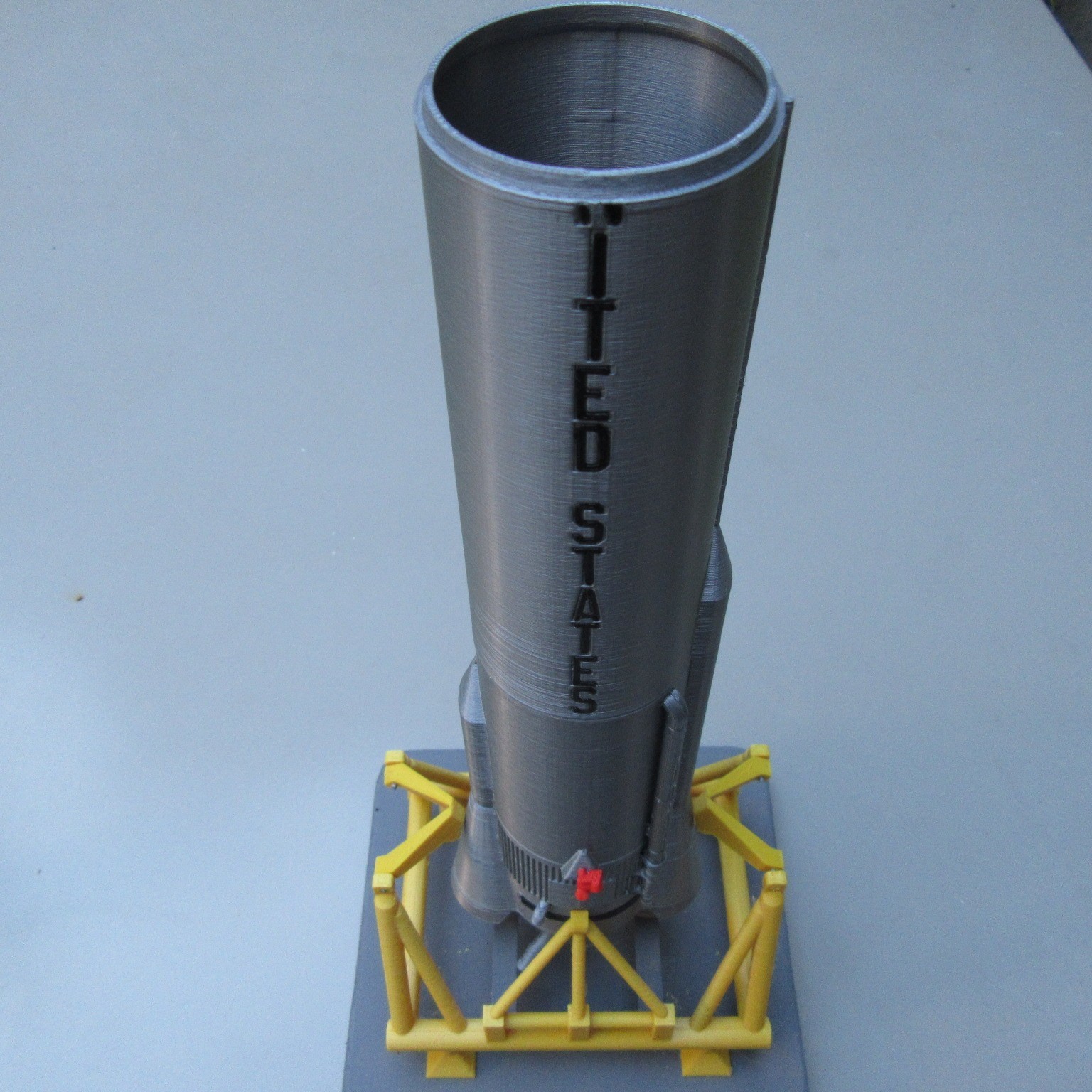

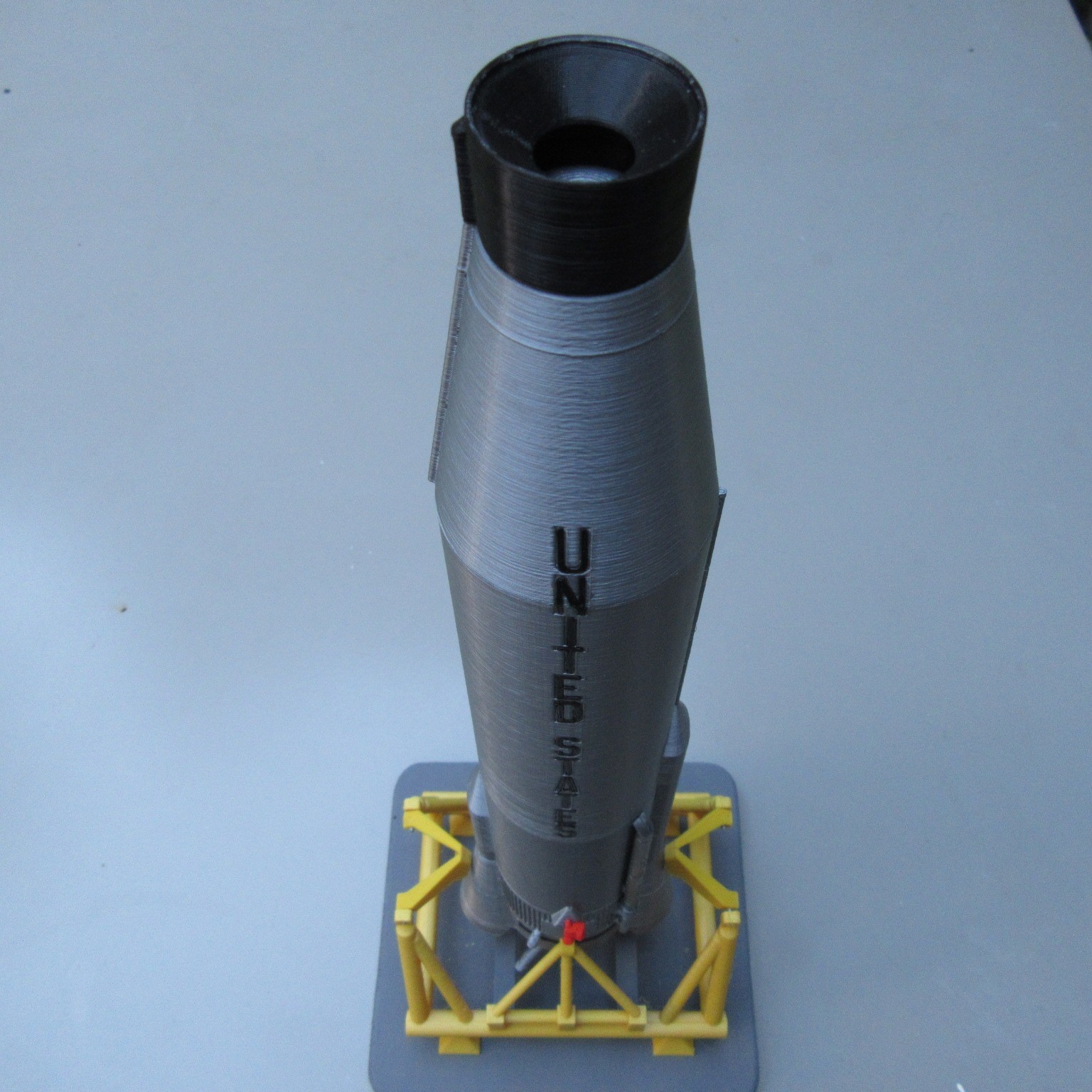

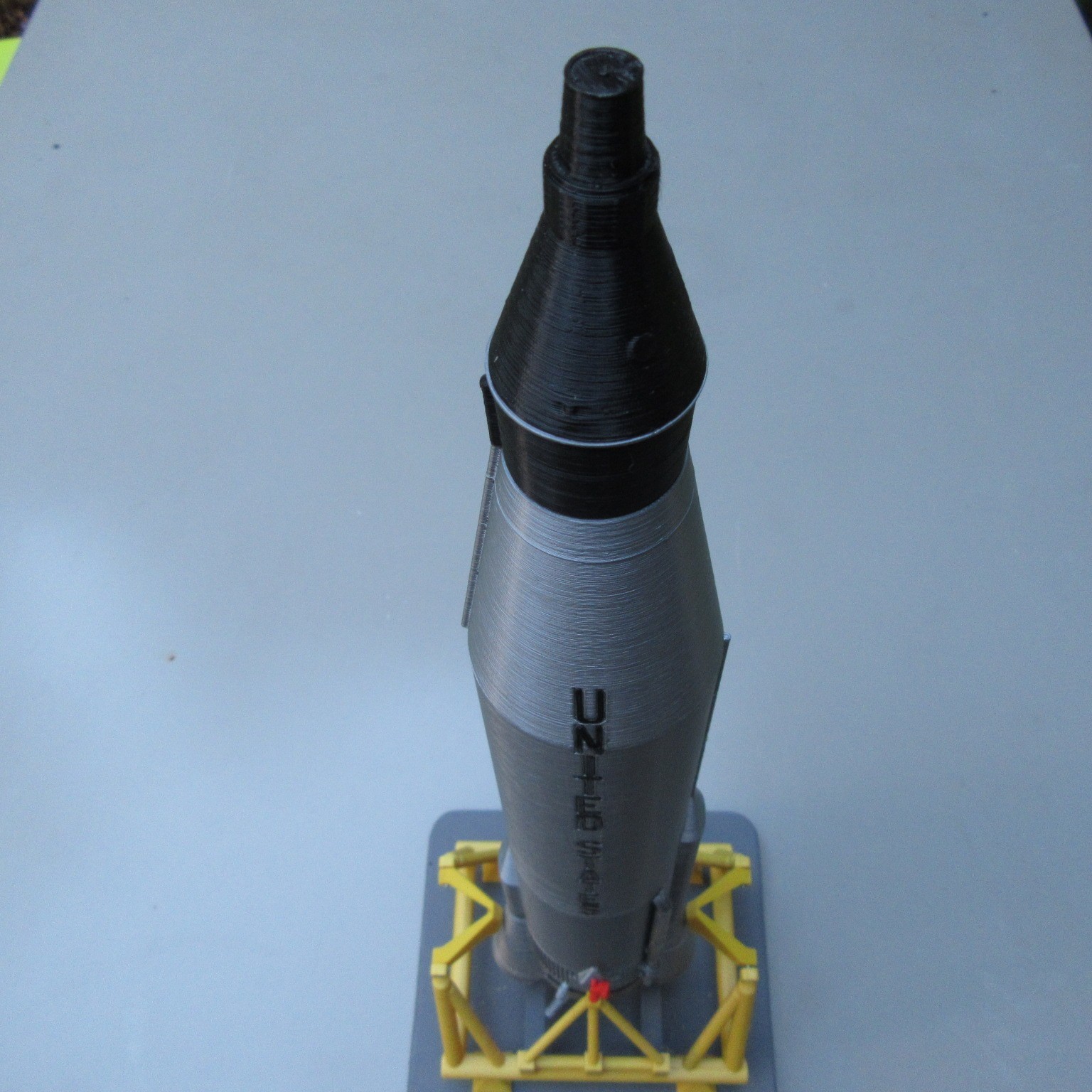

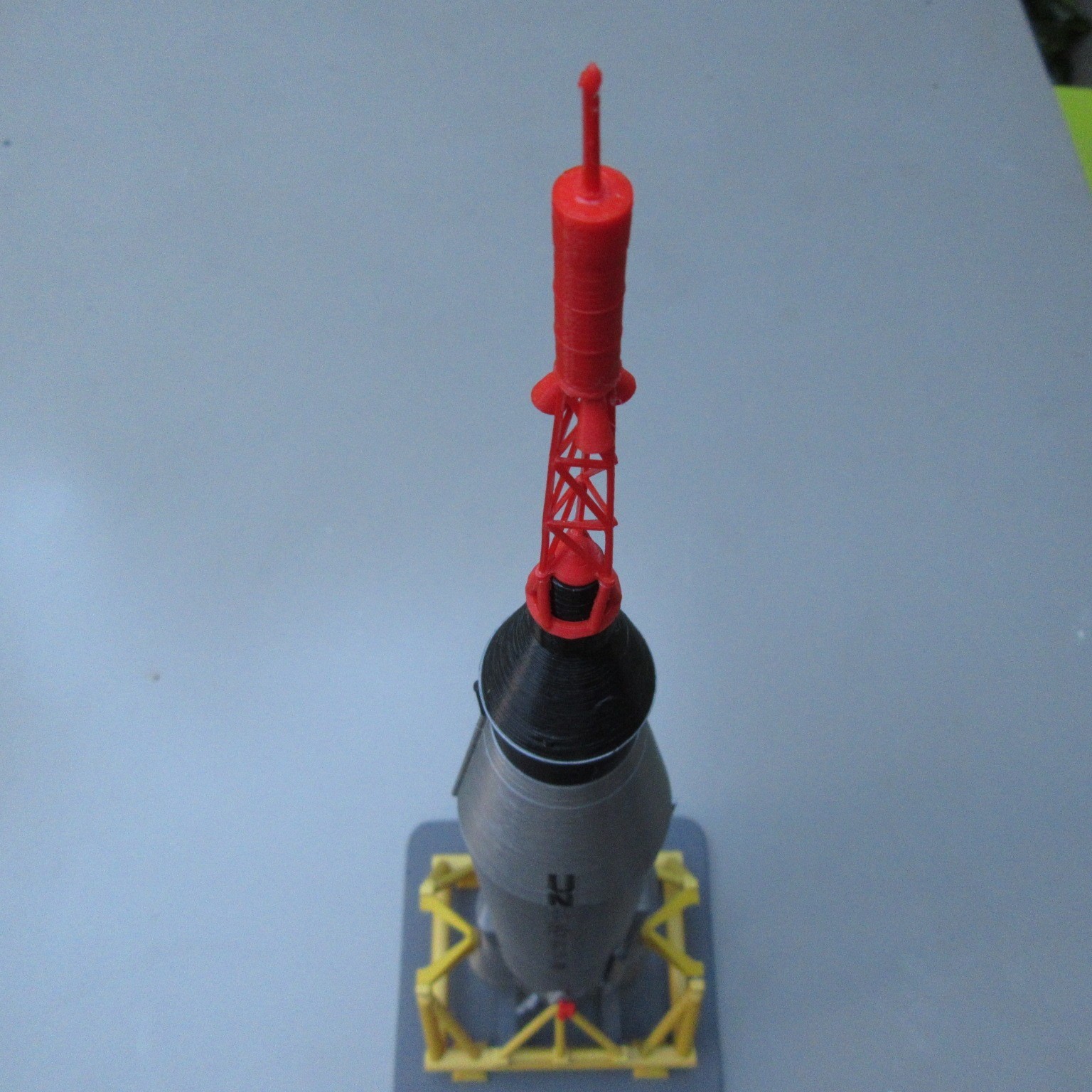

rocket of the first orbital flight of an American in February 1962. 1/60th model

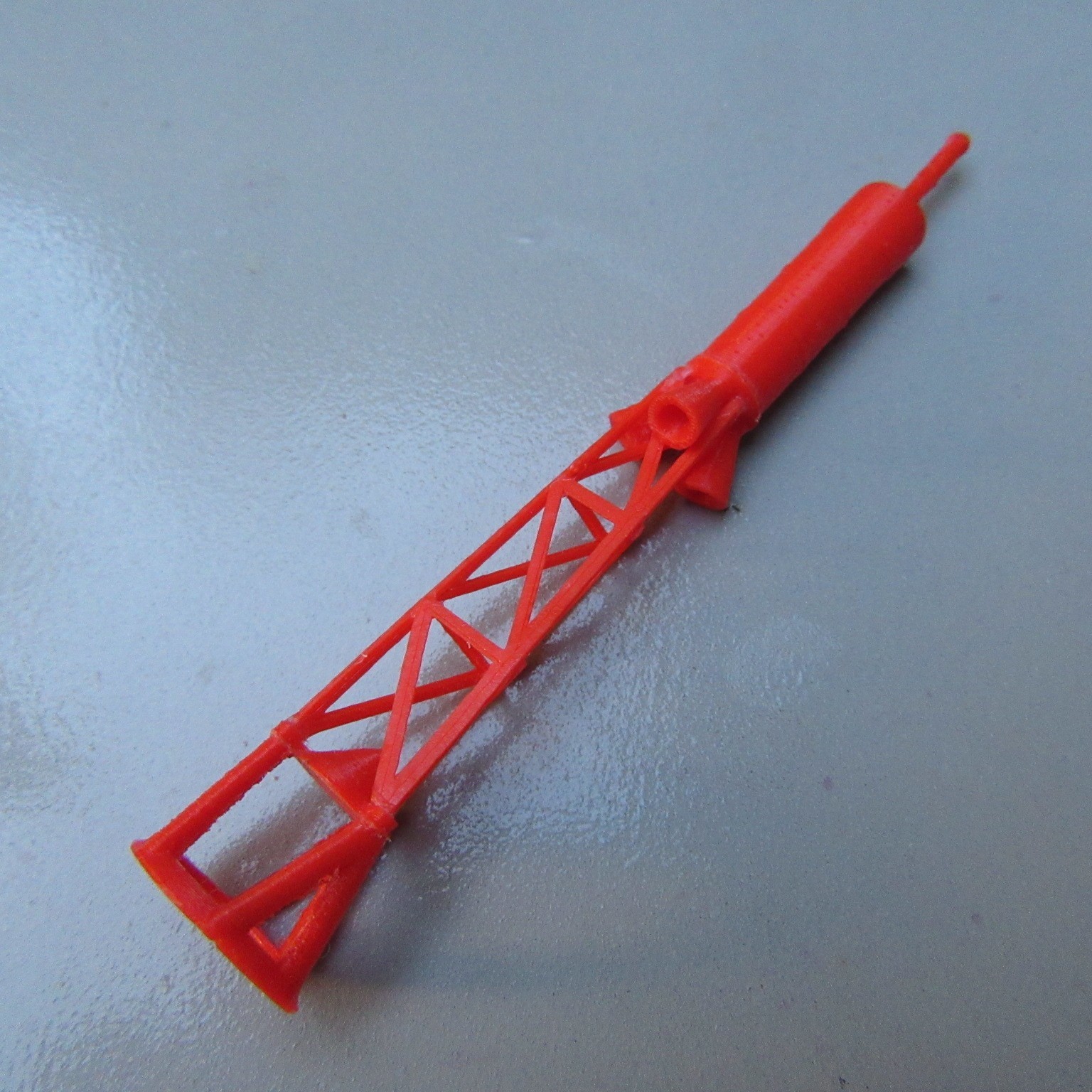

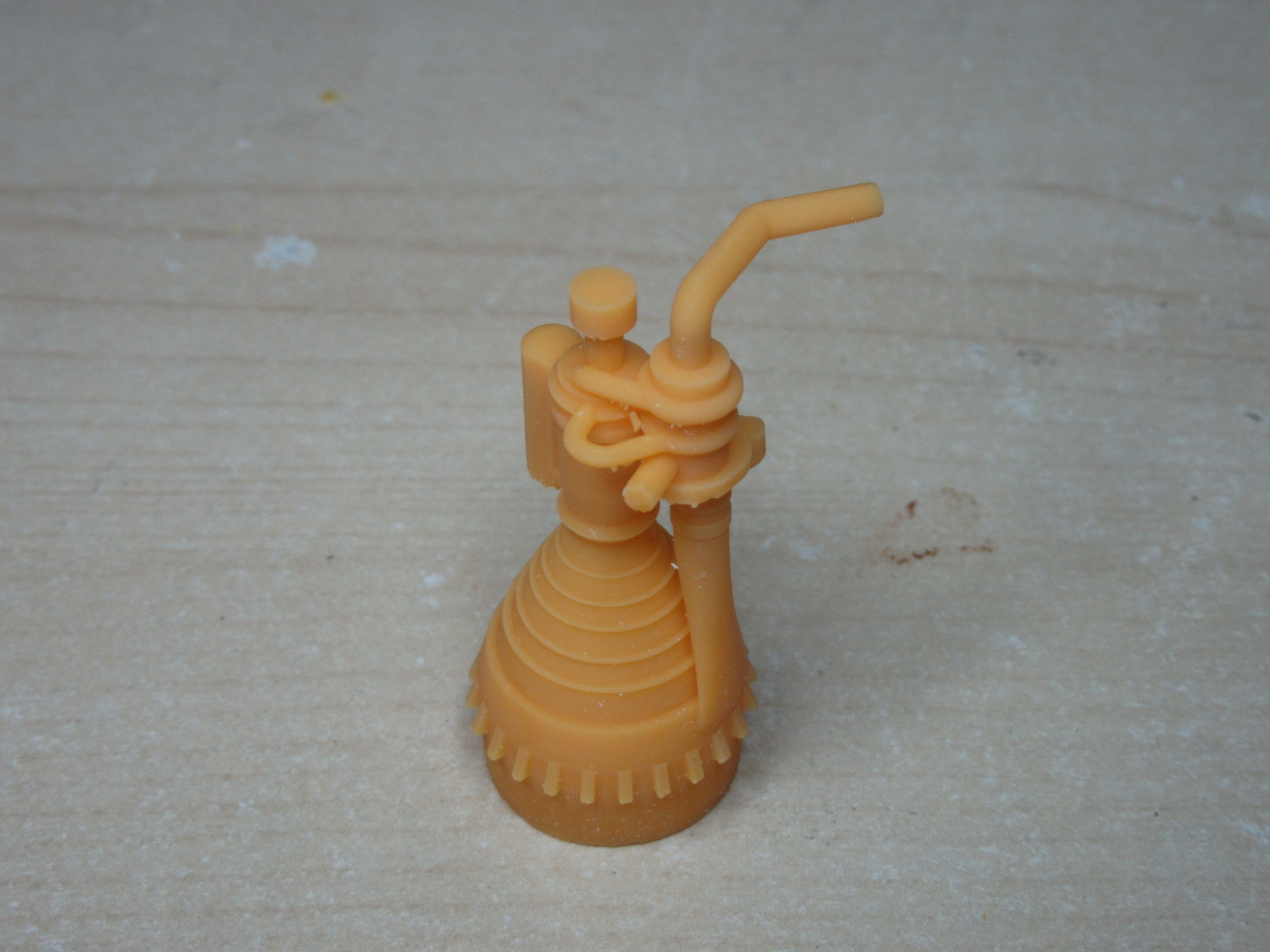

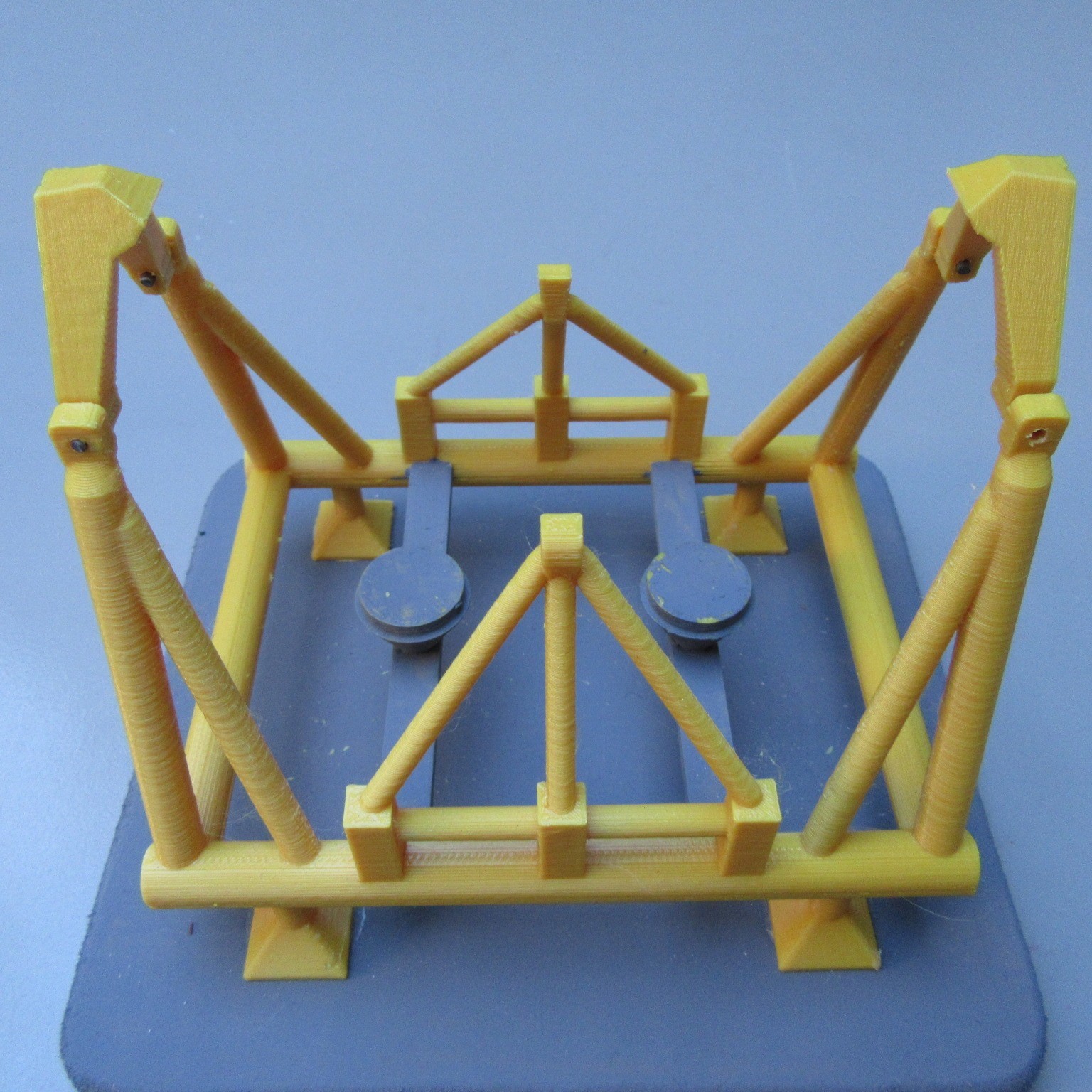

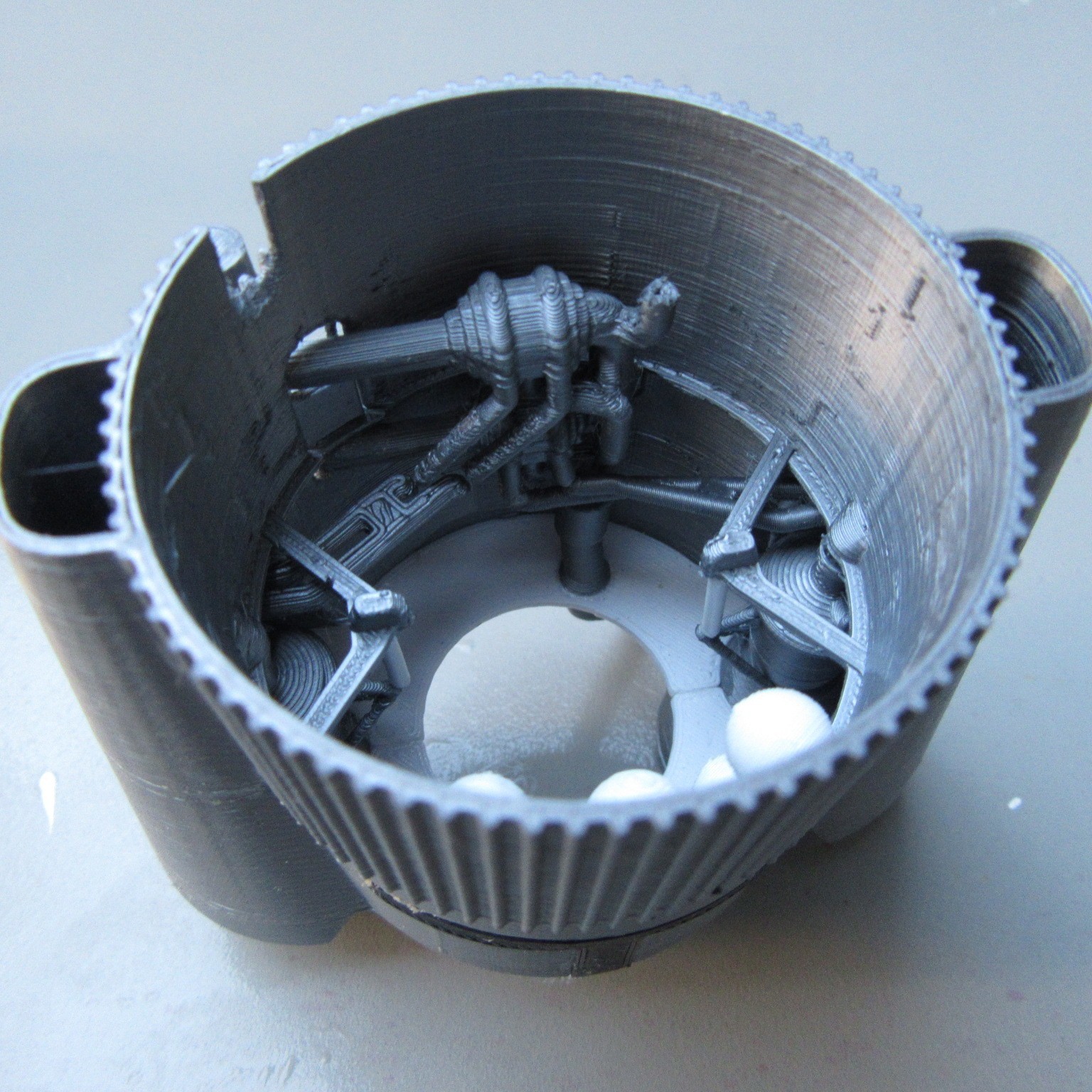

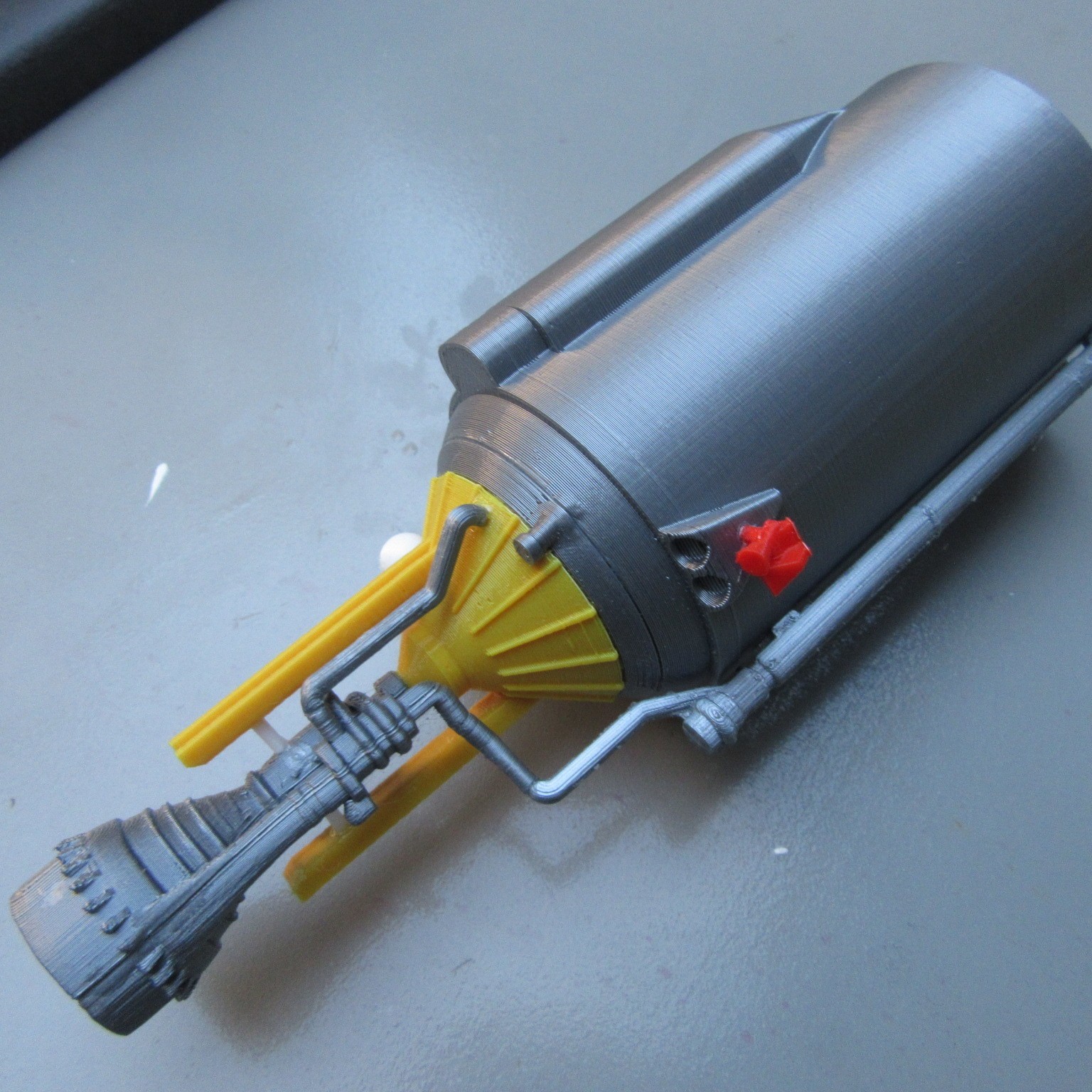

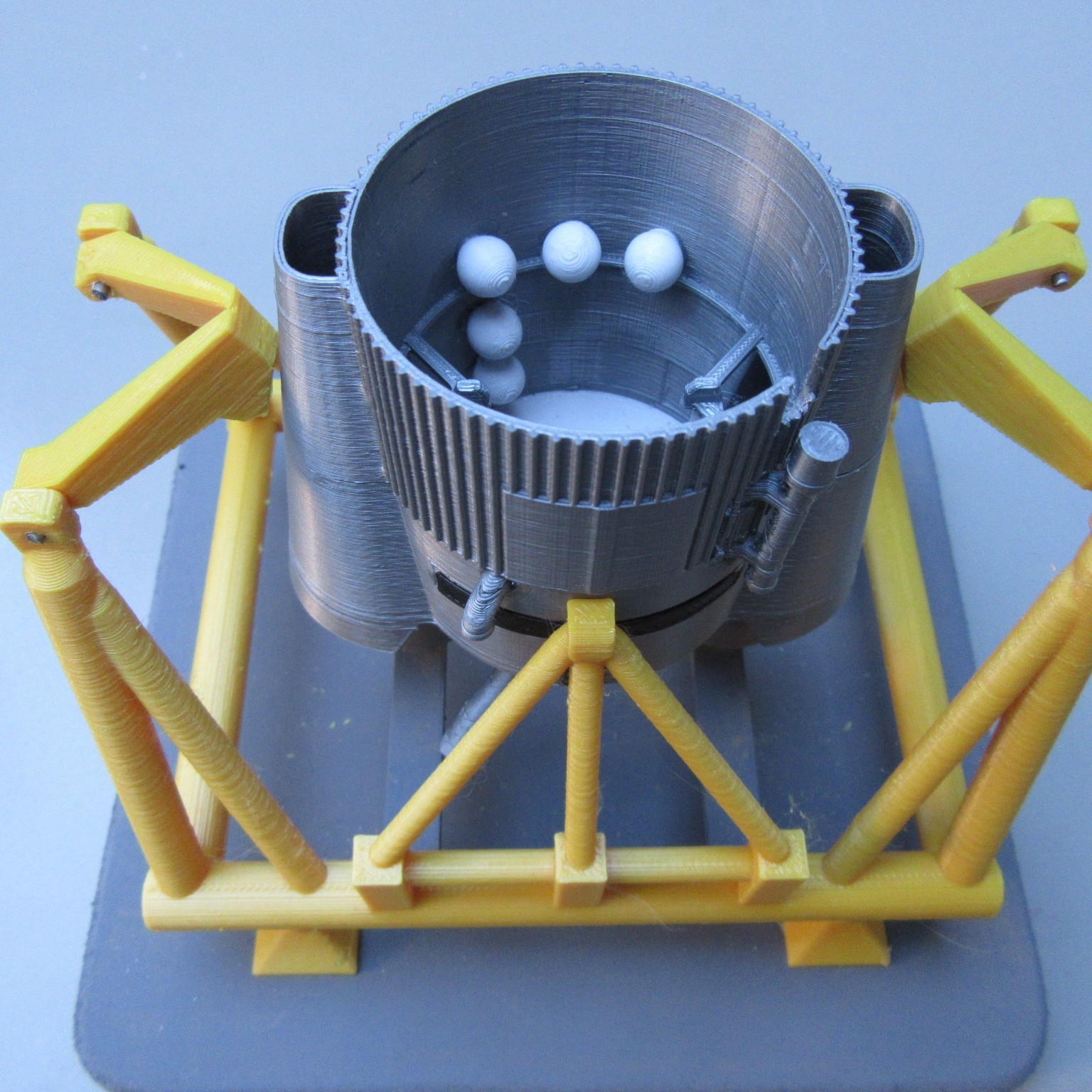

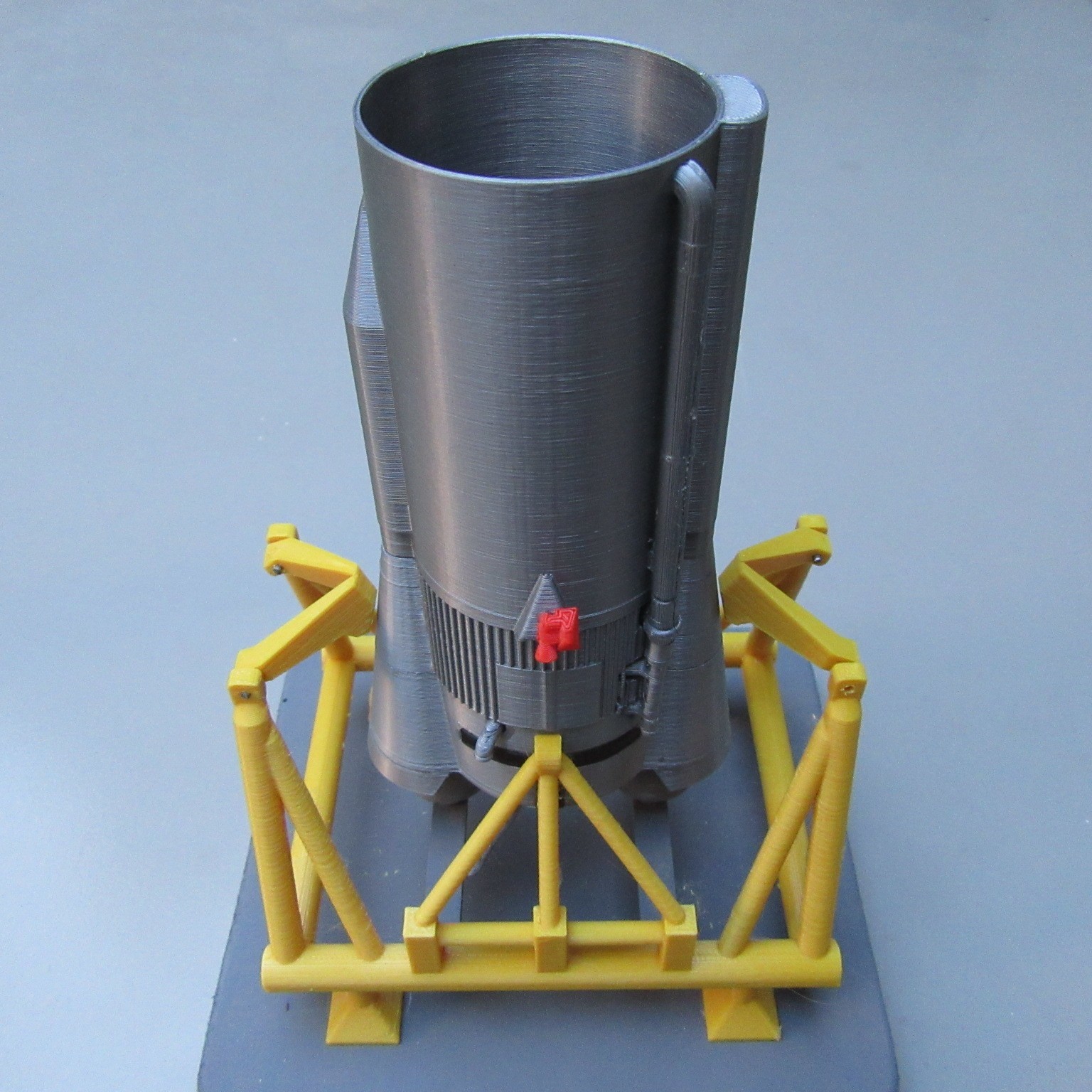

with the two lr89 boosters around the lr105 and its firing point.

56 pieces forming 8 demountable elements

assembly instructions in pdf downloadable here: https://the-amphioxus.monsite-orange.fr/


3D printing settings

requires a good knowledge of your printer.

Preferably print all the parts on the same printer in order to have a better conservation of dimensions.

Some parts may require 5 to 6 hours of printing time.

the adhesion of the parts must be controlled in general.

The modeling was tested on an i3 with a 0.4mm nozzle.

First layer must be 0.3 mm thick and must be even over the entire printing surface (autoleveling desired).

Layer height 0.2 mm for large parts. 0.1 or 0.15 mm for small parts.

No support required.

Fill to 15% if necessary. 0% on thin walls.

Brim imperative on thin walls.

Edge thickness for thin workpieces to 0.4mm (single nozzle pass)

Edge thickness for other workpieces 0.8 or 1.2 mm as desired

Assembly :

The gluing will be done with cyanoacrylate glue.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 02 yellow.stl
    • 04 silver.stl
    • 12 silver.stl
    • 13 silver.stl
    • 17 silver.stl
    • 22 silver.stl
    • 38 black.stl
    • MA6 SLA-les.stl
    • STL.zip

    Learn more about the formats

  • Last update: 2020-08-11 at 15:28
  • Publication date: 2018-10-11 at 21:13

License

CC BY-NC-SA - Attribution - Non commercial - Share alike
