Mechanical Pseudo Sin Wave

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.2k views
  • 4 likes
  • 80 downloads

3D model description

Turn the crank, and the lifters generate a pseudo sin wave.
The 3D version is here: http://www.thingiverse.com/thing:324023.
Video on YouTube at "http://www.youtube.com/watch?v=S2xk1iAFwcM".


3D printing settings

Print and assemble as per "Assembly.skp".

3D printer file information

  • 3D design format: STL and ZIP Folder details Close

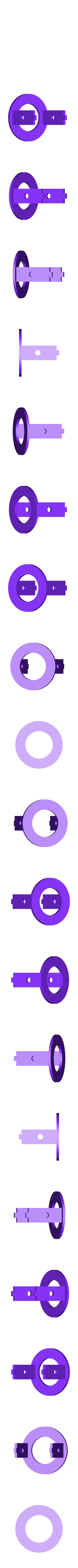

    • Mechanical_Pseudo_Sin_Wave09bb055c2383c76083f33fa15dfc264b-Cams_Just_Four.stl

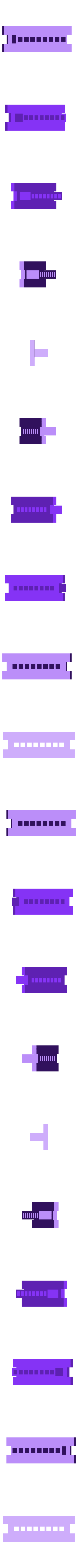

    • Mechanical_Pseudo_Sin_Wave2ce11c29a0edbeabfa488720123a7c6e-Base_111414.stl
    • Mechanical_Pseudo_Sin_Wave2dba8232751500ed83303e215c62e1cd-Base.stl
    • Mechanical_Pseudo_Sin_Wave6d8ece150d828ec3a7d43cc51d08415a-Crank.stl

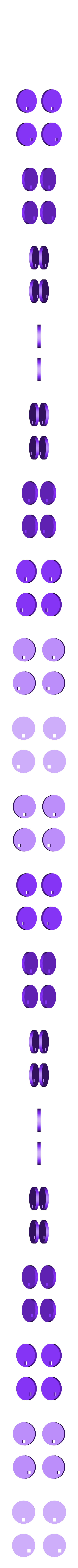

    • Mechanical_Pseudo_Sin_Wave720334f43b02dae284c553274236322e-Cams.stl
    • Mechanical_Pseudo_Sin_Wave736a281edb221fcf02b7cc64b1398b9f-Assembly.skp.zip

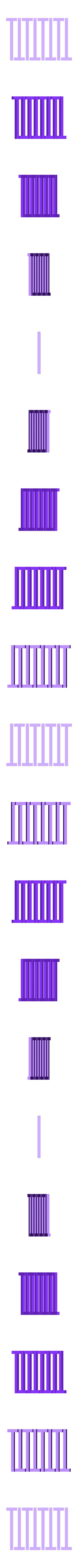

    • Mechanical_Pseudo_Sin_Waveaf24ba894dce97f4fafc1595bf0d6feb-Lifters.stl

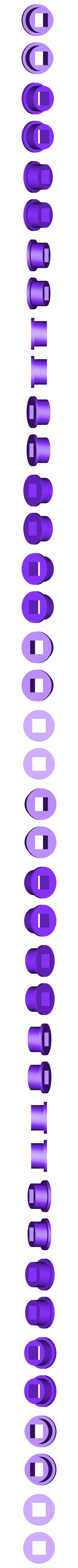

    • Mechanical_Pseudo_Sin_Wavee3ec8143cb5b6ca1e935508c8bdabd1f-Crank_Caps.stl
    • Mechanical_Pseudo_Sin_Waveef11ea5c3264e36dbc8d012079f2baac-Guides.stl
