FAST EMERSON V2.0 HELMET MASK/GRILL ATTACHMENT

?
Creation quality: 3.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

"All rights reserved - All rights reserved"

Description:

This is the new version of grid-mask support

(https://cults3d.com/en/3d-model/gadget/attache-masque-grille-pour-casque-fast-emerson)

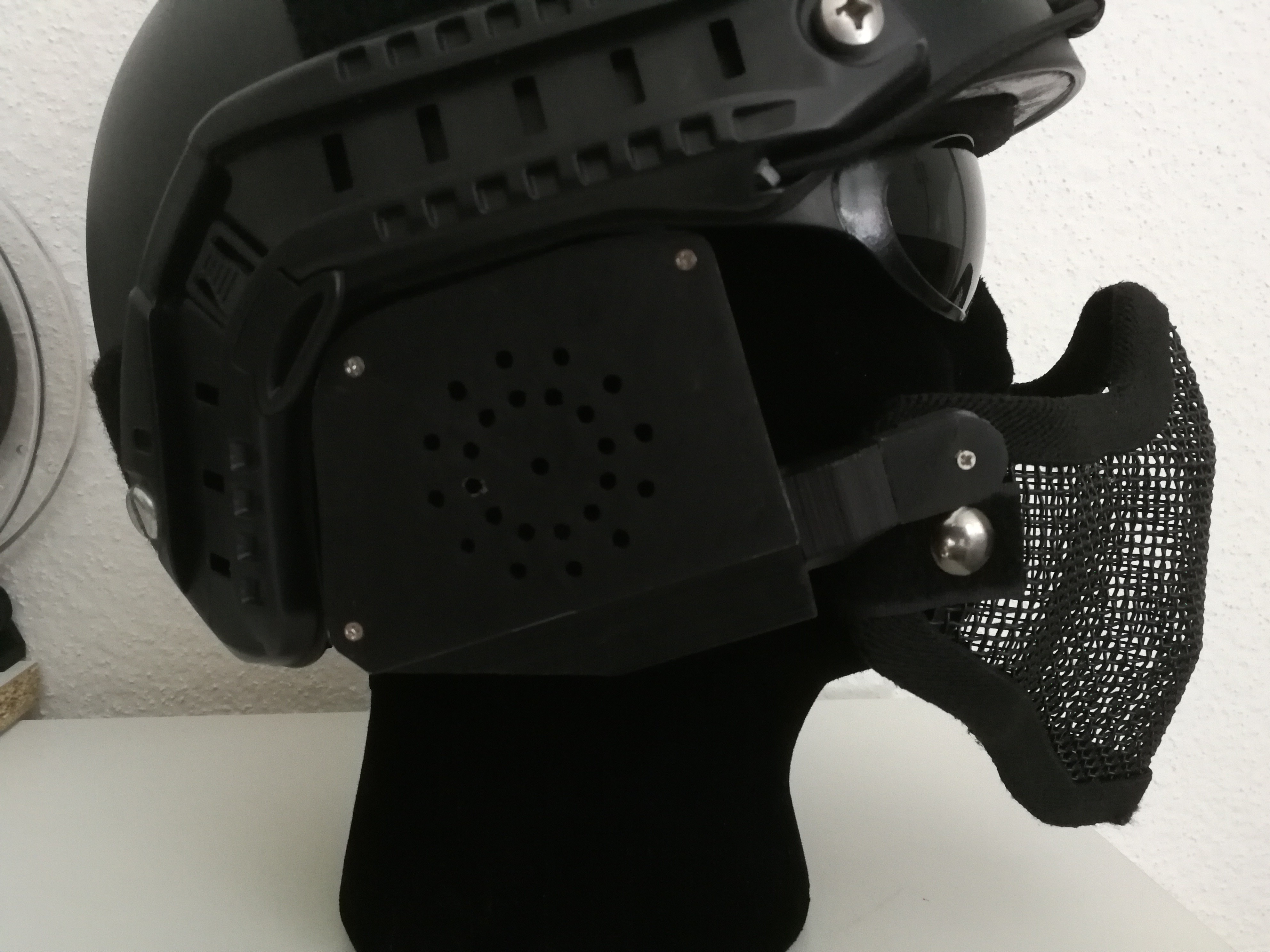

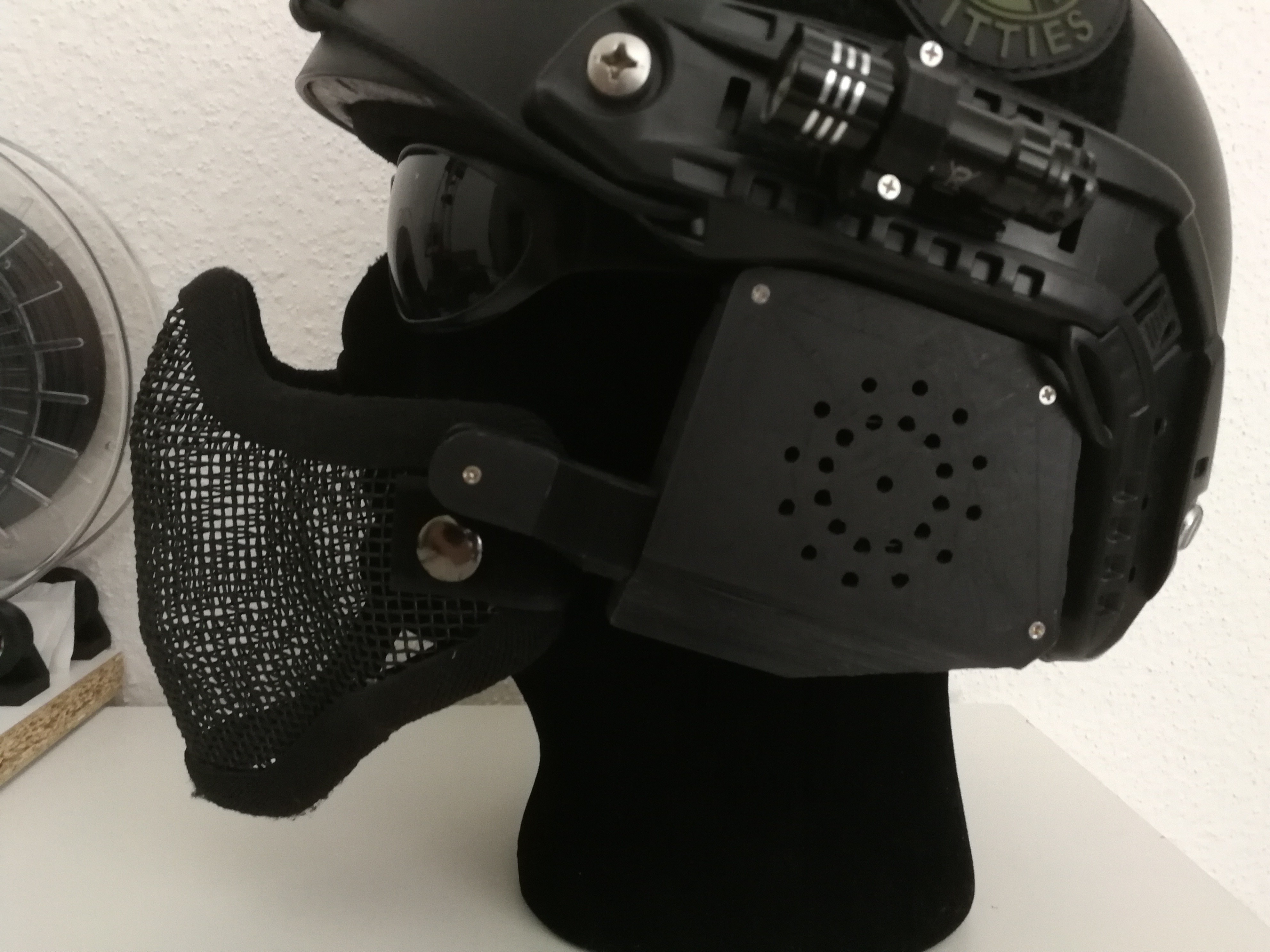

The accessory Helmet grid mask Modulable!

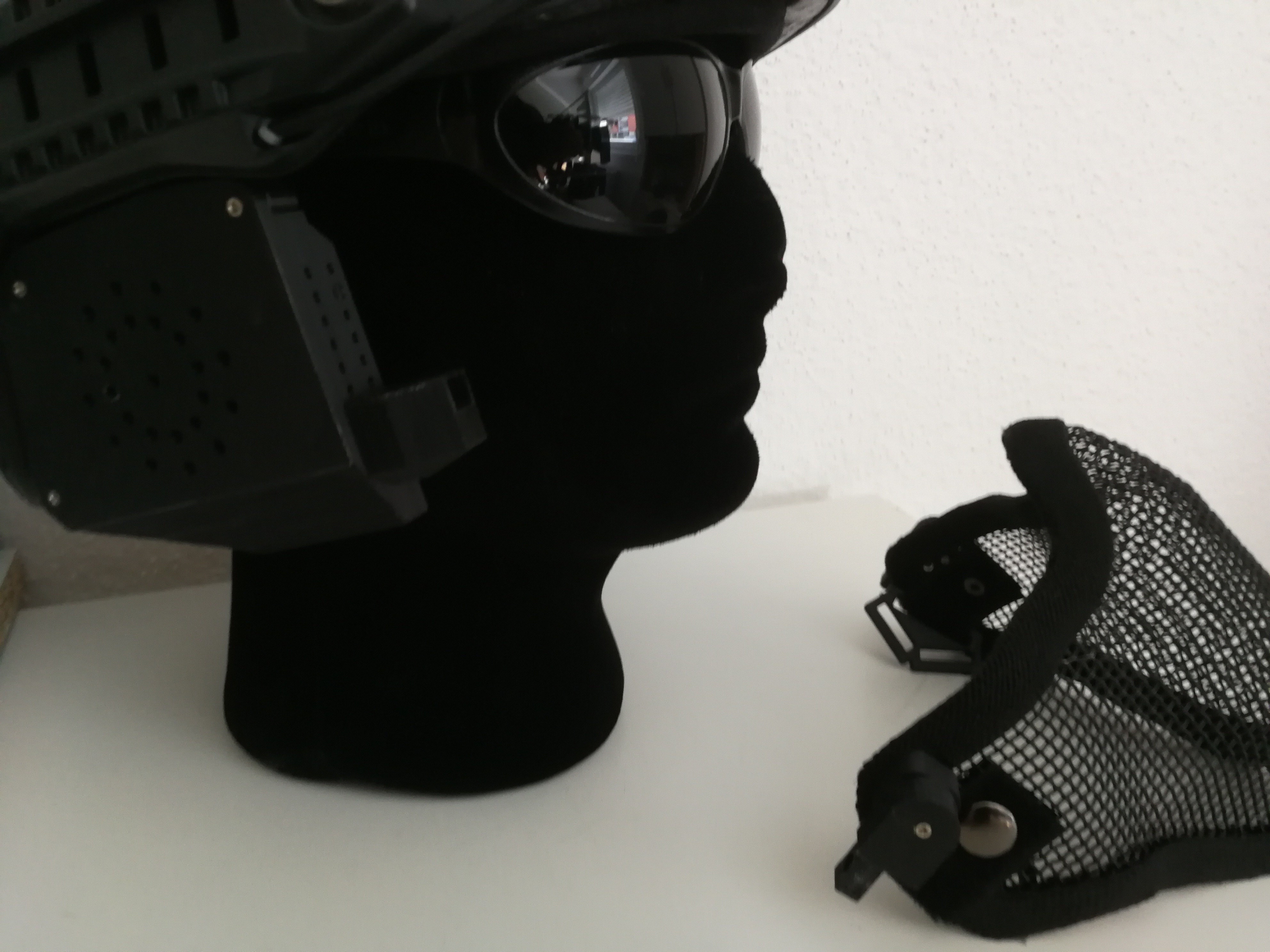

Designed to be able to adapt what you want, simply the ear protectors ? adding the grid ? easily removable with these magnets! For glasses or mask (Attention Clip mask + 10mm not tested)

Avoid having the nose crushed, shoulder without embarrassment!

To you to add what you wish on it! I authorize you to create modules and to publish them only if you quote my creation in your projects (link towards the project)

This is the new version of grid/mask support (https://cults3d.com/model-3d/gadget/mask-plate-grid-for-casque-fast-emerson)

Avoid having the nose crushed, shoulder without problem!

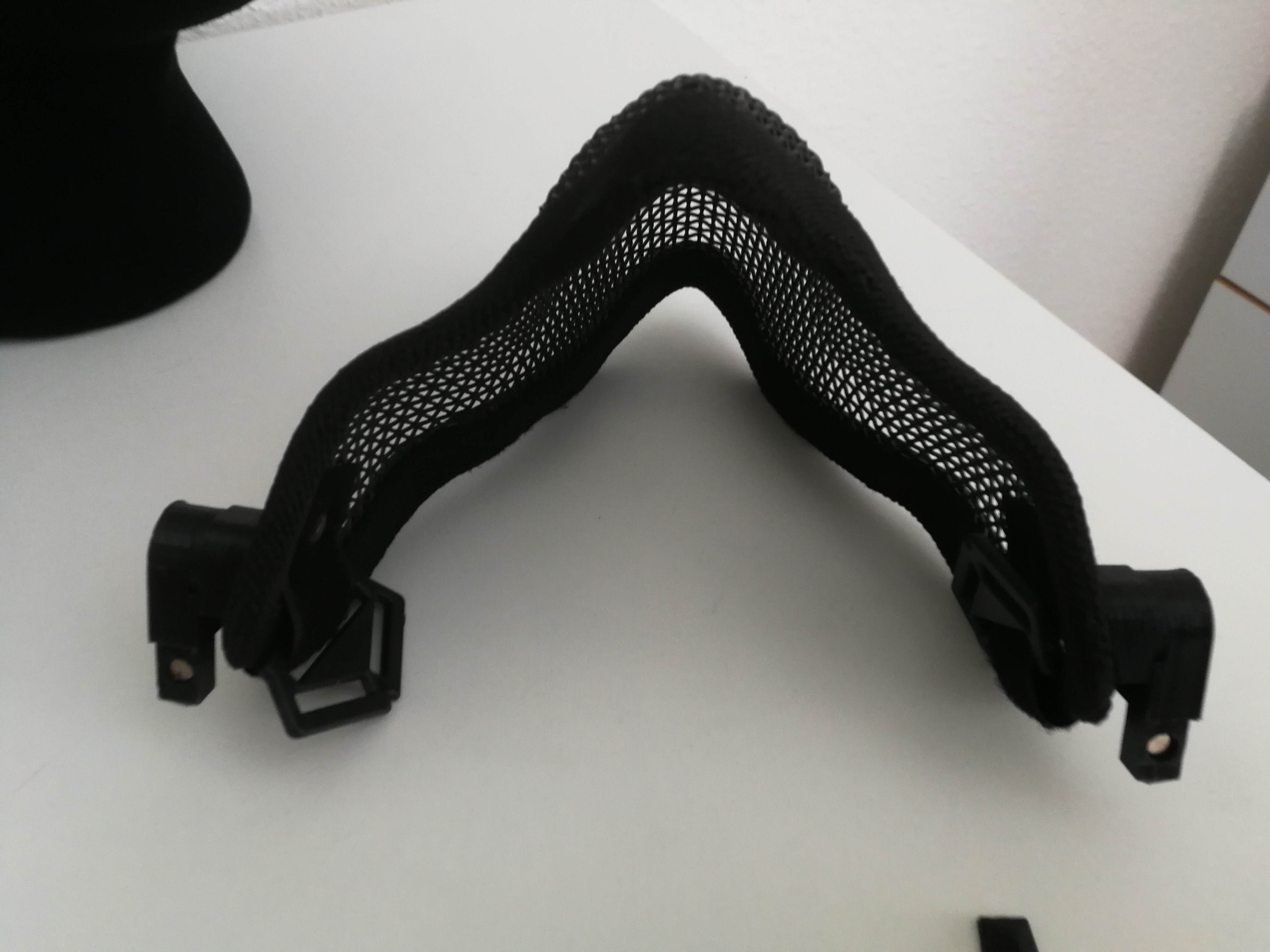

The modular helmet grid - mask accessory!

Designed to be able to adapt what you wish, simply the ear protectors? addition of the grid? easily removable with these magnets! For glasses or mask (Attention Clip mask + 10mm not tested)

To you to add what you want on it! I authorize you to create modules and publish them only if you quote my creation in your projects (link to the project)


To perform the assembly, you will need:

4 magnets 5x5 (cylinder shape)

10 x M2x10 screws

2 x Screw M2x12

14 x Screw M2x8

4 x Nut M6

2 x Screw M6x25 (Front mounting)

2 x Screw M6x20 (Rear mounting)

To make the assembly, you will need:

4 magnets 5x5 (cylinder shape)

10 x M2x10 screws

2 x M2x12 screws

14 x M2x8 screws

4 x M6 Nut

2 x M6x25 Screws

2 x M6x20 screws


3D printing settings

Printing parameter:

Filling: 33%.

Batch 00 - 01 - 02 : accuracy: 0.10 - support everywhere

Batch 03: accuracy: 0.10 - no support

Batch 04: precision: 0.10 - support Touching the tray (Printing support Grid X2)

Print setting:

Infill: 33

Batch 00 - 01 - 02: accuracy: 0.10 - support everywhere

Lot 03: Precision: 0.10 - Without support

Lot 04: accuracy: 0.10 - support Touching the tray (X2 grid support printing)

3D printer file information

  • 3D design format: STL Folder details Close

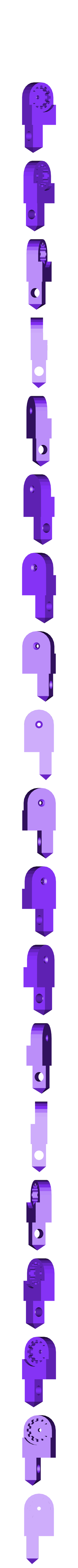

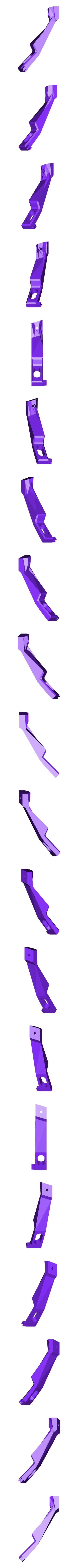

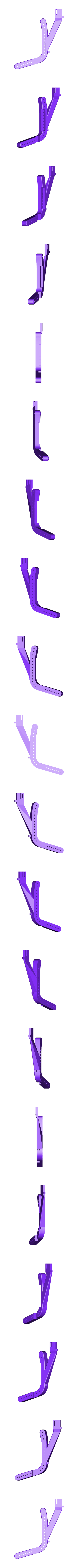

    • 00_Attache_Avant_Droite.stl
    • 00_Attache_Avant_Gauche.stl

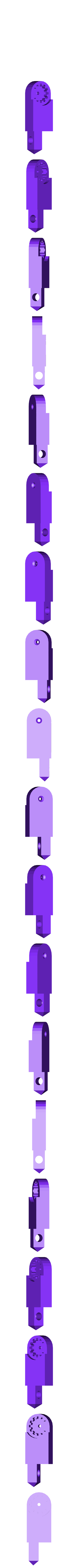

    • 01_Attache_Arrière_Droite.stl
    • 01_Attache_Droite.stl

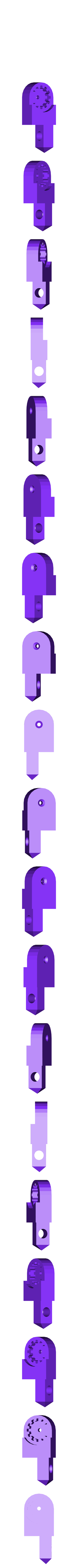

    • 02_Attache_Arrière_Gauche.stl
    • 02_Attache_Gauche.stl

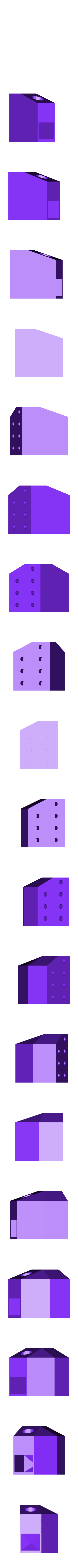

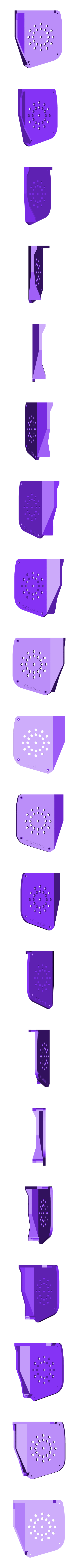

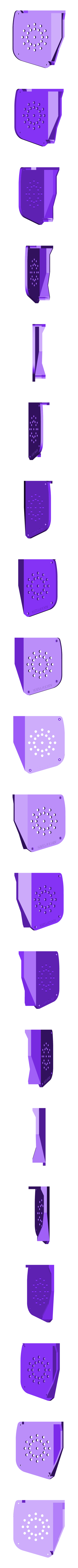

    • 03_Coque_Droite.stl
    • 03_Coque_Gauche.stl

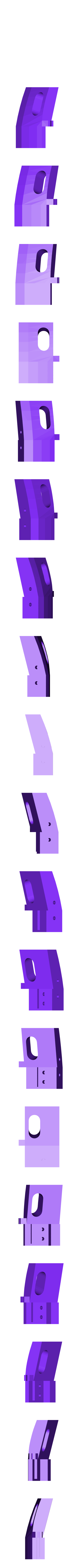

    • 04_Base_Masque_Droit.stl
    • 04_Base_Masque_Gauche.stl
    • 04_Clip_Masque_Droit+10mm.stl
    • 04_Clip_Masque_Droit.stl
    • 04_Clip_Masque_Gauche+10mm.stl
    • 04_Clip_Masque_Gauche.stl
    • 04_Support Grille.stl

    Learn more about the formats

  • Last update: 2020-10-15 at 14:09
  • Publication date: 2018-07-04 at 15:02
