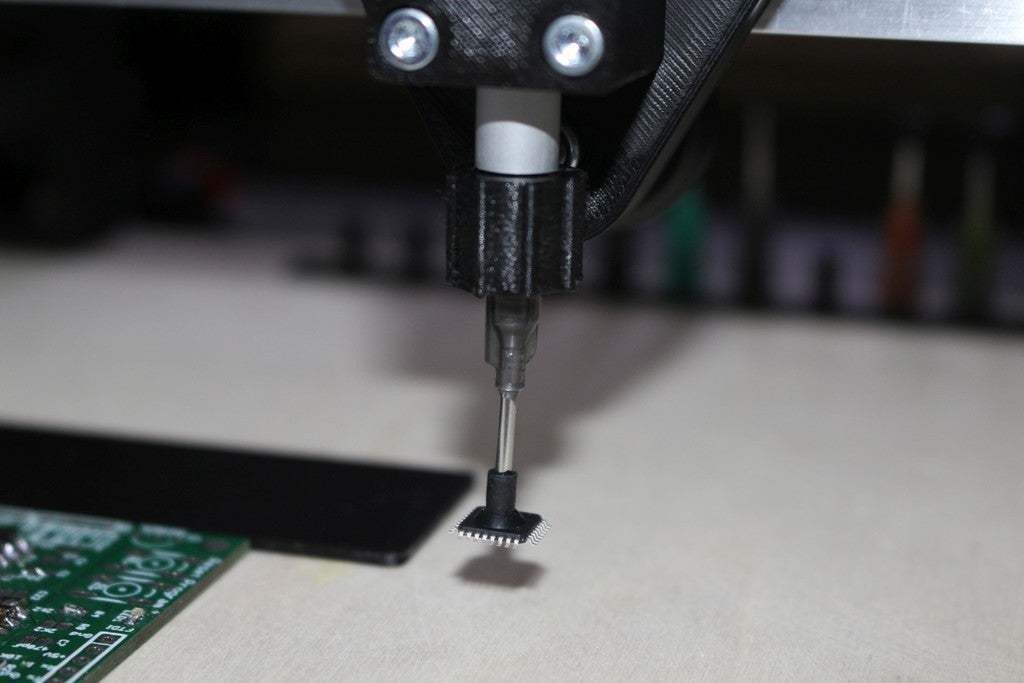

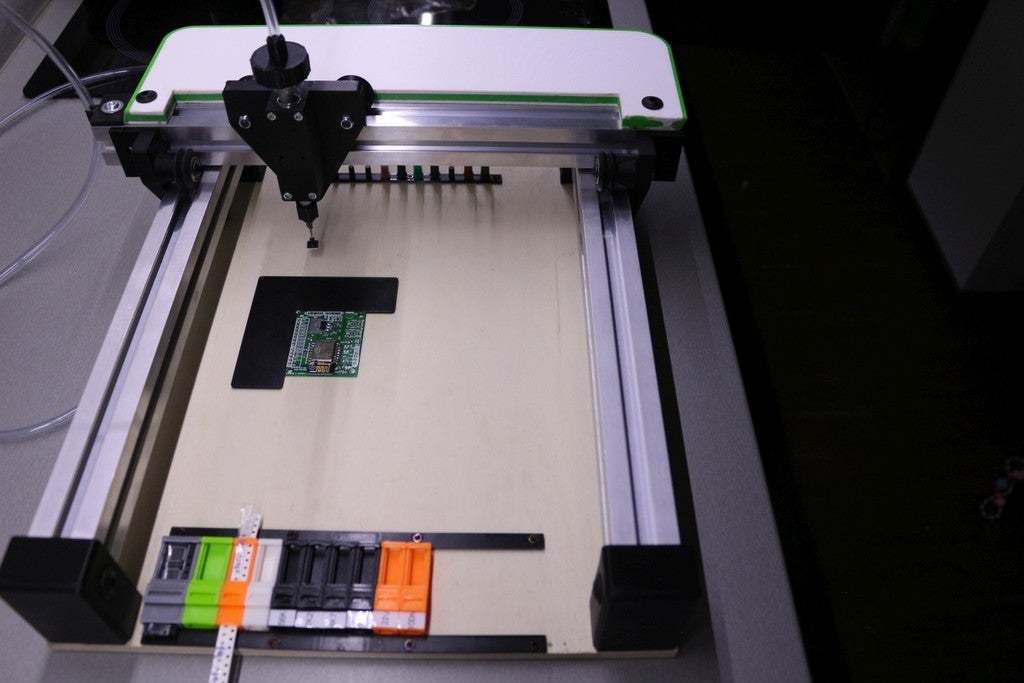

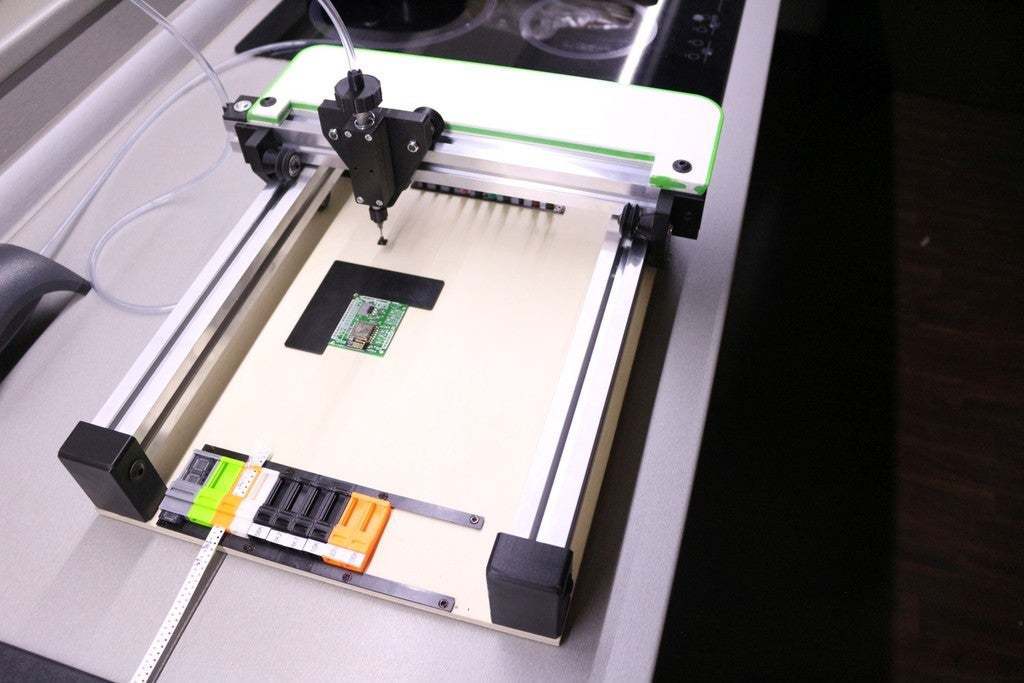

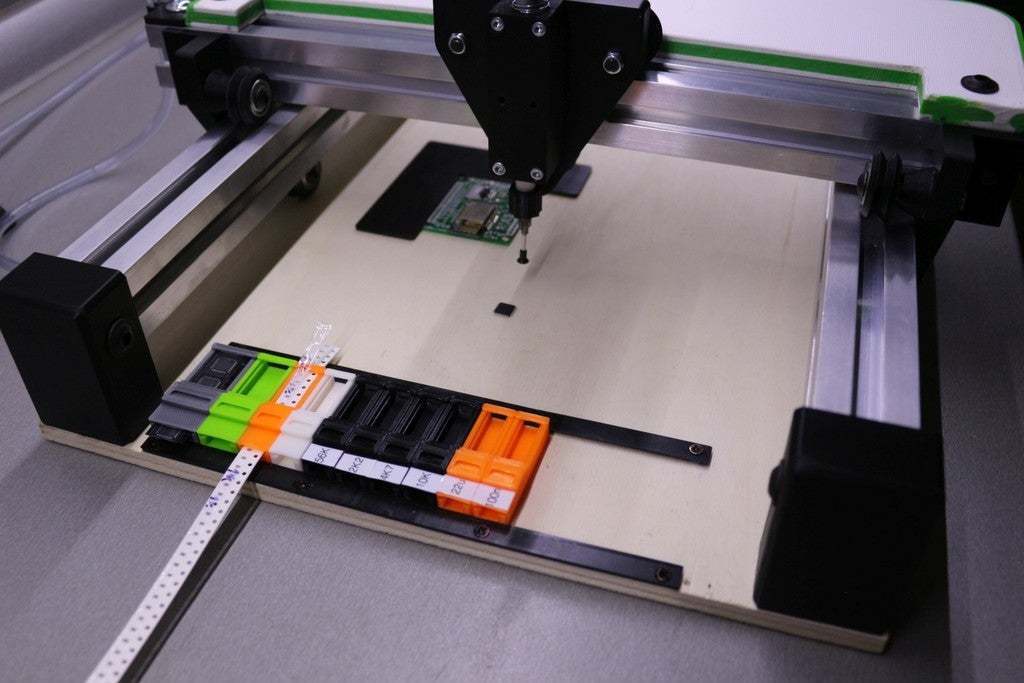

This is manual pick & place for SMD placement.

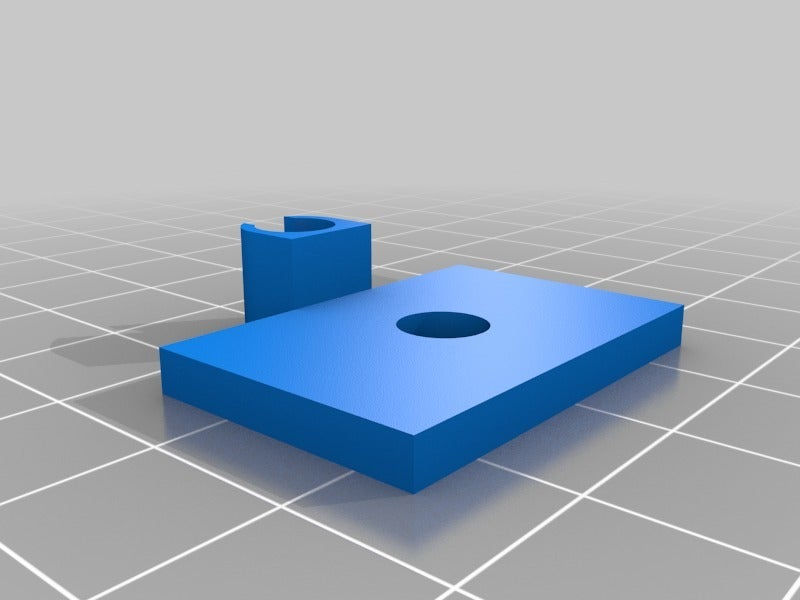

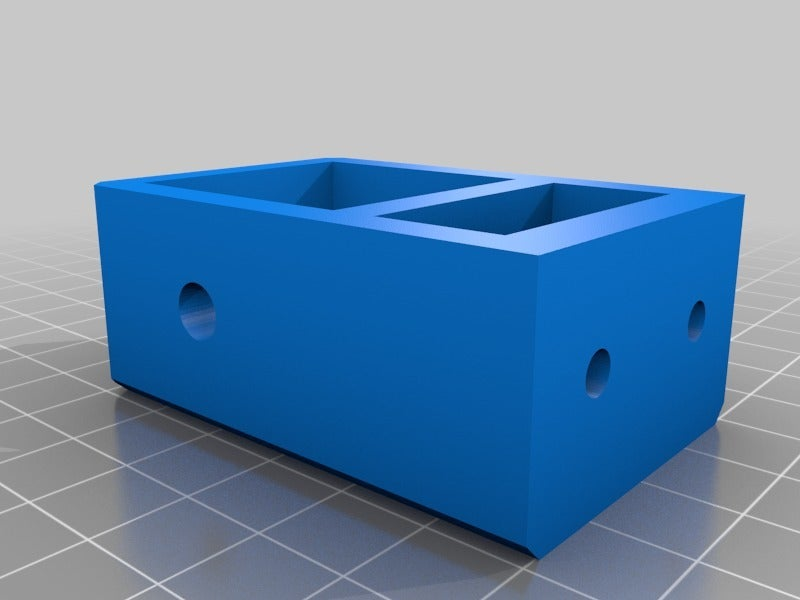

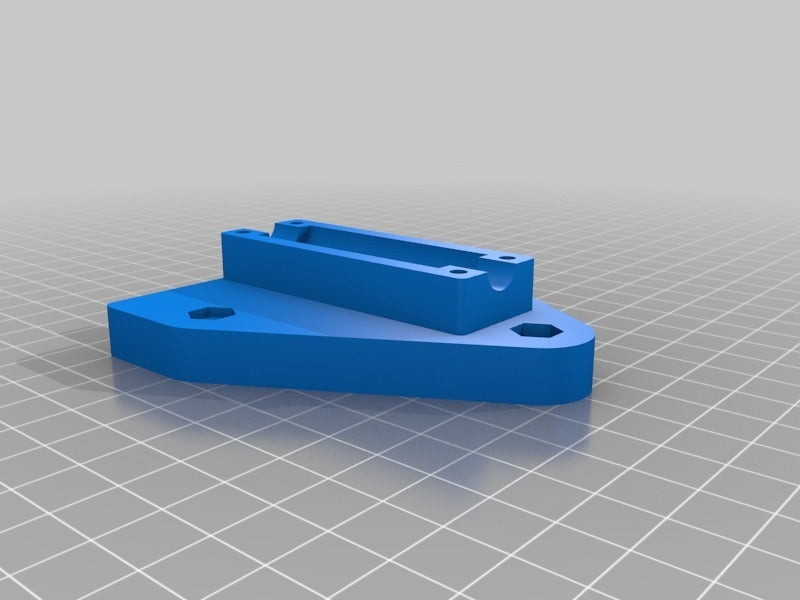

Printed parts:
1x center_plate_v0.3.stl
1x LM8UU_cover_v0.2.stl
2x side_plate_10mm_v0.3.stl

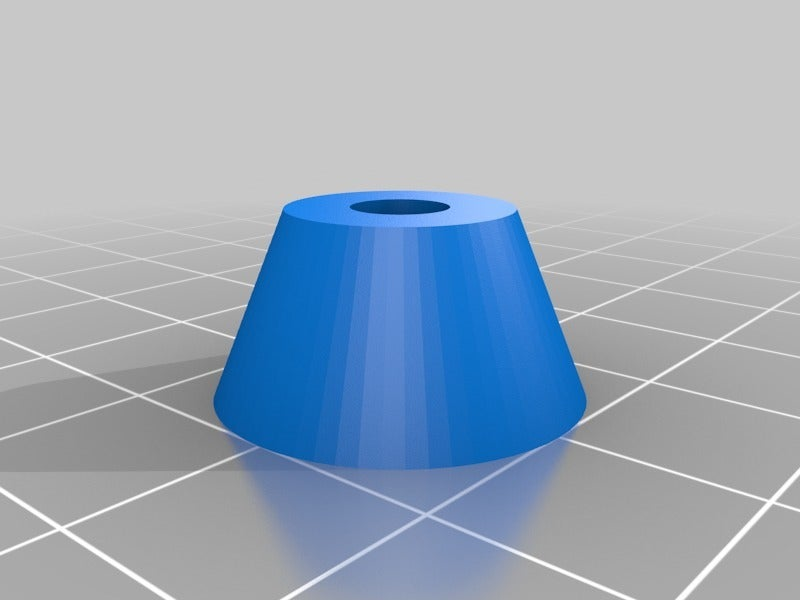

9x spacer_10.stl

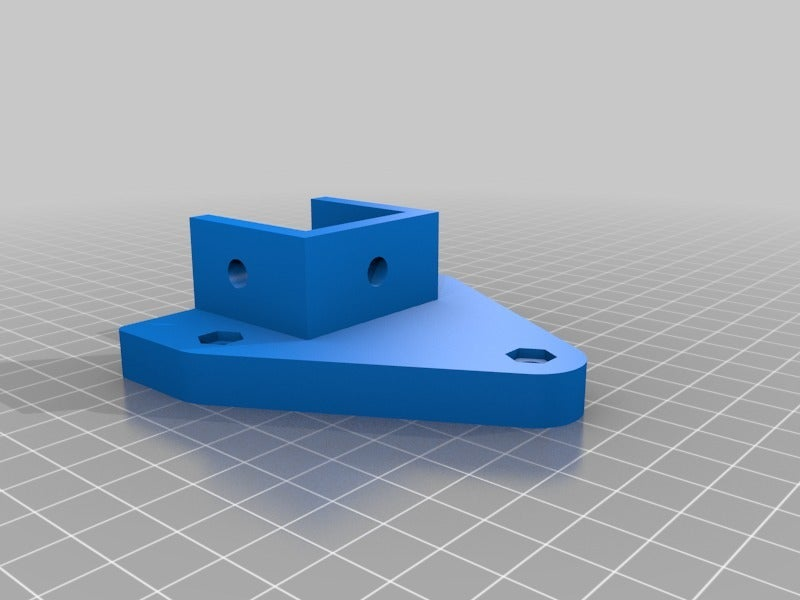

4x profile_bracket_v0.2.stl
1x hose_bracket.stl

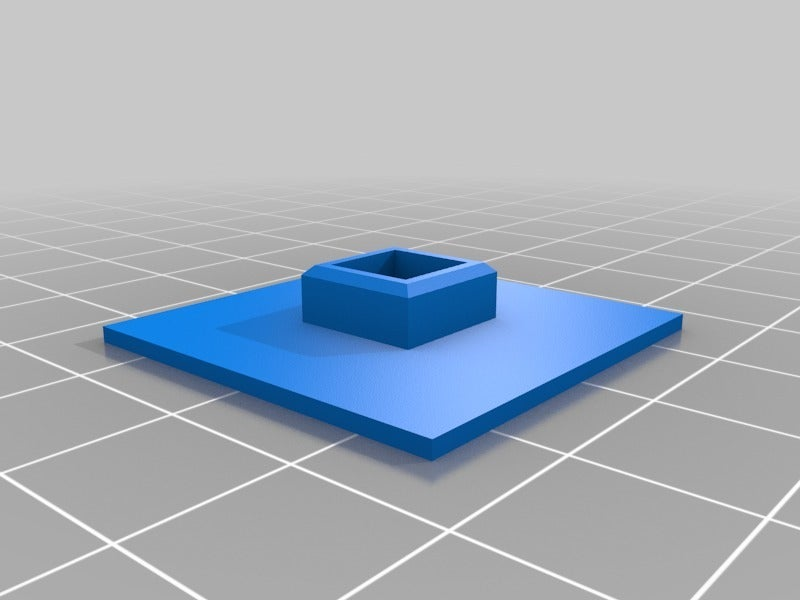

2x profile-cover.stl

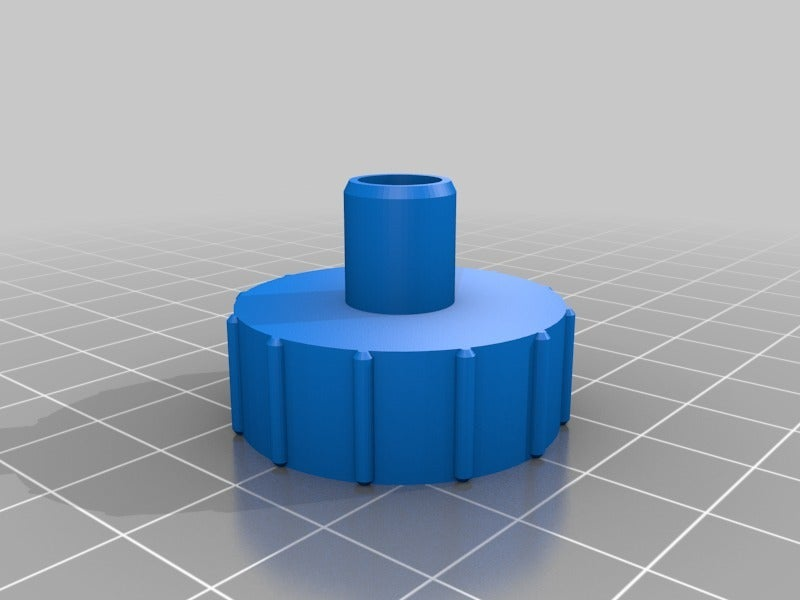

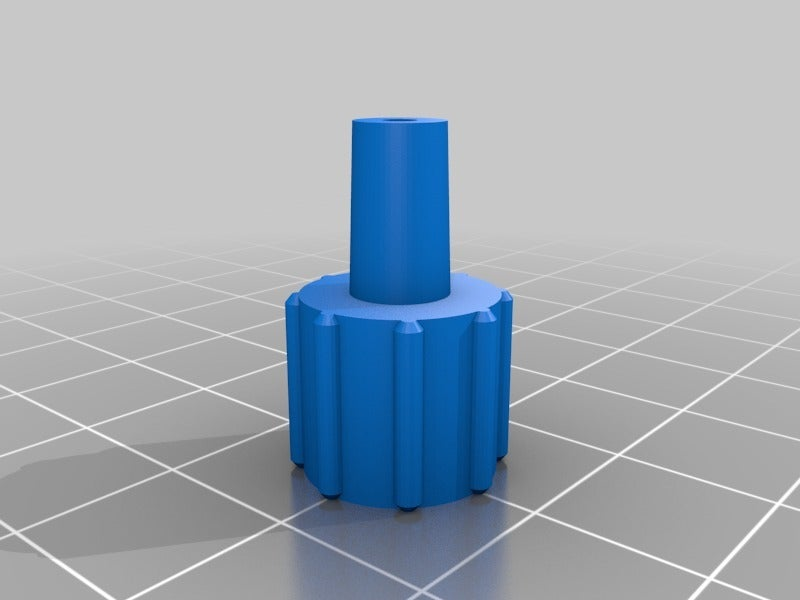

1x luer_adapter.stl
1x tube_end.stl
1x camera_bracket_v0.2.stl (optional)

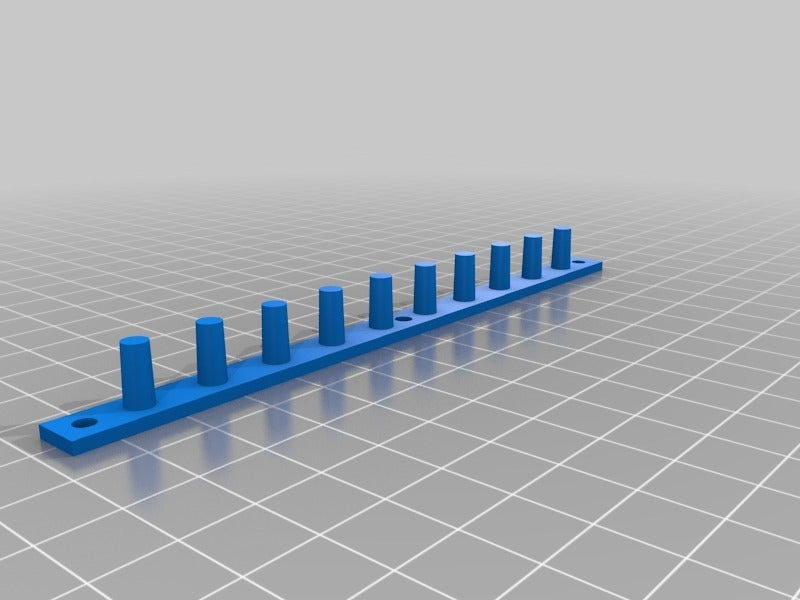

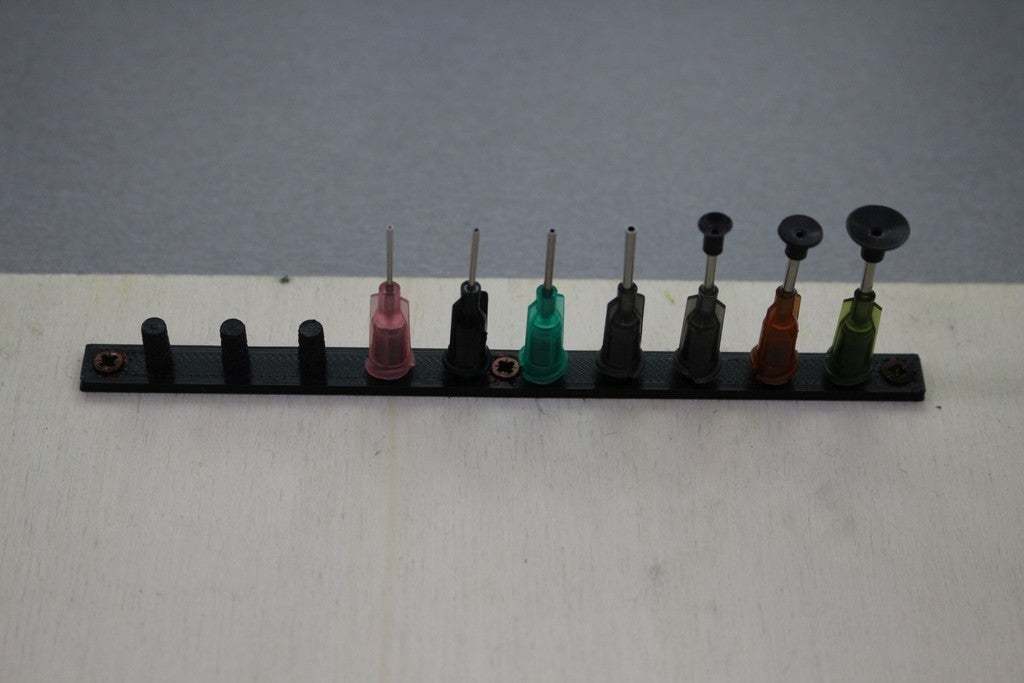

1x needle_holder.stl (optional)

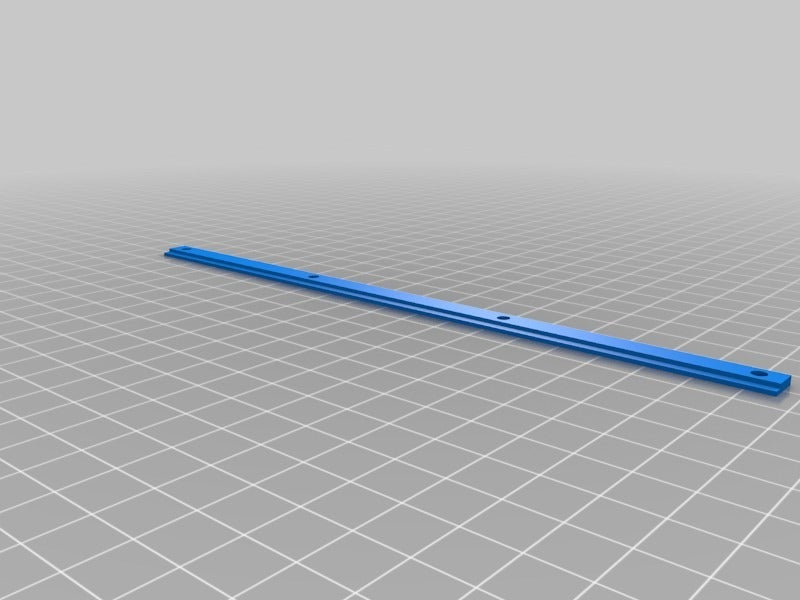

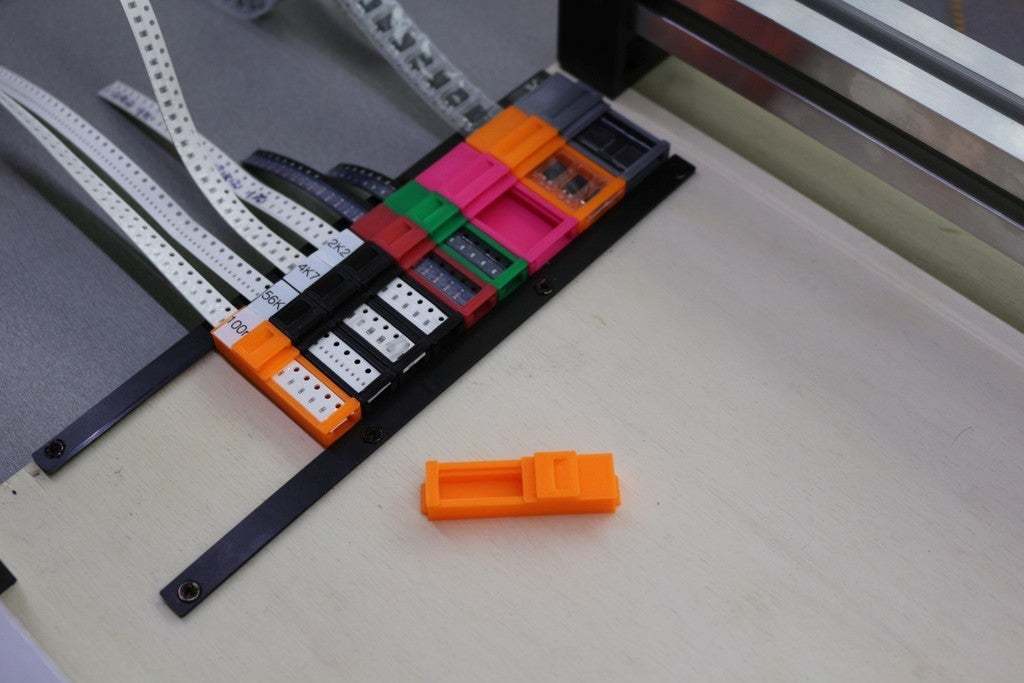

2x smd_feeder_rail.stl (optional)

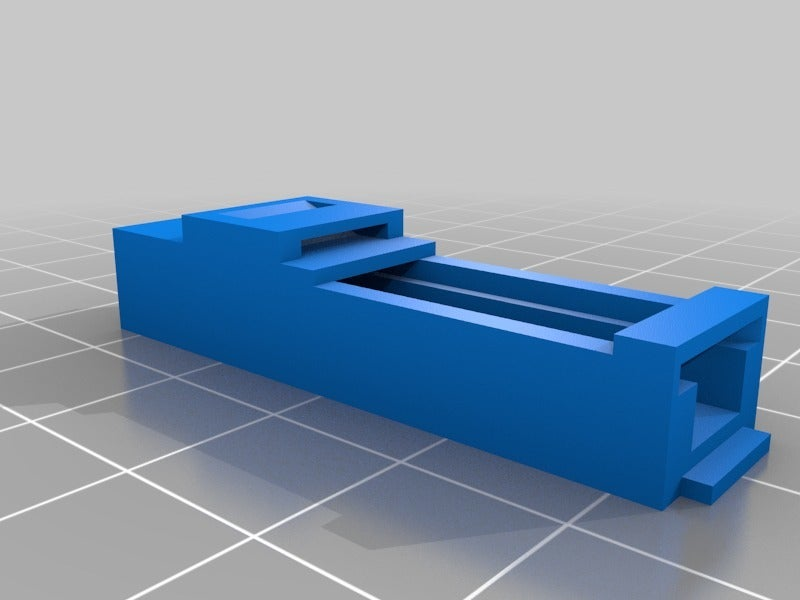

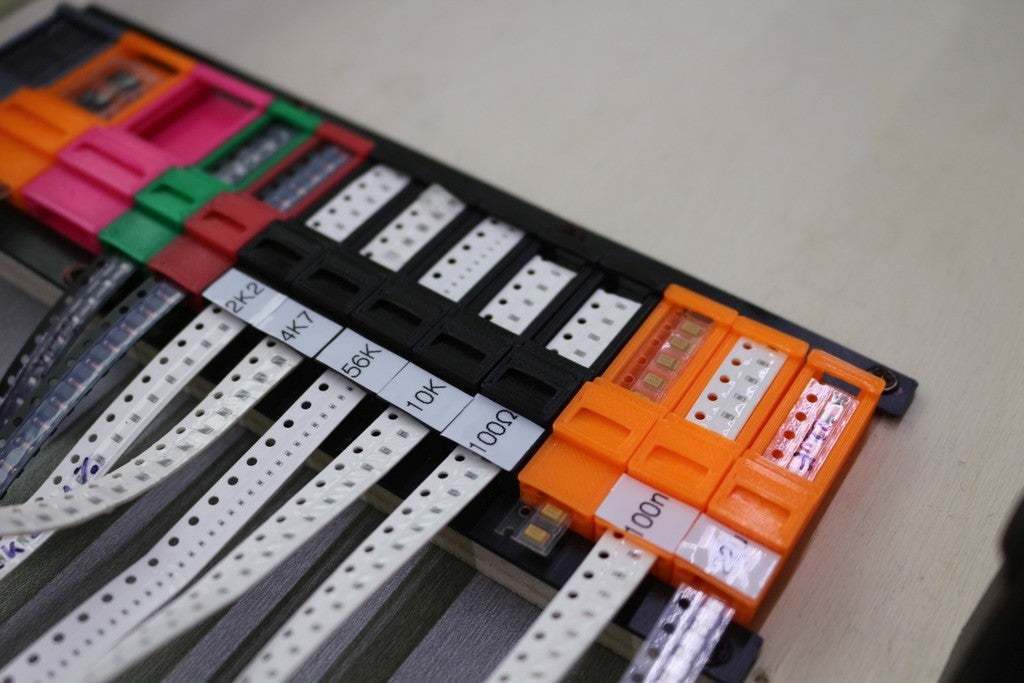

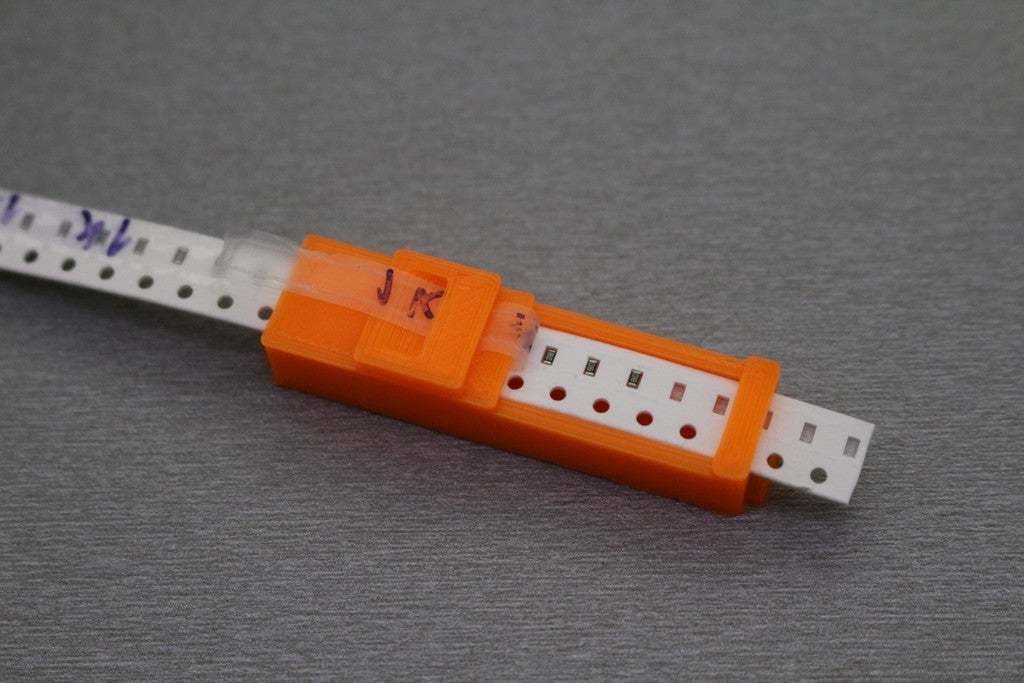

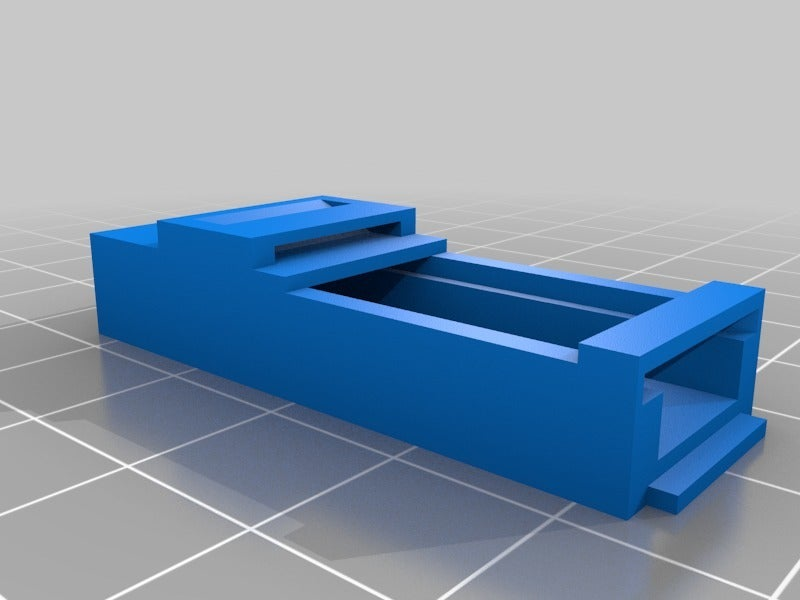

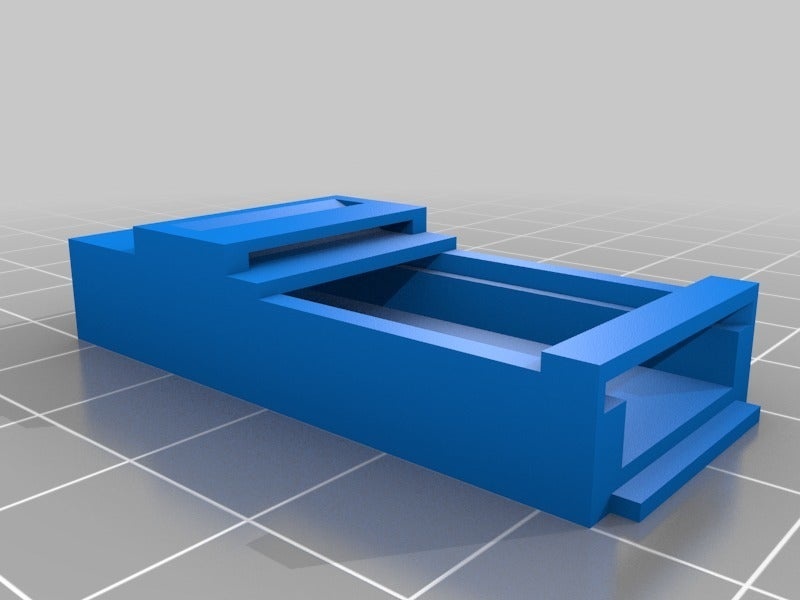

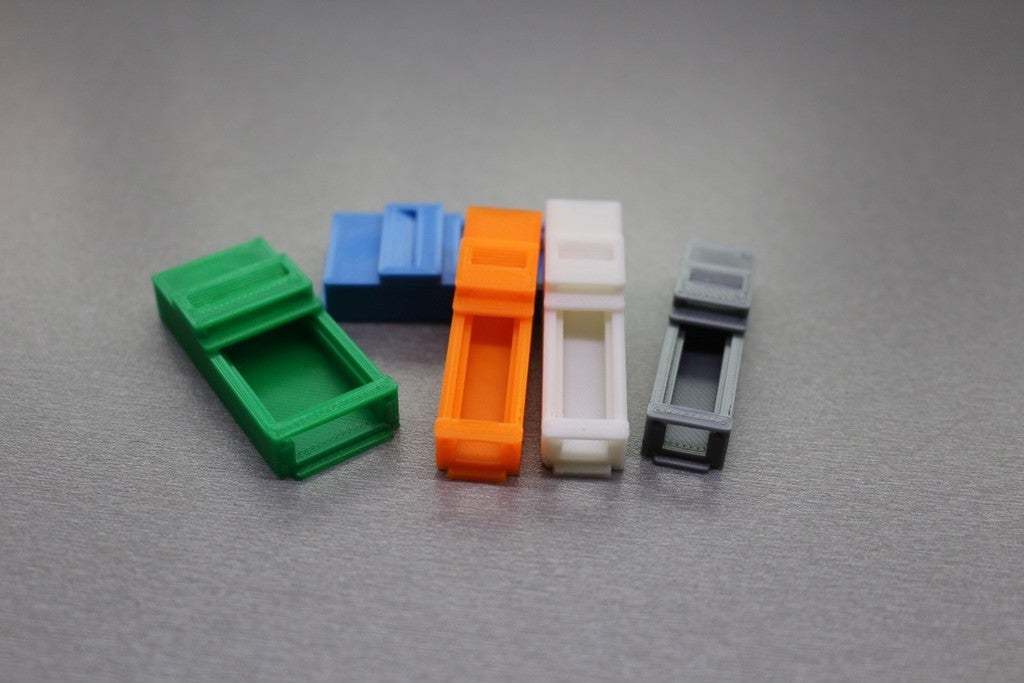

smd_feeder_x5mm.stl (optional)
BoM:
3x 3030 aluminum profiles (size is up to you)
1x playwood base (size depends on aluminum profiles size)
1x aluminum pipe 8x6x100mm
2x LM8UU
1x Ikea MATLUST (for hand rest/optional)
9x V-Grooved Wheels Aliexpress
8x M4 x 20
9x M5 x 35
9x M5 nylon nut
9x M5 washer
10x M6 x 12
2x M6 x 16
1x M6 x 10

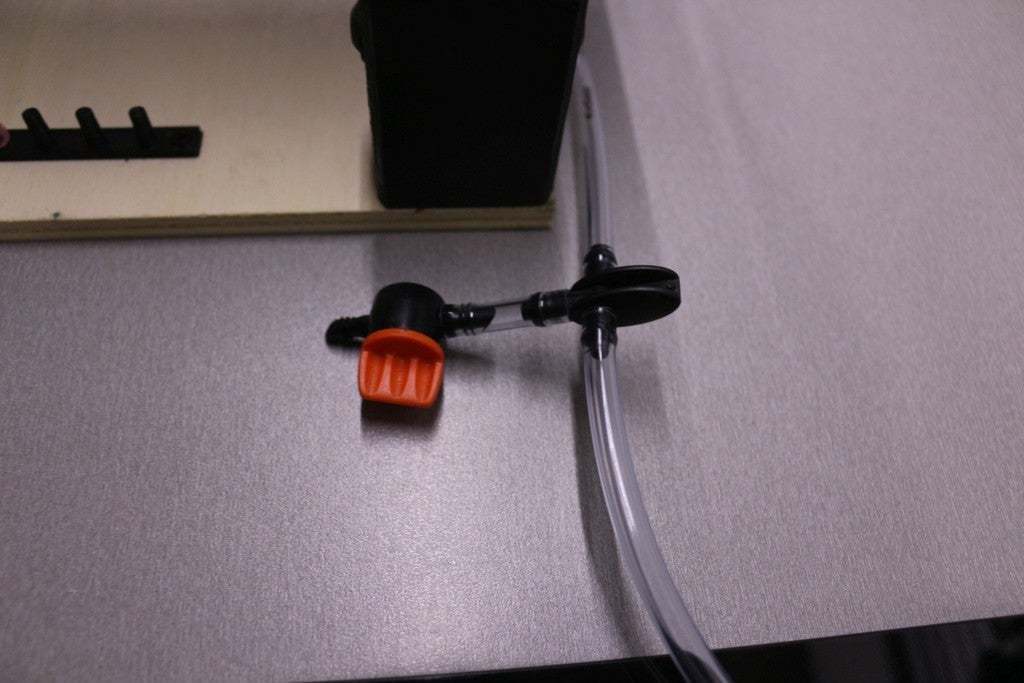

1x Modded Tetra Whisper Pump
1x Foot switch Aliexpress (for vacuum pump control)
2m Aquarium pipe
1x USB Microscope Aliexpress (optional)
- 3D file format: STL
- Publication date: 2020/11/02 at 20:05
