M3 Reinforced Hinge

Download free STL file M3 Reinforced Hinge • 3D printable design, EnginEliDownload free STL file M3 Reinforced Hinge • 3D printable design, EnginEliDownload free STL file M3 Reinforced Hinge • 3D printable design, EnginEli
Download free STL file M3 Reinforced Hinge • 3D printable design, EnginEli

Did you 3D print this model?

3D model description

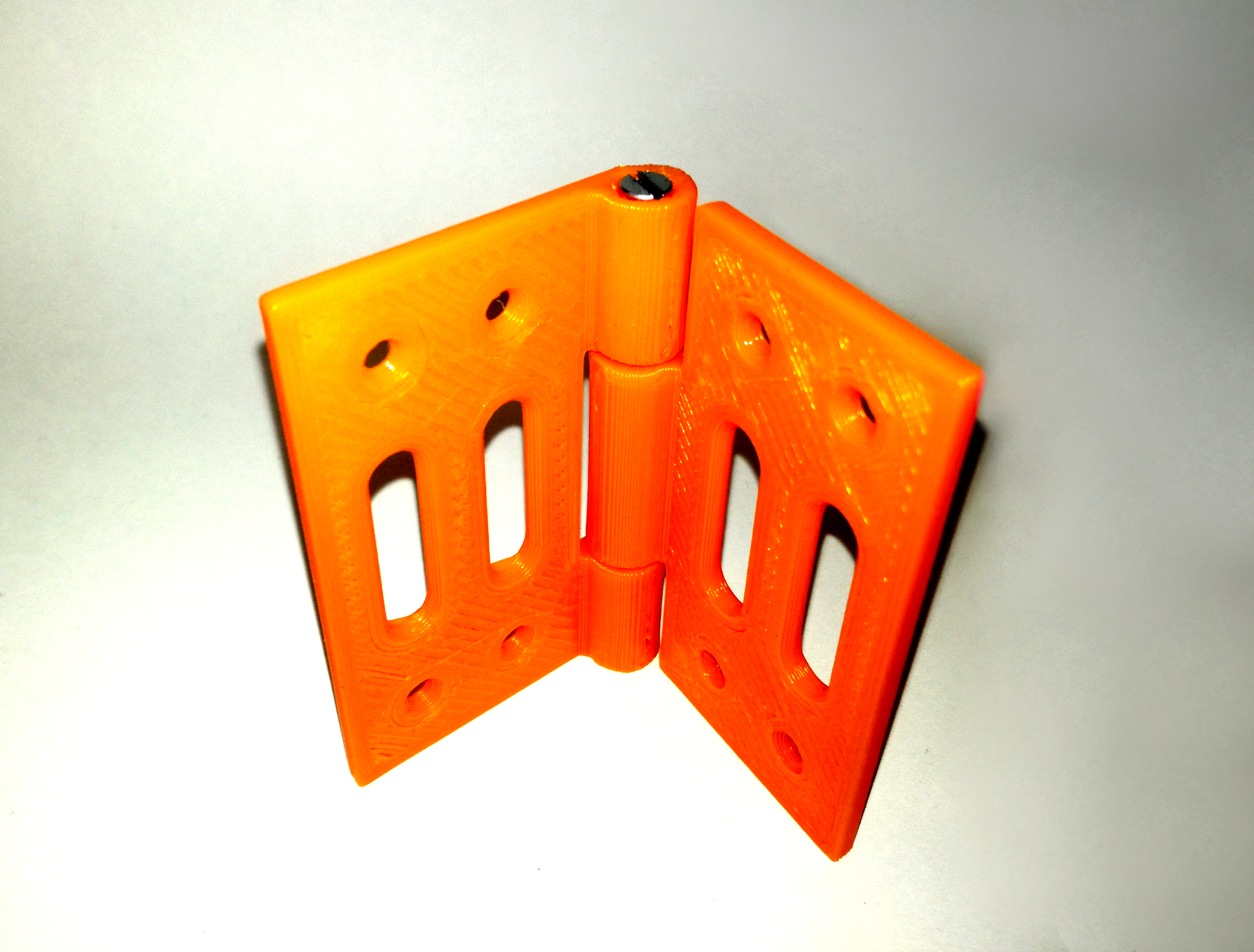

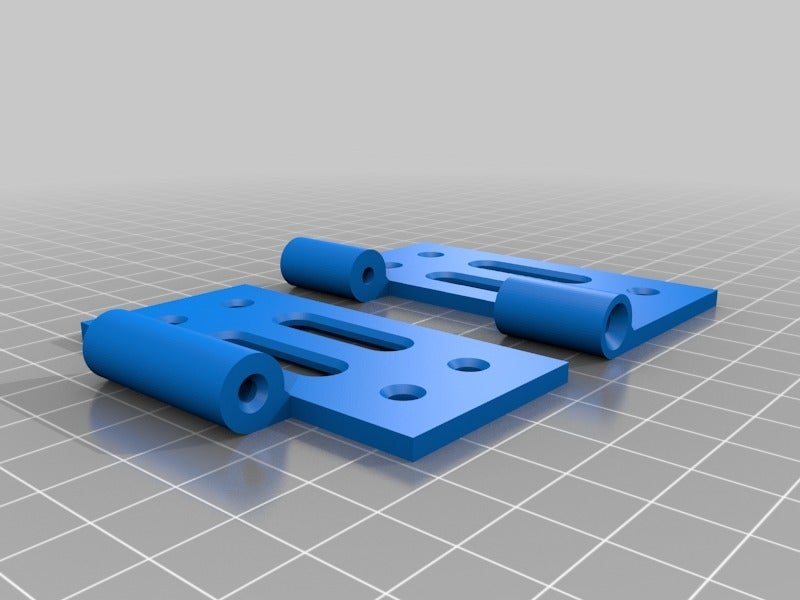

Hi everyone, this is my design for a simple and strong hinge.
you will need two M3x25 screws for each Hinge.
Range of motion is a little more than 270°, and the coupling results frictionless (if you don't screw the screws to the very end, making the rotation impossible) and really durable.

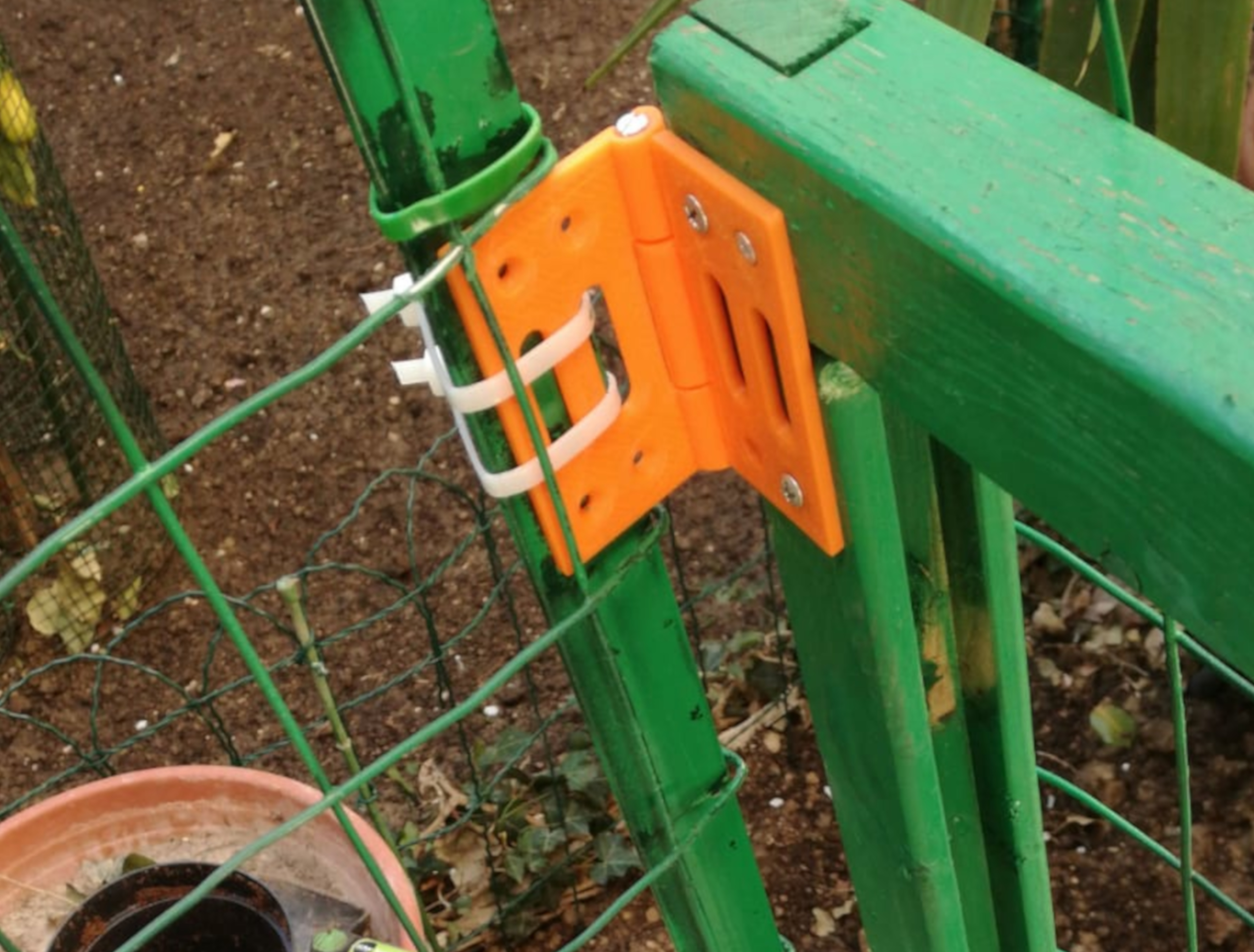

You can use both screws or cable ties to attach the hing to supports.

  • 3D file format: STL
  • 3D model size: X 99 × Y 70 × Z 10 mm

Tags

Creator

Designs 19
Downloads 838
Sales US$13
Followers

Hi everyone!
I'm an italian student in Mechanical engineering, and enthusiast in rapid prototyping.
I like to design and print working stuff of any kind!

License

CC BY
