Loupe with Led Light

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.4k views
  • 8 likes
  • 30 downloads

3D model description

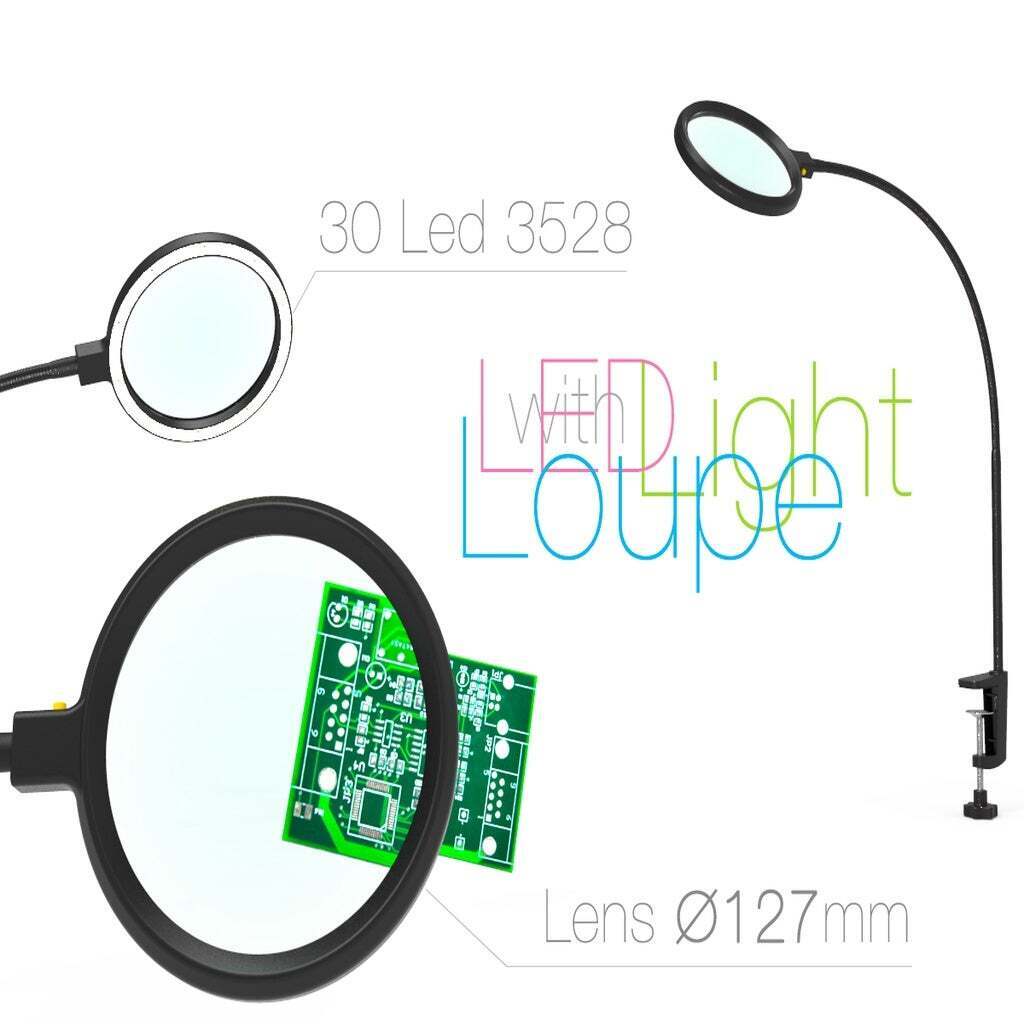

#Loupe with Led Light

The circuit is not complicated, only 3 LEDs (SMD 3528) are connected in series with a 120 ohm resistor (SMD 0805). These segments are included in a parallel circuit with 12V power. Only 10 segments. As a result, we get excellent light without overheating. The brightness will be 240 lumens, which completely covers the task of lighting from the magnifier. The PCB can be ordered here: https://jlcpcb.com/ only $2.00 In the near future, I am also going to order PCB, and later I will post gerber files. In the meantime, you need to print the case ...

Oh yes! There are many finished products of this kind on the market, and you can buy them. But I do not like them, so I made my own version.

##Parts links below:

Lens 127mm (3X, 5X, 8X, 10X) - http://ali.pub/3r7fy6
Gooseneck Light Clips http://ali.pub/3r7g13
Hard metal hose with gooseneck (200mm/400mm M10) - http://ali.pub/3r7g47
Threaded tube adapter (M10 15mm) http://ali.pub/3r7g6j
SMD LED 3528 http://ali.pub/3r7g83

Resistor SMD 0805 120R - http://ali.pub/3r7gaf
Power Micro Switch (7*7 LOCKING) http://ali.pub/3r7gcd
Button Switch Cap - http://ali.pub/3r7gfv
Power-Adapter 12v 1A - http://ali.pub/3r7gj6

##Links to used tools:

alt Donate now alt Donate now

My some other things:

alt Grinder. AC Motor
alt Filament Runout Sensor v2 alt Loupe with Led Light alt Soldering Iron Stand alt Rework of the X-Y axis table Limb alt Sanding Tool Make it snappy!
alt   Linear X-Axis Stabilizer for Prusa i4 alt Rework of the X-Y axis table alt Grinder. AC Motor alt Box Collet for mini Lathe alt Led Light for Extruder
alt Led Light for 3D printer alt Desk Grommet with USB Charger alt O-Ring for Grinding Jaws Mini Lathe alt Universal Machine for Mini Lathe alt Pulley Guard and Flywheel for mini Lathe
alt Stand for Dial Indicator alt Die Nut Holder for Lathe alt Qi Wireless Charger alt Disc Sander GIANT alt Knob for nut M8. Print with nut insert
alt Cable holder and other for Prusa i4 alt https://www.thingiverse.com/thing:3782821 alt Linear Motion for Prusa i4 alt Fan 50mm Support alt Filament Runout Sensor
alt Flat cable organizer alt Knobs Collection alt Spool Holder alt 3D Touch for Prusa i4 alt Clamp for firmware controllers 8 pins
alt Clamp for firmware controllers 4 pins alt Stencil Printer alt Microscope Stand alt Container for lens and filters alt Sanding Tool
alt Stand Press. 2 in 1 alt Solder paste and flux Dispenser alt Handle for Hand Drill alt Broken Clamp Repair alt Portable Magnetic Stirrer
alt Rotary Tumbler alt Vibratory Washing Machine alt Tripod GIANT width Masked SLA 3D Printing Technology alt Clamp for vertical use. Photo and video shooting alt Rotary table for painting
alt Knob for broken Clamp alt Solder Spool Holder with Masked SLA 3D Printing Technology alt Solder Spool Holder alt Nadelfeile Handle alt Knob for Vise
alt SMD Soldering Clamp alt Wires Organizer alt Knob Bolt M4 alt Setsquare alt SMD page holder clips
alt Screwdriver Сarrot alt iPhone 7 Stand alt Table SAW alt Mini Disc Sander D50mm alt Solder paste and flux dispenser
alt Wire Spool holder alt Clamp for iPad 4 on a tripod alt Ring adapter for a drilling stand under Hilda alt inlet for fan 50 mm alt PCB arm for Arduino UNO and MeanWell EPP-100-24
alt Touch sensor Z axis alt Vise for Proxxon MF70 alt Studio lighting for macro photography (update) alt Spool transformer

alt FB

  • 3D file format: STL
