Fairy Litho

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 931 views
  • 1 like
  • 2 downloads

3D model description

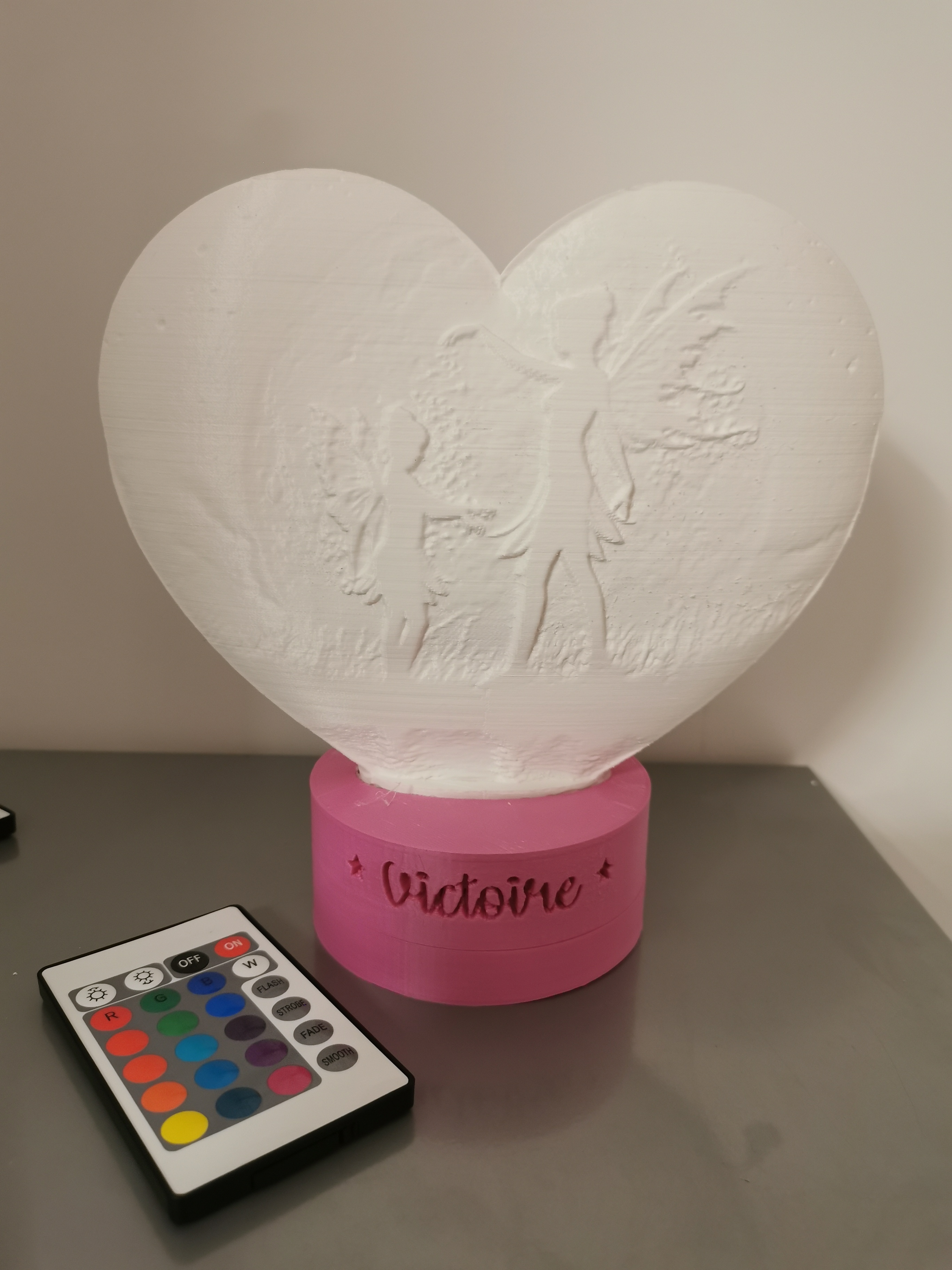

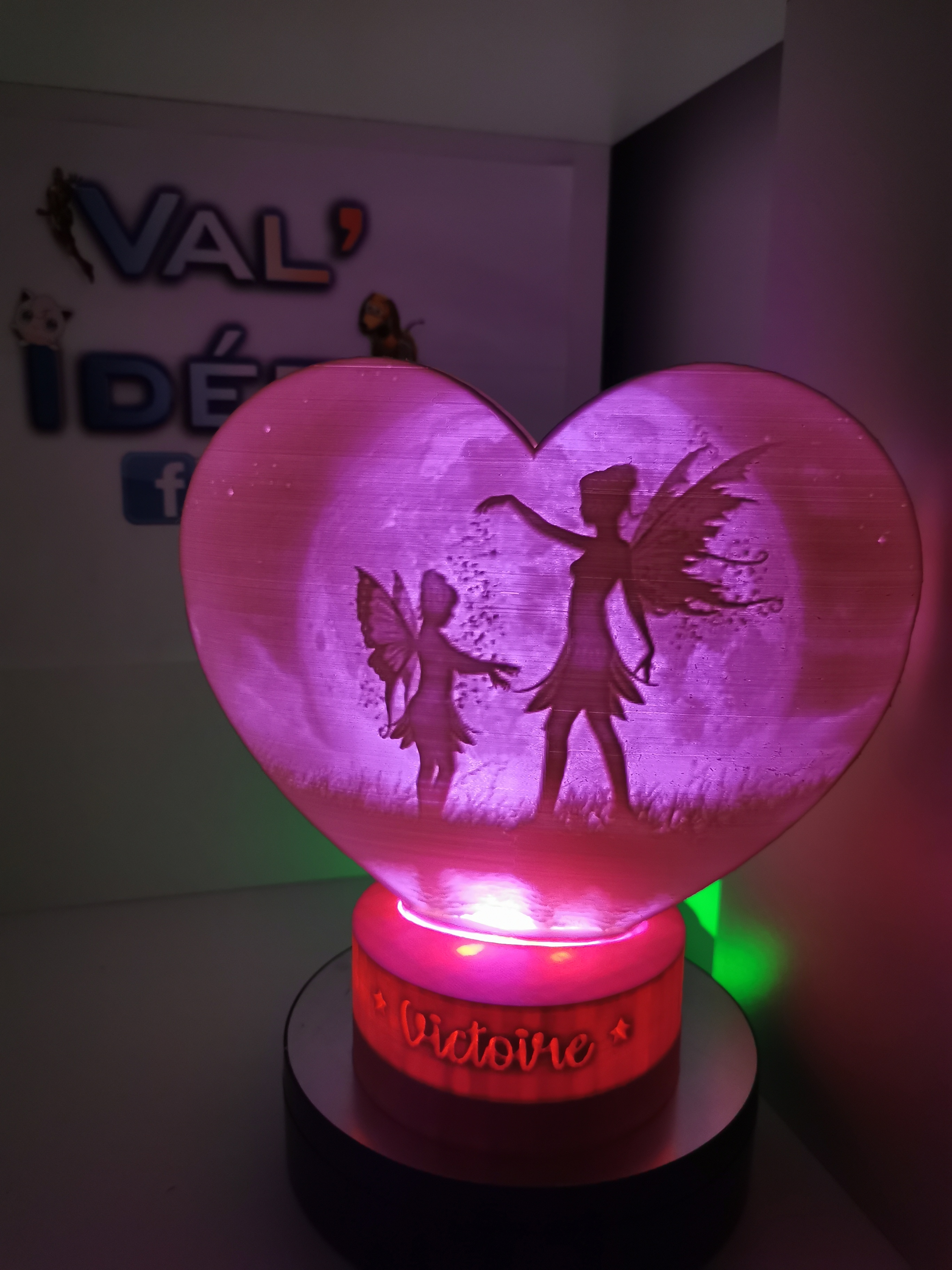

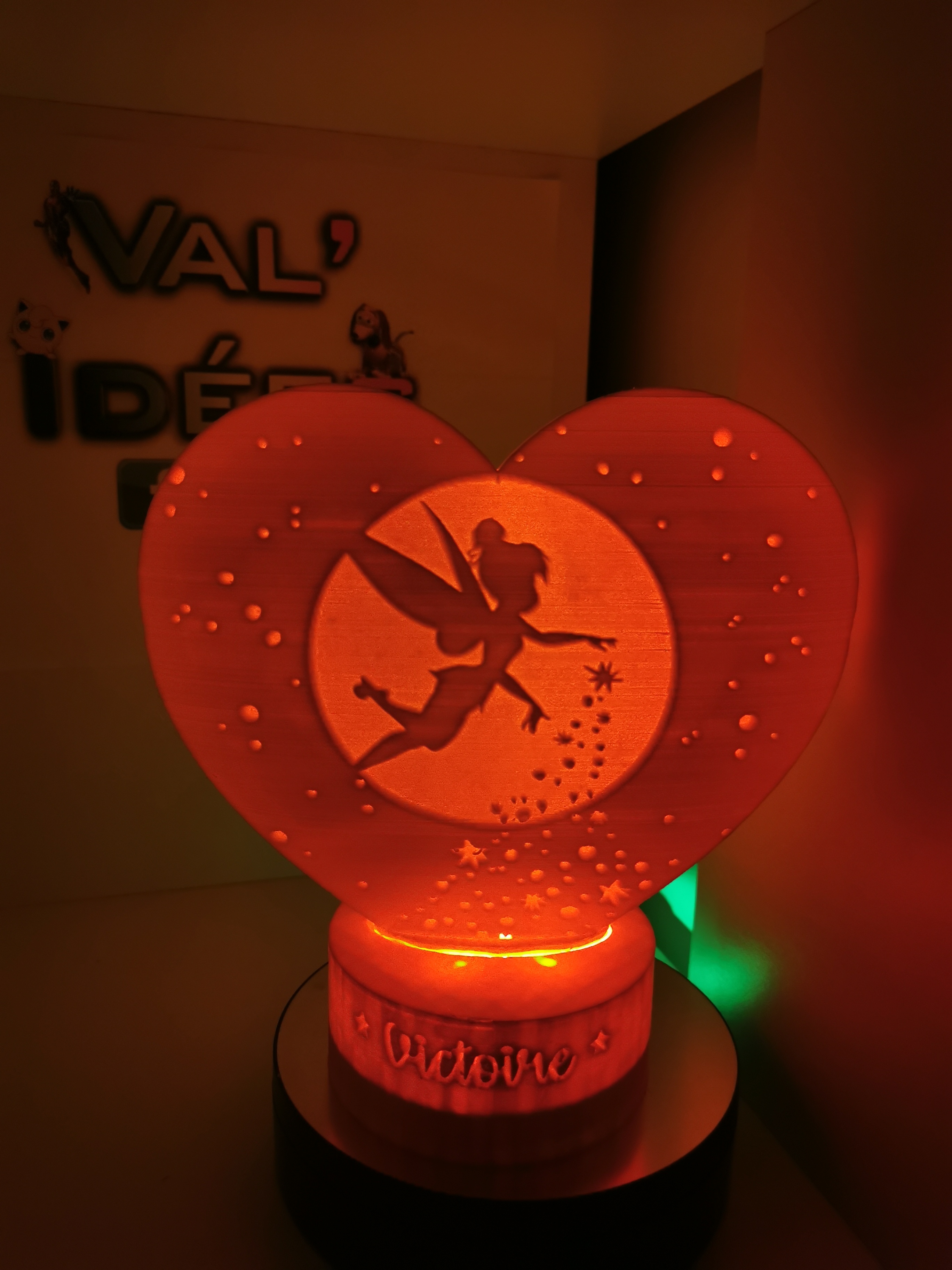

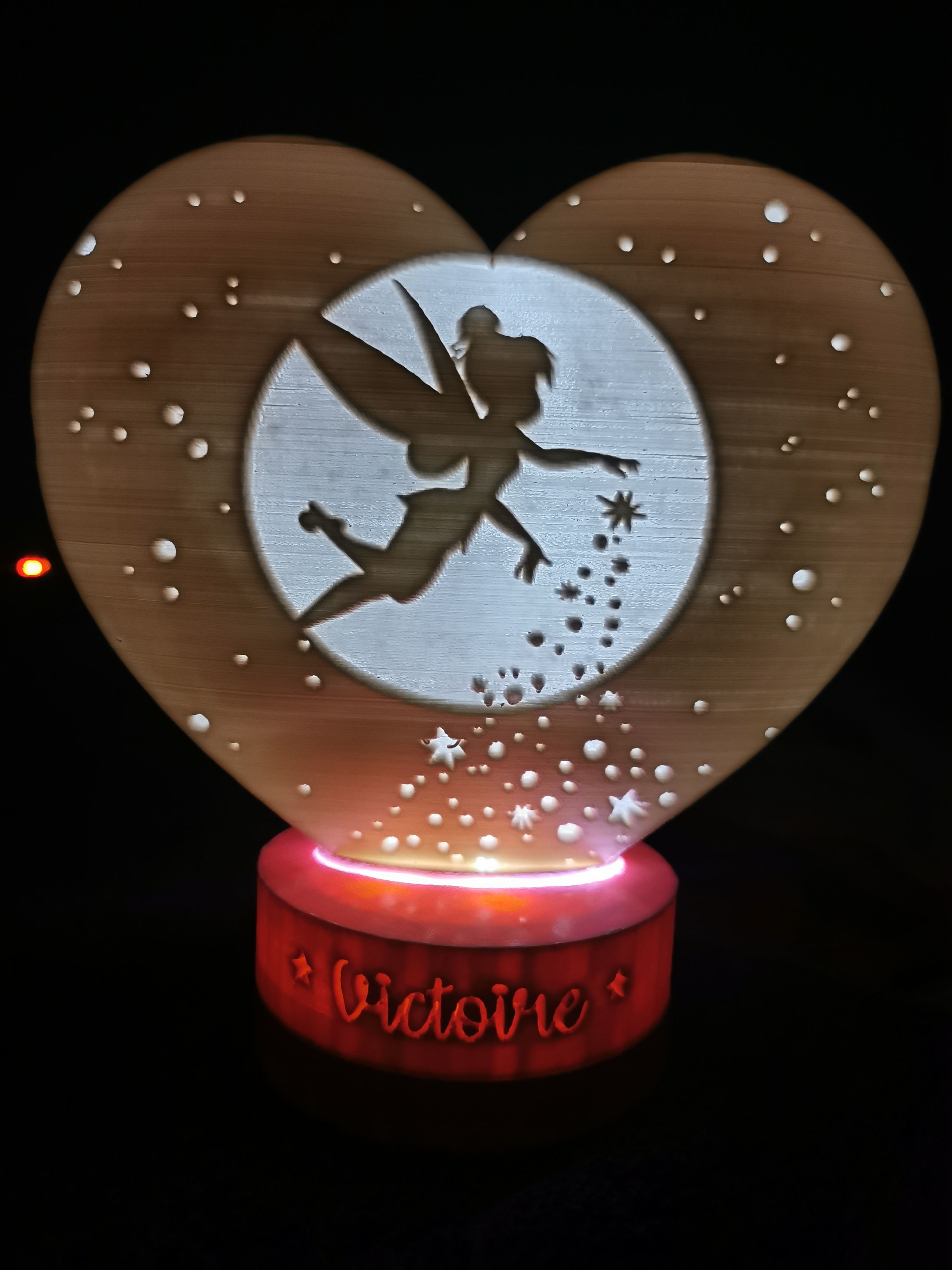

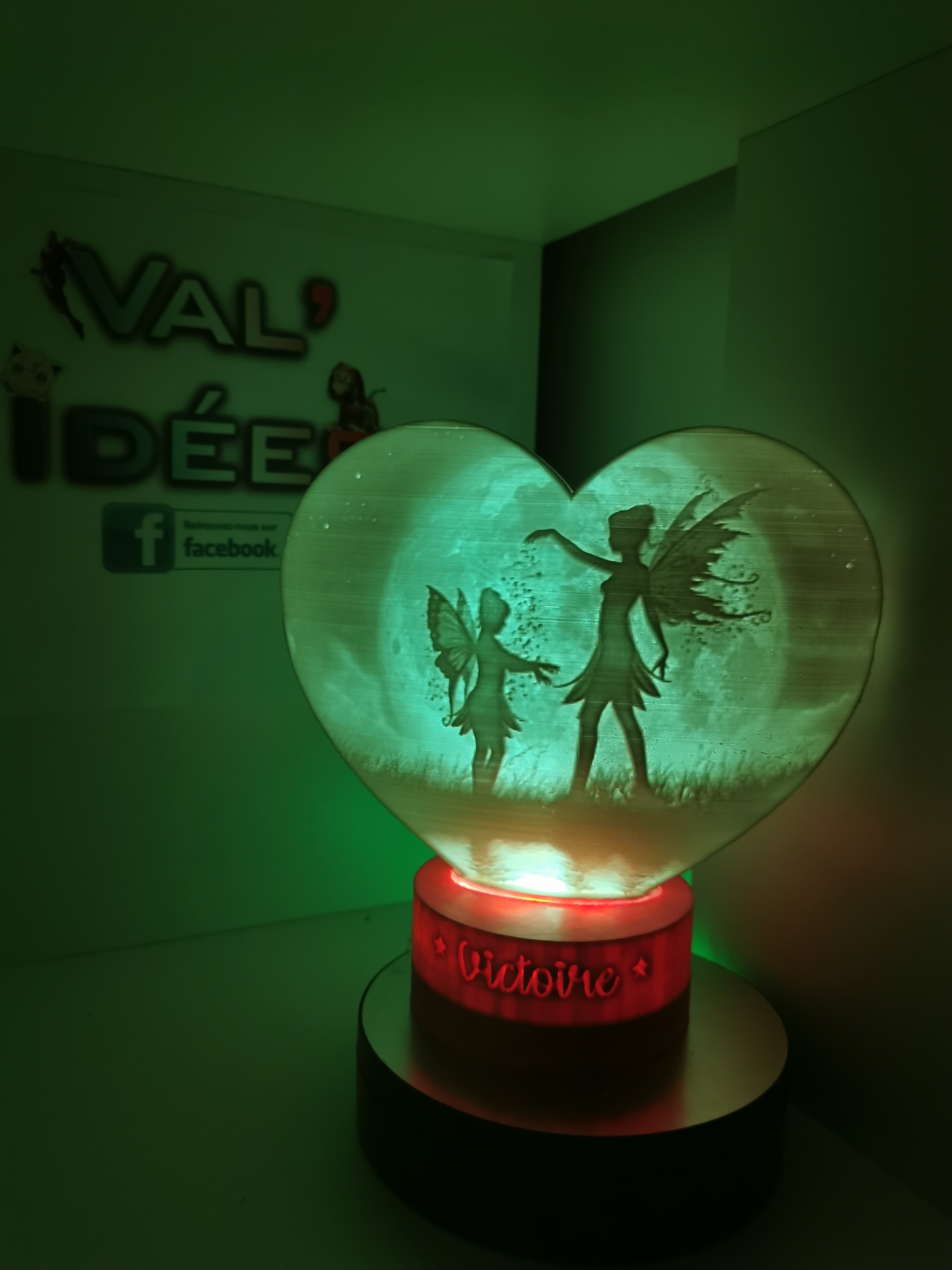

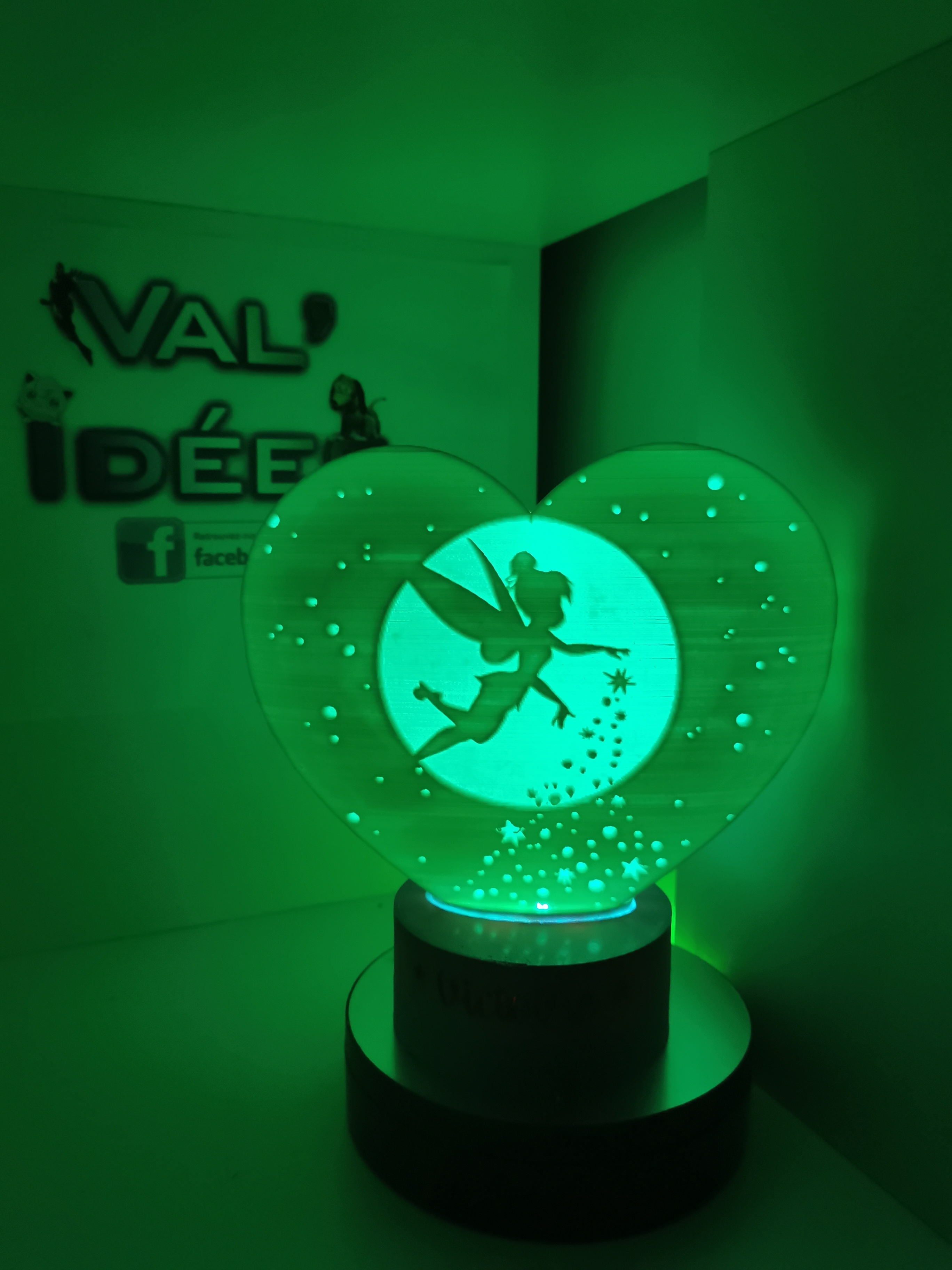

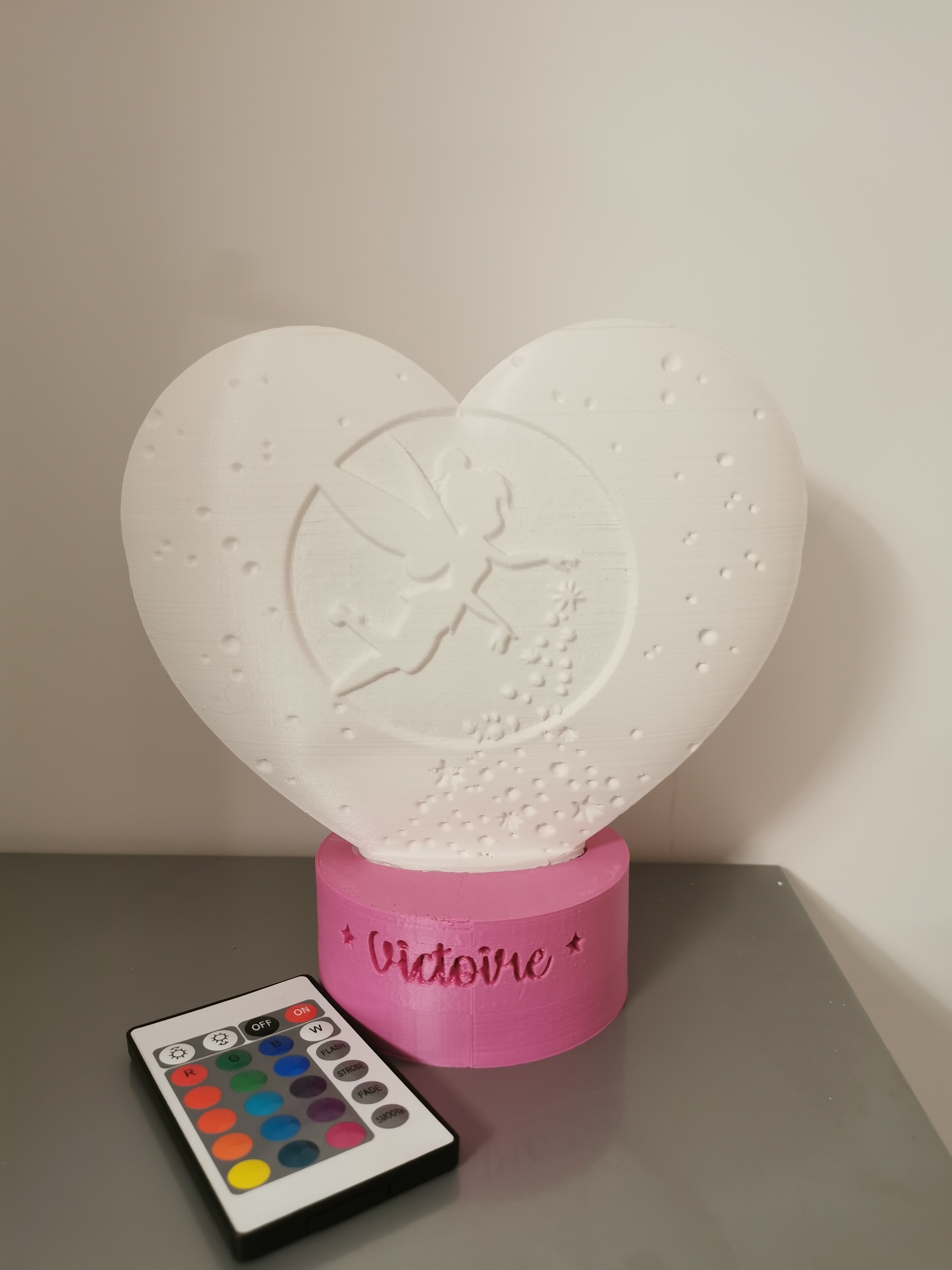

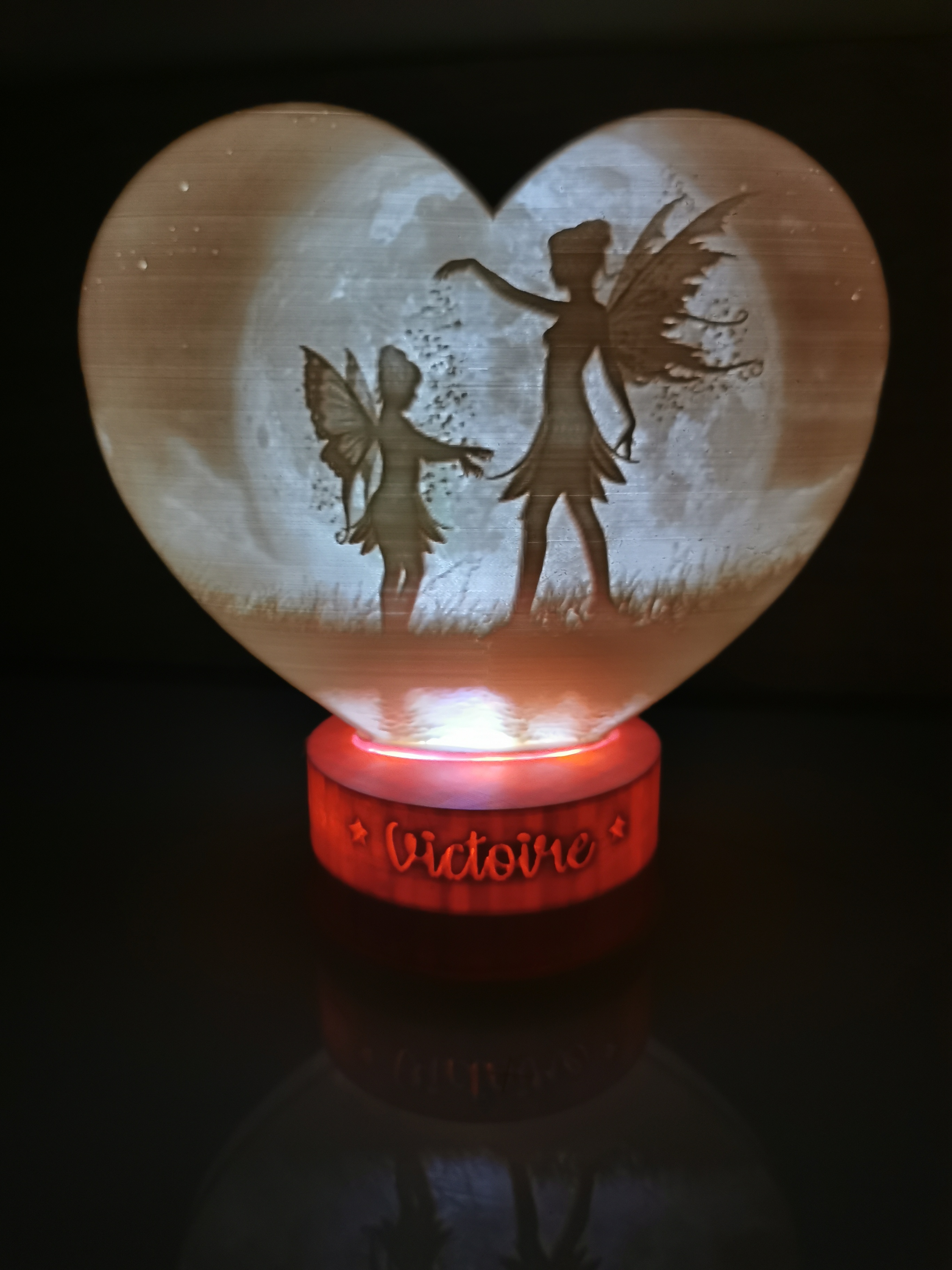

Lithophanie / lamp / nightlight on the theme of fairies in the shape of a heart with its base ideal VISSABLE as a decoration or gift for children.

DESIGN:

the heart / fairy part is to be printed in litho mode.

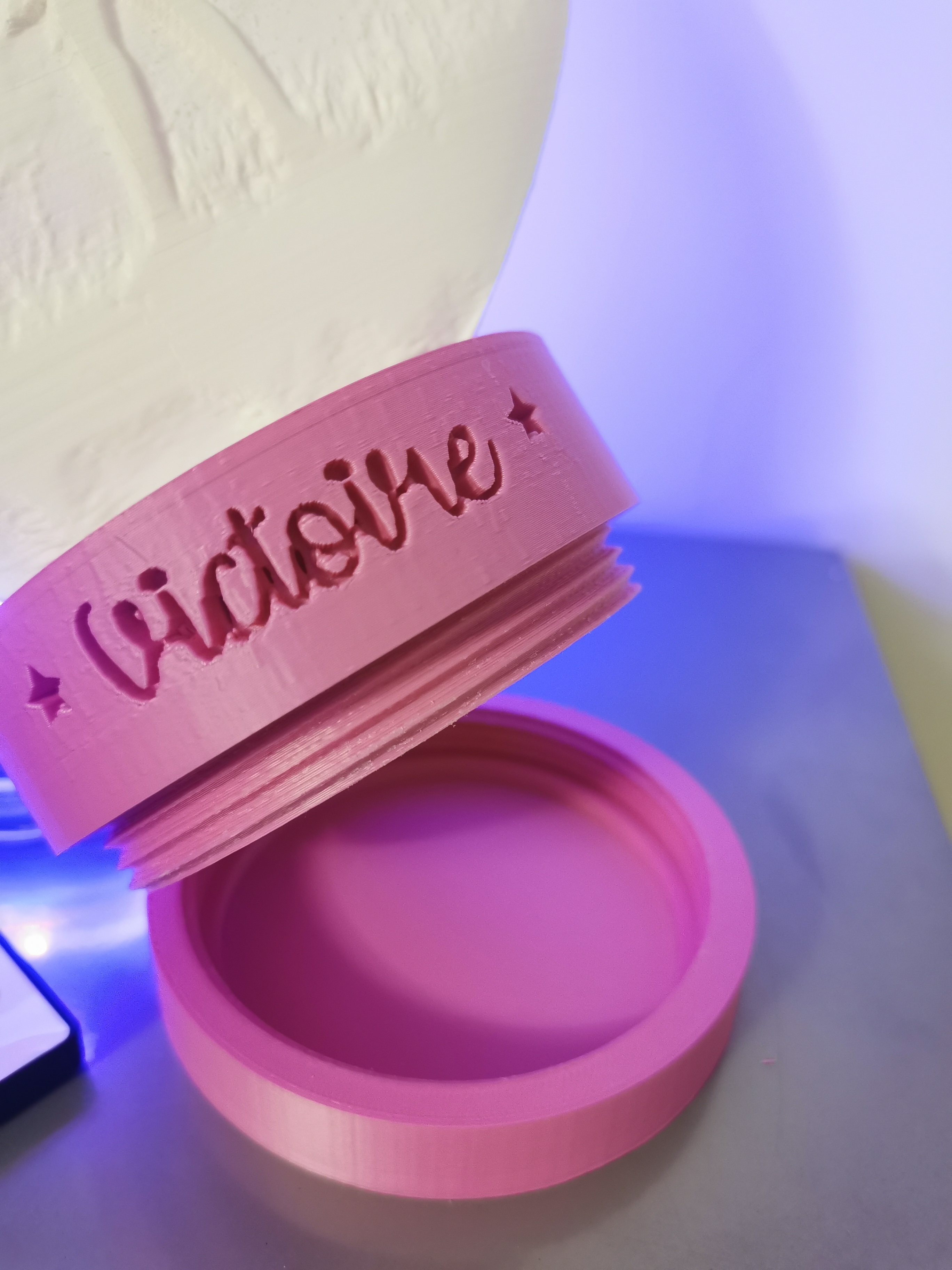

the base (with customizable first name under 3D builder or other relief software) is to be printed normally.

The file contains a blank base without first name with no screw.

The whole is to be glued together, with hot glue for my part.

LIGHTING / LIGHT :

for this creation, I made a base big enough to put different kind of lighting.

For my part, I use round led spotlights for pscine / spa / jaccuzi with remote control that you can find on sites like Amazon, Ali, ... With dimensions of 70mm x 28mm

Good print to you!


3D printing settings

printing in 2 parts : lithophanie and base

Under Cura with a Litho profile for the top and normal for the bottom.

Here is mine:

FOR THE LITHO:

Layer height: 0.12

Initial layer height: 0.2

Line width 0.4

Line width initial layer: 100%.

Number of wall lines: 999

thickness top/bottom : 0,6

Top layer : 0

Lower layers: 0

Filling density: 0%.

Gap distance: 0mm

°C : 205

bed : 55

Printing speed: 35mm/s

External wall speed: 30

inner wall speed 30

displacement: 80

initial layer 35

skirt/edge: 35

Adhesion: edge

width : 10 mm

lines : 25

3D printer file information

  • 3D design format: 3MF Folder details Close
    • Bas socle pas de vis plein avec soustraction diametre 72.3mf
    • Haut socle pas de vis plein avec soutien pour litho qui fait 65 x 30 ovale .3mf
    • Litho fée avec soutien.3mf

    Learn more about the formats

  • Publication date: 2021/03/07 at 22:19
