Light screening cone

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 846 views
  • 2 likes
  • 11 downloads

3D model description

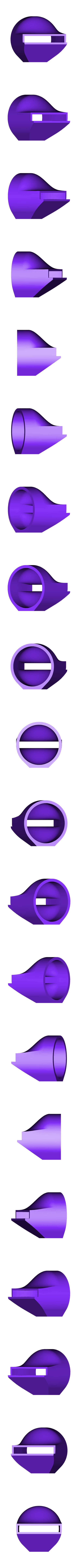

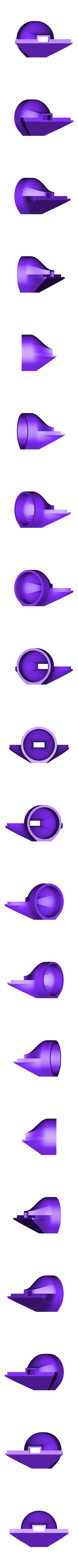

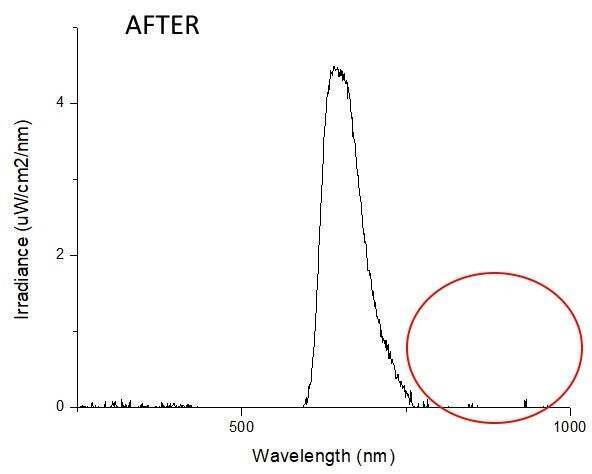

As part of the research of the ChIP lab on Luminescent Solar Concentrators (LSCs), we needed something to improve our measurements. Indeed, light from the solar simulator was coming directly to the optical fiber, without passing through the LSC. We hence needed something to cover both the edge of the LSC and the cosine corrector to which the optical fiber is linked. These two 3D-printed cones, designed by Andrea, answered our problems.

Team: Francesca Corsini, Sébastien Roth & Andrea Mantelli

  • 3D file format: STL

Tags

Creator

Designs 29
Downloads 23.4k
Followers 334

+LAB is the new 3Dprinting lab of Politecnico of Milan. Our team is composed by designers and engineers conducting academic research on this amazing technology!

License

CC BY SA
