LED Matrix Scoreboard

3D model description

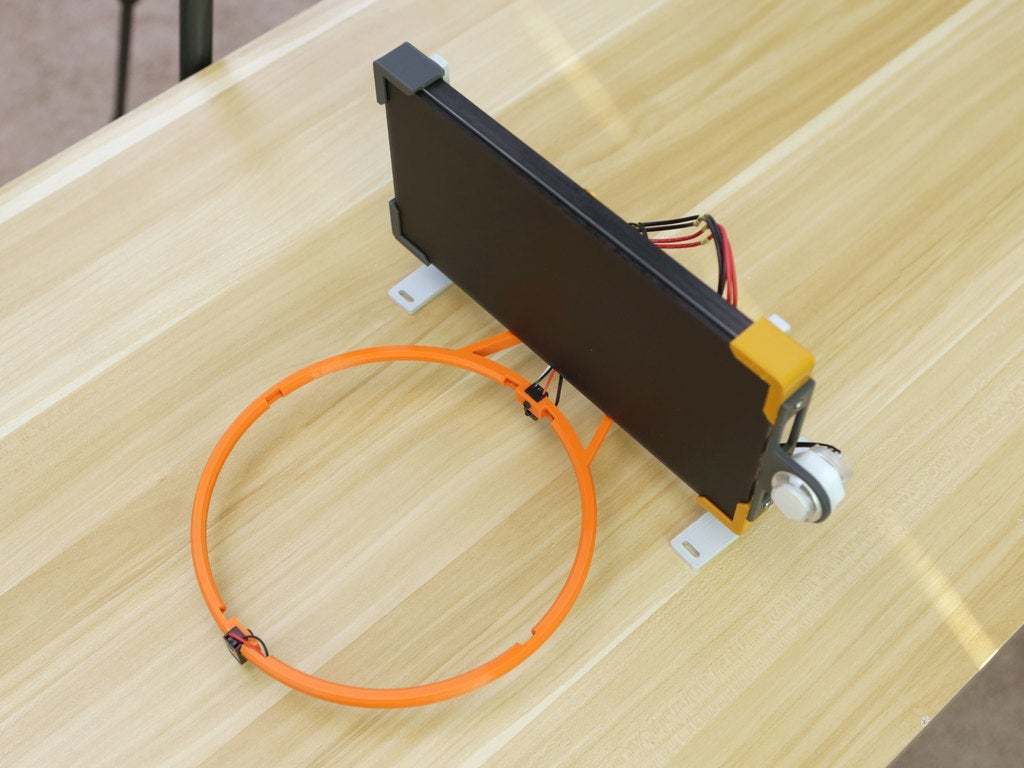

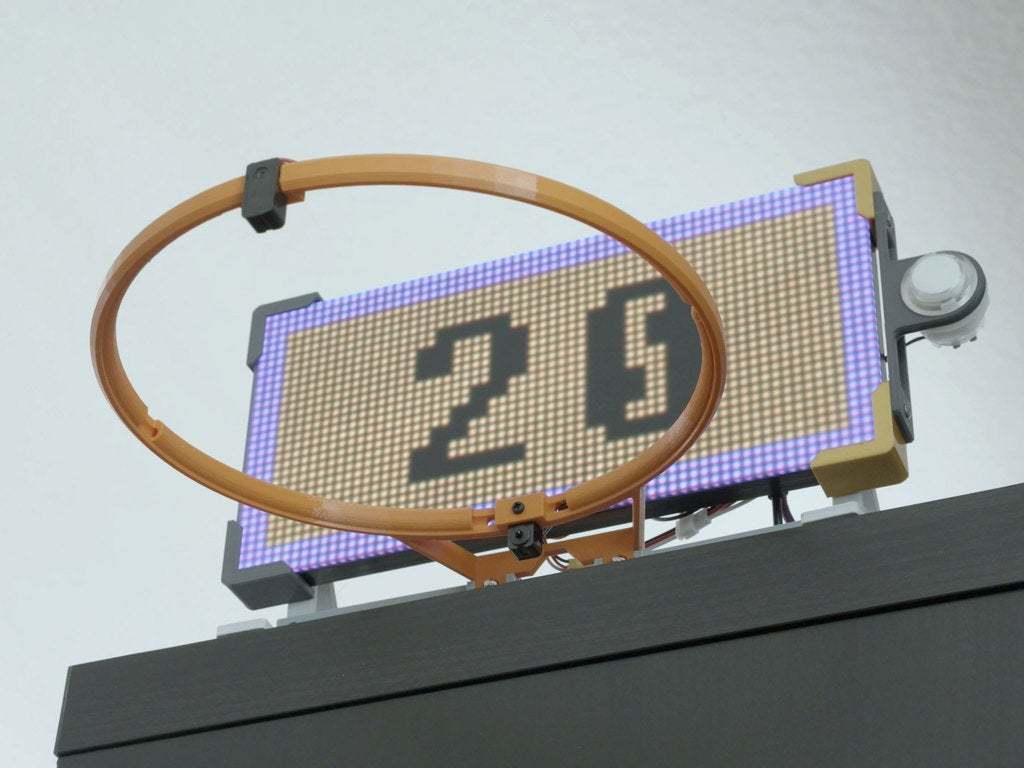

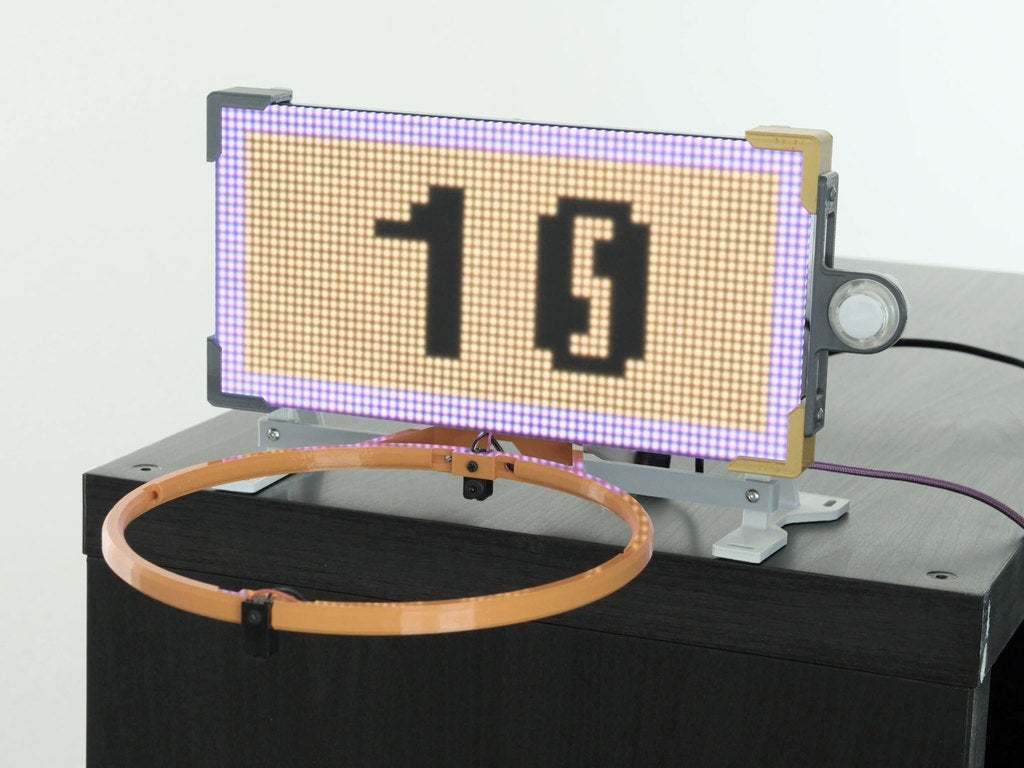

Build an LED scoreboard using an RGB Matrix and CircuitPython! This indoor game lets you shoot hoops and display your score on an LED Matrix.

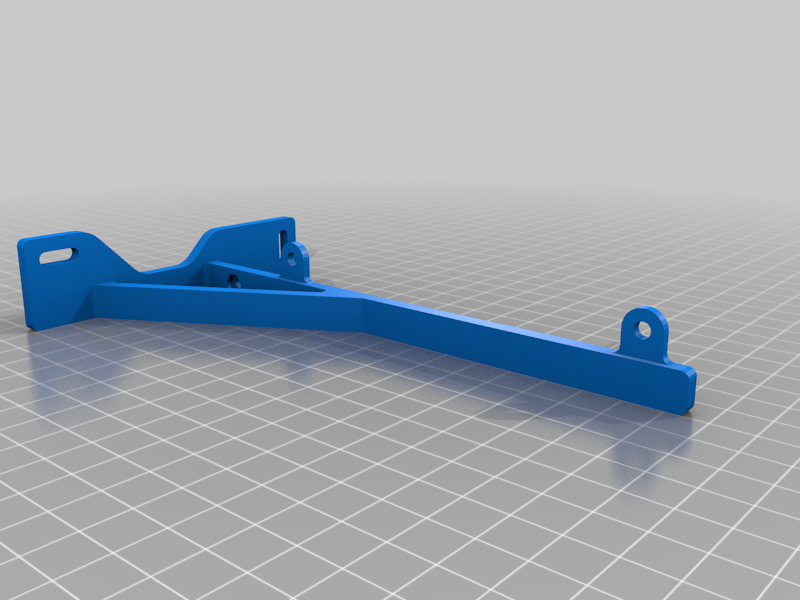

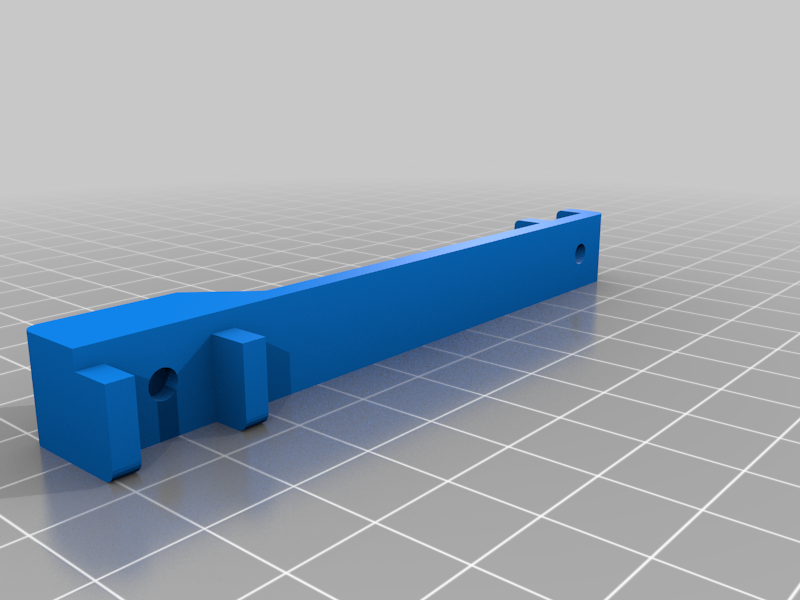

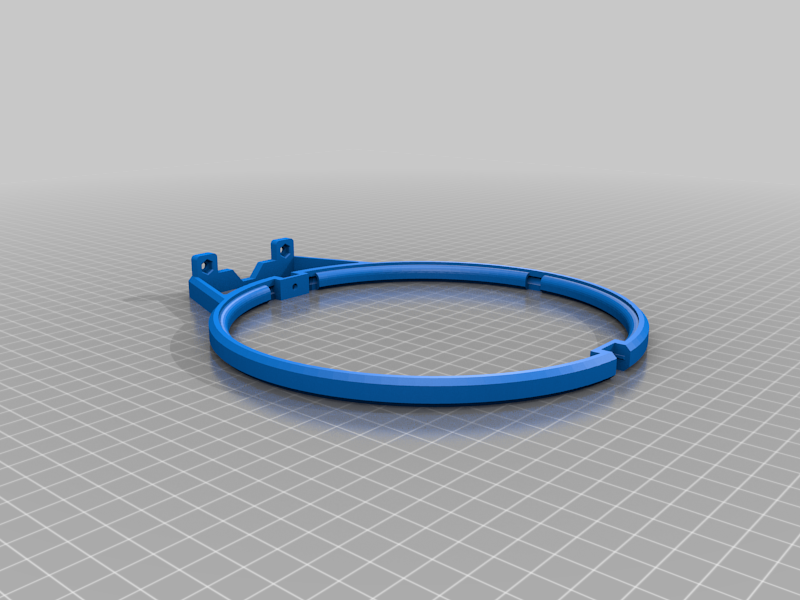

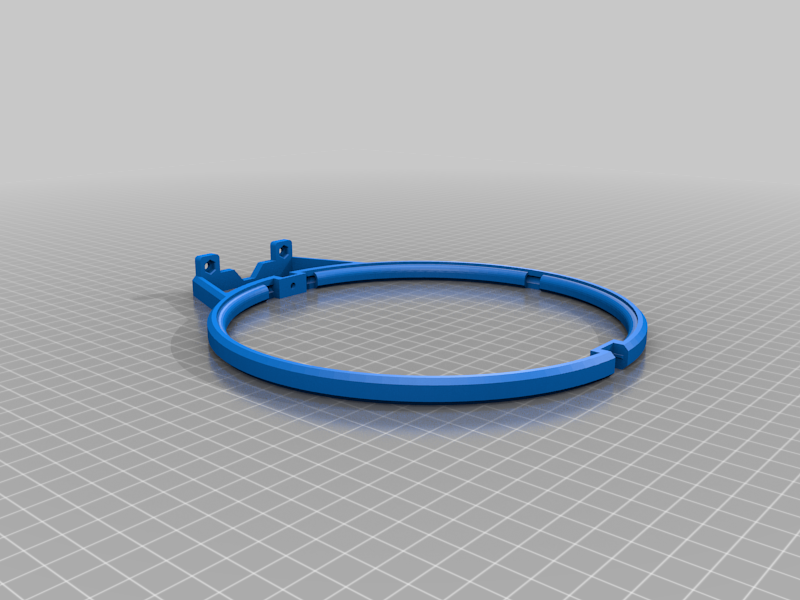

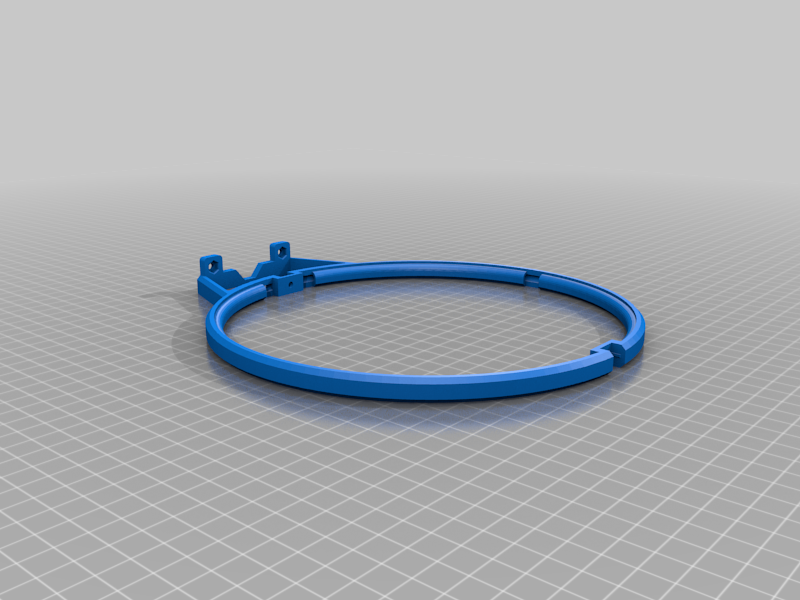

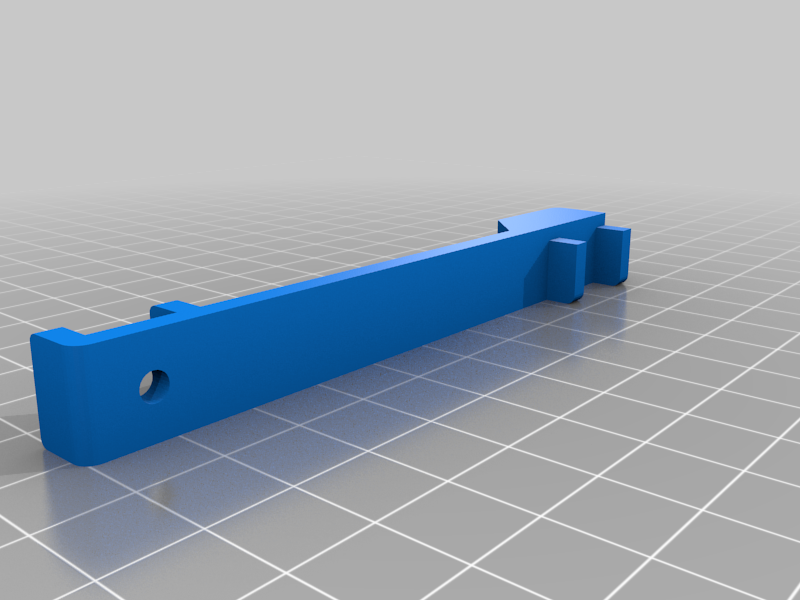

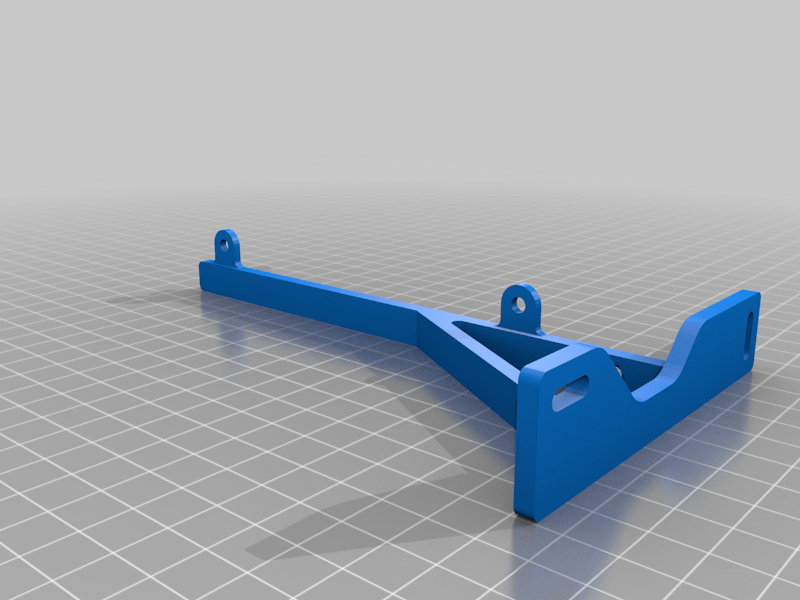

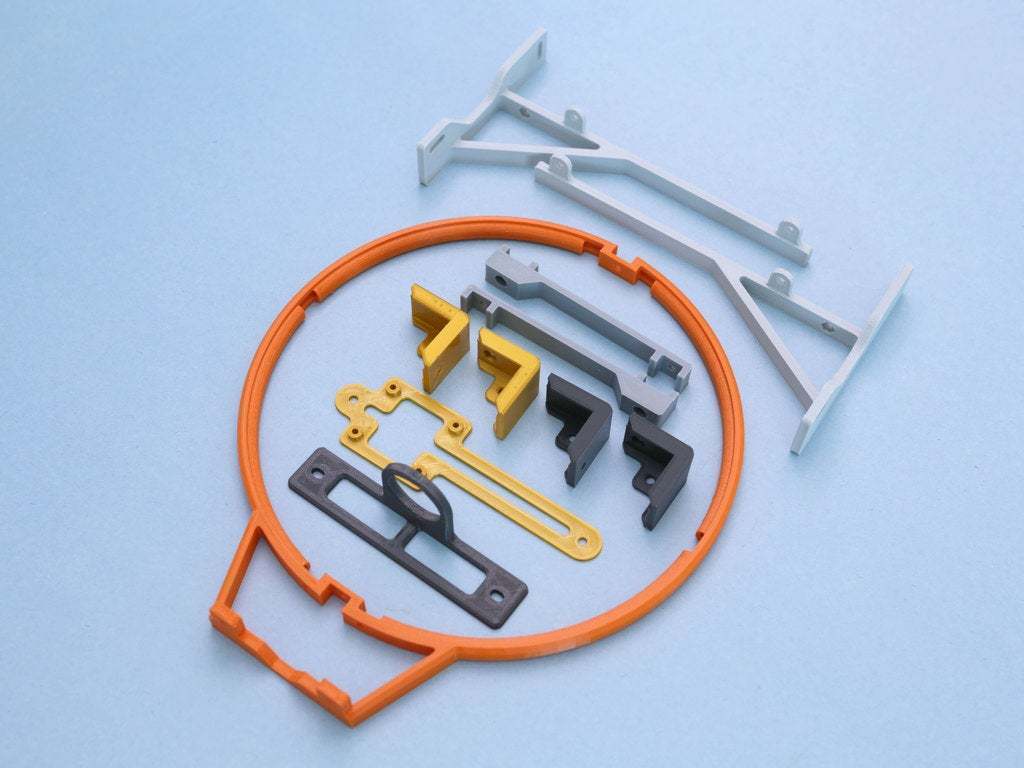

The 3D printed hoop houses an IR break beam sensor that detects when a ball has gone through it. The 3D printed parts hold everything together and are designed to be easy to build so you can make one at home.

Learn Guide:
https://learn.adafruit.com/led-matrix-scoreboard

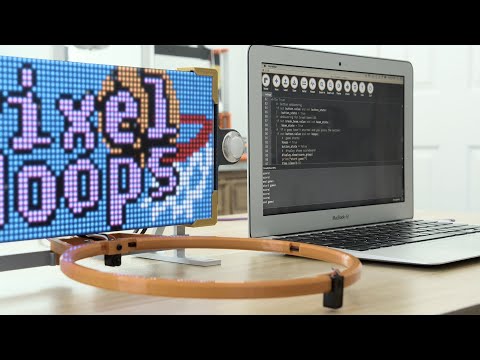

Project video
https://youtu.be/tu0vUvM2PGo

Livestream build
https://youtu.be/DFUP8dwV5mc

Code on GitHub
https://github.com/adafruit/Adafruit_Learning_System_Guides/tree/master/LED_Matrix_Scoreboard

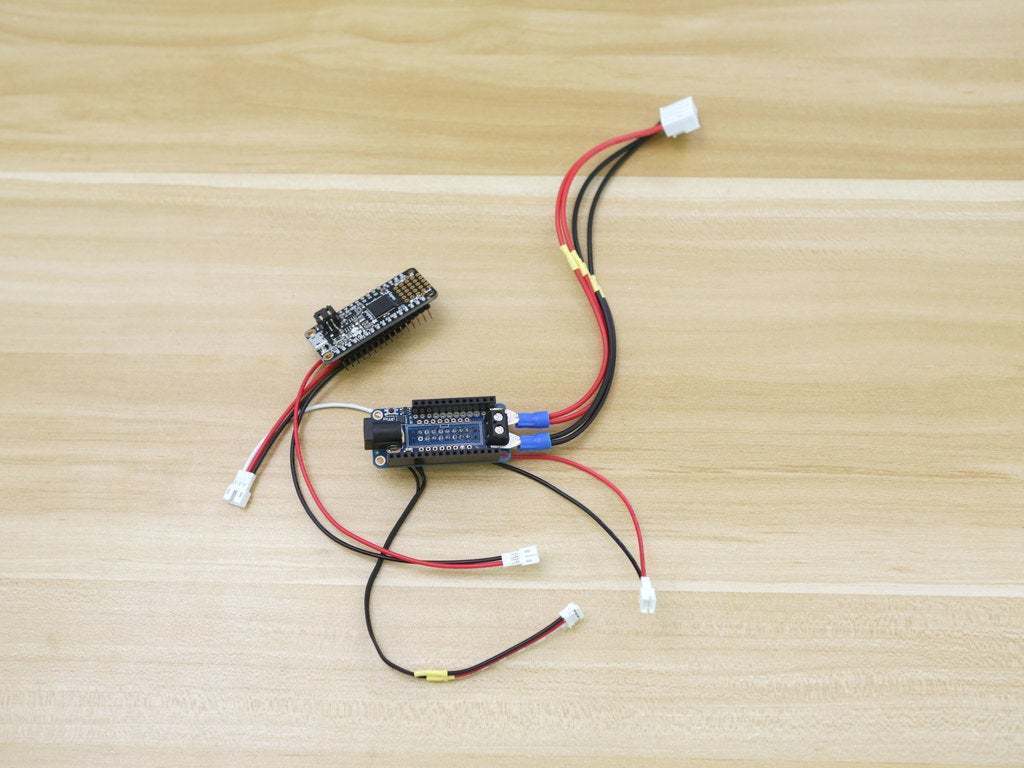

Adafruit Feather M4 Express
https://www.adafruit.com/product/3857

RGB Matrix FeatherWing
https://www.adafruit.com/product/3036

LED Matrix 32x64 – 4mm pitch
https://www.adafruit.com/product/2278

STEMMA speaker
https://www.adafruit.com/product/3885

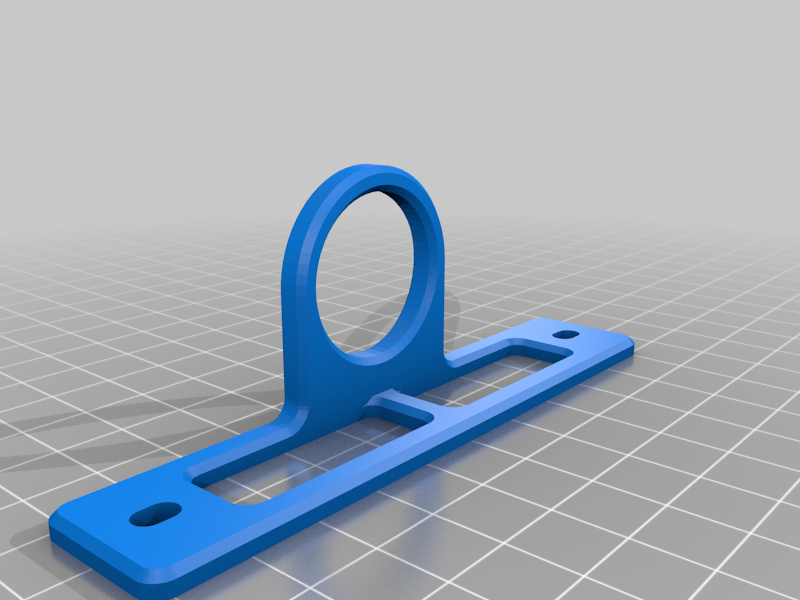

24mm mini Arcade Button
https://www.adafruit.com/product/3429

IR Break Beam Sensor – 5mm LED
https://www.adafruit.com/product/2168

IR Break Beam Sensor – 3mm LED
https://www.adafruit.com/product/2167

Visit the Adafruit shop online - http://www.adafruit.com

  • 3D file format: F3D and STL
