LED Lenser T7 Battery Pack Repair

led_lenser_repair01.jpg Free STL file LED Lenser T7 Battery Pack Repair・3D printable model to download, peaberry

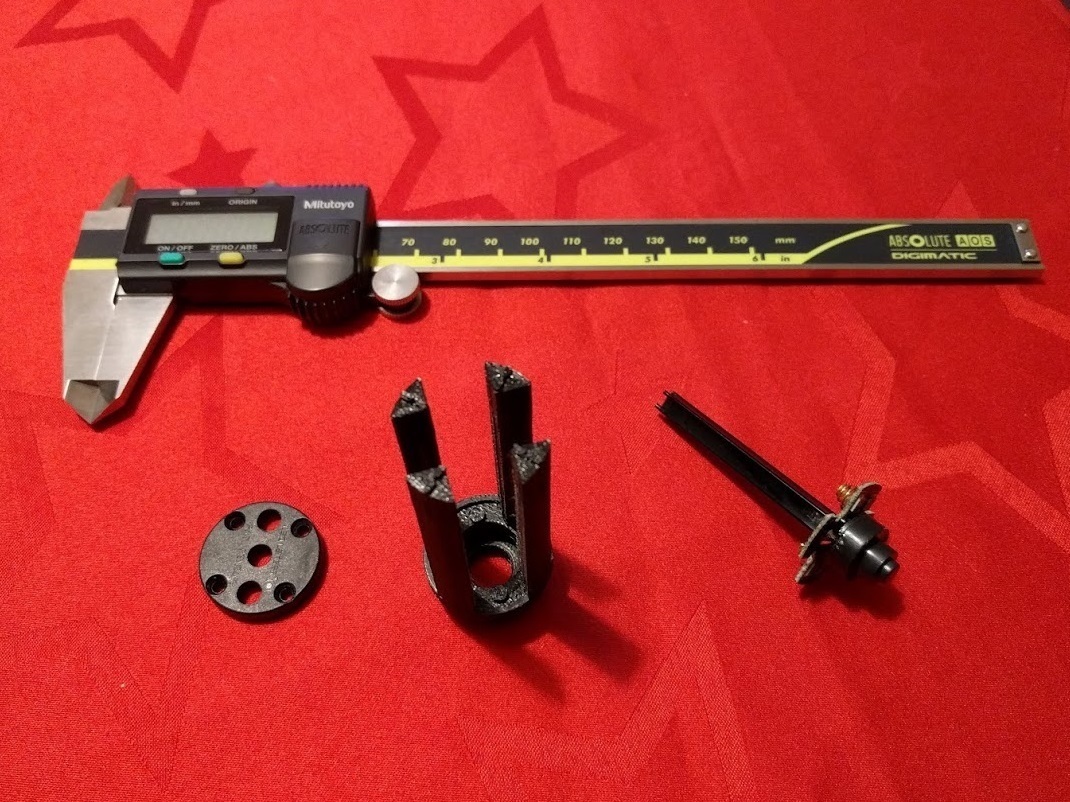

led_lenser_repair02.jpg Free STL file LED Lenser T7 Battery Pack Repair・3D printable model to download, peaberry
lenser_pack05.stl Free STL file LED Lenser T7 Battery Pack Repair・3D printable model to download, peaberry
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is replacement battery box outer frame for the LED Lenser T7 torch (flashlight). The general dimensions are as follows:
* Battery slot width = 10.2mm
* Battery slot height = 48mm
* Threaded section: 20.7mm outer diameter, 1mm pitch, 6mm height
* Switch small ID = 9.4mm, large ID = 13.8mm
* PCB mount studs = 1mm wide, 0.8mm high

There's another model by Jhedstrom, which is also worth a look:
https://www.thingiverse.com/thing:1873654

3D printer file information

  • 3D design format: SKP and STL Folder details Close
    • lenser_pack05.skp
    • lenser_pack05.stl

    Learn more about the formats

  • Publication date: 2020-01-29 at 23:33
    ?
    Published to Thingiverse on: 2017-12-28 at 23:19

License

CC BY
