Magic Lamp

3D model description

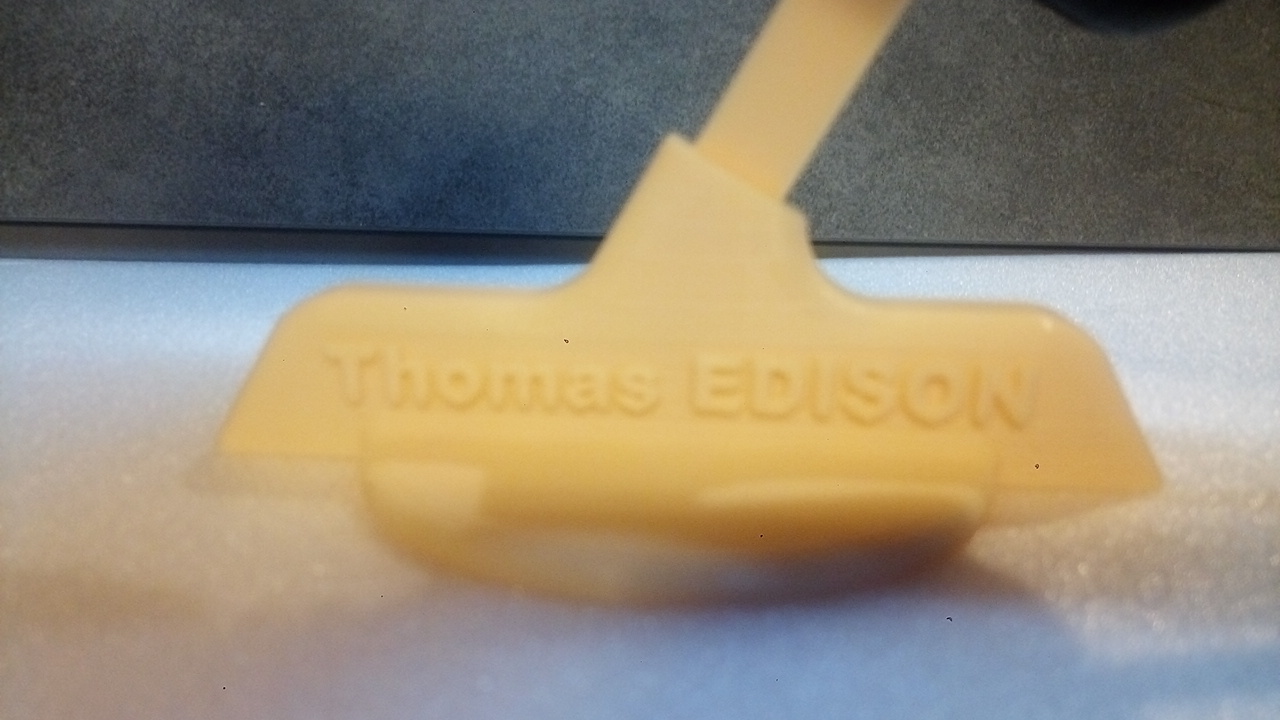

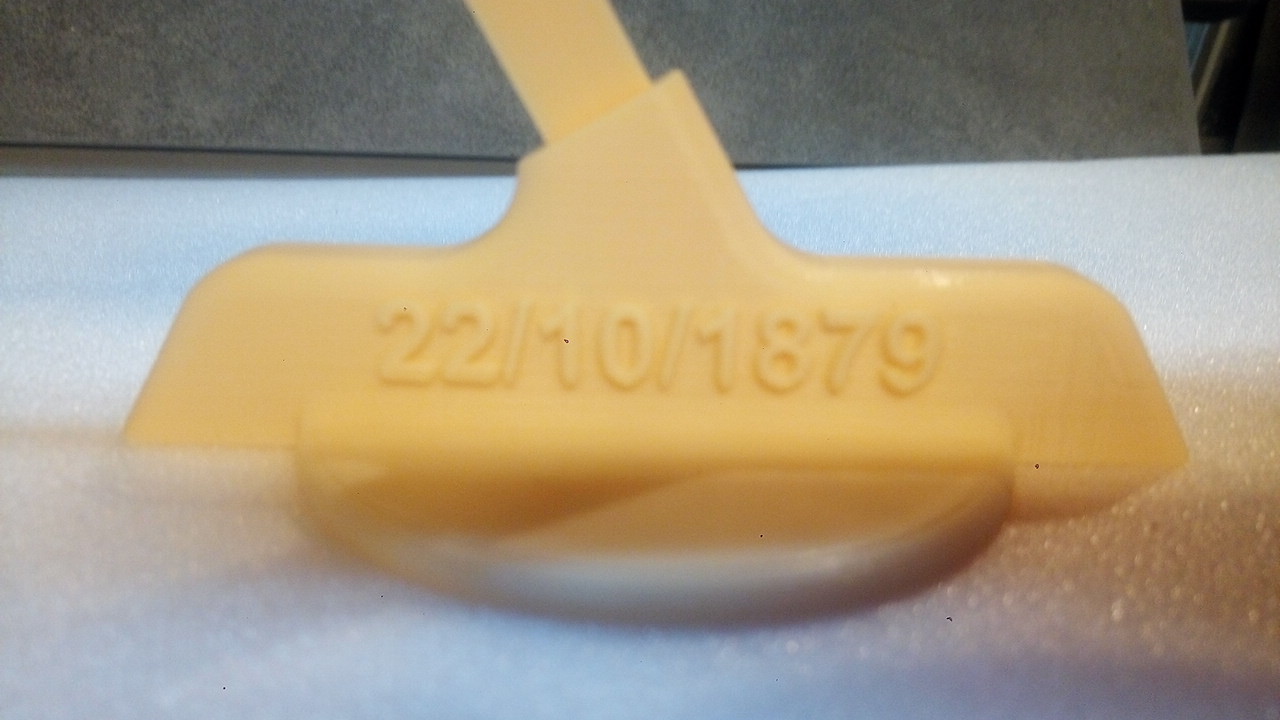

A small tribute to Thomas EDISON, inventor of the electric light bulb on October 22nd 1879, what would we do without it!

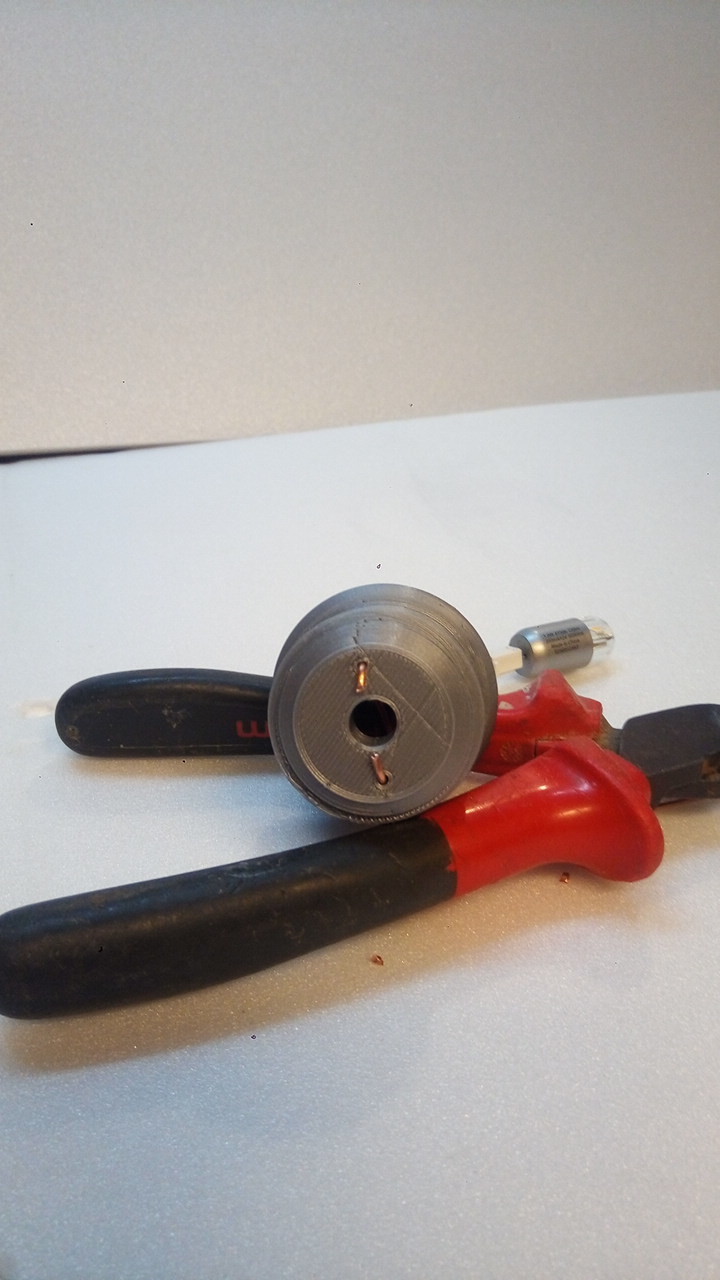

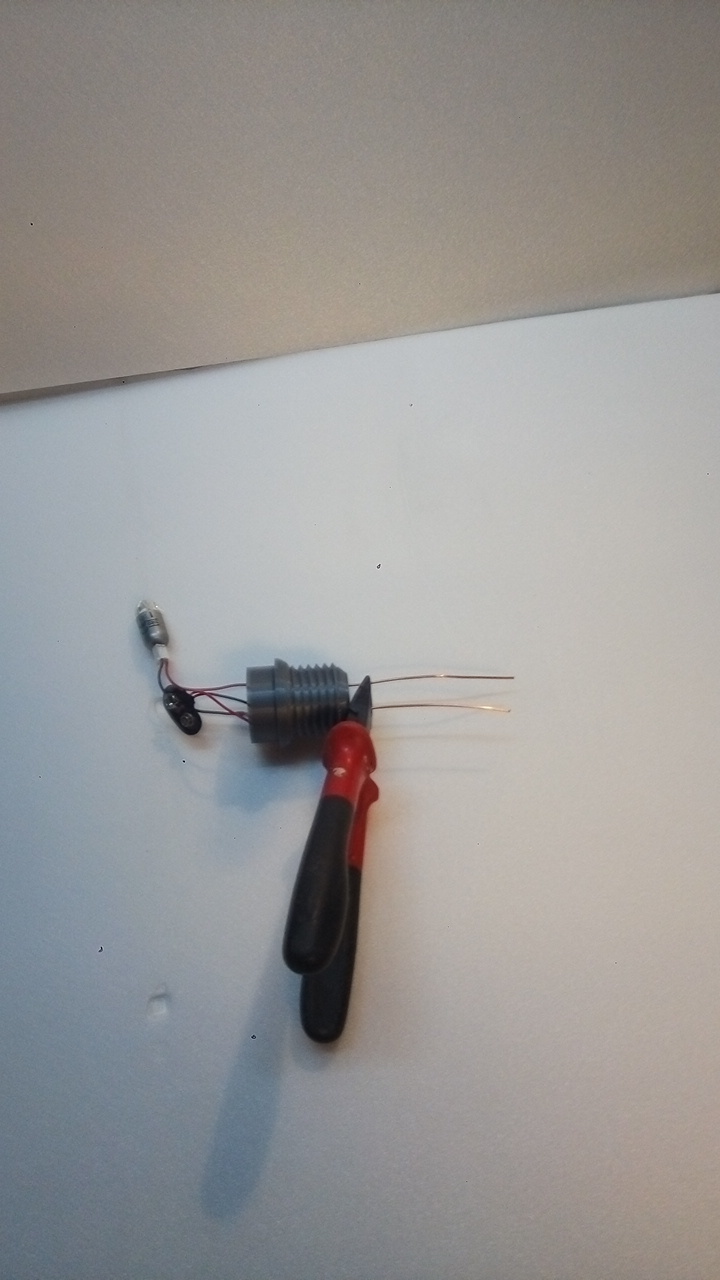

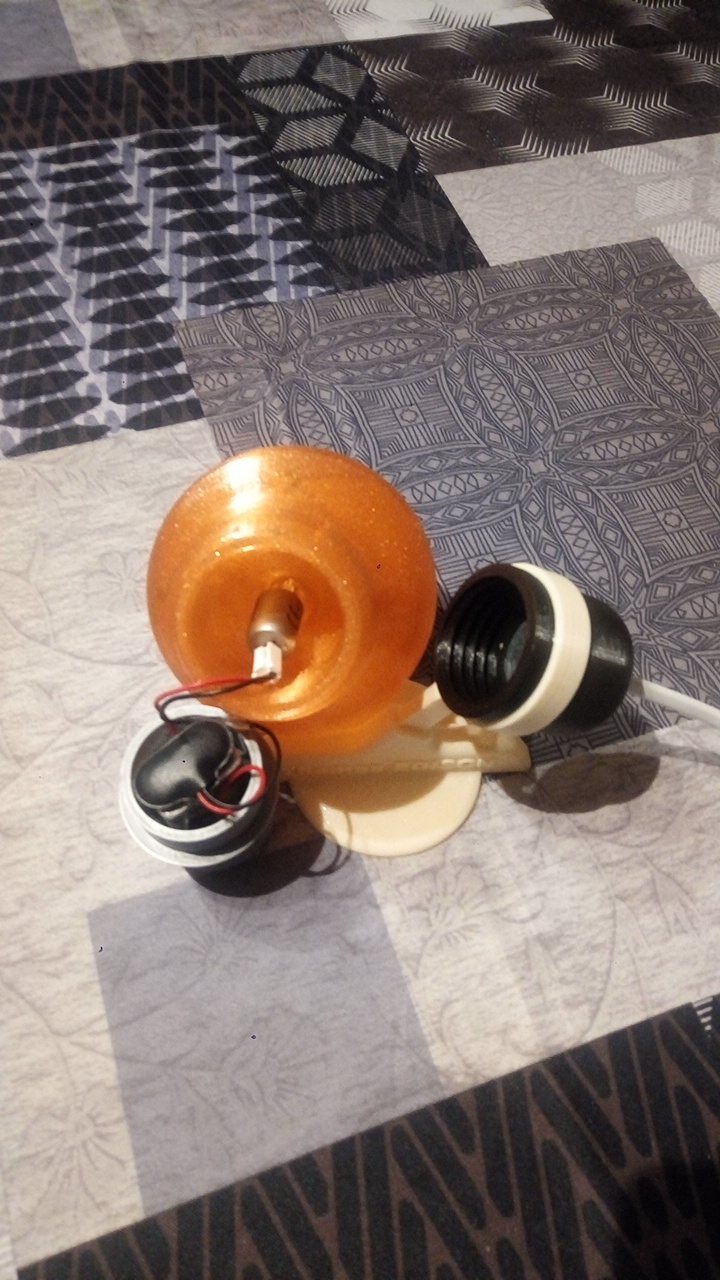

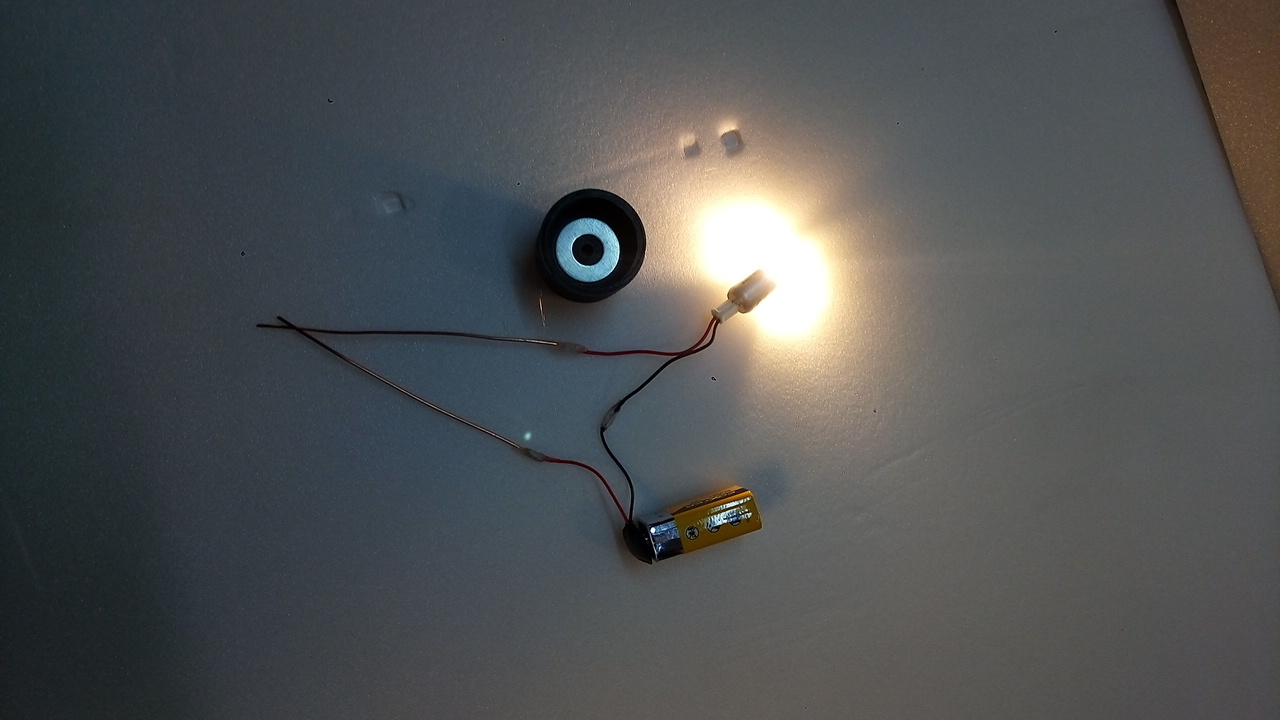

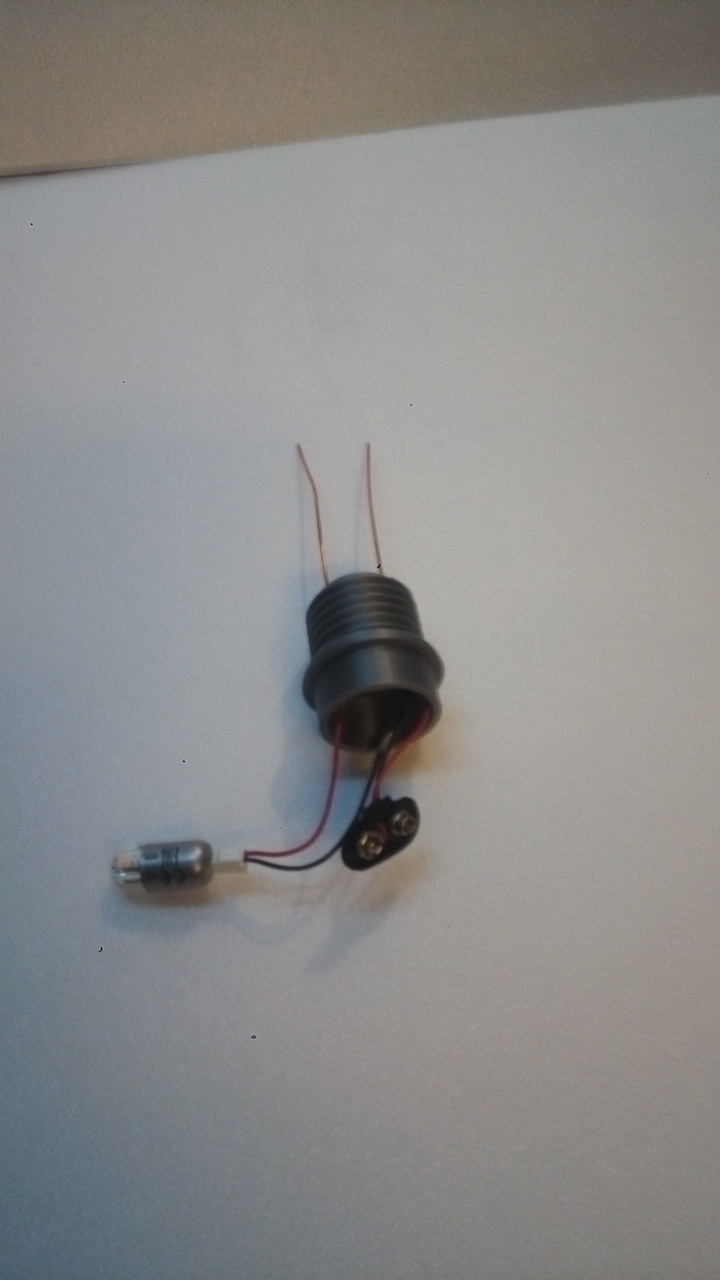

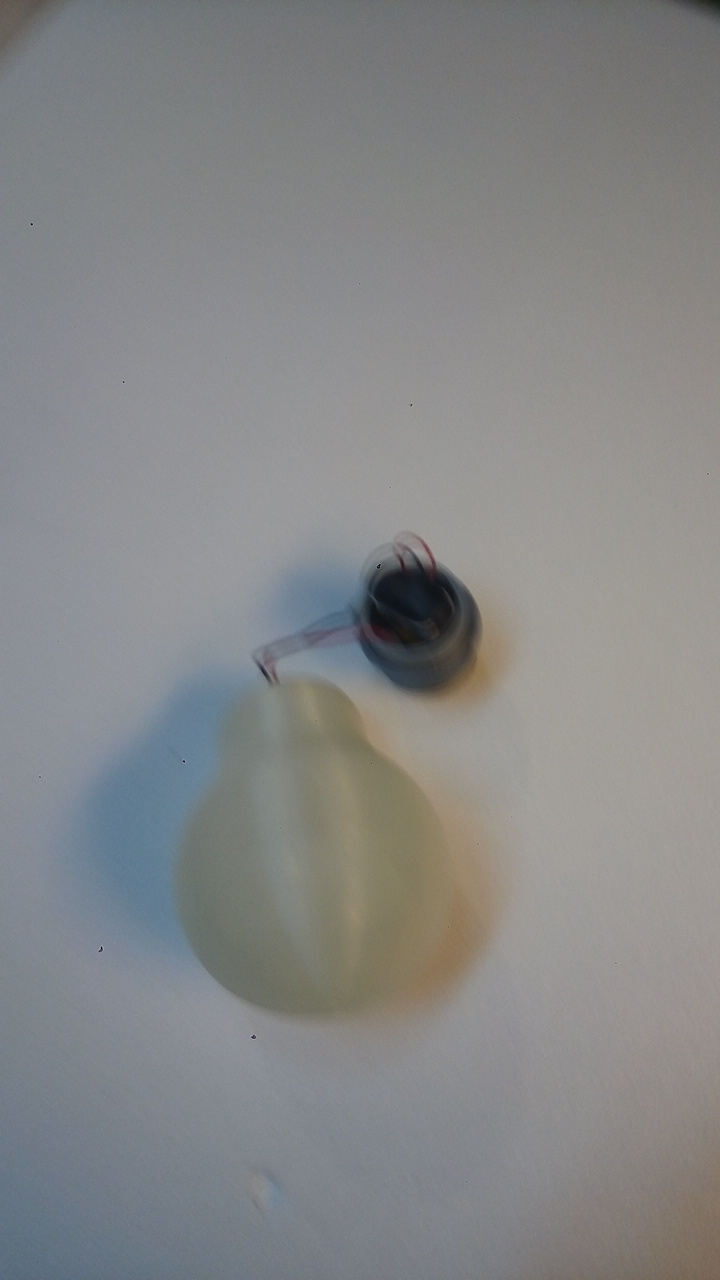

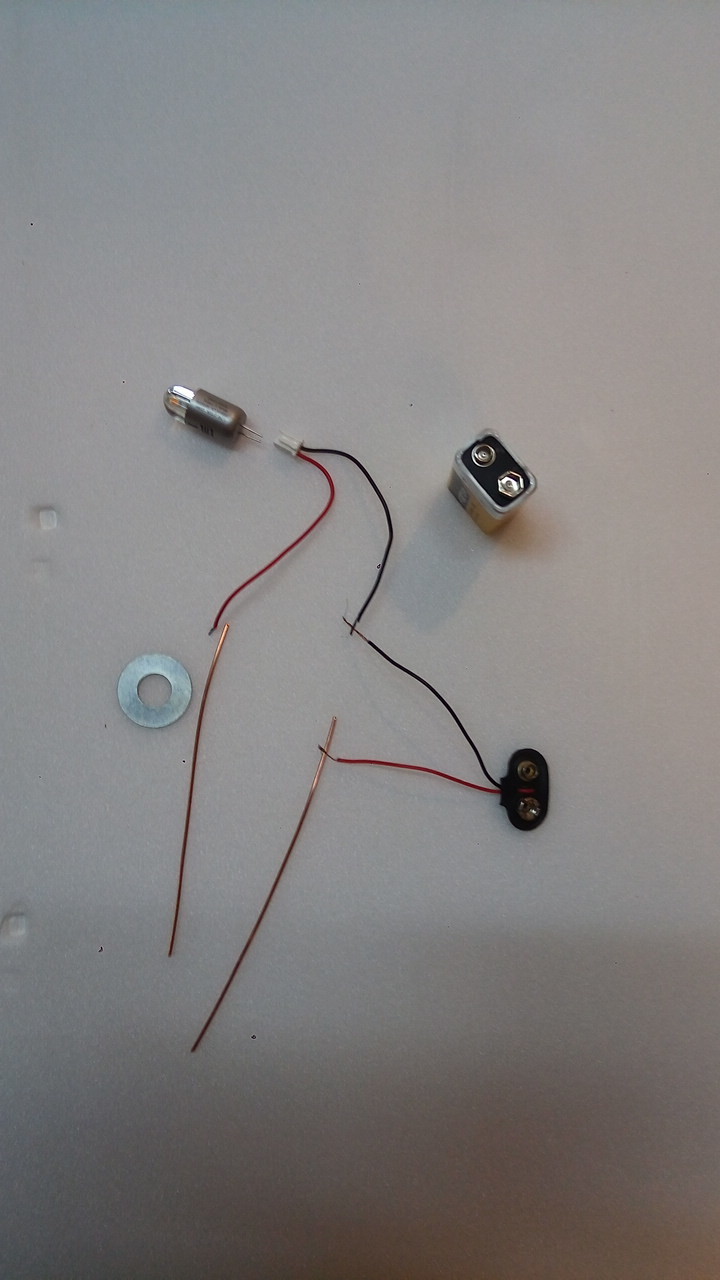

You will need a 12V led bulb or a simple led coupled with a resistance of about 4 or 500 ohms, a 9V battery with connector, 2 pieces of stripped copper wire diam 1.5 mm2, a large washer diam 27mm or smaller that you will glue at the bottom of the socket.look at the pictures for the assembly, very simple by the way, some soldering, insulated with hot glue or thermo sheath if you have !

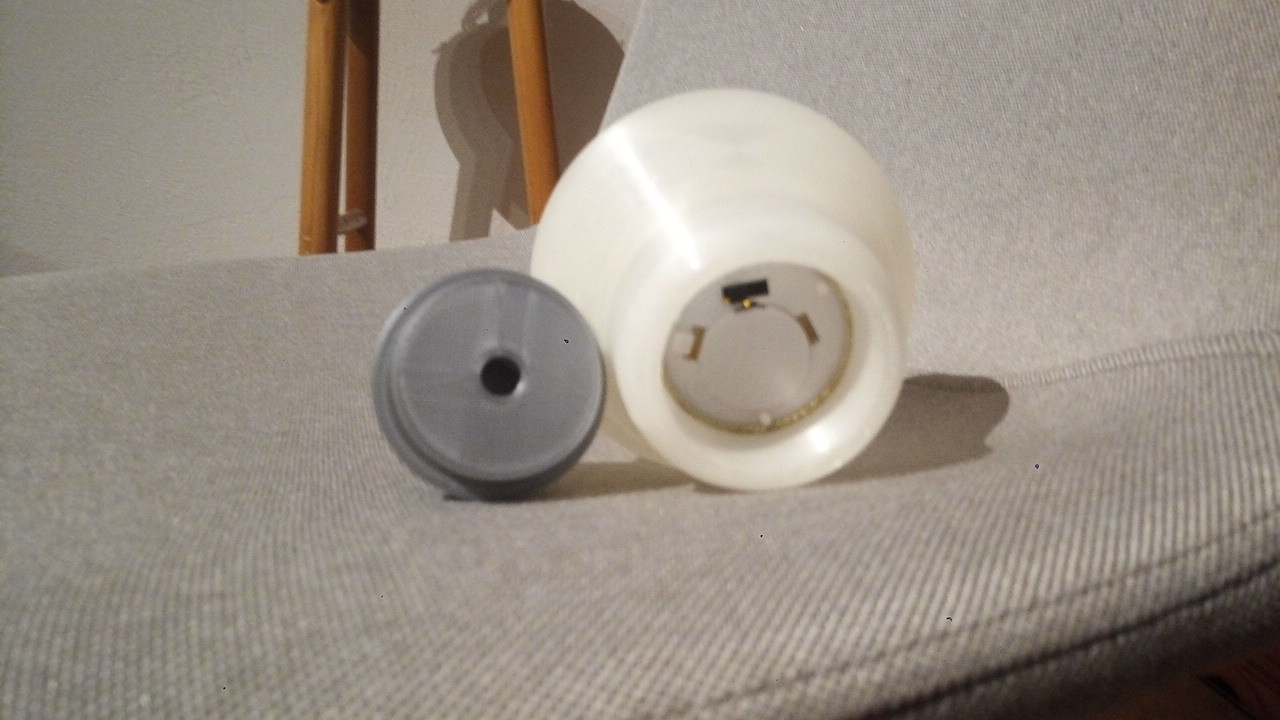

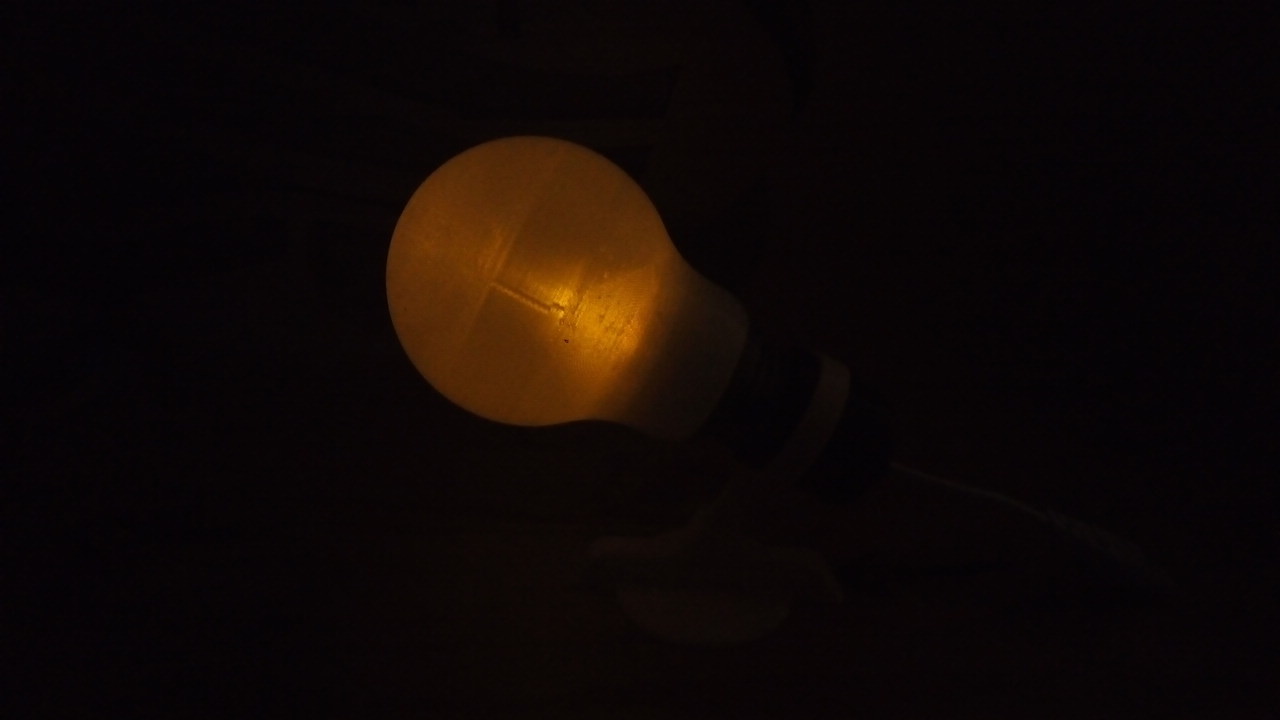

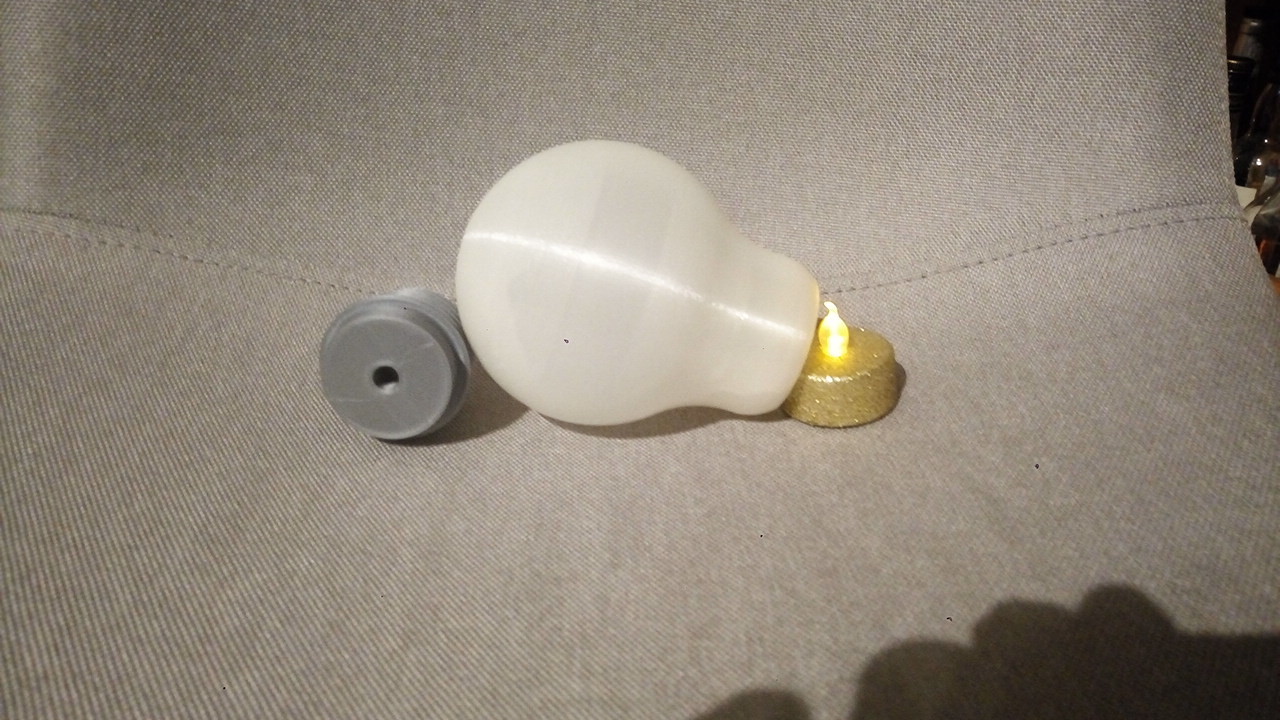

The hole in the globe of the bulb is designed to insert a battery operated table candle, if you just want to make an original mood light.see the last 3 pictures.

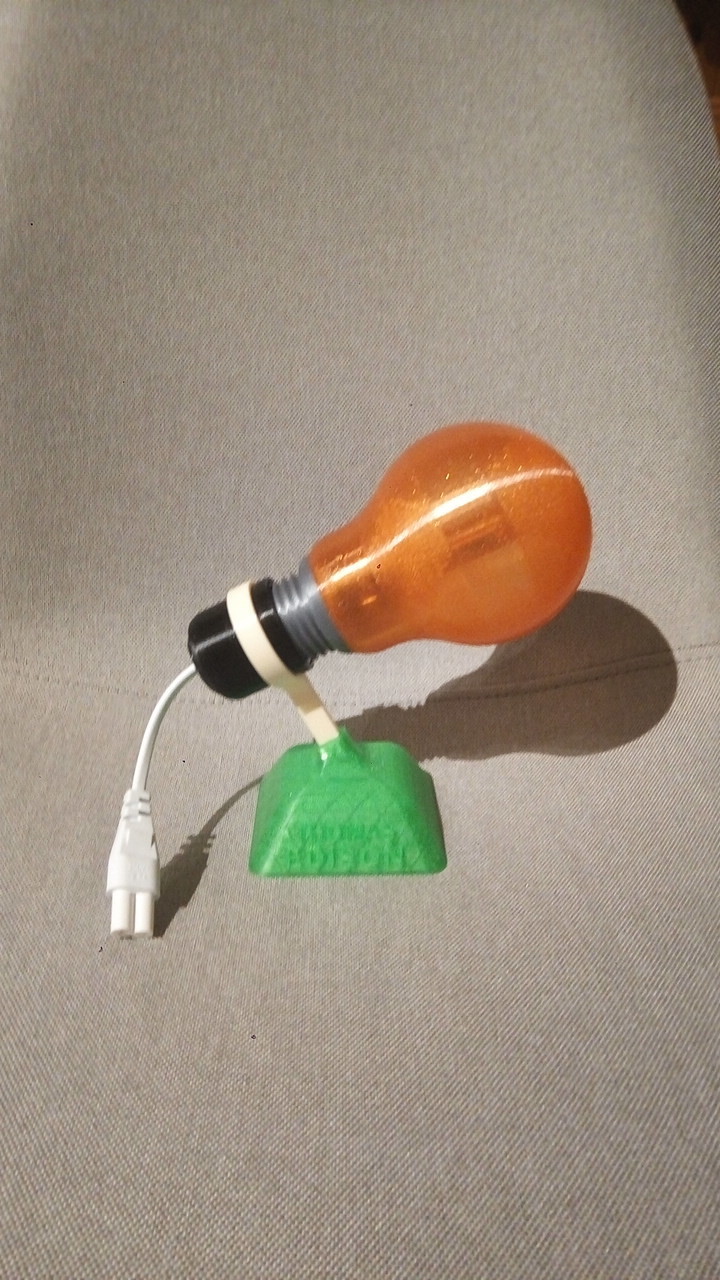

A dummy cable for illusion and that's it!

Dazzle your friends!

Remove the cover from the globe after printing if printing 0.2 mm.

Please do not hesitate to send me your comments.

3D printing settings

The globe of the bulb, filling 0 to 10% for transparency, edge of 15 turns if necessary according to tray adhesion.

Layer height 0.2 to 0.3 mm, thickness 0.8 to 1.2 mm

I printed with 0% and 0.8 mm thick in 0.2mm layers .

Threaded parts and sleeve, edge of approx. 15 turns, 0.2 mm layer height, 15 to 20 % filling, thickness 0.8 or 1.2 mm,

Substrate 20% filling, thickness 1.2 mm, layer height 0.2 mm.

  • 3D model format: STL

Tags

Creator

Designs 66
Downloads 1710
Sales US$9
Followers

Copyright

©

Page translated by automatic translation. See the original version.

Best sellers of the category Various

Related contents


Add a comment

5 comments

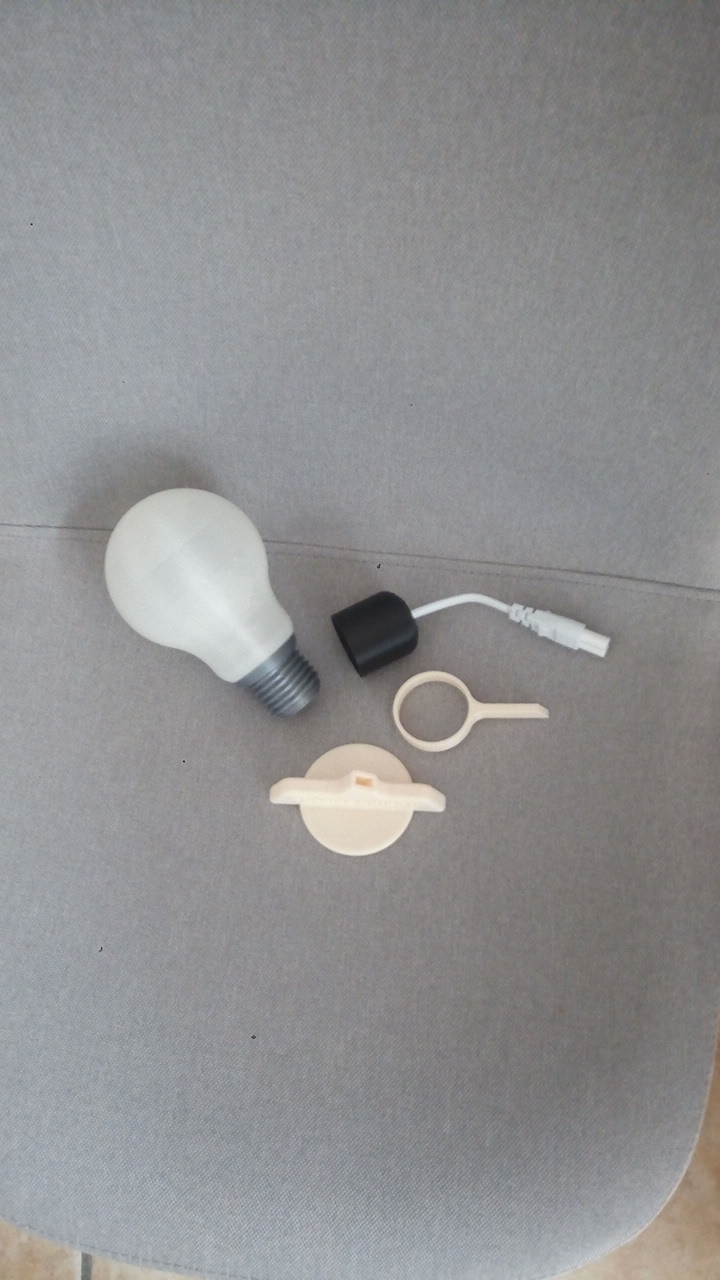

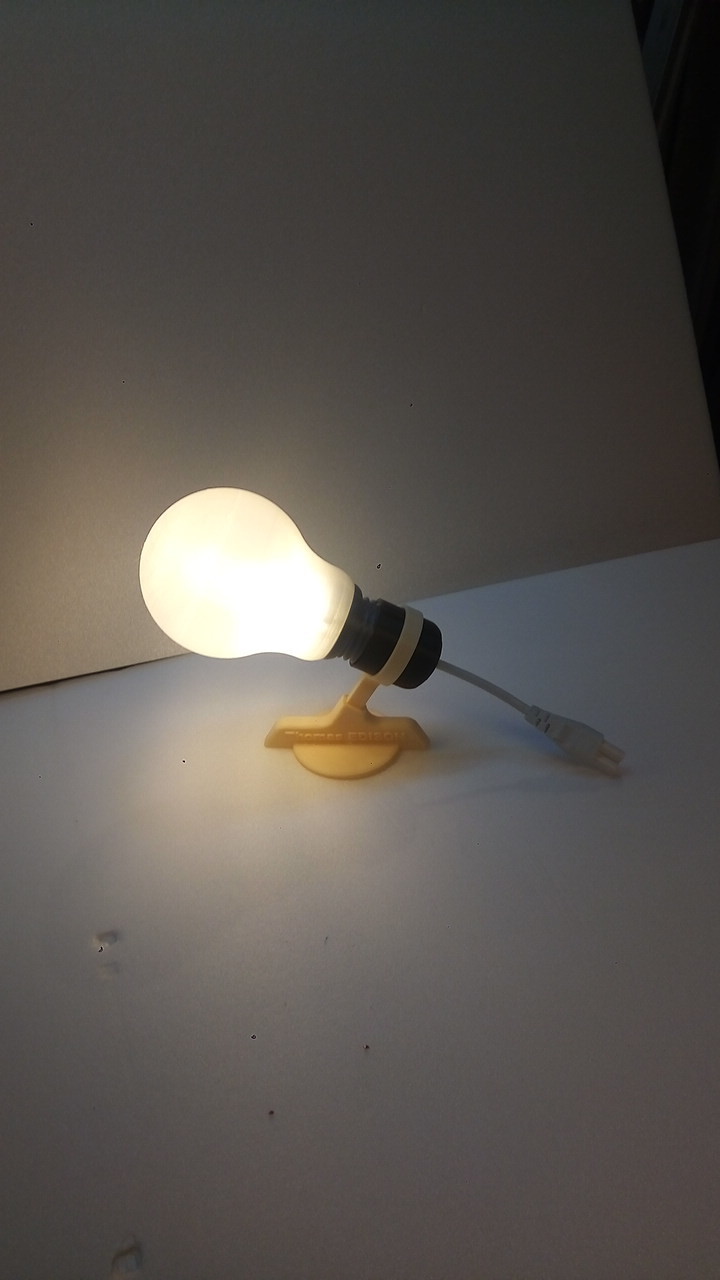

all parts are 3D printed, the bulb, the socket and the support!

Very easy to make !

look at the photos for the assembly

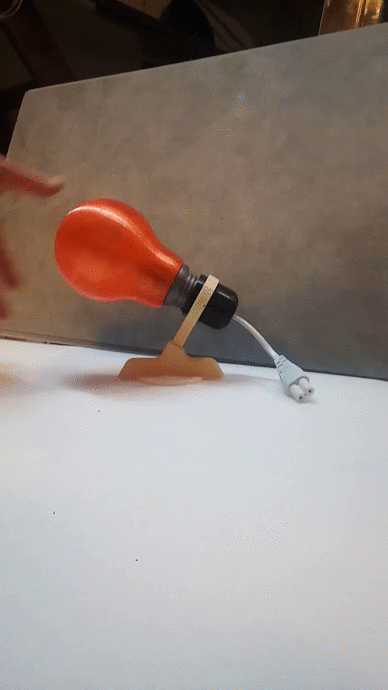

I slightly turn the bulb !

Is this an actual touch lamp or are you creating a switch by twisting the bulb slightly?
