Kite bar handles

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.7k views
  • 4 likes
  • 64 downloads

3D model description

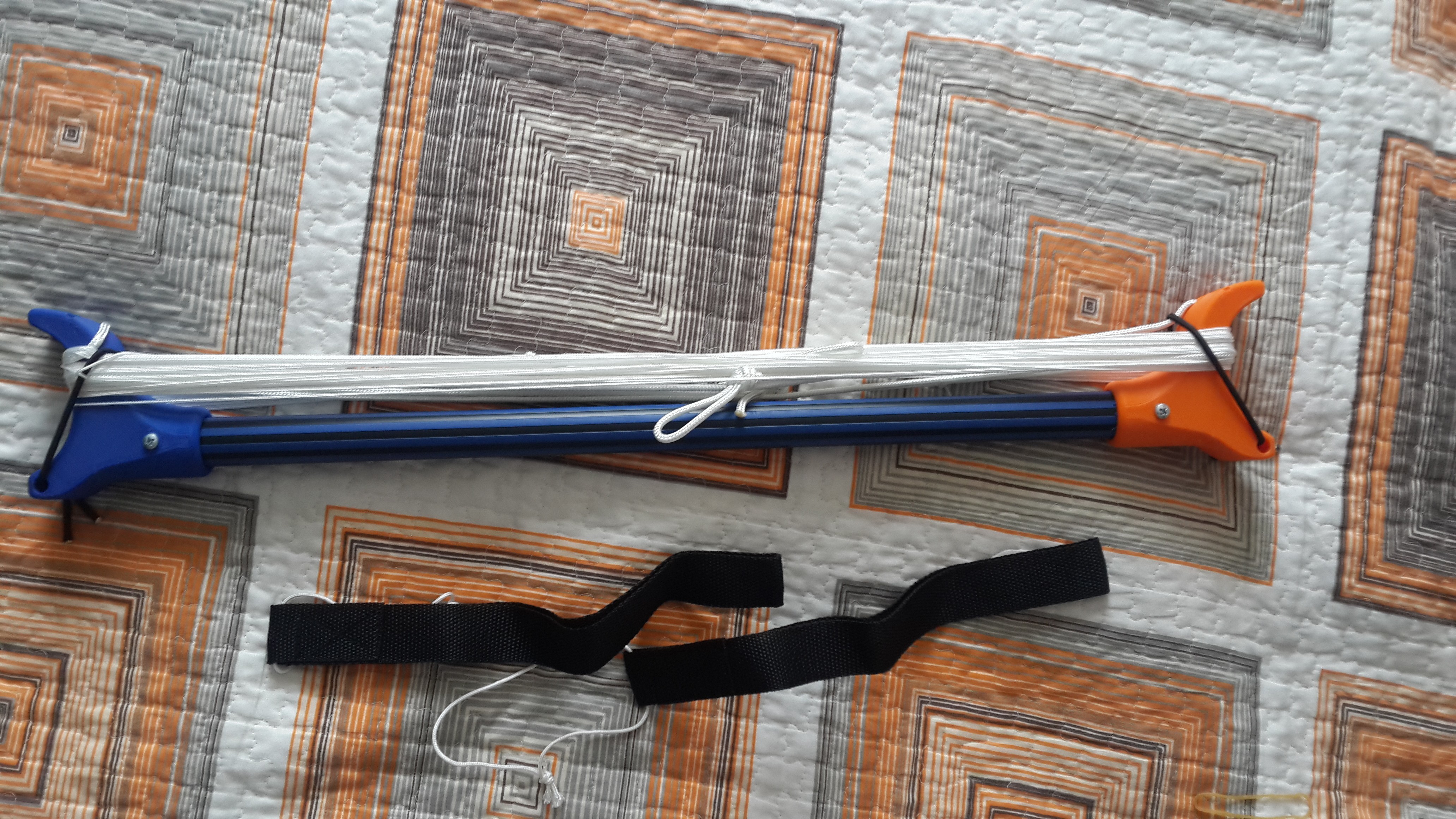

Hand made training kite bar.
Kite bar parameters
Bar diameter: 25.5mm
Cord diameter: 4mm
Rubber band diameter: 2.5-3mm

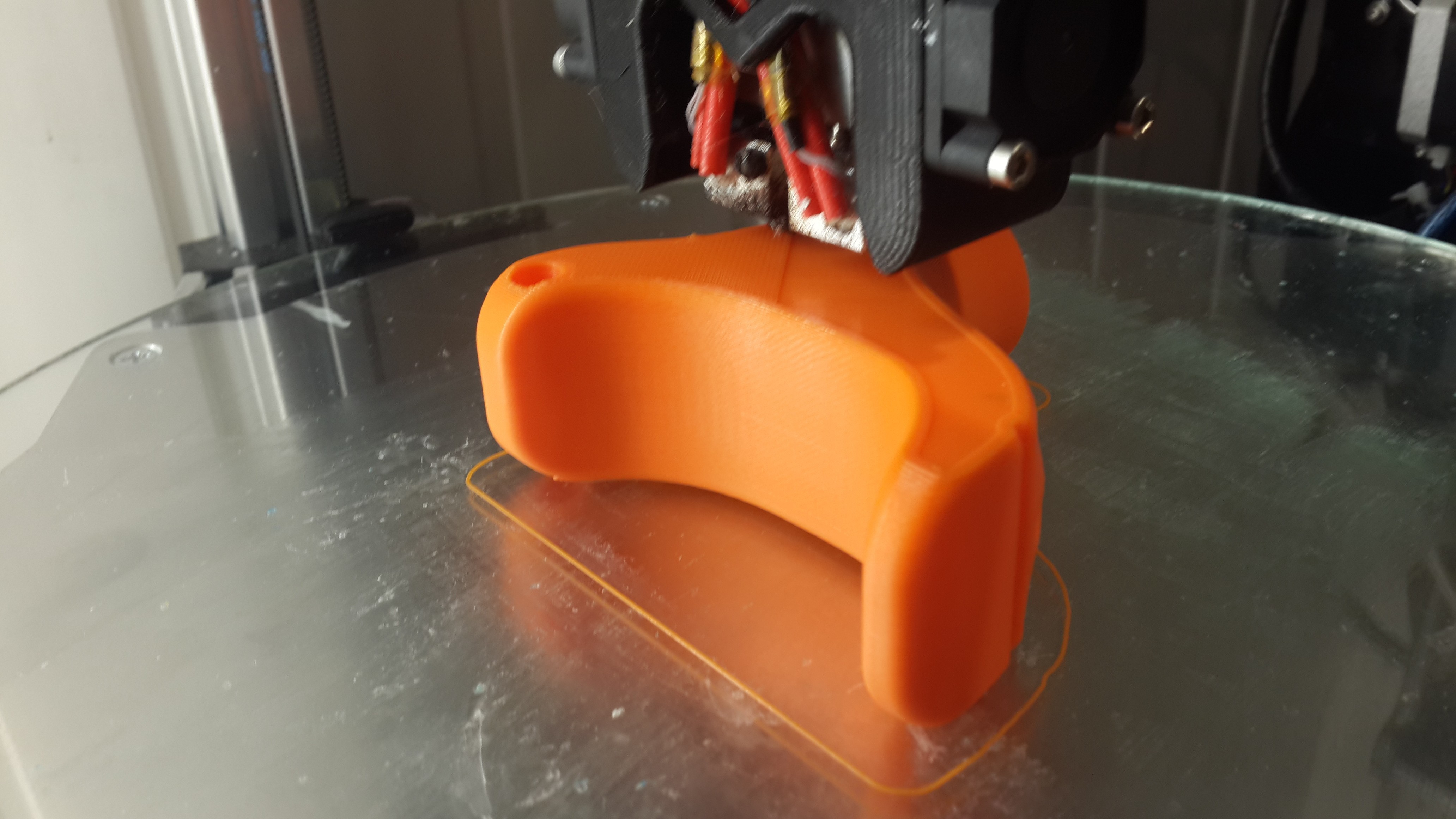

3D printing settings

Printer settings
printed with PLA
25% infill
2mm walls/top/bottom
0.5mm nozzle
0.3 layer height
no support for kite_bar5
support only from surface for kite_bar3

3D printer file information

  • 3D design format: STL Folder details Close
    • kite_bar3.STL
    • kite_bar5.STL
  • Publication date: 2016/04/17 at 11:20

License

CC BY NC SA

Tags

Creator

Visit my 3D hub: https://www.3dhubs.com/moscow/hubs/imarh
I am on thingiverse: http://www.thingiverse.com/krokus57/about
