Joint of Koenigs

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 9 likes
  • 115 downloads

3D model description

Reproduction of Konig seal,

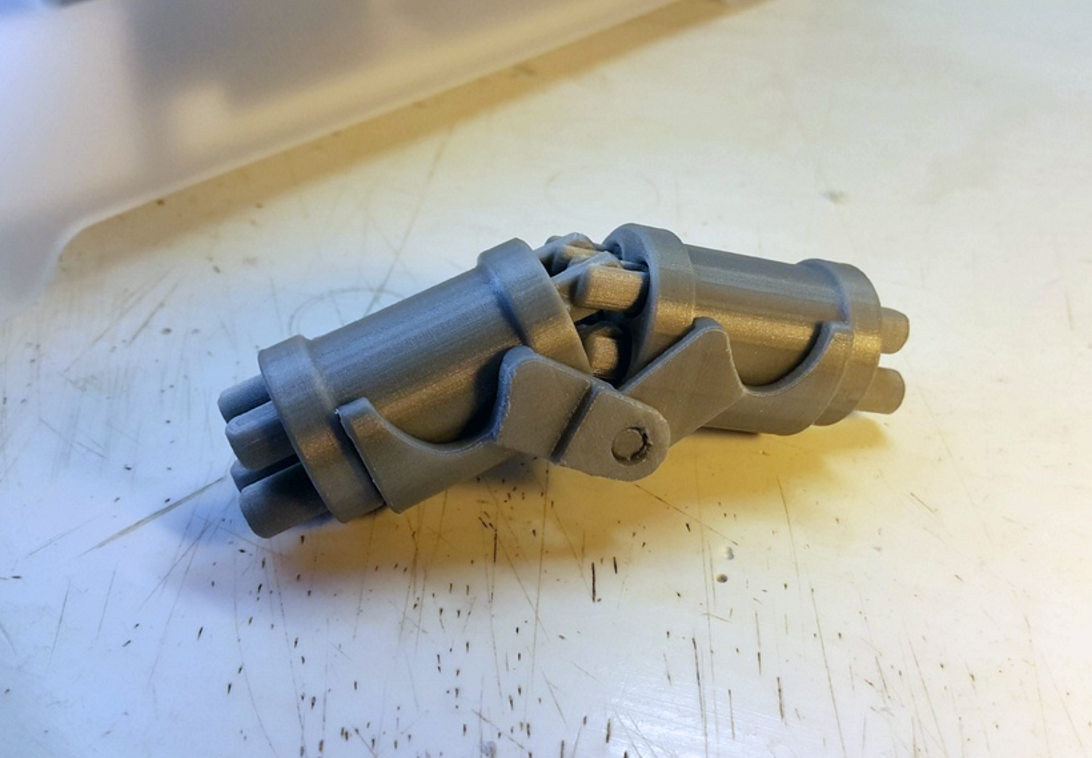

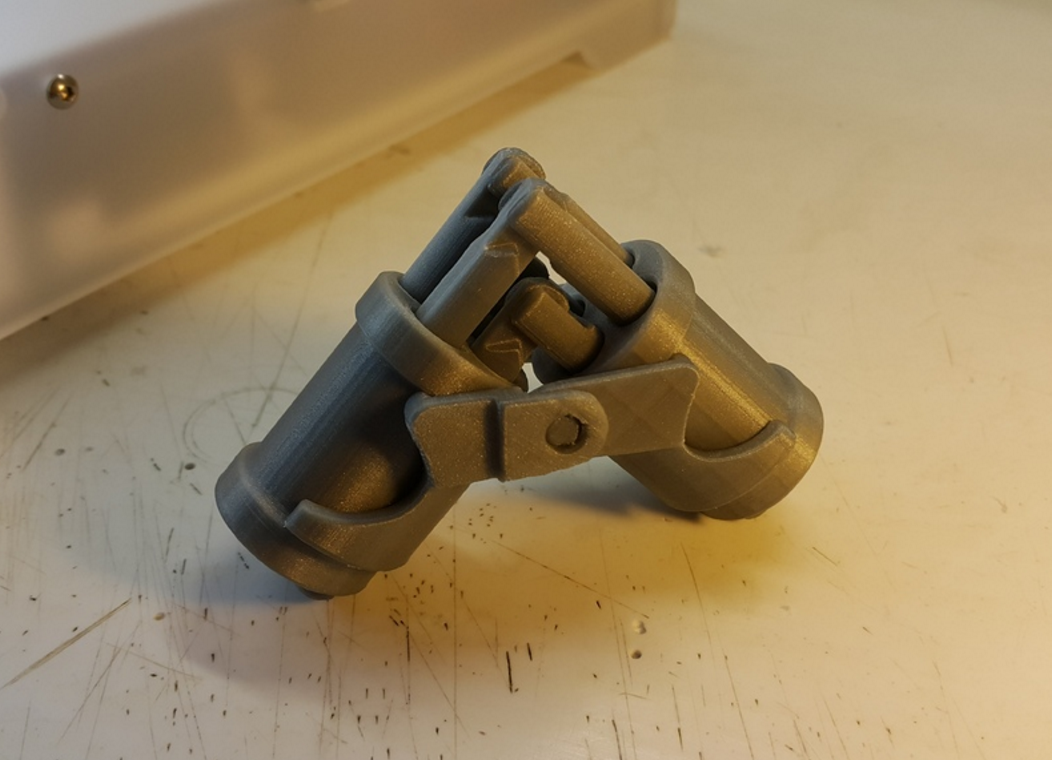

homokinetic joint 135 ° angle possible.
easy to print

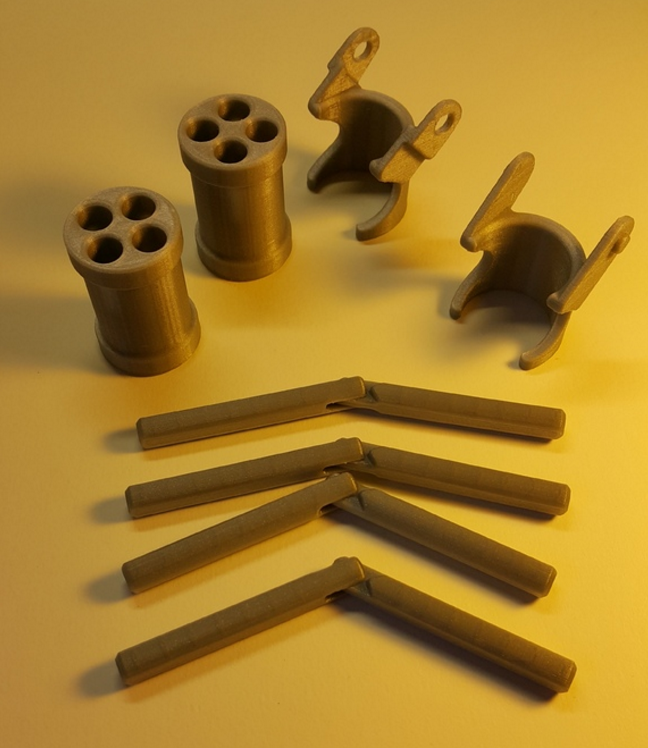

4 axes (attention to deburring, before bending the axis).
2 body

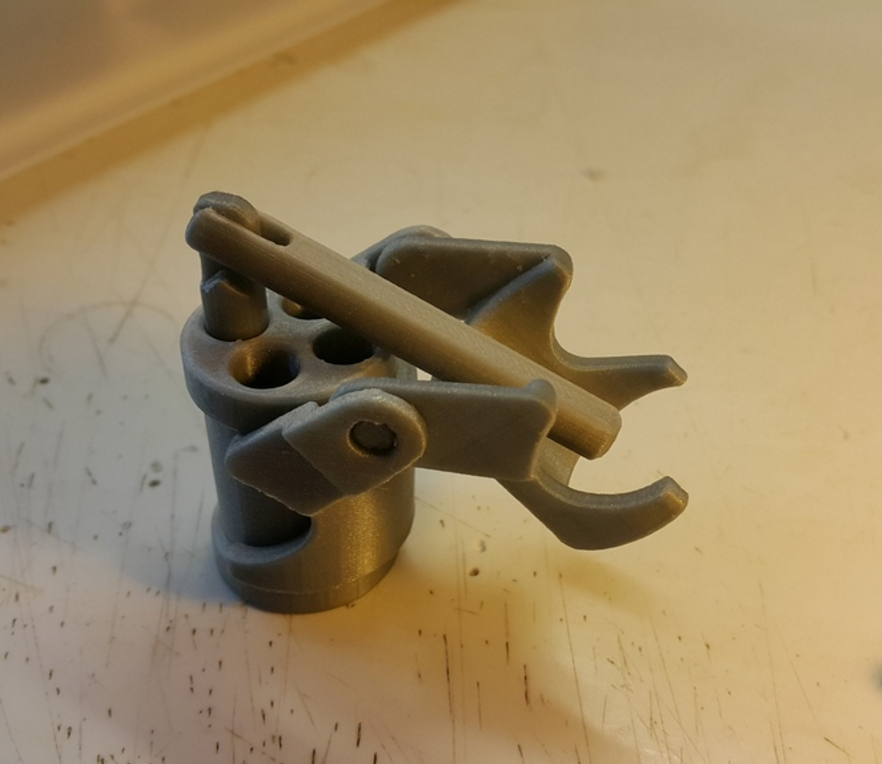

body support
body support b

https://www.youtube.com/watch?v=e3rjDsh4xec&feature=youtu.be
you can learn to make a hinge in one piece and build a Complete working set.
how to print, position on the printer,

estimation of the project time, drawing and printing, one week.


3D printing settings

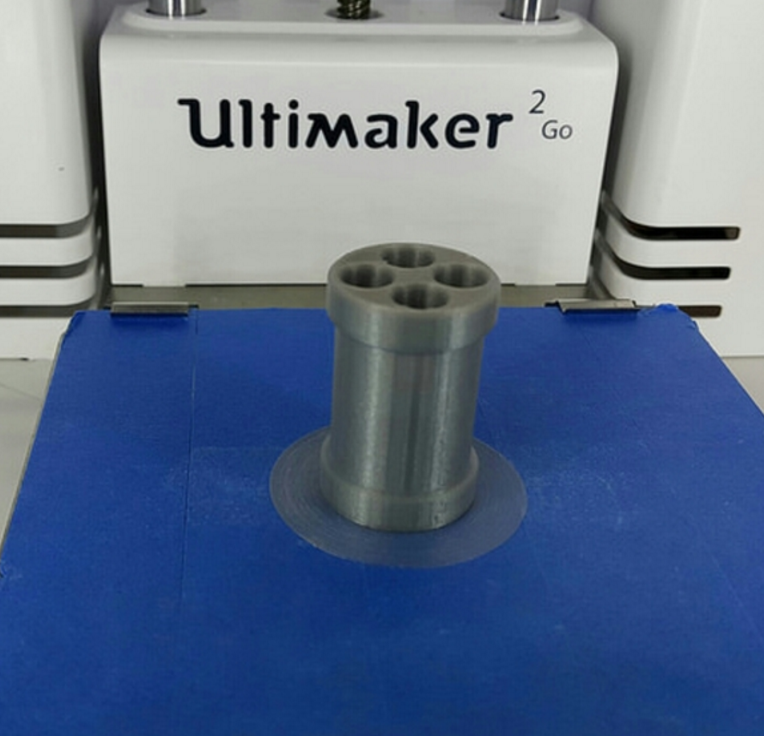

Printer Brand: Ultimaker
Printer: Ultimaker 2

3D printer file information

  • 3D design format: STL Folder details Close
    • axe_a.stl
    • corps_joint_konigs.stl
    • support_corps_a.stl
    • support_corps_b.stl

    Learn more about the formats

  • Publication date: 2016/08/19 at 18:16

License

CC BY NC ND

Creator

Designs 267
Downloads 45.3k
Sales US$15
Followers 931

Ancien chef d'entreprise, aujourd'hui à la retraite. Passionné d'impression 3D
