Isaac X Axis Opto Flag

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 80 views

3D model description

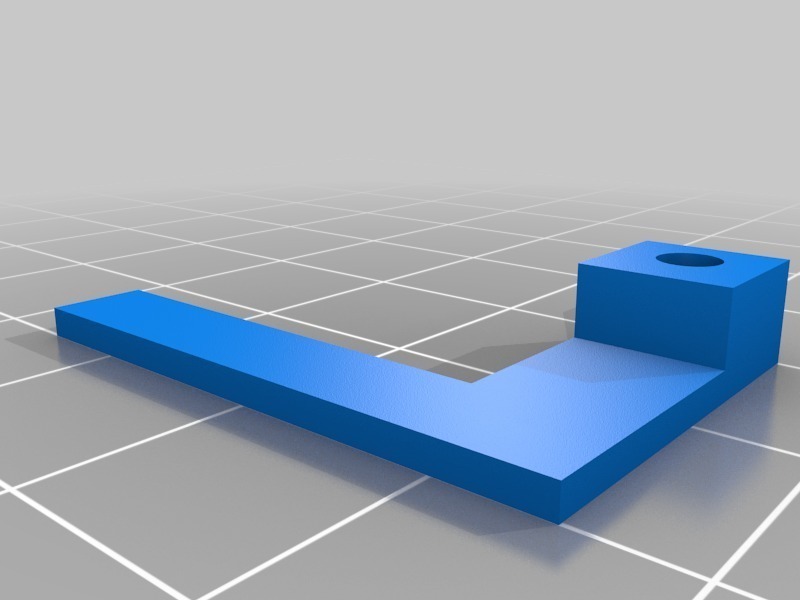

This is a printable X-Axis flag for my Fleming CNC Isaac. It will only work if you are using Adrian's Geared extruder driver as well. It is the first thing I have printed that I designed myself. It is the second functional thing I designed in openscad. The file is not easily parametric (no variables).

I am going to be posting my Z and Y brackets/flags for Isaac as well.

3D printing settings

I found wrapping in aluminum foil and heating with a lighter, followed my a cool down on a flat surface creates a strong bond with the PLA I am using to create a IR resistant surface.

It also shares one of the motor mount screws. I added one m4 washer between the flag and the motor bracket only because I am still dialing in my printer and the top spacing square got a little swirly.

  • 3D file format: SCAD and STL
  • Publication date: 2021/02/18 at 18:12
