iPhone 6 Plus Motorcycle Holder

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

I always wanted to build a proper iPhone holder for my motorcycle because buying a dedicated motorcycle sat nav is really expensive and there is usable software on the marked that complement the capabilities of an iphone well.

So, after I bought my Triumph Speed Triple 1050 I drove it back home and instantly got lost on the way. I hated to get off the bike, pull the iPhone out, check directions and do that same thing all over again for a couple of times.

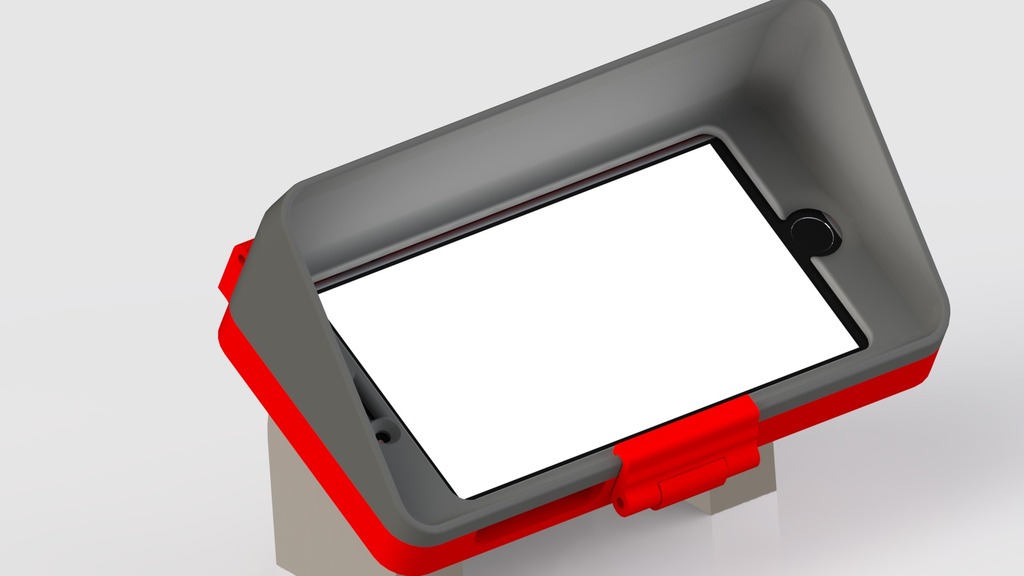

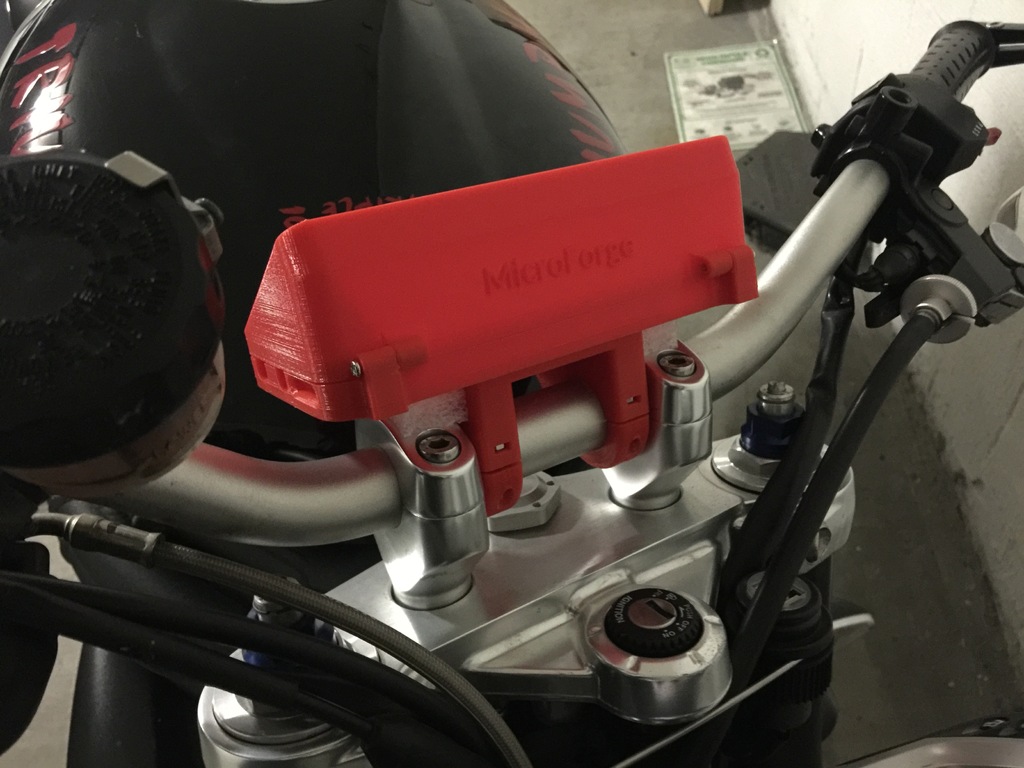

So I designed, printed and tested this holder and I really like it.

PLA or a similarly strong material is required due to the screw holes I used. ABS might fall apart in between the layers and I'm NOT responsible when you ruin your expensive phone with this! BE WARNED! THIS IS NOT A GOOD IDEA IN GENERAL! But it works for me. :)

The piece is designed to be a tight fit. For some reason my printer has a scaling problem, so I had to add some hot glue in order to fit my phone nicely. This also prevents the phone from vibrating.

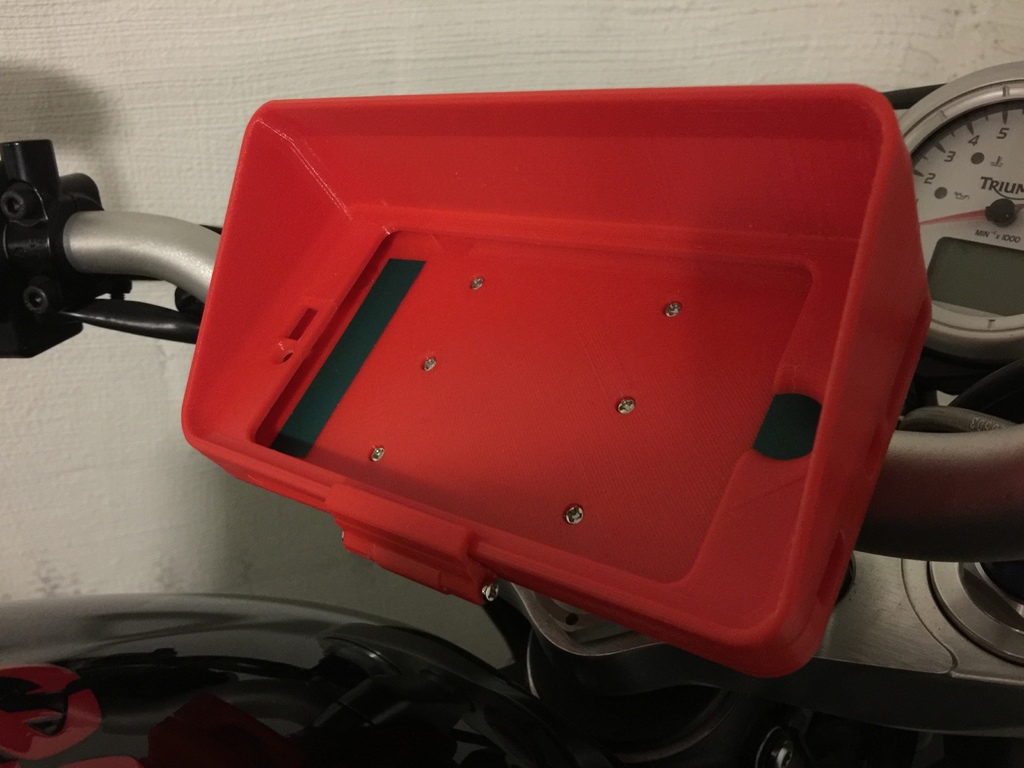

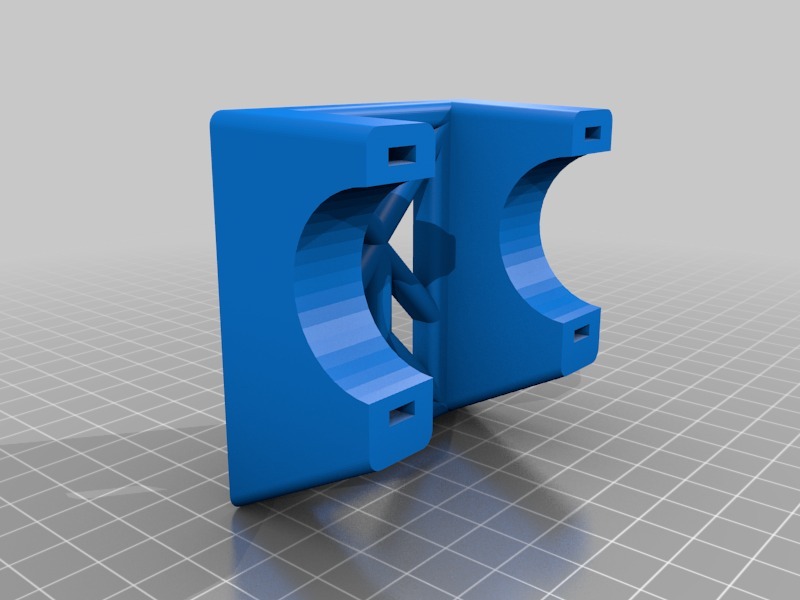

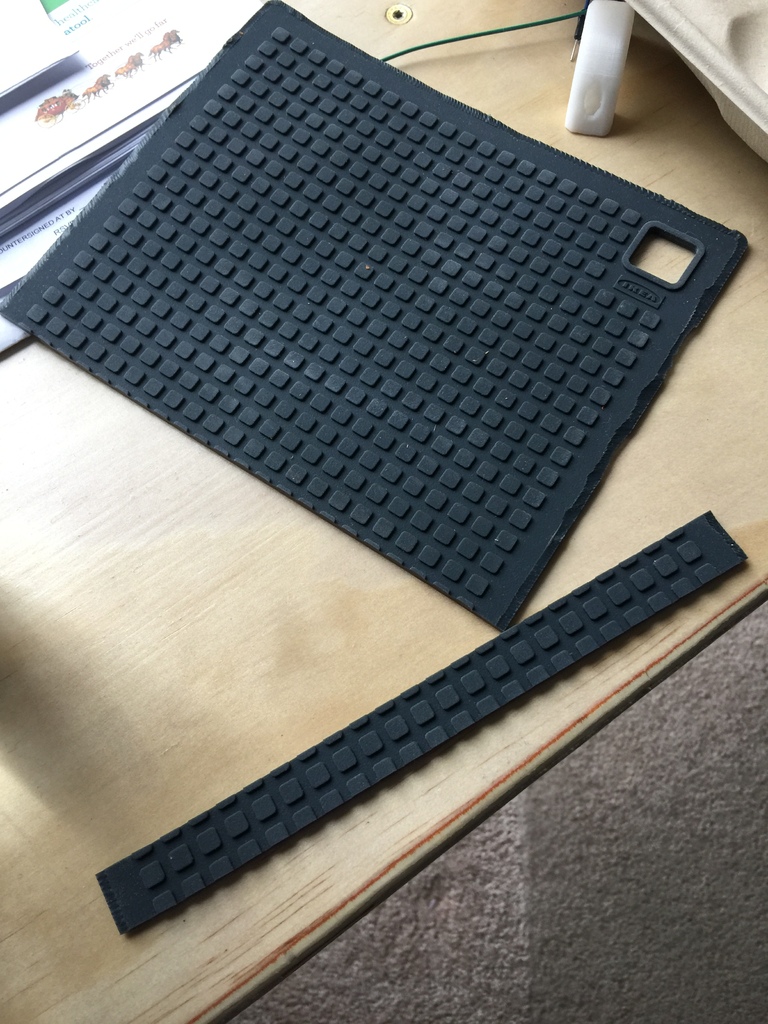

I used 4pc 3x20mm screws as well as 6pc 3x12mm screws to put the holder together. I also bought some silicone matt from IKEA (usually used to put a pot on a table - see pictures), cut the squares off on one side and used it to secure the complete mount on the handle bar using two big zipties.

Not waterproof!


3D printing settings

-

3D printer file information

  • 3D design format: Folder details Close

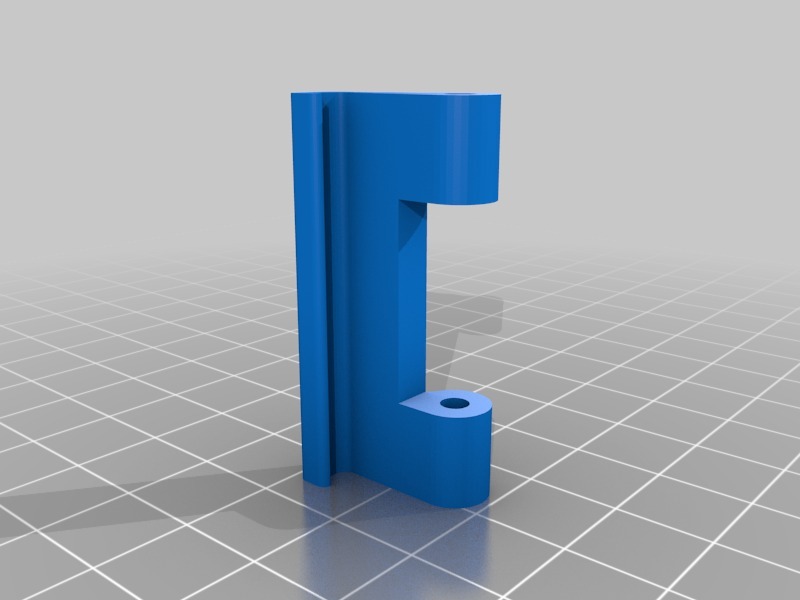

    • Clip.STL

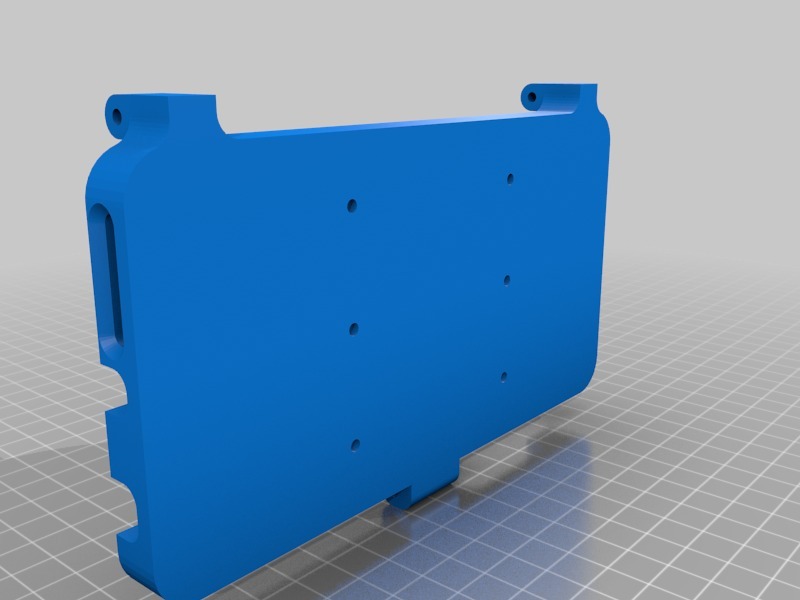

    • HolderBottomPlate_V2.STL
    • iPhone_Holder.STL
    • iPhone_Holder_Top.STL

    Learn more about the formats

  • Publication date: 2022-12-09 at 02:38
    ?
    Published to Thingiverse on: 2016-03-21 at 23:46

License

CC BY-NC - Attribution - Non commercial
