Ioniq 5 boot/trunk storage tray

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.5k views
  • 2 likes

3D model description

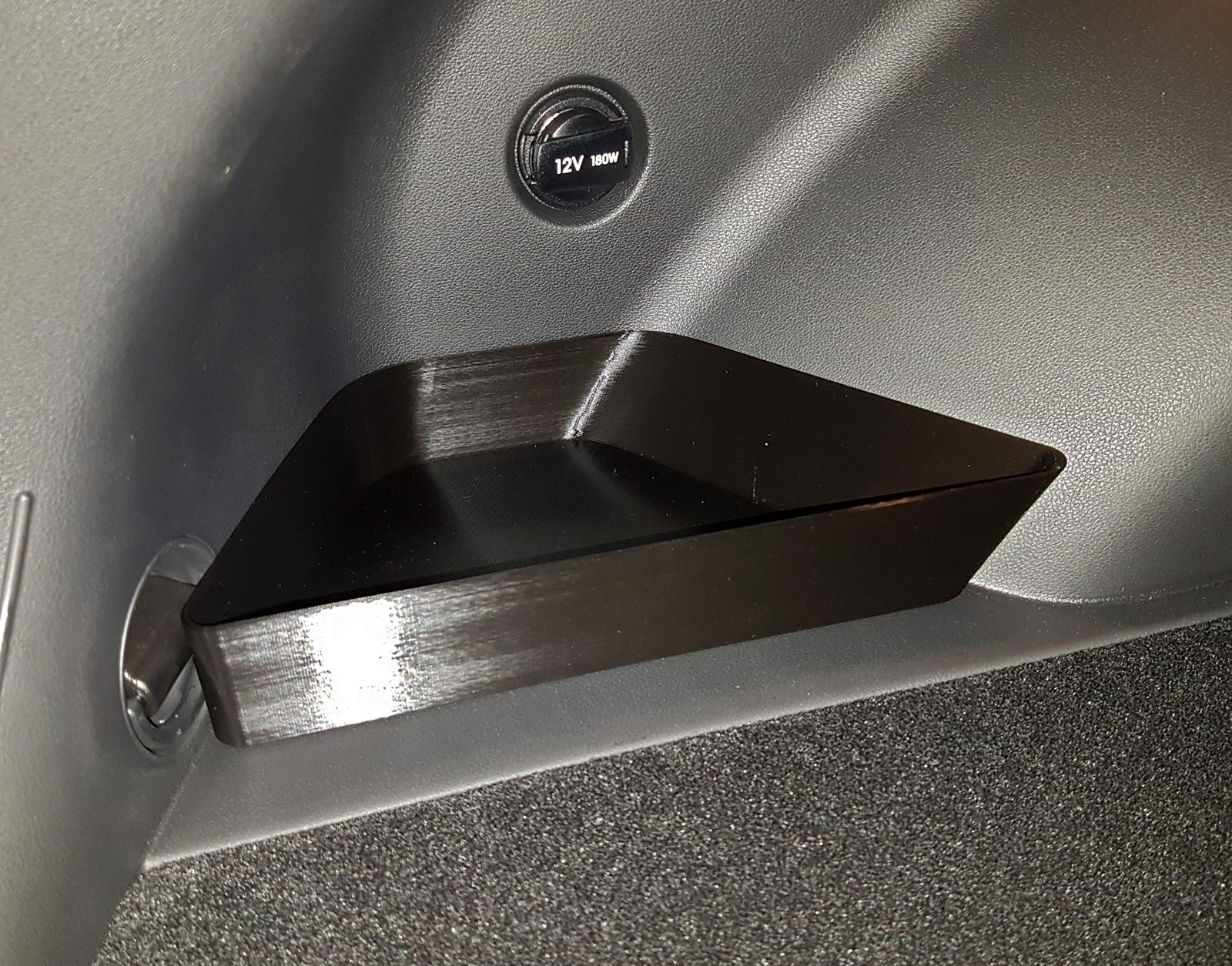

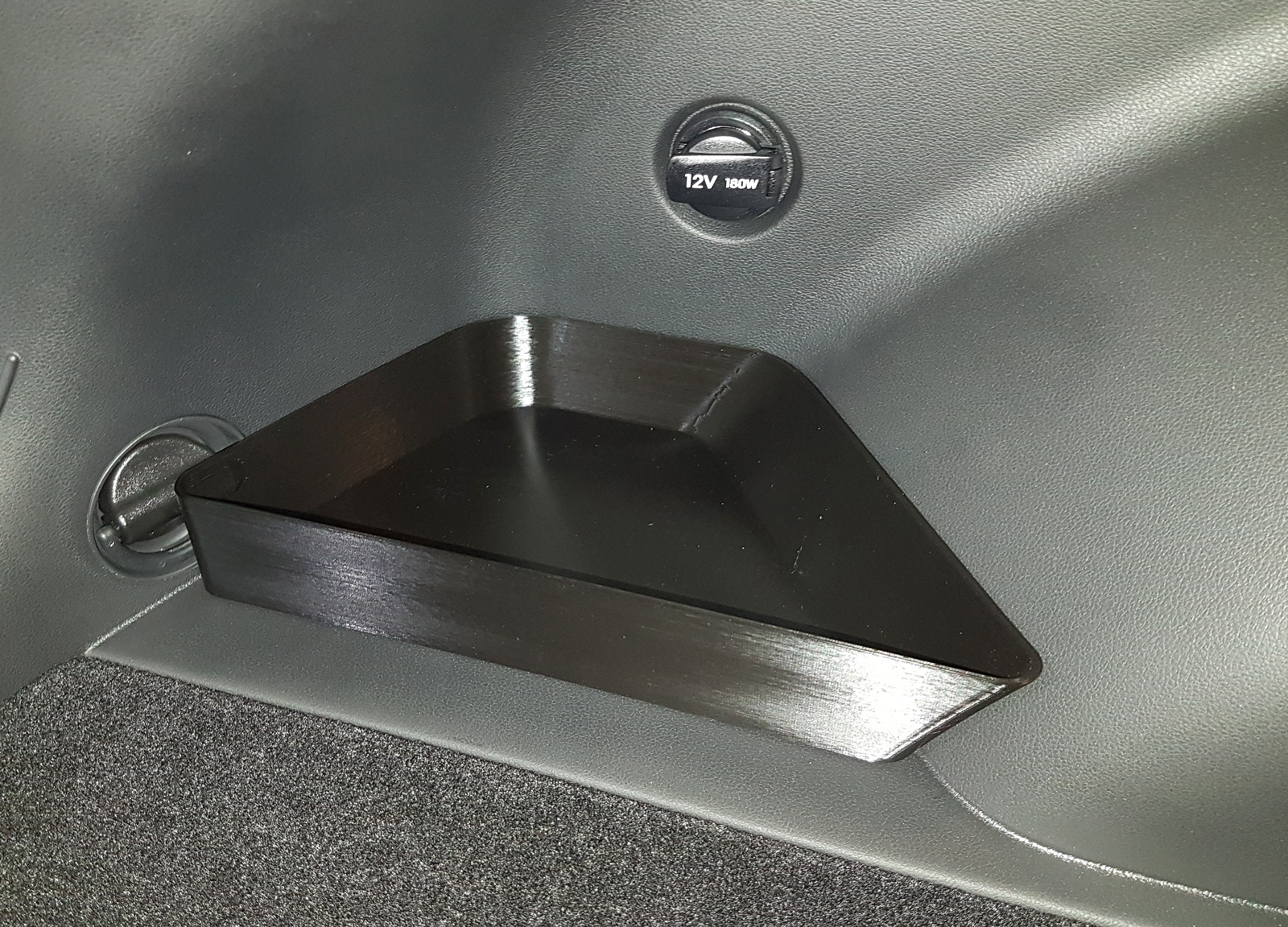

The Hyundai Ioniq 5 has a "bus stop"-shape pocket behind the left rear wheel arch in the boot (or trunk if you like that term better), which is well suited for a custom tray to hold small items.

I have designed such a tray, and it is shaped to perfectly fit this area, making it a very nice accessory for the car.

To keep the tray itself from sliding around, I would recommend self adhesive velcro tape, making it quick and easy to remove if necessary (for example if the cargo eyelet is in use), but double sided sticky tape is also an option.

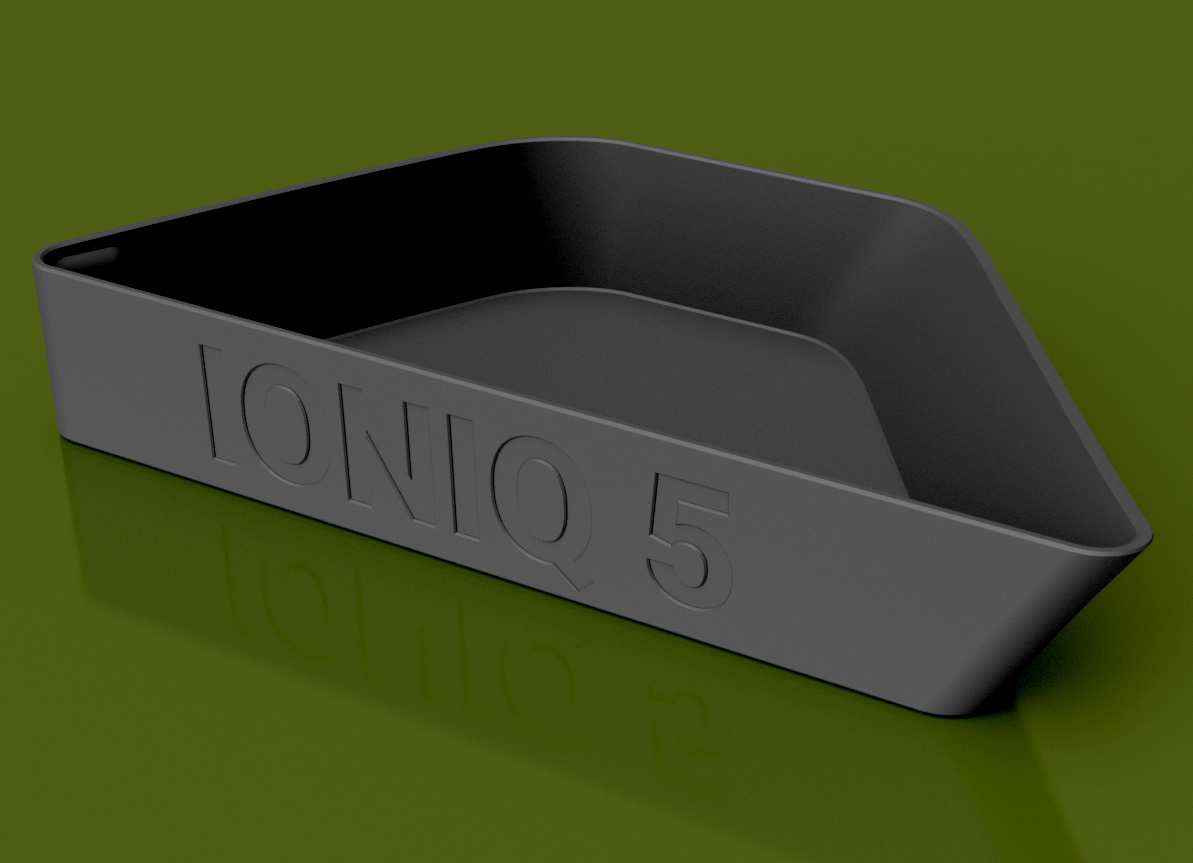

Three versions of the tray are available, regular versions with or without the text "IONIQ 5" embedded in the long side wall of the tray, and one version where the wall towards the open space is taller. Be aware that this also makes the wall somewhat weaker, and impacts could possibly cause breakage.


3D printing settings

Print with whatever layer height you prefer, just make sure to have enough top/bottom layers and perimeters to make it a solid object.

A short video to show the tray installed in a car:

https://www.youtube.com/watch?v=czNdrIK2aAQ

Note: If you purchase these files, you only have the right to make copies for personal use. You may not create copies for others.

3D printer file information

  • 3D design format: STL Folder details Close
    • tray.stl
    • tray_tall_wall_with_text.stl
    • tray_with_text.stl

    Learn more about the formats

  • Publication date: 2021/08/09 at 13:40

Copyright

©

Tags

Creator

Electronics hardware engineer by education, working as a software engineer.

Self-taught in 3D-design, and now fairly skilled at designing all kinds of items for 3D-printing.
